Product Type	Hedge Trimmer
Brand	Ferm
Model	FHT-600M (also known as HGM1002)
Voltage	230 V AC
Power Input	580 W
No-Load Speed	1600 rpm
Blade Length	600 mm
Maximum Cutting Thickness	20 mm
Weight	4.1 kg
Sound Pressure Level	89 dB(A)
Sound Power Level	102 dB(A)
Vibration Level	4 m/s²
Tool Class	II (Double Insulated)
Power Cord	Integrated with molded plug
ON/OFF Trigger	Two-hand safety start (press both triggers)
Safety Guard	Included, attached with 4 screws
Blade Cover	Included for storage
Additional Features	Power cord hanger, transport protection, cover fastening lock
Maintenance	Regular cleaning with soft cloth; no additional lubrication required
Guarantee	Separate guarantee card; cutter wear not covered

Frequently Asked Questions - HGM1002 Ferm

How do I switch on the Ferm HGM1002 hedge trimmer?

To switch on, press and hold the safety switch located on the handle, then simultaneously press the ON/OFF trigger. Release either button to stop.

What should I do if the hedge trimmer fails to operate?

Check that the power is turned on, the mains socket is working, the extension cable is not damaged, and the fuse is intact. Replace fuse if blown. If the problem persists, contact a service center.

Why does the hedge trimmer overheat?

Overheating is often caused by blocked air vents. Clean the ventilation slots to ensure proper airflow. Avoid prolonged use without breaks.

What should I do if the hedge trimmer cuts intermittently?

Check for a damaged extension cable or internal wiring issues. Replace the extension cable if damaged. If the problem continues, contact an authorized service center for internal inspection.

What is the maximum cutting thickness?

The maximum cutting thickness is 20 mm. Do not attempt to cut thicker branches as it may damage the blades or cause the machine to stall.

Can I use an extension cord with the hedge trimmer?

Yes, use an approved outdoor extension cord of at least 0.75 mm² cross-section, fully unwound. The cord must be three-core with earth (even though the tool is double insulated, the extension cord should be earthed). Secure the extension cord to the cord grip to prevent accidental disconnection.

How do I attach the safety guard?

Align the safety guard with the slots at the front/side of the body and secure it using the four self-tapping screws provided. Ensure it is firmly attached before use.

How should I maintain the blades?

Regularly clean the blades with a soft cloth. If the blades become dull or worn, have them replaced or sharpened by an authorized dealer. Do not use solvents for cleaning.

What safety precautions should I take when using the hedge trimmer?

Always wear safety glasses and gloves, use ear protection, and keep bystanders at least 5 meters away. Never use in rain or wet conditions. Disconnect the plug before any maintenance.

How should I store the hedge trimmer after use?

Clean the tool, fit the blade cover, and store in a dry location out of reach of children. Ensure the blade is not exposed and the power cord is neatly coiled.

USER MANUAL HGM1002 Ferm

UK Subject to change

Fig.1

Fig.2 Fig.3

Ferm 552 Ferm

SPARE PARTS LIST FHT-600M

FERM NR DESCRIPTION REF NR

501309 SWITCH 18

501310 BRUSH HOLDER 56,57

501311 BRUSH (SET OF 2) 58

501312 COVER SAFETY SWITCH 11

501313 HAND PROTECTION COVER 12

501314 UPPER BLADES 65

501315 LOWER BLADES 66

SAFETY AND OPERATING

INSTRUCTIONSFHT-600M

For your own safety and for the safety of others, please read these instructions carefully before using this appliance. Keep in a safe place for future reference.

Warning! Always read the instruction for electrical products carefully before use. It will help you understand your product more easily and avoid unnecessary risks.

Keep this instruction manual in a safe place for future use.

TECHNICAL SPECIFICATION

Model	FHT-600M
Voltage	AC 230 V
Input power	580 W
No load running speed	1600 rpm
Length of blade	600 mm
Tool class	II
Maximum cutting thickness	20 mm
Weight	4.1 kg
Sound pressure level	89 dB(A)
Sound power level	102 dB(A)
Outdoor noise	102 dB(A)
Vibration	4 m/s ^2

EXPLANATION OF SYMBOLS

CE In accordance with essential applicable safety standards of European directives.
Class II machine – Double insulation – You don't need any earthed plug.
Risk of damaging material and/or physical injuries.
Risk of an electric shock.
Read the instructions.
Do not expose to rain
Remove plug from the mains immediately if cable is damaged or cut
Keep bystanders away.

CONTENTS OF PACKING

I Main Body

1 Safety Guard

4 Screws

1 Blade cover

1 Instruction manual

1 Safety Instructions

I Warranty card

FEATURES

Fig.1

1.Power Cable

2.ON/OFF trigger

1. Power Cord Hanger

2. Cutting Blade

3. Safety Guard

4. Safety Switch

5. Transport protection

6. Cover Fastening Lock

SAFETYINSTRUCTIONS

- Dispose of plastic bags safely - they are a suffocation hazard for young children.

- Keep the area you are working in clean and tidy.

- If you are using a means of support to raise yourself off the ground, ensure that it is stable and cannot topple over - do not overreach at any time.

• Do not use power tools in the rain or wet

environments.

- Do not use power tools where there is a risk of fire or explosion - i.e. near flammable liquids or gases.

- Do not allow children into the area where you are working.

- Do not let children or other people touch power tools.

- Do not leave the power tool unattended.

- Store in a dry place well out of reach of children.

• Always use safety glasses and gloves. We also

recommend the use of ear protectors.

- Wear the right clothes - not loose fitting or jewellery and ensure garments cannot come into contact with moving parts.

- If you have long hair, tie it back safely to avoid tangling it in moving parts.

- Before using any power tool, check first for damaged parts and if found do not use it before the part or parts have been replaced with new ones.

- Do not use power tools when you are tired or have been drinking alcohol.

- Do not force the appliance - let it work at the rate for which it was intended.

- Do not overreach while working - you may lose your balance.

- Never use this appliance without the blade guard fitted. It must always remain fitted.

- Only use spare parts and attachments supplied by Ferm. Use of attachments other than those supplied or recommended by Ferm will invalidate your guarantee and could be dangerous.

- Only use this appliance for its intended purpose - trimming hedges and bushes.

• We strongly recommend the use of an RCD (Residual Current Device) of not more than 30 mA, at the plug socket when using this appliance.

• Only use spare parts and attachments supplied by Ferm. Use of attachments other than those supplied or recommended by Ferm will invalidate your guarantee and could be dangerous.
• Do not allow the power cord to lay on or across sharp objects that might pierce the outer insulation. Carry out a visual inspection of the power cord before use and if it is damaged, have it replaced by a specialist service centre. Do not use the appliance if the cord is damaged.

ABOVE ALL-BE CAREFUL!

MAINS PLUG REPLACEMENT

If you are in any doubt whatsoever regarding removing the old plug and reconnecting a new one, you should contact a competent electrician to do it for you.

• Disconnect the plug from the electric socket.
• Cut off the old plug and dispose of it safely. Under no circumstances should anyone be able to find and use a plug with exposed wires.
• Only fit an approved plug with the correctly rated fuse.
• Attach the cores (wires) to their respective terminals.

BROWN-L (Live) BLUE-N (Neutral)

Ensure the outer cable (sheath) is firmly clamped in place to avoid strain on the wires at the terminals.

Connecting to the Power Supply

Your trimmer is supplied with a non-rewireable moulded plug and cable, incorporating a fuse. Should the fuse need to be replaced at any time it must be replaced with an approved to BSI 362 fuse the same rating as the one you are replacing. The fuse cover is detachable. Never use the plug with the cover off.

Warning! This appliance is double insulated and MUST NOT BE EARTHED.

If you have to rewire the plug at any time please connect as follows:
Attach the blue cable (Neutral) to the terminal marked N or coloured black or blue.
Attach the brown cable (Live) to the terminal marked L or coloured red or brown.

DOUBLE INSULATED

This power tool is double insulated. All the external parts are insulated from the mains power supply. This makes it unnecessary for this power tool to be earthed.

Using Extension cables

All electrical connections e.g. extension cable, must be of an approved waterproof type for outdoor use and marked accordingly. Extension cables must be three-core, one of which is EARTH. As a supply for this machine always use an extension cable of at least 0.75 mm².

Always fully unwind extension cables before use. SPECIFIC SAFETY WARNINGS

Attention: Danger!

• The cutting elements continue to move after the motor is switch off.
- If the cord becomes damaged during use, disconnect the cord from the power supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the appliance if the appliance cord or the extension cord are damaged.
- Keep extension cord away from cutting elements. - Always ensure the guards are fitted when using the tool.
- Check the cable for damage before starting work and replace if necessary.
- Inspect and maintain the trimmer regularly. Have the trimmer repaired only by an authorised repairer.
- Keep your hands and feet away from the cutting area at all times.
• Always hold the trimmer at a safe distance from the body.
• Always wear protective goggles.
• Always wear gloves.
• Only use the trimmer in daylight.
- Ensure the ventilation openings are clear of debris at all times.
- Ensure there are no people of animals within 5 metres of your trimming area.
- Remove the plug from the power socket before attempting any maintenance.
• After use the tool should be stored so that the blade is not exposed.

OPERATING INSTRUCTIONS

ASSEMBLY

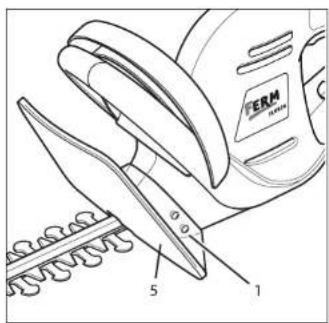

Attach the safety guard (5) at the front/side of the body in the positions shown. Attach it using the four self-capping screws (1) supplied.

USING THE CORD GRIP

To help secure the plug to the extension cord, make a loop in the extension cord and attach it to the cord grip as shown (see fig. 3). Once secure, attach the cord to the plug. This will prevent accidental 'pull-out'.

USING YOUR HEDGE TRIMMER

For your own safety and for best results read the following user advice and do not use this product for anything other than its intended purpose.

Switching ON and OFF

Fig.
• To switch the trimmer on, press the ON/OFF trigger (6) and the start switch (2) at the same time.
• To switch off, release one or both switches.

Note: If you notice a slight burning smell, it is nothing to worry about. It is the electric brake working.

Ideally a hedge should be wider at the bottom than the top. This will improve light penetration, keeping the hedge healthy. If possible, trim both sides of the hedge. When trimming the sides of the hedge, trim from the bottom upwards. This will ensure there are no hedge trimmings obscuring or interfering with your cut strokes.

The blade should not be forced to cut too deep. Cut lightly through the surface of the hedge. When trimming the top of the hedge, trim away from you but do not over-reach. It is much wiser and safer to move along and cut within your reach remaining on two feet at all times.

Warning! Do not let the blade come into contact

with wire meshing or fencing material. It could

damage the material and your trimmer.

TROUBLESHOOTING

The following table gives checks and actions that you can perform if your machine does not operate correctly. If this don't identify/remedy the problem, contact your service centre.

Warning! Switch off and remove the plug from

the mains before investigating a fault.

1. Machine fails to operate

• Power turned off

Turn power on

- Mains socket faulty

Use another socket

• Extension cable damaged

Inspect cable, replace if damaged

- Fuse faulty/blown

Replace fuse

1. Machine overheats

• Air vents blocked

Unblock air vents

1. Machine functions intermittently

• Extension cable damaged

Inspect cable, replace if damaged

• Machines internal wiring damaged

Contact service centre

1. Machine does not cut

• Cutting objects too thick

See specification table for maximum cutting

thickness

- Blades worn

Get blades replaced or sharpened

Should you experience any problems at all with this product or require spare parts, ring your nearest authorized dealer.

MAINTENANCE

Make sure that the machine is not live when

carrying out maintenance work on the motor.

The Ferm machines have been designed to operate over

a long period of time with a minimum of maintenance

Continuous satisfactory operation depends upon

proper machine care and regular cleaning.

Cleaning

Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt.

If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Lubrication

The machine requires no additional lubrication.

Faults

Should a fault occur, e.g. after wear of a part, please

contact your local Ferm dealer.

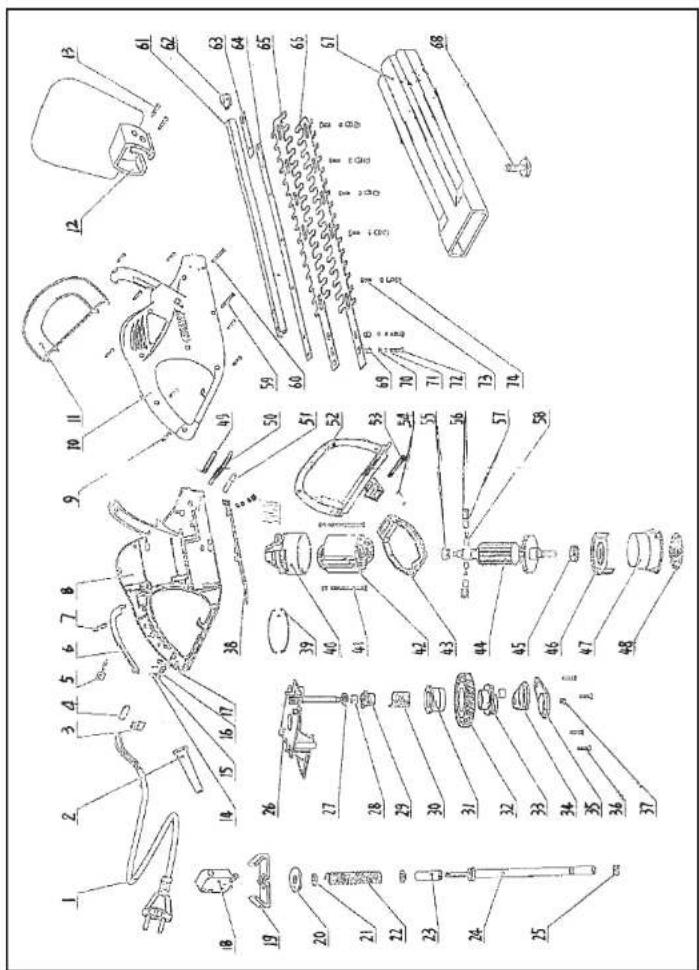

In the back of this manual you find an exploded view showing the parts that can be ordered.

ENVIRONMENT

In order to prevent the machine from damage during transport, it is delivered in a sturdy packaging. Most of the packaging materials can be recycled. Take these materials to the appropriate recycling locations.

Take your unwanted machines to your local Ferm-dealer. Here they will be disposed off in an environmentally safe way.

GUARANTEE

The guarantee conditions can be found on the separately enclosed guarantee card.

Wear of the cutter is not covered by the guarantee.

CE DECLARATION OF CONFORMITY (UK)

We declare under our sole responsibility that this product conforms with the following standards or standardised documents:

EN 50144-1, EN 50144-2-15, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3

in accordance with regulations:

98/37/EEC, 73/23/EEC, 89/336/EEC

01-01-2004

ZWOLLENL

W. Kamphof

Quality Department

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm B.V, Zwolle, The Netherlands
