Product Type	Color Laser Printer
Print Technology	Kyocera ECOSYS (Laser)
Print Speed (Color & Mono)	Up to 26 ppm (A4)
Print Resolution	600 x 600 dpi, Fine 1200 x 1200 dpi
Processor	ARM Cortex-A9 800 MHz
Memory	256 MB (standard)
Paper Input Capacity	250-sheet cassette + 50-sheet multipurpose tray
Paper Output Capacity	150 sheets face-down
Duplex Printing	Automatic (standard)
Interface	USB 2.0, 10/100 Base-TX Ethernet
Display	2-line LCD with backlight
Supported Operating Systems	Windows, macOS, Linux (CUPS)
Toner Cartridges	TK-5244K (black), TK-5244C/M/Y (color), yields approx. 2,600 pages each
Monthly Duty Cycle	Up to 50,000 pages
Dimensions (W x D x H)	410 x 410 x 320 mm (16.1 x 16.1 x 12.6 in)
Weight	Approx. 19 kg (41.9 lbs)
Power Consumption (Typical)	320 W (printing), 0.9 W (sleep)
Noise Level (Printing)	48 dB(A) (color), 47 dB(A) (mono)
Security Features	Energy Star certified, secure print, network authentication
Maintenance	Replace toner, waste toner box, maintenance kit (e.g., transfer belt, fuser) as needed
Repairability	User-replaceable toner and waste box; professional service for other parts

Frequently Asked Questions - ECOSYS P5026cdn/KL3 KYOCERA

How do I load paper into the cassette?

Pull out the cassette, remove the cover, adjust paper guides to the paper size, load paper (max 250 sheets) with the print side down, close the cover, and reinsert the cassette. Then set the paper type and size via the printer menu.

How do I clear a paper jam?

Open the front cover, remove the toner cartridges if necessary, carefully pull out any jammed paper from the rollers or fuser area. Check the cassette, multipurpose tray, and rear cover for additional paper. Refer to the jam indicator on the display for location.

How do I connect the printer to a network?

Connect an Ethernet cable from the printer's network port to your router. On the printer panel, press [Menu] > [Network] > [TCP/IP] and configure IP address settings (DHCP is default). Install the driver on your computer and select the network printer.

How do I replace a toner cartridge?

Open the front cover, unlock the toner cartridge (pull the lock lever), remove the old cartridge, shake the new cartridge gently side to side to distribute toner, insert it into the correct slot (match color), lock it, close the cover. The printer will automatically reset the toner level.

How do I enable duplex (double-sided) printing?

On the printer menu, go to [Menu] > [System] > [Duplex] and set to On. In the printer driver, select the duplex option (long edge or short edge flip). Ensure paper is loaded in the cassette (duplex not supported from multipurpose tray).

How can I check the toner levels?

On the printer panel, press [Menu] > [Status] > [Toner Levels] to view each color. Alternatively, open Status Monitor on your computer (if installed) to see toner percentages.

Can I print from a mobile device?

Yes, support Mopria Print Service (Android) and AirPrint (iOS). Ensure the printer is on the same network as your mobile device. For direct wireless connection, you may need an optional Wi-Fi module (not included).

How do I reset the printer to factory settings?

Press [Menu] > [System] > [Reset] > [Factory Defaults] and confirm. The printer will restart with factory settings. Note that network settings and custom parameters will be lost.

How do I clean the printer?

Turn off the printer and unplug it. Use a soft, dry cloth to wipe the exterior. For the inside, open the front cover and gently clean the transfer roller and any toner dust with a lint-free cloth. Do not use solvents or water.

What should I do if the printer shows 'Offline' on my computer?

Check that the printer is powered on and connected to the network (check the Ethernet cable or Wi-Fi). On your computer, go to Devices and Printers, right-click the printer, and select 'See what's printing' then ensure 'Use Printer Offline' is unchecked. Restart both the printer and computer if needed.

USER MANUAL ECOSYS P5026cdn/KL3 KYOCERA

Exterior view of a white KYO CERA printer (no visible text or symbols on body)

Indledning

Isometric line drawing of a 3D block with a small rectangular cutout and a black arrow pointing to a labeled section (no text or symbols on the diagram itself)

Energy Star-programmet (ENERGY STAR®) 1-11

Command Center RX 2-33

Adgang Command Center RX 2-34

Kontekstmenuen for Status Monitor 4-13

Indstillinger for besked for Status Monitor 4-14

Simple diagram showing a device with a speaker icon and sound waves, no text or symbols present.

Command Center RX (side 2-33)

Energy Star-programmet (ENERGY STAR®) 1-11

Generel bemærkning

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

EN ISO 7779

Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Original SSLeay License

Copyright (C) 1995-1998 Eric Young ([e-mail]) All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]). The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, Ihash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed.

If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used.

This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young ([e-mail])"
   The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson ([e-mail])"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

Monotype Imaging License Agreement

1 Software shall mean the digitally encoded, machine readable, scalable outline data as encoded in a special format as well as the UFST Software.
2 You agree to accept a non-exclusive license to use the Software to reproduce and display weights, styles and versions of letters, numerals, characters and symbols (Typefaces) solely for your own customary business or personal purposes at the address stated on the registration card you return to Monotype Imaging. Under the terms of this License Agreement, you have the right to use the Fonts on up to three printers. If you need to have access to the fonts on more than three printers, you need to acquire a multiuser license agreement which can be obtained from Monotype Imaging. Monotype Imaging retains all rights, title and interest to the Software and Typefaces and no rights are granted to you other than a License to use the Software on the terms expressly set forth in this Agreement.
3 To protect proprietary rights of Monotype Imaging, you agree to maintain the Software and other proprietary information concerning the Typefaces in strict confidence and to establish reasonable procedures regulating access to and use of the Software and Typefaces.
4 You agree not to duplicate or copy the Software or Typefaces, except that you may make one backup copy. You agree that any such copy shall contain the same proprietary notices as those appearing on the original.
5 This License shall continue until the last use of the Software and Typefaces, unless sooner terminated. This License may be terminated by Monotype Imaging if you fail to comply with the terms of this License and such failure is not remedied within thirty (30) days after notice from Monotype Imaging. When this License expires or is terminated, you shall either return to Monotype Imaging or destroy all copies of the Software and Typefaces and documentation as requested.
6 You agree that you will not modify, alter, disassemble, decrypt, reverse engineer or decompile the Software.
7 Monotype Imaging warrants that for ninety (90) days after delivery, the Software will perform in accordance with Monotype Imaging-published specifications, and the diskette will be free from defects in material and workmanship. Monotype Imaging does not warrant that the Software is free from all bugs, errors and omissions.
The parties agree that all other warranties, expressed or implied, including warranties of fitness for a particular purpose and merchantability, are excluded.
8 Your exclusive remedy and the sole liability of Monotype Imaging in connection with the Software and Typefaces is repair or replacement of defective parts, upon their return to Monotype Imaging.
In no event will Monotype Imaging be liable for lost profits, lost data, or any other incidental or consequential damages, or any damages caused by abuse or misapplication of the Software and Typefaces.
9 Massachusetts U.S.A. law governs this Agreement.

10 You shall not sublicense, sell, lease, or otherwise transfer the Software and/or Typefaces without the prior written consent of Monotype Imaging.
11 Use, duplication or disclosure by the Government is subject to restrictions as set forth in the Rights in Technical Data and Computer Software clause at FAR 252-227-7013, subdivision (b)(3)(ii) or subparagraph (c)(1)(ii), as appropriate. Further use, duplication or disclosure is subject to restrictions applicable to restricted rights software as set forth in FAR 52.227-19 (c)(2).
12 You acknowledge that you have read this Agreement, understand it, and agree to be bound by its terms and conditions. Neither party shall be bound by any statement or representation not contained in this Agreement. No change in this Agreement is effective unless written and signed by properly authorized representatives of each party. By opening this diskette package, you agree to accept the terms and conditions of this Agreement.

Energisparefunktion

Energy Star-programmet (ENERGY STAR®)

Command Center RX 2-33

Adgang Command Center RX 2-34

Illustration of a generic printer with a paper feeding mechanism, labeled with number 1 (no text or symbols on the device itself)

Technical line drawing of a mechanical device with labeled parts (no text or symbols beyond annotations)

1 Kassette 2

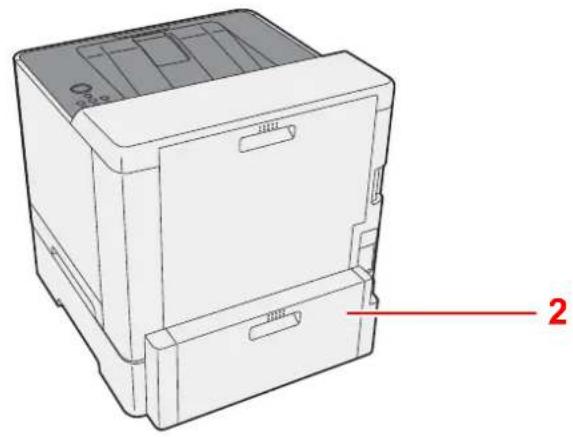

2 Bagdæksel 2

Illustration of a printer with a blue circular button and directional arrow, no text or symbols present

Slukning

Illustration of a printer with a blue circular button and arrow pointing to its side (no text or symbols present)

11 Indstil standard gateway.

BEMÆRK

BEMAERK

Illustration of a hand holding a CD next to a laptop displaying a small diagram (no text or symbols present)

BEMÆRK

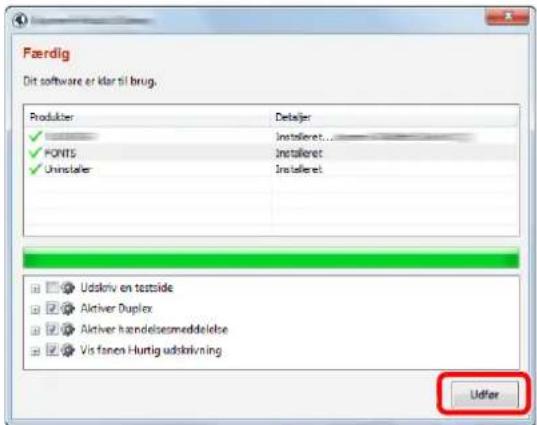

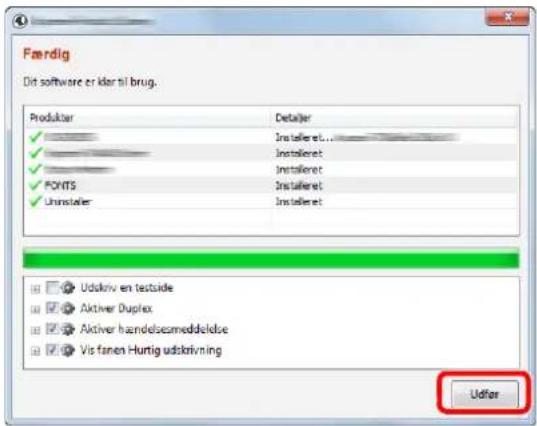

5 Afslut installationen.

Illustration of a hand holding a CD next to a laptop displaying a small diagram (no text or symbols present)

BEMAERK

5 Afslut installationen.

Illustration of a hand holding a CD next to a laptop displaying a small diagram (no text or symbols present)

3 Vælg driveren i "Udskriv med".

BEMÆRK

Hvis skæmbilledet "There is a problem with this website's security certificate." vises, skal certifikatet konfigureres.

Command Center RX User Guide

BEMÆRK

Illustration showing two hand gestures: one folding a stack of papers with an arrow, the other holding a closed book with a striped pattern (no text or symbols)

Diagram showing a printer with a blue plastic case and an arrow indicating the process (no text or symbols present)

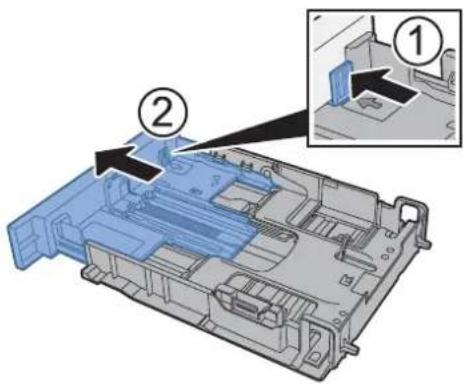

Ved brug af Folio, Oficio II eller Legal

BEMÆRK

3D mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

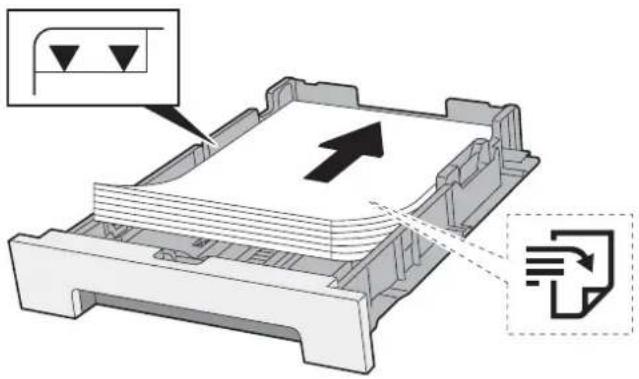

4 Læg papir.

Technical diagram of a mechanical assembly with directional arrows and a paper icon (no text or symbols)

BEMAERK

Diagram of a mechanical component with a blue base and directional arrow indicating motion (no text or symbols)

VIGTIGT

Diagram of a computer monitor with a blue cover and black arrow pointing to the front panel (no text or symbols present)

BEMAERK

Når Folio, Oficio II, eller Legal anvendes, vil kassetten stikke ud af maskinen.

Diagram of a computer monitor with a blue plastic clip attached to the front panel, showing no text or symbols.

6 Vis skærmen.

[Menu] tast > [▲] [▼] tast > [Papirindstillinger] > [▶] tast > [▲] [▼] tast > [Kassette 1 format] > [▶] tast

7 Konfigurér funktionen.

Diagram showing a printer with a blue plastic tray and an arrow indicating process (no text or symbols present)

4 Læg papir.

3D diagram of a mechanical assembly with directional arrows and a dashed outline indicating a process or component (no text or symbols present)

VIGTIGT

Diagram of a printer's front panel with a blue base and arrow indicating the bottom portion (no text or symbols present)

6 Vis skærmen.

[Menu] tast > [▲] [▼] tast > [Papirindstillinger] > [▶] tast > [▲] [▼] tast > [Kassette 2 format] > [▶] tast

7 Konfigurér funktionen.

Kontekstmenuen for Status Monitor 4-13

Indstillinger for besked for Status Monitor 4-14

1 Fanebladet Udskriftsfremskridt
2 Fanebladet Papirbakkestatus
3 Fanebladet Tonerstatus
4 Fanebladet Alarm
5 Knappen udvid
6 Ikonet indstillinger

Detaljerede oplysninger vises ved at klikke på hver ikonfane.

Alarmfanen

Indstillinger for besked for Status Monitor (side 4-14)

• www.kyoceradocumentsolutions.com

Åbn vores webside.

• A f s l u t

Lukker Status Monitor.

Indstillinger for besked for Status Monitor

Two-step illustration of a printer's internal structure showing the open and closed states, with no visible text or symbols.

Diagram of a printer with an arrow indicating direction, showing internal components and a magnified inset of the printer's side view (no text or symbols present)

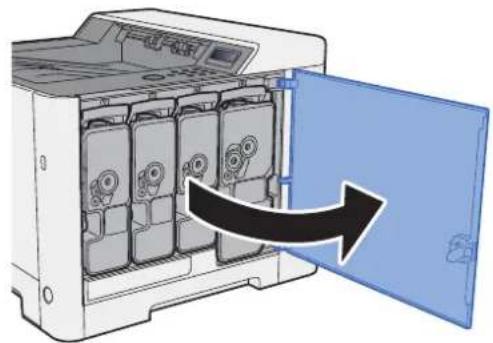

ECOSYS P5021cdn/ECOSYS P5021cdw

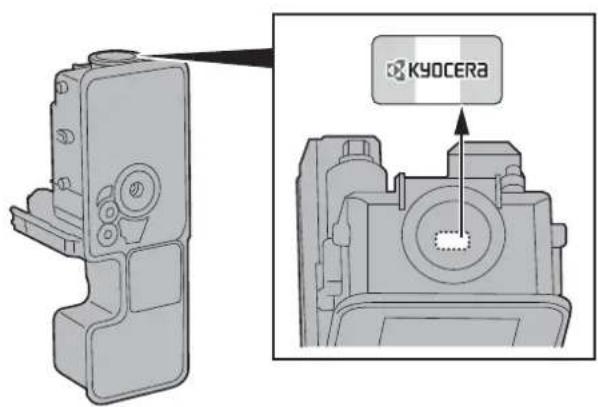

der findes to slags tonerbeholdere.

Illustration of a printer with a black arrow pointing to the left side (no text or symbols present)

Illustration of a printer's internal structure with a blue door open, showing no text or symbols on the device itself.

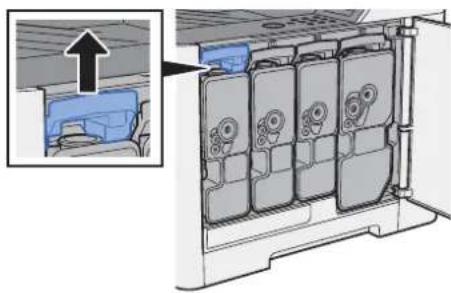

2 Lås tonerbeholderen op.

Diagram of a device interior showing internal compartments with no visible text or symbols

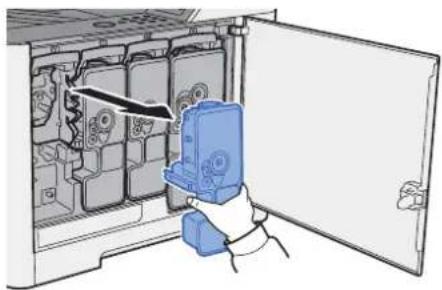

3 Fjern tonerbeholderen.

Illustration of a computer interface with an open door and a blue plastic device inserted (no text or symbols visible)

Diagram of a mechanical component inside a transparent casing, showing internal structure and flow direction (no text or symbols)

3D mechanical part diagram showing a wireframe box and its 3D model (no text or symbols)

VIGTIGT

6 Ryst tonerbeholderen.

Illustration of a hand holding a blue mechanical device with arrows indicating motion or force direction (no text or symbols)

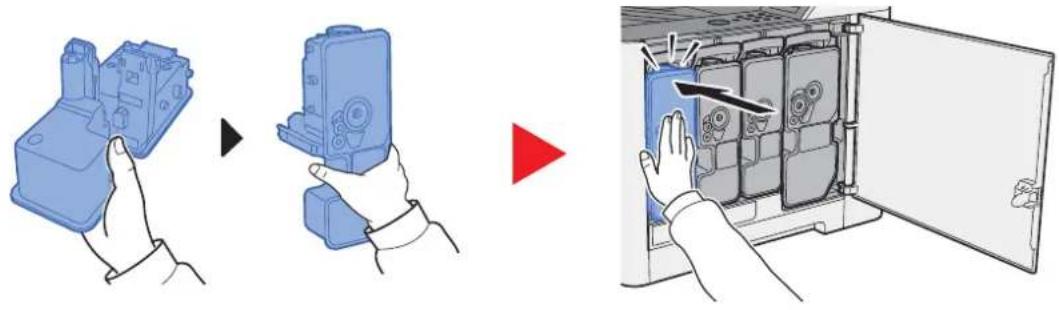

7 Installér tonerbeholderen.

Illustration showing three-step assembly process: hand holding a blue plastic housing, adding a component to a blue case, and inserting into a device with visible gears and buttons (no text or symbols)

Diagram of a computer oven with a blue interior and a black arrow indicating rotation (no text or symbols)

BEMAERK

Technical diagram of a mechanical assembly with directional arrows and component outlines (no text or symbols)

VIGTIGT

4 Vis korrektionsmenuen

[Menu] tast > [▲] [▼] tast > [Juster/vedligeholdelse] > [▶] tast > [▲] [▼] tast > [Registrering Normal] > [▶] tast > [▲] [▼] tast > [Juster magenta] > [OK] tast Der vises menuen for magenta korrektion.

Technical diagram of a mechanical assembly with directional arrows and component outlines (no readable text or symbols)

VIGTIGT

1 Viser placeringen af papirstop.

BEMAERK

Diagram showing a printer with a blue plastic tray and an arrow pointing to it, no text or symbols present.

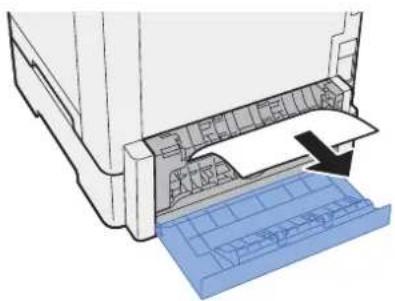

2 Fjern eventuelt fastsiddende papir.

Diagram of a printer with a paper being inserted, showing paper roll and arrow (no text or symbols)

Fjern papirstop i kassette 2

FORSIGTIG

Illustration of a printer with a paper feed insert and a blue paper tray, showing internal structure without any text or symbols.

2 Fjern eventuelt fastsiddende papir.

Diagram of a printer's internal structure showing paper feed and paper tray (no text or symbols)

Diagram of a blue rectangular object with an arrow indicating rotation or movement, no text or symbols present

Diagram showing a printer with a blue plastic tray and an arrow indicating process (no text or symbols present)

5 Fjern eventuelt fastsiddende papir.

Diagram of a printer with paper being inserted, showing paper flow direction (no text or symbols)

Fjern papirstop i multifunktionsbakken

FORSIGTIG

Illustration of a printer with paper being inserted, showing internal components and a paper sheet (no text or symbols)

Diagram of a printer's internal structure showing paper feeding into a printer (no text or symbols visible)

Illustration of a computer monitor with a blue screen displaying a white arrow pointing up (no text or symbols)

3D diagram showing a blue plastic tray and a mechanical component with an arrow pointing to a component (no text or symbols)

Diagram showing two views of a device with internal components and a red play button, no text or symbols present.

6 Fjern eventuelt fastsiddende papir.

Diagram of a printer or printer with paper being inserted, showing paper sheet and paper holder (no text or symbols)

Diagram of a device with an open panel showing internal layout and a cursor pointing to a blue object (no text or symbols present)

Diagram of a computer monitor with a blue base and arrow pointing to the front panel (no text or symbols)

Diagram of a printer's internal structure showing paper feeding into a printer (no text or symbols visible)

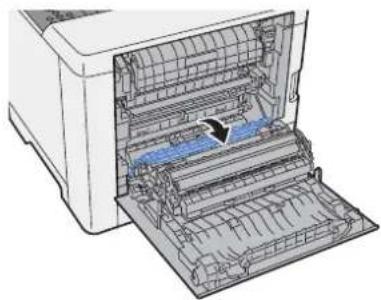

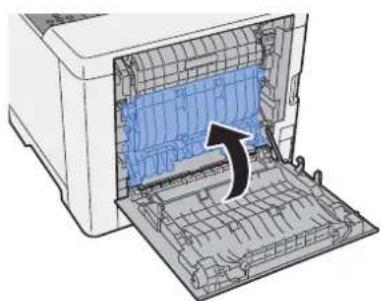

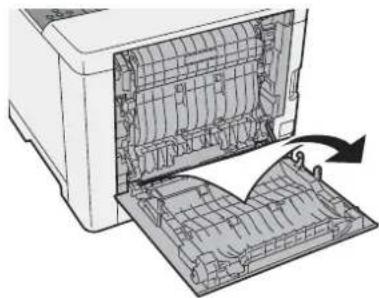

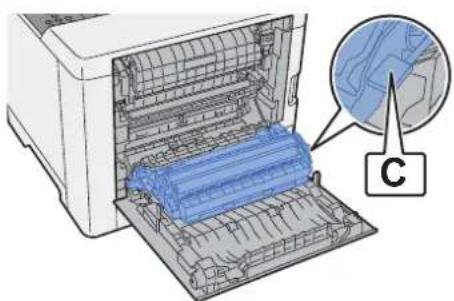

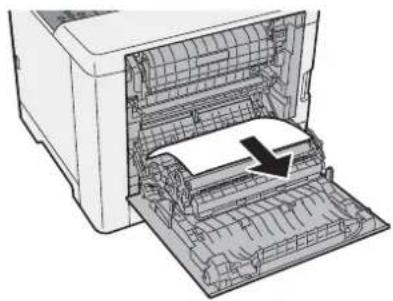

Fjern papirstop i bagdæksel 1

FORSIGTIG

Diagram of a printer with a blue plastic cover being inserted, showing internal structure and a black arrow indicating the process (no text or symbols present)

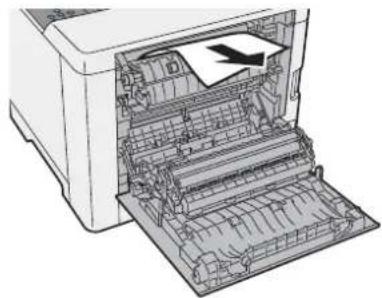

2 Fjern eventuelt fastsiddende papir.

Diagram of a printer with an open paper feed into the output, showing internal structure and a black arrow indicating a component (no text or symbols present)

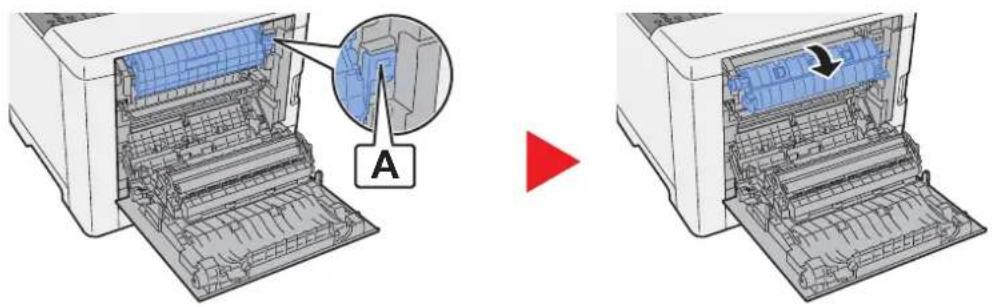

3 Åbn dæksel (A).

4 Fjern eventuelt fastsiddende papir.

Line drawing of an open printer with internal components and a paper airplane flying out (no text or symbols)

Diagram of a printer internal structure showing internal components and a magnified view of the printer's internal structure (no text or symbols present)

Diagram of a printer with an open lid showing internal structure and a blue arrow indicating a component (no text or symbols present)

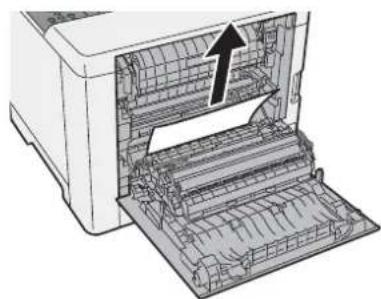

6 Fjern eventuelt fastsiddende papir.

Diagram of a printer with internal structure and an arrow indicating a process (no text or symbols present)

7 Åbn duplexenheden (C).

Diagram of a printer's internal structure showing internal components and a magnified view of the lid (no text or symbols present)

Diagram of an open printer with a blue internal component and a black arrow indicating the part (no text or symbols present)

8 Fjern eventuelt fastsiddende papir.

Diagram of a printer with internal structure and external frame, showing no text or symbols

9 Skub bagdæksel 1.

Illustration of a printer with a blue cover and an arrow symbol on the front panel (no text or labels)

7 Tillæg

Software tilbehør

(3) UG-33

(4) SD/SDHC Memory Card

Specifikationer

VIGTIGT

Command Center RX 2-33

D

Dokumentføder

Maskinens dele 2-2

E

Energy Star (ENERGY STAR®) Program 1-11

F

Monotype Imaging License Agreement 1-9

Mopria 4-10

Tonerbeholder (Cyan) 2-4

Tonerbeholder (Magenta) 2-4

Tonerbeholder (Sort) 2-4

Tonerbeholder (Yellow) 2-4

Tænding 2-8

U

KYOCERA Document Solutions (U.K.) Limited

Eldon Court, 75-77 London Road,

Reading, Berkshire RG1 5BS,

United Kingdom

Phone: [phone]

Fax: [phone]

KYOCERA Document Solutions Italia S.p.A.

Via Monfalcone 15, 20132, Milano, Italy

Phone: [phone]

Fax: [phone]

KYOCERA Document Solutions Belgium N.V.

Sint-Martinusweg 199-201 1930 Zaventem,

Belgium

Phone: [phone]

Fax: [phone]

KYOCERA Document Solutions France S.A.S.

Phone: [phone]

Fax: [phone]

KYOCERA Document Solutions Espana, S.A.

South Africa (Pty) Ltd.

KYOCERA House, Hertford Office Park,

90 Bekker Road (Cnr. Allandale), Midrand, South Africa

Phone: [phone]

Fax: [phone]

KYOCERA Document Solutions Russia LLC.

Building 2, 51/4, Schepkina St., 129110, Moscow,

Russia

Phone: [phone]

Fax: [phone]

KYOCERA Document Solutions Middle East

Dubai Internet City, Bldg. 17,

Office 157 P.O. Box 500817, Dubai,

United Arab Emirates

Phone: [phone]

KYOCERA Document Solutions Inc.

2-28, 1-chome, Tamatsukuri, Chuo-ku

Osaka 540-8585, Japan

Phone: [phone]

http://www.kyoceradocumentsolutions.com

KYOCERA Document Solutions Inc. - 2-28, 1-Chome - Tamatsukuri - Chuo-Ku Osaka 540-8585 - Japan - www.kyoceradocumentsolutions.com
