OPTIO V20 - Digital Camera PENTAX - Free user manual and instructions

Brand	PENTAX
Model	OPTIO V20
Camera type	Fully automatic compact digital camera with built-in zoom
Effective pixel count	Approx. 8.0 megapixels
Sensor	1/2.35 inch CCD
Lens	Focal length 6.3 mm - 31.5 mm (equivalent to 36 mm - 180 mm in 35 mm), aperture F3.5 (wide-angle) - F5.6 (telephoto)
Optical zoom	5x
Digital zoom	Up to 5.1x (combined with optical zoom for total magnification up to 25.5x)
LCD screen	3 inches, 230,000 dots, extra-wide viewing angle
Stabilization	Digital SR (high sensitivity anti-shake) for still images, Movie SR for videos
Shooting modes	17 modes: Auto Picture, Program, Green, Night Scene, Video, Voice Recording, Landscape, Flower, Natural Skin Tone, Portrait, Sea & Snow, Motion, Digital SR, Pet, Children, Food, Digital Panorama, Digital Wide
Image formats	JPEG (Exif 2.2), DCF 2.0, DPOF, PictBridge, PRINT Image Matching III
Video formats	AVI (Motion JPEG), 30 fps or 15 fps, monaural sound, color/sepia/black & white
Storage media	Built-in memory approx. 51.1 MB, SD/SDHC memory card
Power source	Rechargeable lithium-ion battery D-LI78 (supplied), charger D-BC78, optional AC adapter K-AC78
Battery life	Approx. 200 photos (CIPA standard), approx. 210 min playback, approx. 70 min video, approx. 300 min audio
Dimensions (W x H x D)	97.5 x 56.5 x 23.5 mm (without protruding parts)
Weight	130 g (without battery or card), 145 g (with battery and card)
Connections	USB 2.0 (high-speed compatible), AV output (monaural), PictBridge
Supplied accessories	Rechargeable lithium-ion battery, charger, power cord, USB cable, AV cable, software (CD-ROM), strap, operating manual, computer connection manual, quick guide
Care and cleaning	Clean with a soft, dry cloth. Never use solvents (thinner, alcohol, benzene). Store in a ventilated place away from humidity and high temperatures.
Safety	Do not disassemble the camera. Use only the specified charger. Avoid contact with water. Do not expose to strong shocks. Remove the battery if smoke or unusual odor occurs.
Spare parts and repairability	Optional accessories available (AC adapter, charger kit, etc.). Repair by an authorized PENTAX service center. 12-month warranty against manufacturing defects.

Frequently Asked Questions - OPTIO V20 PENTAX

How to set the language and date on the camera?

When turning on for the first time, the Language/言語 screen appears. Use the navigation button to select the desired language (French available), then press OK. Next, set My City (time zone) and enable or disable Daylight Saving Time (DST). Finally, set the date, time, and display format (24h/12h). Press OK to confirm.

How to charge the battery for the first time?

Use the supplied D-BC78 charger. Connect the AC power cord to the charger, then to the outlet. Insert the D-LI78 battery into the charger with the PENTAX logo facing up. The charging indicator lights up; it turns off when charging is complete (approx. 150 minutes). Ambient temperature should be between 0°C and 40°C.

How to insert an SD memory card?

Make sure the camera is turned off. Open the battery/card compartment cover. Insert the SD (or SDHC) memory card with the label facing the front of the camera (lens side), pushing it all the way in. Close the cover. To remove the card, open the cover and press the card to eject it. Never remove the card during recording or playback.

How to use the flash?

In capture mode, press the ▶ navigation button (◀) to cycle through flash modes: Auto (automatic), Flash Off, Flash On, Auto+Red-eye, Flash On+Red-eye, and Soft Flash. The flash range is approx. 0.2 m to 4.4 m at wide-angle and 0.6 m to 2.8 m at telephoto (auto sensitivity).

How to take a panoramic picture?

Select Digital Panorama mode from the capture mode palette (press ▼ in capture mode). Frame the first part of the scene, then press the shutter button. The camera guides you to frame the next part; repeat. The camera automatically combines the images into one panoramic photo.

How to record a video?

In capture mode, select Video mode from the capture mode palette. Press the shutter button to start recording; press again to stop. You can adjust quality (★★★, ★★, ★), frame rate (30 or 15 fps), and pixels (640×480 or 320×240) in the [Rec Mode] > [Video] menu.

How to edit a photo (cropping, filters)?

In playback mode (▶), display the image to edit, then press ▼ to open the playback mode palette. Select Resize to change size, Crop to cut a part, or Digital Filters to apply effects (B&W, sepia, color, etc.). Follow on-screen instructions and press OK to save the edited copy.

How to delete images?

In playback mode, display the image to delete and press the green button (). The delete screen appears: select Delete with ▲ then press OK. To delete multiple images, switch to 9-thumbnail display (zoom out) and use the Select & Delete function of the green button. You can also delete all images from the [Settings] > [Format] menu (caution: erases everything).

How to connect the camera to a TV?

Use the supplied AV cable. Plug the cable connector into the AV terminal of the camera (under the cover) and the other end into the TV's video/audio inputs (matching colors). Turn on the camera in playback mode. Set the TV to the appropriate input. The video format (NTSC/PAL) must match your region; set it in [Settings] > [Video Output] if necessary.

What to do if the camera does not turn on?

First check that the battery is charged and inserted correctly. If the battery is low, recharge it. If the camera still does not turn on, remove the battery, wait a few seconds, then reinsert it. Also try removing the SD memory card and turning on again. If the problem persists, contact an authorized PENTAX repair center.

USER MANUAL OPTIO V20 PENTAX

Line drawing of a Pentax 9.0 MegasPixels digital camera (no text or symbols on body)

Illustration of a hand holding a camera with a heart-shaped logo next to a dog (no text or symbols)

Line drawing of a Pentium digital camera with no visible text or symbols on the body

Appareil photo Optio V20

Line drawing of a U-shaped object with a loop and handle (no text or symbols)

Courroie O-ST20 (*)

Simple line drawing of a circular object with concentric rings (no text or symbols)

Line drawing of a coiled cable with two connectors (no text or symbols)

Câble USB I-USB7 (*)

Line drawing of a coiled electrical probe with two connectors (no text or symbols)

Câble AV I-AVC7 (*)

Batterie lithium-ion rechargeable D-LI78 (*)

Line drawing of a rectangular electronic device labeled 'XTEX' with ports and a central slot (no text or symbols beyond branding)

Line drawing of a black and white cord with two terminal connectors (no text or symbols)

Black-and-white landscape photo of a coastal area with palm trees and hills, no visible text or symbols

Mode lecture

Black-and-white landscape photo of a cityscape with trees and buildings, captured in an outdoor setting (no visible text or symbols)

Black-and-white photo of a beach scene with vehicles and a person, no visible text or symbols

Microscopic images of cellular structures labeled 'MENU Annuler' and 'OK OK', showing no readable text or symbols.

Mode

Mode

Black-and-white beach scene with palm trees and a distant island, no visible text or symbols

Black-and-white beach scene with palm trees and distant buildings, no visible text or symbols

MENU

MENU

Black-and-white photo of a coastal town with trees and hills, no visible text or symbols

Black-and-white landscape photo of a cityscape with trees and hills, no visible text or symbols

Black-and-white beach scene with palm trees and water, no visible text or symbols

Black-and-white photo of a wooden gazebo on a floating pier at sea, no visible text or symbols

Black-and-white beach scene with palm trees and water, no visible text or symbols

Black-and-white photo of a wooden pier with a gabled roof beside calm water, no visible text or symbols

Grid of grayscale image thumbnails with varying shapes and colors, no text or symbols present

Black-and-white photo of a wolf in a heart-shaped frame with camera and lock icons (no readable text or symbols)

Black-and-white photo of a fluffy dog resting on a ledge, with menu and lock icons in the corner (no readable text or symbols on the dog or background)

Black-and-white photo of a dog resting on a bench, with no visible text or symbols in the main image area.

Black-and-white photo of two baby faces with camera app interface overlay (no readable text or symbols in the image)

Black-and-white cityscape photo showing waterfront scene with buildings and lampposts (no readable text or symbols)

Black-and-white beach scene with trees and distant buildings, no visible text or symbols

Histogramme + Info

Black-and-white beach scene with a castle and trees, no visible text or symbols on the main image area.

Abstract white silhouette on gray background, no text or symbols present

Image correcte

Abstract white silhouette on gray background, no text or symbols present

Image lumineuse

Abstract grayscale shape with a white mountain-like peak against a gray background (no text or symbols)

Black-and-white photo of a wooden pier at sea with mode centre and standard lighting (no text or symbols on the image itself)

Black and white photo of a whale swimming in water, captured at 3:00 AM (no text or symbols on the image itself)

Black-and-white portrait of a young girl with curly hair, no visible text or symbols

Black-and-white photo of a young girl with long hair, resting her chin on her hand (no text or symbols visible)

Black and white photo of a dolphin leaping out of water, captured in mid-air with camera interface buttons (no readable text or symbols)

Grid of six black-and-white photos showing coastal and urban landscapes, including beach, palm trees, city skyline, and water (no text or symbols)

Grid of grayscale image thumbnails showing beach scenes and camera controls (no text or symbols)

Black-and-white photo of a wooden pier by the sea, no visible text or symbols

Grid of grayscale image thumbnails with heart, flower, and cloud shapes (no text or symbols)

Black-and-white photo of a wolf's head inside a heart-shaped frame, with floating bubbles and camera icons (no text or symbols)

Black-and-white photo of a wooden pier with a gabled pavilion by the sea, no visible text or symbols

Black-and-white photo of a wooden pavilion by a calm water body, with no visible text or symbols.

Black-and-white beach scene with palm trees and a distant island, no visible text or symbols

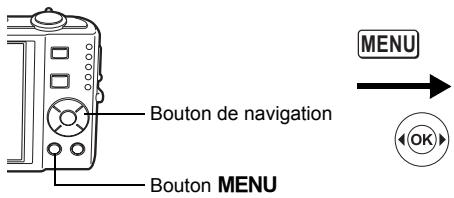

Comment afficher le menu [↘ Réglages]

Black-and-white beach scene with trees and water, no visible text or symbols

Batterie lithium-ion rechargeable D-LI78 (*)

For customers in USA

STATEMENT OF FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  Increase the separation between the equipment and receiver.
  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  * Consult the dealer or an experienced radio/TV technician for help.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Perchlorate Material-special handling may apply. The lithium battery used in this camera contains perchlorate material, which may require special handling. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for

Class B Personal Computers and Peripherals

We: PENTAX Imaging Company A Division of PENTAX of America, Inc.

Located at: 600 12 ^th Street, Suite 300 Golden, Colorado 80401 U.S.A. Phone: [phone] FAX: [phone]

Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on the statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109.

Product Name: PENTAX Digital Still Camera

Model Number: Optio V20

Contact person: Customer Service Manager

Date and Place: April, 2008, Colorado

(《♀》) Digital SR (anti-flou) 54, 65

Digital SR (anti-bougé de l'appareil) ...... 122

Enfants 54

Gastronomie 55

Ton Chair naturel 54

Digital SR (anti-flou) .....54, 65
