USER MANUAL SWKS 2200 B1 SILVERCREST

Black silver coffee maker with glossy finish and a black body, no visible text or symbols on the device itself.

www.lidl-service.com

HERVIDOR DE AGUA SWKS 2200 B1 BOLLITORE SWKS 2200 B1

ES

HERVIDOR DE AGUA

Operating instructions

IAN 273369

ES IT MT PT GB DE AT CH

Español....2

Italiano 12

Português 22

English.... 32

Deutsch....42

Vista general / Panoramica / Vista geral / Overview / Übersicht

Indice

Pure geometric diagram with intersecting lines and a circular pattern (no text or symbols)

1. Overview 32
2. Intended purpose 33
3. Safety information 33
4. Items supplied 36
5. How to use 36
6. Before using for the first time 36
7. Using the kettle 36
8. Cleaning 37
9. Storage 38
10. Disposal 38
11. Troubleshooting 38
12. Technical specifications 38
13. Warranty of the HOYER Handel GmbH 39

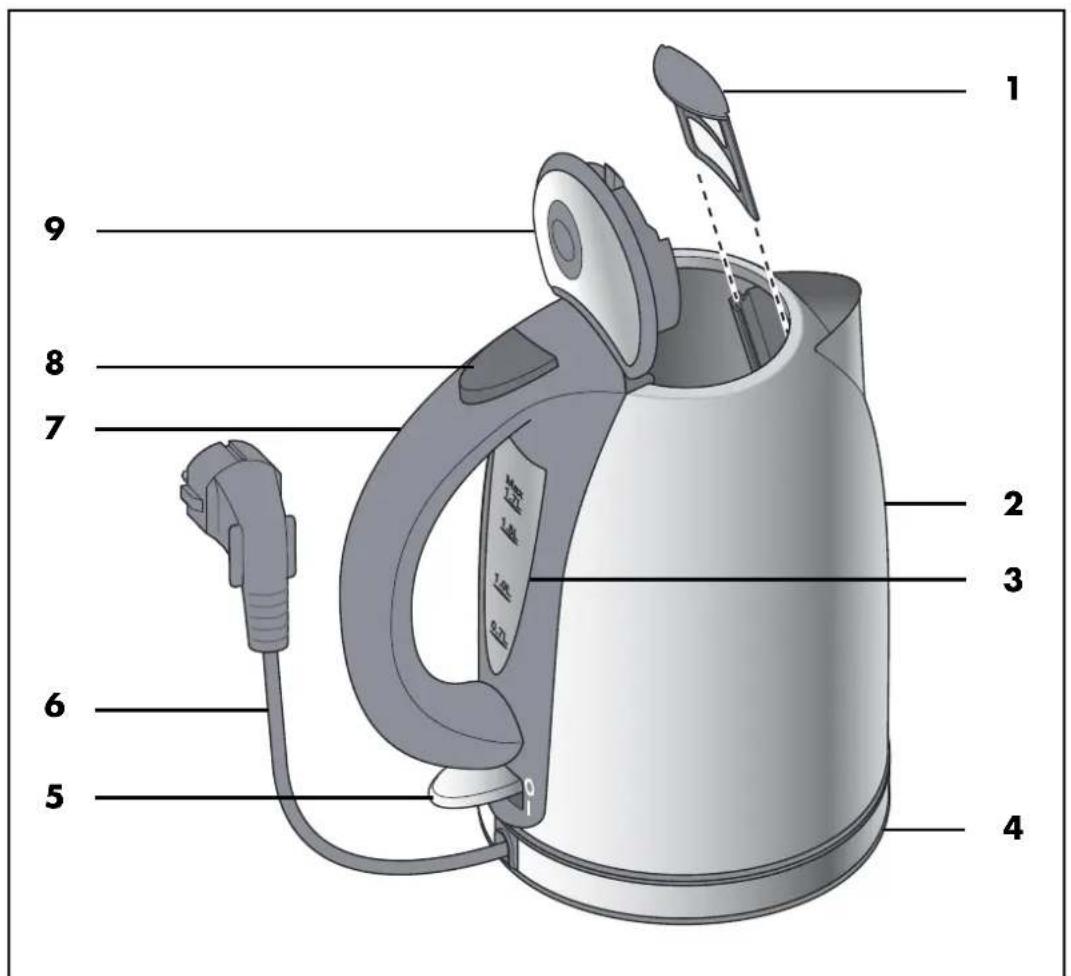

1. Overview

1 Limescale filter
2 Cordless kettle
3 Water level display
4 Device base with cable spool
5 Illuminated on/off switch I/O
6 Power cable with mains plug
7 Handle
8 Release button for the lid
9 Hinged lid

Thank you for your trust!

Congratulations on your new kettle.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
- Above all, observe the safety instructions!
• The device should only be used as described in these operating instructions.
- Keep these operating instructions for reference.
- If you pass the device on to someone else, please include these operating instructions.

We hope you enjoy your new kettle!

2. Intended purpose

The kettle is exclusively designed for heating water.

The device is designed for use in private households. The device must only be used indoors.

This device must not be used for commercial purposes.

Foreseeable misuse

WARNING! Risk of material damage!

Never put fluids other than fresh drinking water into the kettle!

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: Failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Symbols on your appliance

Do not use this device in the vicinity of bathtubs, showers, washbasins or other vessels containing water.

Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting danger.
• Children must not play with the device.
• Cleaning and user maintenance must not be performed by unsupervised children unless they are older than 8 years and supervised.
• Children under the age of 8 must be kept away from the device and the power cable.
• This device is equally intended for use in the home and in applications similar to the home, such as for example...

... in kitchens for employees in shops, offices and other commercial areas;
... on agricultural estates;
... by customers in hotels, motels and other residential facilities;
... in bed-and-breakfast establishments.

- This device is not intended to be operated using an external timer clock or a separate remote control system.

• Do not open the lid while the water is boiling.
• Fill the device only to the maximum filling level, as boiling water may otherwise spray out.
• It is always necessary to close the lid when heating water, as boiling water may otherwise spray out!
• Use the cordless kettle only with the supplied device base.
• The kettle, the device base, the power cable and the mains plug must not be immersed in water or other liquids.
• If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.
• Please take note of the chapter on cleaning (see "Cleaning" on page 37).

DANGER for children

- Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation.

DANGER to and from pets and livestock

Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

- Protect the device from moisture, water drops and water spray. Failure to observe this instruction may result in an electrical shock hazard.

- If liquid gets into the device base, immediately pull out the mains plug. Have the device checked before reusing.

DANGER! Risk of electric shock

Do not use the device if the device or the power cable has any visible damage, or if the device base has previously been dropped.

- Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

- Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device.

The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.

- When using the device, ensure that the power cable cannot be trapped or crushed.

- When removing the mains plug from the wall socket, always pull the plug and never the cable.

- Disconnect the mains plug from the wall socket,...

... if there is a fault,

... when you are not using the kettle,

... before you clean the kettle, and

... during thunderstorms.

- To avoid any risk, do not make modifications to the device.

DANGER! Risk of injury through scalding

Do not bend over the kettle when you open the lid and the contents are still hot. There is a danger of being scalded by escaping steam.

The kettle becomes very hot during operation. Only touch it at its handle and only use the release button and the on/off switch.

WARNING! Risk of material damage

The device is fitted with non-slip silicon feet. Because furniture can be coated with a wide variety of varnishes and plastics, and treated with various care products, the possibility cannot be excluded that some of these substances have ingredients that may attack and soften the silicon feet. If necessary, place a non-slip mat under the device.

- Fill the device with a minimum of 0.7 litres of water, as otherwise the device may overheat.

- Never put alcohol, sugar or milk into the kettle!

- Place the device on a stable, flat surface.

- Do not use any astringent or abrasive cleaning agents.

4. Items supplied

1 Kettle 2

1 Device base 4

1 Set of operating instructions

5. How to use

DANGER! Risk of electric shock!

- Only connect the device to an easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

- Pull the mains plug 6 out from the wall socket after every use.

- Remove all packing material.

- Check to ensure that all parts are present and undamaged.

- Place the device on a dry, level, non-slip surface.

6. Before using for the first time

1. Fill the kettle 2 up to the marking MAX 1.7L on the water level display 3 and heat the water (see "Using the kettle" on page 36).

2. Pour the water out and rinse out the kettle 2 with fresh water.

3. Repeat this process. Then it is safe to use the device.

7. Using the kettle

DANGER! Risk of injury through scalding!

- It is always necessary to close the lid 9 when heating water, as boiling water may otherwise spray out!

- Do not open the lid 9 while the water is boiling.

- Fill the kettle 2 only to the maximum filling level (MAX 1.7L), as boiling water may otherwise spray out.

Do not bend over the kettle 2 when you open the lid 9 and the contents are still hot. There is a danger of being scalded by escaping steam.

The kettle 2 becomes very hot during operation. Only touch it at its handle 7 and only use the release button 8 and the on/off switch 5.

WARNING! Risk of material damage!

◎Fill the device with a minimum of 0.7 litres of water, as otherwise the device may overheat.

- Never put alcohol, sugar or milk into the kettle 2!

Water as foodstuff

Water is a very sensitive foodstuff and can go bad due to germs forming. Please take note:

• Always use fresh drinking water in the kettle 2.

- Pour water away, which has been standing in the kettle 2 for longer than approx. 1 hour.

- Do not reboil cooled down water.

Boiling water

1. Remove the kettle 2 from the device base 4.

2. Press the release button 8 to open the lid 9.

3. Fill the desired amount of fresh drinking water into the kettle 2. Keep it upright

or place it on an even surface to be able to read the water level display 3 correctly.

1. Close the lid 9, by pressing it downwards.
2. Place the kettle on the device base 4.
3. Insert the mains plug 6 into a wall socket corresponding to the technical data.
4. Press the on/off switch 5 down, until it lights up blue and locks into place.
5. The device automatically switches off as soon as the water starts to boil.
6. Disconnect the mains plug 6 from the wall socket.
7. Remove the kettle 2 from the device base 4 and pour the water out.

8. Cleaning

DANGER! Risk of electric shock!

• Pull the mains plug 6 out of the wall socket before you clean the kettle 2.
  The kettle 2, the device base 4, the power cable and the mains plug 6 must not be immersed in water or other liquids.

DANGER! Risk of injury through scalding!

The kettle 2 becomes very hot during operation. Allow it to cool down before cleaning.

WARNING! Risk of material damage!

Do not use any astringent or abrasive cleaning agents.

After every use

Clean the device after every use, if possible.

1. Disconnect the mains plug 6 from the wall socket.

2. Wipe the kettle 2, the device base 4 and the power cable 6 with a damp cloth if necessary. Dry with a dry cloth.

3. Allow all parts to dry completely before you put them away or use the device again.

NOTE: the kettle 2 can also be cleaned on the outside with stainless steel cleaners from specialist retailers.

Cleaning the limescale filter

1. Open the lid 9.
2. Pull the limescale filter 1 off upwards from the kettle 2.
3. Clean the limescale filter 1 with a moist dishcloth under running water.
4. Slot the limescale filter 1 into the intended fitting in the kettle 2 and press it downwards.

Descaling

After some time, the boiling process will result in limescale being deposited in parts of the kettle (depending on the hardness of the water used). You should remove this at regular intervals, because otherwise the power consumption of the device will increase.

1. Pull the limescale filter 1 off upwards from the kettle 2. If there is limescale residue in the limescale filter 1, place it in the kettle when descaling.
2. Fill the limescale remover into the kettle 2. Use a commercially available limescale remover, e.g. limescale remover for coffee machines. Comply with the instructions on the packaging of the limescale remover. You can find the next steps in the instructions of the limescale remover. Rinse the kettle multiple times after descaling, if necessary.
3. After descaling, rinse the limescale filter 1 well. Slot it into the intended fitting in the kettle 2 and press it downwards.

Time intervals for descaling

The intervals for descaling are dependent on the hardness of the water, and how often you use the device. Where the hardness of the water is medium or high, we recommend descaling monthly.

If using tap water, you can find out the hardness of the water in the area where you live by inquiring at your local waterworks.

9. Storage

DANGER for children!

Keep the device out of the reach of children.

• Allow the device to cool down before you put it away.

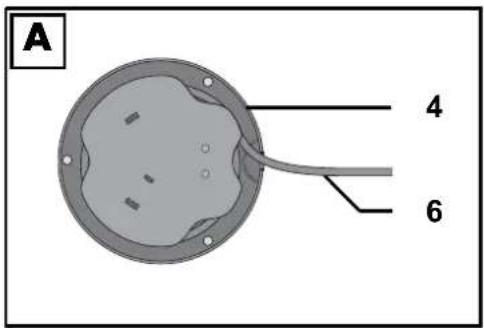

  • Figure A: coil up the power cable 6 in the bottom of the device base 4.

10. Disposal

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all ac-

cessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

11. Troubleshooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	Has the device been connected to the power supply?Check the connection.
Device does not switch off the boiling process	Is the lid 9 of the kettle 2 closed?

12. Technical specifications

Model: SWKS 2200 B1
Mains voltage: 220-240 V ~50/60 Hz
Protection class: I
Power rating: 1850-2200 W

Subject to technical modification.

13.Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

- Please keep the article number

IAN: 273369 and the purchase receipt as a purchase verification for all inquiries.

- If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email

- Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail]

MT Service Malta Tel.: [phone] E-Mail: [e-mail]

IAN: 273369

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.
