HCF-2000 - Cooker WILFA - Free user manual and instructions

Product Type	Convection Heater (Supplementary Heat Source)
Brand	Wilfa
Model	HCF-2000
Power Supply	220–240 V AC, 50 Hz
Maximum Power Output	2000 W (both switches on)
Heating Settings	750 W (switch 1), 1250 W (switch 2), 2000 W (both)
Fan Assisted	Yes (HCF-2000W model)
Thermostat Control	Mechanical, adjustable from min (frost protection) to max
Safety Features	Overheat protection (auto shut-off), earthed plug, do not cover warning
Assembly Required	Attach feet using provided screws
Cleaning Instructions	Wipe with damp cloth, no detergents or abrasives
Usage	Indoor only; suitable for well-insulated spaces or occasional use
Minimum Clearance	0.9 m from top to flammable materials; sides and rear clear
Certification	CE, WEEE compliant
Included Accessories	Feet and tapping screws
Warranty	Refer to manufacturer

Frequently Asked Questions - HCF-2000 WILFA

How do I clean the Wilfa HCF-2000 convection heater?

Always unplug the heater and let it cool completely. Clean the exterior with a damp cloth and dry it off. Do not use detergents or abrasives, and avoid letting water enter the heater.

What is the maximum power output?

The maximum power output is 2000 W, achieved when both toggle switches are turned on.

Can I use the heater in a bathroom?

No, the heater is not intended for use in bathrooms, laundry rooms, wet areas, or near water. It must be used indoors in dry locations.

What should I do if the heater overheats?

The heater has a built-in overheat protection that automatically switches it off. Once it cools down, it will restart automatically. If it repeatedly shuts off, check for obstructions and ensure proper clearance.

Does the HCF-2000 have a fan?

Yes, the HCF-2000W model includes a fan to accelerate heat convection for faster room heating. The fan can be turned on separately.

How does the thermostat work?

The mechanical thermostat allows you to set the desired room temperature. Turn it clockwise to increase temperature. When the room reaches the set temperature, the heating elements switch off and cycle on/off to maintain it.

How do I attach the feet?

The feet are included in the box. Attach them to the base of the heater using the provided tapping screws, ensuring they are correctly positioned on the base plate.

Can I use an extension cord?

It is recommended to avoid extension cords as they may overheat and cause a fire risk. If necessary, use a heavy-duty cord rated for the heater's current (8.7 A).

What is the difference between HC-2000W and HCF-2000W?

The HCF-2000W includes a fan for improved air circulation, while the HC-2000W does not. Both models have the same heating power and features otherwise.

Is it safe to leave the heater unattended?

Yes, but with caution. The heater has safety features like overheat protection and an earthed plug. However, always keep flammable materials at least 0.9 m away and do not cover the heater.

USER MANUAL HCF-2000 WILFA

White portable air purifier with circular vented design and black base (no visible text or symbols)

GLOW and GLOW FAN

Convector heater

HC-2000W, HCF-2000W

NO Dette produktet er kun beregnet til godt isolerte rom eller til midlertidig bruk.

GB This product is only suitable for well insulated spaces or occasional use.

LES ALLE ANVISNINGER F∅R BRUK

LÄS IGENOM ALLA INSTRUKTIONER INNAN PRODUKTEN ANVÄNDS

LÆS ALLE VEJLEDNINGER INDEN BRUG

LUE OHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ

READ ALL INSTRUCTIONS BEFORE USING

VIKTIGE FORHOLDSREGLER

When using this electrical convection heater, always observe basic safety precautions to reduce the risk of fire, electric shock and personal injury. Please read all these instructions before operating this convection heater, including the following:

- Do not cover or obstruct the top and bottom air vents on the convection heater, as this will cause it to overheat. The warning "Do not cover" and the appropriate symbol have been affixed close to the top air vent of the convection heater.

• Keep flammable materials such as furniture, pillows, bedding, paper, clothing and curtains at least 0.9 m away from the top of the heater. You should also keep them away from the sides and rear.
• This convection heater is equipped with an earthed plug and must be plugged into an earthed socket, as shown. This is a safety feature: DO NOT REPLACE THIS PLUG!
• NEVER OPEN THE CONVECTION HEATER.
• Do not use this convection heater in combination with a programming device, timer, separate remote control system or any other device that switches it on automatically, as this causes a risk of fire if the convection heater is covered or positioned incorrectly.
• Do not try to use the convection heater if it has malfunctioned, is damaged or has been dropped in any way. If this happens: return the convection

heater to an authorised service facility for examination and/or repair.

- Do not use the product outdoors - always use it indoors. — This convection heater is not intended for use in bathrooms, laundry rooms, wet areas or similar indoor areas. — Never locate the convection heater where it could fall into a bath or other water containers.

- Do not run the power cord under carpets or otherwise cover. Ensure that the power cord is out of the way so that there is no risk of tripping over it.

- Switch off the convection heater before unplugging it from the mains socket.

- Never insert objects through the air vents of the convection heater, since this may cause electric shock or fire. To prevent fire, never block the air inlets or outlets in any way.

- A convection heater contains hot, arcing parts.

- Never use the convection heater close to places where paint thinners, petrol, paint or other easily flammable liquids are used or stored.

- Use the convection heater only as described in this manual. Any other use may cause injury to persons, damage to property or electric shock.

- Avoid using an extension lead to power the convection heater, since the extension lead may overheat and cause a risk of fire.

- This convection heater uses 8.7 amps during operation. To prevent overloading a circuit, consider this when connecting to a circuit that is

already used to power other appliances.

- Check that the plug is fully inserted into the socket.

- Avoid splashing water onto the convection heater. If the confection heater appears damp, switch it off immediately.

- To avoid burns, use of this heater is not recommended for people with reduced sensitivity to heat or an inability to react.

- Aside from cleaning, all service of the convection heater should be carried out by an authorised service centre. Only authorised service personnel should carry out repair work.

- This appliance features an internal temperature switch to protect against overly high temperatures. This automatically switches off the convection heater if it is overheating. Once the unit cools down, it will switch on again. Do not use this convection heater in the immediate vicinity of a bath, shower or swimming pool.

- Do not place the convection heater directly below a mains socket.

- If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's service representative or a similarly qualified person in order to avoid danger.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION — some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• This convection heater is designed as a supplementary heat source, and must not be used as a central heating system or used as the main source of domestic heating.
• When the convection heater is in use, you must regularly check that the floor, walls and items in the room are not being damaged by the heat from the convection heater.

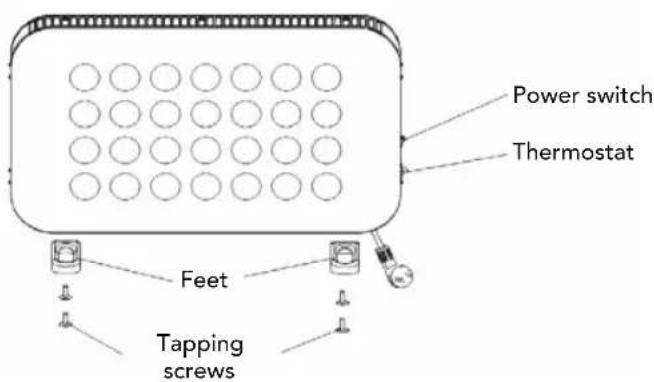

ASSEMBLY

Before using the convection heater, attach the feet (included in the box) to the unit.

Attach them to the base of the convection heater using the four tapping screws provided, taking care to ensure that they are correctly positioned on the base plate of the heater. Fig.1

CLEANING THE CONVECTION HEATER

1 Always pull out the plug from the mains socket and allow the convection heater to cool before cleaning.
2 Clean the outside of the convection heater with a damp cloth. Dry off with a dry cloth.
3 Do not use any detergents or abrasives, and do not allow any water to enter the heater.
4 When the heater is not used for long periods of time, it should be protected against dust and stored in a clean, dry place.

OPERATION

NB:

It is normal for the convection heater to emit some odour when it is switched on for the first time, or when it has not been used for a long time. This odour will disappear when the heater has been on for a short time.

1 Choose a suitable location for the convection heater, taking into account the safety instructions above.
2 Insert the plug of the heater into a suitable socket.
3 Turn the thermostat button fully in a clockwise direction to the maximum setting.

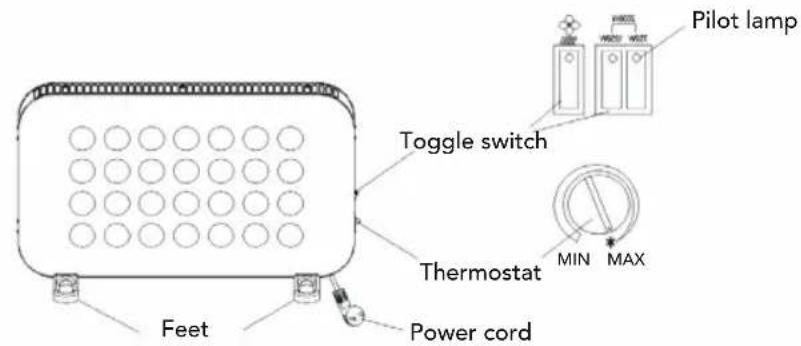

4 Switch on the heating elements via the toggle switches on the side of the convection heater. When the heating elements are on, the switches will illuminate. When one switch is on, the heat output is 750 W; when the other switch is on, the heat output is 1250 W. For maximum heat output (2000 W), both switches should be on.
5 When the desired room temperature has been reached, the lights on the element switches will go out. After this, the convection heater will keep the temperature in the room at the set level by switching on and off automatically.
6 Minimum stilling (fully counter-clockwise): in this position (depending on the size of the room), the heater will maintain a temperature above freezing.
7 You may turn on the fan to accelerate the heat convection for faster room heating. This applies to the HCF-2000W model.

SPECIFICATIONS

Information requirements for electric local space heaters.

Model identifier(s): HC-2000W, HCF-2000W

Heat output
Item Symbol Value Unit
Nominal heat output	P nom 2.1		kW
Minimum heat output (indicative) P min		0.8	kW
Maximum continuous heat output P max.c 2.1 kW
Auxiliary electricity consumption - - kW
At nominal heat output HC-2000W el max 2.062 kW
At nominal heat output HCF-2000W	el max 2.087 kW
At minimum heat output HC-2000W	el min	0.791 kW
At minimum heat output HCF-2000W	el min	0.769 kW
In standby mode	- - kW

Type of heat input, for electric storage local space heaters only	Yes/No
Manual heat charge control, with integrated thermostat	No
Manual heat charge control with room and/or outdoor temperature feedback	No
Electronic heater charge control with room and/or outdoor temperature feedback	No
Fan assisted heat output HC-2000W	No
Fan assisted heat output HCF-2000W	Yes

Type of heat output / room temperature control	Yes/No
Single stage heat output and no room temperature control	No
Two or more manual stages, no room temperature control	No
With mechanic thermostat room temperature control	Yes
With electronic room temperature control	No
Electronic room temperature control plus day timer	No
Electronic room temperature control plus week timer	No
Other control options Yes/No
Room temperature control, with presence detection no
Room temperature control, with open window detection no
With distance control option	no
With adaptive start control no
With working time limitation no
With black bulb sensor no

Model: HC-2000W, HCF-2000W

Maximum power: 2013 W

Heating power settings: 750 W + 1250 W

Fan: 13 W

Nominal voltage: 220–240 V (AC)/50 Hz

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.
