ICP-2000 - Cooker WILFA - Free user manual and instructions

Product Type	Portable Induction Cooker
Brand	Wilfa
Model	ICP-2000
Power Consumption	2000 W
Voltage	220-240 V
Frequency	50/60 Hz
Number of Cooking Zones	1
Power Levels	10
Temperature Range	60-240 °C
Timer	0-180 minutes
Overheat Protection	Yes
Child Lock	Yes
Dimensions (W x D x H)	35 x 28 x 6 cm
Weight	2.5 kg
Power Cord Length	1.2 m
Material	Glass ceramic top
Display	LED
Cleaning	Wipe with damp cloth after cooling
Safety Features	Auto shut-off, overheat, pan detection
Certifications	CE, RoHS
Warranty	2 years
Spare Parts Availability	Available from Wilfa

Frequently Asked Questions - ICP-2000 WILFA

How do I use the Wilfa ICP-2000 induction cooker?

Place a compatible pot on the cooking zone, connect to power, press the power button, select power level or temperature using the + and - buttons, and set timer if needed. Always supervise while cooking.

What type of cookware is compatible?

Only ferromagnetic pots and pans work with induction. Test with a magnet: if it sticks, it's compatible. Materials like cast iron, enameled steel, and some stainless steel work. Avoid glass, aluminum, or copper unless specified.

How do I clean the induction cooker?

Unplug and let it cool completely. Wipe the glass surface with a soft damp cloth. For stubborn residues, use a ceramic hob cleaner and a non-abrasive sponge. Never immerse in water.

Why does my induction cooker not heat up?

Check that the pot is compatible and properly centered. Ensure the appliance is plugged in and the power is on. If an error code appears, refer to the manual (e.g., E0 means no pan detected).

What does error code E0 mean?

Error E0 indicates that no pan or an incompatible pan is detected. Place a ferromagnetic pan on the cooking zone. If the error persists, check if the pan base is flat and at least 12 cm in diameter.

Can I use cast iron cookware?

Yes, cast iron is compatible as long as it has a flat bottom. However, avoid dragging it to prevent scratches on the glass surface.

Is it safe to leave the induction cooker unattended?

No, never leave the appliance unattended while in use. It has safety features like auto shut-off, but always supervise cooking to prevent accidents.

How do I set the timer?

Press the timer button, then use + and - to set the desired minutes (up to 180). The cooker will automatically turn off when the timer expires.

What is the power consumption of this model?

The Wilfa ICP-2000 has a maximum power of 2000 W. Actual consumption depends on the power level selected. It operates on 220-240 V.

What is the warranty period?

The Wilfa ICP-2000 comes with a 2-year warranty covering manufacturing defects. Keep your receipt and contact Wilfa support for claims.

USER MANUAL ICP-2000 WILFA

Black electrical stove with circular vent and control knob (no text or symbols visible)

ICPH2000 induction 2100 plate lactate

NO BRUKSANVISNING
SE BRUKSANVISNING
DK BRUGSANVISNING
FI KÄYTTÖOHJE
GB INSTRUCTION MANUAL

WWW.WILFA.COM

Norwegian

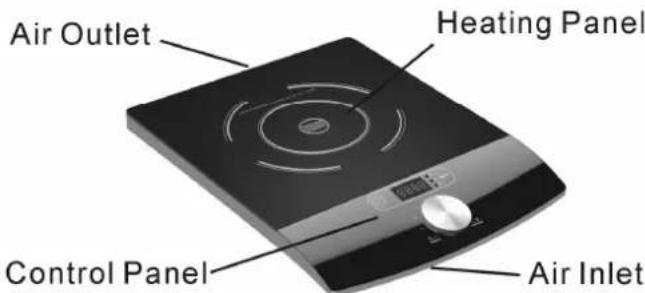

Part description:

Part Description:

A: Heating Panel

B: Air Outlet

C: Air Inlet

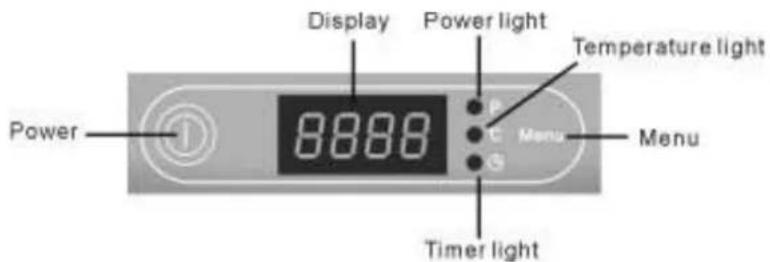

D: Control Panel

Performance Features

1. High efficiency and energy saving, with thermal efficiency higher than 98%. Power saving and rapid heating.
2. Controlled by high capacity microprocessors and holding the functions of frying, rice cooking, water boiling, soup cooking, steaming and stewing, milk heating, chafing dish cooking and barbecue cooking.
3. Multiple grades of power and temperature for selection to satisfy your different needs.
4. You can set timing to meet your needs of different circumstances.

5. Multiple protective functions:

6. No Pan Protection: When the type of pan on the heating panel is not correct or the diameter of the pan is too small (less than 12cm), the cooker shall enter the status of automatic checking of pan.
   • Overheating protection function for the heating surface and the inside of cooker.
   • Over current, over-voltage and low-voltage protection functions.
   • Automatic shutoff protection functions when there is no manual operation for two hours.

7. Safety and sanitation: it is clean during usage, no open flame, no smoke, and no accident such as gas leakage, explosion or burn commonly happening at a gas stove, safe and reliable.
8. Adopting hi-tech ceramic microcrystalline panel, which is resistant to high temperatures and easy in cleaning maintenance.

Suitable Pan Ware

1. Materials: iron, stainless steel, iron cast and heat-resistant glassware with magnetic inductive layer.
2. Form: pan with flat round bottom (the diameter of flat bottom shall be larger than 12cm) or frying pan with round bottom or special functions.
3. It is better to use matched pan ware specially supplied with the electromagnetic oven, so as to achieve the best performance.

Unsuitable Pan Ware

1. Materials: Nonferrous metal, ceramics, glass, pan with bottom as copper or aluminum (multi-layer metal pan).
2. Form: Pan with very uneven bottom, pan with bottom diameter less than 12 centimeters.

Outlines of Operation

1. Connecting to power supply: Insert the power plug into the power socket of AC230V/10A. When you hear a "Beep" from the buzzer and the power indicator is on, it means the power is connected and the oven is in the standby status.

2. Placement of utensils: Put food to be cooked in the pan and then put the loaded pan at the center position of the heating panel of the electromagnetic cooker.

3. Turning on the heating function: Press the ON/OFF OR POWER switch, the display will show "on" then push the "menu" button, the power indicator are on, and now the electromagnetic oven is in the power heating status. The display will show "1600", you can adjust from 200W to 1800W use the wheel!

4 Push the menu button again the temperature light on, and now cooker is in the temperature heating status. The display will show "240", you can adjust from 60 degree to 240 degree sue the wheel.

5 Push the menu button again the power and timer light on together, and now cooker is in the power timing status. The display will show "0:00", you can adjust from 0:01 minute to "3:00" hours, after you order the time, wait for 5 seconds the cooker will back to the power status. the timer is working. then the display will show the time and power turns. This time you can adjust the power again, the timer keep working.

6 Push the menu button again the temperature and timer light on together, and now cooker is in the temperature timing status. The display will show "0:00", you can adjust from 0:01 minute to "3:00" hours, after you order the time, wait for 5 seconds the cooker will back to the temperature status. the timer is working. then the display will show the time and temperature turns. This time you can adjust the temperature again, the timer keep working.

1. After usage completed, window of timer will shut down, it means heating has been stopped. But the cooling fan will keep running for 1 minute to cool down the inner of product. The cooling fan would be stopped automatically after 1 minute. Then if you want to unplug the power plug, you had better do it after the cooling fan stopped.

General Precautions

1. Do not place the oven near water, otherwise water may enter the oven and the operating life of the product may be shortened.
2. The cooker must be away from wall for at least 10cm when the product is used. The air inlet and air outlet of the oven must be through without obstacle, otherwise blocked air inlet or air outlet may lead to failure of the cooker.
3. Do not use the oven in places where there are high temperatures, steam, and moisture or gas oven.
4. Do not put metal ware or magnetic articles (such as water, credit card, tape recorder, disk, etc) on the oven, otherwise the articles may be affected or damaged by the magnetic fields.
5. The oven heats very rapidly, so please first put the food in the pan ware first and then put the loaded pan ware on the oven. Otherwise the unloaded pan ware may be heated to deform.
6. The pan ware shall be placed at the center of the ceramic panel and the diameter of the pan bottom shall not be larger than 30cm, otherwise the plastic housing may deform.
7. Do not put the oven on iron plate or iron table for usage.
8. Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate. Since they can get hot!
9. warning: if the surface is cracked, switch off the appliance to avoid the possibility of electric shock!

Safety Precautions during the Usage

1. Please use separate and special socket above 15A for the electromagnetic cooker. The oven shall not share the same socket with any other electrical appliance, otherwise there may be danger arising from overheating.

2. For canned food, please open the cover of the can before it is heated, otherwise there may be danger of explosion arising from the expansion of heated air inside the can.

3. Do not put metal ware, such as knife, fork, meter spoon, on the panel, otherwise you may suffer from bum when you pick up the heated utensils.
4. Do not put articles the articles such as cleaning cloth, paper or cushion on the panel to be directly heated; otherwise the articles may burst into flame owing to high temperature under the pan.
5. Do not insert foreign articles such as wire into the air inlet or air outlet when using the oven, otherwise there may be danger of electric shock.
6. In case any crack is found on the surface of the oven, please turn off the power supply immediately to avoid electric shock.

Methods of Maintenance and Cleaning

1. The power supply must be cut off and the product must be unplugged before cleaning is carried out.
2. Please use neutral cleanser to wipe off oil dirt.
3. Use clean wet cloth to wipe off light oil dirt.
4. Do not wash the product directly and otherwise the product may suffer from failure.

Failure checking,

If the product operating in abnormal conditions, the window of timer will display E x (x=0,1,2,3,4,5,6), refer to below for solution,

Problem: E0 no proper cooker found

Solution: ensure the cookware should be made of steel (or bottom suitable for induction cooker), and the diameter of bottom must larger than 12cm.

Problem: E1 Inner temperature sensor failed

Solution: contact qualified person for repair.

Problem: E2 sensor for panel failed

Solution: contact qualified person for repair.

Problem: E3 the voltage of power source over than 270V

Solution: you have to stop the machine until power source stable (standard voltage should be 230V).

Problem: E4 the voltage of power source lower than 140V

Solution: you have to stop the machine until power source stable (standard voltage should be 230V).

Problem: E5 panel overheat,

Solution: ( if the cooker may be dry ) stop the product until the product cooled down, then you can restart it again.

Problem: E6 Inner overheat-protection circuit stop the running automatically.

Solution: to cool down the machine, and ensure the air intake or ventilation port is not blocked. If such issue occur again, contact qualified person for repair.
