Product Type	Soundbar system with wireless subwoofer and surround speakers
Model	HW-N960
Main Unit Dimensions (W x H x D)	1226.0 x 83.0 x 136.0 mm
Main Unit Weight	8.8 kg
Subwoofer Dimensions (W x H x D)	203.5 x 400.0 x 415.5 mm
Subwoofer Weight	9.6 kg
Surround Speaker Dimensions (W x H x D)	120.0 x 210.0 x 141.0 mm each
Surround Speaker Weight	2.1 kg each
Soundbar Amplifier Output	210 W (18 W x 10 + 10 W x 3, 4 Ω)
Subwoofer Amplifier Output	162 W
Surround Speakers Amplifier Output	140 W (35 W x 4)
Audio Decoding	Dolby Atmos, Dolby Digital, DTS, LPCM 2ch
Sound Modes	STANDARD, SURROUND, SMART
Connectivity	HDMI (2 in, 1 out with ARC), Optical, Bluetooth, Wi-Fi
Wireless Range	Up to 10 m (Bluetooth)
Operating Temperature Range	+5 °C to +35 °C
Operating Humidity Range	10 % to 75 %
Standby Power Consumption	4.5 W
Wall Mountable	Yes (mounting kit included)
Remote Control	Included (requires 2 AA batteries)
SmartThings App Support	Yes
Amazon Alexa Compatibility	Yes (via SmartThings and Alexa app)
HDMI Features	ARC, Anynet+ (HDMI-CEC), Auto Power Link

Frequently Asked Questions - HW-N960 SAMSUNG

How do I connect the soundbar to my TV via HDMI ARC?

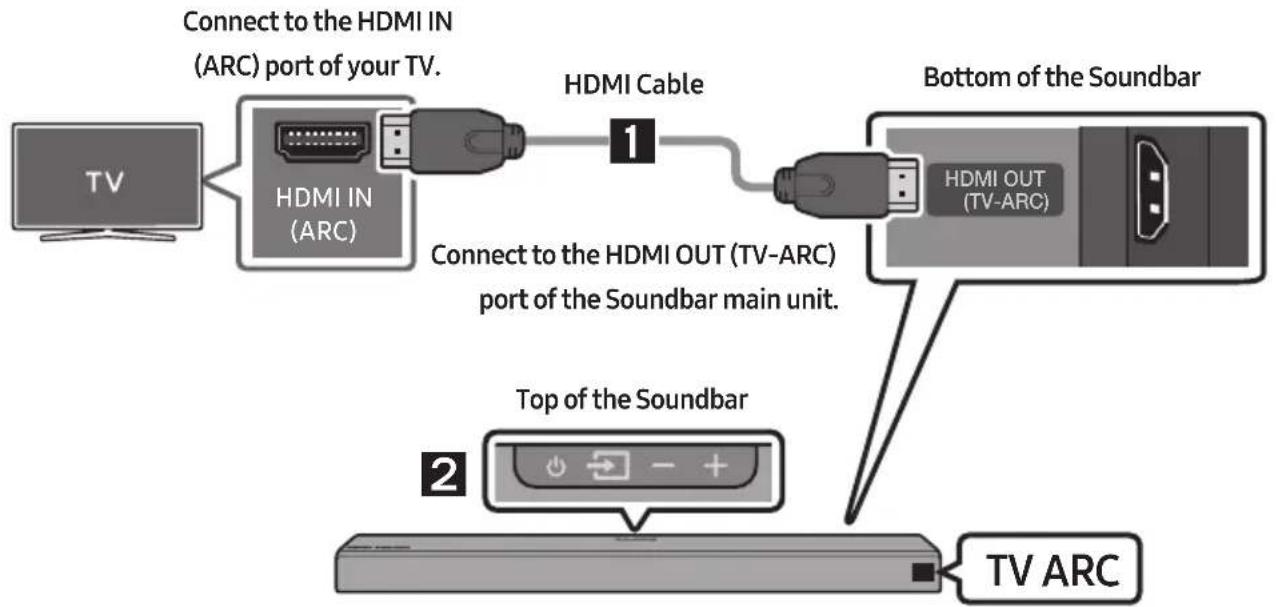

Connect an HDMI cable from the soundbar's HDMI OUT (TV-ARC) port to the TV's HDMI IN (ARC) port. On the soundbar, press the Source button to select D.IN mode; it will automatically switch to TV ARC. Ensure Anynet+ is enabled on the TV.

How do I pair the subwoofer wirelessly?

The subwoofer should pair automatically when both are powered on. If not, press and hold the ID SET button on the rear of the subwoofer for 5 seconds (blue LED blinks), then press and hold the Up button on the remote control for 5 seconds. The ID SET message appears and the connection completes when the blue LED on the subwoofer stops blinking.

Why is there no sound from the soundbar?

Check if the soundbar is muted or volume is set to minimum. Ensure the correct input source is selected (e.g., D.IN for optical/ARC, BT for Bluetooth). Verify that the TV's audio output is set to external speaker. If using Bluetooth, make sure the device is within range and not connected to another audio output.

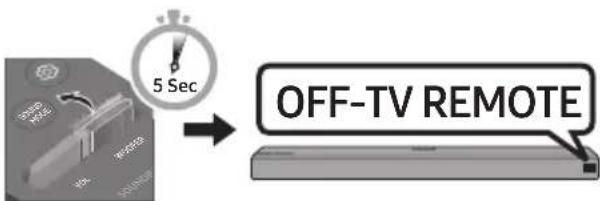

How can I control the soundbar with my TV remote?

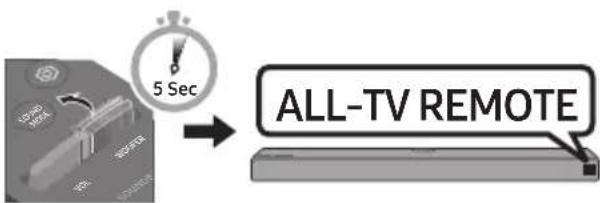

For Samsung TVs (2017+), the soundbar volume can be controlled via the TV remote when connected via optical or HDMI ARC. Press and hold the WOOFER button on the soundbar remote for 5 seconds to cycle through modes: SAMSUNG-TV REMOTE (default), ALL-TV REMOTE (other brands), or OFF-TV REMOTE. Then configure the TV audio settings to external speakers.

How do I reset the soundbar to factory settings?

There is no dedicated factory reset button, but you can perform a soft reset by unplugging the power cord for 30 seconds and plugging it back in. To reset Bluetooth connections, delete the device from your phone and re-pair. For network settings, press the NETWORK button on the bottom panel for 30 seconds to toggle Wi-Fi off and on.

What is Dolby Atmos and how do I enable it?

Dolby Atmos is an immersive audio format that adds overhead sound effects. This soundbar supports Dolby Atmos only via HDMI connection. Ensure the source device (e.g., Blu-ray player) is set to Bitstream output and the content supports Atmos. The soundbar will display DOLBY ATMOS when active. Note: Standard, Surround, and Smart modes are disabled during Atmos playback.

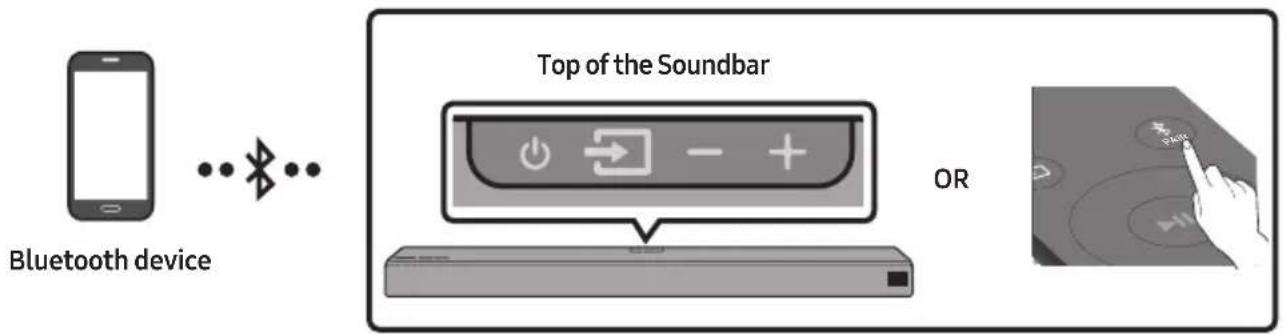

How do I connect my mobile device via Bluetooth?

Press the PAIR button on the remote or press and hold the Source button on the soundbar for 5 seconds to enter BT PAIRING mode. On your mobile device, search for Bluetooth devices and select [AV] Samsung Soundbar Nxxx. If asked for a PIN, enter 0000. The soundbar display will show the device name and then BT.

How do I update the soundbar's software?

When connected to the internet via Wi-Fi, the soundbar automatically updates its software even when turned off. To check for updates manually, download the latest firmware from the Samsung website onto a USB drive, insert it into the SERVICE port on the bottom panel, and follow the on-screen instructions. Ensure the USB is formatted to FAT32.

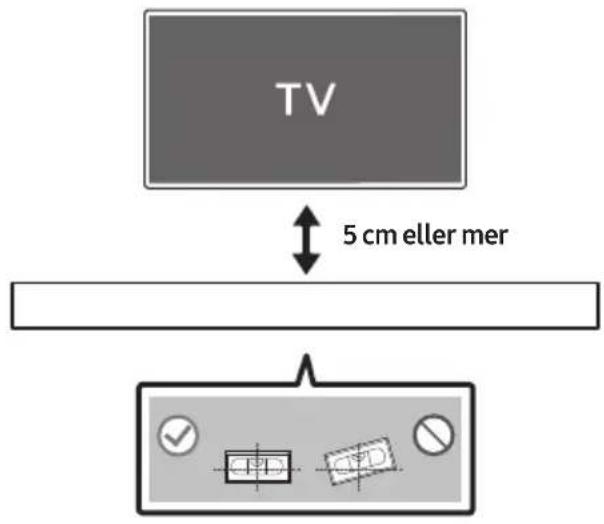

How do I wall mount the soundbar?

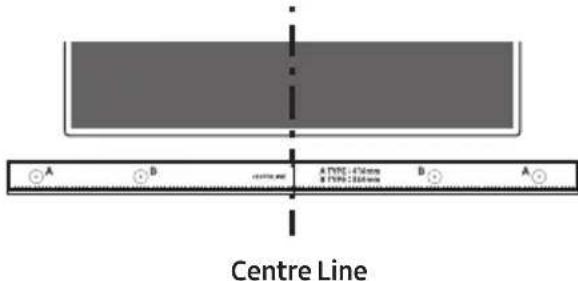

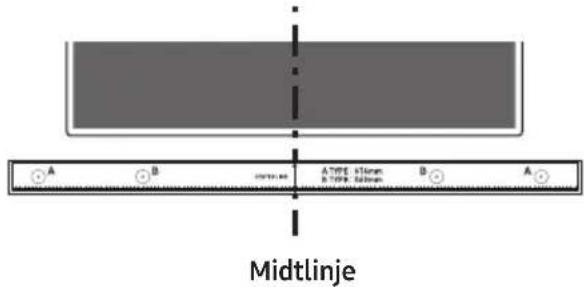

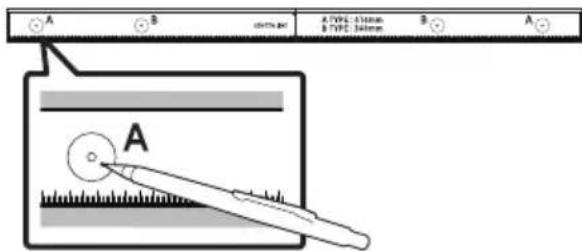

Use the included Wall Mount Guide to mark screw positions on the wall. Drill holes and insert anchors if needed. Attach the Holder-Screws to the wall, then install Bracket-Wall Mounts on the soundbar with the provided screws. Hang the soundbar on the Holder-Screws and slide down to lock. Ensure at least 5 cm clearance from the TV if mounted below.

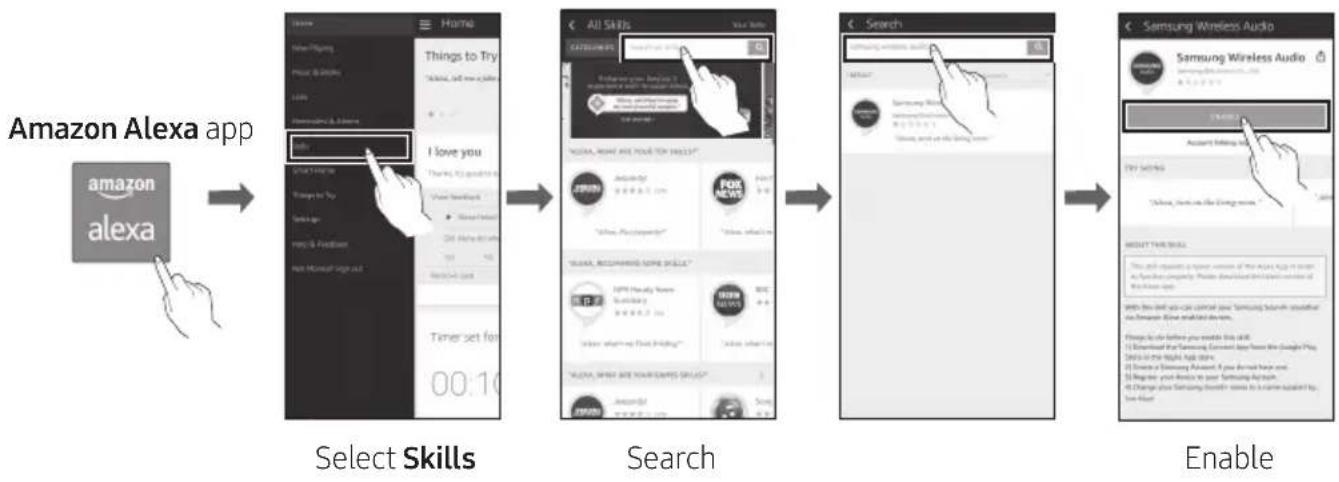

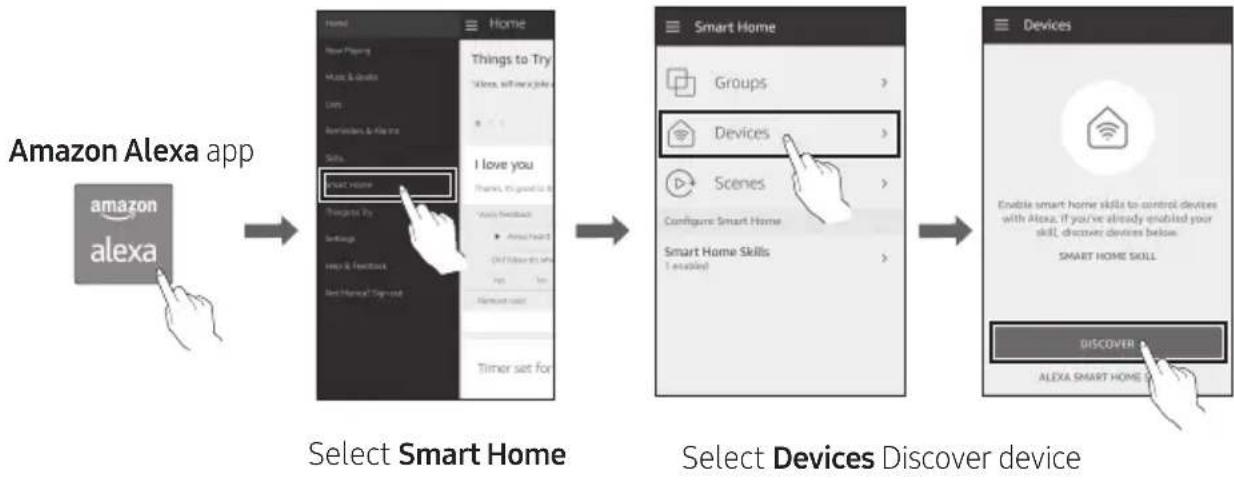

How do I use Amazon Alexa with the soundbar?

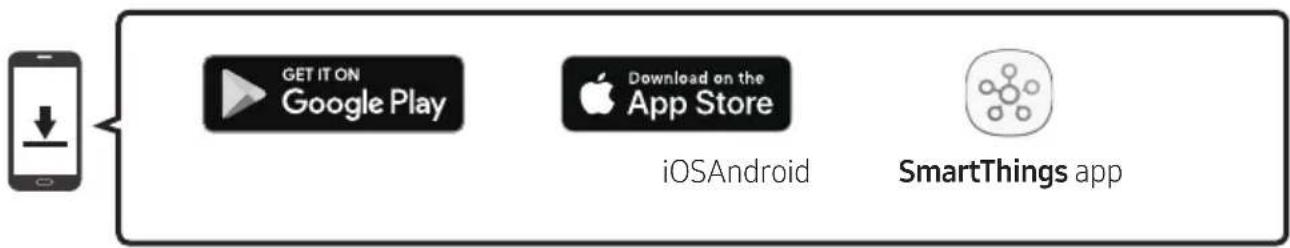

First, connect the soundbar to Wi-Fi using the SmartThings app. In the app, rename the soundbar to a simple name like 'Living Room'. Then open the Amazon Alexa app, enable the 'Samsung Wireless Audio' skill, and discover devices. You can then use voice commands like 'Alexa, turn on Living Room' or 'Alexa, set volume to 5 on Living Room'. Note: This feature may not be available in all countries.

USER MANUAL HW-N960 SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	CAUTIONRISK OF ELECTRIC SHOCK.DO NOT OPEN.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product has included important literature concerning operation and maintenance.
	Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground).
	AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

WARNING

- To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7\~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can download.

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

USER MANUAL

See this manual for safety instructions, product installation, components, connections, and product specifications.

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

FULL MANUAL

You can access the FULL MANUAL on Samsung's on-line customer support centre by scanning the QR code. To see the manual on your PC or mobile device, download the manual in document format from Samsung's website. (http://www.samsung.com/support)

Design, specifications, and App screen are subject to change without prior notice.

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ____ 2

02 Product Overview 3

Front Panel / Top Panel of the Soundbar 3

Bottom Panel of the Soundbar 4

03 Connecting the Soundbar 5

Connecting Electrical Power ____ 5

Connecting the Soundbar to the Subwoofer and Surround Speakers ____ 6

- Recommended Speaker Layout 6

- Automatic connection between the Subwoofer or Surround Speakers and the Soundbar 6

- Manually connecting the Subwoofer or Surround Speakers if automatic connection fails ____ 7

04 Connecting to a TV 9

Method 1. Connecting with a Cable ____ 9

- Connecting a TV using an HDMI Cable 9

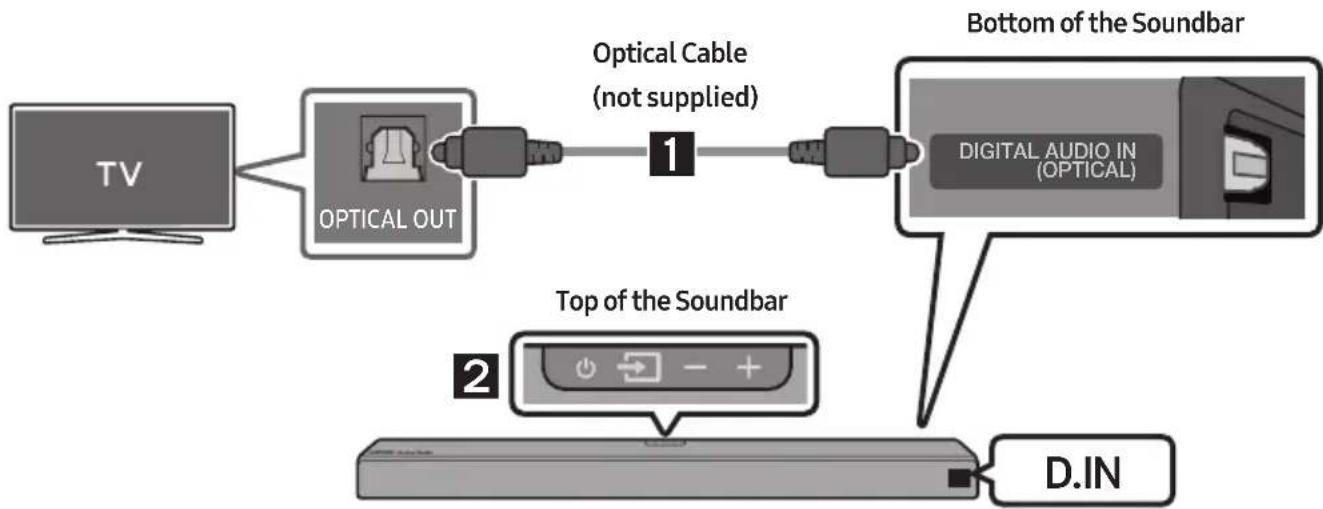

- Connecting using an Optical Cable 10

Method 2. Connecting Wirelessly ____ 11

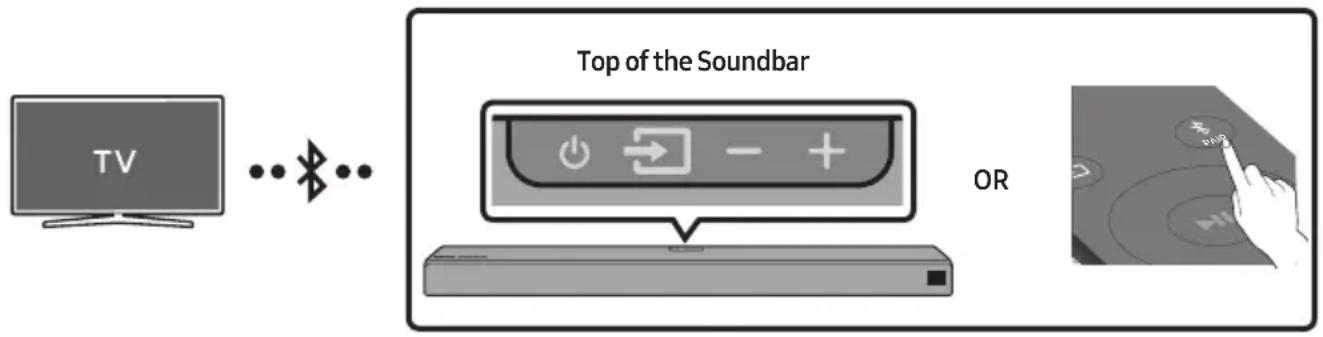

- Connecting a TV via Bluetooth 11

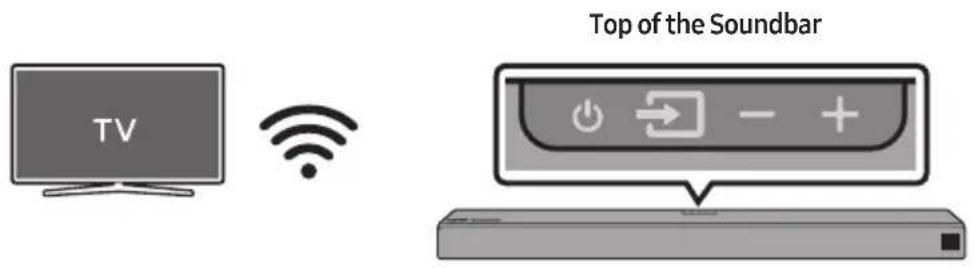

- Connecting via Wi-Fi 13

05 Connecting an External Device 15

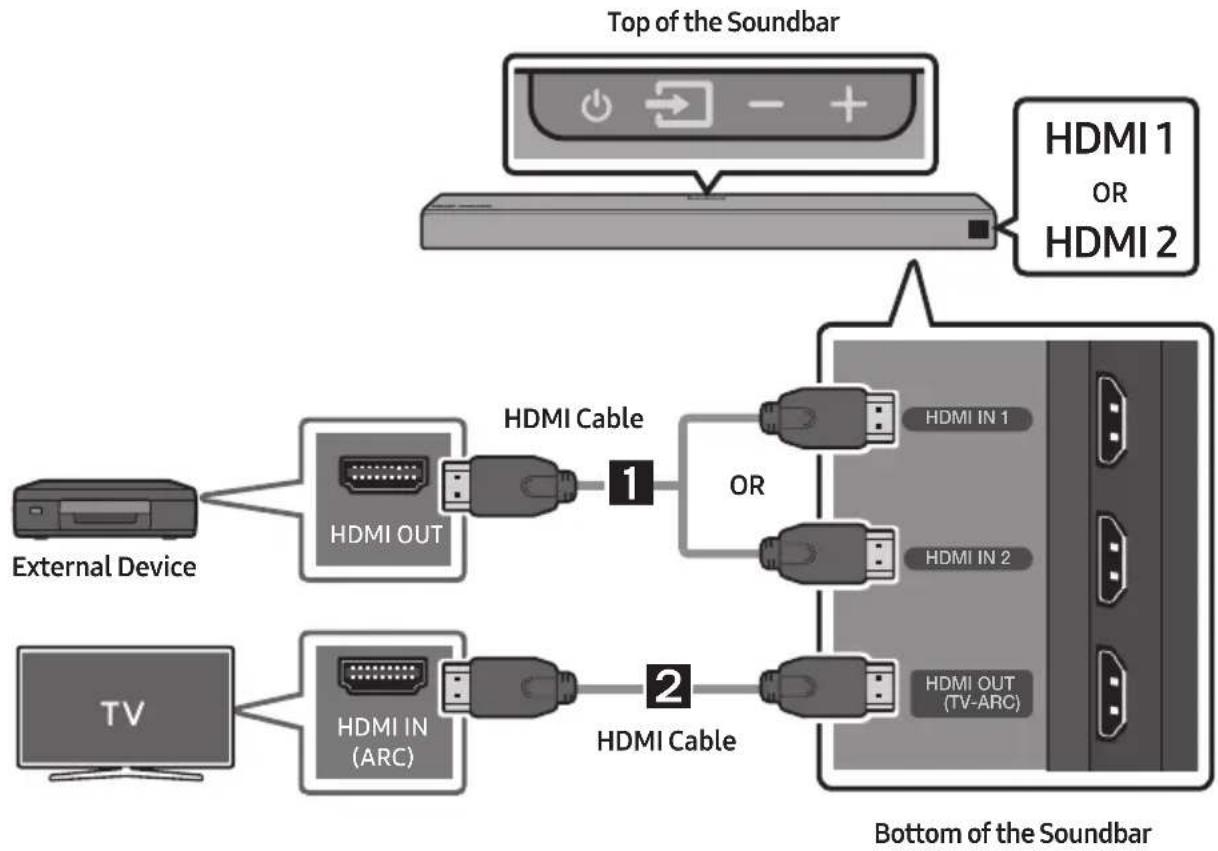

Connecting using an HDMI Cable (Dolby Atmos® supported) 15

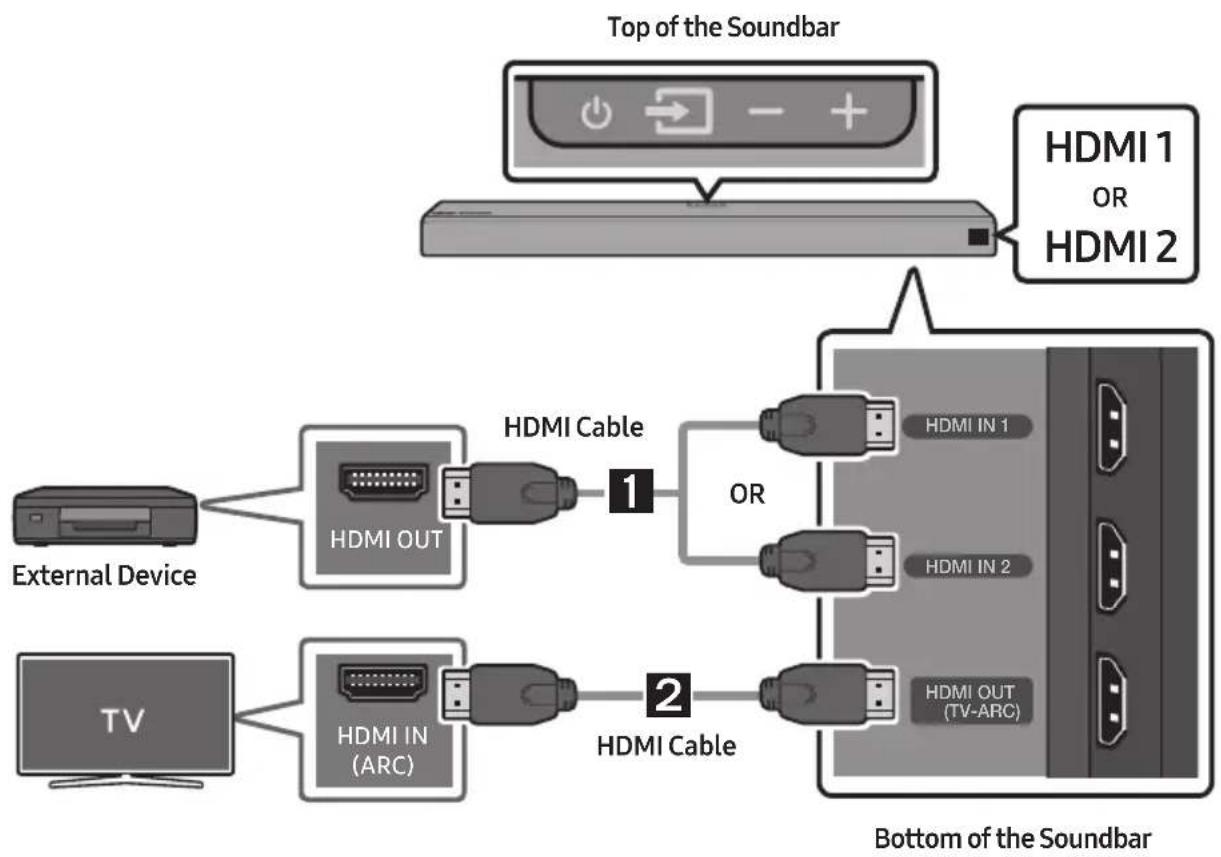

Connecting using an HDMI Cable 16

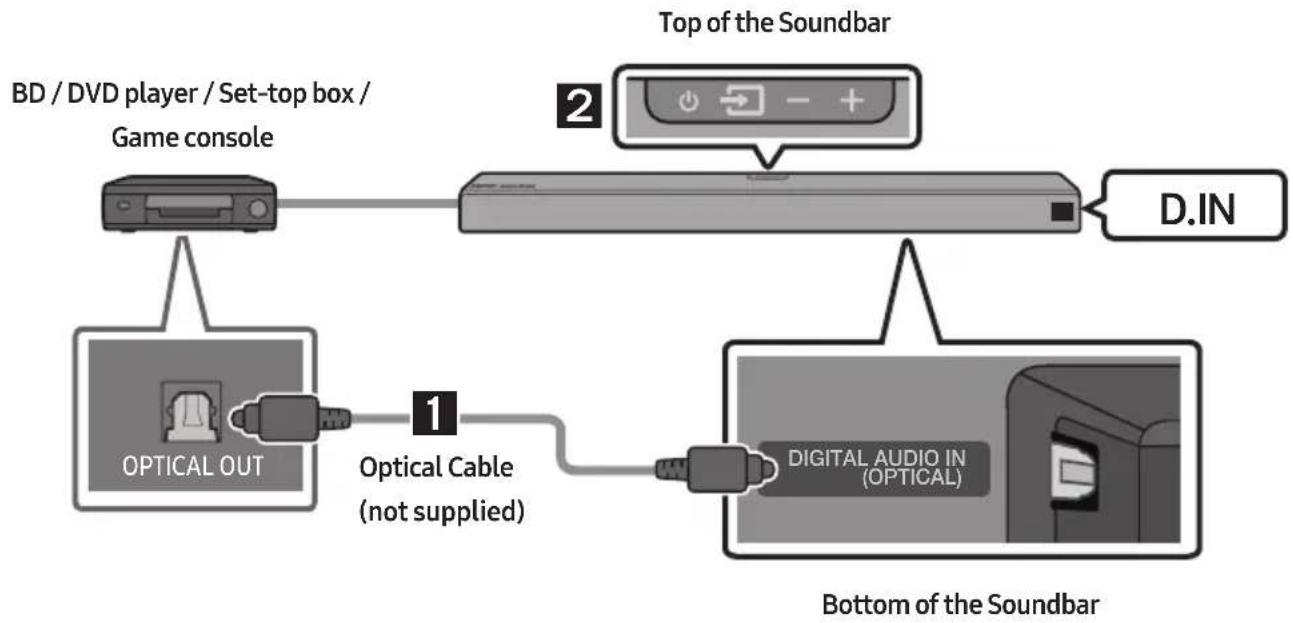

Connecting using an Optical Cable 17

06 Connecting a Mobile Device 18

Connecting via Bluetooth 18

Connecting via Wi-Fi (Wireless Network) ____ 21

07 Connecting an Amazon product 23

Connect and use with an Amazon product (Amazon Echo) 23

Use voice commands to control the Soundbar ____ 25

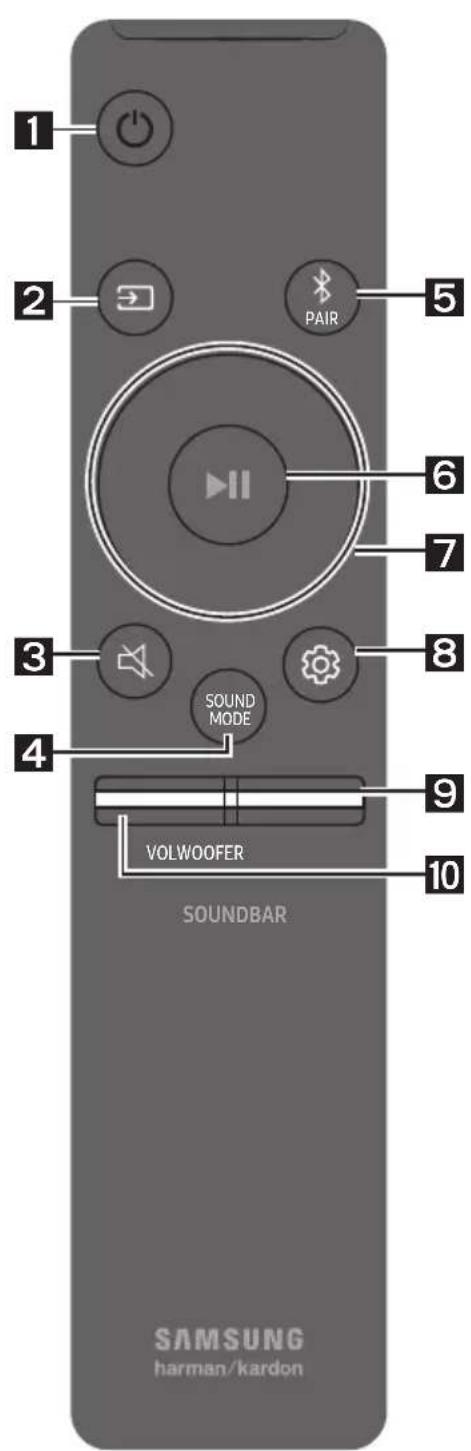

08 Using the Remote Control 26

How to Use the Remote Control ____ 26

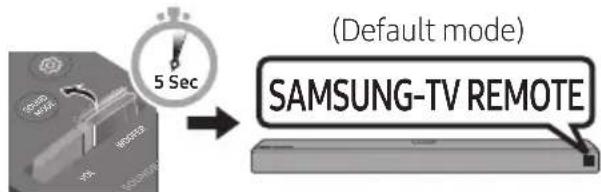

Adjusting the Soundbar volume with a TV remote control ____ 29

Using the Hidden Buttons (Buttons with more than one function) ____ 30

Output specifications for the different sound effect modes ____ 30

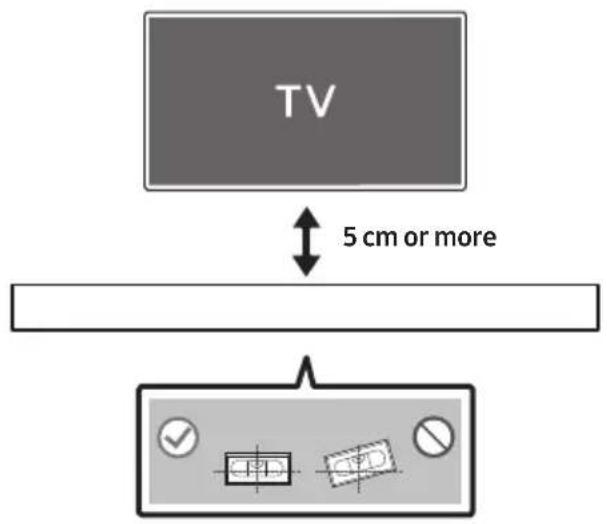

09 Installing the Wall Mount 31

Installation Precautions 31

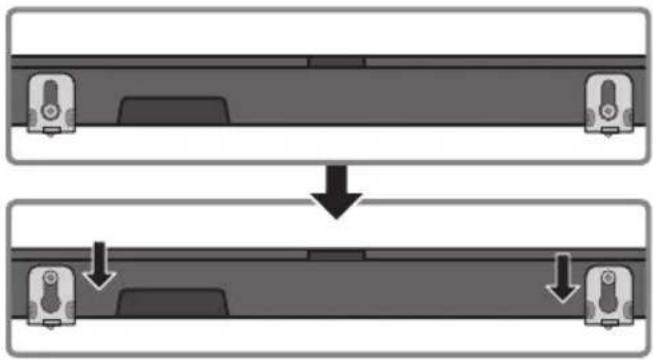

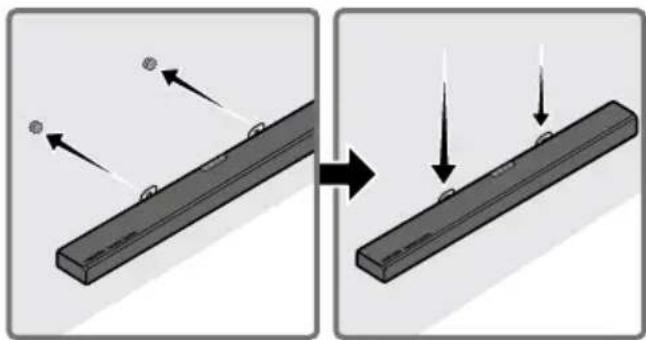

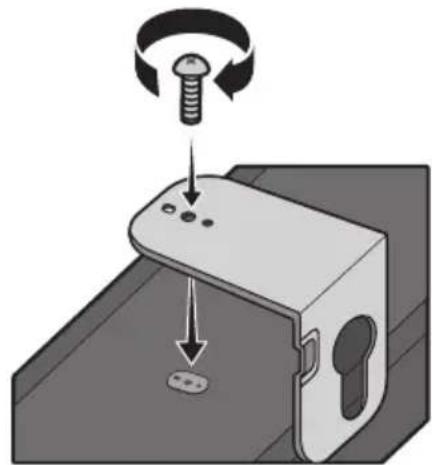

Wallmount Components 31

Installing the Surround Speakers on a Wall (Sold Separately) 33

10 Software Update 34

11 Troubleshooting 35

12 Licence 36

13 Open Source Licence Notice 37

14 Important Notes About Service 37

15 Specifications and Guide 38

Specifications 38

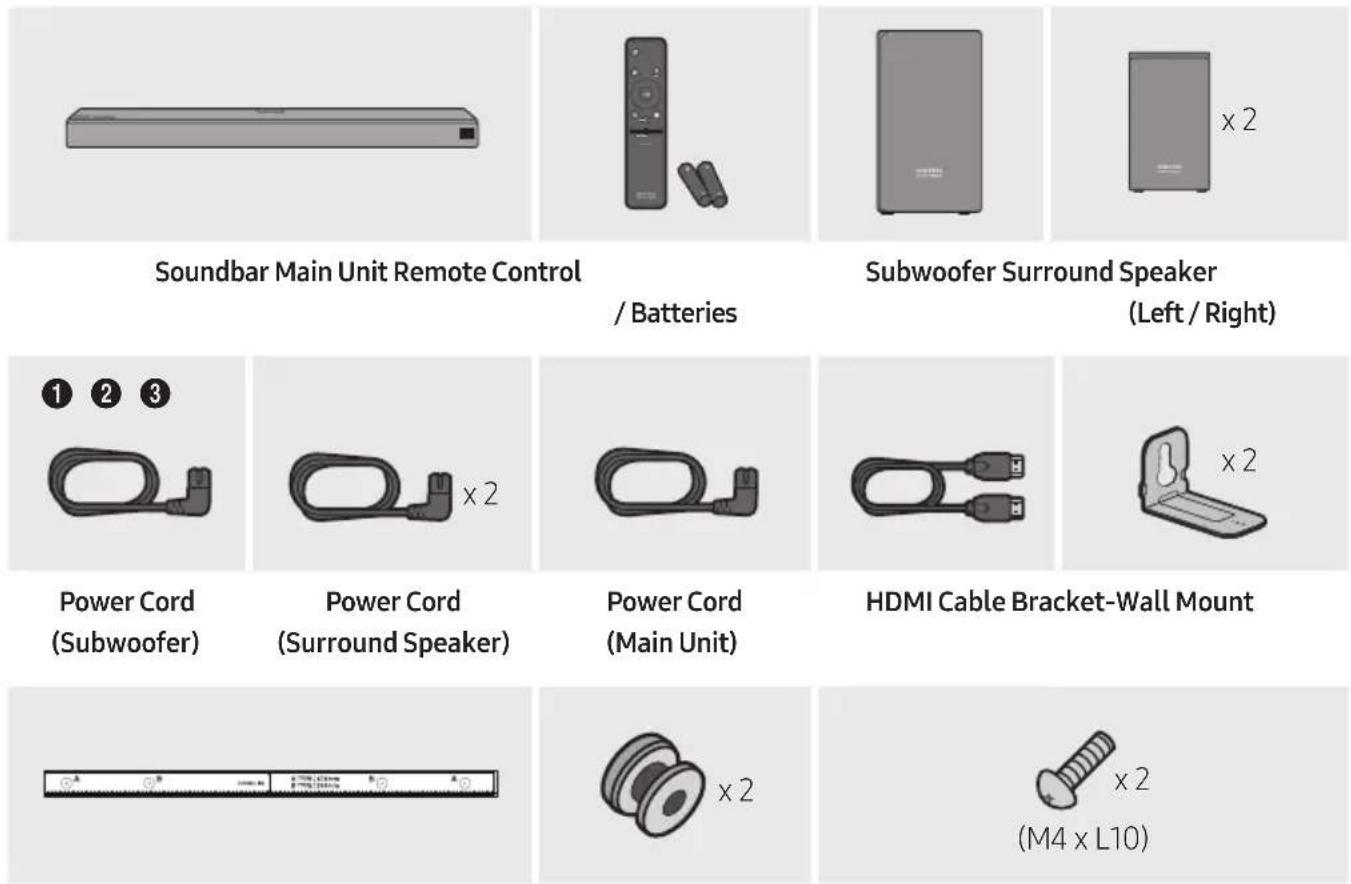

01 CHECKING THE COMPONENTS

Wall Mount Guide Holder-Screw Screw

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label : Bottom of the Soundbar Main Unit)
• The power components are labelled (1, 2, 3). For more information about power connections, see page 5.
• For Soundbar wall mounting components, see page 31.
  • To distinguish the left surround speaker from the right, check the label on the rear of each speaker.
• To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.
• The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

02 PRODUCT OVERVIEW

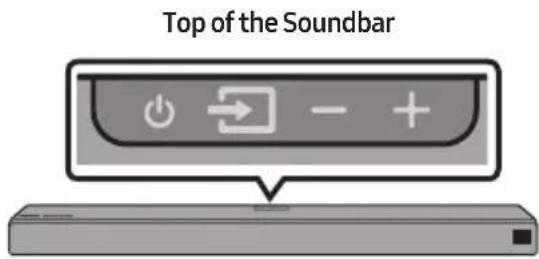

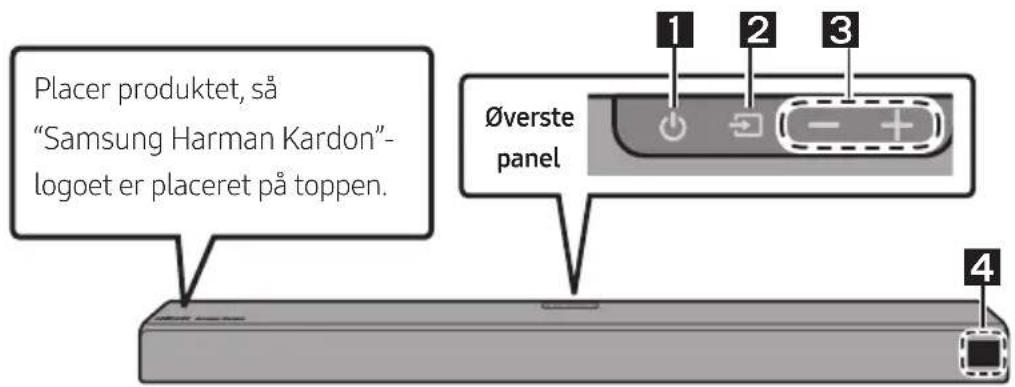

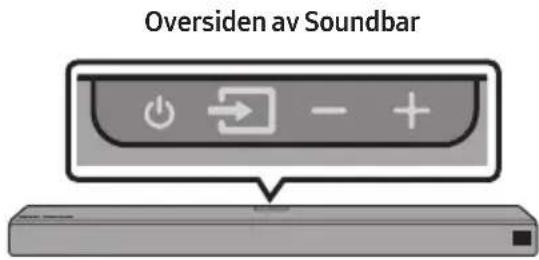

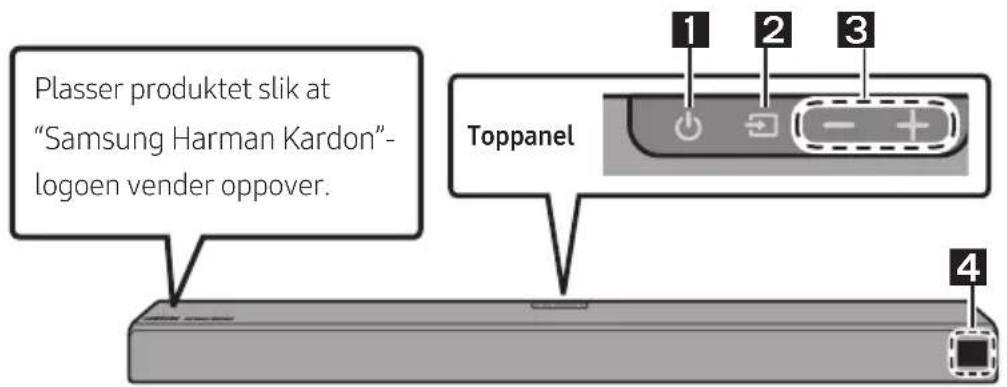

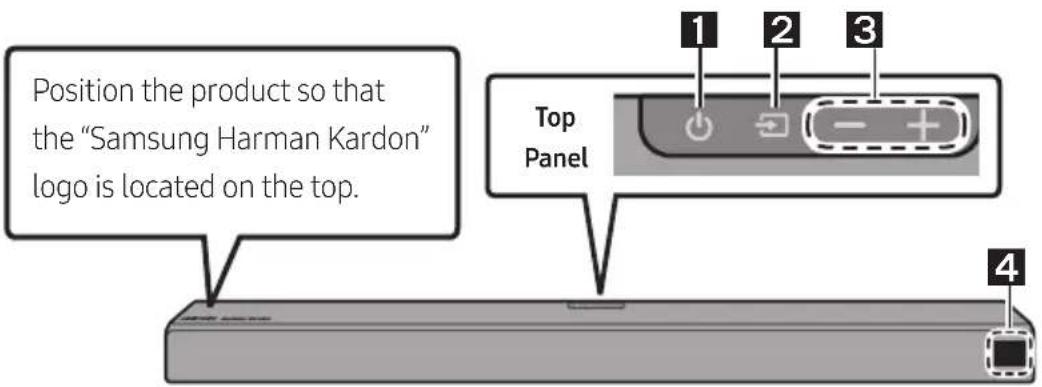

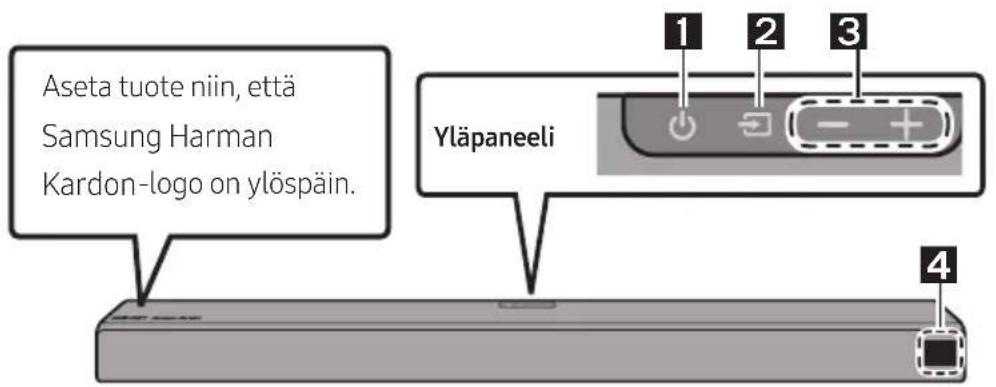

Front Panel / Top Panel of the Soundbar

1	(Power) ButtonTurns the power on and off.
2	(Source) ButtonSelects the source input mode.
	Input mode Display
	Optical Digital input D.IN
	ARC (HDMI OUT) input	D.IN → TV ARC (Auto conversion)
	HDMI input HDMI 1 / HDMI 2

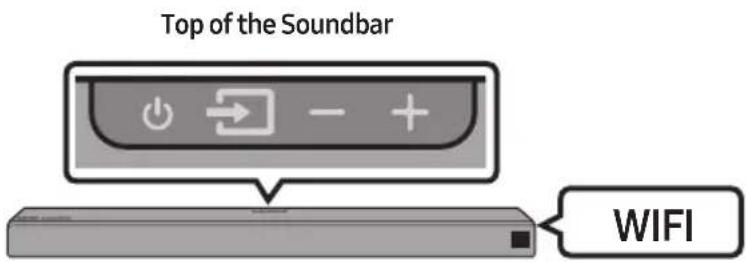

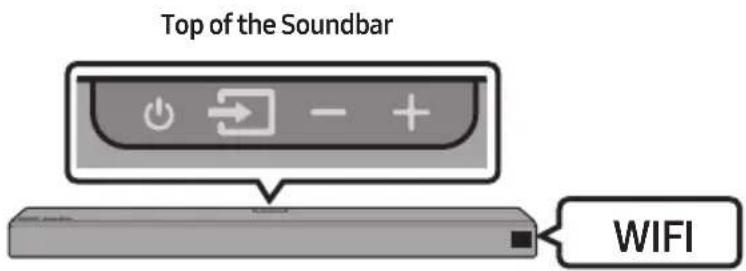

	Wi-Fi mode WIFI
	BLUETOOTH mode BT
	• To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the(Source) button on the top panel for more than 5 seconds.
3	-/+ (Volume) ButtonAdjusts the volume.When adjusted, the volume level appears on the Soundbar’s front display.
4	DisplayDisplays the product’s status and current mode.

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

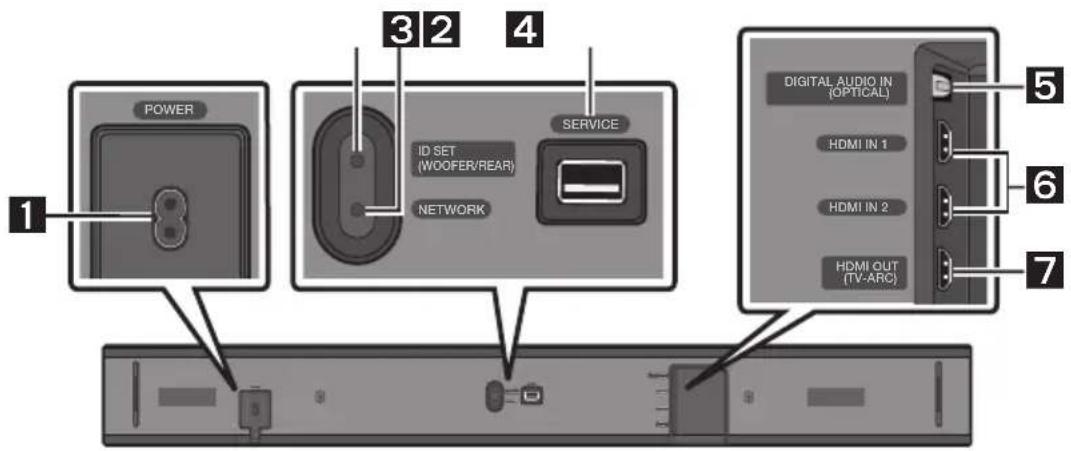

Bottom Panel of the Soundbar

1	POWERConnect the Soundbar's AC power cord.
2	ID SET (WOOFER/REAR)Press to connect the Soundbar to surround speakers and a subwoofer wirelessly.• Press and hold theUpbutton on the remote for 5 seconds to complete ID SET.
3	NETWORKPress to connect to a wireless network (Wi-Fi) via theSmartThingsapp.
4	SERVICEConnect a USB storage device to upgrade the product's software.
5	DIGITAL AUDIO IN (OPTICAL)Connect to the digital (optical) output of an external device.
6	HDMI IN 1 / HDMI IN 2Inputs digital video and audio signals simultaneously using an HDMI cable.Use when connecting a supported external device.
7	HDMI OUT (TV-ARC)Connect to the HDMI (ARC) jack on a TV.

• When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 CONNECTING THE SOUNDBAR

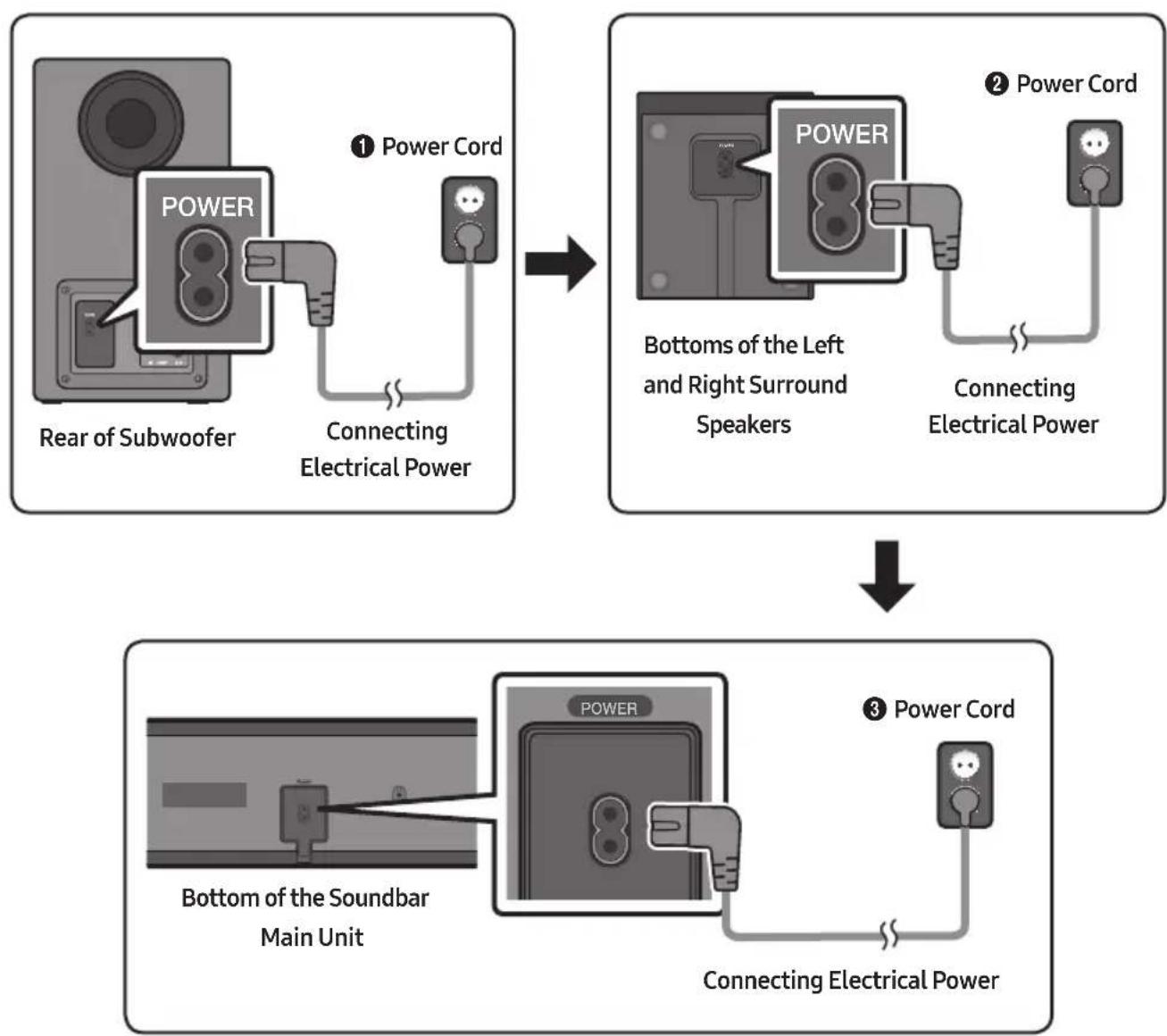

Connecting Electrical Power

Use the power components (1, 2, 3) to connect the Subwoofer, Surround Speaker, and Soundbar to an electrical outlet in the following order:

1 Connect the power cord to the Subwoofer.
2 Connect the power cord to the Left and Right Surround Speakers.
3 Connect the power cord to the Soundbar.

See the illustrations below.

- For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label : Bottom of the Soundbar Main Unit)

Connecting the Soundbar to the Subwoofer and Surround Speakers

When the Subwoofer is connected, you can enjoy rich bass sound.

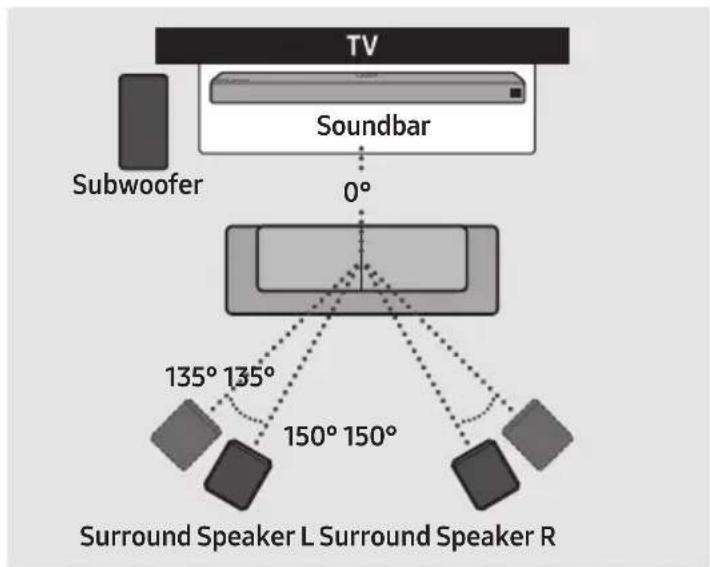

Recommended Speaker Layout

CAUTION

• Wireless receiving antennas are built into the wireless subwoofer and surround speakers. Keep the units away from water and moisture.
• For optimal listening performance, make sure that the areas around the wireless subwoofer and surround speakers locations are clear of any obstructions.

Automatic connection between the Subwoofer or Surround Speakers and the Soundbar

The subwoofer and/or Surround speakers will connect to the Soundbar automatically if they are plugged in to electrical outlets.

- When auto pairing is complete, the blue indicators at the rear of the Subwoofer or Surround Speaker turn on.

LED Indicator Lights on the Rear of Subwoofer and Surround Speakers

LED Status Description Resolution
Blue	On	Successfully connected (normal operation)	-
	Blinking	Standby (with the Soundbar main unit turned off)	Check the power supply to the Soundbar main unit.
		Connection failed	Connect again. (Refer to the instructions on manual connection on page 7.)
Red On		Standby (with the Soundbar main unit turned off)	Check the power supply to the Soundbar main unit.
		Connection failed	Connect again. (Refer to the instructions on manual connection on page 7.)
Red and blue	Blinking Malfunction		See the contact information for the Samsung Service Centre in this manual.

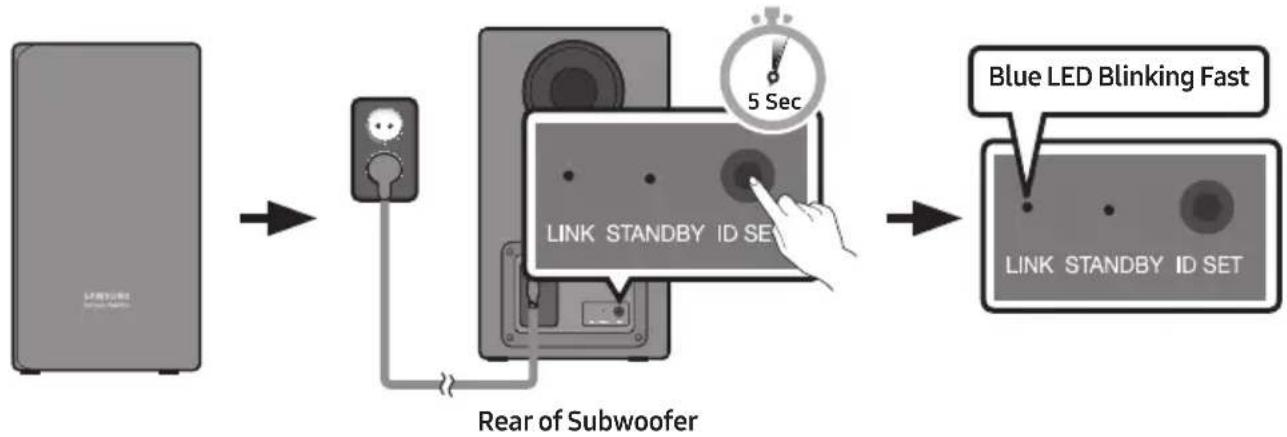

Manually connecting the Subwoofer or Surround Speakers if automatic connection fails

Before performing the manual connection procedure below:

• Check whether the power cords for the Soundbar and subwoofer or Surround Speakers are connected properly.
  • Make sure that the Soundbar is turned on.

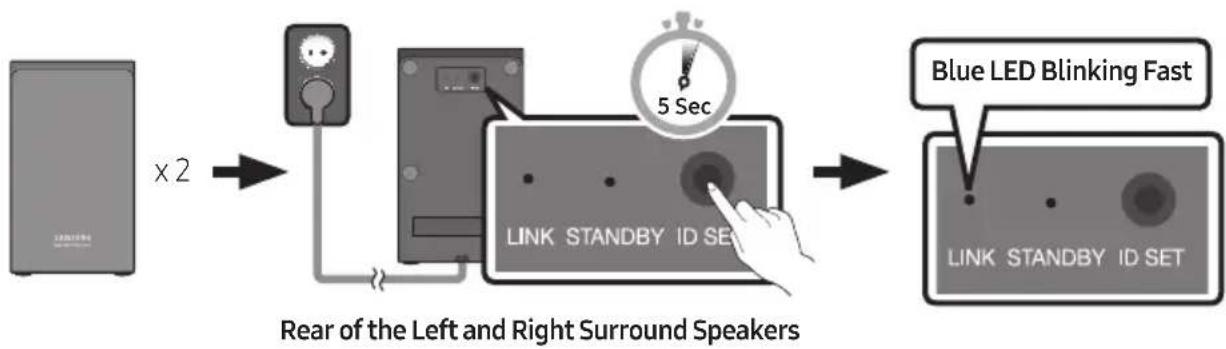

• Press and hold ID SET on the rear of the subwoofer and surround speakers for at least 5 seconds.

- The red indicator at the rear of each speaker turns off and the blue indicator blinks.


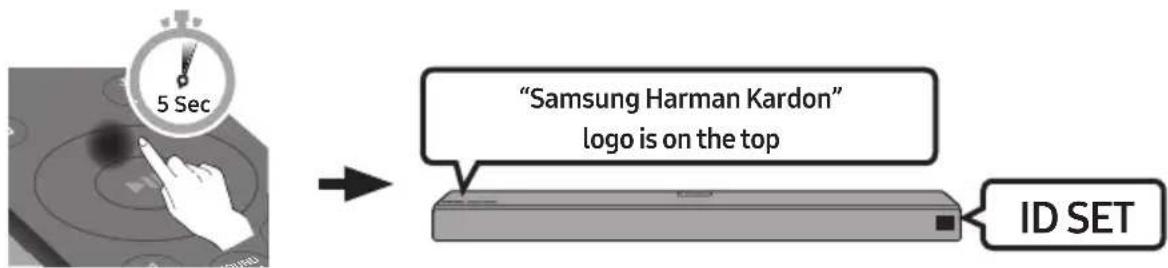

1. Press and hold the Up button on the remote control for at least 5 seconds.

2. The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.

3. The Soundbar will automatically power on when ID SET is complete.

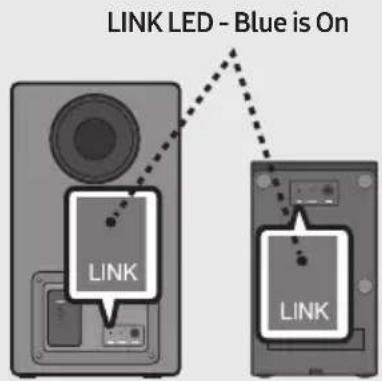

1. Check if the LINK LED is solid blue (connection complete).

When the connection is successfully established, the blue indicators on the rear of the subwoofer and surround speakers turn on without blinking.

NOTES

• Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.
• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.
• If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the rear will be Red after blinking Blue several times.
• If you use a device that uses the same frequency (5.8GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.
• The maximum transmission distance of the wireless signal of the main unit is about 10 meters, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer the system may not operate at all, because the wireless signal cannot penetrate metal.

PRECAUTIONS

• Wireless receiving antennas are built into the wireless subwoofer. Keep the units away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless subwoofer and surround speakers location is clear of any obstructions.

04 CONNECTING TO A TV

Hear TV sound from your Soundbar through wired or wireless connections.

- When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV's remote control.

- This feature is available on 2017 and later Samsung Smart TVs that support Bluetooth when the Soundbar is connected to the TV using an optical cable.

- This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)

Connecting a TV using an HDMI Cable

1. With the Soundbar and TV turned on, connect the HDMI cable as shown in the figure.

2. "TV ARC" appears in the display window of the Soundbar main unit and the Soundbar plays TV sound.

- If TV sound is inaudible, press the → (Source) button on the remote control or on the top of the Soundbar to switch to "D.IN" mode. The screen displays "D.IN" and "TV ARC" in sequence, and TV sound is played.

• If "TV ARC" does not appear in the display window of the Soundbar main unit, confirm that the HDMI cable is connected to the correct port.
• Use the volume buttons on the TV's remote control to change the volume on the Soundbar.

NOTES

• HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
• If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.
• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm.
• Anynet+ must be turned on.
• This function is not available if the HDMI cable does not support ARC.

Connecting using an Optical Cable
    TopSoundBar["Top of the Soundbar"]
    DINA["D.IN"] --> DigitalAudioIn

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable (not supplied).
2. Press the → (Source) button on the top panel or on the remote control, and then select the "D.IN" mode.

Auto Power Link

Auto Power Link automatically turns on the Soundbar when the TV is turned on.

1. Connect the Soundbar and a TV with a digital optical cable (not supplied).
2. Press the Left button on the remote control for 5 seconds to turn Auto Power Link on or off.

• Auto Power Link is set to ON by default.

(To turn off this function, press the Left button on the remote for 5 seconds.)

• Depending on the connected device, Auto Power Link may not function.
• This function is only available in the "D.IN" mode.

Circular play button icon with two playback buttons (no text or symbols)

Method 2. Connecting Wirelessly

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- Only one TV can be connected at a time.

The initial connection

1. Press the ✗ PAIR button on the remote control to enter the "BT PAIRING" mode.

(OR) a. Press the → (Source) button on the top panel and then select "BT".

"BT" changes to "BT READY" in a few seconds automatically if there is no Bluetooth device connected to the Soundbar.

b. When "BT READY" appears, press and hold the → (Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. Select Bluetooth mode on the TV. (For more information, see the TV's manual.)
2. Select "[AV] Samsung Soundbar Nxxx" from the list on the TV's screen.

An available Soundbar is indicated with "Need Pairing" or "Paired" in the TV Bluetooth device list. To connect the TV to the Soundbar, select the message, and then establish a connection.

- When the TV is connected, [TV Name] "BT" appears on the Soundbar's front display.

1. You can now hear TV sound from the Soundbar.

If the device fails to connect

• If a previously connected Soundbar (e.g. "[AV] Samsung Soundbar Nxxx") appears in the list, delete it.
• Then repeat steps 1 through 3.

Disconnecting the Soundbar from the TV

Press the → (Source) button on the top panel or on the remote control and switch to any mode but "BT".

• Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.)
• To cancel the automatic Bluetooth connection between the Soundbar and TV, press the ▶II (Play/Pause) button on the remote control for 5 seconds with the Soundbar in "BT READY" status. (Toggle On → Off)

NOTE

- After you have connected the Soundbar to your TV the first time, use the "BT READY" mode to reconnect.

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.
• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the ✗ PAIR button on the remote control or press and hold the ➕ (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

Connecting via Wi-Fi

Pre-connection Checklist

1. Confirm that your Samsung Smart TV was released after 2013. This function is compatible only with Samsung Smart TVs released after 2013.
2. Make sure your Wireless router (Wi-Fi) is ready and working.
3. Make sure that the TV is connected to the Wireless router (your Wi-Fi network).

Step 1: Connecting the Soundbar to Wi-Fi

1. Press the → (Source) button on the top of the Soundbar or on the remote control to select "WIFI" mode.
2. When using selected Samsung TVs (2016 \~ 2018 Samsung Smart TVs that support Bluetooth.)
3. If you select "WIFI" mode when the TV is turned on, the TV screen displays a pop-up window providing instructions on how to automatically connect the Soundbar to a wireless router (Wi-Fi). Refer to instructions in the pop-up window of the TV.

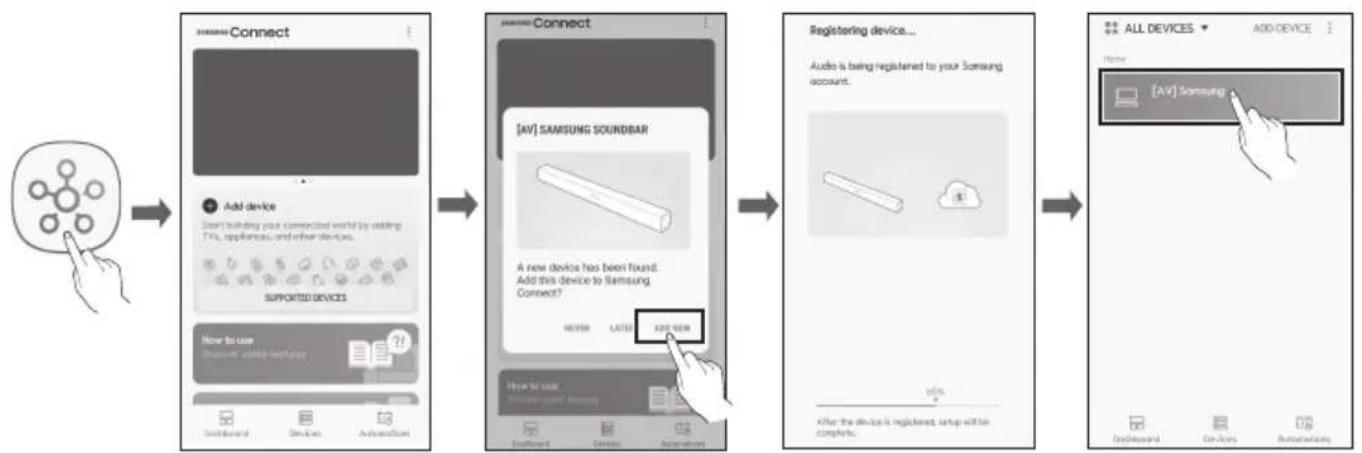

1. Connect your mobile device (smartphone, tablet, etc.) to the Wi-Fi network the TV is connected to.
2. Install and launch the SmartThings app on your mobile device (smartphone, tablet, etc.).

1. Follow the instructions in the app screen on the mobile device to connect the Soundbar to your Wi-Fi network.

Step 2 : Configuring Settings on the TV

- If the TV disconnects from your wireless network after you change the input source to the Soundbar, use the TV menu to connect the TV to the network again.

For TVs released in 2018

Home (☐) → Settings (☐) → Sound → Sound Output → [AV] Samsung Soundbar Nxxx (Wi-Fi)

For TVs released in 2017

Home (☐) → Settings (☐) → Sound → Sound Output → [AV] Samsung Soundbar Nxxx (Wi-Fi)

For TVs released in 2016

Home (☐) → Settings (☒) → Sound → Select Speaker → [AV] Samsung Soundbar Nxxx (Wi-Fi)

For TVs released in 2015

Menu → Sound → Speaker List

For TVs released in 2014

Menu → Sound → Speaker Settings → Multiroom Link - Settings

NOTES

• The TV and Soundbar must be connected to the same wireless network (Wi-Fi).
• If your wireless router (Wi-Fi) uses a DFS channel, you will not be able to establish a Wi-Fi connection between the TV and Soundbar. Contact your Internet service provider for details.
• If the 5GHz Wi-Fi connection is not smooth, use the 2.4GHz bandwidth.
• Because the menus may differ depending on the year of manufacture, refer to your TV manual.

05 CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired or wireless network to play the external device's sound through the Soundbar.

Connecting using an HDMI Cable (Dolby Atmos® supported)

• What is Dolby Atmos®? Atmos technology enhances existing 7.1 channel surround sound systems by adding an overhead speaker. This envelops the listener in 360 degrees of sound, delivering an immersive, high-definition, rich, detailed, and deeper experience.
• Important: This product supports Dolby Atmos® only in HDMI mode.

1. Connect an HDMI cable from the HDMI IN 1 or HDMI IN 2 jack on the bottom of the Soundbar to the HDMI OUT jack on your digital device.
2. Connect an HDMI cable from the HDMI OUT (TV-ARC) jack on the bottom of the Soundbar to the HDMI IN jack on your TV.
3. Press the → (Source) button on the top panel or on the remote control, and then select "HDMI1" or "HDMI2".
4. "HDMI 1" or "HDMI 2" mode is displayed on the Soundbar display panel and sound plays.

NOTE

- When Dolby Atmos® is activated, "DOLBY ATMOS" appears in the front display.

Configuring Dolby Atmos® on your BD player or other device.

- Open the audio output options on the settings menu of your BD player or other device and make sure that "No Encoding" is selected for Bitstream. For example, on a Samsung BD Player, go to Home Menu → Sound → Digital Output and then select Bitstream (unprocessed).

- If the Audio Output options include Secondary Audio, make sure Secondary Audio is set to Off.

- Dolby Atmos® works only on 7.1.4 channels.

- Make sure that the content supports Dolby Atmos®.

Connecting using an HDMI Cable

1. Connect an HDMI cable from the HDMI IN 1 or HDMI IN 2 jack on the bottom of the Soundbar to the HDMI OUT jack on your digital device.

2. Connect an HDMI cable from the HDMI OUT (TV-ARC) jack on the bottom of the Soundbar to the HDMI IN jack on your TV.

3. Press the → (Source) button on the top panel or on the remote control, and then select "HDMI 1" or "HDMI 2".

4. "HDMI1" or "HDMI2" mode is displayed on the Soundbar display panel and sound plays.

Connecting using an Optical Cable

1. Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using a digital optical cable (not supplied).
2. Select "D.IN" mode by pressing the ➞ (Source) button on the top panel or on the remote control.

06 CONNECTING A MOBILE DEVICE

Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- You cannot connect more than one Bluetooth device at a time.

The initial connection

1. Press the ✗PAIR button on the remote control to enter the "BT PAIRING" mode.

(OR) a. Press the → (Source) button on the top panel and then select "BT". "BT" changes to "BT READY" in a few seconds automatically if there is no Bluetooth device connected to the Soundbar. b. When "BT READY" appears, press and hold the → (Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. On your device, select "[AV] Samsung Soundbar Nxxx" from the list that appears.

- When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → "BT" appears in the front display.

1. Play music files located on the device connected via Bluetooth through the Soundbar.

If the device fails to connect

• If a previously connected Soundbar (e.g. "[AV] Samsung Soundbar Nxxx") appears in the list, delete it.
• Then repeat steps 1 and 2.

NOTE

- After you have connected the Soundbar to your mobile device the first time, use the "BT READY" mode to reconnect.

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.
• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the ✗ PAIR button on the remote control or press and hold the ➞ (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.

• If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
  • The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
• Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar Nxxx” from the device’s scanned devices list will automatically change the Soundbar to “BT” mode.

- Available only if the Soundbar is listed among the Bluetooth device's paired devices.

(The Bluetooth device and the Soundbar must have been previously paired at least once.)

• The Soundbar will appear in the Bluetooth device's searched devices list only when the Soundbar is displaying "BT READY".
• The Soundbar cannot be paired to another Bluetooth device if already in Bluetooth mode and paired to a Bluetooth device.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
- When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the → (Source) button on the top panel or on the remote control, and then change to any mode except "BT".

• Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

- A Bluetooth device may cause noise or malfunction, depending on usage, if:

• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

- Pair the Soundbar with the Bluetooth device while they are close together.

- The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.

- In poor reception areas, the Bluetooth connection may not work properly.

- The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

- This wireless device may cause electric interference during its operation.

Connecting via Wi-Fi (Wireless Network)

• Connect a single Soundbar to Wi-Fi to access a variety of music streaming services and Internet radio. Connect multiple Soundbars to Wi-Fi to use grouped playback or the stereo sound mode.
• To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the SmartThings app is required.

The initial connection

1. Press the → (Source) button on the top of the Soundbar or on the remote control to select "WIFI" mode.

1. Install and launch the SmartThings app on your mobile device (e.g. smartphone or tablet).

1. Launch the app, and then follow the instructions on the screen to register (add) your Soundbar in the app.

- The automatic pop-up (the third illustration below) may not be available on some mobile devices.

If this is the case, select and complete "Add device" from the app menu. Your Soundbar is now added to the app.

Launch App Add speakersAuto pop-up

07 CONNECTING AN AMAZON PRODUCT

• This feature may not be available in some countries.
• This service is provided by Amazon and can be terminated at any time. Samsung does not assume responsibility for service availability.

Connect and use with an Amazon product (Amazon Echo)

Use an Amazon Echo product to control your Soundbar and enjoy music services provided by Amazon Echo.

NOTE

- Check if the Soundbar is connected to Wi-Fi. (Refer to "Connecting via Wi-Fi (Wireless Network)")

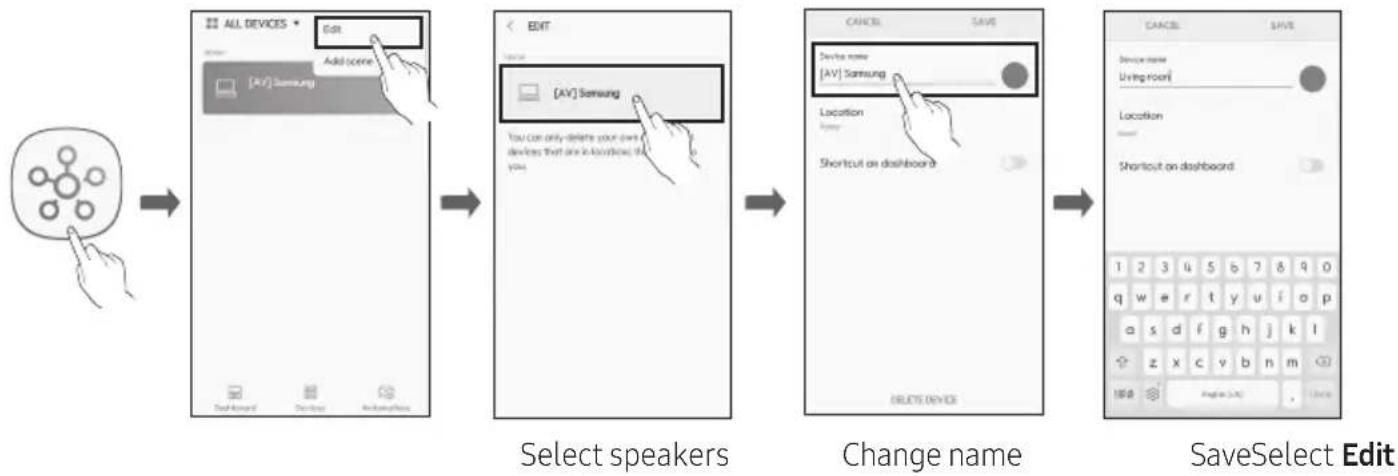

1. In the SmartThings app, change your Soundbar's name to one that can be recognized by your Amazon device.

(Example: Samsung, Soundbar, Living Room, Family Room, Bedroom, Office, etc.)

CAUTION

- Amazon devices may not recognize names that contain elements such as special characters.

1. In the Alexa app, search "Samsung Wireless Audio" in Skills, and then select "ENABLE".

- Skip this step if you have Skills set up already.

1. In the Alexa app, tap "Smart Home → Devices → Discover" to complete the connection.

    subgraph "Select Smart Home"
        D["Home"] --> E["Smart Home"]
        F["Items to Try"] --> G["Smart Home"]
        H["I love you"] --> I["Smart Home Skills"]
        J["Features"] --> K["Smart Home Skills"]
        L["Settings"] --> M["Smart Home Skills"]
        N["Help & Function"] --> O["Smart Home Skills"]
        P["Best Manual/ Signed"] --> Q["Smart Home Skills"]
        R["Timer set for"] --> S["Smart Home Skills"]
    end

    subgraph "Select Devices Discover device"
        T["Groups"] --> U["Devices"]
        V["Scenes"] --> W["Devices"]
        X["Configure Smart Home"] --> Y["Devices"]
        Z["Smart Home Skills"] --> AA["Devices"]
        AB["Discover"] --> AC["Devices"]
    end

Use voice commands to control the Soundbar

- The Amazon Echo service you can use with your Soundbar is limited to music. Other services provided by Amazon Echo, such as news and weather, can only be accessed through your Amazon Echo product.

Trigger + Command + Speaker name

Use the Speaker name you changed in the SmartThings app. (Refer to "Connect and use with an Amazon product (Amazon Echo)")

Action Voice Command
To search an audio device added to theSmartThingsaccount connected to theAmazon Alexaaccount	"Alexa Discover devices"

* To use voice commands for the Soundbar named "Living room"

Action Voice Command
To set the volume level to 5	"Alexa Set the volume to 5 on Living room"
To increase the volume level	"Alexa Volume up on Living room"
To mute the sound "Alexa Mute on Living room"
To listen to a radio station named KISS FM	"Alexa Play Kiss FM on Living room"
To play the next song	"Alexa Next song on Living room"
To stop the audio	"Alexa Stop on Living room"
To turn the audio on "Alexa Turn on Living room"
To turn the audio off "Alexa Turn off Living room"
To change the input source	"Alexa Switch to Bluetooth on Living room"

08 USING THE REMOTE CONTROL

How to Use the Remote Control

1	Power	Turns the Soundbar on and off.
2	Source	Press to select a source connected to the Soundbar.BT PAIRING modeTo turn on “BT PAIRING” mode, press and hold the (Source) button for more than 5 seconds.
3	Mute	Press the (Mute) button to mute the sound. Press it again to unmute the sound.
4	SOUND MODE	Press to select the desired sound effect:STANDARD, SURROUND, or SMART.Select the STANDARD mode if you want to enjoy the original sound.SMART modeAutomatically optimizes sound effects to suit the scene currently playing.
5	BluetoothPAIR	Press the ✗ PAIR button. “BT PAIRING” appears in the Soundbar’s display.You can connect the Soundbar to a new Bluetooth device in this mode by selecting the Soundbar in the Bluetooth device’s search list.

6	Play / Pause(BT/Wi-Fi)	Press the ▶I button to pause a music file temporarily.Press the button again and the music file plays.• Auto Power Down FunctionThe unit turns off automatically in the following situations.- D.IN / WIFI / BT Mode : If there is no audio signal for 5 minutes.- HDMI 1 or HDMI 2 Mode : If there is no audio signal for 15 minutes.
7	Up/Down/Left/Right	Press the indicated areas to select Up/Down/Left/Right.Press Up/Down/Left/Right on the button to select or set functions.• Music SkipPress the Right button to select the next music file. Press the Left button to select the previous music file.• Anynet+ / Auto Power LinkYou can turn Anynet+ and Auto Power Link on or off.Anynet+ and Auto Power Link are turned on and turned off by the Right and Left buttons respectively.- Anynet+ : If the Soundbar is connected to a Samsung TV through an HDMI cable, you can control your Soundbar with a Samsung TV remote control.Press and hold the Right button for 5 seconds to toggle Anynet+ ON and OFF.- Auto Power Link : If the Soundbar is connected to your TV through a digital optical cable, the Soundbar can automatically turn on when you turn on your TV. Press and hold the Left button for 5 seconds to toggle Auto Power Link ON and OFF.- Anynet+ / Auto Power Link are set to ON by default.• ID SETPress and hold the Up button for 5 seconds to complete ID SET.
8	Sound Control	You can select from TREBLE, BASS, SYNC, CENTER LEVEL, SIDE LEVEL, FRONT TOP LEVEL, REAR LEVEL, REAR TOP LEVEL or VIRTUAL ON/OFF.To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons.Press and hold the (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz, and 10KHz are selectable using the Left/Right buttons and each can be adjusted to a setting between -6 to +6 using the Up/Down buttons.To control the volume of the each speaker select CENTER LEVEL, SIDE LEVEL or FRONT TOP LEVEL in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons.If the video on the TV and audio from the Soundbar are not synchronised, select SYNC in Sound Control, and then set the audio delay between 0~300 milliseconds by using the Up/Down buttons.If Surround Speakers are connected, select REAR LEVEL or REAR TOP LEVEL, and then use the Up/Down buttons to adjust the volume within a -6 to +6 range. The REAR SPEAKER function can be turned VIRTUAL ON/OFF by using the Up/Down buttons.SYNC is only supported for some functions.
9	WOOFER		Push the button up or down to adjust the volume of the subwoofer to -12 or between -6 to +6. To set the subwoofer volume level to 0, press the button.
10	VOL		Push the button up or down to adjust the volume.MutePress the VOL button to mute the sound. Press it again to unmute the sound.

Adjusting the Soundbar volume with a TV remote control

If you have a Samsung TV, you can adjust the Soundbar's volume using the IR remote control that came with your Samsung TV.

First use the TV menu to set the TV audio on your Samsung TV to external speakers, then use your Samsung remote to control the Soundbar's volume. For more information, see the TV's user manual. The default mode for this function is control by a Samsung TV remote. If your TV is not a Samsung TV, follow the directions below to change the settings of this function.

1. Turn Off the Soundbar.

1. If you do not want to use this function, push up and hold the WOOFER button on the remote repeatedly for 5 seconds until "OFF-TV REMOTE" appears in the display.

1. If you want to control the Soundbar with your TV's remote, push up and hold the WOOFER button for 5 seconds repeatedly until "ALL-TV REMOTE" appears in the display. Then, use your TV's menu to select external speakers.

1. If you want to return the Soundbar to the default mode (control by a Samsung TV remote), push up and hold the WOOFER button for 5 seconds repeatedly until "SAMSUNG-TV REMOTE" appears in the display.

- Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order:

"SAMSUNG-TV REMOTE" (Default mode)

→ "OFF-TV REMOTE" → "ALL-TV REMOTE".

- This function may not be available, depending on the remote control.

- Manufacturers supporting this function: VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA

Using the Hidden Buttons (Buttons with more than one function)

Hidden Button		Reference page
Remote Control Button Function
WOOFER	TV remote control On/Off (Standby)	page 29
(Source)	BT Pairing page 26
DWAX41 (Play / Pause)	Auto Power Down On/Off(AUX mode)	page 27
	BT Ready page 19
Left	Auto Power Link ON/OFF	page 27
Right Anynet+ ON/OFF page 27
Up ID SET page 27
(Sound Control)	7 Band EQ page 28

Output specifications for the different sound effect modes

Effect Input		Output
		With Subwoofer & Surround Speaker
STANDARD	2.0 ch 2.1 ch
	5.1 ch 5.1 ch / 7.1 ch	(DTS)
	7.1 ch	7.1 ch
	7.14 ch	7.14 ch
SURROUND	2.0 ch	7.14 ch
	5.1 ch	7.14 ch
	7.1 ch 7.14 ch
	7.14 ch	7.14 ch
SMART	2.0 ch 2.1 ch
	5.1 ch 5.1 ch / 7.1 ch	(DTS)
	7.1 ch	7.1 ch
	7.14 ch	7.14 ch

• If the input source is Dolby Atmos®, 7.1.4 channel is outputted. The sound effect is not available.

09 INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.
- Verify that the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

• Diameter: M5
  – Length: 35 mm or longer recommended.

- Connect cables from the unit to external devices before you install the Soundbar on the wall.

- Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Wall Mount Guide

Holder-Screw Screw

Simple line drawing of a mobile phone case with a handle and label 'x 2' (no other text or symbols)

Bracket-Wall Mount

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level.
- If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

1. Align the Wall Mount Guide's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

1. Push a pen tip or sharpened pencil tip through the centre of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws.

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

- When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

Rear of Soundbar

Simple line drawing of a monitor with a cable and antenna, no text or symbols present

Right end of Soundbar

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

- Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that Bracket-Wall Mounts rest securely on the Holder-Screws.

Installing the Surround Speakers on a Wall (Sold Separately)

You can purchase wall mounts separately to install the surround speakers on a wall.

Notes for Wall Mounting the Surround Speakers

• Surround Speaker wall mounts must be able to support more than 2.0 kg.
  • Hole size : 1/4 - 20 threaded insert
• Since wall-mount installation is optional, you must purchase the corresponding accessories separately.
• Please have a qualified installer install the surround speaker Wall Mount Brackets.
• Ask a professional installation company to mount your product on the wall.
• Check the strength of the wall before you install the Wall Mount Brackets. If the strength is insufficient, make sure to reinforce the wall before installing the Wall Mount Brackets and the speakers on the wall.
• For more information, please refer to the Wall Mount's manual.
• Samsung Electronics is not liable for any damage to the product due to the product being installed inappropriately.
  • Take care not to install the speakers sideways or upside down.

10 SOFTWARE UPDATE

When the Soundbar is connected to the Internet, software updates automatically occur even when the Soundbar is turned off.

- To use the Auto Update function, the Soundbar must be connected to the Internet. The Wi-Fi connection to the Soundbar will be terminated if the Soundbar's power cord is disconnected or the power is cut off. If the power is cut off, when the power comes back on or you reconnect the power cord, turn on the Soundbar, and then reconnect it to the Internet.

11 TROUBLESHOOTING

Before seeking assistance, check the following.

The unit will not turn on.

Is the power cord plugged into the outlet?

→Connect the power plug to the outlet.

A function does not work when the button is pressed.

Is there static electricity in the air?

→Disconnect the power plug and connect it again.

Sound dropouts occur in BT mode.

→See the Bluetooth connection sections on pages 11 and 18.

Sound is not produced.

Is the Mute function on?

→ Press the ⚫ (Mute) button to cancel the mute function.

Is the volume set to minimum?

→Adjust the Volume.

The remote control does not work.

Are the batteries drained?

→Replace with new batteries.

Is the distance between the remote control and Soundbar main unit too far?

→ Move the remote control closer to the Soundbar main unit.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

This issue can occur if the subwoofer is not connected to the Soundbar main unit.

→ Try to connect your subwoofer again. (See page 6.)

The subwoofer drones and vibrates noticeably.

Try to adjust the vibration of your subwoofer.

→ Push the WOOFER button on your remote control up or down to adjust the subwoofer volume. (to -12, or between -6 \~ +6).

Cannot connect to the TV.

If connected via a wired network

→ Check if the cable is connected correctly. (Check the port name to make sure that the cable is connected to the correct port.) (See the corresponding page regarding each connection method.)
→ Press the → (Source) button on the top panel of the Soundbar or on the remote control to check if the mode is correct.

If connected via a wireless network → Connected via Bluetooth

1. Switch the Soundbar to "BT PAIRING" mode, and then use the TV to search again. (See page 11 for details.)

→Connected via Wi-Fi

1. Check if the TV is a compatible model.

- Only Samsung Smart TVs released after 2013 are supported.

1. Check if the TV is connected to Wi-Fi.

- If the TV is not connected to Wi-Fi, use the network menu on the TV to establish a connection. (See the TV user manual.)

1. Check if the Soundbar is connected to Wi-Fi.

- When the Soundbar is connected, you can find it in the list of speakers on your mobile device when you run the SmartThings app. See page 21 for details.

1. Check for a DFS channel.

- If your wireless router (Wi-Fi) is using a DFS channel, you cannot establish a Wi-Fi connection between the TV and Soundbar. Contact your Internet service provider for details.

12 LICENCE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio, Dolby Digital Plus, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS:X, and the DTS:X logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

• The Spotify Software is subject to third party licences found here: www.spotify.com/connect/third-party-licenses.
• For more information about Spotify Connect, please visit www.spotify.com/connect

13 OPEN SOURCE LICENCE NOTICE

For further information on Open Sources used in this product, please visit the website:

http://opensource.samsung.com

14 IMPORTANT NOTES ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
• An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).

(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

- You will be informed of the administration fee amount before a technician visits.

15 SPECIFICATIONS AND GUIDE

Specifications

Model Name HW-N960
Weight 8.8 kg
Dimensions (W x H x D) 1226.0 x 83.0 x 136.0 mm
Operating Temperature Range +5°C to +35°C
Operating Humidity Range 10% ~ 75%
AMPLIFIERRated Output power 18W x 10 + 10W x 3, 4ohm
Supported play formats	LPCM 2ch, Dolby AudioTM(supporting Dolby® Digital), DTS
WIRELESS DEVICE OUTPUT POWERWi-Fi max transmitter power	100mW at 2.4GHz - 2.4835GHz,5.15GHz - 5.35GHz & 5.47GHz - 5.725GHz
WIRELESS DEVICE OUTPUT POWERBT max transmitter power	100mW at 2.4GHz - 2.4835GHz
WIRELESS DEVICE OUTPUT POWERSRD max transmitter power	100mW at 2.4GHz - 2.4835GHz and5.15GHz - 5.25GHz /25mW at 5.725GHz - 5.825GHz
Subwoofer Name PS-WN90
Weight 9.6 kg
Dimensions (W x H x D) 203.5 x 400.0 x 415.5 mm
AMPLIFIERRated Output power 162W
Surround Speaker Name PS-SN90-1, PS-SN90-2
Weight	2.1 kg
Dimensions (W x H x D)	120.0 x 210.0 x 141.0 mm
AMPLIFIERRated Output power	35W x 4

NOTES

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.

Precaution : The Soundbar will restart automatically if you turn on/turn off Wi-Fi.

Overall Standby Power Consumption (W)	4.5W
Wi-FiPort deactivation method	Press the ID SET button on the bottom panel of the Soundbar for 30 seconds to turn Wi-Fi On / Off.
BluetoothPort deactivation method	Press the NETWORK button on the bottom panel of the Soundbar for 30 seconds to turn Bluetooth On / Off.

- Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

The 5GHz WLAN(Wi-Fi or SRD) function of this equipment may only be operated indoors.

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit:

http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

SIKKERHEDSINFORMATIONER

SIKKERHEDSINFORMATIONER

FOR AT MINDSKE RISIKO FOR ELEKTRISK ST∅D MÅ BAGBEKLÆDNINGEN IKKE AFTAGES. ENHEDENS INDVENDIGE DELE MÅ KUN EFTERSES AF FAGKYNDIGE. OVERLAD ALT REPARATIONSARBJEDE TIL AUTORISEREDE SERVICEFORHANDLERE.

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

BRUGERVEJLEDNING

Illustration of a person sitting on a couch next to a computer (no text or symbols visible)

KOMPLET BRUGERVEJLEDNING

02 PRODUKTOVERSIGT

Soundbarens frontpanel / øverste panel

04 TILSLUTNING TIL DIT TV

Circular play button icon with double arrow symbol (no text or numbers)

Metode 2. Trådløs tilslutning

Vægmonteringens styreskinne

Holderskrue Skrue

Simple line drawing of a mobile phone case with a double-headed button (no text or symbols)

Diagram showing mechanical components with arrows indicating motion, no text or symbols present

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing a device being processed into a component, with arrows indicating the process (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio, Dolby Digital Plus, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS:X, and the DTS:X logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

• Spotify-softwaren er omfattet af tredjepartslicenser, der findes her: www.spotify.com/connect/third-party-licenses.
• For flere informationer om Spotify Connect kan du besøge www.spotify.com/connect

13 BEMAERKNING VEDR. OPEN SOURCE-LICENS

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

KÄYTTÖOPAS

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

TÄYDELLINEN KÄYTTÖOPAS

02 LAITTEEN YLEISKUVAUS

Soundbar-laitteen etupaneeli/yläpaneeli

Circular play button icon with two vertical bars, no text or symbols present

Simple line drawing of a mobile phone case with no text or symbols

Seinäkiinnittimien

Diagram showing a screw being inserted into a pin, with arrows indicating direction (no text or symbols)

Diagram showing a screw being inserted into a device with a button, no text or symbols present

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio, Dolby Digital Plus, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS:X, and the DTS:X logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

BRUKERHÅNDBOKEN

Illustration of a person sitting on a sofa next to a desk with a laptop (no text or symbols visible)

FULLSTENDIG BRUKERHÅNDBOK

Soundbars frontpanel / toppanel 3

Nedre panel i Soundbar 4

03 Koble til Soundbar 5

02 PRODUKOVERSIKT

Soundbars frontpanel / toppanel

03 KOBLE TIL SOUNDBAR

Koble til strøm

Circular play button icon with double arrow symbol (no text or numbers)

    subgraph Vela Skills
        F["Amazon"]
        G["I love you"]
        H["Things to Try"]
        I["Thank You"]
        J["Help You"]
        K["Help You"]
        L["Timer set for 00:10"]
    end

    subgraph Søk
        M["All Skills"]
        N["Google"]
        O["FOX NEWS"]
        P["Other"]
        Q["Other"]
        R["Other"]
        S["Other"]
        T["Other"]
        U["Other"]
    end

    subgraph Search
        V["Samsung Wireless Audio"]
        W["Samsung Wireless Audio"]
        X["Samsung Wireless Audio"]
        Y["Samsung Wireless Audio"]
    end

    subgraph Aktiver
        Z["Samsung Wireless Audio"]
        AA["Samsung Wireless Audio"]
        AB["Samsung Wireless Audio"]
        AC["Samsung Wireless Audio"]
        AD["Samsung Wireless Audio"]
    end

    F --> H
    H --> I
    I --> J
    J --> K
    K --> L
    L --> M
    M --> N
    N --> O
    O --> P
    P --> Q
    Q --> R
    R --> S
    S --> T
    T --> U
    U --> V
    V --> W
    W --> X
    X --> Y
    Y --> Z

Simple line drawing of a mobile phone case with a handle and display panel (no text or symbols)

Veggfestebraketten

1. Plasser Veggfestestyring mot veggoverflaten.

• Veggfestestyring må ligge vannrett.
- Hvis TV-en er montert på veggen, må Soundbar installeres minst 5 cm under TV-en.

1. Juster Midtlinjen på veggmonteringsmalen i samsvar med midten av TV-apparatet (hvis du monterer Soundbar under TV-apparatet), og fest deretter Veggfestestyring på veggen med teip.

- Hvis enheten ikke skal monteres under en TV, plasserer du Midtlinje midt på monteringsområdet.

Diagram showing a screw being inserted into a housing, with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Simple line drawing of a rectangular device with a vertical line and a small protrusion, no text or symbols present.

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio, Dolby Digital Plus, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS:X, and the DTS:X logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

ANVÄNDARHANDBOK

Illustration of a person sitting on a sofa next to a desk with a computer (no text or symbols visible)

FULLSTÄNDIG HANDBOK

INNEHÅLLSFÖRTECKNING

01 Kontrollera komponenterna 2

02 PRODUKTÖVERSIKT

Circular play button icon with no text or symbols

    subgraph Välj Smart Home
        E["Smart Home"] --> F["Groups"]
        G["Devices"] --> H["Scenes"]
        I["Smart Home Skills"] --> J["Discover"]
    end

    subgraph Välj Devices Upptäck enhet
        K["Devices"] --> L["Enable smart home skills to control devices with Alexa, if you've already enabled your skill, discover devices below. SMART HOME SKILL"]
    end

Väggfästguide

Fästskruv Skruv

Simple line drawing of a mobile phone case with no text or symbols

Väggfäste

Diagram showing a screw being inserted into a pinhole, with arrows indicating direction (no text or symbols)

Diagram of a device with a screw and indicator lights, showing mechanical components (no text or symbols)

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio, Dolby Digital Plus, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS:X, and the DTS:X logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

13 LICENSMEDDELANDE FÖR OPEN SOURCE

© 2018 Samsung Electronics Co., Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country	Contact Centre	Web Site
■Europe
UK 0330 SAMSUNG (7267864)		www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100		www.samsung.com/ie/support
GERMANY 06196 77 555 77		www.samsung.com/de/support
FRANCE 01 48 63 00 00		www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864)		www.samsung.com/it/support
SPAIN 0034902172678		www.samsung.com/es/support
PORTUGAL 808 207 267		www.samsung.com/pt/support
LUXEMBURG 261 03 710		www.samsung.com/be_fr/support
NETHERLANDS 088 90 90 100		www.samsung.com/nl/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY 815 56480		www.samsung.com/no/support
DENMARK 707 019 70		www.samsung.com/dk/support
FINLAND 030-6227 515		www.samsung.com/fi/support
SWEDEN	0771 726 786	www.samsung.com/se/support
POLAND	801-172-678* lub [phone]** (koszt połączenia według taryfy operatora)	http://www.samsung.com/pl/support/
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
AUSTRIA	0800-SAMSUNG (0800-7267864)[Only for Dealers] 0810-112233	www.samsung.com/at/support

Country	Contact Centre	Web Site
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA	072 726 786	www.samsung.com/hr/support
BOSNIA	055 233 999	www.samsung.com/support
MONTENEGRO	020 405 888
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
SERBIA	011 321 6899	www.samsung.com/rs/support
ALBANIA 045 620 202		www.samsung.com/al/support
BULGARIA	*3000 Цена в мрежата0800 111 31, Безплатна телефонна линия	www.samsung.com/bg/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG)Apel GRATUIT	www.samsung.com/ro/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line
LITHUANIA 8-800-77777		www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ee/support
