Product Type	Washer Dryer
Brand	Indesit
Model	WIDXXL 146 (EU)
Dimensions (W x H x D)	59.5 cm x 85 cm x 52.5 cm
Wash Capacity	1 - 7 kg
Drying Capacity (Cotton)	Up to 5 kg
Drying Capacity (Synthetic)	Up to 2.5 kg
Spin Speed	Up to 1400 rpm
Power Consumption	1700 - 2100 W
Voltage / Frequency	220 - 240 V / 50 Hz
Water Pressure Range	0.05 - 1 MPa (0.5 - 10 bar)
Drum Volume	54 litres
Wash Programmes	Cotton, Synthetics, Wool, Delicates, Sport, Daily, Rinse, Spin, Drain, Drying
Drying Options	Time-based (40-150 min) and Sensor drying (Iron, Hanger, Cupboard)
Options	Delay Timer (up to 9h), Easy Iron, Extra Rinse, Spin Speed Reduction (1400-700 rpm)
Detergent Dispenser	3 compartments: Pre-wash, Main wash, Fabric softener
Control Panel	LED indicators, Program knob, Temperature knob, Drying knob, Option buttons, Start/Reset button, On/Off button
Door Lock	Automatic lock with LED indicator; door opens when LED flashes
Energy Saving	Less water usage, full load recommended, lower temperature programmes
Maintenance	Clean detergent drawer regularly, check inlet hose annually, leave door ajar to prevent odours
Installation Requirements	Remove transit bolts, level feet, water supply (cold fill), drain height 65-100 cm, earthed socket

Frequently Asked Questions - WIDXXL 146 (EU) INDESIT

How do I remove the transit bolts?

The machine has two transit bolts on the rear panel. Use a 13mm spanner to unscrew each until 3 threads are visible. Then hold the bolt, slide it sideways and pull out. Insert the supplied plastic covers over the holes. Failure to remove them may cause damage.

How do I level the washing machine?

Turn one or both front feet anti-clockwise by hand until they cannot turn further. Use a spirit level to check the machine is level from side to side and front to back. The spring on each foot prevents loosening.

How to connect the water inlet hose?

Attach the hose with the blue cap to the cold water tap. Ensure the seal is inside the end cap. Tighten the tap and check for leaks. The water pressure must be between 0.05 and 1 MPa. Avoid kinks in the hose.

What is the maximum load for washing and drying?

The maximum wash load is 7 kg. For drying, the maximum load is 5 kg for cotton and 2.5 kg for synthetics. For delicate fabrics, do not exceed 2 kg. Overloading may reduce performance.

How do I set a delayed start?

Press the Delay Timer button repeatedly to set a delay from 1 to 9 hours. The corresponding LED will flash. Once the programme starts, the delay can only be decreased. After the delay, the programme begins automatically.

How to use the drying function?

Turn the DRYING knob to select either a timed drying (40-150 minutes) or a sensor drying level: Iron (slightly damp), Hanger (dry to hang), Cupboard (very dry). A 20-minute cooling phase follows each drying cycle.

What does the Door Lock LED indicate?

When the LED is steady, the door is locked. When it flashes, the door can be opened. Rapid flashing with other LEDs indicates a fault; call for assistance.

How do I clean the detergent dispenser?

Pull the drawer out until it stops, press the release button to remove it completely. Clean the drawer, syphons, grate, and fabric conditioner channel with water. Dry and reinsert firmly. Do not clean while the machine is running.

What should I do if the machine vibrates excessively?

Check that the transit bolts are removed, the machine is level, and it is not cramped against walls or cabinets. If needed, adjust the feet. Ensure the floor is stable.

The machine won't start. What can I check?

Ensure the appliance is plugged in, the door is closed, the water tap is on, and the START/RESET button is pressed for two seconds. Also check if a delayed start is set. If the Door Lock LED flashes rapidly with others, call for assistance.

USER MANUAL WIDXXL 146 (EU) INDESIT

Remove the transit fixings, 2

Levelling, 2

Water connection, 2

Drainage & connections, 3

The first wash cycle, 3

Technical Details, 3

Washer Dryer description, 4-5

Control panel, 4

LEDs, 5

Starting and programmes, 6

Briefly: starting a programme, 6

Programme table, 6

Personalisation, 7

Setting the temperature, 7

Setting the drying cycle, 7

Options, 7

Table of drying times, 7

Detergents and laundry, 8

Detergent dispenser, 8

Preparing your laundry, 8

Precautions and advice, 9

General safety, 9

Saving energy and respecting the environment, 9

Disposal, 9

Care and Maintenance, 10

Switching off the water or electricity supply, 10

Cleaning, 10

Caring for your appliance door and drum, 10

Checking the water inlet hose, 10

Troubleshooting, 11

Service, 12

Before calling for assistance, 12

Spare Parts, 12

GB

! Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washer dryer to inform the new owner as to its operation and features.
! Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking

1. Unpack the machine.
2. Check whether the machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

Remove the transit fixings

IMPORTANT: Follow these instructions to remove the TWO transit fixings.

Pure diagram of a mechanical component with no text or symbols

Situated on either side of the rear panel, BOTH transit boltsBOTH tra MUST be must be before moved before

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

! Failure to do so may cause damage to your machine. It is important the transit bolt and spacer (see pic) come out intact.

Simple line drawing of a mechanical component with a bolt and shaft (no text or symbols)

1. Unscrew the bolt using a 13mm spanner.

Hand holding a button on a device (no visible text or symbols)

1. STOP when 3 threads can be seen.

Simple line drawing of a door handle and seat (no text or symbols)

1. Hold, slide sideways and pull to remove.

2. For safety, insert one of the two plastic covers (supplied with your machine) over the hole.

! Repeat steps 1 to 4 to remove the second transit bolt.
! Packaging materials are not children's toys.

Levelling

Your machine will be noisy if the two front feet are not adjusted so that the machine stands firm and level.

! The machine should be levelled from side to side and from front to back.

1. Move your machine into its final location.
2. Take care not to trap or kink the hoses.

Line drawing of a hand holding a cylindrical object with a threaded rod (no text or symbols)

1. Turn one or both front feet anti-clockwise by hand until the feet cannot be turned any more.

When adjusting the feet, use a spirit level to check the machine stands level, from side to side and from front to back.

- The spring on each foot will stop them coming loose.

If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the machine.

Water connection

Connecting the water inlet hose.

Remember that this is a cold-fill machine.

! Check that seal is in place inside the hose end cap.

Before making the water connections to gas 34 thread, allow the water to run freely from the supply tap until it is perfectly clear.

Line drawing of a hand holding a mechanical component (no text or symbols)

Screw the inlet end with the blue cap onto the cold water supply tap.

Turn the taps on and check for leaks: tighten if necessary.

! Make sure there are no kinks or bends in the hose.
! The water pressure at the tap must be within the values indicated in the Technical details table (next page).
! If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.
! Always use new hoses.
! Check the water hose at least once a year, replace any that are cracked as worn hoses could split under water pressure.

Drainage connections

A. Connect the drain hose, without kinking it, to a draining duct or a wall drain fixed at a height between 65 and 100cm from the floor.

B. Alternatively, place it over the edge of a basin, sink or tub, fastening the hose supplied to the tap.

! The free end of the hose should not be under water.

! We advise against the use of hose extensions. In case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150cm in length.

Electrical connections

Before plugging the appliance into the mains socket, make sure that:

• the socket is earthed and in compliance with the applicable law.
• the socket is able to sustain the appliances maximum power load indicated in the Technical Details table (on the right).
• the supply voltage is included within the values indicated in the Technical Details table (on the right).
• the socket is compatible with the machine's plug. If this is not the case, replace the socket or the plug.

! The machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

! When the machine is installed, the mains socket must be within easy reach and should be connected to a suitable electrical supply.
! Do not use extensions or multiple sockets.
! The power supply cable must never be bent or dangerously compressed.
! The power supply cable must only be replaced by an authorised serviceman.
! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed and before you use it for the first time, run a wash cycle without detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

TECHNICAL DETAILS
Model	WIDXXL 146
Dimensions	59.5 cm wide85 cm high52.5 cm deep
Capacity	from 1 to 7 kg
Electric connections	voltage 220 - 240 volts 50 HzAbsorbed power 1700 - 2100 W
Water connection	maximum pressure 1 MPa (10 bar)minimum pressure 0,05 MPa (0,5 bar)drum capacity 54 litres
Spin speed	up to 1400 rpm
Control programmes according to the IEC456 directive	programme 2*Wash run with a 7 kg loadDry run with 5 kg and 2 kg loads*set wash temperature to 60°C
	This appliance is compliant with the following European Community directives:- 72/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) and subsequent amendments

Washer Dryer Description

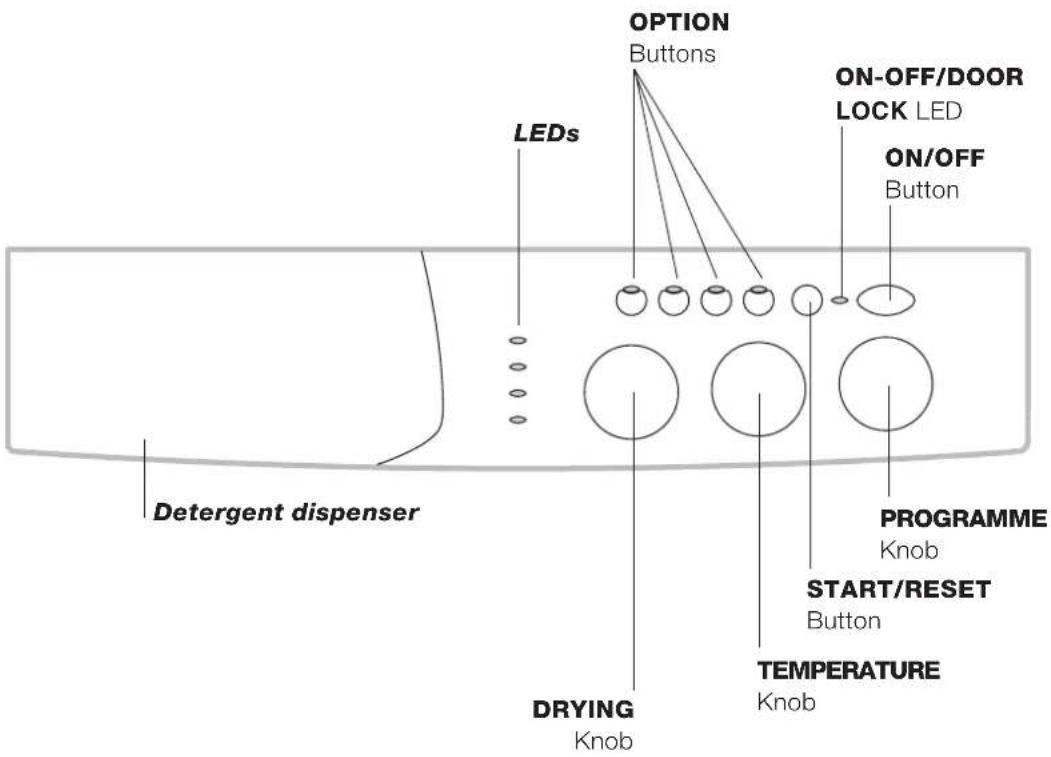

Control panel

Detergent dispenser: to add detergent and fabric softener (see page 8).

LEDS: to find out which wash cycle phase is under way.

If the Delay Timer option has been set, the time left until programme starts will be indicated (see page 5).

DRYING knob: to set the drying duration or automatic sensor dry level (see page 7).

OPTION buttons: to select the options available. The button corresponding to the selected option will remain on.

TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 7).

START/RESET button: to start the programmes or cancel any incorrect settings.

ON-OFF/DOOR LOCK LED: to find out whether the machine is on and if the appliance door can be opened (see page 5).

ON/OFF button: to turn the machine on and off.

PROGRAMME knob: to select the wash programmes. The knob stays still during the cycle.

LEDs

The LEDs provide important information.

This is what they can tell you:

Delay set:

If the Delay Timer option has been enabled (see page 7), once you have started the programme, the LED corresponding to the delay set will begin to flash:

As time passes, the remaining delay will be displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will turn off and the programme set will start.

Cycle progress:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle progress:

Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.

- When the drying cycle is complete, the indicator light relative to phase ✝ will flash, to indicate that the DRYING knob needs to be set back to the 0 setting.

Option buttons:

The OPTION buttons also act like LEDs.

When an option is selected, the corresponding button is illuminated.

If the option selected is incompatible with the programme set, the button will flash and the option will not be enabled.

If you set an option that is incompatible with another option you selected previously, only the last one selected will be enabled.

ON-OFF / DOOR LOCK LED:

If the LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door.

! The rapid flashing of the ON-OFF/DOOR LOCK LED together with the flashing of at least one other LED indicates there is an abnormality. Call for Technical Assistance (see page 12).

Starting and Programmes

Briefly: starting a programme

1. Switch the washer dryer on by pressing button (J). All the LEDs will light up for a few seconds and the ONOFF / DOOR LOCK Led will begin to flash.
2. Load your laundry into the machine and shut the appliance door.
3. Set the PROGRAMME knob to the programme required.
4. Set the wash temperature (see page 7).
5. Set the drying cycle if necessary (see page 7).
6. Add the detergent and any fabric softener (see page 8).
7. Start the programme by pressing the START/RESET

button for two seconds. Once the programme has been accepted, all of the option and status LEDs will illuminate momentarily, the Door Lock LED 📋 will be lit and the relevant wash cycle progress LED will also be lit.

To cancel it, keep the START/RESET button pressed for at least 2 seconds.

1. When the programme is finished, the ON-OFF / DOOR LOCK LED will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washer dryer off by pressing the button (1).

Programme table

Type of fabric and degree of soil Programmes		Temperature	Drying Cycle	Detergent		Fabric softener	Cycle length (minutes)	Max. Spin Spreads (r.p.m.)	Description of wash cycle
				Pre-wash	wash
Standard
Extremely soiled whites (sheets, tablecloths, etc.)	1 90°C		●	●	●	●	135	Max.	Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles
Extremely soiled whites (sheets, tablecloths, etc.)	2 90°C		●		●	●	150	Max.	Wash cycle, rinse cycles, Intermediate and final spin cycles
Heavily soiled whites and fast colours	2	60°C*	●		●	●	140	Max.	Wash cycle, rinse cycles, Intermediate and final spin cycles
Heavily soiled whites and delicate colours	2	40°C*	●		●	●	105	Max.	Wash cycle, rinse cycles, Intermediate and final spin cycles
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	3 40°C		●		●	●	70	Max.	Wash cycle, rinse cycles, Intermediate and final spin cycles
Heavily soiled fast colours (baby linen, etc.)	4	60°C	●		●	●	75	800	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Heavily soiled fast colours (baby linen, etc.)	4	40°C	●		●	●	60	800	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Wool	5 40°C				●	●	50	600	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Very delicate fabrics (curlains, silk, viscose, etc.)	6 30°C				●	●	45	no	Wash cycle, rinse cycles and anti-crease
Drying cotton	7		●					Max.
Drying delicates	8		●						no
Time for You
Heavily soiled whites and fast colours 9 60°C					●	●	60	Max.	Wash cycle, rinse cycles, Intermediate and final spin cycles
Delicate colours (all types of slightly soiled garments)	10	40°C			●	●	50	800	Wash cycle, rinse cycles, delicate spin cycle
Delicate colours (all types of slightly soiled garments)	11	30°C	●		●	●	30	800	Wash cycle, rinse cycles and delicate spin cycle
Sport
Sports shoes (MAX 2 pairs)	12	30°C			●	●	50	800	Cold wash (without detergents), wash cycle, rinse cycles and delicate spin cycle
Fabrics for sportswear (Tracksuits, shorts, etc.)	13	30°C			●	●	60	600	Wash cycle, rinse cycles, intermediate and final spin cycles
PARTIAL PROGRAMMES
Rinse			●			●		800	Rinse cycles and spin cycle.
Spin cycle			●					800	Draining and spin cycle
Drain								no	Drain

Notes

• For Programme 8, we advise against exceeding a wash load of 3.5 kg.
• For Programmes 10 and 13, we advise against exceeding a wash load of 2 kg.
• For the anti-crease option: see Easy Iron (opposite page). The information contained in the table is purely indicative.

Special programme

Daily (programme 11 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (11 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

* To select a lower temperature (60° or 40°), the temperature reduction rotary is to be used.

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6). The temperature can be lowered, or even set to cold wash (✗).

Setting the drying cycle

Turn the DRYING knob to set the desired drying type.

Two options are available:

A - Based on time: From 40 minutes to 150.

B - Based on the damp level of the dry clothes:

Iron ⚡: slightly damp clothes, easy to iron.

Hanger 🙏: dry clothes to put away.

Cupboard 📋: very dry clothes, recommended for towelling and bathrobes.

A cooling stage of 20 minutes is carried out at the end of the drying cycle.

If your laundry load to wash and dry is in excess of the maximum drying capacity (see table opposite), perform the wash cycle, and when the programme is complete, divide up the garments and put part of them back in the drum. Now follow the instructions provided for a dry only dry only Repeat this procedure for the remainder of the load.

Dry onlyDry only

Turn the PROGRAMME knob to one of the drying settings (7-8) depending on the type of fabric, then select the desired drying type using the DRYING knob.

Important: Importance is carried out during the drying if you have set a cotton programmecotton program level of dryness (Cupboard 📋, Hanger 🌐, Iron ) - For cotton loads of less than 1 kg, use the drying programme designed for delicate fabrics.

Table of drying times
The data contained in the table are purely indicative.

Fabric type	Load type	Max. load (kg)
			Cup-board Hanger Iron
Cotton, Linen	Clothing of different sizes	5	180	170	160
Cotton	Terry towels	4	180	170	160
Terital, Cotton	Sheets, Shirts	3	120	110	100
Acrylics	Pyjamas, socks, etc.	2.5	120	110	100
Nylon	Slips, tights, stockings, etc.	2.5	120	110	100

Options

To enable an option:

1. press the button corresponding to the desired option, according to the table below.

2. the option is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding option cannot be selected for the programme set.

Option	Effect	Comments	Enabled with programmes:
Delay Timer	Delays the start of the wash by up to 9 hours.	Press the button repeatedly until the LED corresponding to the delay is turned on.The fifth time the button is pressed, the option will be disabled.N.B. Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it.	All
Easy Iron	This option reduces the amount of creasing on fabrics, making them easier to iron.	When this option is set, programmes 4, 5, 6 will end with the laundry left to soak (Anti-crease) and the Rinse cycle phase LED 🎨 will flash.- to conclude the cycle, press the START/RESET button.- to run the draining cycle alone, set the knob to the relative symbol 🎨 and press the START/RESET button.	3, 4, 5, 6,9, 10,Rinse cycle
Extra Rinse	Increases the efficiency of the rinse.	Recommended when the appliance has a full load or with large quantities of detergent.	1, 2, 3, 4, 9, 10,12, 13,Rinse cycle
[kw2T]1400-700	Reduces the spin speed.		All programmes except for 5, 6,8 and draining.

! The machine has an intelligent built in check for out of balance loads. To protect your machine it may reduce the final spin speed if an unbalanced load is detected.

Detergent dispenser

! Do not put any items into the drawer, other than detergents designed to be released from the drawer, as they may cause damage or blockage.

Interior view of a computer drawer showing three labeled compartments (1, 2, 3) with no visible text or symbols beyond labels.

1. Pre-wash detergent compartment. Maximum 200 ml powder or 100 ml liquid
2. Main wash detergent compartment. Maximum 400 ml powder or 200 ml liquid
3. Fabric conditioner compartment. Maximum 120 ml.

Dispensing powder detergent

To achieve the best wash results the manufacturer's recommended amount of detergent should be measured and added to the main detergent compartment.

Dispensing liquid detergent

We recommend the use of a detergent dosing ball, as provided by your detergent manufacturer.

Adding fabric conditioner

Pour the recommended amount of fabric conditioner into the compartment. Do not exceed the maximum fill line.

Pre-wash (Programme 1)(Programme 1)

When selecting programme 1 add detergent to both the pre-wash and the main wash compartment.

! Do not use in drum dosing devices with pre-wash programme 1.

Preparing your laundry

• Divide your laundry according to:
• the type of fabric/the symbol on the label.
• the colours: separate coloured garments from whites.
• Empty all pockets and check for loose buttons.
• Do not exceed the weight limits stated below, which refer to the weight when dry:
  Sturdy fabrics : max. 7kg
  Synthetic fabrics : max. 3kg
  Delicate fabrics : max. 2kg
  Wool : max. 1kg

! DO NOT overload the machine as this could result in reduced performance.

How much does your laundry weigh?

1 sheet 400-500g
1 pillow case 150-200g
1 tablecloth 400-500g
1 bathrobe 900-1200g
1 towel 150-250g

! The machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This appliance has been designed for non-professional, household use and its functions must not be changed.
• This machine should only be used by adults and in accordance with the instructions provided in this manual.
• Never touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not open the detergent dispenser while the appliance is in operation.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the machine door: this could damage the safety lock mechanism designed to prevent accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
• Always keep children well away from the appliance while in operation.
• The appliance door tends to get quite hot during the wash cycle.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the machine, make sure the drum is empty.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Indesit technology, your machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

- To avoid wasting resources, the machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.

• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures.
  A programme at 60^ C instead of 90^ C or one at 40^ C instead of 60^ C will save up to 50% on energy.
• Use the correct quantity of detergent, depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your machine between late in the afternoon and the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 7) helps to organise your wash cycles accordingly.

Disposal

• Disposing of the packaging material: observe local regulations, so the packaging can be re-used.
• Disposing of an old machine: before scrapping your appliance, cut the power supply cable and remove the appliance door.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Switching off the electricity

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning

Cleaning the exterior

Use a damp cloth or silicon polish to clean the exterior surfaces of the appliance.

Cleaning the door bowl

Clean the internal surface of the door bowl regularly with a soft cloth. A build up of soap powder and water hardness residue may result in water leaking from the door.

Cleaning the dispenser drawer and compartments

It is advisable to clean the dispenser drawer regularly.

! Do not try to clean any part of the dispenser drawer while the machine is running.

Close-up of a hand pressing down on a surface, possibly a tool or device component (no visible text or symbols)

1. Pull out the drawer until it reaches its stop.
2. Press the drawer release button to remove the dispenser drawer (see figure).

Close-up of a mechanical component with no visible text or symbols

1. Clean and dry the dispenser drawer, syphons, grate and fabric conditioner exit channel (A). Also regularly clean the outlet pipe area (B).

Close-up of a white plastic mechanical component with internal channels and mounting holes (no visible text or symbols)

1. Relocate the dispenser drawer and push it firmly back into place.

! Do not clean any part of the machine with abrasive cleaners, scouring agents, acids, any bleach or metal polish as they may cause damage.

Caring for your appliance door and drum

• Always leave the appliance door ajar to prevent unpleasant odours from forming.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately. During the wash cycles, high water pressure could cause a cracked hose to split open.

! Never use hoses that have already been used.

Your machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list:

Problem:	Possible causes / Solution:
The machine won't start?	The appliance is not plugged into the socket, or not enough to make contact.There has been a power failure.
The wash cycle won't start?	The appliance door is not shut properly.The button has not been pressed.The START/RESET button has not been pressed.The water tap is not turned on.A delayed start has been set (using the Delay Timer. see page 7)
The machine fails to load water?	The water inlet hose is not connected to the tap.The hose is bent.The water tap is not turned on.There is a water shortage.The water pressure is insufficient.The START/RESET button has not been pressed.
The machine continuously loads and unloads water?	The drain hose is not fitted between 65 and 100cm from the floor (see page 3).The free end of the hose is underwater (see page 3).The wall drainage system doesn't have a breather pipe.If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.
The machine does not drain or spin?	The programme does not foresee the draining. Some programmes require enabling the draining manually (see page 6).The Easy Iron option is enabled: to complete the programme, press the START/RESET button (see page 7).The drain hose is bent (see page 3).The drain duct is clogged.
The machine vibrates too much during the spin cycle?	The transit fixings were not removed correctly during installation (see page 2).The machine is not level (see page 2).The machine is closed in between furniture cabinets and the wall (see page 2).
The machine leaks?	The water inlet hose is not screwed on correctly (see page 2).The detergent dispenser is obstructed, (to clean it see page 10).The drain hose is not secured properly (see page 3).
The ON-OFF/DOOR LOCK LED flashes rapidly at the same time as at least one other LED?	Call for Assistance because this means there is an abnormality.
There is too much foam?	The detergent is not suitable for machine washing (it should bear the definition “for washing machines” or “hand and machine wash”, or the like.)You used too much detergent.
The machine does not dry?	The appliance is not plugged into socket, or not enough to make contact.There has been a power failure.The appliance door is not shut properly.A delayed start has been set (using the Delay Timer, see page 7).The DRYING knob is on the 0 setting.Did you select the correct heat/time setting? (see page 7).

Before calling for Assistance:

• Use the troubleshooting guide to see if you can solve the problem yourself (see Troubleshooting).
• If not, turn off the appliance and call the Service Centre closest to you.

What to tell the Service Centre:

• name, address and post code.
• telephone number.
• the type of problem.
  • the date of purchase.
  • the appliance model (Mod.).
  • the serial number (S/N).

This information can be found on the data label inside the door of the machine.

Spare Parts

This appliance is a complex machine. Repairing it yourself or having a non-authorised person try to repair it could cause harm to one or more persons, could damage the machine and could invalidate the spare parts warranty.

Call an authorised technician if you experience problems while using the machine.

The spare parts have been designed exclusively for this appliance and not for other uses.

Nederlands

Inhoud

Installatie, 14-15

Het uitpakken, 14

Close-up of a black mechanical component with a white cylindrical shaft inserted (no text or symbols visible)

Simple line drawing of a mechanical clamp or clip (no text or symbols)

Line drawing of a mechanical component with a knob and handle (no text or symbols)

Hand holding a button on a device (no text or symbols visible)

Simple line drawing of a vehicle or road intersection with an oval object on the side (no text or symbols)

Simple line drawing of a hand holding a cylindrical object with a threaded rod (no text or symbols)

Diagram showing a mechanical component with an arrow and warning symbol (no text or labels)

Line drawing of a hand holding a screwdriver with threaded fastener (no text or symbols)

Interior view of a computer case with numbered compartments (1, 2, 3) showing internal structure (no text or symbols)

Close-up of a hand pressing down on a surface with a tool (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a white plastic door handle with visible internal components and mounting holes (no text or symbols)

Close-up of a black mechanical component with a white rod inserted (no text or symbols visible)

Simple line drawing of a mechanical clamp or clip (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Hand holding a button on a device (no visible text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand holding a threaded bolt on a circular base (no text or symbols)

Line drawing of a hand holding a mechanical component with multiple curved lines extending outward (no text or symbols)

Interior view of a computer case with numbered compartments (1, 2, 3) showing internal structure (no text or symbols)

Close-up of a hand pressing down on a surface, possibly part of a kitchen or appliance (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a white plastic mechanical component with internal channels and mounting holes (no visible text or symbols)

Close-up of a black mechanical component with a white rod inserted (no text or symbols visible)

Simple line drawing of a mechanical clamp or tool (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Hand holding a button with a black circular button on a white background (no text or symbols visible)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand holding a cylindrical object with a threaded rod (no text or symbols)

1. Vri for hånd på en eller begge de fremre föttene mot urviseren helt til de stopper opp.

Diagram showing a bolt and screw with an arrow pointing to an exclamation mark (no text or symbols present)

Line drawing of a hand holding a screwdriver (no text or symbols)

Innstilt forsinket start (Delay Timer):

Interior view of a white plastic appliance casing with numbered compartments (1, 2, 3), no visible text or symbols beyond labels.

1. Rom for forvaskemiddel. Maksimalt 200 ml vaskepulver eller 100 ml flytende
2. Rom for hovedvaskemiddel. Maksimalt 400 ml vaskepulver eller 200 ml flytende
3. Rom for tøymykner Maksimalt 120 ml

Close-up of a hand holding a cylindrical object, possibly a tool or device (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a white plastic mechanical component with internal channels and mounting holes (no visible text or symbols)

1. Sett vaskemiddelskuffen tilbake på plass, dytt den helt på plass.

Close-up of a black mechanical component with a white rod inserted (no text or symbols visible)

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Hand holding a button on a device (no text or symbols visible)

Simple line drawing of a vehicle or road intersection with no text, numbers, or symbols

transporten.

Line drawing of a hand holding a cylindrical object with a threaded rod (no text or symbols)

1. Drej et af de forreste ben eller begge ben manuelt helt venstre om.

Line drawing of a hand holding a screwdriver (no text or symbols)

Interior view of a computer case with numbered compartments (no text or symbols visible)

Close-up of a hand holding a cylindrical object, possibly a tool or device (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a white plastic mechanical component with internal channels and mounting holes (no visible text or symbols)

Close-up of a black mechanical component with a white cylindrical shaft inserted (no text or symbols visible)

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Hand holding a button on a device (no text or symbols visible)

Simple line drawing of a door handle and seat (no text or symbols)

Line drawing of a hand holding a cylindrical object with a threaded rod (no text or symbols)

Line drawing of a hand holding a mechanical component (no text or symbols)

Interior view of a computer case with numbered compartments (1, 2, 3) showing internal structure (no text or symbols)

1. Esipesun pesuaineen kaukalo.

Close-up of a hand holding a white object, possibly a tool or device, with no visible text or symbols.

Pure mechanical component diagram without any text, numbers, or symbols

Close-up of a white plastic door handle with internal compartments and mounting holes (no text or symbols visible)
