Product Type	Undercounter Larder Fridge
Brand	Matsui
Model	MUL55W12E
Total Fresh Food Storage Volume	133 L
Energy Consumption	0.33 kWh/24h (120 kWh/year)
Energy Efficiency Class	A+
Climate Class	N/ST (16°C to 38°C)
Defrost Type	Automatic (Auto Defrost)
Airborne Acoustical Noise	42 dB
Rated Voltage	220V - 240V
Rated Current	0.6 A
Overall Dimensions (W x D x H)	553 x 574 x 845 mm
Storage Temperature Range	0°C to 8°C (average ≤4°C)
Reversible Door	Yes (left or right opening)
Adjustable Glass Shelves	2 included
Door Shelves	2 + 1 lower door shelf
Salad Bin	1 with cover
Egg Tray	1 included
Internal Light	Yes (10W SES bulb)
Levelling Feet	2 adjustable front feet
Cleaning Recommendations	Mild bicarbonate soda solution; rinse with warm water
Safety Features	Lock (key kept away from children), no volatile substances
Spare Parts Availability	Part numbers listed in manual (e.g., 503601040007 for shelf)

Frequently Asked Questions - MUL55W12E MATSUI

How do I reverse the door swing on my Matsui MUL55W12E?

To reverse the door, you will need a Phillips screwdriver, flat bladed screwdriver, and hexagonal spanner. Ensure the unit is unplugged and empty. Tilt the unit backward, remove the top cover, unscrew the upper hinge, lift the door, swap the bottom bushing, and reinstall the hinge and levelling feet on the opposite side. Refer to the manual for detailed steps.

What should I do before using the fridge for the first time?

Before first use, clean the interior with a weak solution of bicarbonate soda, rinse with warm water, and dry. Allow the unit to stand for 2 hours after moving. Then turn it on and wait 24 hours before storing food to reach the correct temperature.

How do I adjust the temperature?

The thermostat control dial is inside the fridge. Position 4 is recommended for normal room temperature (16-38°C). Turn to a higher number for colder temperature (5-6 for hot environments, 1-4 for colder environments). Allow 24 hours to stabilise.

Why is my fridge making unusual noises?

Noises are normal due to refrigerant circulation and compressor operation. CFC-free gases can cause more pronounced sounds. This does not affect performance.

How does the auto defrost work?

Frost on the inner rear surface automatically defrosts during the compressor off-cycle. Water drains through a hole to a tray above the compressor where it evaporates. Check and clean the drain hole regularly.

What are the recommended storage tips for food?

Store cooked meats above raw meats to avoid bacterial transfer. Keep raw meats in a container on the lowest shelf. Leave space for air circulation. Cover food to prevent flavours mixing and drying out. Cool hot food before placing inside.

How do I change the internal light bulb?

First, set the thermostat to 0 and unplug the unit. Remove the light bulb cover by unscrewing it. Unscrew the old bulb anticlockwise and replace with a 10W SES bulb. Reattach the cover and plug in.

What should I do if I want to move the fridge?

Hold the unit around its sides or base; never lift by the top edge. Ensure the unit is upright to avoid damaging the coolant system. If laying it down is necessary, tilt backward carefully and secure.

How do I dispose of the fridge at the end of its life?

Dispose according to local regulations. Do not damage the refrigerant pipes. Remove the door and lock to prevent child entrapment. Contact your local council for recycling options.

Why is there condensation on the outside of the fridge?

Condensation may appear due to changes in room temperature. Wipe it off. If it persists, consult a qualified technician.

USER MANUAL MUL55W12E MATSUI

Undercounter Larder Fridge

INSTRUCTION MANUAL

GB

Exterior view of a modern stainless steel refrigerator inside a circular frame (no text or symbols visible)

Contents

GB

Unpacking....5

Installation....6

Location 6

Reversing the Door Swing 6

Levelling the Unit....9

Cleaning Before Use 9

Before Using Your Unit....9

Interior Accessories....9

Product Overview....10

Operation....11

Switching On Your Unit....11

Adjusting the Temperature....11

Noises Inside the Unit!......12

Shopping for Chilled Foods....12

Tips for Keeping Food in the Unit....12

Cleaning....13

Defrosting 13

Cleaning the Interior and the Exterior of the Unit....13

Cleaning Tips....13

Maintenance....14

Changing the Internal Light 14

Care When Handling / Moving Your Unit ....14

Servicing 14

Switching Off for Long Periods of Time 14

Disposal 14

Specifications....15

Safety Warnings....65

Innholdsfortegnelse

NO

Pakke opp ....17

Installasjon ....18

Plassering....18

Bytte dørhengslingen....18

Thank you for purchasing your new Matsui Larder Fridge.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

GB

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

The Main Unit

Adjustable Glass Shelf x 2 P.N.: 503601040007

Salad Bin Cover P.N.: 503603040015

Door Shelf x 2 P.N.: 501113040097

Simple 3D illustration of a rectangular prism (no text or symbols)

Lower Door Shelf P.N.: 501113040096

Egg Tray P.N.: 501119710072

Salad Bin P.N.: 501111340001

Instruction Manual P.N.: MUL55W12E-001

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

When installing the unit, ensure that 200 mm of free space is left at both sides, 200 mm at the rear and 300 mm at the top of the unit. The door can be opened to the right or the left, depending on what better suits the location. Please ensure there is adequate space for the door to fully open.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.
• All parts removed must be saved to do the reinstallation of the door. You should rest the unit on something solid so that it will not slip during the door change process. Do not lay the unit flat as this may damage the coolant system. Ensure the unit is unplugged and empty.

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their highest position.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• We recommend that 2 people handle the unit during assembly.

• Tilt the unit slightly towards the rear and prop it securely. Two people are required to tilt the unit during the door reversal process.

Two workers carrying a large cardboard box, depicted in motion (no text or symbols)

INSTALLATION

1. Remove the 2 screw covers first, then undo the screws underneath.
2. Remove the 2 screws on the back.

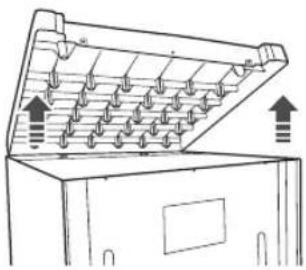

3. Lift the top cover away from the fridge.

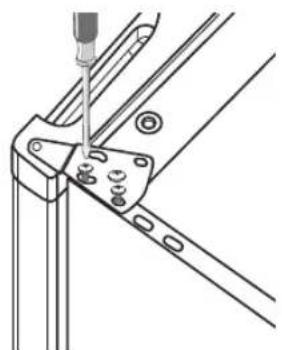

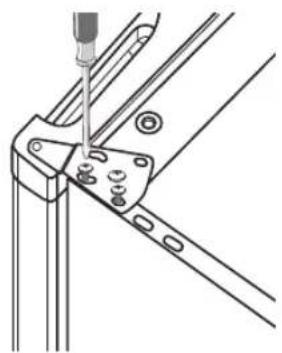

4. Remove the three screws, then remove the upper hinge that hold the door in place. Lift the door and place it on a padded surface to prevent it from scratching.
5. Swap the bottom bushing and bottom bushing cap of the upper door. The bottom bushing key must be in the correct position to allow it to be inserted correctly.

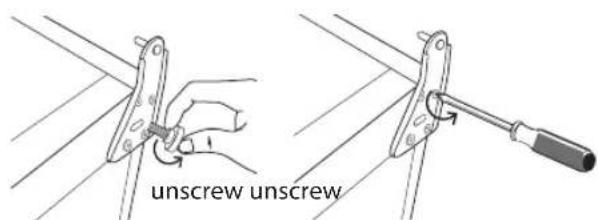

6. Remove the lower screws, hinge bracket and adjustable feet from the unit bottom.

Simple line drawing of a screwdriver on a flat surface (no text or symbols)

Pure mechanical diagram showing a lever and rod without any text, numbers, or symbols

Diagram of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket assembly with a screwdriver inserted (no text or symbols)

Simple line drawing of a book with a bookmark and a magnified inset showing a small object (no text or symbols)

INSTALLATION

1. Remove the screw-type adjustable feet from another side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom.
2. Reattach the two lower screws, hinge bracket and adjustable feet to the opposite side of the unit bottom. Loosely secure.
3. Carefully set the upper door back into place. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

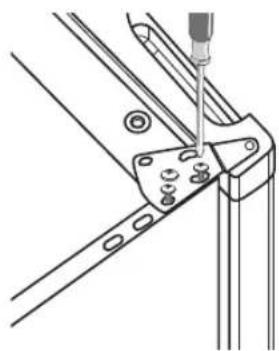

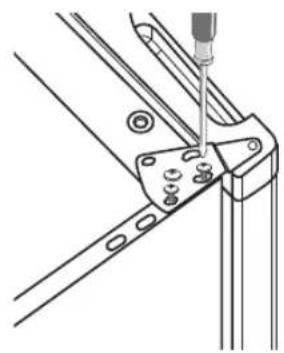

Insert the hinge bracket and screw it to the top of the unit.

1. Use a spanner to tighten it if necessary.
2. Put the top cover back and fix it in place with the screws.
3. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Line drawing of a hand holding a tool near a structural bracket (no text or symbols)

Technical line drawing of a mechanical bracket with a screwdriver inserted (no text or symbols)

Line drawing of a hand using a pliers to handle a metal bracket (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit.

If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Interior Accessories

Various glass or plastic storage shelves are included with your appliance – different models have different combinations.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swivelled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

In order to make the most of the volume of the fresh food storage compartment, the user can remove one or more shelves, drawers, according to daily use.

GB

Switching On Your Unit

1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position OFF. This is located on the right side of the cabinet. Connect the mains cable to the mains socket.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be 5^ C or lower.

Line drawing of a mechanical component with labeled parts (no text or symbols)

GB

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Shopping for Chilled Foods

• Take a quick look at the chilled food package and make sure it is in perfect condition.
- Try to keep chilled food together whilst shopping and on the journey home as this will help to keep the food cold.
- Don't buy chilled food unless you can chill it straight away. Specially insulated bags can be bought from most supermarkets and hardware shops. These bags can keep chilled food cold for longer while transporting.
- Food that has been left in a car or at room temperature for a prolonged period of time could raise the food temperature to a dangerous level, which allows harmful bacteria to grow.
• Always unpack and place chilled food in the unit before storing dry food.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Defrosting

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

Diagram showing a hand pressing down on a device panel with an inset circle highlighting the motion direction (no text or symbols)

GB

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and the salad bin. To remove the salad bin first remove the lower door shelf.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Changing the Internal Light

1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply.
2. Hold and unscrew the light bulb cover.
3. Remove the plastic light bulb cover.
4. Remove the old bulb by unscrewing in an anti-clockwise direction.
5. Replace with a new bulb (10W SES). Please make sure that it is secure in the bulb cover.
6. Refit the light bulb cover and reconnect the unit to the mains supply and switch on.

Diagram showing a bottle being cut with a tube, illustrating the process of fluid or material transfer (no text or symbols present)

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Model MUL55W12E
Fresh Food Storage Compartment Volume	133L
Storage Temperature 0 - 8°C, average ≤ 4°C
Energy Consumption 0.33 kWh/24hr
Energy consumption 120 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Household Appliances Category Category 1 (Refrigerator)
Energy Grading A+
EU Ecolabel N/A
Defrosting Type Auto Defrost
Climate Class N/ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 42dB
Rated Voltage 220V - 240V
Rated Current 0.6A
Overall Dimension (W x D x H) 553 x 574 x 845 mm

Features and specifications are subject to change without prior notice.

GB

Normal energy consumption

Increased energy consumption

Installation site

In a ventilated room. In an enclosed, unventilated room.

Protected from direct sunlight. In direct sunlight.

Not situated near to a heat source (radiator, oven).

Where the ideal ambient room temperature is approx 20^ C.

Situated near to a heat source (radiator, oven).

Where there is a high ambient room temperature.

Use

Only open the doors when necessary and for as short a time as possible.

Store food in an organised way. If food

Allow hot food and drinks to cool down before placing them in the unit.

Store food covered or packaged. The e

Do not over-fill the appliance to allow air to circulate.

Frequent opening of the doors for long periods will cause a loss of coldness.

not stored in an organised way, searching for an item will mean the door is open for longer.

Placing hot food in the unit will cause the compressor to run for a long time, as the unit will have to work harder to lower the temperature.

poration or condensation of liquids will cause a loss of coldness in the unit.

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Hovedenheten

Eggbrett
Delnr.: 501119710072

Justerbar glasshylle x 2
Delnr.: 503601040007

Dørhylle x 2
Delnr.: 501113040097

Salatskuff
Delnr.: 501111340001

Hylle over salatskuff
Delnr.: 503603040015

Simple 3D illustration of a rectangular prism (no text or symbols)

Bruksanvisning
Delnr.: MUL55W12E-001

Plassering

Illustration of two workers pushing a large box together (no text or symbols)

INSTALLASJON

Simple line drawing of a screwdriver on a flat surface (no text or symbols)

Pure mechanical diagram showing a lever and rod without any text, numbers, or symbols

Diagram of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket assembly with mounting holes and a screwdriver (no text or symbols)

Simple line drawing of a book with a magnified inset showing a small object (no text or symbols)

Line drawing of a hand holding a tool near a corner panel (no text or symbols)

Technical line drawing of a mechanical joint or bracket assembly with a screwdriver inserted (no text or symbols)

Line drawing of a hand using a pliers to adjust or install a mechanical component (no text or symbols present)

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

Nivellere enheten

Rengjøring før bruk

Line drawing of a mechanical component with labeled parts (no text or symbols)

NO

Justere temperaturen

Diagram showing a hand pressing down on a device panel with an inset circle highlighting the motion direction (no text or symbols)

NO

Diagram showing a bottle being cut with a tube, illustrating the process of fluid or material transfer (no text or symbols present)

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Huvudenhet

Flyttbar glashylla x 2 Art.nr.: 503601040007

Lock salladslåda Art.nr.: 503603040015

Dörrhylla x 2 Art.nr.: 501113040097

Simple 3D illustration of a rectangular prism (no text or symbols)

Nedre dörrhylla Art.nr.: 501113040096

Bruksanvisning Art.nr.: MUL55W12E-001

Plats

Illustration of two workers pulling a large cardboard box (no text or symbols present)

INSTALLATION

Simple line drawing of a screwdriver on a flat surface (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Diagram of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket assembly with a screwdriver inserted (no text or symbols)

Simple line drawing of a book with a magnified inset showing a small object (no text or symbols)

INSTALLATION

Line drawing of a mechanical component with numbered parts (no text or symbols)

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

SE

Diagram showing a bottle being cut with a tube, illustrating the process of fluid or material transfer (no text or symbols present)

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

Laite

Simple 3D illustration of a rectangular prism (no text or symbols)

Oven alahylly Osanro: 501113040096

Munakenno Osanro: 501119710072

Salaattilokero Osanro: 501111340001

Illustration of two workers pulling a large cardboard box (no text or symbols present)

ASENNUS

Simple line drawing of a screwdriver on a flat surface (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Diagram of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket assembly with mounting holes and a screwdriver (no text or symbols)

Simple line drawing of a book with a magnified inset showing a small object (no text or symbols)

Line drawing of a hand holding a tool near a vertical panel (no text or symbols)

Technical line drawing of a mechanical bracket with a screwdriver inserted (no text or symbols)

Line drawing of a hand using a pliers to handle a metal bracket (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

Line drawing of a mechanical component with labeled parts (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating force or motion (no text or symbols present)

Diagram showing a spray bottle and a plastic container with internal structure, both rotating around it (no text or symbols)

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

Hovedenheden

Justerbar glashylde x 2 P.N.: 503601040007

Låg til salatbeholder P.N.: 503603040015

DK

Lågehylde x 2 P.N.: 501113040097

Simple 3D illustration of a rectangular prism (no text or symbols)

Nederste lågehylde P.N.: 501113040096

Æggebakke P.N.: 501119710072

Salatbeholder P.N.: 501111340001

Illustration of two workers carrying a large box together (no text or symbols)

Technical line drawings of mechanical components including a screwdriver, lever mechanism, and open box with arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket assembly with a screwdriver inserted (no text or symbols)

Simple line drawing of a book with a small inset showing a cup on a shelf (no text or symbols)

Rengøring før brug

Line drawing of a mechanical component with labeled parts (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating force or direction (no text or symbols present)

Diagram showing a bottle being cut with a tube, illustrating the process of fluid or material transfer (no text or symbols present)

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

• This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

• catering and similar non-retail applications.

• Ensure that the plug is easily accessible to enable disconnection from the mains supply.

• Keep ventilation openings in the unit enclosure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• The unit must be manoeuvred by a minimum of 2 persons.
• This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the unit by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the unit.
• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store volatile or flammable substances, such as aerosol cans with a flammable propellant, in the unit.
• Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO
