Product Type	Under Counter Larder Fridge
Brand	Matsui
Model	MUL1107WW
Colour	White
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm (approx.)
Weight	28 kg (approx.)
Power Supply	220-240 V ~ 50 Hz
Power Consumption	120 W (approx.)
Annual Energy Consumption	200 kWh/year (approx.)
Energy Efficiency Class	F (approx.)
Total Gross Capacity	100 L (approx.)
Climate Class	N (16°C to 32°C)
Noise Level	42 dB (approx.)
Interior Light	Yes, LED
Number of Shelves	4 (including 1 vegetable crisper)
Door Reversible	Yes
Defrost Type	Manual (cyclic defrost)
Refrigerant	R600a
Adjustable Thermostat	Yes, dial control
Leveling Feet	Yes, front adjustable
Cleaning Instructions	Clean with warm water and mild detergent; do not use abrasive cleaners
Spare Parts Available	Shelves, thermostat, door gasket, light bulb (LED unit)
Safety Features	Stable door, non-slip feet, anti-tip stabilizer (optional)

Frequently Asked Questions - MUL1107WW MATSUI

What is the temperature range for the Matsui MUL1107WW fridge?

The recommended temperature for the fridge compartment is between 0°C and 5°C. Turn the thermostat dial to a setting between 2 and 3 for normal operation. Use a thermometer to check the actual temperature.

How do I reverse the door on this fridge?

The door is reversible. You need a Phillips screwdriver and a flathead screwdriver. Unplug the fridge, remove the top hinge cover and screws, lift off the door, then detach the bottom hinge. Reinstall the hinges on the opposite side and reposition the door. Consult the manual for detailed steps.

How do I defrost the Matsui MUL1107WW fridge?

This model requires manual defrosting. Unplug the fridge, remove all food and shelves, and leave the door open. Place towels to absorb water. Do not use sharp objects to remove frost. Once defrosted, dry the interior and plug it back in.

Why is my fridge not cooling properly?

Check the thermostat setting – ensure it’s not on 0. Clean the condenser coils at the back (vacuum them). Make sure the door is sealing properly and the gasket is clean. Allow at least 10 cm clearance around the fridge for ventilation. If the problem persists, the thermostat may need replacement.

How do I clean the interior of the fridge?

Unplug the fridge. Remove all shelves and drawers. Wipe the interior with a warm water and mild detergent solution using a soft cloth. Rinse with clean water and dry thoroughly. Avoid bleach or abrasive cleaners. Clean the door gasket with a damp cloth.

What is the noise level of this fridge?

The noise level is approximately 42 dB, which is normal for a compressor fridge. You may hear a humming sound from the compressor and occasional clicks from the thermostat. Ensure the fridge is level to reduce vibration noise.

Can I install the fridge in an unheated garage?

This fridge is rated for climate class N, meaning it operates between 16°C and 32°C. In a garage where temperatures may drop below 10°C, the fridge may not maintain proper temperature and can freeze food. It is not recommended for unheated spaces.

How do I level the fridge?

Use the two adjustable leveling feet at the front. Turn them clockwise to raise that side or counter-clockwise to lower. Place a spirit level on top of the fridge to check. The fridge should be slightly tilted backward for proper door closure.

What spare parts are available for this model?

Common spare parts include shelves, vegetable crisper, thermostat control knob, door gasket, and the LED light assembly. Contact Matsui customer service or a certified parts distributor for purchases.

What is the annual energy consumption of the MUL1107WW?

The estimated annual energy consumption is around 200 kWh per year, which corresponds to energy efficiency class F. Actual consumption may vary based on usage and ambient temperature.

USER MANUAL MUL1107WW MATSUI

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

- Read all instructions carefully before using the Larder and keep them for future reference.

- Retain the manual. If you pass the Larder onto a third party, make sure to include this

manual.

- Keep ventilation openings, in the appliance enclosure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other

than those recommended by the manufacturer.

• If the mains cable is damaged, it must be replaced by the manufacturer of its service

agent or a qualified technician in order to avoid a hazard.

- Choose a location for your Larder away from heat sources such as radiators or fires as

refrigerant and vesicant are burnable.

- Do not discard old Larder at will in order to avoid environment pollution. Thank you for

your cooperation.

- Young children should be supervised to ensure that they do not play with the Larder.

- Do not damage the refrigerant circuit (applicable only for appliances with refrigeration

circuits which are accessible to the user).

• The Larder must be maneuvered by a minimum of 2 persons.

• This appliance is not intended for user by persons (including children) with reduced

sensory or mental capabilities, or lack of experience and knowledge unless they have

been given supervision or instructions concerning he use of the appliance by a person

responsible for their safety.

- If your Larder is fitted with a lock to prevent children being trapped inside, keep the key

out of reach and not in the vicinity of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL

TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF

COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS

YOURSELF.

MAINTENANCE

Moving your Undercounter Larder

Care when handling

Hold the Larder around its sides or base when moving it. Under no circumstances should it

be lifted by holding the edges of the top surface.

Location

Do not locate your Larder near a heat source, eg. cooker boiler or radiator. Also avoid direct

sunlight in outbuildings or sun lounges.

Leveling the Undercounter Larder

Make sure that the Larder is level. Use the rotation levelling feet at the front. If the Larder is

not level, the doors and magnetic seal alignments will be affected.

Do not turn on the Undercounter Larder for 2 Hours

After the Larder is in place, it needs to be left for 2 hours. The coolant fluid needs time to

settle.

Installation

Don't cover or block the vents or grilles of your Larder.

Servicing

This product should be serviced by an authorised engineer and only genuine spare parts

should be used.

Under no circumstances should you attempt to repair the appliance yourself. Repairs

carried out by inexperienced persons may cause injury or serious malfunctioning. Contact

a qualified technician.

When the Larder is not in use for a long period of time, disconnect it from the mains supply,

empty all food and clean the Larder, leaving the door ajar to prevent unpleasant smells.

DISPOSAL

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your appliance and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal. Up to date information concerning options of disposing of your old appliance and packaging from the new one can be obtained from your local council office. If disposing of an old Larder break off any old locks or latches as a safeguard.

SPECIFICATIONS

Rated voltage (V): 230

Rated frequency (Hz): 50

Input Current (A): 0.67

Input Power (W): 77

Input Power (W): 77

Larder volume

Net Capacity (liters): 110

3.9 (cubic feet)

Weight (kg): 26

Product Dimension h/w/d: 845 x 504 x 515

(mm)

Refrigerant (weight): 25g

Features and Specification are subject to change without prior notice.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
With over 1 million spares and accessories available we can deliver direct to your door the very next day.
Visit www.partmaster.co.uk Or call 08706001338 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd. Maylands Avenue Hemel Hempstead Hertfordshire HP2 7TG England

MATSUI

MUL1107WW

UNDERCOUNTER LARDER

INSTRUCTION MANUAL

White refrigerator with a single lid, shown in a plain white image (no text or symbols visible)

Congratulations on the purchase of your new Matsui Undercounter Larder. We recommend that you spent some time to read this Instruction Manual in order to fully understand how to install and operate it.

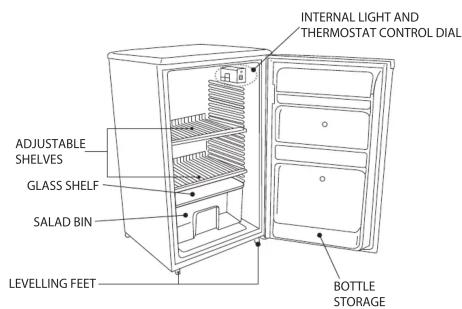

PRODUCT OVERVIEW

UNPACKING

Remove all packaging from the Undercounter Larder. Retain the packaging. If you dispose of it please do so according to any local regulations.

The following items are included:

- One main unit / • Two Adjustable Shelves / • One Glass Shelf/ • One Door / • One Salad Bin If items are missing or damaged, please contact Partmaster (UK only).

Tel: [phone] for assistance.

INSTALLATION

Location

When selecting a position for your Larder you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 12°C and 32°C. Avoid locating your Larder near a heat source, eg. cooker, boiler or radiator. Also avoid direct sunlight as it may affect the acrylic coating and increase the electrical consumption. Extreme cold ambient temperatures may also cause the appliance not to perform properly. This Larder is not designed for use in a garage or outdoor installation. Do not drape the Larder with any covering. When installing, ensure that 2cm (3/4") of free space is left at the sides. The Larder door can open to the right or the left, depending on what better suits the location. If you want to have the door swing reversed, we recommend you to contact a qualified technician to assist you. You should only try to reverse the door yourself if you believe that you are qualified to do so.

Note: All parts removed must be saved to do the reinstallation of the door. Take the door off as it is necessary to tilt the Larder backward. You should rest the larder on something solid and place something under the rollers so that it will not slip during the door change process. DO NOT lay the Larder flat as this may damage the coolant system.

- Ensure the Larder is unplugged and empty.

• We recommend 2 people to handle the Larder during assembly.

REVERSING THE DOOR SWING

To change the opening direction yourself, please follow these instructions:

1. Remove the screws and the hinge bracket from the base. A spanner may be required to loosen the bolts fin.

2. Remove the screws and bracket from the opposite side and fit back to where the hinge bracket was located.

1. Slide the door down and off the top hinge pin and lift away from the larder.

2. Remove top hinge pin and spring inside and refit on opposite side.

1. Slide the larder door back on to the top hinge. Make sure it is the right way up. Screw the bottom hinge into place on the new side.

2. Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the leveling feet.

Tools required: Philips style screwdriver / Flat bladed screwdriver

Levelling the Undercounter Larder

To do this use the two levelling feet at the front of the Larder. If the Larder is not level, the door and magnetic seal alignments will not be covered properly.

Cleaning before use

Wipe the inside of the Larder with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Clean the exterior of the Larder with a damp cloth. If you require more information refer to the CLEANING section.

Before plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the Larder.

Before turning on!

Do not turn on until two hours after moving the Larder. The coolant fluid needs time to settle.

Before using your Undercounter Larder

Before placing any food in your Larder, turnit on and wait for 24 hours, to make sure it is working properly and to allow the Larder to fall to the correct temperature. Your Larder should not be overfilled.

[Non-Text]

Switching on your Undercounter Larder

. The internal temperature of your Larder is controlled by a thermostat. There are seven setting, of which position 7 turns the larder coldest and position 0 turns the larder off.

. Adjust the Thermostat Control Dial to the desired position, bear in mind that the higher the number, the lower the temperature.

Position 4 is the recommended setting for the Larder when operating at normal room temperature (between 12^ and 32^ ).

. The Larder may not operate at the correct temperature if it is in a

particularly hot or a particularly cold room, or if you open the Larder door often.

. If you are concerned that your Larder is not being kept cold enough and wish to check the temperature you will need a special fridge thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the Larder, where it can be read easily. Leave overnight, the temperature in the Larder should be between 0^ C and 5^ C.

Adjusting the temperature

The internal temperature of your Larder is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (ie during Winter) and between 5 to 6 for hotter environments. Please adjusted according to the environment.

Noises inside the Undercounter Larder!

If you have not owned a Larder before, you may notice that it makes some rather unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your Larder.

This is the compressor motor working, as it pumps the refrigerant around the system.

Shopping for chilled foods

• Take a quick look at the chilled food package and make sure it is in perfect condition.

- Try to keep chilled food together whilst shopping and on the journey home as this will help to keep the food cold.

- Don't buy chilled food unless you can chill it straight away. Special insulated bags can be bought from the most supermarkets and hardware shops. These bags can keep chilled food cold for longer while transporting.

- Food that has been left in the car or at room temperature for a prolonged period of time could raise food temperature to the dangerous level, which allows harmful bacteria to grow.

• Always unpack and place chilled food in the larder before storing dry food.

Tips for keeping food perfect in the Undercounter Larder

- Cooked meats/ fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf at the bottom of the larder. - Leave space around your food, so it could allow air to circulate inside the larder. Ensure all parts of the larder are keep cool.

• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables need not be wrapped.

- Always let pre-cooked food cool down before you put in the larder. This will help to maintain the internal temperature of the larder.

• To prevent cold air escaping from the larder, try to limit the number of times you open the door. We recommend you to only open the door when you need to put food in or take food out.

CLEANING

Cleaning the interior and the exterior of the Undercounter Larder

- Wipe the inside of the Larder with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.

- Use a damp cloth to clean the Larder exterior, then use the standard furniture polish to clean. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside. - The grille of the condenser at the back of the larder and the adjacent components can be vacuumed using a soft brush attachment.

Cleaning tips

- Condensation may appear on the outside of the Larder. This maybe due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues call the Customer Service Department.
