EF 50-92 - Uncategorized GRAM - Free user manual and instructions

Type	Kitchen Extractor Hood
Brand	Gram
Model	EF 50-92
Installation Type	Wall-mounted over gas or electric hob
Operating Modes	Extraction (external duct) and Recirculation (charcoal filter)
Fan Speeds	3 speeds (low, medium, high)
Lighting	Incandescent / halogen / LED modules (same specification as factory-installed)
Grease Filter	Aluminium, washable (monthly cleaning)
Charcoal Filter	Replaceable (every 2 months or more frequently)
Voltage	220-240 V (refer to rating plate)
Power Cord	Replaceable by specialist only
Safety Features	Requires proper ventilation; do not leave open flame; regular filter cleaning
Compliance	Low Voltage Directive 2014/35/EC, EMC 2014/30/EC, ErP 2009/125/EC, RoHS 2011/65/EC
Control	Mechanical switches (light and fan separately)
Intended Use	Household use only

Frequently Asked Questions - EF 50-92 GRAM

How do I install the Gram EF 50-92 cooker hood?

Installation should be performed by a qualified technician. The hood must be securely attached to a vertical wall over the hob, with a minimum distance as per the product technical sheet (or gas cooker instructions if greater). See Fig. 3 in the manual for step-by-step guidance.

How do I switch between extraction and recirculation mode?

In extraction mode, connect the hood to an external ventilation duct and remove any carbon filters. In recirculation mode, install a carbon filter and ensure the air exhaust duct is directed to the room. Some models require switching a lever inside the hood (Fig. 8).

How often should I clean the grease filter?

The aluminium grease filter should be cleaned at least once a month to prevent fire risk. It can be washed by hand with mild detergent or in a dishwasher.

When should I replace the charcoal filter?

The charcoal filter cannot be washed or regenerated. It should be replaced every 2 months, or more frequently with heavy use. Only use the filter when the hood is in recirculation mode.

What type of light bulb does the hood use?

The hood uses incandescent, halogen, or LED modules with the same specifications as the factory-installed units. Refer to Fig. 7 for replacement instructions.

What are the fan speed options?

The fan has three speeds. Low and medium speeds are for normal cooking, while maximum speed should be used for high concentrations of fumes, such as frying or grilling.

Can I use the hood over a gas stove?

Yes, the hood is designed for use over gas or electric hobs. Follow the installation distance specified for gas cookers, which may be greater than for electric.

What is the recommended distance between the hob and the hood?

Check the product technical sheet for exact distances. If the gas cooker instructions specify a greater distance, that must be observed. Typical distances are shown in Fig. 1a/b/c.

How do I clean the exterior of the hood?

Use a damp cloth with a neutral detergent. Do not use solvents, alcohol, abrasive cloths, or caustic substances. Avoid soaked cloths or water jets.

What should I do if the power cord is damaged?

The power cord must be replaced by a specialist repair shop. Do not attempt to repair it yourself.

USER MANUAL EF 50-92 GRAM

Before using the appliance, please carefully read this manual!

BRUGSANVISNING - K∅KKENEMFANG

Simple diagram showing a cylindrical object with an arrow pointing to it, labeled '3' at the bottom left (no text or symbols on the object itself)

Gray textured surface with diagonal hatching pattern, no visible text or symbols

Isometric line drawing of a rectangular plate with a grid pattern and a handle (no text or symbols)

4

5

6

Technical diagram of a mechanical assembly with a red arrow indicating a downward motion or force (no text or symbols present)

Diagram of a car interior showing structural components and a highlighted red arrow pointing to a specific area (no text or symbols present)

Diagram of a vehicle interior with red arrows indicating flow or movement, enclosed in a circular cross-section (no text or symbols)

8

THANK YOU FOR PURCHASING AN GRAM APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS

GUIDELINES CONCERNING THE SAFETY OF USE 11

INSTALLATION

13

OPERATION

AND

MAINTENANCE

13

ENVIRONMENTAL

PROTECTION

15

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

● Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

● Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

●The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b/c).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not ex-

tend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

●Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.
- Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.
●The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).
- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is

maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

●Do not lean on hood
●The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
  ●Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.
  ●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ●Children should be su-

pervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  ●Before installing unwind and straighten the power cord.
  ●Warning! The packaging materials (polyethylene bags, small pieces of foamed poly-

styrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

INSTALLATION

Elements

kitchen hood consists of the following elements (Fig. 2a/2b):

1. Bood body
2. Control pánel
3. Ring
4. Metal filter

Installation

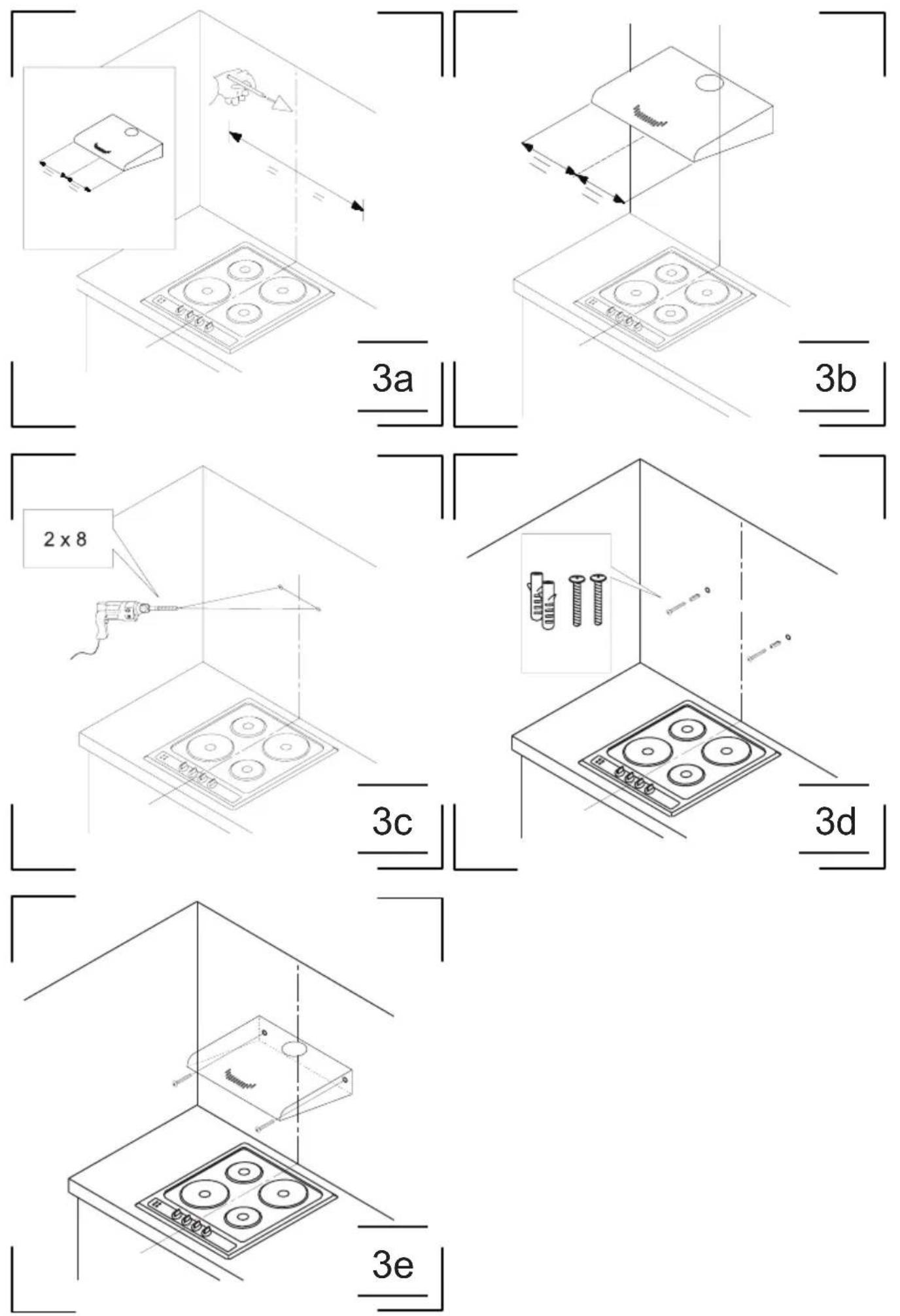

Step-by-step appliance installation is shown on Fig. 3...

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

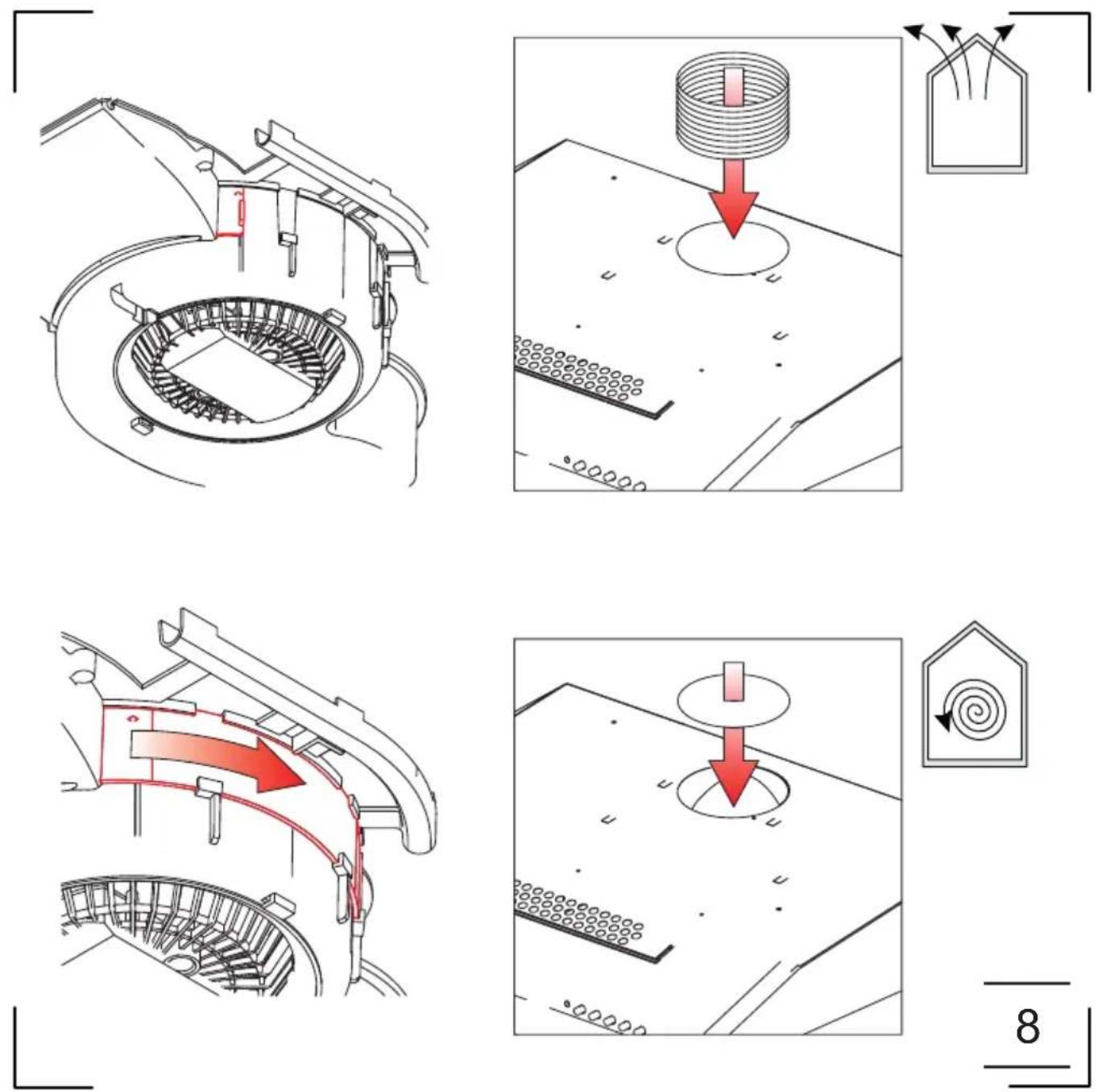

In some universal hoods you need to switch lever inside the hood (Fig. 8) to switch between the extraction and air recirculation modes. The cleaned air is returned to the room through the holes in the top of the unit.

Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Fan speeds

The lowest and medium speeds should be used under normal conditions and with low concentration of fumes. The maximum speed should be used in case of high concentration of kitchen fumes, e.g. during frying or grilling.

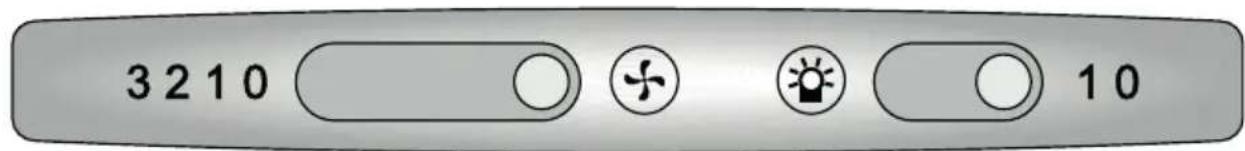

Use control panel to control your cooker hood (Fig. 4)

• switch „O” controls lighting. Shifting the switch to the left turns the lighting on, to the right - turns the lighting off.
• switch „W“ is used to control the hood motor. Successive shifts to the left turn on three fan operation speeds. These control options enable the user to set the optimum fan speed for his requirements at minimum noise.

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

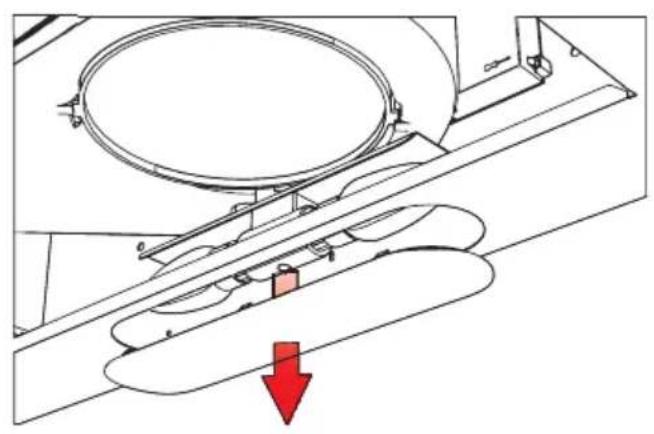

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

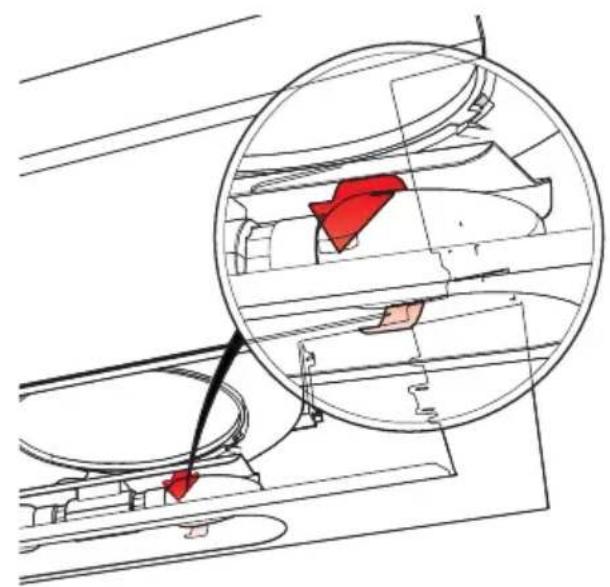

Dismantling of charcoal filter is shown on Figure 6.

Lighting

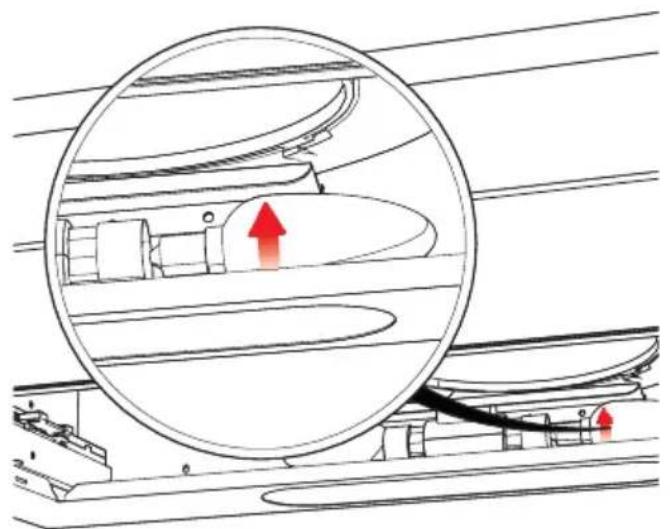

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

RECYCLING OF THE PACKAGING

Simple line drawing of a three chasing recycling symbol (no text or labels)

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU-IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such

marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.
