Product Type	Upright Vacuum Cleaner
Model	VCEA03GAPRACY
Brand	Gorenje
Dimensions (H x W x D)	1120 x 310 x 260 mm
Weight	5.2 kg
Power Consumption	800 W
Dust Capacity	2.0 L
Filtration System	HEPA 13 washable filter
Suction Power	250 air watts
Cord Length	8 m
Operating Radius	12 m
Noise Level	78 dB(A)
Variable Speed Control	Yes, electronic slider
LED Headlights	Yes
Floor Type Adjustment	Manual selector (carpet/hard floor)
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Dust Bag	Bagless, cyclonic
Filter Maintenance	Washable HEPA filter, clean every 3 months
Safety Features	Overheat protection, automatic cord rewinder
Repairability	Modular design, spare parts available online
Warranty	2 years

Frequently Asked Questions - VCEA03GAPRACY GORENJE

How do I empty the dust container?

Press the release button on top of the dust container to detach it. Hold it over a trash bin and open the bottom lid by pressing the lever. Clean the filter if necessary. Reattach the container until it clicks.

How often should I clean or replace the HEPA filter?

The HEPA filter should be cleaned every 3 months by rinsing under lukewarm water. Allow it to dry completely for 24 hours before reinserting. Replace the filter every 12 months or if damaged.

The vacuum loses suction, what should I check?

Check if the dust container is full and empty it if needed. Inspect the filters for clogging and clean them. Examine the hose and brush roll for blockages. Ensure the brush roll is not tangled with hair or fibers.

How do I clean the brush roll?

Disconnect the vacuum from power. Use scissors or a seam ripper to cut away hair and threads wrapped around the brush roll. Remove the brush roll cover and lift out the brush for thorough cleaning.

What does the red indicator on the dust container mean?

The red indicator shows that the dust container is full or the airflow is blocked. Empty the container and clean the filters. If the light remains, check for clogs in the hose or nozzle.

Can I use the vacuum on hardwood floors?

Yes, the vacuum has a floor type selector. Slide it to the 'Hard Floor' position to retract the brush bristles and prevent scratches. For rugs, use the 'Carpet' setting.

The vacuum suddenly stopped working, why?

The vacuum may have overheated. Turn it off, unplug it, and let it cool for 30 minutes. Check if the dust container is full or filters are clogged. Also check the fuse in the plug.

How do I rewind the power cord?

Hold the plug and press the cord rewind button located on the back of the vacuum. Guide the cord as it rewinds to avoid tangling. Do not let the plug whip.

Where can I purchase replacement filters?

Replacement HEPA filters can be ordered from the Gorenje official website or authorized retailers. Use model number VCEA03GAPRACY to find compatible parts.

What should I do if the vacuum emits a burning smell?

Turn off and unplug immediately. Check for blockages in the hose or brush roll that may cause the motor to overwork. Clean filters and remove any debris. If smell persists, contact service center.

USER MANUAL VCEA03GAPRACY GORENJE

Black and red vacuum cleaner with flexible hose and black body, isolated on white background (no text or symbols)

VCEA03GAPRACY VCEA02GALWCY VCEA03GALBKY

Navodila za uporabo	SI
Upute za uporabu	BIH HR
Uputstvo za upotrebu	BIH SRB MNE
Упатства за употреба	MK
Instruction manual	EN
Instrucțiuni de utilizare	RO
Návod k obsluze	CZ
Návod na obsluhu	SK
Instrukcja obsługi	PL
Használati útmutató	HU
Инструкции за употреба	BG
Інструкція з експлуатації	UK
Руководство по эксплуатации	RUS
Gebrauchsanweisung	DE
Instructionsmanual	DK
Käyttöuhjeet	FI
Bruksanvisning	NO
Bruksanvisning	SV

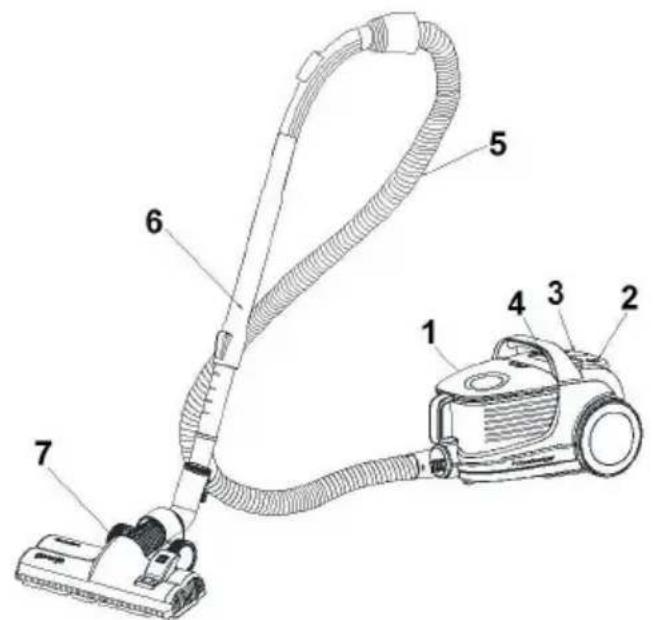

Opis sesalnika

1. Posoda za prah in filter
2. Stikalo za vklop/izklop
3. Stikalo za navijanje priključne vrvice
4. Gumb za nastavitev sesalne moči
5. Upogljiva cev
6. Teleskopska cev
7. Talna krtača

Pomembna opozorila

Line drawing of a mechanical device with arrows indicating upward and downward motion (no text or symbols)

1. Odmaknite posodo od aparata in jo izpraznite tako, da pritisnete gumb, da se le ta odpre.

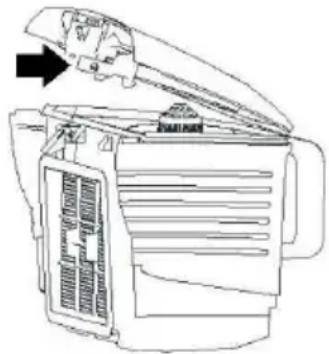

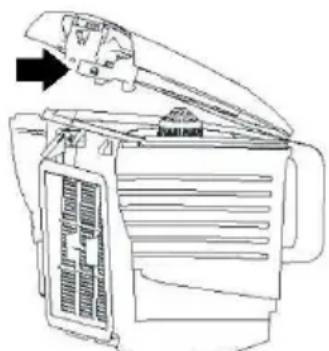

Line drawing of a portable electronic device with an open lid and ventilation slots (no text or symbols)

1. Izpraznite posodo in jo zaprite nazaj.

2. Posodo vstavite nazaj v sesalnik.

Line drawing of a mechanical device with a left-side component and internal structure (no text or symbols)

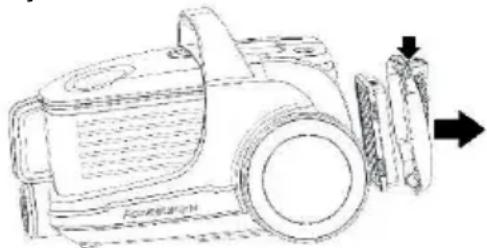

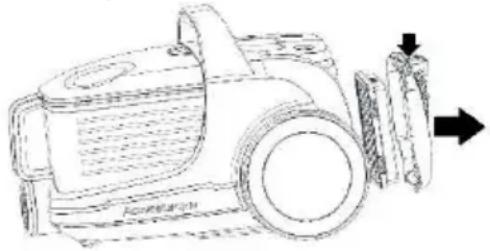

3. Menjava IZHODNEGA filtra

Filter se nahaja za rešetko, ki jo vidite na vrhni strani sesalnika.

1. Odprite rešetko.
2. Filter se nahaja na rešetki.
3. Filter zamenjajte z novim, ki ga nastavite na njegovo mesto.
4. Postavite rešetko z novim filtrom nazaj na svoje mesto.

Line drawing of a portable Cameroon camera with a cylindrical body and two arrows indicating direction (no text or symbols)

Opis usisavača

Line drawing of a toy car with two arrows pointing to the front side (no text or symbols)

1. Odmaknite posudu od aparata i ispraznite ju tako što ćete pritisnuti gumb tako da se samo ona otvori.

Line drawing of a portable electronic device with ventilation slots and a lid, showing no text or symbols.

1. Ispraznite posudu i zatim ju ponovno zatvorite.
2. Posudu umetnite natrag u usisavač.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

3. Promjena filtra

Filter se nalazi iza rešetke koju vidite na gornjoj strani usisavača.

Line drawing of a vintage camera with a cylindrical body and an arrow indicating direction (no text or symbols)

1. Sud za prašinu i filter
2. Prekidač za uključivanje/isključivanje
3. Prekidač za namotavanje priključnog kabla
4. Dugme za podešavanje snage usisavanja
5. Elastična cev
6. Teleskopska cev
7. Podna četka

Važna upozorenja

Line drawing of a mechanical device with arrows indicating upward and downward motion (no text or symbols)

1. Odmaknite posudu od aparata i ispraznite ju tako što ćete pritisnuti gumb tako da se samo ona otvori.

Line drawing of a printer with an open lid and ventilation slots, no text or symbols present

1. Ispraznite posudu i zatim ju ponovno zatvorite.
2. Posudu umetnite natrag u usisavač.

2. Čišćenje i zamena filtera

• Filter očistite odnosno zamijenite uvijek dvaput godišnje odnosno kada je vidljivo potrošen.
• Preporučujemo da filter očistite nakon svakog dužeg usisavanja.

• Redovitim čišćenjem i održavanjem filtera postići ćete dobre rezultate usisavanja, a time i duži životni vek uređaja. Da bi to postigli, preporučujemo sledeće metode čišćenja:

• čišćenje metlicom,

• isprašivanje filtera, ili istresanje prljavštine,
• izduvavanje komprimiranim vazduhom.
• Čist filter omogućuje nesmetan protok vazduha i omogućava optimalnu usisnu snagu.

Line drawing of a mechanical device with a left-side arrow indicating direction (no text or symbols)

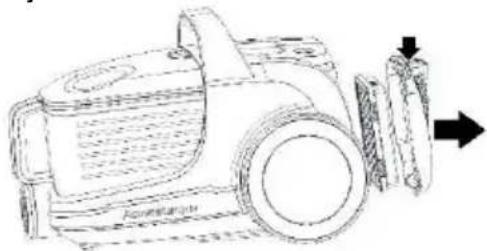

3. MENJANJE FILTERA NA IZLAZU

Filter se nalazi iza rešetke koju vidite na vrhu strani usisivača.

1. Otvorite rešetku.
2. Filter se nalazi na rešetki.
3. Filter zamenite novim i vratite ga na mesto.
4. Vratite rešetku sa novim filterom nazad na svoje mesto.

Line drawing of a Cameroon camera with an arrow indicating direction (no text or symbols)

Čišćenje i nega aparata

Line drawing of a toy car with two arrows indicating upward motion (no text or symbols)

Line drawing of a portable air conditioner unit with lid open, showing internal components and a black arrow indicating the lid (no text or symbols present)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a toy car with an arrow indicating direction (no text or symbols)

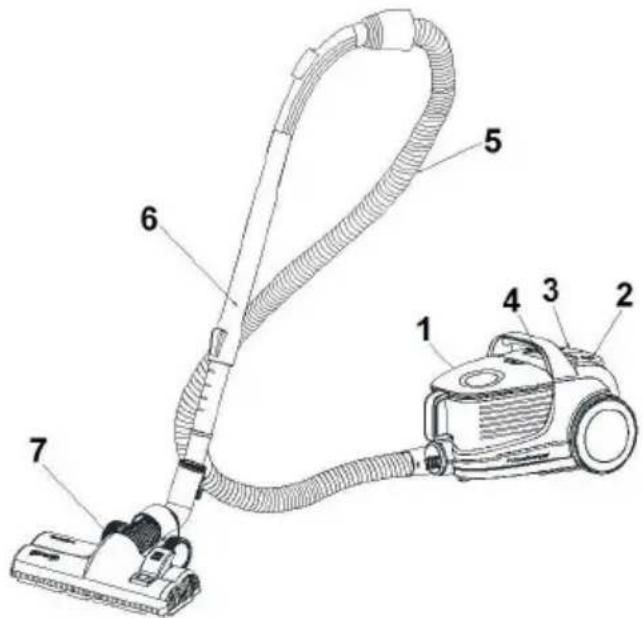

1. Dust compartment and filter
2. On/Off button
3. Cord rewind button
4. Power control button
5. Hose
6. Telescopic tube
7. Floor brush

IMPORTANT safeguards

When using this appliance, basic precautions should always be followed:

• Please read the safety instructions carefully and use the appliance only in accordance with these instructions.
  • Do not leave the appliance unattended during use.
• Caution: Assemble the appliance carefully before using it.
• Do not leave the appliance unattended when it is plugged in. Pull the plug after use or when performing maintenance work.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• The appliance is only to be used indoors, in dry rooms. The appliance must not be used for liquids.
• Operate the appliance only with parts recommended by the manufacturer.
• Do not use the device if it has been dropped, damaged, kept outdoors, or has fallen into water.
• Do not pull or carry the appliance by holding the cable only. Protect the cable from hot surfaces or other damages and do not wedge it.
• Do not pull the cable to unplug the appliance.
• Do not operate or touch the appliance or cable with wet hands.
• Do not insert any object into the openings.
• Keep the opening free from dust, hairs or other objects which might reduce the cleaning power.
• Keep your hair, loose clothes, fingers and any other body parts away from openings or moving parts.
• Switch out the device before pulling the plug.
• When cleaning stairs apply particular attention.
• Do not use the vacuum cleaner for: embers, burning cigarette stubs, matches, ect.-liquid materials (e.g.wet carpet foam)-hard, sharp objects (e.g.splinters of glass).
• Do not use the appliance in connection with a non-permissible extension cable.
• Keep the suction hose opening and other openings away from your face and body.

• Do not use the vacuum cleaner without a dust bag, outlet air filter or motor filter.

• The appliance is to be stored indoors, in dry rooms only, put the appliance aside after use.

• Hold the plug when using the automatic cable reminder.
• Switch out the device when connecting or changing the suction hose or nozzles.
• The appliance is not to be used for toner dust or similar materials.
• During use keep the suction tube, suction hose and nozzles away from your head to prevent injuries.
• For longer use pull out at least 2/3 of the cable length to awed overheating and damage.
• The appliance fulfils the applicable German and European electrical standards as well as the radio interference suppression regulation.
• Never use your vacuum cleaner for vacuuming the building material (such as fine sand, lime, cement dust etc.). Absorbed building material can damage your appliance.
• When you are using the vacuum cleaner together for several hours, pull the connecting cable to the end.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
  Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.
  • Noise level: Lc < 67 dB(A)

CAUTION: Never use the vacuum cleaner without the filters.

Vacuum cleaner use only for home and in the inner rooms!

Connection to the mains supply

Check, please, whether the voltage stated on the data plate comply with the data of your house mains supply.

Supply cord

If the supply cord is damaged, it must be replaced with the suitable cord, or a set for coiling the cable, which you can get in the nearest Gorenje's service outlet.

If the mains cord is damaged, you must have it replaced by Gorenje, a service centre authorised by Gorenje or similarly qualified persons in order to avoid a hazard.

Data on compliance with european standards

Test for this type of appliance confirmed that it complies with the following European directives:

• 2014/35/EU
• 2014/30/EU
• 2009/125/EU
• 2011/65/EU
• 666/2013/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Elimination of the appliances and environment

If one day you decide to change your appliance, or you just do not need it any more, think about the environmental protection.

Vacuum cleaner assembling

Always remove the plug from the power supply before fitting or removing accessories. Before putting the appliance into service, please check if all filters are inserted correctly.

ASSEMBLY OF THE SUCTION HOSE

Insert the flexible suction hose into the connection opening at the top of the housing until you can feel it lock.

HOSE REMOVING

To remove flexible hose from the vacuum cleaner, press the buttons situated on the flexible hose base, then pull to remove it from the attachment point.

ROLLING THE CABLE OUT AND UP

Pull out the cable to such a length that easy working is ensured. Now connect the appliance to the main supply. Press the switch to activate the automatic rewinder and hold on the mains plug for safety reason.

FITTING TUBE AND ACCESSORIES

• Insert a flexible hose into a telescopic tube.
  • Fit a nozzle to telescopic tube:

• Floor brush is intended for cleaning bare floor and floor coverings.

• Crevice/furniture nozzle is for cleaning corners and between cushions. According to the mark rotate the nozzle to brush position to clean curtain or dust on the decorating surfaces.
• Parquet brush is appropriate for cleaning sensitive floors and flat surfaces such as parquet, laminate, tile, etc. Bristles for efficient cleaning are at the bottom and over the entire length so you cannot damage your floor.
• Carpet brush is appropriate for cleaning carpets, carpetings and other similar surfaces.

Instruction for use

• Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply.
• Press the On/Off button to switch the unit on. To stop it press the On/Off button again.
• You can adjust the air flow using the air flow regulator on the flexible hose:

- decrease power for cleaning curtains, books, furniture, etc.

- increase power for cleaning bare floor.

To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.

Maintenance

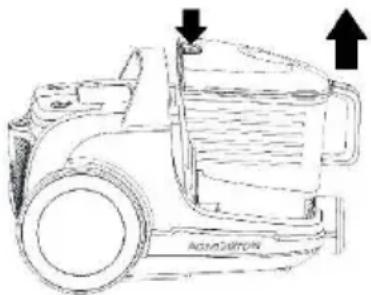

1. Spilling rubbish from the dust compartment subassembly

• Always operate the cleaner with the dust compartment subassembly whole installed.

• If you forget to attach and filter or attach its in the wrong manner, the dust compartment subassembly may not rinse.

• After removing the flexible tube, press the locking buttons to open the cover.

• Carry the dust compartment subassembly.

Line drawing of a robotic arm with arrows indicating motion or force (no text or symbols)

1. Carry away the dust-glass cap and Spill rubbish.

Line drawing of a portable electronic device with a lid open, showing internal components and a black arrow indicating direction (no text or symbols)

1. Spill rubbish and fix the dust compartment subassembly.
2. Replace the dust compartment subassembly until it is locked.

2. CLEANING AND CHANGING FILTER

• We Filter for air-inlet should be cleaned at least twice a year or when it becomes visible solid.
• We suggest to clean filter after every long use.
• With regular cleaning and maintenance of filter, you will achieve good results of cleaning, and hence the longer life of the appliance.

• To achieve this we recommend the following cleaning methods:

• Cleaning with brush,

• Shaking the dust from filter,

- Cleaning the dust from with compressed air.

- Clean filter provides a smooth air flow and allows optimal suction power.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

3. CHANGING THE OUTLET FILTER

1. Open the grille for air-outlet.
2. When open the grille for air-outlet, the filter for air-outlet is found.
3. Take the filter out and change a clean one.
4. Close the grille for air-outlet.

Line drawing of a vintage-style camera with a cylindrical lens and attached cable, showing no text or symbols.

Care and cleaning

Switch off the appliance and pull out the plug from the power supply. Clean the outside of the appliance with a soft cloth with mild detergent. Harsh or abrasive detergent will damage the outside surface. Never immerse the appliance or cord into water and other liquids.

CAUTION:

When the dust bin full indicator reaches the middle of the window, clean the dust bin. Never use the appliance without filters. Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

STORAGE

Parking system serves for parking suction tube/floor nozzle during short-term interruptions. For this purpose, please insert the holder of the floor nozzle into parking rail of the device.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

ОПИС

Line drawing of a toy car with arrows indicating upward and downward motion (no text or symbols)

Line drawing of a portable air conditioner unit with lid and ventilation slots (no text or symbols)

Line drawing of a mechanical device with a left-side component and a separate view (no text or symbols)

3. ЗАМИНА ФІЛЬТРУ НА ВИХОДІ ПОВІТРЯ

Line drawing of a vintage camera with a cylindrical lens and attached blade (no text or symbols)

Чищення та догляд

Line drawing of a car with two arrows indicating upward motion, no text or symbols present

Line drawing of a mechanical device with an open lid and internal components (no text or symbols)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

3. ZMENA FILTRA PRE VÝSTUP VZDUCHU

Line drawing of a vintage camera with a directional arrow indicating motion (no text or symbols)

Údržba a čistenie

Line drawing of a robotic arm with arrows indicating motion or force (no text or symbols)

Line drawing of a printer with an open lid and ventilation grilles, showing no text or symbols.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

3. WYMIANA FILTRA WYLOTOWEGO

Line drawing of a portable Cameroon camera with an arrow indicating direction (no text or symbols)

1. Spilling rubbish from the dust compartment subassembly

Line drawing of a car with two arrows indicating upward motion (no text or symbols)

Line drawing of a mechanical device with an open lid and ventilation grilles (no text or symbols)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a vintage camera with a circular lens and two arrows indicating direction (no text or symbols)

Line drawing of a car with two arrows indicating upward movement, no text or symbols present

Line drawing of a printer with open lid and ventilation grilles (no text or symbols)

Line drawing of a mechanical device with a left-side component and a separate view (no text or symbols)

3. A szűrő cseréje

Line drawing of a vintage-style toy car with a cylindrical body and two arrows indicating direction (no text or symbols)

Line drawing of a car with two arrows indicating upward motion (no text or symbols)

Line drawing of a portable electronic device with an open lid and ventilation slots (no text or symbols)

Line drawing of a cylindrical mechanical component with an arrow pointing to its side (no text or symbols present)

Line drawing of a vintage camera with a cylindrical lens and directional arrow (no text or symbols)

Почистване

Line drawing of a car with two arrows pointing to the front side (no text or symbols)

Line drawing of a printer with open lid and ventilation slots (no text or symbols)

Line drawing of a mechanical device with a left-side arrow indicating direction (no text or symbols)

3. ЗАМЕНА ВЫПУСКОГО ФИЛЬТРА.

Уход и чистка

Line drawing of a vehicle with two arrows indicating upward motion (no text or symbols)

Line drawing of a portable electronic device with a lid open, showing internal components and a directional arrow (no text or symbols)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

3. VÝMĚNA VNĚJŠÍHO FILTRU

Line drawing of a Cameroon camera with an arrow indicating direction (no text or symbols)

Údržba a čištění

Line drawing of a car with two arrows indicating upward motion, no text or symbols present

Line drawing of an air conditioner unit with lid open and ventilation slots (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a vintage camera with an arrow indicating direction (no text or symbols)

Line drawing of a car with two arrows indicating upward motion, no text or symbols present

Line drawing of a printer with open lid and ventilation slots (no text or symbols)

Line drawing of a mechanical device with a left-side arrow indicating direction (no text or symbols)

Line drawing of a Cameroon camera with an arrow indicating direction (no text or symbols)

Line drawing of a car with arrows indicating upward and downward motion, no text or symbols present

Line drawing of a printer with an open lid and ventilation slots, no text or symbols present

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

3. POISTOILMASUODATTIMEN VAIHTAMINEN

Line drawing of a vintage camera with a circular lens and directional arrow (no text or symbols)

Hoito ja puhdistus

Line drawing of a car with a mug and two arrows indicating upward movement (no text or symbols)

Line drawing of a printer or printer with an open lid and ventilation slots, no text or symbols present.

Line drawing of a mechanical device with a left-side arrow indicating direction (no text or symbols)

3. SKIFTE UTL∅PSFILTER

Line drawing of a vintage camera with a circular lens and two arrows indicating direction (no text or symbols)

Stell og rengjøring

GORENJE ∅NSKER DEG LYKKE TIL MED DET NYE APPARATET

Beskrivning

RULLA UT OCH IN SLADDEN

Line drawing of a car with upward arrows indicating motion or force (no text or symbols)

Line drawing of a printer or printer with an open lid and ventilation grilles, no text or symbols present.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

3. BYTA UTGÅNGSFILTRET

Line drawing of a vintage-style camera with a side-mounted lens and arrow indicating direction (no text or symbols)
