Product Type	Portable DVD Player
Model	S74PD11E
Brand	Sandstrøm
Display	7 inch TFT LED Panel
Dimensions (L x W x H)	212 x 42 x 160 mm
Weight	0.8 kg
Power Supply	AC 100-240V 50/60 Hz (Mains Adapter) or DC 12V car adapter
Battery Operation Time	Approximately 3 hours
Disc Compatibility	DVD±R, DVD±RW, CD, CD-R, CD-RW, JPEG Picture CD
Video System	PAL, NTSC
Video Decompression	MPEG-2, MPEG4 (max 720x576@25/30fps)
Audio Decoding	Dolby Digital
Audio Channels	2-Channel Analogue
Built-in Speakers	2 stereo speakers
Terminals	USB 2.0 (max 8GB), SD/MMC/MS card reader (max 32GB), AV OUT, Headphone
Remote Control	Infrared, requires CR2025 3V lithium battery
Region Code	Check bottom of unit
Parental Control	Yes, password-protected with rating levels
Included Accessories	Remote control, mains adapter, car power adapter, 3.5mm to RCA AV cable, earphones, carry bag, instruction manual, quick start guide
Maintenance	Clean discs from center outward; use soft cloth; avoid solvents
Safety	Class 1 laser product; do not expose to moisture; unplug during cleaning

Frequently Asked Questions - S74PD11E Sandstrøm

Why is there no power?

Ensure the mains adapter is securely connected to the unit and to a working mains socket. Make sure the ON/OFF switch is set to ON. If using battery, check that the battery is charged.

What should I do if the remote control does not work?

Use the remote within 5 meters of the unit and within 60° of the sensor. Remove any obstacles. Replace the battery with a new CR2025. Ensure the insulating strip has been removed.

How can I connect the DVD player to my TV?

Use the provided 3.5mm to RCA AV cable. Connect the 3.5mm end to the AV-OUT socket on the unit and the RCA ends to the corresponding audio/video inputs on your TV.

Why is there no sound from the DVD?

Check that the unit is not paused or in fast-forward/reverse mode. Ensure audio connections are correct. If the disc has DTS audio, press AUDIO/ANGLE to select 2-Channel Analogue mode. Increase the volume.

Why won't the disc play?

Make sure the disc is inserted with the label facing up. Clean the disc if dirty. Check that the region code matches. If condensation has formed, wait about an hour and try again.

How do I charge the battery?

Connect the mains adapter to the DC IN 12V socket and plug into a mains socket. The LED indicator turns red during charging and green when fully charged. First charge may take up to 4 hours.

Can I play files from a USB flash drive or SD card?

Yes, insert a USB drive into the USB slot or an SD/MMC/MS card into the card slot. Press SOURCE to select USB or SD, then navigate to the file and press OK. Supported formats include MPEG4 video, JPEG images, and audio files.

How do I set the parental control?

Press SETUP on the remote, go to Rating, then Parental control. Enter the default password '6666' (or your existing password) and select a rating level from Kid Safe to Adult. Press OK to confirm.

What does the region code mean?

DVDs are coded by region. The player's region code is printed on the bottom. To play a disc, its region code must match the player's. If not, the disc will not play.

How do I clean the disc?

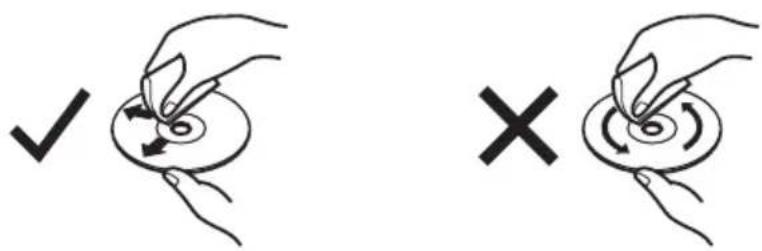

Wipe the disc from the center outward with a soft, dry cloth. If needed, use a slightly moistened cloth then dry. Do not use solvents like thinner, benzine, or antistatic sprays.

USER MANUAL S74PD11E Sandstrøm

7" Portable DVD Player

S74PD11E

Instruction Manual

7" Portable DVD Player

Bruksanvisning

Left Side View and Front View....8

Top View....9

Rear View....9

Right Side View....9

Remote Control....10

Removing the Insulating Strip from the Remote Control ....11

Battery Replacement for the Remote Control 11

-Handling the Battery 12

-Handling the Remote Control 12

Remote Control Operation Range 12

Power Source 13

Mains Power....13

Charging the Battery 13

Using the Car Power Adapter (for in-car use) 14

Connections 14

Connecting to a TV....14

Watching a DVD on your TV 14

Using Earphones 15

Using a USB Flash Drive or SD/MMC/MS Card 15

Compatible Disc Types 16

Picture Supported Formats 16

Region Code 16

DVD Playback....17

Basic DVD Playback 17

Stop Playback....17

Previous and Next....18

Fast Forward and Fast Reverse 18

Pause Playback....18

INFO 18

Volume Adjustment 18

All Repeat....18

Audio Channel 18

Subtitle Language 19

Angle Selection....19

Audio CD, JPEG Picture CD Playback.... 20

Loading a Disc....20

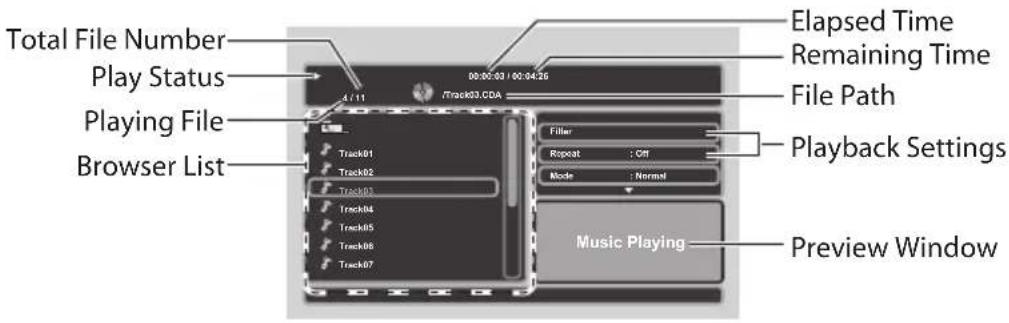

Playing an Audio CD 20

Playing MPEG4/JPEG Picture CD 21

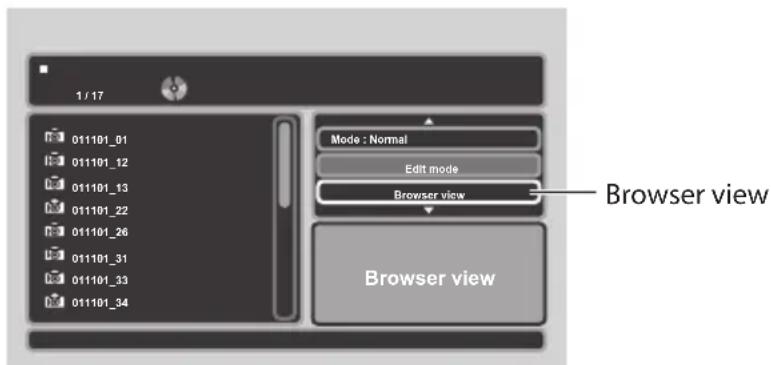

The Playback Navigator and Settings 22

Program Playback 23

Adding files to the Program List 23

Deleting Files from the Program List 24

To Return to Browser List 24

Customising the Language Settings 25

OSD Language 25

Subtitle 25

MPEG4 Subtitle....25

Audio 25

DVD menu....25

Customising the Video Settings 26

Aspect Ratio....26

TV System 26

Picture Mode 26

Customising the Rating Settings 27

Parental control 27

Customising the Miscellaneous Settings 28

Set Password....28

Maintenance 29

Handling Discs....29

Cleaning Discs....29

Storing Discs....29

Hints and Tips.... 30

Specifications.... 32

Safety Warnings ....137

Innhold

NO

Utpakking 33

Produktoversikt 34

Thank you for purchasing your new Sandstrøm 7" Portable DVD Player.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

DVD player Remote Control (with battery) x 1
P.N.: 504M315105

Mains Adapter x 1 P.N.: 5140F107112

Car Power Adapter x 1 P.N.: 50448101101

3.5mm to RCA AV Cable x 1 P.N.: 30430912003

Earphones x 1 P.N.: 30430220002

Simple line drawing of two rectangular compartments (no text or symbols)

Carry Bag x 1 P.N.: 40404950101

Instruction Manual x 1 P.N.: 4031W758009

Quick Start Guide x 1 P.N.: 4043W758001

Product Overview

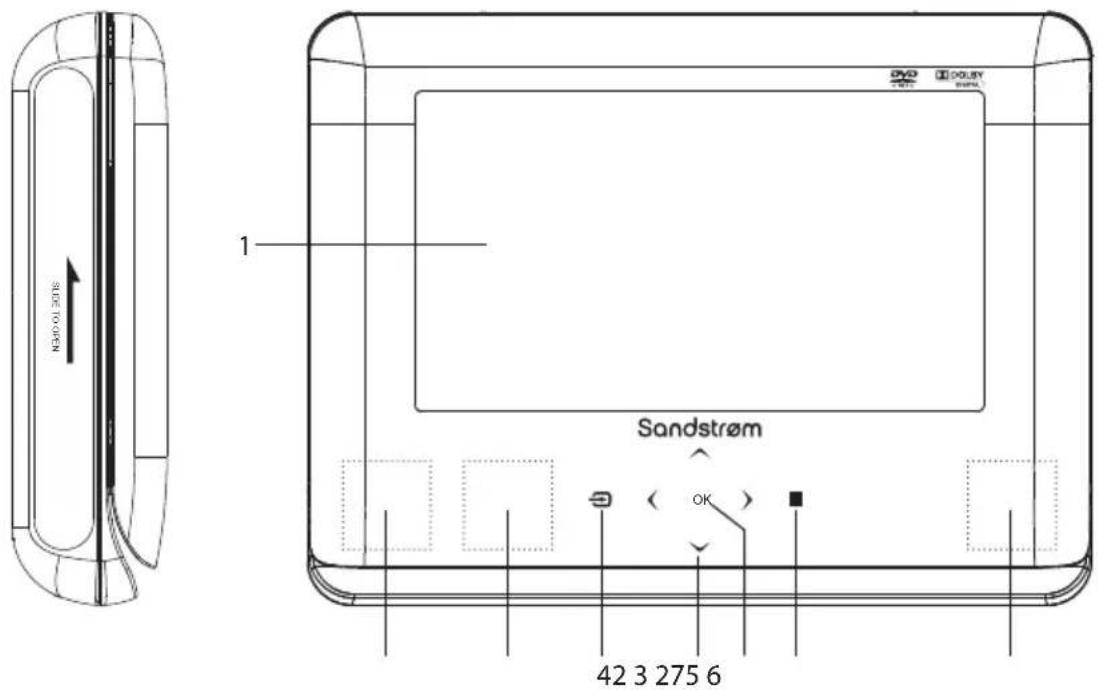

Left Side View and Front View

1. LCD Screen
2. Speakers (Behind the front panel)
3. IR Sensor
4. Source Button

Press to select the desired input signal source: DVD/USB/CARD.

1. (^^) Buttons

2. Allows you to navigate the menu screen and adjust certain settings.

3. <>buttons allows you to perform fast backward / forward functions during playback.

4. ^√ buttons allows you to move back or forward to previous or next chapters / racks / titles on a disc.

5. OK Button

Press to confirm selections on the menu screen.

1. ■ STOP Button

Press to stop playing a disc.

Top View

Technical line drawing of a cylindrical device with a labeled component (no text or symbols present)

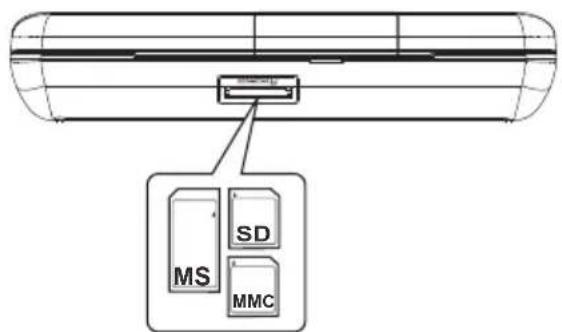

1. SD/MMC/MS Card Slot

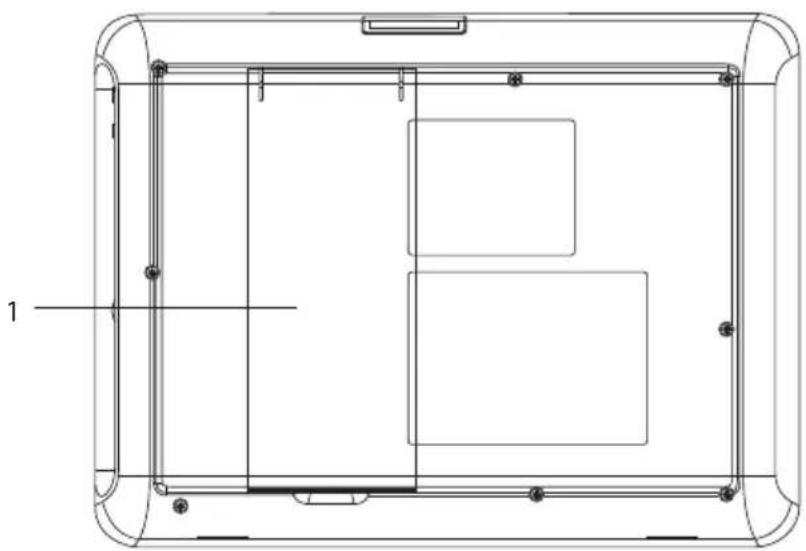

Rear View

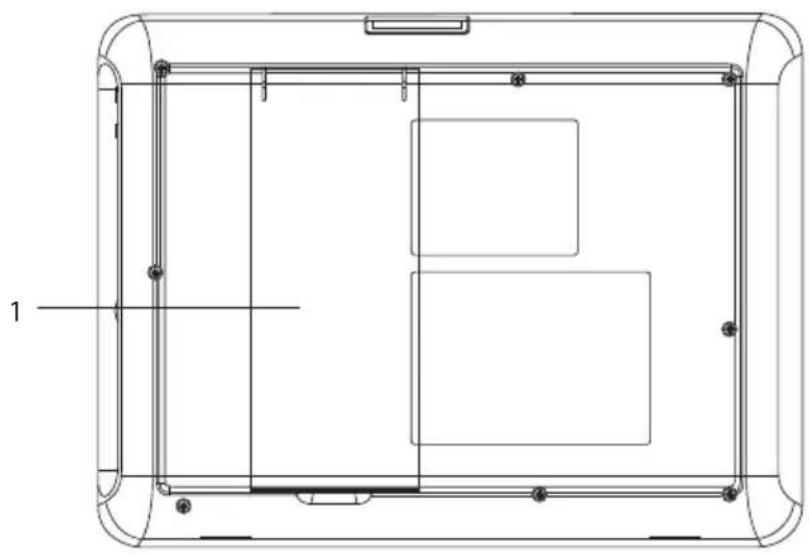

Technical line drawing of a rectangular device with internal compartments and mounting points (no text or symbols)

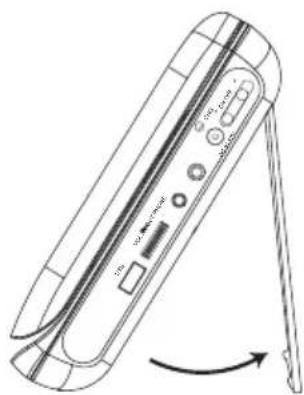

1. Stand

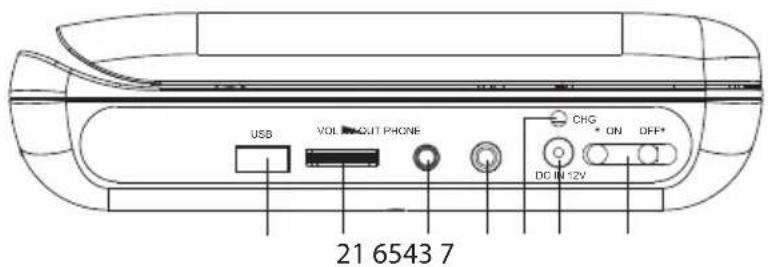

Right Side View

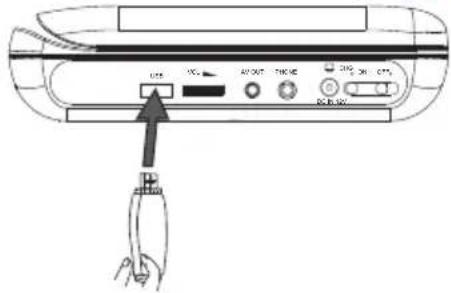

1. USB Socket

To insert a USB storage device.

1. VOL Control

To adjust the volume.

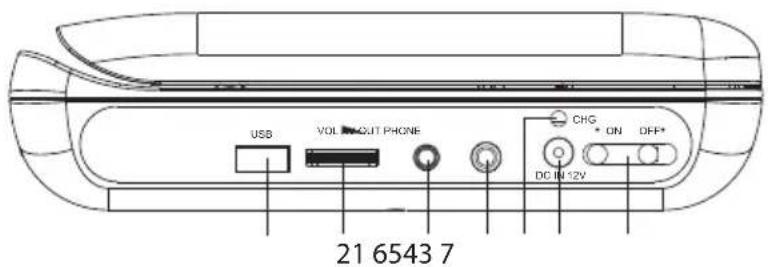

1. AV-OUT Socket

2. PHONE Socket

3. Charging LED Indicator

4. DC IN 12V Socket

5. ON/OFF Switch

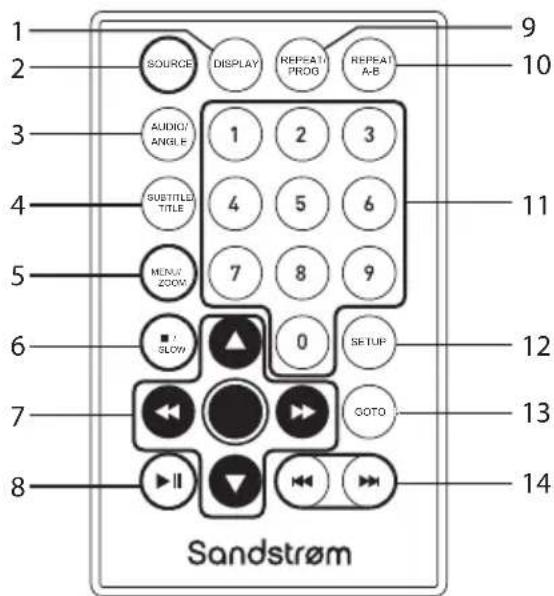

Remote Control

1. DISPLAY Button

Press to display the disc information during playback.

2. SOURCE Button

Press to select the desired input signal source: DVD/USB/CARD.

3. AUDIO/ANGLE Button

• Press to select one of the audio soundtracks on a DVD (if more than one is available) or to select the audio output mode on a CD.
• Press and hold to switch between multiple camera angles when the DVD you are playing has been programmed with multiple camera angles.

4. SUBTITLE/TITLE Button

• Press to select one of the subtitle languages programmed on a DVD (if available).
• Press and hold to enter the title menu (if available).

5. MENU/ZOOM Button

• Press to display the main DVD menu (if available).
• Press and hold to zoom in/out the display frame.

6. ■/SLOW Button

• Press to stop playing a disc.
- Press and hold to select slow speed playing and resume normal playback.

7. ▲▼ Buttons

Press to move Up/Down on the menu screen and adjusts certain settings.

◀▶Buttons

• Press to move Left/Right on the menu screen and adjust certain settings.
• Press to perform fast reverse/forward playback.

OK Buttons

Press to confirm selections on the menu screen.

8. Button

Press to start/pause/resume playback of a disc.

9. REPEAT/PROG Button

• Press to repeat a DVD chapter, title or the entire disc.
• Press to repeat a CD track or the entire disc.
• Press and hold to enter the DVD movie program mode (not for CD/USB/SD mode).

10. REPEAT A-B Button

Press to repeat a segment between A and B on a DVD.

11. Number 0-9 Buttons

Press to enter parental control password or locate a title/chapter/track.

12. SETUP Button

Press to enter the setup menu.

13. GOTO Button

Press to skip to a specific location on a disc.

14. Buttons

• Press to move back to previous chapters/tracks/titles on a disc.
• Press to move forward to next chapters/tracks/titles on a disc.

Removing the Insulating Strip from the Remote Control

Remove the insulating mylar strip from the battery if the battery is being used for the first time. It is located at the bottom backside of the remote control.

Illustration of a finger pressing down on a curved object with an arrow indicating force (no text or symbols)

GB

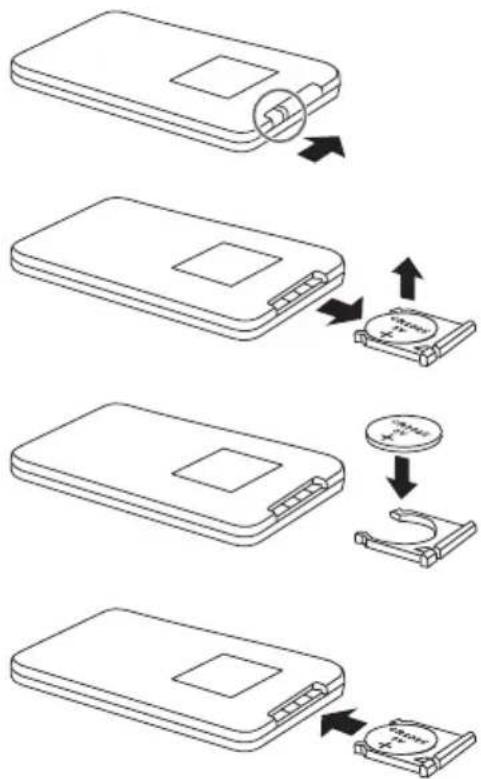

Battery Replacement for the Remote Control

The remote control requires a CR2025, 3V Lithium battery.

1. Slide and hold the battery release tab in the direction of the arrow.

2. Pull out the battery holder and remove the old battery.

3. Replace with a new one battery.

4. Insert the battery holder back into the remote control.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and −) indications in the battery compartment.
• When the battery is exhausted, the remote control will not function.
  • Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

Remote Control Operation Range

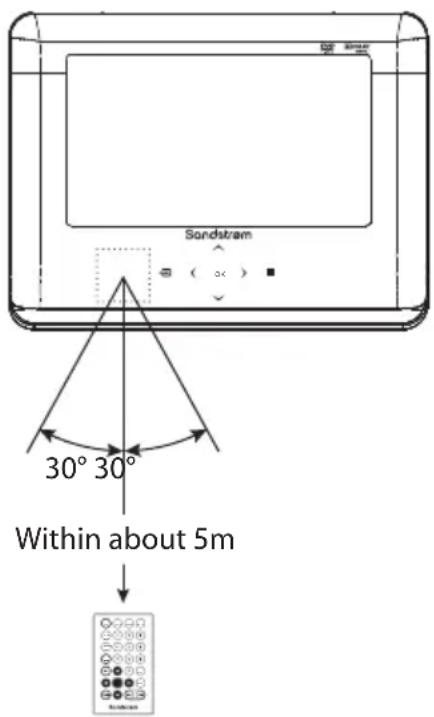

Point the remote control at the unit no more than 5 metres from the remote control sensor and within 60^ of the front of the unit. The operating distance may vary depending on the brightness of the room.

Power Source

Mains Power

• This unit operates with a DC 12V 1.0A mains adapter (included).
- Connecting the unit to any other power source may cause damage to the unit. Unwind the mains adapter to its full length. Connect the mains adapter to the AC socket on the rear of the unit and a mains socket. Make sure the mains adapter is fully inserted into the mains socket. The unit is now connected and ready to use.
• To switch the unit off completely, withdraw the mains adapter from the mains socket.

• Turn off the unit before unplugging the mains adapter from the unit to avoid the unit being damaged.
• When the unit is not going to be used for a long period of time, disconnect the mains adapter from the mains socket.
• The mains socket must be located near the unit and should be easily accessible. If a malfunction occurs, disconnect the plug from the mains socket at once.
• When the mains adapter is plugged in, the unit is not completely disconnected from the mains power source, even when the unit is turned off.

Charging the Battery

1. Connect the mains adapter to DC IN socket on the unit then connect the mains adapter to the mains socket.

- The LED indicator lights up red indicating that the battery is in charging mode. When the battery is charged to full capacity, the LED indicator goes green.

1. Remove the mains adapter. The battery is now fully charged and the unit is ready to use.

• The battery is partially charged at shipment. We suggest that for first time use fully charge the battery. It may take up to 4 hours to fully charge the battery.
• Everytime you see the low battery (☐) indication on the screen, you must connect your mains adapter to the unit and the mains socket. The battery will now start to recharge.
  • The battery will charge slower when the DVD player is in use.
  • It is recommend turn to off the power while the battery is charging.

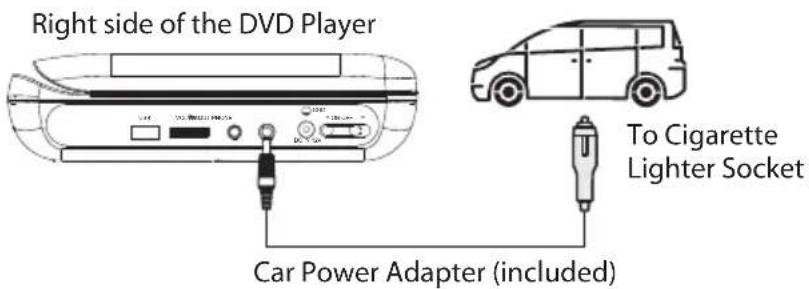

Using the Car Power Adapter (for in-car use)

The 12V car power adapter allows the unit to be used with vehicles that have a 12V, negative ground electrical system.

• Disconnect the car power adapter when not in use. Not for use in 24V vehicles.
  • Use the provided 12V car power adapter only. Using other car power adapters could damage the unit.
  • In the interest of traffic safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is securely fastened to prevent it from falling or flying through the air in the event of an accident.
• When the inside of the cigarette lighter socket is dirty with ash or dust, the plug section may become hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
  • After use, disconnect the 12V car power adapter from both the unit and the cigarette lighter socket.

Connections

Connecting to a TV

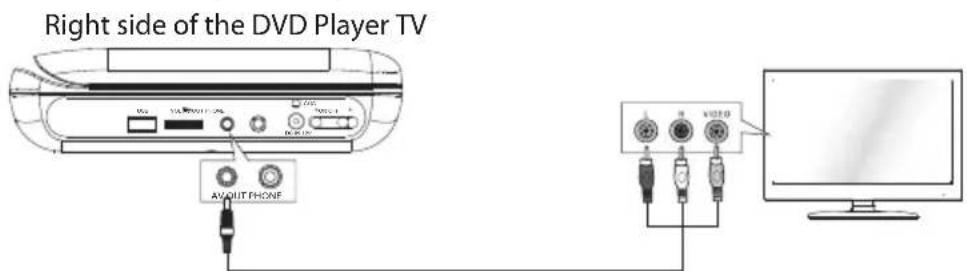

If your TV has Audio/Video inputs, you can connect the unit to your TV using the provided 3.5mm to RCA AV Cable (included).

3.5mm RCA AV cable (included)

Watching a DVD on your TV

1. Connect your TV to the unit using the provided 3.5mm to RCA AV Cable (included).
2. Turn on the unit.
3. Turn on the TV and follow the instructions included with it to play the DVD.

• Make sure to use the correct Audio/Video cable. Connecting the plugs incorrectly may cause a weak signal.
• The included 3.5 mm RCA AV cable is special for this product. Your TV may not display if using another cable.
  • If you lose the cable, please contact the store where you purchased the unit.

Using Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume. When earphones are connected, the speaker is automatically disabled.

Avoid excessive volume levels and listening to sound for a long period of time when using headphones, as this may impair your hearing.

GB

Using a USB Flash Drive or SD/MMC/MS Card

You can play music or JPEG files from USB flash drives or SD/MMC/MS cards.

1. Connect the USB flash drive or SD/MMC/MS card directly to the USB Slot or SD/MMC/MS Slot on the unit.

Right side of the DVD PlayerTop side of the DVD P

1. In STOP mode, press the 🔒 button on the unit or the SOURCE button on the remote control. Press the ^ buttons on the unit or the buttons on the remote control to select "USB" or "SD" and then press the OK button on the unit or the remote control to access the data in the drive.

2. Use the ^√ buttons on the unit or the ▲buttons on the remote control to select a desired file and then press the OK button on the unit or the remote control to start playback.

To remove the USB drive or SD/MMC/MS card, press the ■ button on the unit or the ■/SLOW button on the remote control to stop playback. Remove the USB flash drive or SD/MMC/MS Card from its slot, the unit will then automatically return to disc mode.

Compatible Disc Types

Disc Types Disc Logo Recorded Content
DVD-VIDEO (Digital Versatile Disc)		AUDIO + VIDEO
DVD±RW (Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
DVD±R (DVD Recordable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
CD-R (CD Recordable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
CD-RW (CD-Rewritable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
AUDIO-CD (Compact Disc Digital Audio)		AUDIO

Picture Supported Formats

JPEG

• The file extensions has to be .jpg and not .jpeg
• Pictures encoding must comply with JPEG/ISO format.

• Only finalised discs of DVD-R and DVD-RW multi-border are supported.
• Both finalised and un-finalised discs of DVD+R and DVD+RW multi-border are not supported.
- Some recorded files may not be able to be played due to the type and format of disc or condition of the recording.

Region Code

Both the DVD player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play.

The Region Number for this DVD player is described on the bottom of the DVD player.

Disc Type DVD-VIDEO
Region code

DVD Playback

Ensure that the screen protection film is removed before use.

This instruction manual explains the basic instructions for operating this unit. Some DVDs are produced in a manner that allows for specific or limited operation during playback. Therefore, this unit may not respond to all operating commands. This is not a defect.

Please refer to the instructions accompanying the specific DVD in question for more information about the options available on that DVD.

"⑦" may appear on the screen during operation. A Ⓧ means that the desired operation is not permitted by the unit or disc.

Basic DVD Playback

1. Slide the ON/OFF switch to the ON position.
2. Slide the front panel to open the disc compartment.
3. Hold the disc by its sides and carefully place onto the disc holder with the label side facing up. Gently push the disc down until you hear a "click" sound.
4. Slide the front panel to close the disc compartment. You may hold the DVD player in your hands or use the stand located at the rear of the unit. The unit starts playback if the disc does not have any menus recorded on it. If the disc has one or more titles recorded on it, a menu screen will appear on the screen.
5. To play a title, press the ◀/0-9 buttons on the remote control to highlight the title and then press the button on the remote control.

Line drawing of a handheld electronic device with a curved handle and control panel (no text or symbols)

open the stand

Stop Playback

1. Press the button on the unit or the /S■OW button on the remote control to go to pre-stop mode, the TV screen will display "■STOP". With some discs, the unit can recall the stopped location, such as on DVDs.
2. Press the ▶II button on the unit or the remote control to resume playback from the location where playback was stopped or from the beginning of the disc.
3. Press the ■ button on the unit or the ■SLOW button on the remote control twice to stop completely.

Previous and Next

1. During playing, press the buttons on the unit or the button on the remote control to go back to the start of the previous chapter. Each press of this button will skip a chapter until the start of the disc.
2. Each press the ▼ buttons on the unit or the▶button on the remote control during playing will skip the current chapter and play the next one.

Fast Forward and Fast Reverse

1. Press the buttons on the unit or the buttons on the remote control to fast reverse / fast forward through the disc. Each time the < > buttons on the unit or the <◀▶ buttons on the remote control is pressed, the fast reverse / fast forward motion speed changes. There are 4 levels of speed available: x2, x4, x8 and x16.
2. Press the OK button on the unit or the ▶II button on the remote control to resume normal playback.

Pause Playback

1. Press the button on the remote control to pause playback (still mode). The sound will be muted during still mode.
2. Press the ▶II button again to resume normal playback.

INFO

While playing the disc, press the DISPLAY button on the remote control to go to the information menu if this function is available on the disc.

Volume Adjustment

Turn the VOL control on the unit to adjust the volume of the unit.

All Repeat

Press the REPEAT/PROG button on the remote control repeatedly to select different repeat modes.

Menu Description
First Press Repeat Chapter
Second Press Repeat Title
Third Press Repeat off

Audio Channel

Press the AUDIO/ANGLE button on the remote control repeatedly to select different audio languages.

Subtitle Language

Press the SUBTITLE/TITLE button on the remote control repeatedly to switch between different subtitle languages that are available on the disc.

Angle Selection

Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles.

1. While you are playing a DVD with different angles recorded, press and hold the AUDIO/ANGLE button on the remote control to view the number of current angles available.
2. Press and hold the AUDIO/ANGLE button on the remote control button repeatedly to change the scene to the next recorded angle.

• After approximately two seconds, playback will continue from the new angle you selected.
- If no button is pressed within 10 seconds, playback continues without changing the current angle.

• This function can only be used for discs on which scenes shot from multiple angles have been recorded.
  • If only one angle is recorded, 1/1 is displayed.

Audio CD, JPEG Picture CD Playback

Loading a Disc

1. Slide the ON/OFF switch to the ON position.
2. Slide the front panel to open the disc compartment.
3. Hold the disc by its sides and carefully place onto the disc holder with the label side facing up. Gently push the disc down until you hear a "click" sound.
4. Slide the front panel to close the disc compartment.

Playing an Audio CD

1. Press the buttons on the unit or the buttons on the remote control to highlight an audio track file and then press the OK button on the unit or the ▶ button on the remote control to playback.

- If the files are inside a folder, press the OK button on the unit or the remote control to enter into the folder.

- Press the^ button on the unit or the ▲button on the remote control repeatedly to select the Root folder and then press the OK button on the unit or the remote control to return to the upper menu.

1. To stop playback, press the ■ button on the unit or the ■SLOW button on the remote control.

Playing MPEG4/JPEG Picture CD

1. Press the buttons on the unit or the buttons on the remote control to highlight a MPEG/JPEG file and then press the OK button on the unit or the remote control to slide show the picture or playback the MPEG4 video.

2. If the files are inside a folder, select the folder and then press the OK button on the unit or the remote control to enter into the folder.

3. In stop mode, press the ^ button on the unit or the ▲ button on the remote control to select the Root folder 📋 and then press the OK button on the unit or the remote control to return the upper level.

4. To playback the MPEG4 file or slideshow the picture, press the OK button on the unit or the remote control.

Black-and-white photo of white flowers on a tree trunk, no text or symbols visible

1. Press the ◇buttons on the unit or the ◀buttons on the remote control to rotate the photo by 90°/180°/270° clockwise or anti-clockwise during the photo playback/fast backward or forward during MPEG4 playback.

• All the rotation effects will be cancelled after exiting the slideshow mode.

1. Press the ■ button on the unit or the ■/SLOW button on the remote control to return to the play list browser.

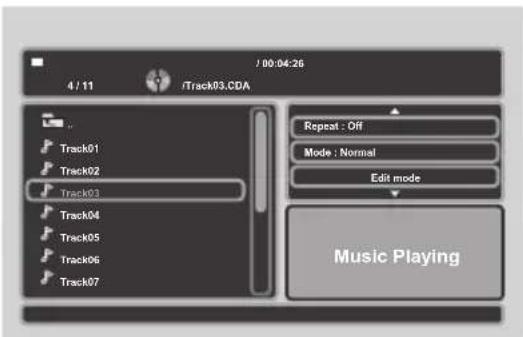

The Playback Navigator and Settings

1. In stop mode, press the button on the unit or the button on the remote control to enter the right screen of the playback setting of the navigator.
2. Press the ^√ buttons on the unit or the ▲buttons on the remote control to select the items. Always confirm by pressing the OK button on the unit or the remote control.

- For Filter setting, press the OK button on the unit or the remote control to bring up the drop-down menu, and press the ^√ buttons on the unit or the ▲buttons on the remote control to select an option, then press the OK button on the unit or the remote control.

Menu Options Description
Filter Audio, Photo, Video • Allows you to sort the file format displayed in the browser list.The filter settings will sort out the file types being displayed in the Browser list on the left screen of the navigator.To leave the settings, press the button on the unit on the unit or the button on the remote control.
Repeat	Off, Single, Folder	• To set the repeat mode of the playing files.
Mode Normal, Shuffle, Music Intro		• To set the file playing sequence in the Disc mode.• Music Intro mode to playback the start of every song. Just like browsing the music list on the Disc.
Edit Mode — • Allow you to select the files to be programmed in the program list.Refer to "Program playback" section on the next page.
Program View	Program view, Browser view	• Switch to view all files in the current directory or the selected files in the program list.• Refer to "Program playback" section on the next page.
Add to Program	Add to program, Clear program	• Add or delete the selected files in the program list.• Refer to "Program playback" section on the next page.

* In Audio CD mode, the browser will hide the "Filter" function in Repeat mode.

Make sure the playback is stopped completely before using these settings.

Program Playback

Adding files to the Program List

1. Press the button on the unit or the /SOW button on the remote control twice to completely stop playback.
2. Press the > button on the unit or the ▶ button on the remote control to enter the right screen of the navigator.
3. Press the ▲▼ buttons on the unit ▲buttons on the remote control to select Edit mode, then press the OK button on the unit or the remote control to highlight the Edit mode.

- To leave the Edit mode, press the OK button on the unit or the remote control again to cancel the highlight.

1. Press the <button on the unit or the buttons on the unit buttons on the remote control to select a file in the preview list, then press the OK button on the unit or the remote control to tick the file.

2. Press the OK button on the unit or the remote control again to cancel the tick.

3. Press the▼▼ buttons on the unit or the ▲buttons on the remote control to select another file and press the OK button on the unit or the remote control repeatedly to tick more files.

4. Press the > button on the unit or the ▶ button on the remote control to enter the right screen, then press the ^ buttons on the unit or the buttons on the remote control to select Add to program and then press the OK button on the unit or the remote control to confirm. Now the ticked files have been programmed in the Program view, you can press the ^ buttons on the units or the buttons on the remote control to select Program view and then press the OK button on the unit or the remote control to view the ticked files in Browser view.

5. Press the ^√ buttons on the unit or the ▲buttons on the remote control to select Edit mode, then press the OK button on the unit or the remote control to leave the Edit mode.

6. Press the <button on the unit or the buttons on the unit or the <buttons on the remote control to select a file you want to play from the Preview list.

7. Press the OK button on the unit or the ▶II button on the remote control to play the file.

Deleting Files from the Program List

1. Repeat steps 1, 2 and 3 as described in "Adding files to the Program List" section.
2. Press the < button on the unit or the ◀ button on the remote control to enter the left screen in Program view. Press the ▲▼ buttons on the unit or the ▲▼ buttons on the remote control to select a file you want to delete, and then press the OK button on the unit or the remote control to tick the file.

1. Press the > button on the unit or the ▶ button on the remote control to enter the right screen, then press the ^ buttons on the units or the buttons on the remote control to select Clear program to delete the ticked files in Program view.

To Return to Browser List

1. Press the buttons on the unit or the buttons on the remote control to select the Browser view, then press the OK button on the unit or the remote control to change from "Browser view" to "Program view".

• The "Browser view" will display all the tracks available on the disc.
• The "Program view" will display all the selected track after programming.

1. Press the ▲▼ buttons on the unit or the ▲buttons on the remote control to select Edit mode, then press the OK button on the unit or the remote control to leave Edit mode.

Customising the Language Settings

1. Press the SETUP button on the remote control to display the system setup menu.
2. Press the ▲▼ buttons on the unit or the ▲▼ buttons on the remote control to select Language and then press the > button on the unit or the ▶button on the remote control.

1. Press the ^√ buttons on the unit or the ▲buttons on the remote control to select OSD Language / Subtitle / MPEG4 Subtitle / Audio / DVD menu and then press the OK button on the unit or the remote control.

2. Press the buttons on the unit or the buttons on the remote control to select an option, then press the OK button on the unit or the remote control to confirm.

3. Press the SETUP button on the remote control on the remote control to exit the menu.

OSD Language

Select the system display language.

Subtitle

Turn on/off the subtitle feature of the disc.

MPEG4 Subtitle

Select the different MPEG4 subtitle language you wish to play on the screen. If the selected language is not recorded on the disc, the player will play the top-priority language of the disc.

Audio

Select the default soundtrack you wish to play if your DVD supports multi-language sound tracks.

DVD menu

Select the default DVD menu language you wish to play on the screen. If the selected language is not recorded on the disc, the player will play the top-priority language of the disc.

Customising the Video Settings

1. Press the SETUP button on the remote control to display the system setup menu.

2. Press the buttons on the unit or the ▲▼ buttons on the remote control to select Video and then press the > button on the unit or the ▶button on the remote control.

1. Press the buttons on the unit or the buttons on the remote control to select Aspect Ratio / TV System / Picture Mode and then press the OK button on the unit or the remote control.
2. Press the buttons on the unit or the buttons on the remote control to select an option, then press the OK button on the unit or the remote control to confirm.
3. Press the SETUP button on the remote control to exit the menu.

Aspect Ratio

Select the aspect ratio of the viewing screen (both internal display or external display) if the disc has more than one aspect ratio (4:3LB / 4:3PS / 16:9).

4:3: Select "Aspect Ratio: 4:3" for outputting 4:3 ratio video for a conventional size TV. Black bands might appear on the screen if playing a non 4:3 video.

16:9: Select "Aspect Ratio: 16:9" for outputting 16:9 ratio video for a widescreen TV. Black bands might appear on the screen if playing a non 16:9 video.

TV System

Select the TV playing system according to the local TV system (NTSC/PAL/Auto).

Picture Mode

Picture Mode setting allows user to adjust the picture's brightness (Standard / Bright / Soft / User).

Customising the Rating Settings

Parental control

1. Press the SETUP button on the remote control to display the system setup menu.

2. Press the ^▼ buttons on the unit or the ▲▼ buttons on the remote control to select Rating and then press the > button on the unit or the ▶button on the remote control.

1. Press the ↗ buttons on the unit or the ▲ buttons on the remote control to select Parental control and then press the OK button on the unit or the remote control. A password screen will appear.
2. Press the 0-9 buttons on the remote control to input the old password (The factory pre-set password is "6666" for the first time setup) and then press the OK button on the unit or the remote control to confirm.
3. Press the OK button on the unit or the remote control to select Parental control again for Parent lock levels selection.

The parental lock levels are equivalent to the following ratings:

1. Kid Safe: Kid safe.
2. G: General audience; recommended as acceptable for viewers of all ages.
3. PG: Parental Guidance suggested.
4. PG 13: Material is unsuitable for children under the age of 13.
5. PG R: Parental Guidance-restricted; recommended that parents restrict children under the age of 17 from viewing or allow children to view only when supervised by a parent or adult guardian.
6. R: Restricted, children under 17 should not view unless supervised by a parent or adult guardian.
7. NC 17: No children under the age of 17, not recommended viewing for children under age 17.

8. Adult: Adult only.

9. Press the OK button on the unit or the remote control to confirm. (Rating 1 has the most restrictions while rating 8 can virtually playback all DVD's.)

10. Press the SETUP button on the remote control to exit the menu.

Set Password

1. Press the SETUP button on the remote control to display the system setup menu.

2. Press the buttons on the unit or the ▲ buttons on the remote control to select Rating and then press the > button on the unit or the ▶ button on the remote control.

3. Press the buttons on the unit or the buttons on the remote control to select Set Password.

4. Press the 0-9 buttons on the remote control to input the old password (The factory pre-set password is "6666" for the first time setup) and then press the OK button on the unit or the remote control to confirm. If you input the wrong password, the screen will show Incorrect Password.
5. Press the OK button on the unit or the remote control again, then press the 0-9 buttons on the remote control to input the new password. Press the OK button on the unit or the remote control to confirm.
6. Enter the new password again to verify. After verified, the screen will show Set Password Successful.
7. Press the SETUP button on the remote control to exit the menu.

Customising the Miscellaneous Settings

1. Press the SETUP button on the remote control to display the system setup menu.
2. Press the buttons on the unit or the buttons on the remote control on the unit or the remote control to select Misc and then press the > button on the unit or the ▶ button on the remote control.
3. Select Use default Setting and then press the OK button on the unit or the remote control.
4. Press the button on the unit on the unit or the <buttons on the remote control to select "Yes" to reset all your settings to the factory's default except your own password, then press the OK button on the unit or the remote control to confirm.
5. Press the SETUP button on the remote control to exit the menu.

Maintenance

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

Cleaning Discs

• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.
• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
• Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Menu Description
No power. · Ensure the mains adapter is connected.Make sure that the unit is turned on.Make sure that you select ON mode.Make sure the battery is charged up on the DVD player.
The remote control does not function.	Use the remote control near the unit.Point the remote control at the remote sensor on the unit.Replace the battery in the remote control with a new one.Make sure the plastic sheet has been removed from the remote control.Remove any obstacles between the remote control and the unit.
Very little or no sound is coming from a DVD.	Make sure the unit is not paused. Press the OK button on the unit or the ▶II button on the remote control.Make sure the unit is not in fast-forward or fast-reverse mode. Press the OK button on the unit or the ▶II button on the remote control.Make sure the AUDIO/VIDEO input/output connections are correct.This unit does not support DTS audio decoding system. Press the AUDIO/ANGLE button on the remote control to change the audio setting to 2-Channel Analogue mode.The unit has overheated. Shut it off for 30 minutes to allow it to cool down.The volume control is too low. Increase the volume.
No picture.	The region number of the disc doesn't match the region number of this unit.
The picture is not clear.	The DVD is dirty. Gently clean the disc.The disc is scratched.Please adjust the LCD display brightness (see Video setting on page 25).
Loud hum or noise is heard.	The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with alcohol.Clean the disc.The disc is scratched or the file is corrupt.
The disc does not play.	There is no disc inside the unit ("No Disc" appears on the screen).Insert the disc correctly with the graphics facing up.Clean the disc.A non-valid disc has been inserted, or the disc region number does not match the region number of the unit.Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again.
File from Media storage device does not play	Check the file format.This product do not support NTFS File system.
The unit does not respond when pressing any buttons	The unit may freeze up during use. Switch the unit off and then on again to reset the unit.

Specifications

Model S74PD11E
Disc Format DVD+/-R, DVD+/-RW, CD, CD-R, CD-RW, JPEG Picture CD
Video System PAL, NTSC
Video Decompression MPEG-2, MPEG4 (maximum resolution 720x576@25/30fps)
LCD Screen 7" TFT LED Panel
Audio:Audio CharacteristicDolby Digital Decoding	2-Channel AnalogueYes
Speaker 2 Built-in stereo speaker
Terminals: USB 2.0 x 1 (maximum 8GB),SD/MMC/MS Card Reader x 1 (maximum 32GB),AV OUT Socket x 1, Headphone Socket x 1
Power Adapter:Power SupplyPower Consumption	AC 100-240V 50/60Hz (Mains Adapter)Max. 12W
Remote Control Infra-red with one CR2025 (3V) battery
Battery Operation Time Approx. 3 hours
Weight: 0.8 kg
Dimensions: 212 mm (L) x 42 mm (W) x 160 mm (H)

Features and specifications are subject to change without notice.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:

Replacement Part Part Number
Remote Control	504M315105
Mains Adapter	5140F107112
Car Power Adapter 50448101101
3.5 to RCA AV Cable	30430912003
Earphones	30430220002
Carry Bag	40404950101

DVD Spiller Fjernkontroll (med batteri) x 1
P.N.: 504M315105

Adapter x 1 P.N.: 5140F107112

Billader x 1 P.N.: 50448101101

3,5mm RCA AV-kabel x 1 P.N.: 30430912003

Høretelefoner x 1 P.N.: 30430220002

Simple line drawing of two rectangular objects with no text or symbols

Hurtigveiledning x 1 P.N.: 4043W758001

Produktoversikt

Technical line drawing of a cylindrical device with a labeled component (no text or symbols present)

1. SD/MMC/MS-kortspor

Sett forfra

Technical line drawing of a rectangular device with internal compartments and mounting points (no text or symbols)

1. Støtte

Sett fra høyre side

1. USB-kontakt Til å sette inn en USB-lagringsenhet.

2. VOL-kontroll For justering av volumet.

3. AV-UT-kontakt

4. TELEFON-kontakt

5. LED-indikator for lading
6. DC IN 12V-kontakt
7. ON/OFF (PÅ/AV)-bryter

Fjernkontroll

1. DISPLAY (VISNING)-knapp

2. SOURCE (KILDE)-knapp

6. ■/SLOW (SAKTE)-knapp

9. REPEAT/PROG (REPETER/PROGR)-knapp

Line drawing of a finger pressing down on a curved object, with an arrow indicating force or direction (no text or symbols)

Bytte av batterier i fjernkontrollen

Fjernkontrollen bruker et CR2025, 3V Litiumbatteri.

Line drawing of a handheld electronic device with a curved handle and control panel (no text or symbols)

åpne stativet

Å stoppe avspilling

Black-and-white photo of a tree trunk with small white flowers and a vertical shadow on the right (no text or symbols)

Simple line drawing of a rectangular box or container (no text or symbols)

Väska x 1 P.N.: 40404950101

Bruksanvisning x 1 P.N.: 4031W758009

Snabbstartsguide x 1 P.N.: 4043W758001

Produktöversikt

Technical line drawing of a cylindrical device with a labeled component (no text or symbols present)

Technical line drawing of a rectangular device with internal compartments and mounting points (no text or symbols)

1. Stativ

Vy från höger sida

1. DISPLAY (DISPLAY) Knapp

8. Knapp

9. REPEAT/PROG (UPPREPA/PROGRAMMERA) Knapp

10. REPEAT A-B (UPPREPA A-B) Knapp

12. SETUP (SETUP) Knapp

Illustration of a finger pressing down on a curved object with an arrow indicating downward motion (no text or symbols)

• The battery is partially charged at shipment. We suggest that for first time use fully charge the battery. It may take up to 4 hours to fully charge the battery.
• Everytime you see the low battery (☐) indication on the screen, you must connect your mains adapter to the unit and the mains socket. The battery will now start to recharge.
  • The battery will charge slower when the DVD player is in use.
  • It is recommend turn to off the power while the battery is charging.

Ensure that the screen protection film is removed before use.

Line drawing of a handheld electronic device with a curved handle and control panel (no text or symbols)

öppna stativet

Black-and-white photo of white flowers on a tree trunk, no text or symbols visible

Simple line drawing of two rectangular objects with no text or symbols

Kantolaukku x 1 Tuotenro.: 40404950101

Pikaopas x 1 Tuotenro.: 4043W758001

Tuotteen yleiskuva

FI

Technical line drawing of a cylindrical mechanical component with a labeled inset (no text or symbols)

1. SD/MMC/MS -kortin aukko

Näkymä takaa

Technical line drawing of a rectangular device with internal compartments and mounting points (no text or symbols)

1. Tuki

OK (HYVÄKSY) painikkeet

Line drawing of a finger pressing down on a curved object with an arrow indicating force (no text or symbols)

Pariston käsittely

Line drawing of a handheld electronic device with a curved handle and control panel (no text or symbols)

avaa tuki

Toiston pysäytys

Black-and-white photo of white flowers on a tree trunk, no text or symbols visible

FI

Simple line drawing of two rectangular compartments (no text or symbols)

Bæretaske x 1 P.N.: 40404950101

Brugermanual x 1 P.N.: 4031W758009

Hurtig Startguide x 1 P.N.: 4043W758001

Produktoversigt

Technical line drawing of a cylindrical device with a labeled component (no text or symbols present)

1. SD/MMC/MS-kort-slot

Set bagfra

Technical line drawing of a rectangular device with internal compartments and mounting points (no text or symbols)

1. Stander

Set fra højre side

1. USB stik Isæt et USB lagringsapparat.

2. VOL knap Justerer lydstyrken.

3. AV-OUT stik

4. PHONE stik

5. LED indikator for opladning
6. DC IN 12V stik
7. ON/OFF knap

Fjernbetjening

1. DISPLAY

Tryk for at vise diskoplysninger under afspilning.

2. SOURCE (kilde)

9. REPEAT/PROG (gentag/programmering)

Line drawing of a finger pressing down on a curved object with an arrow indicating force (no text or symbols)

DK

Strømkilde

Strøm

DK

Line drawing of a handheld electronic device with a curved handle and control panel (no text or symbols)

åbn standeren

Stop afspilning

DK

Black-and-white photo of white flowers on a tree branch against a dark background (no text or symbols)

DK

Clear program (Slet program)

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

- Please inspect the unit for damage after unpacking.

- Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

- The unit must be placed on a flat stable surface and should not be subjected to vibrations.

- Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.

• The mains socket must be located near the unit and should be easily accessible. Temperature

- Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires. - Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

• Never place any type of candle or naked flame on the top of or near the unit.

Moisture

- To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.

- If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.

- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.

• Unplug the unit from the mains socket during a lightning storm.

Mains Adapter Cable

• Make sure the unit is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Mains Adaptor

- The mains adaptor will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adaptor plugged in the mains socket while unattended for long periods of time. Disconnect the adaptor from the power supply.

Earphones

- Listening to loud sounds for prolonged periods of time may permanently damage your hearing.

• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Batteries

- Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.

- Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.

- Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.

- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

DVD

- Class 1 Laser Product This unit utilises a laser. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.

• Always remove the disc when the unit is not in use.

• Failure to do so will risk severely damaging the disc and the unit.

- Do not stack devices, heat from other devices may affect the performance of the unit.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

- To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.

- Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

- Ensure to unplug the unit from the power supply before cleaning.

- Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.

• Do not use liquids to clean the unit.

• Do not open any fixed covers as this may expose dangerous voltages.

Vedlikehold

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Rovi Proprietary Rights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Restriction on Use & Rovi Trade Mark Rights

Use of the copyright protection technology contained in this product must be authorised by Rovi Corporation and is intended for home and other limited viewing uses only unless otherwise authorised by Rovi Corporation. The names "Rovi Corporation" and "Macrovision" are protected by trademarks.

Notes for battery disposal

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

NO
