Product Type	DVD Player
Brand	Sandstrøm
Model	S92PDT11E
Dimensions (W x D x H)	430 mm x 250 mm x 40 mm
Weight	1.5 kg
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	12 W (Standby < 1 W)
Disc Compatibility	DVD±R/RW, CD±R/RW, MP3, JPEG
Video Output	HDMI, Composite, Component
Audio Output	Digital Coaxial, Analog Stereo
USB Port	Yes (front panel)
Supported Video Formats	MPEG-2, MPEG-4, DivX
Supported Audio Formats	MP3, WMA
Supported Image Formats	JPEG
Playback Features	Repeat, Shuffle, Zoom, Subtitle Selection
Cleaning	Use a soft dry cloth; avoid liquids
Safety	Class II, automatic standby after 15 min idle
Spare Parts	Not user-replaceable; contact authorized service
Repairability	Service by qualified technician only
Environmental	RoHS compliant, recyclable packaging
Included Accessories	Remote control, batteries, AV cable, user manual

Frequently Asked Questions - S92PDT11E Sandstrøm

How do I connect the DVD player to my TV?

Use an HDMI cable for best quality. Connect one end to the HDMI output on the player and the other to an HDMI input on your TV. Alternatively, use the included AV cable (yellow, red, white) to connect to composite inputs if HDMI is unavailable. Ensure the TV is set to the correct input source.

Does this DVD player support Blu-ray discs?

No, the Sandstrøm S92PDT11E is a DVD player only and does not support Blu-ray discs. It plays standard DVDs and CDs.

Can I play media from a USB flash drive?

Yes, the player has a USB port on the front panel. Insert a USB flash drive and use the remote to navigate to the USB source. Supported formats include MP3, WMA, JPEG, and DivX video files.

How do I clean the disc lens?

Use a dry lens cleaning disc specially designed for DVD players. Do not use liquids or compressed air, as they may damage the lens. Alternatively, gently wipe the disc itself with a soft cloth from the center outward.

What should I do if the player does not read discs?

First, check that the disc is inserted correctly label-side up and is clean and scratch-free. Try a different disc. If the problem persists, reset the player by unplugging it for 30 seconds. If still faulty, the laser lens may need cleaning or the player may require service.

Is the player region-free?

The S92PDT11E is typically region 2 for Europe. However, some models may be multi-region. Check the manual or try a disc from another region. To change region, refer to the setup menu (password may be required).

How do I change the language settings?

Press SETUP on the remote, navigate to Language Preferences. You can set the on-screen display language as well as audio and subtitle languages. Confirm with OK.

Can I use the DVD player in a car?

The S92PDT11E is designed for home use with AC power. It is not intended for car installation unless you have a suitable inverter and secure mounting. Do not expose to extreme temperatures or vibrations.

Does it have an HDMI output?

Yes, it includes an HDMI output for high-definition video and audio. Connect to your TV's HDMI input for the best picture and sound quality.

How do I reset the player to factory settings?

Go to SETUP menu, select System Setup or Reset, then choose Factory Default. Confirm by selecting Yes. Alternatively, press and hold the STOP button for 5 seconds while the drawer is open.

USER MANUAL S92PDT11E Sandstrøm

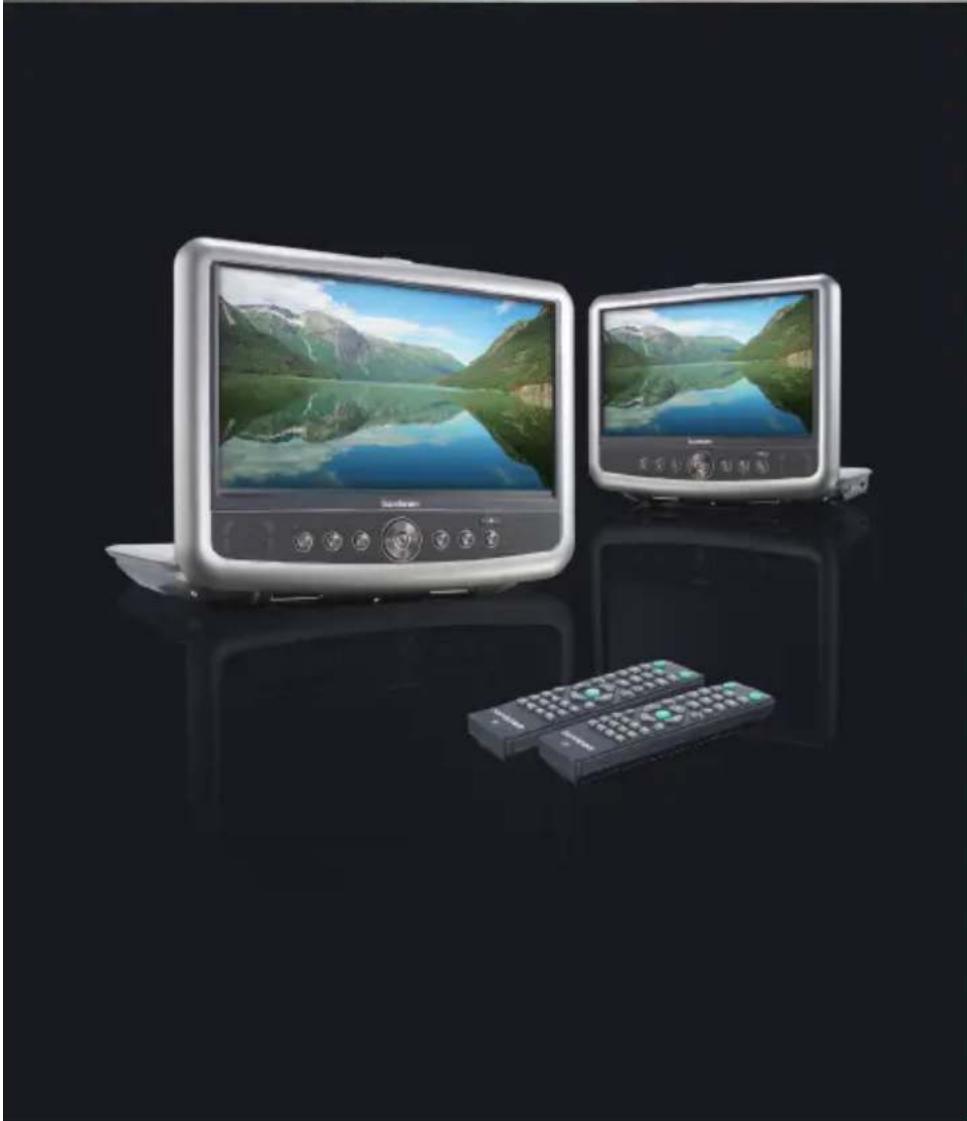

9" In Car Dual Portable DVD Player

S92PDT11E

Interior scene with a white sofa, a vase of greenery, and a bowl of popcorn on a wooden surface (no text or symbols visible)

Two modern flat-screen TVs displaying scenic mountain landscapes, one with a remote control and the other with a remote (no visible text or symbols)

Instruction Manual

9" In Car Dual Portable DVD Player

Bruksanvisning

9" portabel duplisert DVD-spiller for bil

Instruktionshandbok

Front View (DVD Players A and B) 9

Inner & Side View (DVD Players A & B) 9

Remote Controls A & B 10

Battery Installation for the Remote Control 11

Remote Control Operation Range 12

Using in a Car 12

Connecting for in-car use ....12 - For watching 2 separate disc in a car ....12
- For watching 1 disc on both DVD players in a car ......13

Installing in a Car 14

Installation Guide....14

Charging the Battery in a Car 15

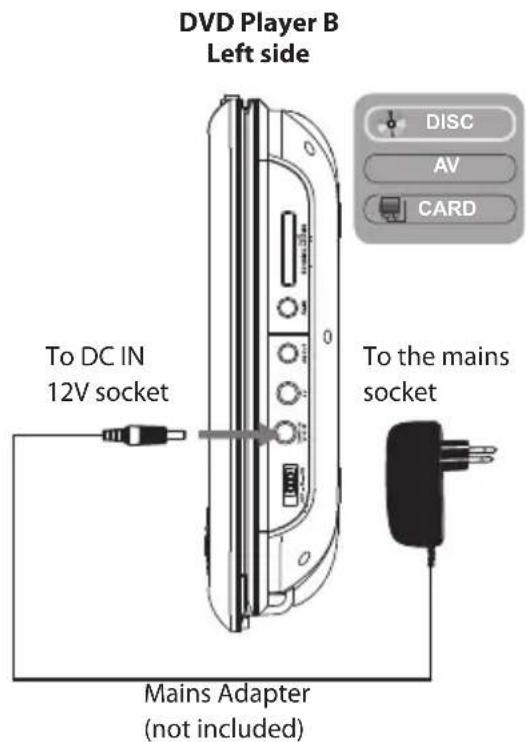

Power Source 16

Mains Power 16

Turning on the Power 16

DVD Playback 17

Basic DVD Playback 17

Playing a Title ....18

Stop Playback ....18

Goto 18

Previous and Next 18

Fast Forward and Fast Reverse 18

Slow Playback....18

Pause Playback ....18

Menu 19

Volume Adjustment 19

Repeat All 19

Reapeat A-B....19

Audio Channel 19

Subtitle Language ....19

Zoom 19

Angel Selection ....20

Compatible Disc Types 20

Region Code 20

Audio CD, JPEG Picture CD Playback.... 21

Loading a disc 21

Playing an Audio CD 21

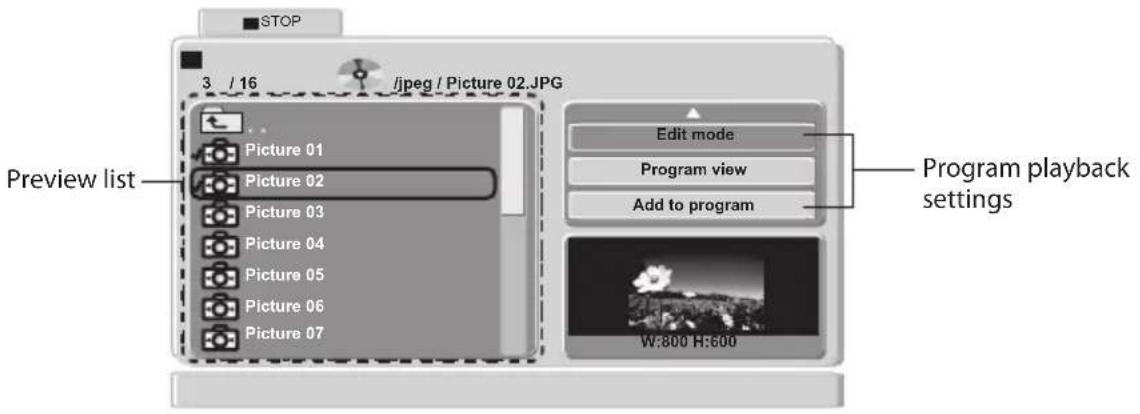

Playing JPEG Picture CD 22

The Playback navigator and settings 23

Program Playback 24

Adding files to the Program List 24

Deleting files to the Program List 25

To Return to Program List 25

Customising the Language Settings 26

Customising the Video Settings 27

Customising the Rating Settings 28

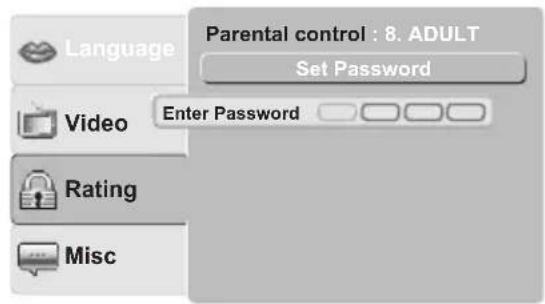

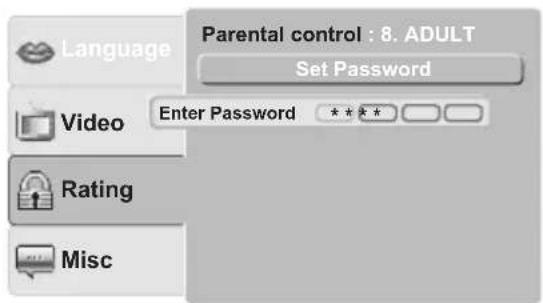

Parental control 28

Set Password....29

Customising the Miscellaneous Settings 29

Use Default Settings ....30

Screen Saver 30

Screen Format Setup 30

Aspect Ratio Setting ....30

Back Light Setting 30

Other Connections 31

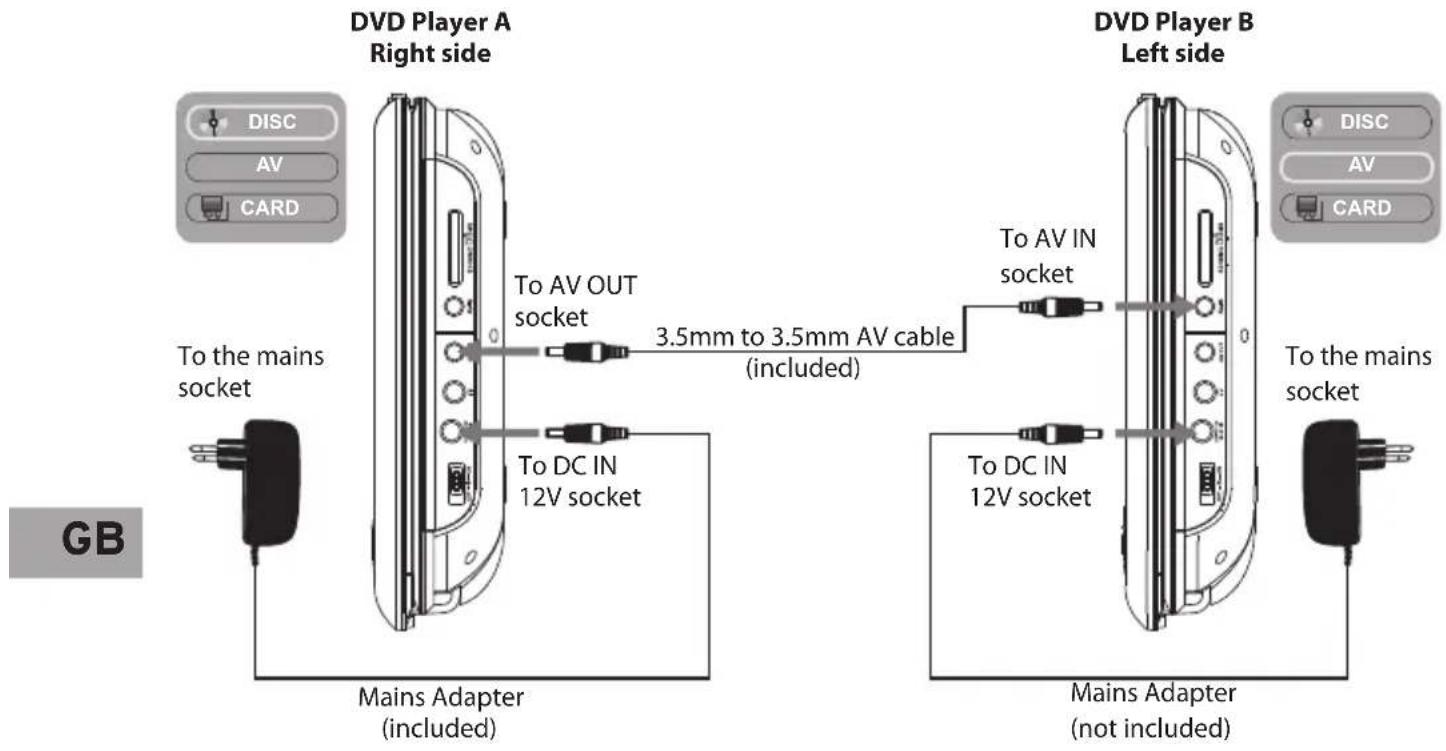

Connecting for Indoor Use ....31

- For watching 2 separate disc....31

- For watching 1 disc on both DVD players in a car ....32

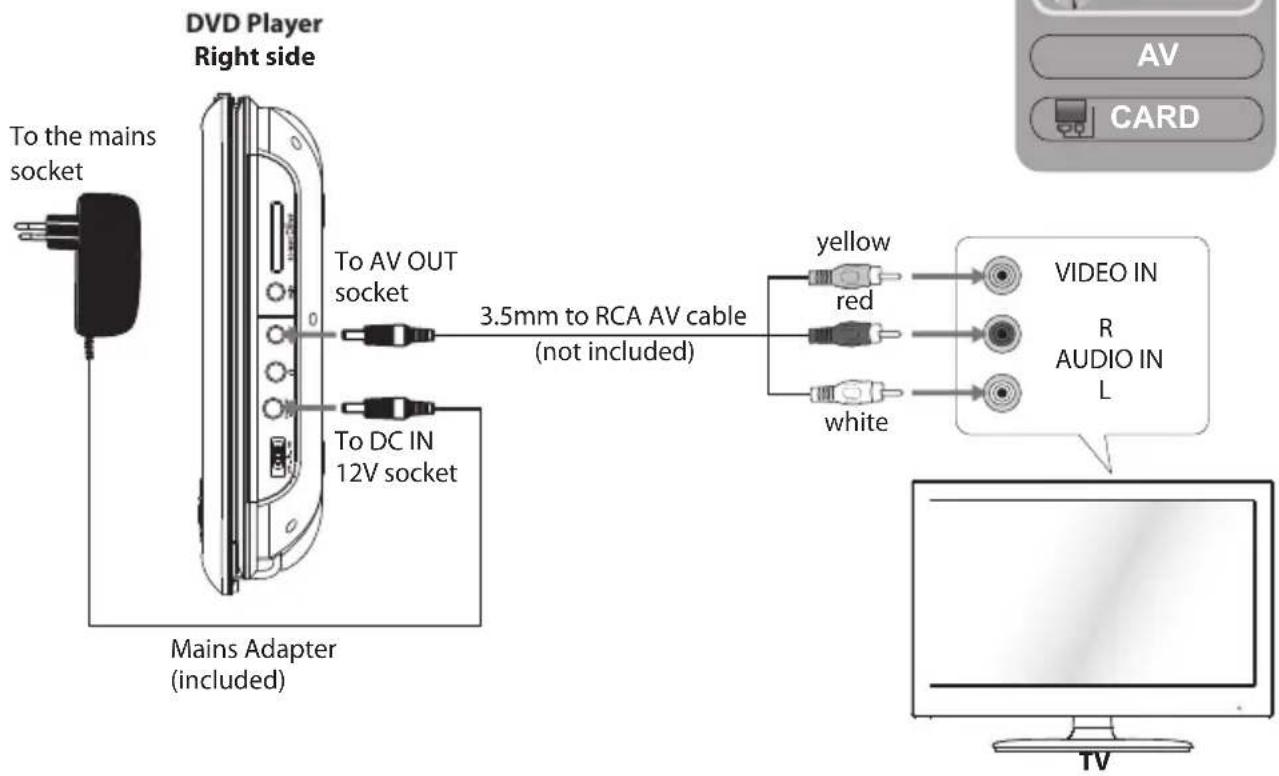

Connecting to a TV 33

Watching a Video Recording from your Camcorder ....34

Playing Musics or Videos from a Memory Card ....34

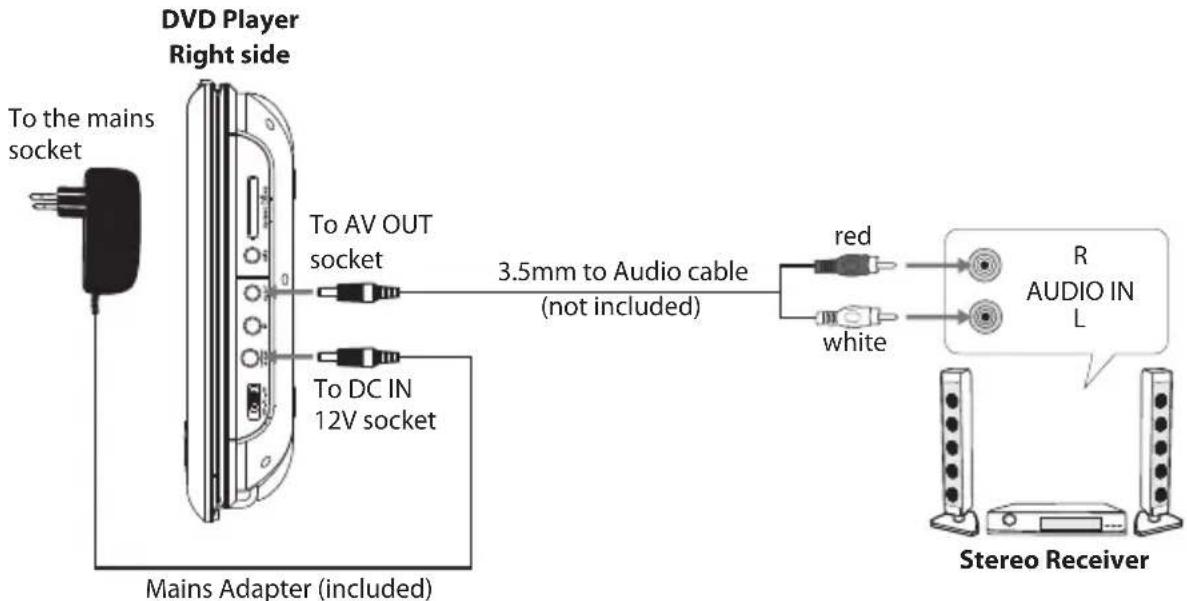

Listening on an External Audio Device ....35

Using Earphones 35

Maintenance 36

Hints and Tips.... 37

Specifications 38

Safety Warnings 163

Pakke opp 39

Produktoversikt 40

Thank you for purchasing your new Sandstrøm 9" In Car Dual Portable DVD Player.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

GB

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Front view of a flat-screen TV or audio device with control buttons and a blank screen (no text or symbols visible)

DVD Player A x 1 DVD Player B x 1 Remote Control A & B x 1

Front view of a flat-screen TV with control panel (no visible text or symbols)

P.N.: 92-230-02020 & 92-230-02030

Car Power Adapter x 1 P.N.: 54-201-00105

Mains Adapter x 1 P.N.: 43-111-00492

Earphones x 2 P.N.: 54-401-00033

3.5mm to 3.5mm AV Cable x 1 P.N.: 54-201-00098

Mounting strap P.N.: 86-230-00020

Instruction Manual x 1 P.N.: 82-230-00861

Quick Start Guide x 1 P.N.: 82-230-01020 & 82-230-00870

Product Overview

Front View (DVD Players A & B)

1. LCD Panel latch

Unfold the LCD Panel to access the DVD disc tray door.

1. LCD Screen
2. Speakers

3. LED Indicator

4. Illuminates green when the ON/OFF switch is in the ON position.

5. Illuminates orange when the battery is being charged.

6. Remote Sensor

Receives signals from the remote control.

1. SETUP Button
2. MODE Button

To display DVD player mode selection.

1. Buttons

To move back to the previous/beginning of current of the current chapter/tracks/titles or move forward to next chapters/tracks/titles on a disc.

1. SEARCH Buttons

• To perform fast reverse / fast forward playback.
• To move Left / Right on a menu screen and adjusts certain settings.

■ STOP Button

• To stop playing a disc.
• To move down on a menu screen and adjust certain settings.

II PAUSE Button

• To pause playback.
• To move up on a menu screen and adjust certain settings.

PLAY/SEL. Button

To start or resume playback of a disc.

1. +/- Buttons

To increase and decrease the volume.

Inner & Side View (DVD Players A & B)

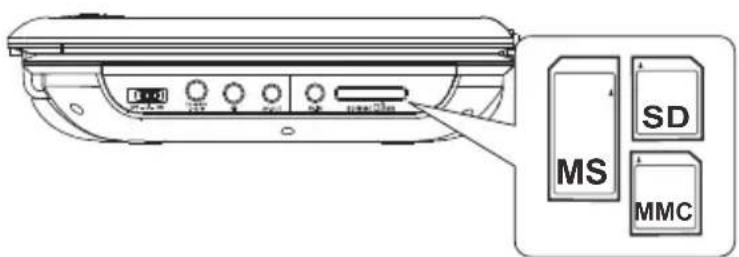

1. SD/MMC /MS Card Slot
2. AV-IN Socket
3. AV-OUT Socket
4. Earphone Socket
5. DC IN 12V Socket To connect the car power adapter.

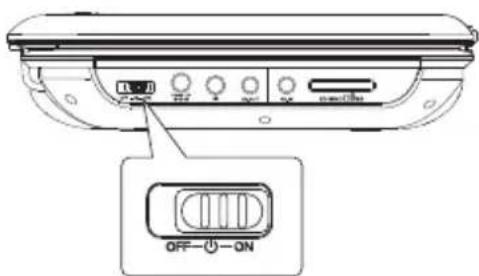

6. Power ON/OFF Switch
7. Disc Cover
8. OPEN Button To open the DVD cover.

Remote Controls A & B

1. Mode Button

To switch between AV IN/DVD/Card mode.

1. Number 0-9 Buttons

To enter parental control password or locate a title/chapter/track.

1. Info. Button

To show status information on the screen.

1. MENU Button

To enter the main DVD menu (if available).

1. SEARCH Buttons

• To fast reverse/ forward playback.

• To move Left/Right between selections on a menu screen and adjusts certain settings.

PAUSE Button

• To pause playback.

• To move Up on a menu screen and adjusts certain settings.

STO Button

• To stop playing a disc.

• To move Down on a menu screen and adjusts certain settings.

PLAY/SEL. Button

To start or resume playback of a disc or confirm selections.

1. PREVIOUS Button

To move back to previous chapters/titles/tracks for DVD; or previous track for CD.

1. SETUP Button

To display the SETUP menu.

1. GOTO Button

To skip to a specific location on a DVD.

1. TITLE Button

To enter the title menu (if available).

1. NEXT Button

To move forward to next chapters/titles/tracks for DVD; or next track for CD.

1. 1/All REPEAT Button

• To repeat a DVD chapter, title or the entire disc.

• To repeat a CD track or the entire disc.

1. A-B REPEAT Button

To repeat a segment between A and B on DVD.

1. Zoom Button

To zoom in/out the displayed frame on DVD.

1. LCD Button

To display the Screen Format window.

1. AUDIO Button

To select one of the audio sound tracks on a DVD (if more than one is available) or select the audio output mode on a CD.

1. SUBTITLE Button

To select one of the subtitle languages programmed on a DVD (if available).

1. SLOW Buttons

To select slow speed playing and resume normal play on a DVD.

1. / Buttons

To increase and decrease the volume.

1. PBC Button

To enable or disable Playback Control function on disc. (if available)

1. Mute Button

To mute your DVD Player sound. Press it again to resume the sound.

1. ANGLE Button

To switch between multiple camera angles when the DVD you are playing has been programmed with multiple camera angles.

Battery Installation for the Remote Control

1. Press and lift the back cover to open the battery compartment of the remote control.

Top-down schematic of a rectangular device with a handle and internal compartments, no text or symbols present

1. Insert two AAA size batteries. Make sure to match the (+) and (−) ends of the batteries with the (+) and (−) ends indicated in the battery compartment.

1. Close the battery compartment cover.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.

• Do not drop or cause impact to the remote control.

- Do not spill water or any liquid on the remote control.

• Do not place the remote control on a wet object.

- Do not place the remote control under direct sunlight or near sources of excessive heat.

- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

Handling the Battery

- Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.

• Install the battery correctly by following the polarity (+ and -) indications in the battery compartment.

- When the battery is exhausted, the remote control will not function.

• Only use the battery type indicated in this manual.

- Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local regulations.

Remote Control Operation Range

Point the remote control at the unit no more than 5 metres from the remote control sensor and within 60° of the front of the unit. The operating distance may vary depending on the brightness of the room

GB

Match or pair the Remote Control A to DVD Player A and Remote Control B to DVD Player B. Otherwise the signals from the remote controls can not be received properly.

Using in a Car

Connecting for in-car Use

The included 12V car power adapter is designed for use with vehicles that have a 12V electrical system.

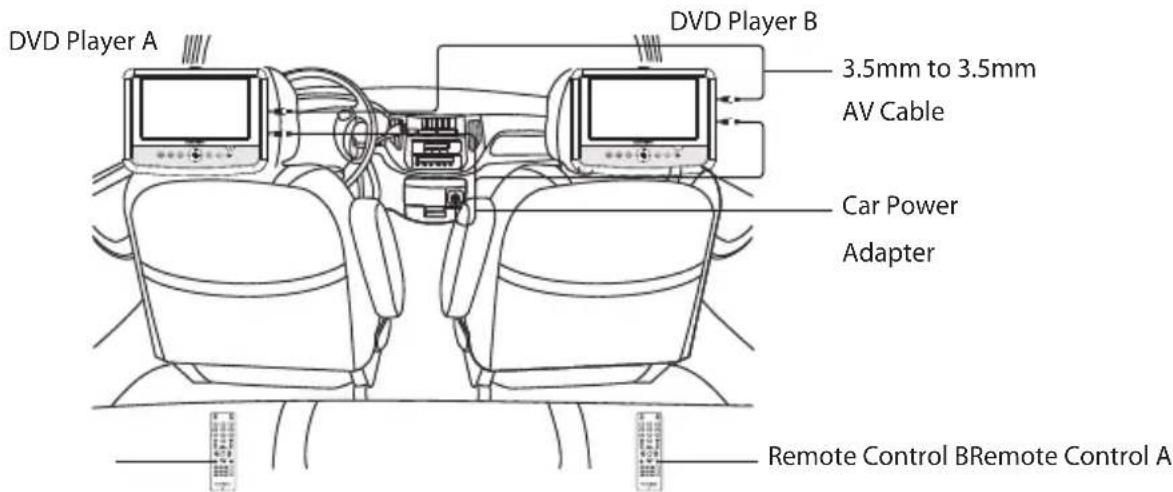

For watching 2 separate discs in a car

For watching 1 disc on both DVD player in a car

GB

• Only use the 12V car power adapter provided with the unit. Do not use in 24V vehicles. Other car adapters could damage the unit, or even your vehicle.
  • Only use the included 12V car power adapter. Do not use it with any other equipment.
  • In the interest of traffic safety, drivers should not operate the unit or view videos while driving.
• When the inside of the 12V car socket is dirty with ash or dust, the plug section may become hot due to poor contact. Be sure to clean the 12V car socket before use.
  • After use, disconnect the 12V car power adapter from both the unit and cigarette lighter socket.
• If the unit is not properly attached to a vehicle, it may become airborne in the event of an accident and cause damage, injury, or death.
• Check your local traffic laws for rules governing the use of video devices in vehicles.

Installing in a Car

Use the supplied mounting straps to install the DVD Players A and B on to the back of your vehicles headrests.

1. Thread both strap ends through the strap eyelets.

Make sure the buckles are properly assembled to avoid accidental loosening.

GB

1. Loop the straps around the headrest, with the DVD Player facing the rear seat, then fasten the straps with the clip.

Always remember to lock the clips and tighten the straps to ensure the safety of your passengers.

Illustration of a hand holding a device connected to a magnified inset showing a close-up of a small object (no text or symbols present)

Installation Guide

• The units must never be used by the vehicles driver or left unsecured in the vehicle while driving.
• Make sure the units do not obstruct any safety devices, including seat belts and air bags.

Charging the Battery

• The battery is partially charged at shipment. Charge the battery to full for the first time use and when the low battery (1) indication appears on the screen. It takes about 4 hours at fully charged and it depends on the car condition.
• Battery will not charge when the DVD player is switched on the power. Turn off the power to charge the battery.
  • Do not disconnect the mains adapter during charging.
  • It is normal for the battery to become warm during charging.
  • Do not use the battery under high temperature or near heat sources

1. Connect the mains adapter to the DC IN 12V socket on the DVD player, the other end to the mains socket.
2. Slide the POWER switch to OFF position.

- The LED indicator lights up orange indicating the battery is in charging mode. When the battery is charged to full capacity, the LED indicator goes off.

1. Remove the mains adapter. The battery is now ready for use.

Power Source

Mains Power

• This unit operates with a DC 12V 0.83A mains adapter (included).
- Connecting the unit to any other power source may cause damage to the unit. Unwind the mains adapter to its full length. Connect the mains adapter to the AC socket on the rear of the unit and a mains socket. Make sure the mains adapter is fully inserted into the mains socket. The unit is now connected and ready to use.
• To switch the unit off completely, withdraw the mains adapter from the mains socket.

• Turn off the unit before unplugging the mains adapter from the unit to avoid the unit being damaged.
• When the unit is not going to be used for a long period of time, disconnect the mains adapter from the mains socket.
• The mains socket must be located near the unit and should be easily accessible. If a malfunction occurs, disconnect the plug from the mains socket at once.
• When the mains adapter is plugged in, the unit is not completely disconnected from the main power source, even when the unit is turned off.

Turning on the Power

After the power adapter is connected to wall outlet, the LED indicator will be illuminated in red. Slide the ON/OFF switch to ON position on the right panel, and the LED indicator will be illuminated in green. The start-up picture will appear on the screen.

After use, slide the ON/OFF switch on the DVD Player to the OFF position.

DVD Playback

Ensure that the screen protection film is removed before use.

• This instruction manual explains the basic instructions for operating this unit. Some DVDs are produced in a manner that allows for specific or limited operation during playback. Therefore, this unit may not respond to all operating commands. This is not a defect.
• Please refer to the instructions accompanying the specific DVD in question for more information about the options available on that DVD. "①" may appear on the screen during operation. A ⚙ means that the desired operation is not permitted by the unit or disc.

Basic DVD Playback

1. Slide the ON/OFF switch to the ON position on the DVD player A/B.
2. Slide the LCD panel latch to the right to lift up the LCD panel.
3. Press the OPEN button to lift up the disc tray and access the disc holder.

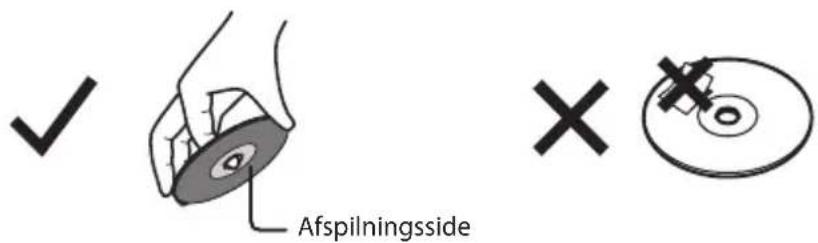

4. Hold the disc by its sides and carefully place onto the disc holder with the label side facing up. Gently push the disc down until you hear a "click" sound, close the disc tray door and then lock the unit shut.

5. The DVD player will automatically display the main menu or start playing the DVD disc.

6. If the DVD player does not automatically start playing the DVD, press the PLAY/SEL. button on the unit or the remote control.

7. To play a title, press the ◀◀/ 11/ ■ buttons on the unit or press the / /◀/ on the ▶▶0-9 buttons on the remote control to highlight it and then press the PLAY/SEL. button on the unit or the remote control.

Playing a Title

To play a title, press the ◀◀ / II / ■ / ▶▶ buttons on the unit or press the ◀◀ / II / ■ / ▶▶ or the 0-9 buttons on the remote control to highlight it and then press the PLAY/SEL. button on the unit or the remote control.

Stop Playback

1. Press the ■ STOP button on the unit or the remote control to go to pre-stop mode, the TV screen will display "■ STOP". With some discs, the DVD player can recall the stopped location, such as on DVDs.
2. Press the PLAY/SEL. button on the unit or the remote control to resume playback from the location where playback was stopped or from the beginning of the disc.
3. Press the ■ STOP button on the unit or the remote control twice to stop completely.

Goto

During playing, press the GOTO button on the remote control to bring up "search" window.

Previous and Next

1. During playing, press the ◀ PREVIOUS button on the unit or the remote control to go back to the start of the previous chapter. Each press of this button will skip a chapter until the start of the disc.
2. Each press of the ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➢

Fast Forward and Fast Reverse

1. Press the ◀◀▶▶ buttons on the unit or the remote control to fast reverse / fast forward through the disc. Each time the ◀◀▶▶ buttons on the unit or the remote control is pressed, the fast reverse / fast forward motion speed changes. There are 4 levels of speed available: x2, x4, x8 and x16.
2. Press the PLAY/SEL. button on the unit or the remote control to resume normal playback.

Slow Playback

1. Press the ▶ SLOW button on the remote control to slow the playback.
2. Each time the ▶ SLOW button on the remote control is pressed, the slow motion speed changes. There are 4 levels of speed available: 1/2, 1/4, 1/6 and 1/8.
3. Press the ▶ SLOW button repeatedly on the unit or the remote control to resume regular playback speed.

Pause Playback

1. Press the II PAUSE button on the unit or the remote control to pause playback (still mode). The sound will be muted during still mode.
2. Press the PLAY/SEL. button on the unit or the remote control to resume normal playback.

Menu

While playing the disc, press the MENU button on the remote control to go to main menu if the function is available in the disc.

Volume Adjustment

1. Press the / buttons on the unit to adjust the volume on the unit.
2. Press the ⏻ Mute button on the remote control to switch the sound off, the player will display "☐". Press the ⏻ Mute button on the remote control again or the ▶+/- buttons on the unit to cancel this function.

Repeat All

Press the 1/All REPEAT button on the remote control repeatedly to select different repeat modes.

Menu Description
First Press Repeat Chapter
Second Press Repeat Title
Third Press Repeat all
Forth Press Repeat off

Repeat A-B

This function can play only a specific portion of a title/track/chapter repeatedly.

1. During playing, press the will appear on display. A-B REPEAT button on the remote control at a starting point. "Rep A-"
2. When the disc reaches where you want to end, press the A-B REPEAT button on the remote control again. "Rep A-B" will appear on display. And the repeat sequence begins.
3. Press the 🔒 A-B REPEAT button on the remote control to return normal playback, "Rep AB Off" will appear on display.

Audio Channel

Press the 🎨 AUDIO button on the remote control repeatedly to select different audio languages.

Subtitle Language

Press the 📄 SUBTITLE button on the remote control repeatedly to switch between different subtitle languages that are available in the disc.

Zoom

1. Press the ZOOM button on the remote control repeatedly to cycle through all the zoom levels. You can enlarge the screen to 1x Q1, 2x Q2, 3x Q3, normal size.
2. To resume normal viewing, press the ZOOM button on the remote control until the 🔍 Off indicator appear shows on display.

Angle Selection

Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles.

1. While you are playing a DVD with different angles recorded, press the ANGLE button on the remote control to view the number of current angles available.

2. Press the ANGLE on the remote control button repeatedly to change the scene to the next recorded angle.

• After approximately two seconds, playback will continue from the new angle you selected.
- If no button is pressed within 10 seconds, playback continues without changing the current angle.

• This function can only be used for discs on which scenes shot from multiple angles have been recorded.
  • If only one angle is recorded, 1/1 is displayed.

Compatible Disc Types

Disc Types Disc Logo Recorded Content
DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO
DVD±RW (Audio/Video format or JPEG files)
DVD±R (DVD Recordable - Audio/Video format or JPEG files)
CD-R (CD Recordable - Audio/Video format or JPEG files)
CD-RW (CD-Rewritable - Audio/Video format or JPEG files)
AUDIO-CD (Compact Disc Digital Audio)

Some recorded files may not be able to be played due to the type and format of disc or condition of the recording.

Region Code

Both the DVD Player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play.

The Region Number for this DVD Player is described on the bottom of the DVD Player.

Disc Type DVD-VIDEO
Region code

Audio CD, JPEG Picture CD Playback

Loading a disc

1. Slide the ON/OFF switch to the ON position on both the DVD player and the Monitor.
2. Slide the LCD panel latch to the right to lift up the LCD panel.
3. Press the OPEN button to lift up the disc tray and access the disc holder.
4. Hold the disc by its sides and carefully place onto the disc holder with the label side facing up.

Gently push the disc down until you hear a "click" sound, close the disc tray door and then lock the unit shut.

1. After the disc has loaded, it will automatically start playback from the first track/photo.

2. If the DVD player does not automatically start playing the CD, press the PLAY/SEL. button on the unit.

3. To play a file, press the ◀◀/ ll/ ■ buttons on the unit or press the / /◀◀ onth ▶▶ 0-9 buttons on the remote control to highlight it and then press the PLAY/SEL. button on the unit.

Playing an Audio CD

1. Press the / buttons on the unit or the remote control to highlight an audio track file and then press the PLAY/SEL. button on the unit or the remote control to playback.

- If the files are inside a folder, press the PLAY/SEL. button on the unit or the remote control to enter into the folder

- Press the II buttons on the unit or the remote control to select the Root folder and press the PLAY/SEL. button on the unit or the remote control to return the upper menu.

1. To stop the playback, press the ■ STOP button on the unit or the remote control.

The unit will automatically play Track01 after disc has been loaded without pressing any button.

Playing JPEG Picture CD

1. To display the file list, press the button once on the unit or the remote control.

2. Press the Ⅱ/■buttons on the unit or the remote control to highlight a JPEG file and then press the PLAY/SEL. button on the unit or the remote control to slide show the picture.

3. If the files are inside a folder, select the folder and press the PLAY/SEL. button on the unit or the remote control to enter into the folder.

4. In stop mode, press the II button on the unit or the remote control to select the Root folder and press the PLAY/SEL. button on the unit or the remote control to return the upper level.

5. To slideshow the picture, press the PLAY/SEL. button on the unit or the remote control.

6. Press the MENU button on the remote control during the slide show to enter the thumbnail mode.

Six black-and-white photos showing natural landscapes including mountains, water, and a vintage car (no text or symbols)

1. Press the ◀◀/11/ ■ buttons on the unit or the remote control to select the preferred picture and then press the PLAY/SEL. button on the unit or the remote control to play in a full screen.

Black and white close-up of a flowering plant stem with visible leaves (no text or symbols)

1. Press the ◀◀◀buttons on the unit or the remote control to rotate the photo by 90°/180°/270° clockwise or anti-clockwise during the photo playback.

- All the rotation effects will be cancelled after exiting the slideshow mode.

1. Press the ■ STOP button on the unit or the remote control to return to the play list browser.

The Playback Navigator and Settings

1. In stop mode, press the buttons on the unit or the remote control to enter the right screen of playback setting of the navigator.
2. Press the / buttons on the unit or the remote control to select the items. Always confirm by pressing the PLAY/SEL. button on the unit or the remote control.

- For Filter setting, press the PLAY/SEL. button on the unit or the remote control to bring up the drop-down menu, and press the // buttons on the unit or the remote control to select an option, then press the PLAY/SEL. button on the unit or the remote control.

Menu Options Description
Filter Audio	Photo,Video	To sort the file format displayed in the browser list.The filter settings will sort out the file types being displayed in the Browser list on the left screen of the navigator.To leave the settings, press the◄◄ button on the unit or the remote control.
Repeat Off	Single, Folder,All	To set the repeat mode of the playing files.
Mode Normal	Shuffle,Music Intro	To set the file playing sequence in the Disc or Card mode.Music Intro mode to playback the start of every song. Just like browsing the music list on the Disc.
Edit mode	Allow to select the files to be programmed in the program list.Refer to “Program playback” section on the next page.
Program view	Program view,Browser view	Switch to view all files in the current directory or the selected files in the program list.Refer to “Program playback” section on the next page.
Add to program	Add to program,Clear program	Add or delete the selected files in the program list.Refer to “Program playback” section on the next page.

* In Audio CD mode, the browser will hide the "Filter" and the "Repeat Folder" functions in Repeat mode.

Program Playback

Adding files to the Program List

1. In full stop mode, press the buttons on the unit or the remote control to enter the right screen of the navigator.

2. Press the 11/■buttons on the unit or the remote control to select Edit mode, then press the PLAY/SEL. button on the unit or the remote control to highlight the Edit mode.

- To leave the Edit mode, press the PLAY/SEL. button on the unit or the remote control again to cancel the highlight.

1. Press the ◀ button on the unit or the remote control to skip to the left screen. Press the II/■ buttons on the unit or the remote control to select a file in the preview list, then press the PLAY/SEL. button on the unit or the remote control to tick the file.

- Press the PLAY/SEL. button on the unit or the remote control again to cancel the tick.

- Press the 11 / buttons on the unit or the remote control on the remote control to select another file and press the PLAY/SEL. button on the unit or the remote control repeatedly to tick more files.

1. Press the button on the unit or the remote control to skip to the right screen, then press the II / ■ buttons on the unit or the remote control to select Add to program and then press the PLAY/SEL. button on the unit or the remote control to confirm. Now the ticked files have been programmed in the Browser view, you can press the II / ■ buttons on the unit or the remote control to select Program view and then press the PLAY/SEL. button on the unit or the remote control to view the ticked files.

2. Press the // / buttons on the unit or the remote control to select Edit mode, then press the PLAY/SEL. button on the unit or the remote control to leave the Edit mode.

3. Press the ▶ button on the unit or the remote control to skip to the left screen. Then press the ▶ buttons on the unit or the remote control to select a file you want to play from the Preview list.

4. Press the PLAY/SEL. button on the unit or the remote control to play the file.

Deleting files to the Program List

1. Repeat steps 1 and 2 as described in "Adding files to the Program List" section.
2. Press the ◀ button on the unit or the remote control to skip to the left screen in Browser view. Press the IV buttons on the unit or the remote control to select a file you want to delete, and then press the PLAY/SEL. button on the unit or the remote control to tick the file.

1. Press the button on the unit or the remote control to skip to the right screen, then press the IV buttons on the unit or the remote control to select Clear program and then press the PLAY/SEL. button to delete the ticked files.

To Return to Program List

1. Press the Ⅱ/■ buttons on the unit or the remote control to select the Browser view, then press the PLAY/SEL. button on the unit or the remote control to change from "Browser view" to "Program view".

The preview list will display all the tracks available on the disc.

1. To leave Edit mode, press the 11/■ buttons on the unit or the remote control to select the Edit mode, then press the PLAY/SEL. button on the unit or the remote control to leave the Edit mode.

Customising the Language Settings

1. Press the SETUP button on the unit or the remote control to display the system setup menu.
2. Press the ▪/■buttons on the unit or the remote control to select Language and then press the▶ button on the unit or the remote control.
3. Press the ▪/■buttons on the unit or the remote control to select OSD Language / Subtitle / Audio / DVD menu and then press the ▶button on the unit or the remote control.
4. Press the 11/■buttons on the unit or the remote control to select an option, then press the PLAY/SEL. button on the unit or the remote control to confirm.
5. Press the SETUP button on the unit or the remote control on the remote control to exit the menu.

OSD Language : English

Subtitle : Off

Audio : English

DVD menu : English

Rating

Misc

OSD Language

Select the system display language.

Subtitle

Select the default subtitle language you wish to play on the screen. If the selected language is not recorded on the disc, the player will play the top-priority language of the disc.

Audio

Select the default sound track you wish to play if your DVD supports multi-language sound tracks.

DVD menu

Select the default DVD menu language you wish to play on the screen. If the selected language is not recorded on the disc, the player will play the top-priority language of the disc.

Customising the Video Settings

1. Press the SETUP button on the unit or the remote control to display the system setup menu.

2. Press the // buttons on the unit or the remote control to select Video and then press the button on the unit or the remote control.

3. Press the II/■buttons on the unit or the remote control to select TV Shape / View Mode / TV System / Picture Mode and then press the ▶ button on the unit or the remote control.

4. Press the Ⅱ/■buttons on the unit or the remote control to select an option, then press the PLAY/SEL. button to confirm.

5. Press the SETUP button on the unit or the remote control to exit the menu.

GB

TV Shape (Aspect Ratio)

Select the aspect ratio of viewing screen if the disc has more than one aspect ratio.

4:3: Select "Aspect Ratio: 4:3" for outputting 4:3 ratio video for a conventional size TV. Black bands might appear on the screen if playing non 4:3 video.

16:9: Select "Aspect Ratio: 16:9" for outputting 16:9 ratio video for a widescreen TV. Black bands might appear on the screen if playing non 16:9 video.

View Mode

Select the picture viewing size.

Fill: Plays the video to fill the height or width by resizing the image ratio. Black bands may appear on top/down or left/right.

Original: Plays the video in its original size without any resize.

Auto Fit: When widescreen video is played in this mode on a conventional screen, black bands appear at the top and bottom of the screen.

Pan Scan: When widescreen video is played, the images will be cropped on the right and left sides of the image so that it can be viewed on a conventional screen. Some DVD may not support this feature.

TV System

Select the TV playing system according to the local TV system (NTSC/PAL).

Picture Mode

Picture Mode setting allows user to adjust the picture's brightness (Standard / Bright / Soft / User).

Customising the Rating Settings

Parental control

1. Press the SETUP button on the unit or the remote control to display the system setup menu.
2. Press the ▪/■buttons on the unit or the remote control to select Rating and then press the▶ button on the unit or the remote control.
3. Press the 11/■buttons on the unit or the remote control to select Parental control and then press the PLAY/SEL. button on the unit or the remote control, a password screen will appear.
4. Press the 0-9 buttons on the remote control to input the current password (The factory pre-set password is "0000" for the first time setup) and then press the PLAY/SEL. button on the unit or the remote control to confirm.
5. Press the ▶▶ / PLAY/SEL. buttons on the unit or the remote control and then press the II/ ■buttons on the unit or the remote control to select Parent lock levels.

The parental lock levels are equivalent to the following ratings:

1. Kid Safe: Kid safe; it is safe even for kids.
2. G: General audience; recommended as acceptable for viewers of all ages.
3. PG: Parental Guidance suggested.
4. PG 13: Material is unsuitable for children under the age of 13.
5. PG R: Parental Guidance-restricted; recommended that parents restrict children under age 17 from viewing or allow children to view only when supervised by a parent or adult guardian.

6. R: Restricted, children under 17 would not be admitted without an accompanying parent or adult guardian.

7. NC 17: No children under the age of 17, not recommended viewing for children under age 17.

8. ADULT: Adult only.

9. Press the PLAY/SEL. button on the unit or the remote control to confirm. (Rating 1 has the most restrictions while rating 8 can virtually playback all DVD's.)

10. Press the SETUP button on the unit or the remote control to exit the menu.

Set Password

1. Press the SETUP button on the unit or the remote control to display the system setup menu.
2. Press the ▪/■buttons on the unit or the remote control to select Rating and then press the ▶ button on the unit or the remote control.
3. Press the □/■buttons on the unit or the remote control to select Set Password, and then press PLAY/SEL. button on the unit or the remote control, a password screen will appear on the display.
4. Press the 0-9 buttons on the remote control to input the old password (The factory pre-set password is "0000" for the first time setup) and then press the PLAY/SEL. button on the unit or the remote control to confirm. If you input the wrong password, the screen will show Incorrect Password.
5. Press the 0-9 buttons on the remote control to input the new password, press the PLAY/SEL. button on the unit or the remote control to confirm.
6. Enter the new password again to verify. After verified, the screen will show Set Password Successful.
7. Press the SETUP button on the unit or the remote control to exit the menu.

Customising the Miscellaneous Settings

1. Press the SETUP button on the unit or the remote control to display the system setup menu.
2. Press the 11/■buttons on the unit or the remote control to select Misc and then press the ▶button on the unit or the remote control.

3. Press the 11/■buttons on the unit or the remote control to select Use default Setting or Screen Saver and then press the PLAY/SEL. button on the unit or the remote control.

4. Press the ◀◀/□/ ■ buttons on the unit or the remote control to select an option, then press the PLAY/SEL. button on the unit or the remote control to confirm.

5. Press the SETUP button on the unit or the remote control to exit the menu.

Use Default Settings

Choosing this function will reset all your settings to the factory's default except your own password.

Screen Saver

Select the screen saver to on or off.

Screen Format Setup

GB

Aspect Ratio Setting

1. Press the LCD button on the remote control to view the Screen Format window on the screen.
2. Press the 11/■buttons on the unit or the remote control to select Aspect Ratio.
3. Press the PLAY/SEL. button on the unit or the remote control to confirm the selection.

• Select "Aspect Ratio: 4:3" to play the 4:3 aspect ratio videos on the screen of your probable DVD player. Black bands might appear if you play non 4:3 ratio video.

• Select "Aspect Ratio: 16:9" to play the 16:9 aspect ratio videos on the screen of your portable DVD player. Black bands might appear if you play non 16:9 ratio video.

• To leave Screen Format, press the LCD button on the remote control.

Back Light Setting

1. Press the LCD button on the remote control to view the Screen Format window on the screen.
2. Press the // buttons on the unit or the remote control to select Back Light.
3. Press the PLAY/SEL. button on the unit or the remote control to choose On or Off.

- Set Off on Back Light press the LCD button on the remote control to return back to backlight On.

1. Press the LCD button on the remote control again to exit the LCD setting.

Other Connections

Connecting for Indoor Use

The mains adapter (DC12V, 0.83A output) for using the DVD Player is included with this unit.

For using the DVD Players A and B separately, please use a proper mains adapter with correct output plug size and correct electrical rating (DC12V, 0.83A output).

For watching 2 separate discs.

For watching 1 disc on both DVD player.

• Mains adapter for the DVD Player A and B are not included. Please use a proper mains adapter with correct electrical rating and output plug size.
• Turn off the unit before unplugging the mains adapter from the unit to avoid the unit being damaged.
• When the unit is not going to be used for a long period of time, disconnect the mains adapter from the mains socket.
• The mains socket must be located near the unit and should be easily accessible. If a malfunction occurs, disconnect the plug from the mains socket at once.
• When the mains adapter is plugged in, the unit is not completely disconnected from the main power source, even when the unit is turned off.

Connecting to a TV

The DVD player will output the signals to TV when AV OUT is connected.

GB

Watching a DVD on your TV

1. Connect your TV to the DVD Player using the 3.5mm to RCA AV Cable (not included).
2. Turn on the DVD Player.
3. Turn on the TV and follow the instructions included with it to play the DVD.

Make sure to use the correct Audio/Video cable. Connecting the plugs incorrectly may cause a weak signal.

Watching a Video Recording from your Camcorder

Press the MODE button on the unit or the remote control to select "AV" from the mode menu to input the audio and video signals to the DVD player.

1. Connect your Camcorder to the DVD Player using the 3.5mm to RCA AV Cable (not included).
2. Turn on the DVD Player.
3. Turn on the camcorder and follow the instructions included with it to play the camcorder.

Playing Musics or Videos from a Memory Card

Press the MODE button on the unit or the remote control to select "CARD" from the mode menu.

1. Insert a SD or MS or MMC card to the card slot according to the orientation marked on the DVD player.

- If the memory card does not appear to fit properly, try turning the card over upside down. Never force the card into the slot under any circumstances.

1. Turn on the DVD Player, and press the MODE button on the unit or the remote control to select "CARD". A list of available means files will appear. Press the PLAY/SEL. button on the unit or the remote control to play your selected file.

Listening on an External Audio Device

The DVD Player can play two channels Dolby Digital.

1. Connect the DVD Player to the left/right Audio In socket on the audio device using a 3.5mm to Audio cable (not included).
2. Turn on your audio device and follow the instructions provided with it.

• Make sure to use the correct Audio cable. Connecting the plugs incorrectly may cause a weak signal.
• If you have a stereo VCR, make sure you set it to stereo mode.
- Due to copyright protection, DVD movies cannot be copied. If you copy a DVD movie onto a videotape, the resulting copy will be unclear, with poor sound quality. This is NOT caused by a defective DVD system.

Using Earphones

Turn down the volume before connecting the headphones/earphones. Slowly raise the volume with the headphones/earphones on until you reach your desired volume. When headphones/ earphones are connected, the speaker is automatically disabled.

Avoid listening to sound at excessive levels which could be harmful to your ears. At full power, the prolonged listening can damage the ears of the user.

DVD Player Right side

Diagram of a device rear panel with labeled ports and connectors, showing connections to an ear (no text or symbols present)

• Maximum output voltage < 150mV
• HEADPHONE VOLUME WARNING

Maintenance

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

GB

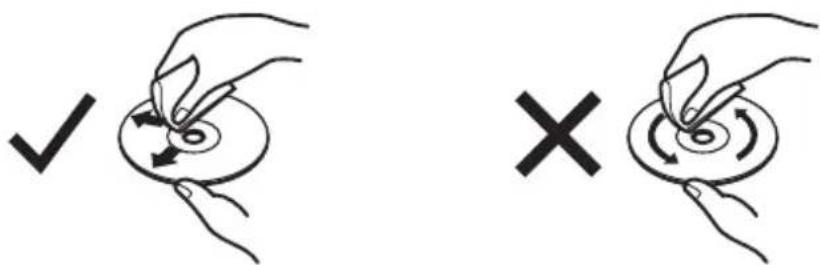

Cleaning Discs

• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.
• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
• Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Menu Description
No power. Ensure the car power adapter is connected.Make sure that the unit is turned on.Make sure that you select ON mode.Make sure the battery is charged up on the DVD player.
The remote control does not function.	Use the remote control near the unit.Point the remote control at the remote sensor on the unit.Replace the battery in the remote control with a new one.Make sure the plastic sheet has been removed from the remote control.Remove any obstacles between the remote control and the unit.Make sure to match or pair the remote control A with the DVD Player A, and the remote control B with the DVD Player B.
Very little or no sound is coming from a DVD.	Make sure the unit is not paused. Press the PLAY/SEL. button on the unit or the remote control.Make sure the unit is not in fast-forward or fast-reverse mode. Press the PLAY/SEL. button on the unit or the remote control.Make sure the AUDIO/VIDEO input/output connections are correct.This unit does not support DTS audio decoding system. Press the Audio button on the remote control to change the audio setting to 2-Channel Analogue mode.The unit has overheated. Shut it off for 30 minutes to allow it to cool down.The volume control is too low. Increase the volume.
No picture.	The region number of the disc doesn't match the region number of this unit.Make sure the Back Light is set ON on the main unit.[IMAGE]
The picture is not clear. The DVD is dirty. Gently clean the disc.The disc is scratched.Please adjust the LCD's brightness, contrast and colour using the LCD button on the LCD monitor or the remote control.- Setup → Video Picture Mode User.→
Loud hum or noise is heard.	The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with alcohol.Clean the disc.The disc is scratched or the file is corrupt.
The disc does not play.	There is no disc inside the unit ("No Disc" appears on the screen).Insert the disc correctly with the graphics facing up.Clean the disc.A non-valid disc has been inserted, or the disc region number does not match the region number of the unit.Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again.It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording. If you are having trouble playing a certain disc, remove the disc and try a different one. Improperly formatted discs will not play on this DVD Player.
File from memory card or Disc does not play	Check the file format.
The unit does not respond when pressing any buttons	The unit may freeze up during use.Switch the unit off and then on again to reset the unit.

Specifications

Model S92PDT11E
Disc Format DVD, CD, CD-R, CD-RW, JPEG Picture CD
Video System PAL, NTSC
LCD Screen 9" Wide-Screen Active-Matrix TFT Type
Audio:Video DecompressionAudio CharacteristicDolby Digital Decoding	MPEG-22-Channel AnalogueYes
Speaker 2 Built-in stereo speaker
Terminals: AV IN Socket x 1, AV OUT	Socket x 1, Headphone Socket x 1,SD/MMC/MS Card Reader x 1
Power Adapter:Power SupplyPower Consumption	Mains Adapter: AC 100-240V 50/60Hz x 1Car Adapter: 12V Car Cigarette Lighter Adapter x 1Approx. 10W
Remote Control 2 Independent A/B	coded Infra-red Remote Controls with twoAAA batteries
Battery Operation Time Approx. 2	hours
Weight:DVD Player ADVD Player B	1035g1035g
Dimensions: 240mm(L) x 182mm(W) x 46mm(H)

Features and specifications are subject to change without notice.

Front view of a portable electronic device with control panel and indicator lights (no visible text or symbols)

Front view of a portable television set with control buttons (no visible text or symbols)

DELNR.: 92-230-02020 & 92-230-02030

Bilstrømadapter x 1 DELNR.: 54-201-00105

Strømadapter x 1 DELNR.: 43-111-00492

∅retelefoner x 2 DELNR.: 54-401-00033

3,5 mm til 3,5 mm AV-kabel x 1 DELNR.: 54-201-00098

Hurtigstartguide x 1 DELNR.: 82-230-01020 & 82-230-00870

Produktoversikt

Top-down schematic of a device with a handle and control panel, no text or symbols present

Illustration of a hand holding a device with a magnified inset showing a close-up of a small object (no text or symbols present)

Six black-and-white photos showing various landscape scenes including a mountain, beach, airplane, motorcycle, and vintage car (no text or symbols visible)

Black and white close-up of a tree trunk with small white flowers, no visible text or symbols

Sideforholdinnstilling

Diagram of a device rear panel with labeled ports and connections, showing audio and ear components (no text or symbols present)

• Maksimal utgangsspenning < 150 mV
• ADVARSEL OM LYDSTYRKE I HODETELEFONER

Vedlikehold

Håndtere plater

Front view of a rectangular electronic device with a screen and control buttons (no visible text or symbols)

Front view of a portable television set with control panel (no visible text or symbols)

Art.nr.: 92-230-02020 & 92-230-02030

Bilströmadapter x 1 Art.nr.: 54-201-00105

Strömadapter x 1 Art.nr.: 43-111-00492

Hörlurar x 2 Art.nr.: 54-401-00033

3,5 mm till 3,5 mm AV-kabel x 1 Art.nr.: 54-201-00098

Monteringsrem Art.nr.: 86-230-00020

Bruksanvisning x 1 Art.nr.: 82-230-00861

Snabbstartsguide x 1 Art.nr.: 82-230-01020 & 82-230-00870

Produktöversikt

Top-down schematic of a vehicle or device with a handle and side panel, no text or symbols present

1. Stäng batterilocket.

Illustration of a hand holding a device connected to a cable with a magnified inset showing a close-up of the cable (no text or symbols present)

SE

Installationsguide

Six black-and-white photos showing natural landscapes including mountains, clouds, and vintage cars (no text or symbols)

Black and white close-up of a tree trunk with small white flowers on the left (no text or symbols visible)

Diagram of a device rear panel with labeled ports and connectors, showing connections to an ear (no text or symbols present)

Front view of a portable electronic device with control panel and indicator lights (no visible text or symbols)

Front view of a portable television set with control buttons (no visible text or symbols)

Osanro: 92-230-02020 & 92-230-02030

Auton virtasovitin x 1 Osanro: 54-201-00105

Verkkolaite x 1 Osanro: 43-111-00492

Pikaopas x 1 Osanro: 82-230-01020 & 82-230-00870

Top-down schematic of a device with a handle and arrow indicator (no text or symbols)

Six black-and-white photos showing various outdoor scenes including a landscape, beach, and vintage car (no text or symbols visible)

FI

Black and white photo of a small white flower emerging from a tree trunk (no text or symbols visible)

Diagram of a device rear panel with labeled ports and connectors, showing connections to an ear (no text or symbols present)

Line drawing of a vintage television set with control panel (no text or symbols)

Front view of a portable television set with control panel (no visible text or symbols)

P.N.: 92-230-02020 & 92-230-02030

Strømadapter til bilbrug x 1 P.N.: 54-201-00105

Stik x 1 P.N.: 43-111-00492

Høretelefoner x 2 P.N.: 54-401-00033

3,5mm til 3,5mm AV-kabel x 1 P.N.: 54-201-00098

Monteringsrem P.N.: 86-230-00020

Brugervejledning x 1 P.N.: 82-230-00861

Hurtigstart-vejledning x 1 P.N.: 82-230-01020 & 82-230-00870

Produktoversigt

Set forfra (DVD-afspiller A & B)

1. LCD panel-lås

Fold LCD panelet ud, for at få adgang til DVD-diskbakken.

Top-down schematic of a vehicle or device with a handle and side panel, no text or symbols present

Illustration of a hand holding a device connected to a cable with a magnified inset showing a close-up of the cable (no text or symbols present)

Six black-and-white photos showing various scenes including a sun, landscape, beach, airplane, and vintage car (no text or symbols)

Black and white close-up of a flowering plant with visible blossoms on a textured surface (no text or symbols)

Diagram of a device rear panel with labeled ports and connectors, showing connections to an ear (no text or symbols present)

• Maksimum udgangsspænding < 150 mV
• ADVARSEL OM HOVEDTELEFONENS LYDSTYRKENIVEAU

Vedligeholdelse

Behandling af diske

DK

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

- Please inspect the unit for damage after unpacking.

- Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
  • The mains socket must be located near the unit and should be easily accessible.

Temperature

- Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.

- Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

- To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.

- If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

- To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.

- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

- Always disconnect the unit from the mains supply before connecting/ disconnecting other devices or moving the unit.

• Unplug the unit from the mains socket during a lightning storm.

Mains Adapter Cable

- Make sure the unit is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.

- Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Batteries

- Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.

- Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.

- Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.

- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

DVD

• Class 1 Laser Product This unit utilises a laser. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.

• Always remove the disc when the unit is not in use.

• Failure to do so will risk severely damaging the disc and the unit.

- Do not stack devices, heat from other devices may affect the performance of the unit.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

- Ensure to unplug the unit from the power supply before cleaning.

- Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.

• Do not use liquids to clean the unit.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Rovi Proprietary Rights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Restriction on Use & Rovi Trade Mark Rights

Use of the copyright protection technology contained in this product must be authorised by Rovi Corporation and is intended for home and other limited viewing uses only unless otherwise authorised by Rovi Corporation. The names "Rovi Corporation" and "Macrovision" are protected by trademarks.
