USER MANUAL 45B NEON ARCHOS

Package contents....2

Description of the phone....3

Assembling....6

Getting started....8

3G & WiFi connection....10

Google account & Contacts....12

Hints & tips for Android™ 14

Troubleshooting....16

For more information, please consult the FAQs on www.archos.com.

Make sure to read them before considering any product return. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

1

Package Contents

Check your product box for the following items:

• ARCHOS 45 Neon
• Battery
• Headset
• Micro SIM adaptor
• USB cable
• Charger
• Quick start guide

- Warranty Legal & Safety notices

The items supplied with your device and available accessories may vary depending on your region or service provider.

The supplied items are designed only for your device and may not be compatible with other devices.

Unapproved accessories may cause your device to malfunction.

2

Description of the phone

① Headset jack
② Micro-USB port
③ Phone speaker
④ Camera
⑤ Volume buttons
⑥ ON/OFF button
⑦ Microphone

Diagram of a smartphone with numbered parts for identification

EN

3

Description of the phone

⑧ Camera
⑨ Flash
⑩ Camera trigger
⑪ Loudspeaker

Diagram of a smartphone front panel with numbered labels pointing to key components like buttons, sensors, and display screen.

4

Color palette bar with grayscale shades (no text or symbols)

EN

⑪ Multi-task
⑫ Home/Recent apps/Google NOW
⑬ Back

⑫ ⑬ ⑭ ⑭

Multi-task: open the list of recent applications;

Home/Google NOW: short press to return to the Home screen; long press to access Google Now.

Back: return to the previous screen.

5

Color palette bar with grayscale shades (no text or symbols)

Assembling

Opening

1. Use the notch to remove the back cover.
   Do not bend or twist the back cover excessively. Doing so may damage the cover.
2. Remove the battery.

Inserting a SIM card

For your SIM card, slide it facing downwards in the slot 1 or 2.

Inserting a Memory card

For your Memory card, slide it facing downwards in the slot 3.

Closing

1. Align the battery's 4 contact points with those of the phone and gently press the battery down into place.
2. Replace the back cover clicking it back into position.

Tip:

Before using your device for the first time, charge completely its battery.

Color palette bar with grayscale shades (no text or symbols)

EN

SIM2 SIM1 3

Lift the back cover using the notch

7

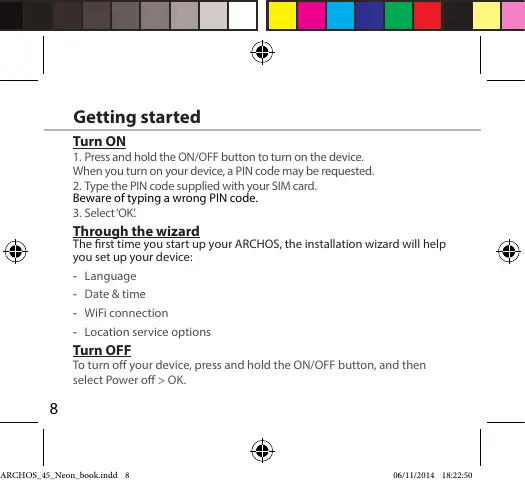

Getting started

Turn ON

1. Press and hold the ON/OFF button to turn on the device.
   When you turn on your device, a PIN code may be requested.
2. Type the PIN code supplied with your SIM card.
   Beware of typing a wrong PIN code.
3. Select 'OK'.

Through the wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Language
• Date & time
• WiFi connection
• Location service options

Turn OFF

To turn off your device, press and hold the ON/OFF button, and then select Power off > OK.

8

EN

Sound & Notification profiles

1. When the device is turned on, press and hold the ON/OFF button.
2. Select an option.

Silent Vibrate Sound

Touch screen actions:

Tap: touch once to select or launch a menu, option, or application.

Tap and hold: tap an item and hold it for more than 2 seconds.

Drag: tap an item and move it to a new location.

Double-tap: tap an item twice quickly.

Flick: briskly scroll up, down, left, or right to move through lists or screens.

Pinch in/out: place two of your fingers far apart, and then pinch them together.

Tip:

Your device goes in standby mode when you do not use it for a specified period of time. To wake up your device, press the ON/OFF button. To set the duration, go to Settings > Display > Sleep.

3G & WiFi connection

3G connection

With your SIM card, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your provider's 3G network. When connected to the 3G network, the 3G icon is displayed in the status bar.

Activating the mobile data

To be able to access Internet, the mobile data icon must be activated.

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the white line down to display the status dashboard.
3. Touch the status dashboard icon
4. Touch the mobile data icon 📋 to activate it.

3G R 15:06

Close-up of a finger pressing a horizontal line on a black background (no text or symbols)

Mobile app interface screenshots showing home screen and navigation icons with labels like 'BLUE TEXT' and 'MOORE VIEW'

Tip:

If you encounter connection problem's, see the FAQs on www.archos.com or contact your 3G network connection provider.

EN

WiFi connection

WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the blue line down to display the status dashboard.
3. Touch the status dashboard icon
4. Touch the "Settings" icon ⚙️ to open the settings menu.
5. In the "Wireless & networks" section, if the WiFi is off, slide the WiFi switch to the "ON" position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.
6. Touch "WiFi" to display available networks.
7. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

3G R 15:06

Hand holding a horizontal line with concentric circles, against a black background (no text or symbols)

PARAMÈTRES WIFI BLUETOOTH

Wi-Fi

Google & Contacts

Adding a Google account

A Google account lets you take full advantage of any Google apps and services that you may want to use.

1. Go to "Settings" > "Accounts" > "Add account".
2. Select the account type "Google" to add.
3. Follow the onscreen instructions to enter information about the account.
   Once the account is created, you can access Play Store, Gmail, Hangouts, Maps and many other apps.

Synchronizing info

Information must be sync to be saved. Your data is backed up on Google servers.

1. Go to "Settings" > "Accounts" > "Google".
2. Select your account.
   The list of information that can be sync are displayed.
   Automatic sync should be activated. To launch the sync, press the Menu button, then Sync now. You can get them back in case of loss of your device or SIM card. When your Google account is added to a new device, all your saved information is transferred.

12

EN

Saving your contacts

When your contacts are saved, they are always available on the web and can be synced to any Android phone that's set up with your Google account.

1. Install the SIM card with your contacts in your phone.
2. From a Home or All Apps screen, select the People app 📷.
3. Touch the Menu button > "Import/Export".
4. In Import/export contacts, select "Import from SIM card".
5. Select your Google account.
6. Check contacts to be imported and validate.
7. Once the contacts are imported in the Google account, go to "Settings" > "Accounts" > "Google".
8. Select you Google account.
9. Select the Menu button, then "Sync now".
   Your contacts are saved to via your Google account.

13

Hints & tips for Android™

The extended home screen:

You have by default one home screen. You can create as many home screens you want. Select an app icon and slide it right. A new home screen will be created. Select another app icon and slide it right to create a third home screen.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, touch and hold it, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

14

EN

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Touch and hold your finger on your home screen. Touch "Widgets".

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list.

Locking the touchscreen:

From the quick settings dashboard in the status bar, touch "Settings". In "Settings", scroll down and touch "Security". Touch "Screen lock". Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, pin or other specified key.

Troubleshooting

My phone is frozen or cannot switch on

Check the battery contacts, remove and reinstall your battery, then turn your phone on. Check the battery power level, charge for at least 20 minutes.

My phone cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

To configure a new 3G network:

On your device, tap Settings.

Select Wireless & networks > More... > Mobile networks.

Select Network settings. In Network operators, select your operator.

In Access Point Names, select the correct access point name and enter the exact connection parameters provided by your 3G provider.
