Product Type	Refrigerator with freezer (Fridge/Freezer)
Model Numbers	CKF5200V, CKF5200X

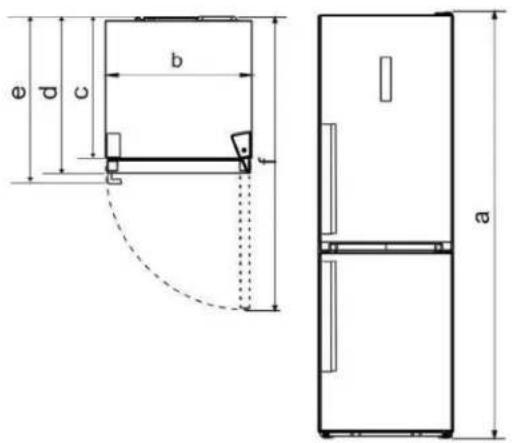

Height (mm)	2003
Width (mm)	595
Cabinet Depth (mm)	570
Depth with door closed (without handle) (mm)	637
Depth with door closed (with handle) (mm)	681.5
Depth with door opened (mm)	1191
Climate Class	SN (+10°C to +32°C), N (+16°C to +32°C), ST (+16°C to +38°C), T (+16°C to +43°C)
Power Supply	220-240 V ~ 50 Hz, single phase
Refrigerant	R600a (Isobutane), flammable
Refrigerator Temperature Range	2°C to 8°C (adjustable)
Freezer Temperature Range	-15°C to -25°C (adjustable)
Freezer Star Rating	4 stars (****) suitable for freezing fresh food
Special Compartments	0°C Cooling Plus (chill compartment), Crisper drawer, Flexible wine rack (optional)
Ice Maker	Integrated ice maker (optional, removable)
Display Panel	LED touch control with modes: Super Freeze, Eco Energy, Holiday
Door Reversibility	Reversible (left or right opening)
Lighting	LED interior light (user-replaceable? No, must be replaced by service)
Noise Level	Typical operating sounds: compressor, fan, gurgling, clicking
Defrost	Automatic defrost (no frost in fridge; manual defrost for freezer if needed)
Cleaning	Mild detergent, soft cloth; no abrasive or solvent cleaners
Safety Features	Door alarm (if open >2 min), child safety (packaging, lock disposal), electrical safety
Warranty	Quality warranty applies to consumers (check local terms)

Frequently Asked Questions - CKF5200V Elvita

How do I set the temperature on my Elvita CKF5200V refrigerator?

Use the Fridge button to set fridge temperature from 2°C to 8°C, and the Freezer button for freezer temperature from -15°C to -25°C. Recommended initial settings: fridge 5°C, freezer -18°C.

Can I reverse the door opening direction?

Yes, the door is reversible. Disconnect the appliance from power, then follow the detailed instructions in the manual. Tools required: screwdriver, spanner. Ensure you have the provided replacement hinge parts.

How do I clean the refrigerator?

Unplug the appliance. Use a mild detergent with warm water and a soft cloth for interior and exterior. For the interior, a weak bicarbonate of soda solution is recommended. Dry thoroughly. Do not use abrasive cleaners, solvents, or sharp objects.

Why is there frost building up in the freezer?

Frost can build up if the freezer door is opened frequently or left open. Ensure the door is fully closed and the air outlets are not blocked. If frost is thick, defrost manually: unplug, remove food, leave doors open, and clean after defrosting.

What do the different modes (Super Freeze, Eco Energy, Holiday) do?

Super Freeze rapidly lowers freezer temperature to -25°C for fast freezing (auto-off after 26 hours). Eco Energy sets freezer to -17°C and fridge to 6°C to save power. Holiday sets freezer to -18°C and fridge to 15°C for unattended periods (do not store food in fridge).

Why is the refrigerator making unusual noises?

Normal sounds include compressor hum, fan whirr, gurgling from coolant, and popping during defrost. Abnormal noise may be due to the appliance not being level, touching a wall, or items falling. Check and adjust as needed.

How can I save energy with this refrigerator?

Keep doors closed as much as possible. Place the appliance away from heat sources and direct sunlight. Ensure proper ventilation (50-70mm rear, 100mm sides/top). Avoid storing warm food. Use the Eco Energy mode when away.

How do I use the integrated ice maker?

If your model includes the ice maker, place it on a level surface, remove cover, pour water into the ice tray up to the indicated line, replace the cover, and position it in the freezer. Ice cubes form; remove as needed. Clean before first use.

What should I do if the door alarm sounds?

The alarm sounds if a door is open for more than 2 minutes. Close the door to stop the alarm. To save energy, avoid leaving doors open for long periods.

How should I dispose of this appliance?

Do not dispose as household waste. Unplug, cut off the power cord. Refrigerant and insulation are flammable; take to an authorized recycling center. Follow local regulations for WEEE disposal.

USER MANUAL CKF5200V Elvita

Before using this product, please read the user manual carefully. Save the user manual for future reference.

Les bruksanvisningen nøye før du tar i bruk produktet. Ta vare på bruksanvisningen for fremtidig bruk.

Front view of a white refrigerator with a black door and side doorrest (no visible text or symbols)

KYL-/FRYSSKÅP / REFRIGERATOR/FREEZER / KJÖLE-/FRYSESKAP / KÖLE-/FRYSESKAB / JÄÄKAAPPI-PAKASTIN / ÍS-/FRYSTISKÁPUR

MODELLNUMMER: CKF5200V, CKF5200X

SE

INNEHÅLL

Illustration of a door with hands opening, showing an upward arrow (no text or symbols)

Technical illustration showing a door lock mechanism and its side view with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

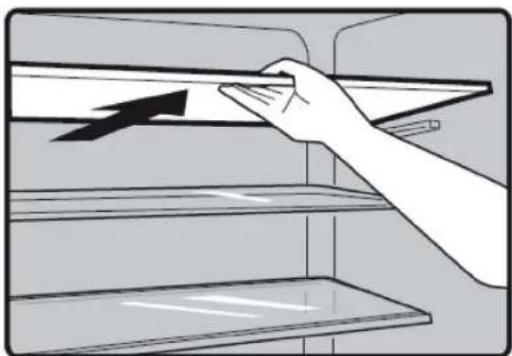

Hylla i kylskåpet

Illustration of a hand placing a plastic sheet on a shelf with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and tubing (no text or symbols)

0 °C Cooling Plus (köldfack)

Illustration of a rectangular container with internal grid structure, no text or symbols present

Safety and warning information 21

Installing your new appliance 25

Description of the appliance 29

Display controls 31

Using your appliance 32

Helpful hints and tips 33

Cleaning and care 34

Troubleshooting 35

Disposal of the appliance 36

Safety and warning information

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that anyone who uses the appliance is thoroughly familiar with its operation and safety features. Save this user manual and make sure that it remains with the appliance if it is moved or sold, so that anyone who uses it throughout its life will be properly informed about its usage and safety notices. For the safety of life and property, please follow the precautions in this user manual, as the manufacturer is not responsible for damage caused by neglect.

Safety of children and other vulnerable groups

This appliance can be used by children from the age of 8 upwards, and by individuals with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction in how to use the appliance safely and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

Keep all packaging away from children to avoid the risk of suffocation.

To dispose of the appliance, unplug the appliance from the power socket, cut off the power cord (as close to the appliance as you can) and remove the door so that playing children cannot get an electric shock or become trapped in the appliance.

If this appliance replaces an older appliance that has a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING — This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING — Do not store explosive substances such as aerosol cans that contain a flammable propellant

in this appliance. WARNING — If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's service agent or similarly qualified persons in order to avoid a hazard.

WARNING — Keep ventilation openings inside or outside the appliance clear of obstruction. WARNING — Do not use tools or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING — Do not damage the refrigerant circuit. WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.

WARNING — When positioning the appliance, ensure that the power cord is not trapped or damaged.

WARNING — Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.

Replacing the light bulbs

WARNING — The light bulbs must not be replaced by the user! If a light bulb is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain light bulbs.

Refrigerant

Isobutene refrigerant (R600a) is used within the refrigerant circuit of the appliance. This is a natural gas that is relatively environmentally friendly, but is still flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged The refrigerant (R600a) is flammable.

WARNING — Refrigerators contain refrigerant and insulation foam, which are flammable. Refrigerant and insulation foam must be disposed of professionally as they may cause eye injuries or lead to a fire.

Ensure that tubing in the refrigerant circuit is not damaged prior to proper disposal.

WARNING: Risk of fire / flammable materials

If the refrigerant circuit is damaged:

• Avoid open flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the power cord may cause a short circuit, fire, and/or electric shock.

Electrical safety

1. Do not extend the power cord by using an extension cord.

GB

1. Make sure that the plug is not crushed or damaged. A crushed or damaged plug may overheat and cause a fire.
2. Make sure that you have access to the main plug of the appliance.
3. Do not pull on the power cord.
4. If the power socket is loose, do not plug in the appliance, otherwise there is a risk of electric shock or fire.
5. Do not use the appliance if the cover is missing from the interior light.
6. The appliance is designed to be powered by a single-phase

AC supply of 220\~240 V / 50 Hz. If local voltage variations mean that the voltage may vary outside this range, an automatic voltage regulator rated for a minimum of 350 W should be connected between the power socket and the refrigerator. Do not connect the appliance to the same power socket as other electrical devices. The power socket and plug must be earthed.

Daily use

Do not store flammable gases or liquids in the appliance, otherwise there is a risk of explosion.

Do not use any other electrical appliances inside the appliance (e.g. electric ice cream makers, blenders etc.).

Always unplug the appliance by pulling out the plug, not by pulling on the power cord.

Do not place hot items near the plastic components of this appliance.

Do not place food products directly against the air outlet on the rear wall.

Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

The appliances manufacturer's storage recommendations should be strictly adhered to. Refer to the relevant instructions for storage.

Do not place carbonated or fizzy drinks in the freezer compartment as the container will become pressurized and may explode, resulting in damage to the appliance.

Frozen food can cause frost burns if consumed straight from the freezer compartment.

Do not place the appliance in direct sunlight.

Keep burning candles, lamps and other items with naked flames away from the appliance to avoid the risk of fire.

The appliance is intended for storing food and drink in normal domestic use, as described in this user manual. The appliance is heavy. Care should be taken when moving it.

Do not remove nor touch items from the freezer compartment if your hands are damp or wet, as this could cause skin abrasions or frost/freezer burns.

Never use the base, drawers, doors etc. to stand on or as supports.

Frozen food must not be refrozen once it has been thawed out.

Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burns to the mouth and lips.

To prevent items from falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Caution! Care and cleaning

Before carrying out maintenance, switch off the appliance and unplug it from the power socket.

Do not clean the appliance with metal objects, steam cleaner, essential oils, organic solvents or abrasive cleansers.

Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Important during installation!

When plugging in the appliance, carefully follow the instructions in this user manual.

Unpack the appliance and check that there is no damage to it. Do not plug in the appliance if it is damaged. Report any damage to the retailer immediately. Keep the packaging material in case of damage.

It is advisable to wait at least four hours before plugging in the appliance, to allow the oil to flow back into the compressor.

Make sure there is adequate air circulation around the appliance,

otherwise it may overheat. Follow the installation instructions to ensure adequate ventilation. If possible the appliance should not be installed with its back too close to the wall, to prevent contact with hot components (compressor, condenser). Follow the installation instructions to avoid the risk of fire.

Do not place the appliance close to a radiator or oven.

Make sure that the plug is accessible after the appliance has been installed.

Caution

Any electrical work that is required during servicing must be carried out by a qualified electrician or competent person. This product should only be repaired at an authorized service centre, using genuine spare parts.

Note: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

Installing your new appliance

Before using the appliance for the first time you should read the following recommendations.

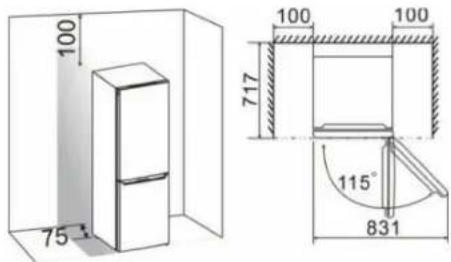

Ventilation of appliance

To improve the efficiency of the cooling system and save energy, it is important to maintain good ventilation around the appliance. For this reason, sufficient clear space should be available around the refrigerator.

Recommendation: We recommend that there is at least 50–70 mm of clearance at the rear of the appliance, at least 100 mm above the appliance and at the sides, and enough free space in front to allow the door to be opened through 115°, as shown in the following diagrams.

Note:

This appliance performs well within the climate class shown in the table below. It may not work properly if it is left at a temperature above or below the indicated range for a long period.

Stand your appliance in a dry place to avoid high moisture

Climate class Ambient temperature

SN +10°C TO +32°C

N +16°C TO +32°C

ST +16°C TO +38°C

T +16°C TO +43°C

levels.

Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.

Levelling the appliance

To ensure that the appliance is level and that air can circulate freely around the bottom rear of the appliance, it may be necessary to adjust the feet. You can adjust them manually by hand or by using a suitable spanner.

To allow the doors to self-close, tilt the top backwards by

about 10 mm.

Reversing the door

The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires.

Warning! The appliance must be disconnected from the mains supply before the door is reversed. Unplug the appliance from the power socket.

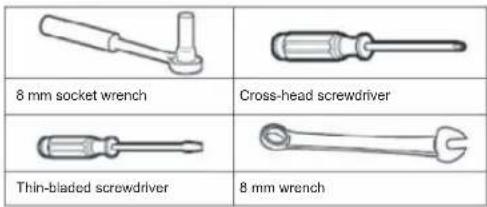

Tools you will need

Note:

If required, tilt the appliance backwards in order to gain access to the base. You should rest the back of the appliance on soft foam packaging or the like to prevent damage. To reverse the door, the following steps are generally recommended. Different models may correspond to different illustrations. The model number is shown in the illustrations. If your appliance does not have the same parts, please ignore the relevant description.

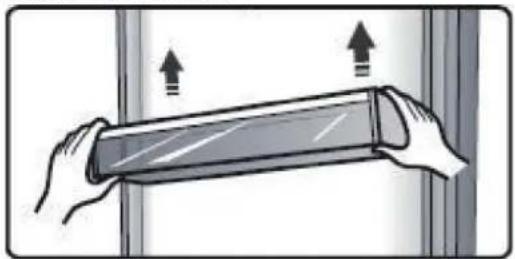

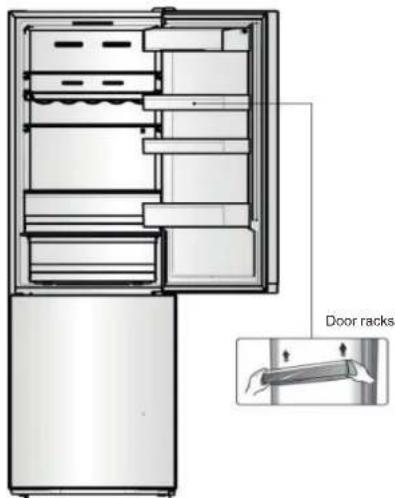

1. Stand the appliance upright. Open the upper door, remove the door racks (to avoid damaging them) and then close the door.

GB

1. Remove part 1, lift up part 2 from the top right of the appliance, taking care not to pull the wires from electrical connector 3. Then disconnect electrical connector 3 and remove part 2.

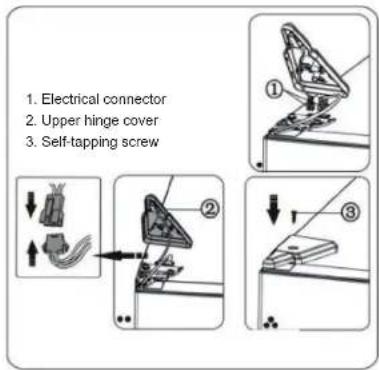

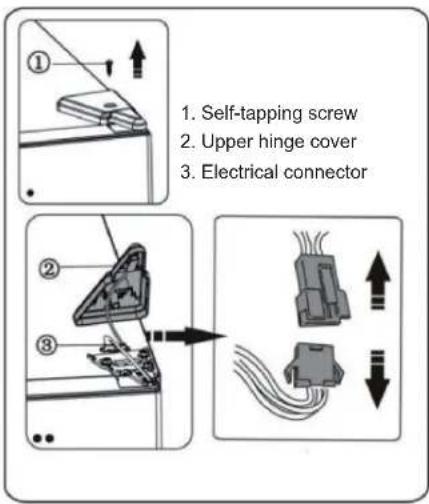

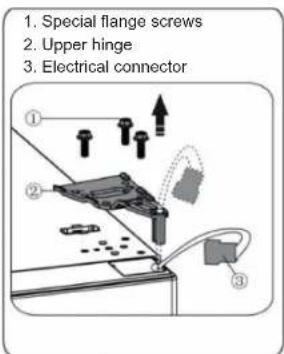

1. Remove screws 1 and hinge 2. Then pass connector 3 through the hole in hinge 2. (Support the upper door with your hand while installing it.)

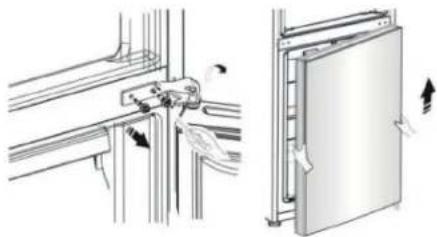

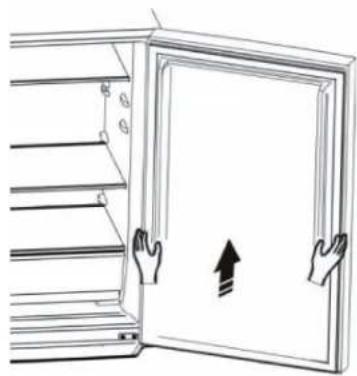

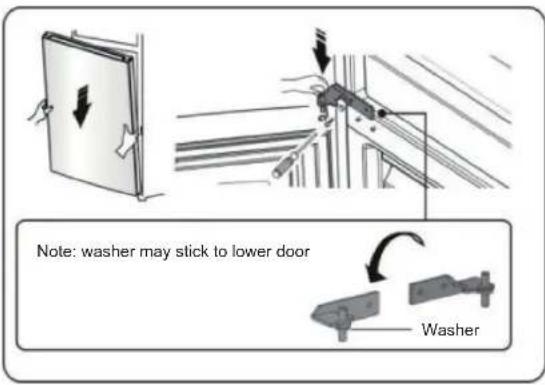

1. Remove the upper door from the middle hinge by carefully lifting the door straight up. Then stand the upper door on a smooth surface so that you have access to the top of the door.

Line drawing of a door with two hands opening, showing an upward arrow (no text or symbols)

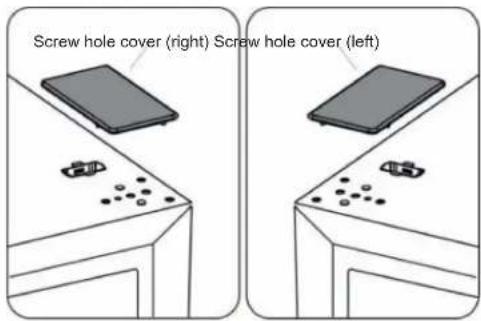

1. Take the screw hole cover (right) from the plastic bag and install it on the top right of the refrigerator body. Then remove the screw hole cover (left) from the top left of the appliance and put it in the plastic bag.

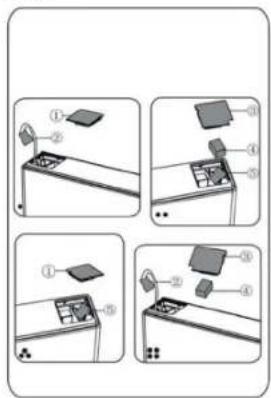

1. Remove part 1 from the top left of the door and lift out part 2. Then remove part 3 and part 4 from the top right of the door. Place part 5 in the top right of the upper door. Referring to the above description, install part 3 and part 4 on the top left of the door. Install part 1 on the top right of the door.

1. Corner cover (left)
2. Electrical connector (left)
3. Corner cover (right)
4. Magnetic core

5. Electrical connector (right)

6. Undo screw 3 and remove part 2 and part 1. Install the replacement door stopper 1 (supplied in the plastic bag) and part 2 (stop block) on the left side of the door using screw 3. Keep part 1 for future use.

GB

1. Undo the screws that hold the middle hinge and remove the hinge. Then remove the lower door.

Technical illustration showing a door lock mechanism and its side view of a cabinet (no text or symbols present)

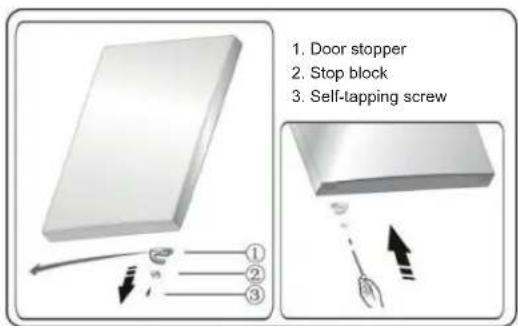

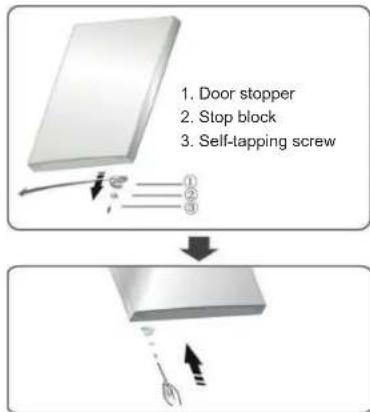

1. Place the lower door on a smooth surface with its panel upwards. Undo screw 3 and remove part 2 and part 1. Install the replacement door stopper 1 (supplied in the plastic bag) and part 2 (stop block) on the left side of the door using screw 3. Keep part 1 with the appliance for future use.

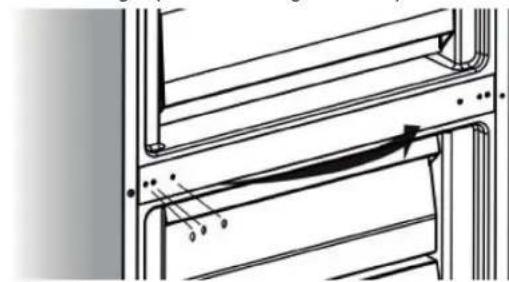

1. Transfer the screw hole covers on the middle cover plate from left to right (as shown in figure below).

Technical line drawing of a mechanical assembly with no visible text or symbols

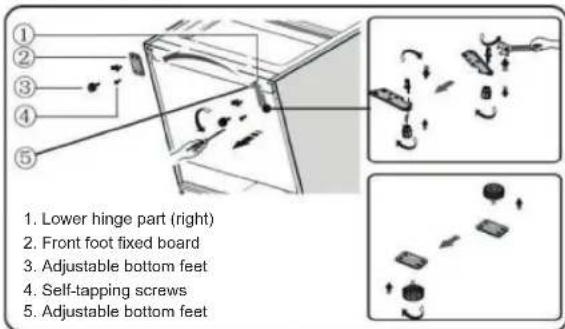

1. Tip the refrigerator backwards, remove part 3 and then remove screws 4.

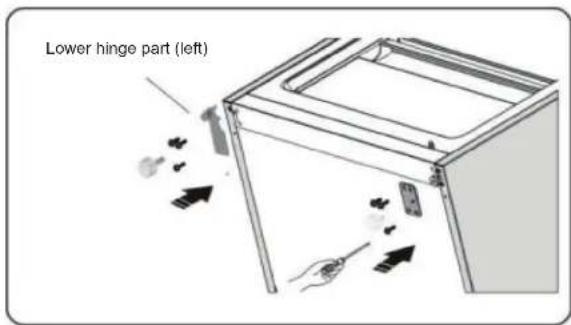

1. Remove part 5 from the lower hinge pin, then remove the lower hinge pin, transfer it to the hole on the opposite side, fix it in this position, then install part 5 on the lower hinge pin.
2. Remove part 3 from part 2, then remove screws 4.
3. Replace the items that you removed in step 11, transfer part 1 to the left side and part 2 to the right side and then fix them with screws 4. Finally install part 3.

1. Slot the lower door on to the bottom hinge pin and hold it in position. Rotate the middle hinge through 180^ , transfer the washer on the pivot to the lower side, adjust the middle hinge to the appropriate position and then install it ensuring that the lower door is secured in place.

GB

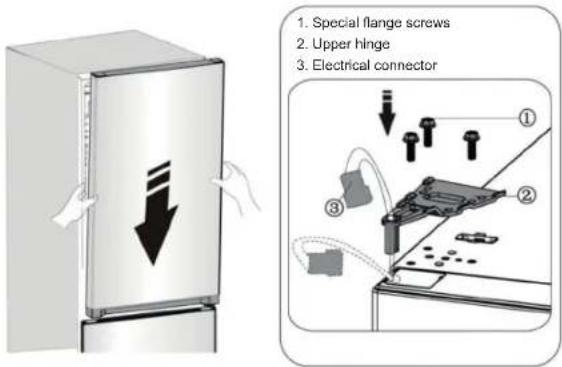

1. Move the upper door to an appropriate position, and then fix part 2 using screws 1. Before fixing part 2, pass connector 3 through hinge 2, referring back to step 3. (Support the upper door with your hand while installing it.)

1. Connect electrical connector 1 as shown in the picture, then fix with screw 3, referring back to step 2.

1. Open the upper door, refit the door racks, then close the door.

Note:

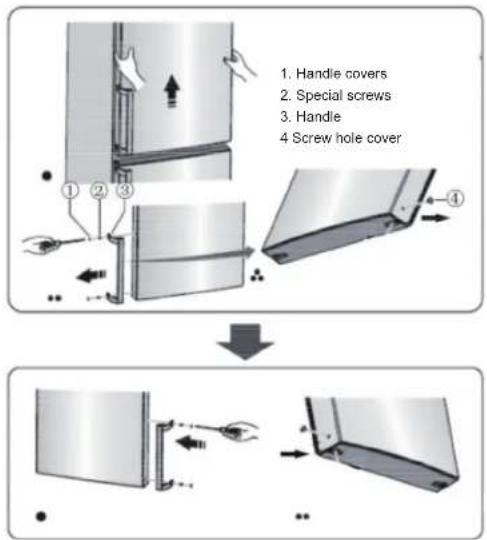

If your appliance has a door handle, you should reverse this by following the instructions below.

Remove the upper door and place it on a smooth surface with its outside panel upwards. Prise off part 1 and part 4, then remove screws 2, as shown in the picture. Transfer handle 3 to the right side, fix it with screws 2, and fit part 4.

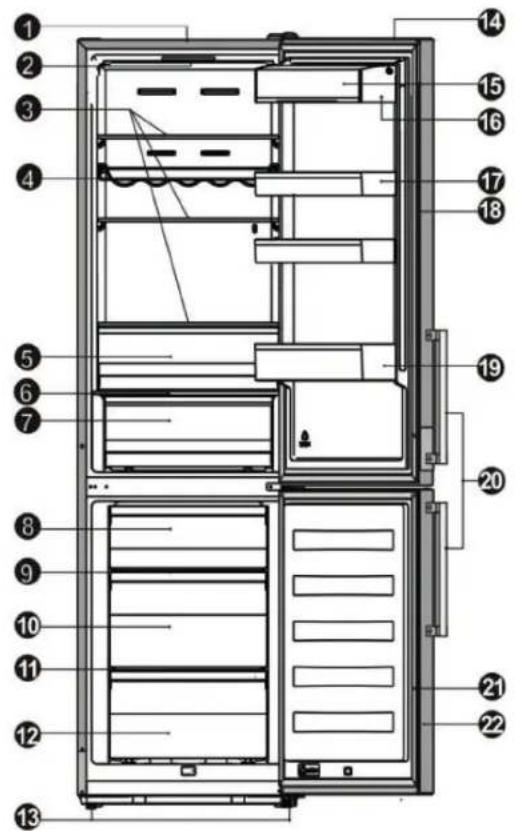

Description of the appliance

1. Cabinet
2. LED light and display panel
3. Glass shelf

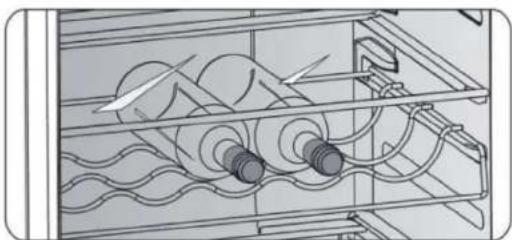

4. Flexible wine rack (optional)
5. 0 C Cooling Plus (chill compartment)
6. Crisper cover
7. Fruit and vegetables crisper
8. Upper freezer drawer
9. Upper freezer glass shelf
10. Middle freezer drawer
11. Middle freezer glass shelf
12. Lower freezer drawer
13. Adjustable bottom feet
14. Refrigerator door
15. Upper rack cover
16. Upper rack
17. Middle rack
18. Refrigerator door seal
19. Lower rack
20. Handle (optional)
21. Freezer door seal
22. Freezer door

View of the appliance

Note: Due to continuous development of our products your refrigerator may appear slightly different to the illustrations in this user manual, since the user manual covers several models. You can remove the ice tray and drawers (except the lower freezer drawer) to free up more space in the freezer.

GB

Dimensions of appliance a b c d e f
CKF5200V, CKF5200X	2003 595 570 637 681.5 1191

Dimensions

a Height
b Width
c Cabinet depth
d Depth (door closed without handle)
e Depth (door closed with handle)
f Depth (door opened)

Note: The dimensions provided in the table are design dimensions. For various reasons there may be a slight deviation between actual dimensions and design dimensions. The data listed are only for reference.

Display controls

Display panel on door

Your appliance has the following control features and the various operating modes are indicated by the symbols on the display panel as illustrated below. When the appliance is powered on for the first time, the backlighting on the display panel is turned on. If no buttons are pressed and the doors are closed, the backlighting will turn off.

Controlling the temperature

We recommend that when you start your refrigerator for the first time, you set the refrigerator temperature to 5^ C and the freezer temperature to -18^ C. If you want to change the temperature, follow the instructions below.

Caution! When you set a temperature, you set an average temperature for the whole refrigerator cabinet. The temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place it. Ambient temperature may also affect the actual temperature inside the appliance.

1. Fridge

Press "Fridge" to set the refrigerator temperature between 2 and 8^ as needed; the display panel will show the corresponding values in the following sequence.

2. Freezer

Press "Freezer" to set the freezer temperature between -15 and -25^ as needed; the display panel will show the corresponding values in the following sequence.

3. Mode

You can select three different modes according to your requirements by pressing the "Mode" button on the display panel, and the corresponding icon will be illuminated.

Super Freeze

Super Freeze will quickly lower the temperature within the freezer so that food will freeze faster. This helps to lock in the vitamins and nutrients in fresh food and keep food fresh for longer.

• When Super Freeze mode is selected, the light will be illuminated and the freezer temperature will be set at -25^ .
• If you freeze the maximum amount of food possible this may take around 24 hours.
• Super Freeze automatically switches off after 26 hours and then the freezer temperature setting will revert back to the previous setting.

Eco Energy

This feature switches the freezer to power-saving mode, which is useful for reducing energy consumption when you are away.

- When Eco Energy mode is activated, the light will be illuminated. The freezer temperature will be set at -17^ and the refrigerator temperature will be set at 6^ .

Holiday

If you are going to be away for a long period of time, you can activate this function.

- When Holiday mode is activated, the light will be illuminated. The freezer temperature will be set at -18^ and the refrigerator temperature will be set at 15^ . Important! Do not store any food in the refrigerator during this time.

4. Switch

You can s ⏻ on or switch off your appliance by pressing this button.

• Press "Switch" for 3 seconds. After the buzzer sounds, the appliance will be turned off.
• Press "Switch" for 1 second. The appliance will be turned on after the buzzer sounds.

5. Alarm

• When the door of the refrigerator or freezer has been open for more than 2 minutes, the door alarm will sound. The door alarm buzzer will sound 3 times every 1 minute and will stop alarming automatically after 8 minutes.
• To save energy, please avoid leaving the door open for a long time when using the appliance. The door alarm can also be cleared by closing the door.

Using your appliance

Your appliance is supplied with a number of accessories and this section describes how best to use them.

Door rack

This is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy items in the racks.

Illustration of hands holding a flexible electronic device with upward arrows indicating motion (no text or symbols)

Shelf in refrigerator chamber

There are three shelves in the refrigerator chamber, and they can be taken out for cleaning.

Illustration of a hand placing a white object on a shelf with an arrow symbol (no text or labels)

Flexible wine rack (optional)

This is for storing bottled wine or drinks and it can be taken out for cleaning.

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

0°C Cooling Plus (chill compartment)

This is used to store fish, meat and other perishable food.

Note: Both the ambient temperature and setting temperature influence the actual temperature of 0^ C Cooling Plus (chill compartment);

this temperature may vary within a certain range.

The temperature of this drawer may be below zero, so it is

normal that liquid in this drawer may freeze.

Crisper cover

This is used to control the temperature of the crisper and prevent vegetables from losing moisture.

Fruit and vegetable crisper

This is suitable for the storage of fruit and vegetables.

Freezer drawer

This is used to store food that needs to be frozen, including meat, fish, ice cream, etc.

Integrated ice maker (optional)

• This is used for making ice and storing ice cubes.
- It is a removable accessory that can be removed to save space. There is an ice maker cover to keep the ice maker clean.

Illustration of a rectangular container with internal grid pattern and lid, no text or symbols present

Note: If the ice maker is used for the first time or has not been used for a long time, please clean it before use.

• Ice-making process.
• Place the integrated ice maker on a level surface and remove the cover.
• Pour water into the ice tray so that the water level does not rise above the top line, as illustrated.
• Place the ice maker in its original position. When ice cubes form, you can remove ice cubes for immediate use or place the ice cubes into a container for future use.

Helpful hints and tips

Energy-saving tips

We recommend that you follow the tips below to save energy.

• Try to avoid leaving the door open for long periods in order to conserve energy.
• Ensure the appliance is not located near any sources of heat (direct sunlight, electric oven or cooker, etc.)
• Do not set the temperature colder than necessary.
• Do not store warm food or evaporating liquid in the appliance.
• Place the appliance in a well-ventilated, humidity-free, room. Please refer to the chapter on installing your new appliance.
• If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy-efficient configuration.

Hints for fresh food refrigeration

• Do not place hot food directly in the refrigerator or freezer, as this will raise the internal temperature, causing the compressor to work harder and consume more energy.
• Do cover or wrap food, particularly if it has a strong flavour.
• Place food carefully so that air can circulate freely around it.

Hints for refrigeration

• Meat (all types): Wrap in polythene food wrap and place on the glass shelf above the vegetable drawer. Always follow the food storage times and use-by dates recommended by manufacturers.
  • Cooked food, cold dishes, etc.:

These should be covered and may be placed on any shelf.

- Fruit and vegetables:

These should be stored in the special drawer provided.

- Butter and cheese:

Should be wrapped in airtight foil or plastic film wrap.

- Milk bottles:

Should have a lid and be stored in the door racks.

Hints for freezing

• When first starting up or after a period out of use, let the appliance run for at least 2 hours on a higher setting before putting food in the compartment.
• Prepare food in small portions so that it will freeze rapidly and completely, then thaw only the quantity required.

• Wrap up food in aluminium foil or polyethylene food wrap that is airtight.

• Do not allow fresh unfrozen food to touch food that is already frozen, to avoid raising the temperature of the latter.

• If frozen products are consumed immediately after removal from the freezer compartment, they are likely to cause frost burns to the skin.
• It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for the storage of frozen food

• Ensure that frozen food has been stored correctly by the food retailer.
• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken to prevent mould formation on the appliance.

1. Remove all food.
2. Unplug the appliance from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.

Cleaning and care

For reasons of hygiene the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.

Caution! The appliance must be disconnected from the mains supply before cleaning. Danger of electrical shock! Before cleaning, turn off the appliance and unplug it from the power socket.

Exterior cleaning

To keep your appliance looking good, you should clean it regularly.

• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water on to the cleaning cloth instead of spraying directly on to the surface of the appliance. This helps ensure an even distribution of moisture across the surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then wipe dry with a soft cloth.

Caution!

• Do not use sharp objects as they are likely to scratch the surface.
• Do not use paint thinner, car detergent, chlorine-based detergents, essential oils, abrasive cleansers or organic solvents such as benzene for cleaning. These may damage the surface of the appliance and may cause a fire.

Interior cleaning

• You should clean the interior of the appliance regularly. It will be easier to clean when there is little food inside. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, then rinse with warm water using a damp sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts.

• Although this appliance automatically defrosts itself, a layer of frost may build up on the freezer compartment's interior walls if the freezer door is opened frequently or left open for too long. If the frost is too thick, choose a time when there is little food in the appliance, and proceed as follows:

• Remove existing food and accessory baskets, unplug the appliance from the power socket and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.

• When defrosting is completed, clean your freezer as described above. Caution! Do not use sharp objects to remove frost from the freezer compartment. Wait until the interior is completely dry before plugging in the appliance and switching it back on.

Cleaning the door seals

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you

open the door. Wash seals with a mild detergent and warm water. Rinse and dry thoroughly after cleaning.

Caution! Only after the door seals are completely dry should the appliance be turned back on.

Replacing the LED light:

Warning: The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, follow the steps below:

1. Unplug your appliance.
2. Remove light cover by pushing up and out.
3. Hold the LED cover with one hand and pull it with the other hand while pressing the connector latch.
4. Replace the LED light and snap it correctly in place

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below.

Warning! Do not try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the store where you purchased the product.

Problem Possible cause and solution
Appliance is not working correctly	Check whether the power cord is plugged into the power socket properly.
	Check the fuse or circuit of your power supply, replace if necessary.
	The ambient temperature is too low. Try setting the chamber temperature to a colder temperature to solve this problem.
	It is normal that the freezer does not operate during the automatic defrost cycle, or for a short time after the appliance is switched on, in order to protect the compressor.
Odours from the compartments	The interior may need to be cleaned.
	Some food, containers or wrapping cause odours.
Noise from the appliance	The sounds below are quite normal:Compressor running noises.Air movement noise from the small fan motor in the freezer compartment or other compartments.Gurgling sound similar to water boiling.Popping noise during automatic defrosting.Clicking noise before the compressor starts.
	Other unusual noises may be due to the reasons below and you may need to check and take action:The cabinet is not level.The back of the appliance is touching the wall. Bottles or containers have fallen over or are rolling around.
The motor runs continuously	It is normal to hear the sound of the motor frequently; it needs to run more often in the following circumstances:Temperature setting is set colder than necessary.Large quantity of warm food has recently been placed in the appliance.The temperature outside the appliance is too high.Doors are left open too long or too often.After you have installed the appliance or it has been switched off for a long time.
A layer of frost builds up inside the compartment	Check that the air outlets are not blocked by food and ensure food is placed in the appliance in a way that allows air to circulate freely. Ensure that the door is fully closed. To remove the frost, please refer to the chapter on cleaning and care.
Temperature inside is too warm	You may have left the doors open for too long or too frequently; or the doors may be prevented from closing by some obstruction; or there is insufficient clearance around the sides, back and top of the appliance.
Temperature inside is too cold	Increase the temperature by referring to the Display controls chapter.
Doors can't be closed easily	Check whether the top of the refrigerator is tilted back by 10–15mm to allow the doors to self close, or if something inside is preventing the doors from closing.
Water drips on the floor	The water tray (located at the bottom rear of the cabinet) may not be correctly levelled, or the drain spout located below the top of the compressor unit may not be properly positioned to direct water into this tray, or the spout may be blocked. You may need to pull the refrigerator away from the wall to check the tray and spout.
The light is not working	The LED light may be damaged. Refer to the section on replacing the LED light in the cleaning and care chapter.The control system has disabled the lights due to the door being left open for too long; close and reopen the door to reactivate the lights.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging in a suitable waste collection container to recycle it.

Before disposing of this appliance

1. Unplug the appliance from the power socket.
2. Cut off the power cord and discard it with the mains plug.

Warning! Refrigerators contain refrigerant gas and there is also gas inside the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or a fire. Ensure that the refrigerant circuit tubing is not damaged prior to proper disposal.

Correct disposal of this product

This marking indicates that this product should not be disposed of with other household waste in the EU. To prevent possible harm to the environment or human health due to uncontrolled waste disposal, please recycle this appliance responsibly to promote the sustainable reuse of material resources. To return your used appliance, please use the return and collection systems or contact the retailer where the product was purchased. The retailer can ensure that this product is recycled in an environmentally safe way.

• To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase in the temperature in the compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and the accessible parts of the drainage system.
• Store raw meat and fish in suitable containers in the refrigerator, so that they do not come in contact with or drip on to other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

GB

Order Compartment type		Target storage temp. (°C)	Appropriate food
1 Fridge	+2 ≤ +8 Eggs, cooked food,	packaged food, fruit and	vegetables, dairy products, cakes, drinks and other foods that are not suitable for freezing.
2 (***)*	Freezer ≤ -18 Seafood (fish, shrimp, shellfish), freshwater		fish and shellfish, and meat products (recommended for 3 months, the longer the storage time, the poorer the taste and nutrition); suitable for frozen fresh food.
3 ***	Freezer ≤ -18 Seafood (fish, shrimp, shellfish), freshwater		fish and shellfish and meat products (recommended for 3 months, the longer the storage time, the poorer the taste and nutrition); not suitable for frozen fresh food.
4 **	Freezer ≤ -12 Seafood (fish, shrimp, shellfish), freshwater		fish and shellfish and meat products (recommended for 2 months, the longer the storage time, the poorer the taste and nutrition); not suitable for frozen fresh food.
5 *	Freezer ≤ -6 Seafood (fish, shrimp, shellfish), freshwater		fish and shellfish and meat products (recommended for 1 month, the longer the storage time, the poorer the taste and nutrition); not suitable for frozen fresh food.
6 0-star	-6 ≤ 0 Fresh pork, beef, fish, chicken, some packaged		processed foods, etc. (Recommended to be eaten on the same day, preferably no more than 3 days).Partially packaged processed foods (non-freezable foods).
7 Chill	-2 ≤ +3 Fresh/frozen pork, beef, chicken, freshwater		fish and shellfish, etc. (7 days below 0°C, or if above 0°C consumption is recommended the same day, and preferably within 2 days).Seafood (up to 15 days below 0°C; it is not recommended to store above 0°C).
8	Fresh Food	0 ≤ +4	Fresh pork, beef, fish, chicken, cooked food, etc. (recommended to be eaten on the same day, preferably no more than 3 days).
9	Wine	+5 ≤ +20	Red wine, white wine, sparkling wine etc.

Note: please store different types of food in the appropriate compartments to suit the target storage temperature for your products.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing inside the appliance.
  • Water dispenser cleaning (applies only to water dispenser products):
• Clean water tanks if they have not been used for 48 hours; flush the water system by connecting to a water supply if water has not been drawn for 5 days.

NO

INNHOLD

Illustration of a door with hands opening, showing an upward arrow (no text or symbols)

Technical illustration of a door lock mechanism showing hand positioning and mounting details (no text or symbols)

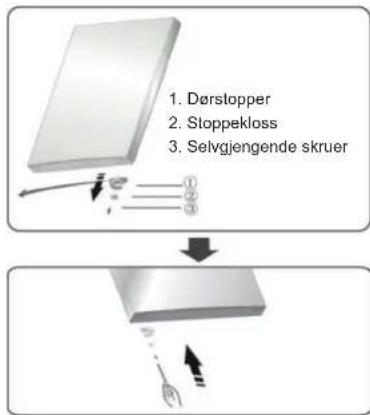

1. Sett den nedre døren på et plant underlag med utsiden vendt opp. Skru ut skrue (3) og fjern komponent (2) og (1). Monter dørstopperen (1) (ligger i plastposen) og komponent (2) (stoppekloss) på venstre side av døren med skruen (3). Ta vare på komponent (1) til fremtidig bruk.

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Hylle i kjøleskapet

Illustration of a hand placing a plastic sheet on a shelf with an arrow symbol (no text or labels)

Technical line drawing of a mechanical assembly with rollers and tubing (no text or symbols)

0 °C Cooling Plus (kjølerom)

Illustration of a rectangular container with a lid placed on top, containing a grid of small cubes (no text or symbols visible)

Line drawing of a door with hands opening, showing an upward arrow (no text or symbols)

Technical illustration of a door assembly with arrows indicating movement (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Hylde i køleskabet

Illustration of a hand placing a white object on a shelf with an arrow symbol (no text or labels)

Technical line drawing of a mechanical assembly with rollers and tubing (no text or symbols)

0 °C Cooling Plus (køleboks)

Illustration of a rectangular container with internal grid structure, no text or symbols present

Line drawing of a door with two hands opening, showing an upward arrow (no text or symbols)

Technical illustration showing a door lock mechanism and its side view with arrows indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of two hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Sisähyllyt

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and tubing (no text or symbols)

Illustration of a tray with a lid and internal grid pattern (no text or symbols)

Line drawing of a door with hands opening, showing an upward arrow (no text or symbols)

Diagram showing a door lock mechanism and its side view with arrows indicating motion (no text or symbols present)

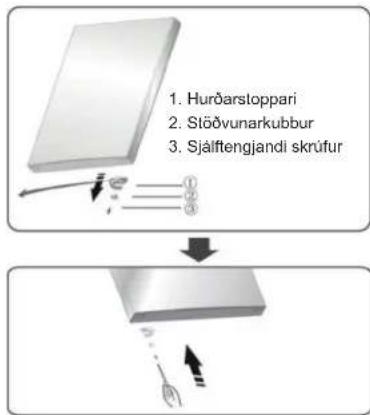

1. Leggõu neõri hurõina á slétan flöt og láttu ytri hlið visa upp. Losaõu skrúfurnar úr (3) og fjarlægõu íhlut (2) og (1). Settu upp hurõastopparann (1) (er í plastpokanum) og íhlut (2) (stoppara) vinstra megin á hurõina meõ skrúfunni (3). Geymdu íhlut (1) til notkunar síðar.

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Hillur í ísskápnum

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Sveigjanleg vínhilla (valkvætt)

Technical line drawing of a mechanical assembly with rollers and tubing (no text or symbols)

Illustration of a rectangular container with internal grid pattern and lid, no text or symbols present

Quality warranty applies to consumers
