NEED HELP? Full Manual & FAQs: The full manual and FAQs (Frequently Asked Questions) are accessible directly from your device’s Home screen, on one of the five panels. To access the FAQs, your device must be connected to the Internet (see: Connecting to the WiFi). You can also find them at www.archos.com/support. Contact our Technical Support Team: Visit www.archos.com/support for e-mail support. >Settings>About device>Online registration, or with a computer As we are often updating and improving our products, your device’s software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. Please register your product before contacting Technical Support: Menu (www.archos.com/register). 13/06/2011 16:58:12 ENGLISH Hardware Reset: In the event that your ARCHOS freezes operation, you can force the device to shut down by holding the button for 10 seconds. Volume buttons Power Button: press and hold to switch on/off. To put your device in standby (and allow a quick start up), press the Power button once. When you press and hold on the Power button, a window appears with a list of options. Tap on “Power Off” > “Power Off” to fully shut down your ARCHOS.

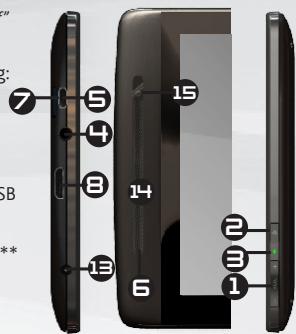

Charging indicator (when power cable connected) - light on: battery charging / blinking: battery charged

Micro-USB port: to connect your ARCHOS to your computer, using the included USB cable (to transfer files). You can also connect a keyboard, a mouse or a mass storage USB device (for example a USB stick), using the optional USB host adapter.

Micro-SD card reader*

Back - returns to the previous screen

Menu - gives menu options according to the current screen.

Home - Short press: return to the Home screen. Hold: jump to one of the recent applications. Search - allows you to search for an item on the device or on the Internet. 13 Power connector: to connect the supplied power cable. 14 Loudspeaker

15 Webcam ► * Depending on model ** With optional Mini-HDMI to HDMI cable. See the full user manual to learn more about the video output. STARTING UP Charging the Battery Before using your ARCHOS for the first time, completely charge the battery:

Connect the supplied power cable to the ARCHOS Power connector and to a wall outlet. The ARCHOS device will turn on and start charging.

The charging indicator light (right side of the device) is on when the battery is charging. It will blink when the battery is charged. Note: You can still use the device while charging its battery.

Startup Wizard The first time you start up your ARCHOS, the installation wizard will bring you through a few screens to help you set up the principal settings: Language, country, time, etc. Transferring files to your ARCHOS

Connect the supplied USB cable to the ARCHOS and to a running computer. The ARCHOS will turn on and ask you if you want to connect it. Tap on Mount to connect it. Within a few seconds the ARCHOS will appear as an icon on your computer.

You can transfer your media files to the ARCHOS either by copy/pasting them into the respective folders using Windows® Explorer (or the Finder on a Mac®), or by using Windows Media® Player (Sync tab).

Once all your file transfers are finished, close Windows® Explorer and any other program that may have read or written to the ARCHOS. Click on the ‘safely remove’ icon in the system tray, next to the clock. You can now unplug the USB cable. ► See the full user manual to learn how to fully configure your ARCHOS device.

CONNECTING TO THE WIFI

First of all, you need to configure a WiFi network. For this procedure to work, you need to be in a WiFi zone that will allow you to connect to it. Every time the ARCHOS is in range of a network that you have already configured once, it will attempt to make a connection.

To configure a new WiFi network, go on the Home screen, tap on the Menu icon

In the Settings screen, select Wireless & networks.

, then select Settings

If the WiFi is off, tap on the Wi-Fi line to turn it on. Then select Wi-Fi settings. The ARCHOS will scan for available WiFi networks and display them at the bottom of the screen.

Tap on the network you want to connect to. Then tap inside the Wireless password field to make the virtual keyboard appear. We recommend that you select Show password, to be able to see the characters you are typing.

Enter the required network information*, tap on Done, and then tap on Connect. Your ARCHOS will now attempt to establish a connection to that WiFi access point with the network parameters you entered.

• For free access WiFi points, there is no need to enter any special information. For secured networks, you will need either a key (a series of numbers and/or letters) of the type WEP, WPA, or WPA2. Check with the person who manages the WiFi network to obtain the exact connection parameters required.

► Consult the full Manual to learn more about the Internet configuration. When you rotate the product, the built-in accelerometer will automatically switch the screen between landscape and portrait views. Your ARCHOS device is equipped with a touchscreen. Most screen areas will react when you tap on them with your finger. Notification icons: tap and hold on the top bar until the notification window appears, then drag it downwards to reveal the notification messages (if any). Home Screen

THE ARCHOS INTERFACE

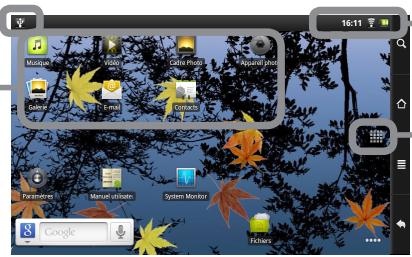

Status icons: (Time, WiFi connection status, battery level, etc.) Applications Tab These are the main Android™ applications (Video, Music, Gallery, Web Browser, etc.). Tap on an icon to open the corresponding application. You can customize the Home screen by adding/removing shortcuts and widgets, changing the wallpaper, etc. ► See the full manual for further information about the interface. Tap on this icon to reveal all the Android™ applications installed on your ARCHOS (games, various tools, etc.). You can copy them onto the Home screen. You can get more Android™ applications from the AppsLib which can be found on the Home screen.

13/06/2011 16:58:21 ENGLISH

THE ARCHOS INTERFACE

The extended Home screen: Slide your finger horizontally on the screen to navigate between the 5 panels of the extended Home screen. The main applications Video: Stop halfway through a video and pick up where you were watching just by tapping on the little “+” symbol, on the right of the file name. Music: Slide your finger (vertically or horizontally) on the album covers, on the left, to navigate more visually through your albums. Gallery: View your pictures as a photo wall and then oneby-one, or as a running slideshow. Simply drag your finger horizontally to jump from one photo to another. Browser: Have multiple pages open at once to jump back and forth between them. Email: Allows for e-mail accounts of the type POP or IMAP. Camera: Take still image photographs or video sequences. At any time, simply tap on the thumbnail on the top right to display the last-taken pictures. Changing the Settings: From the Home screen, tap on the Menu icon & networks, Sound & display, Date & time, etc. , tap on Settings and choose a category: Wireless Adding more applications: With the ARCHOS connected to the Internet, tap on the AppsLib icon on the Home screen. This online library of free and purchasable applications has hundreds of fun games and useful applications to download and use.

► See the full user manual to learn how to fully configure your ARCHOS device. TOUCHSCREEN FUNCTIONING When touchscreen functioning is impaired, you can recalibrate your touchscreen. -1.

If you can access the Android interface In the device homescreen, tap on , then tap on Settings. In the Settings screen, tap on Repair & Formatting at the bottom of the menu list. In the Repair & Formatting screen, tap on Touchscreen Calibration. A message will tell you to put your ARCHOS down.

4. Put the device on a flat surface.

5. Tap on Calibrate the touchscreen.

The calibration of the touchscreen starts. Do not touch the product until the calibration is finished. IMPORTANT: If you do not put the device on a flat surface (e.g. Table), the touchscreen calibration will not be successful. -- If you do not have access to the Android interface

1. When turning on the device, hold down

and press . The ARCHOS Recovery screen is displayed. Use to switch between options and to validate your selection.

2. Select Repair system and press .

3. In the Repair system screen, select Force touchscreen calibration and press .

4. Press again to confirm. And put your product on a flat surface.

The calibration of the touchscreen starts. Do not touch the product until the calibration is finished. IMPORTANT: If you do not put the device on a flat surface (e.g. Table), the touchscreen calibration will not be successful.

5. At the end of the calibration, press . The ARCHOS Recovery screen is displayed.

6. Select No. Your device will reboot. The touchscreen is now recalibrated.

NOTE: For more information, Refer to the Need help chapter.

APPSLIB : APPLICATION STORE

AppsLib is the application marketplace for Android tablets. Thousands of apps available to download straight to your Android tablet. Check out the best in free and paid-for applications. Approved apps Thanks to our approved stamp, you can see which applications have already been tested to work on your tablet by our engineers. Simple, secure Completely secure payment via Paypal. Tie your paypal account into AppsLib for hassle free shopping whenever you want. All kinds of applications Clear and unique categories such as 3D games. Ratings and comments Share your opinions. With AppsLib you can rate and comment on your applications for all the AppsLib community to see. When an update is available, you can: UPDATE APPSLIB now 1.Tap on the AppsLib icon on the Home screen. The application is opened. An update notification is displayed. 2.Tap on Update Now. The update starts. 3.Follow the on-screen instructions. 4.At the end of the installation, tap on Open. UPDATE APPSLIB later 1.Tap on the AppsLib icon on the Home screen. The application is opened. An update notification is displayed. 2.Tap on Update Later. You can access the application categories and download. Appslib will be listed on your My Apps list. Tap on it to update. As long as you do not update, a notification will be displayed whenever you open Appslib. NOTE: Download Appslib at www.appslib.com
