Compact 6928 - Griddle OBH NORDICA - Free user manual and instructions

Product Type	Griddle and Panini Maker
Brand	OBH Nordica
Model	Compact 6928
Power Supply	220-240 V~, 50 Hz, 2000 W
Temperature Control	Variable, 5 settings (Low-High)
Indicator Lights	Red (power on), Green (ready)
Plate Material	Non-stick coated grill plates
Adjustable Height	Yes, 3 levels for top plate
Lock Function	Yes, for closed position
Drip Tray	Yes, removable
Accessories Included	Cleaning scraper
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Thermal cut-out, RCD recommended
Intended Use	Domestic only
Guarantee	2 years limited (Sweden, Norway, Denmark, Finland)
Dimensions (approx.)	42 x 30 x 14 cm
Weight (approx.)	4 kg
Cooking Surface	Non-stick; use plastic utensils

Frequently Asked Questions - Compact 6928 OBH NORDICA

How do I preheat the griddle?

Plug the appliance into a wall socket. The red indicator light turns on. Turn the temperature control to the desired setting (1-5). Once heated, the green indicator light comes on, indicating it is ready to use.

Can I use metal utensils on the grill plates?

No, do not use metal utensils as they will damage the non-stick coating. Use plastic or heat-resistant plastic utensils instead.

How should I clean the griddle?

Always unplug and allow the appliance to cool completely. Scrape off food residues with the provided cleaning scraper. Clean the plates with a damp sponge and a little washing-up liquid, then dry thoroughly. Do not immerse the griddle or cord in water.

What is the recommended maximum thickness for meat?

For even grilling, it is best not to grill pieces thicker than 2 cm. This ensures perfect results.

How do I adjust the top plate for thicker foods?

Lift the handle slightly and pull the knob on the right side to one of the 3 height settings (1-3). This raises the top grill plate to accommodate thicker ingredients.

Why do the indicator lights go on and off during use?

This is normal. The thermostat cycles to maintain the optimum grill temperature, causing the lights to switch on and off.

Can I use the griddle outdoors?

No, the griddle is intended for indoor use only. Never use or store it outdoors where it may be exposed to rain or humidity.

How should I store the griddle?

Ensure the griddle is clean and completely dry. Lock it in the closed position by sliding the lever on the handle to the locked padlock symbol. Store in a clean, dry location.

What does the 2-year guarantee cover?

The guarantee covers manufacturing defects in materials or workmanship for 2 years from the date of purchase in Sweden, Norway, Denmark, and Finland. It applies to domestic use only.

Is it safe to leave the griddle unattended while in use?

No, the appliance must not be left unattended while it is connected to the mains supply. Always supervise during use.

USER MANUAL Compact 6928 OBH NORDICA

DESIGNING GOOD LIFE

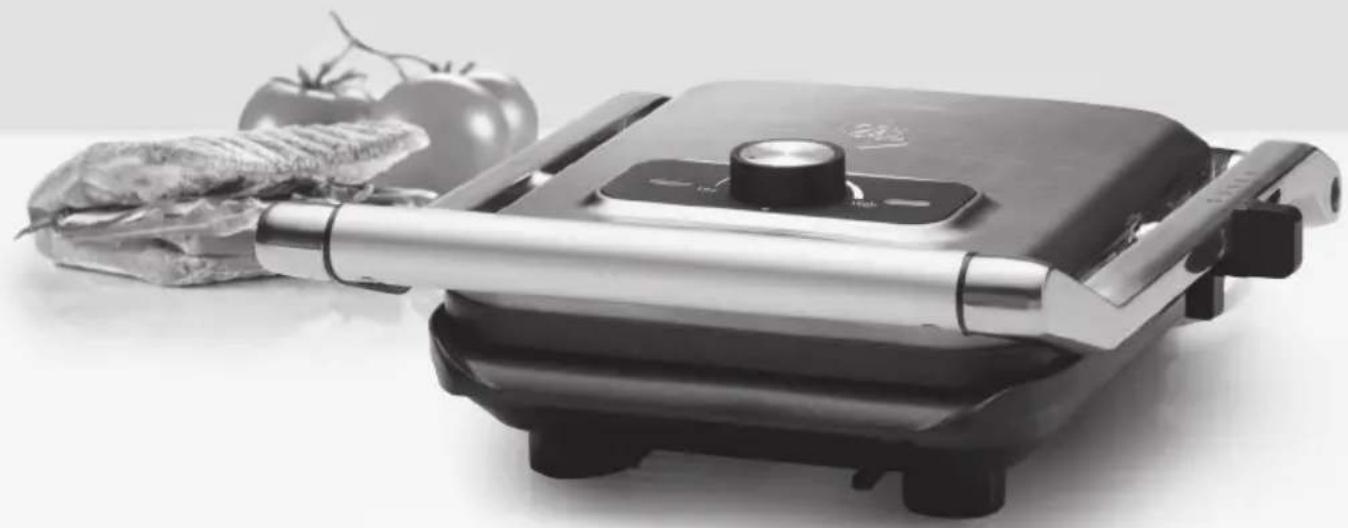

Grill & Panini Maker COMPACT

The easy solution for great tasting BBQ and panini

Making good!

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when not in use.
4. The appliance must not be immersed into water or other liquids.
5. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.
6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
7. Cleaning and user maintenance shall not be made by children, unless they are over the age of 8 and supervised.
8. Keep the appliance and its cord out of reach of children under the age of 8.
9. Check that the cord is not hanging over the edge of the table.

10. Do not place the appliance on or near hotplates, open fire or the like.

11. This appliance will become very warm when in use. Do not touch the warm parts. After use the appliance must always be treated with caution.

12. Never use or store the appliance outdoor, as it may be subjected to rain or humidity.
13. The appliance must not be left unattended while it is connected to the supply mains.
14. Caution: Never use charcoal, wood, paper, charcoal lighter fluid or the like when using the appliance.
15. Do not place the appliance near combustible material such as curtains, cloths and the like as this may cause fire.
16. Only use the accessories which were provided with the appliance.
17. It is utmost important that the appliance is kept clean since it becomes in direct contact with foodstuffs.
18. Caution and attention are required when preparing food which contains fat.
19. Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

20. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.

21. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.

22. The appliance is for domestic use only.
23. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Main components (see image on page 3)

1. Variable temperature control Low-High
2. Red indicator light = on
3. Green indicator light = ready to use
4. Non-stick grill plates
5. Handle
6. Lock button for griddles
7. Knob for adjusting the height of the grill plate + lock function
8. Cleaning scraper (not in picture)

Before use

• Remove the grill from the packaging.
• Clean the grill plates as described under "Cleaning and maintenance".
• Grease the grill plates with a little cooking oil before use.
• Wipe the exterior with a damp cloth.
• Place the appliance on a flat, heat-resistant surface.

Use

1. Plug the appliance into a wall socket. The red indicator light comes on.
2. Turn the temperature control to the required setting 1-5. Some ingredients require a lower temperature and longer cooking time while others are best cooked at a high temperature for a shorter time. The results will also vary depending on your individual taste. Experiment to see which setting best suits what you are cooking and keep an eye on the results during the cooking process. See also the grilling table below.
3. Once the appliance has finished heating up, the green indicator light will come on and the red indicator light will go out. The grill is now ready to use. NB! You may get a smell of smoke when the appliance heats up for the first time. This is perfectly normal.

NOTE! The indicator lights will go on and off during use. This indicates that the heating element is maintaining the optimum grill temperature.

Warning! The steam from the grill is very hot, particularly when you open the lid!

Place the ingredients on the grill plates and close the lid. Do not place too many ingredients on the grill plates at a time, as this will affect the grilling results and prolong the cooking time. Check the results after a few minutes.

If you want to grill thicker ingredients, raise the top grill plate by lifting the handle slightly and pulling the knob on the right side to setting 1-3.

Use an oven glove or pot holder when opening the lid. If you are not satisfied with the results, close the lid again and continue grilling.

Once you have finished grilling, lift the ingredients off the grill using a plastic utensil (heat resistant). Do not use metal utensils, as this will damage the non-stick coating on the grill plates. Unplug the appliance. Do not leave it plugged in when it is empty.

Do not cut into the ingredients when they are on the grill, as this may damage the coating.

Tips before grilling

For optimum results:

• Always preheat the grill.
• Only grill boneless fish, meat and pork for more even grilling results.
• Do not put too much filling in the sandwiches.
- Marinate ingredients and leave them in the fridge for at least 1 hour before grilling.
- Brush vegetables with oil for even grilling.
- Check the drip tray regularly to ensure that it does not overflow.

Cleaning and maintenance

• Always unplug the grill before cleaning and allow it to cool.
- Never submerge the grill or cord in water or other liquid.
- Scrape food residues off the plates using the cleaning scraper provided. Never use metal utensils.
- Clean the plates with a damp sponge and a little washing-up liquid. Make sure to remove all residues of washing-up liquid and dry with a dry cloth.
• Empty the drip tray and wash it before replacing it.
- Wipe the exterior with a damp cloth.
- Make sure the grill is completely dry before putting it away.

Storage

Keep the grill in a clean, dry location. Make sure the cord is not squeezed. The grill can be locked in the closed position by sliding the lever on the handle to the locked padlock symbol. Slide the lever to the open padlock symbol to open the handle again.

Grilling table

All cooking times are given in minutes. Times are approximate and may vary depending on the temperature, thickness, etc. of the ingredients. When grilling meat, it is best not to grill pieces thicker than 2 cm to ensure even, perfect results.

Type of meat	Weight Cooking time	(approx.)	Tip
Paninis 1-2 paninis	4-8 min Fill with ham,		mozzarella, tomato, turkey, etc.
Beef 300 g/2 cm	3 min. rare	5 min. medium7 min. well done	Brush with oil and various spices before grilling.
Beef 100 g/1 cm	1 min. rare	2 min. medium3 min. well done
Pork chops 150-	200 g/2 cm 6-8 min	Brush with oil	and various spices before grilling.
Chicken breast (Skinless and boneless)	100-150 g 8-10 min.	Grill until the juices are clear.
Chicken breast (with skin and bone)	100-150 g 9-11 min.	Grill until the juices are clear.
Chicken thigh (skinless)	100 g 5-6 min. Grill	until the juices	are clear.
Hamburger 100 g	3-4 min.
Sausage Thick	Thin	10-12 min.8-10 min.	Pierce the sausage before placing it on the grill.
Sliced smoked ham	5 mm 2-3 min. Turn	halfway	through
Fish with skin 225 g	3-4 min. Place skin side		down.
Salmon fillets	150 g 8-10 min. Marinate before		grilling.
Peeled prawns Large Medium	3-4 min. 2-3 min.		Brush with oil and various spices before grilling.
Aubergine 1 cm slices 3-4 min. Brush with oil	before grilling.
Whole mushrooms 4 cm 3-4 min. Brush with oil	before grilling.
Onion 1 cm slices 5-7 min. Brush with oil	and various spices before grilling.
Potato 1 cm slices 18-20 min. Brush with oil	and various spices before grilling.

When is the food ready?

Lightly-grilled meat - the meat "springs" back when you press it. It feels springy.

Medium-grilled meat - the meat is slow to "spring" back when you press it.

Well-grilled meat - meat is firm and does not "spring" back when you press it.

Chicken - pierce a hole in the meat with a fork. The meat juices should be completely free of blood once the chicken is ready.

NB! Remove the meat from the grill before cutting it into pieces to avoid scratching the coating.

Grilled fish - ready when the fish easily separates.

Marinating

Make a few incisions in the meat so that it can more easily absorb the marinade.

Always use a container (non-metal) or a plastic bag to mix the marinade with the raw ingredients.

Marinate the ingredients at least 1 hour before grilling.

The longer you marinate, the more tasty and tender the food will be. Fish requires a shorter marinating time than meat.

Discarding used equipment

By law electrical and electronic equipment must be collected for recycling of components. Electrical and electronic equipment marked with the waste management symbol must be disposed of at a municipal recycling point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

172 66 Sundbyberg

Phone [phone]

www.obhnordica.com

Technical Data

OBH Nordica 6928

220-240V\~, 50 Hz

2000 W

With reservation for running changes.
