MUF50W10E - Freezer MATSUI - Free user manual and instructions
Find the device manual for free MUF50W10E MATSUI in PDF.
| Product Type | Undercounter Freezer |
| Brand | Matsui |
| Model | MUF50W10E |
| Overall Dimensions (W x D x H) | 504 x 514 x 845 mm |
| Total Gross Volume | 82 litres |
| Frozen Food Storage Volume | 75 litres (****) |
| Defrost Type | Manual Defrost |
| Storage Temperature | ≤ -18 °C |
| Energy Consumption | 0.605 kWh/24h |
| Energy Class | A |
| Freezing Capacity | 4 kg/24h |
| Power Consumption | 60 W |
| Climate Class | N (16 °C – 32 °C) |
| Airborne Acoustical Noise | 40 dB |
| Number of Drawers | 4 (3 small + 1 large) |
| Fast Freeze Function | Yes (setting position 7) |
| Reversible Door | Yes |
| Included Accessories | Ice tray, plastic scraper |
| Cleaning Instructions | Use weak bicarbonate soda solution; rinse with warm water |
| Safety Features | Child lock (key not near appliance), warning against unauthorized repairs |
Frequently Asked Questions - MUF50W10E MATSUI
User questions about MUF50W10E MATSUI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual MUF50W10E - MATSUI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MUF50W10E by MATSUI.
USER MANUAL MUF50W10E MATSUI
GB
Unpacking 6
Product Overview 7
Installation....7
Location 7
Reversing the Door Swing 8
Levelling the Fridge 9
Cleaning Before Use 9
Before Using Your Fridge 9
Operating Instructions ....10
Switching On Your Fridge 10
Adjusting the Temperature 10
Fast Freezing 10
Noises Inside the Fridge! 10
Shopping for Frozen Foods 11
Preparations for Freezing 11
Defrosting Frozen Food 11
Cleaning 12
Defrosting 12
Cleaning the Interior and the Exterior of the Fridge 12
Cleaning Tips....12
Maintenance 13
Care When Handling / Moving Your Fridge 13
Servicing 13
Disposal 13
Specification 14
Safety First! 56
Innhold
NO
Utpakking 16
Produktoversikt ....17
Installasjon ....17
Plassering 17
Forberedelser for frying 21
Congratulations on the purchase of your new Matsui Undercounter Freezer.
We recommend that you spend some time to read this Instruction Manual in order to fully understand how to install and operate it.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
Unpacking
Remove all packaging from the fridge. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:

Small Freezer Drawer x 3
P.N.: CHT06

Large Freezer Drawer x 1
P.N.: CHT07

Plaster Scraper x 1
P.N.: BC01

Instruction Manual x 1 P.N.: MUF50W10E-003

If items are missing, or damaged please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance.

GB
Installation
Location
When selecting a position for your freezer you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your freezer near a heat source, eg. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the appliance not to perform properly. This freezer is not designed for use in a garage or outdoor installation.
Do not drape the freezer with any covering. When installing, ensure that free space is left at the sides. You may refer to the Overall Space Required in the Specification section. The freezer door can open to the right or the left, depending on what better suits the location.

- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.
- All parts removed must be saved to do the reinstallation of the door. You should rest the freezer on something solid so that it will not slip during the door change process. Do not lay the freezer flat as this may damage the coolant system. Ensure the freezer is unplugged and empty. We recommend that 2 people handle the freezer during assembly.
Reversing the Door Swing
Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner
GB

- Ensure the freezer is unplugged and empty.
- Adjust the two leveling feet to their highest position.
- To take the door off it is necessary to tilt the appliance backward. You should rest the Appliance on something solid, e.g. a chair just below the top panel.
-
All parts removed must be saved to do the reinstallation of the door. You should rest the freezer on something solid so that it will not slip during the door change process. Do not lay the freezer flat as this may damage the coolant system. Ensure the freezer is unplugged and empty. We recommend that 2 people handle the freezer during assembly.
-
Tilt the fridge carefully. 2 people are required to tilt the fridge during the door reversing process.
Slide the freezer door back on to the top hinge. Screw the bottom hinge into place on the new side.
-
Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the leveling feet.
To do this use the two levelling feet at the front of the freezer.
If the freezer is not level, the door and magnetic seal alignments will not be covered properly.

Cleaning Before Use
Wipe the inside of the freezer with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the baskets in warm soapy water and dry completely before replacing in the freezer. Clean the exterior of the freezer with a damp cloth.
If you require more information refer to the CLEANING section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the freezer.
• Before Turning On!
Do not turn on until two hours after moving the freezer. The coolant fluid needs time to settle.
Before Using Your Freezer
Before placing any food in your freezer, turn it on and wait for 24 hours, to make sure it is working properly and to allow the freezer to fall to the correct temperature. Your freezer should not be overfilled.
Switching On Your Freezer
- Before connecting the freezer to the mains supply make sure that the thermostat control dial is set at position 0. This is located at the rear of the freezer.
- Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting for the freezer when operating at normal room temperature (between 16°C and 32°C).
- The freezer may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the freezer door often.
- To ensure that the freezer is cool enough to sufficiently chill your food wait 24 hours before filling it with food.
- If you are concerned that your freezer is not being kept cold enough and wish to check the temperature you will need a special freezer thermometer. These are available from most supermarkets and hardware shops.
- Place the thermometer in the freezer, where it can be read easily. Leave overnight, the temperature in the freezer should be -18^ C or lower.

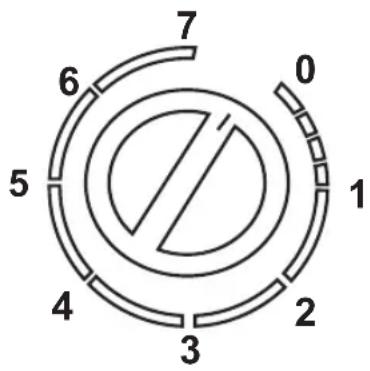

Adjusting the Temperature
The internal temperature of your freezer is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for hotter environments. Please adjusted according to the environment.
Fast Freezing
Fresh food should be frozen as quickly as possible. Setting position 7 makes your freezer operate the coldest (approximately -28°C) continuously. It helps to quickly freeze and retain more of the goodness of your food. Freezing will be completed after 24 hours. Then turn the thermostat control dial back to position 2-3 (-18°C). Never freeze large quantities of fresh food at one time.
Noises Inside the Freezer!
If you have not owned a freezer before, you may notice that it makes some rather unusual noises. Most of these are perfectly normal, but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your freezer. This is the compressor motor working, as it pumps the refrigerant around the system.
Shopping for Frozen Foods

- Your freezer compartment is 4-star.
- When you are buying frozen food, check the storage guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4-star rating. This is usually the period stated as "Best before" on the front of the packaging. The maximum freezing capacity of this freezer is 4kg in 24 hours. Do not place fresh food into the freezer compartment exceeding this weight.
- Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18^ .
• Take a quick look at the frozen food package and make sure it is in perfect condition.
• Always buy frozen products last on your shopping trip or visit to the supermarket. Try to keep frozen food together whilst shopping and on the journey home as this will help to keep the food cold. - Don't buy frozen food unless you can freeze it straight away. Specially insulated bags can be bought from most supermarkets and hardware shops. These bags can keep frozen food frozen longer.
Preparations for Freezing
- Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
- Leave cooked food to cool completely. Chill food in a freezer before freezing if possible.
- Consider how you will want to cook the food before freezing it.
- Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
-
Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, nor used food containers without cleaning.
-
Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.
- Leave a small amount of air space when freezing liquids to allow expansion.
- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.
- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.
- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.
Defrosting Frozen Food
- Take the frozen food out from the freezer compartment and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
- Drain off and throw away any liquid lost during defrosting.
- Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food is not fully defrosted.
- Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

- Never refreeze anything that has been defrosted out unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish.
- Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.
Cleaning
Defrosting
Frost might build up in the freezer compartment after the freezer has been used for a period of time. Scrape away the frost using a plastic scraper.

Do not use a metal or sharp instrument to scrap away the frost, nor should you use any electrical appliances to aid defrosting.
We recommend that defrosting should be carried out when the frost layer builds up to 3cm (\~1.18"). Choose a time when the stock of frozen food is low, follow these procedures:
- Take out the frozed food, turn the freezer off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer or refrigerator. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick rug or blanket to keep it cool.
- Place a shallow bowl or pan below the freezer. Scrap away the frost using the plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer cabinet and closing the door. As the solid frost loosens, scrap it away with the plastic scraper and remove.
- When defrosting is complete, clean your freezer's interior and exterior.
- Wipe the inside of the freezer with a weak solution of bicarbonate soda and then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the baskets.
- Use a damp cloth to clean the freezer exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the freezer.
- The grille of the condenser at the back of the freezer and the adjacent components can be vacuumed using a soft brush attachment.
Cleaning Tips
- Condensation may appear on the outside of the freezer. This maybe due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.
Care When Handling / Moving Your Freezer
Hold the freezer around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.
Servicing
This freezer should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the freezer yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.
When the freezer is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
Disposal
Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your appliance and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal.
Up to date information concerning options of disposing of your old appliance and packaging from the new one can be obtained from your local council office.
When disposing of an old appliance break off any old locks or latches as a safeguard.
Specification
GB
| Model MUF50W10E | |
| Overall Dimension (W x D x H) 504 x 514 x 845 mm | |
| Overall Space Required in Use (W x D x H) 975 x 980 x 875 mm | |
| Total Gross Volume 82 litres | |
| Frozen Food Storage Volume | 75 litres ✦ *** |
| Defrosting Type Manual Defrost | |
| Storage Temperature ≤ -18 °C | |
| Energy Consumption 0.605 kWh/24h | |
| Energy Grading A | |
| Temperature Rise Time ≥600 minutes | |
| Freezing Capacity 4 kg/24h | |
| Power Consumption 60 W | |
| Household Appliances Category Category 8 (upright freezer) | |
| EU Ecolabel N/A | |
| Energy consumption 221 kwh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. | |
| Climate Class | N |
| This appliance is intended to be used at an ambient temperature between 16°C and 32°C. | |
| Airborne Acoustical Noise | 40dB |
| Built In | N/A |
Features and specifications are subject to change without prior notice.
Normal energy consumption
Increased energy consumption
Installation site
In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source (radiator, oven).
Where the ideal ambient room temperature is approx 20^ C.
Situated near to a heat source (radiator, oven).
Where there is a high ambient room temperature.
Temperature setting with a thermostat which is approximate (set in stages).
With a medium setting of 4. With a high setting: the lower the temperature in the compartment, the higher the energy consumption.
Use
Only open the doors when necessary and for as short a time as possible.
Store food in an organised way. If food
Allow hot food and drinks to cool down before placing them in the appliance.
Store food covered or packaged. The
Place frozen food in the refrigerator to defrost.
Do not over-fill the appliance to allow air to circulate.
Frequent opening of the doors for long periods with cause a loss of coldness.
is not stored in an organised way, searching for an item will mean the door is open for longer.
Placing hot food in the appliance will cause the compressor to run for a long time, as the appliance will have to work harder to lower the temperature.
aporation or condensation of liquids will cause a loss of coldness in the refrigerator.
Defrosting
Defrost the freezer compartment when a layer of ice 3 cm thick has built up.
A layer of ice hinders the cold from reaching the frozen food, and causes an increase in energy consumption.

Liten fryseskuff x 3
PN: CHT06

Stor fryseskuff x 1
PN: CHT07

Plastskrape x 1
PN: BC01

Instruksjonsbok x 1 P.N.: MUF50W10E-003
Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)natural_image
Line drawing of a mechanical component with two downward arrows indicating direction (no text or symbols)natural_image
Line drawing of a mechanical device with rotating arms and adjustment knobs (no text or symbols)natural_image
Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)
Forberedelser for frying
Simple line drawing of a kitchen spatula (no text or symbols)natural_image
Line drawing of a simple refrigerator with lid and front panel (no text or symbols)Huvudenhet

Liten fryslåda x 3
Art.nr.: CHT06

Stor fryslåda x 1
Art.nr.: CHT07

Plastskrapa x 1
Art.nr.: BC01

Bruksanvisning x 1 Art.nr.: MUF50W10E-003
Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)natural_image
Line drawing of a mechanical component with two downward arrows indicating direction (no text or symbols)natural_image
Line drawing of a mechanical device with rotating arms and adjustment knobs (no text or symbols)natural_image
Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)
Illustration of a hand pouring liquid from a container into a rectangular container (no text or symbols)natural_image
Simple line drawing of a kitchen spatula (no text or symbols)natural_image
Line drawing of a simple refrigerator with lid and front panel (no text or symbols)Pääyksikkö
Two workers carrying a large cardboard box, depicted in motion (no text or symbols)natural_image
Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)natural_image
Line drawing of a mechanical component with two downward arrows indicating direction (no text or symbols)natural_image
Line drawing of a mechanical device with rotating arms and adjustment knobs (no text or symbols)natural_image
Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)
Illustration of a hand pouring liquid from a container into a container with a spoon (no text or symbols)natural_image
Simple line drawing of a kitchen spatula (no text or symbols)natural_image
Line drawing of a simple refrigerator with lid and front panel (no text or symbols)Hovedenhed

Lille Fryseskuffe x 3
P.N.: CHT06

Stor Fryseskuffe x 1
P.N.: CHT07

Plastikskraber x 1
P.N.: BC01
Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)natural_image
Line drawing of a mechanical component with two downward arrows indicating direction (no text or symbols)natural_image
Diagram of a mechanical device with rotating arms and directional arrows indicating motion (no text or symbols)natural_image
Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)
Rengøring før Brug
Simple line drawing of a kitchen spatula (no text or symbols)For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.
- Read all instructions carefully before using the freezer and keep them for future reference.
- Retain the manual. If you pass the freezer onto a third party, make sure to include this manual.
- Keep ventilation openings in the appliance enclosure clear of obstructions.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not use electrical appliances inside the food storage compartments of the freezer, unless they are of the type recommended by the manufacturer.
- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
- Choose a location for your freezer away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.
- Young children should be supervised to ensure that they do not play with the freezer.
- Do not damage the refrigerant circuit (applicable only for appliances with refrigeration circuits which are accessible to the user).
- The freezer must be maneuvered by a minimum of 2 persons.
- This freezer is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the freezer by a person responsible for their safety.
- If your freezer is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the freezer.

WARNING!
It is hazardous for anyone other than authorized service personnel to carry out servicing or repairs which involves the removal of covers.
To avoid the risk of an electric shock do not attempt to repair this appliance yourself.
This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
