L612WSM16E - Washing machine Logik - Free user manual and instructions

Product Type	Front-loading washing machine
Brand	Logik
Model	L612WSM16E
Dimensions (H x W x D)	845 mm x 597 mm x 430 mm
Weight	59 kg
Rated Voltage	220-240 V~
Rated Frequency	50 Hz
Maximum Power Input	1850 W
Rated Current	10 A
Washing Capacity	6.0 kg
Maximum Spin Speed	1200 rpm
Energy Efficiency Class	A++
Annual Energy Consumption	171 kWh/year (based on 220 standard cycles)
Annual Water Consumption	9900 L/year (based on 220 standard cycles)
Noise Level (Washing/Spinning)	61 dB / 79 dB
Water Pressure Range	0.1 MPa - 1 MPa
Programmes	Cotton, Easy Care, Wool, Synthetics, Rapid, etc.
Key Features	Delay timer (up to 12h), Child lock, Rapid wash, No spin option, Temperature selection
Installation Requirements	Remove transit bolts, level feet, connect cold water supply, drain hose min 60 cm max 100 cm
Maintenance	Clean drum, drain filter, detergent drawer, door seal regularly
Safety	Child lock, door lock when water level/temperature high, automatic shut-off
Accessories Included	Water supply hose, transport bolt covers, U-shaped drain hose holder, instruction manual

Frequently Asked Questions - L612WSM16E Logik

What should I do if the washing machine does not start?

Check that the door is fully closed, the water tap is turned on, and the machine is plugged in. If the Child Lock is activated, deactivate it by pressing and holding the Rapid Wash and No Spin buttons for 3 seconds.

How can I cancel or change a programme after it has started?

Turn the programme dial to the Off (O) position, then select a new programme and options. Press Start/Pause to begin. If the Child Lock is on, deactivate it first otherwise the original programme will continue.

Why is the door not opening after the wash?

The door lock remains active for 1 minute after the programme ends. If the machine is full of water or the temperature is high, the door will not open for safety. Wait for the lock to release or run a drain programme if needed.

How do I set the Child Lock?

After selecting a programme and pressing Start/Pause, press and hold the Rapid Wash and No Spin buttons together for 3 seconds. The indicators will flash to confirm. To deactivate, repeat the same process.

What does error code E1 mean?

E1 indicates the door is open. Close the door securely. If the error persists, turn off the machine, unplug it, and contact a service agent.

Why is there excessive foam in the detergent drawer?

This usually means too much detergent was used. Press Start/Pause, then select a Rinse programme to drain and rinse the drum. Use the correct amount of detergent next time.

How do I clean the drain filter?

First, run a spin programme to drain water, then unplug the machine. Remove the drain filter cover, place a container underneath, and turn the filter anti-clockwise to release water. Clean the filter and reinsert it, then replace the cover.

Why is the washing machine vibrating or noisy?

Ensure the transit bolts are removed, the machine is level, and all four feet are securely tightened. Check for metal objects in the drum or an unbalanced load.

How can I delay the start of a wash?

Select your programme and options, then press the Delay button repeatedly to choose 3, 6, 9, or 12 hours. Press Start/Pause to confirm the delay. The LED will count down.

What should I do if the water supply hose freezes?

If the hose is frozen, add 2-3 litres of warm water (about 50°C) to the drum and run a Drain programme. Prevent freezing by keeping the machine in a frost-free area.

USER MANUAL L612WSM16E Logik

Front view of a white LOGIK washing machine with a circular vent, showing front panel and control buttons (no readable text or symbols on the device itself)

Contents

GBNO

Unpacking....21

Installation 22

Installing Your Washing Machine ....22 Choosing the Right Location for Your Washing Machine ....22

Moving and Installing ....23 Removing the Transit Bolts....23

Moving the Washing Machine from One Location to Another.....24

Hose and Cable Lengths 24

Levelling the Washing Machine 24

Water Supply Hose....25

Preventing a Frozen Water Supply Hose 25

Connecting to the Mains Supply 26

Water Drain Hose....26

Product Overview....27

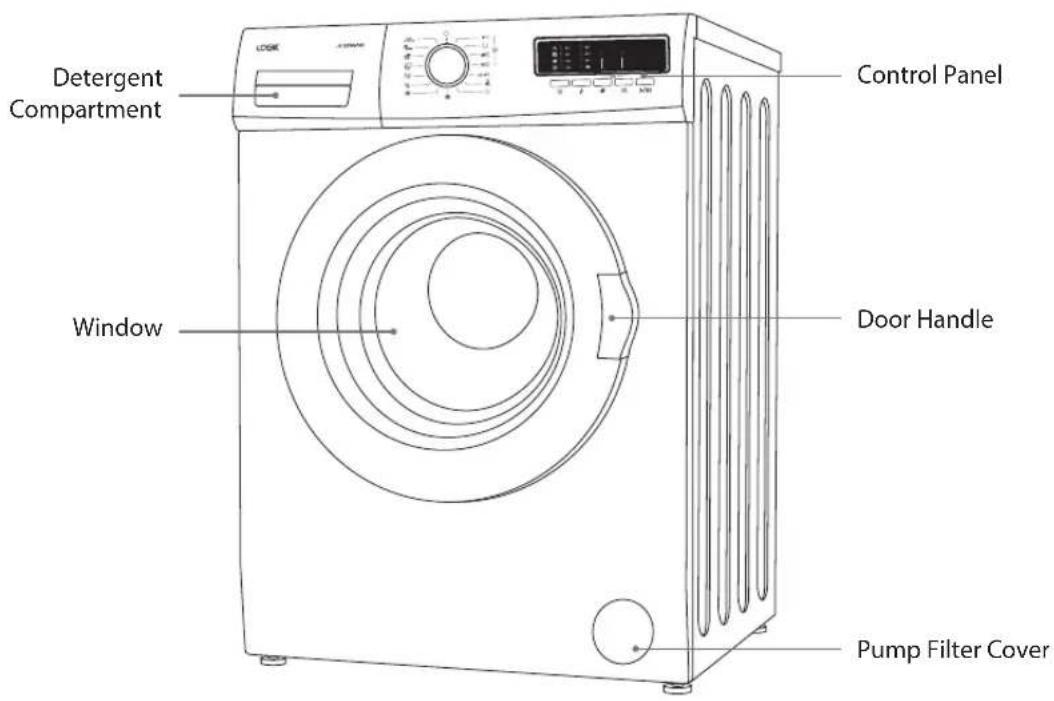

The unit 27

The Control Panel 28

Preparation 29

Organising Laundry....29

Preparing Laundry 29

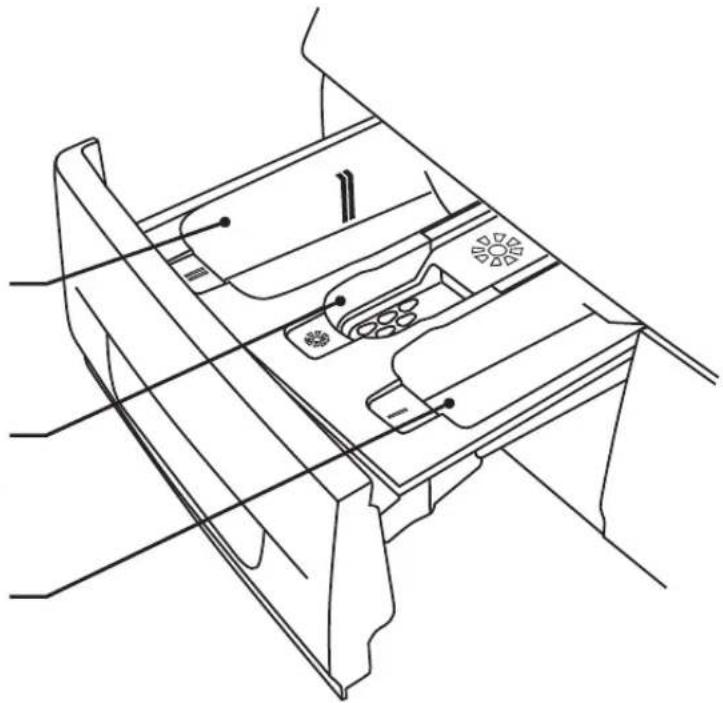

Adding Detergent and Softener 30

Before First Use....31

Wash Setting 31

Standard Washing 31

Removing Washing (Once programme is finished)....31

Selecting the Programme....32

Important Information....33

Washing Delicates (Wool and Sensitive/Hand Wash Programmes)....33

Adding Delicate Laundry Items to the Drum 33

Which Detergent to Use....33

How to Use Laundry Starch 33

How to Set the Child Lock 34

Setting the Delay Timer....34

Canceling the Delay Timer 34

Maintenance - Cleaning the Washing Machine 35

Cleaning the Drum....35

Cleaning the Exterior of your Washing Machine....35

Cleaning the Detergent Drawer....35

Siphon Plug 35

Cleaning the Door Seal and Window 35

Cleaning the Drain Filter 36

Cleaning the Filter Net of the Water Supply Hose 37

Hints and Tips....38

Error Codes 40

Specifications....40

Product Fiche 41

Innhold

Pakke opp....43

Installasjon....44

Installere vaskemaskinen ....44 Velge riktig plassering for vaskemaskinen....44

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

WARNING!

• If you will not be using the washing machine for a while such as when you go on holiday, disconnect the plug from the mains supply and turn off the water supply to the washing machine. This is particularly important if there is no drainage around the washing machine.
• If the water supply is left on, water pressure may build up and cause a leak.

General Use

• Transit bolts are used to transport the washing machine. You should remove these using a spanner or similar tool before you install the washing machine. If you do not, it will cause strong vibrations when the washing machine is spinning.
• Do not install your washing machine anywhere that is damp or exposed to the weather. If you do, it may cause an electric shock, fire, failure or deterioration.

• Do not pour water directly onto any part of the washing machine. It may cause a short circuit or electric shock.

• Keep burning objects such as candles or cigarettes, away from the washing machine. They may cause a fire or damage.

• Keep flammable substances well away from the washing machine – for example kerosene, gasoline, benzene, paint thinner and alcohol, or clothing soaked with these. They may cause an explosion or a fire.
• This washing machine is only suitable for washing textiles labelled 'washing machine washable'.
• Do not connect the washing machine to hot water. The washing machine works with cold water only.
• Before you start using the washing machine, turn the tap on to check that the hose is properly connected. If it's not, there may be a water leak.
• Do not put too much laundry (max 6kg) or detergent into the washing machine. It may cause issues with the washing machine or laundry.
• Be careful not to get your laundry caught in the door when you close it. This could cause a water leak or damage your laundry.
• This washing machine is for indoor household (domestic) use only.

Power Source and Cable

• Use an independent household dedicated mains socket, rated at 10 Amp 220V to 240V AC. If the washing machine is plugged in with other appliances, it may overheat and cause a fire.
• Make sure the mains plug is pushed firmly into the socket. A loose connection may overheat and cause electrical shock or a fire.
• Check the mains lead and mains plug for any damage. If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Unplug the mains lead when cleaning the washing machine.
• Do not touch the mains lead or mains plug with wet hands. It may cause an electric shock.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains plug, it could cause a fire. To prevent this, unplug the cable and clean the mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the cable. Pulling the cable may cause an electric shock or a fire.
• Do not use a mains plug adapter or extension cable. It may overheat and cause a fire.

• Make sure your home voltage matches the voltage displayed on the washing machine. If you are not sure, contact an electrician.
- The mains plug must remain accessible to allow disconnection or an all pole switch must be incorporated in the fixed wiring in accordance with the wiring regulations.

To Prevent Injury / Damage

• Do not climb on the washing machine. You may hurt yourself or damage the washing machine.
• When opening and closing the door ensure you keep fingers away from the door hinge, or this could lead to injury.
• Check your washing for objects such as nails, pins, coins, clips etc. They could damage your laundry or the washing machine.
• To prevent any large, heavy objects (e.g., buckles, large buttons, etc.) from hitting the glass door, turn your clothing inside out or remove the heavy objects. They could damage your laundry or the washing machine.
• Do not wash, rinse or spin waterproof sheets or clothing. These may cause vibration or washing machine failure during spin-drying, which could lead to injury, damage to the washing machine or damage due to water leaking.
• Be careful when draining hot water or any detergent from the drum.

- Do not dismantle, repair or modify the washing machine. The washing machine could malfunction and cause a fire or injury.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
• Children of less than 3 years should be kept away unless continuously supervised.
- Do not touch the laundry inside the washing machine, until the drum has completely stopped. Even if the drum is spinning at low speed it can cause an injury. Take particular care of children in this respect.
- The appliance is to be connected to the water mains using the new hose-set supplied. Old hose-sets should not be reused.
- Inlet water pressure: Max: 1Mpa Min: 0.1Mpa

- The ventilation openings in the base of the washing machine must not be obstructed by a carpet.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Sikkerhetsadvarsler

NO

Thank you for purchasing your new Logik Washing Machine.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

GB

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

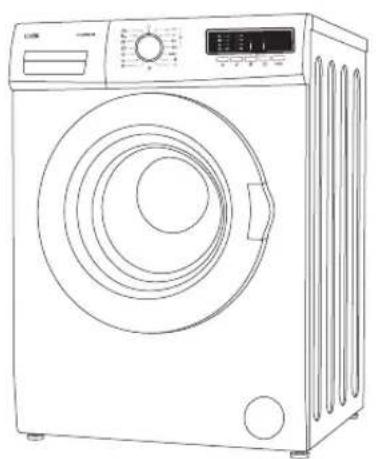

Line drawing of a washing machine with control panel and front panel (no text or symbols)

The Main Unit

Transport Bolt Covers x 4 U-Shape Drain Hose Holder

Water Supply Hose

Instruction Manual

Installing Your Washing Machine

Please read and follow the instructions carefully.

• In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components (e.g. washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or where there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of tripping over them.

An additional space (approximately 120mm) is required at the rear of the washing machine. This is to allow enough space for the water hose and drain hose connections.

Choosing the Right Location for Your Washing Machine

• Make sure there's enough space for your washing machine.
  • Install your washing machine on a flat, stable surface to avoid excessive vibrations and noise.
• Don't install your washing machine in direct sunlight or in a place where temperatures can reach freezing.

✗ Sloping surface

x Unstable & Brumpy sui

Two or more people are required to move the washing machine.

• The ventilation openings in the base of the washing machine must not be obstructed by carpet.
• Start by tilting the washing machine backwards.
• One person should stand behind it, holding the rear of the top panel. The other person should grip the bottom feet at the front.
• Check that you have all the required accessories for installation.
  • We recommend that you entrust the installation of the washing machine to a qualified technician.

Moving and Installing

Removing the Transit Bolts

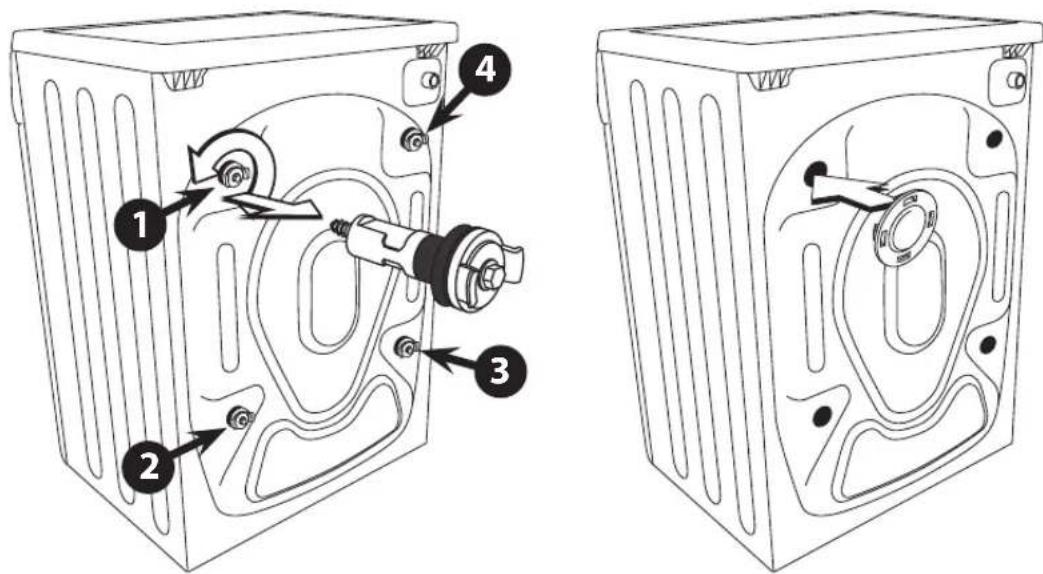

Four transit bolts keep the interior of the washing machine in place while it's being moved. They need to be removed before installation. Use a spanner (not supplied) and follow the instructions detailed below.

Don't run the washing machine without removing the transit bolts, as this can cause excessive vibrations and may damage your machine.

To remove the transit bolts:

1. Ensure the unit is fully disconnected from the mains power by unplugging it from the mains.
2. Unscrew the four (4) transit bolts.
3. They are located at the rear side of the washing machine. Use a spanner (not included) to loosen the four (4) transit bolts, then pull out the bolts horizontally. Ensure the plastic bolt guides (if any) are also removed.
4. Snap in the plastic caps to cover the transit bolt holes.

You'll need the transit bolts again if you move the washing machine, so make sure you keep them in a safe place.

Technical line drawing of a mechanical component with threaded end and central hub (no text or symbols)

Moving the Washing Machine from One Location to Another

Before you move the washing machine:

• Shut off the tap and run the washing machine to drain the water. Drain any remaining water from the pump hose.
• Disconnect the mains cable.
• Attach the transit bolts.

Make sure to fix the transit bolts prior to moving the washing machine.

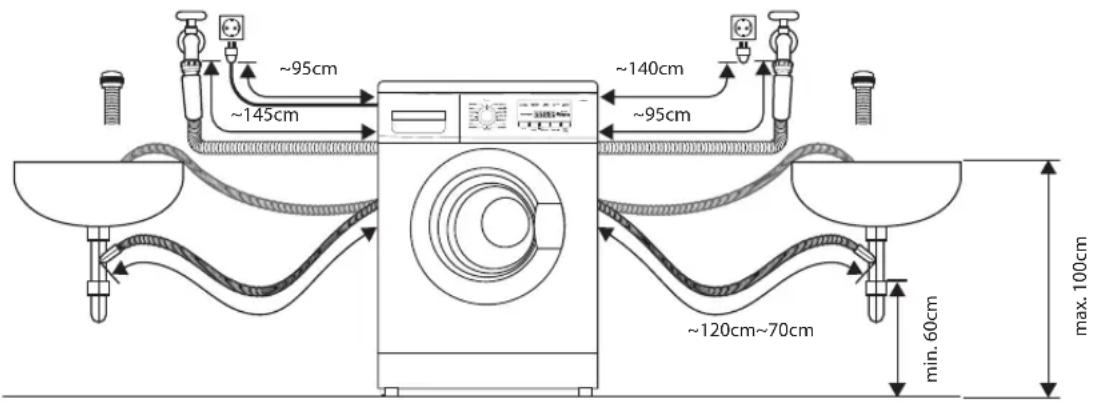

Hose and Cable Lengths

How to connect from the left side

How to connect from the right side

Levelling the Washing Machine

There are 4 levelling feet on the underside. They MUST be adjusted to make sure the washing machine is level.

Mechanical gear assembly diagram showing a threaded shaft and base (no text or symbols)

On each foot, loosen the lock ring by turning clockwise.

Pure mechanical diagram showing a gear and rotating component without any text or symbols

Adjust all four feet by rotating each upwards or downwards.

Illustration of a front-loading washing machine with control panel (no text or symbols)

Use a spirit level to ensure the washing machine is level.

Mechanical assembly diagram showing a bolt and nut assembly (no text or labels)

Tighten each lock ring by turning them anti-clockwise (towards the washing machine body).

Ensure all four lock rings are tightened securely. Check the feet are still bolted to the washing machine - if they're unbolted, the washing machine will move around.

Water Supply Hose

Points to remember

• Follow the instructions in this section to avoid water leaks.
- Don't connect the hose to a combination tap.
- Don't twist, squash, modify or cut the hose.
- This machine is designed to connect to the cold water supply. Do not connect to the hot water supply.
• Use only the new water supply hose supplied. Old hose sets should not be reused.

Connecting the Water Supply Hose

1. To prevent leakage from the connection joints, ensure the rubber washer seals are fitted to each end of the water supply hose. Do not use without the seals in place.
2. Fit the straight end of the water supply hose to the cold water tap.
3. Connect the angled end of the white headed hose to the water inlet valve on the machine. Hand tighten the plastic parts of the connections. If you are unsure, please call a qualified plumber for safer connections.
4. Open the tap slowly and check that there are no leaks around the connection joints.

Simple line drawing of a bird's head and neck with eye, nose, and tail (no text or symbols)

Preventing a Frozen Water Supply Hose

If your washing machine is delivered in freezing weather conditions, leave it at room temperature for 24 hours after you've set it up before using it. This ensures there's no ice blocking the water supply hose. If your water supply hose freezes, add 2 or 3 litres of warm water to the drum. Then run a "Drain" only programme.

Water Drain Hose

Points to remember:

• Don't twist, pull out or bend the drain hose.
• The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground.

Draining to a sink or wash-basin

• Secure the drain hose in position, so it can't drop out of the basin.
• Don't block the basin's drain outlet, and make sure that the drainage through it is sufficient to prevent overflowing.
• Don't let the tip of the drain hose dip into the drained water, as this can cause the water to flow back into the washing machine.

U-Shape Holder

Line drawing of a car interior showing dashboard, steering wheel, and seat (no text or symbols)

Draining to a wash-basin

Pure diagram of a pipe connection with no text, numbers, or symbols

Draining to a drain hose

Connecting to the Mains Supply

For your safety:

- Do not use a mains plug adapter or extension cable.

- If the mains cable or mains plug are damaged, stop using them and call a qualified technician for assistance.

- An earthed plug has been attached to the power cable of your washing machine. This plug must be inserted into an earthed socket capable of supplying 13 Amps. If you have no such sockets and fuses in your house, call a qualified electrician.

- The mains plug must remain accessible to allow disconnection or an all pole switch must be incorporated in the fixed wiring in accordance with the wiring rules.

Installation Check List

By now, you should have installed the washing machine.
Let's go through the checklist to ensure that the installation has been done correctly!

Questions Checkbox
Transit bolts - Have you removed them and attached the cover caps properly?
4 levelling feet	Four Adjustable Feet - Are they bolted securely to the washing machine?
	Four Feet Cushions - Are they standing flat?
Power supply - Is the household dedicated mains socket rated for 220V - 240V AC and can supply 13 Amps?
Location - Is your washing machine on a flat, stable surface?
Water Supply Hose - Is it free from leaks and is the water supply normal?

The unit


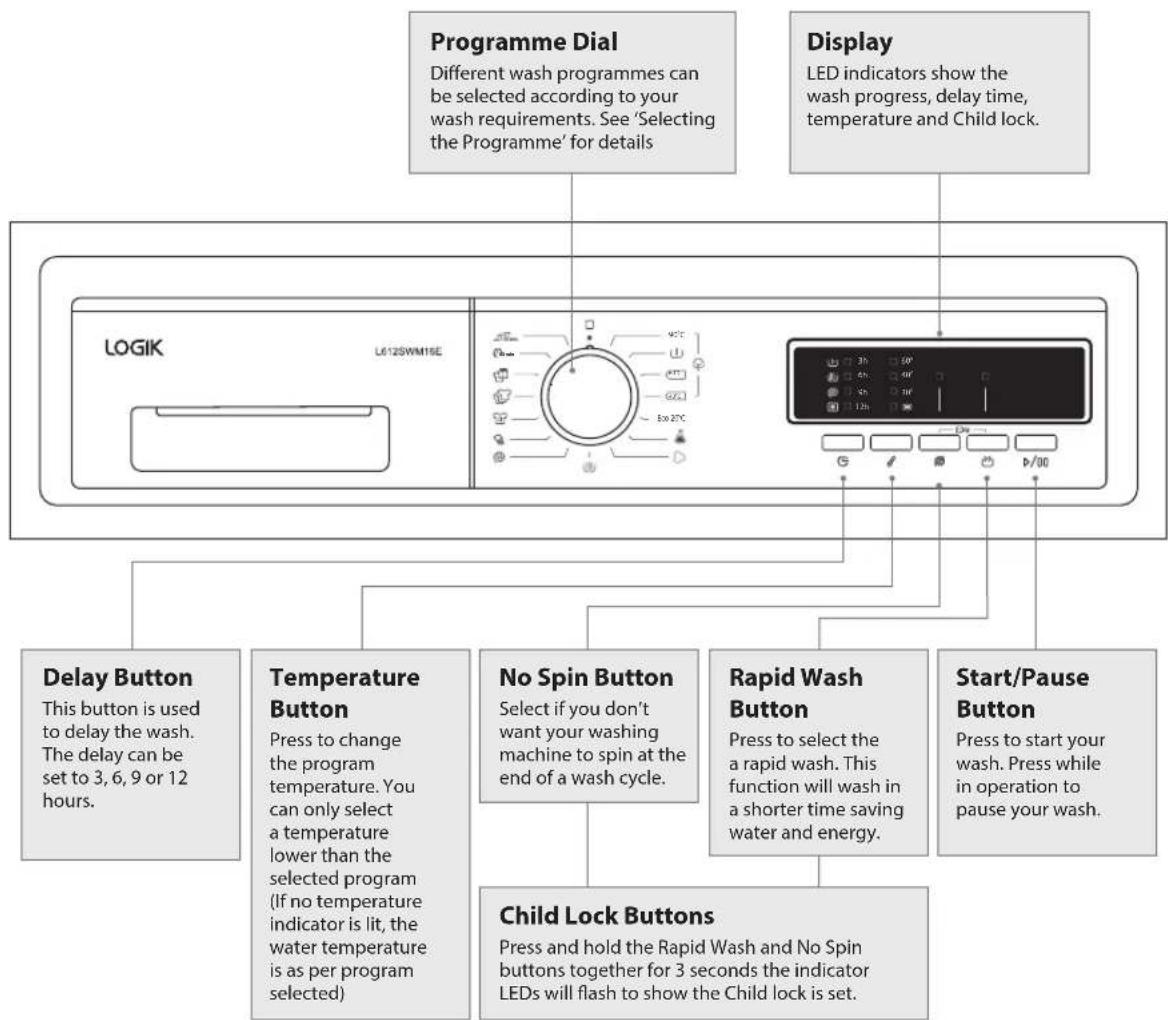

    A["Programme Dial"] --> B["Display"]
    B --> C["Delay Button"]
    B --> D["Temperature Button"]
    B --> E["No Spin Button"]
    B --> F["Rapid Wash Button"]
    B --> G["Start/Pause Button"]
    C --> H["Delay Button: This button is used to delay the wash. The delay can be set to 3, 6, 9 or 12 hours."]
    D --> I["Press to change the program temperature. You can only select a temperature lower than the selected program (If no temperature indicator is lit, the water temperature is as per program selected)."]
    E --> J["Select if you don't want your washing machine to spin at the end of a wash cycle."]
    F --> K["Press to select the a rapid wash. This function will wash in a shorter time saving water and energy."]
    G --> L["Press to start your wash. Press while in operation to pause your wash."]
    H --> M["Press and hold the Rapid Wash and No Spin buttons together for 3 seconds the indicator LEDs will flash to show the Child lock is set."]
    I --> N["Press to change the program temperature. You can only select a temperature lower than the selected program (If no temperature indicator is lit, the water temperature is as per program selected)."]
    J --> O["Press to select the a rapid wash. This function will wash in a shorter time saving water and energy."]
    K --> P["Press to start your wash. Press while in operation to pause your wash."]
    L --> Q["Press to start your wash. Press while in operation to pause your wash."]

• If you need to change a programme after the wash has started, turn the programme dial to the off position (O) then select a new programme, spin speed and optional functions, and then press the Start / Pause button. (Ensure the Child Lock is off, otherwise the original programme will continue.)
• Water is poured into the washing machine to perform an inspection at the time of shipment from the factory, so there may be drops of water or condensation in the washing machine. This is not an indication of a malfunction.

During initial start-up and use of the unit, there may be a slight smell while the motor is settling in. This is not a fault; this is normal operation.

Read the following to understand how best to prepare your laundry for washing.

Organising Laundry

• Read the washing label on each garment to help you sort your washing into different loads.
• Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash.
• Do not exceed the maximum load! See the table in the 'Selecting a Programme' section for the maximum load for the programme you require.

Preparing Laundry

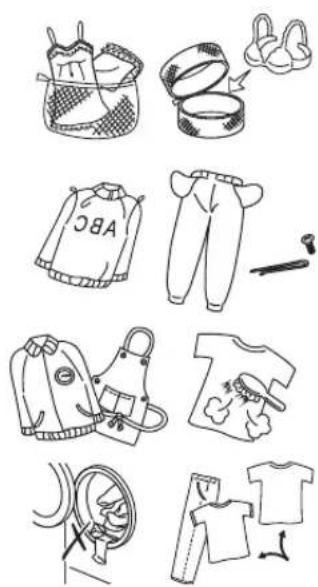

• Treat stains before washing.
- Some items should be put into a cleaning net before going into the washing machine. i.e. bras with metal wires, tights and lace clothing to prevent damage.
- Check that pockets do not contain any objects which may damage your clothes and the washing machine.
- Tie up any loose strings on laundry, close zippers and reverse clothing with zips inside out.
- To prevent any large, heavy objects (e.g., buckles, large buttons, etc.) from hitting the glass door, turn your clothing inside out, or remove the heavy objects. These could damage your laundry or the washing machine.
- Remove any surplus hair, animal fur, sand, and other materials with a brush before washing.
• If clothes have raised fabric turn them inside out.
• Clothes that are not colour fast should be washed separately.
- Insert your clothes into the washing machine. Close the washing machine door. Ensure that you do not trap any items of clothing between the loading door and the rubber seal.

Illustration of various clothing and accessories including jackets, pants, bags, and accessories (no text or symbols)

GB

Adding Detergent and Softener

Main wash detergent

Softener

Pre-wash detergent

Simple line drawing of a flower-like symbol with vertical lines above and below (no text or labels)

Line drawing of a vehicle interior frame with no text or symbols

• Add detergent into the appropriate dispenser.
  • Apply softener before you start washing.
• Apply detergent and softener according to the washing amount, the soiling level, the water hardness in your area and the manufacturer's instructions of these products.

Dilute viscous fabric softener and fabric conditioner with water. Prevent blockage of the overflow. Maximum level is 40ml.

• Do not use the washing machine when the detergent drawer is removed. It may cause a water leak or it may not work normally.
• If you forget to add detergent, you can drain the washing machine by running a drain only programme. Then you can add detergent and start the programme again. Detergent only reaches the drum when water flushes through the detergent drawer.
• To prevent powder detergent staying in the drawer, dry the inside of the drawer with a cloth. Make sure the powder isn't lumpy when you add it into the drawer.
• If the rinse cycle isn't removing all the detergent from your wash, use less detergent.
• Softener should not exceed the MAX level in the compartment.
• Wash out unused softener with a splash of water or a damp cloth after the programme has finished.

Before First Use

GB

Before washing your clothes for the first time, run a full wash programme first:

1. Connect the machine to the mains power supply and the water supply.
2. Put a small amount of detergent in the detergent drawer. Close the drawer.
3. Select a wash programme.
4. Press the Start / Pause button.

Wash Setting

Standard Washing

1. Pull the door handle and put the laundry in the drum. (Refer to Preparation to sort your laundry before it goes into the drum.) Make sure no washing gets caught in the door.
2. Close the door.
3. Add detergent into the detergent drawer. The quantity of detergent will depend on the amount of laundry, the degree of soiling and the water hardness. Use the amount of detergent suggested on the packaging.
4. Turn the Programme dial to select a wash programme.
5. Change the temperature if desired.
6. Press the Start / Pause button to start the washing.
7. The End LED will be lit when the programme is complete.

- If the door is locked and you switched the washing machine off - or if there's a power cut - it will stay locked for 1 minute. If the machine is full of water, do NOT open it.

Line drawings of household items including a refrigerator, a box, a milk bottle, and a handbag (no text or symbols)

Removing Washing (Once programme is finished)

Door remains locked for 1 minute after wash stopped.

• Open the washing machine door and remove your washing.
• Remove any foreign objects to avoid risk of rusting.
• Leave the door and detergent drawer open so that residual water can evaporate.

GB

Selecting the Programme

Here are the available programmes, additional functions and option settings.

Temperature can be selected separately for certain programmes.

Procedure Description		Load (kg)	Detergent Box			No Spin	Rapid Wash	Default Temp. (°C)	Default Time (Min)	Spin Speed (rpm)
		6.0	Case I	Case II	Softener Case
Cotton 90° 6.0*	X1Q			●		√	√	90 189	1200
Pre-Wash Cotton†	山	6.0* O	●	●		√	√	60 150	1200
Cotton 60°	60°C	6.0* X	O	●		√	√	60 200	1200
Cotton 40°	40°C	6.0* X	O	●		√	√	40 190	1200
Cotton 20°	Eco 20°C	3.0** X	O	●		√	X	20 96	1200
Easy Care		3.0 X	O	●		√	√	40 89	800
Wool		2.0 X	O	●		√	X	30 40	600
Rinse						√	X	Cold 36	1200
Spin		6.0	-	-	-	X	X	NA	15 1200
Sensitive/Hand Wash		2.0 X	O	●		√	X	30 89	600
Sports		3.0 X	O	●		√	√	30 80	800
Mixed		3.0 X	O	●		√	√	30 90	800
Blouses/Shirts		3.0 X	O	●		√	√	60 114	600
Daily 60°	60 min	3.0 X	O	●		√	√*	60 60	1200
Rapid 15 min		2.0 X	O	●		√	√▲	30 15	800

* Maximum of 3.0kg of towelling material. ^† Heavily soiled laundry. ** Maximum of 2kg of towelling material. ◆ Reduces the temperature to 30°C. ▲ Default on cannot me turned off.

EN 60456 test program / Energy label program with Cotton 60°C / 40°C, max. spin speed and intense function.

● Means must, O Means optional, X Means not necessary

- Standard washing cycle programs are the Standard 60°C Cotton Program and the Standard 40°C Cotton Program. These cycles are suitable for cleaning naturally-soiled laundry and are the most efficient washing cycles in terms of combined energy and water consumption.

- For all washing programs, please following the detergent recommendations on the garment label or on the detergent's packaging.

- Washing times depend on the program type, ambient water temperature and wash load (weight and type).

- Energy and water consumption will vary according to wash load and type, extra functions, tap water and ambient temperatures.

• The actual water temperature may differ from the declared cycle temperature.

- Your washing machine will automatically detect if you have only inserted half a load or less of laundry, it will automatically reduce the washing time, water consumption and energy in some programs.

Important Information

GB

Washing Delicates (Wool and Sensitive/Hand Wash Programmes)

These programmes rock the drum gently for best results on delicate laundry.

• laundry loads: 2kg or less
• Tips for Wool programme:

Approximate Weights:

• Wool sweater (400g)
• Silk blouse / under garment (200g)
• Trousers (400g)

Line drawings of four different clothing items: sweater, jacket, dress, and skirt (no text or symbols)

Adding Delicate Laundry Items to the Drum

• Close zips and buttons.
• Add items one by one on top of each other.
• Don't overload the drum as it may cause excessive vibrations or damage the washing machine.

Diagram showing a mechanical assembly with three views of a cylindrical component, one being rotated (no text or symbols present)

Which Detergent to Use

• For woollen items, use a mild liquid detergent. Other detergents may damage your woollen clothes.
• With Wool or Silk programmes, you may need to use an extra rinse cycle to remove excess detergent from your clothes. This depends on the amount of detergent you use, and the amount of foam that develops in the main wash cycle.

How to Use Laundry Starch

Synthetic laundry starch is a stiffening agent. Follow the laundry starch manufacturer's instructions.

• To use laundry starch, simply add it to the softener compartment, next to where you add detergent. It will automatically be applied to your clothes as part of the final rinsing cycle.
• If it's hard to pour, you can dilute the starch slightly with water before adding it to the softener compartment. Make sure you don't fill the compartment over the MAX level.

After using starch, clean the detergent drawer, especially the softener cover. Then remove any excess starch in the drum, run a "Rapid" programme without detergent.

GB

How to Set the Child Lock

The Child Lock prevents children from accidentally changing a wash programme:

1. Select and start a programme.
2. Press and hold the 🔒 and 📁 buttons at the same time for 3 seconds to set the child lock. The 🔒 and 📁EDs will flash for a few seconds.
3. If any button or the control knob is operated while the child lock is active, the ⏻ and 📋EDs will flash for a few seconds.
4. To deactivate child lock, press and hold the 🔒 and 📋buttons for 3 seconds. The 🔊 and LEDs will flash for a few seconds, child lock will now be deactivated.

- The child lock will automatically deactivate when the programme ends. But if you switch the programme off before it ends the Child Lock will remain active. Which could mean the next time you use your machine its set to the wrong programme.

Setting the Delay Timer

You can set a delayed start for your washing of up to 12 hours. Make sure you have selected a wash program and any other settings before setting the delay timer.

1. Select a delay time by pressing the 📊 repeatedly the LED will light. You can cycle through 3h - 6h - 9h - 12h - off (LED flashes).
2. Press the ▶/□ button to start the delay timer. The LED will flash quickly 4 times to show the delay timer is set. The LED will count down e.g. if you selected a 12 hour delay after 3 hours the 9 hour LED will light, and so on until your washing machine starts.

Cancelling the Delay Timer

- Press the Ⓗ button (the WASH/3h LED will be flashing slowly) or set the Programme dial to OFF.

- The program or temperature can not be changed once the delay time has started. Only Ⓞ (no spin) and 📋 rapid wash) can be selected.

Maintenance - Cleaning the Washing Machine

GB

Always unplug the washing machine before cleaning.

Cleaning the Drum

Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent.

Never use steel wool.

Don't put laundry in the washing machine during the drum cleaning.

Cleaning the Exterior of your Washing Machine

• Clean the outside of your washing machine with a soft cloth and mild detergent such as kitchen detergent.
• Don't splash water over the washing machine.
• Do not use cream cleansers, thinners or products containing alcohol or kerosene.

Cleaning the Detergent Drawer

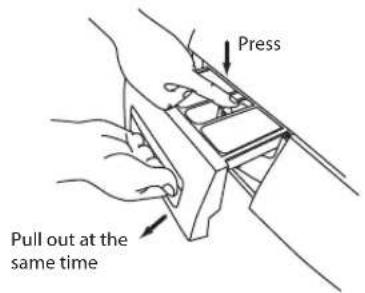

1. Remove the detergent drawer by pulling and pressing gently on the rear centre part of the softener compartment.
2. Wash out old detergent from the drawer with water. (Use a cloth to clean the washing machine.) Residue detergent soon builds up if you don't clean the drawer regularly, and can develop mould.
3. Return drawer to original position.

Line drawing of a hand holding a wooden shelf with a tool, no text or symbols present

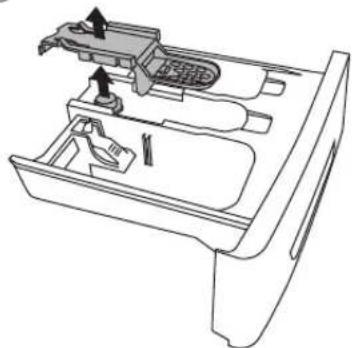

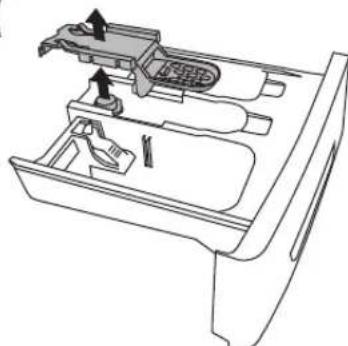

Siphon Plug

Pull out the detergent drawer. Remove the siphon plug parts and clean any residual softener thoroughly. Fit the cleaned siphon plug in its location. Check it is fitted properly.

Line drawing of a car interior showing hand positioning and control panel (no text or symbols)

Cleaning the Door Seal and Window

• Wipe the window and seal after each wash to remove lint and stains. If lint builds up, it can cause leaks.
• Remove any coins, buttons and other objects from the door seal after each wash.

GB

Cleaning the Drain Filter

Be careful not to burn yourself while cleaning the drain filter. Water draining from the filter compartment may be hot after a high temperature wash.

Before cleaning the drain filter, first start the spin programme, then switch off and unplug the washing machine.

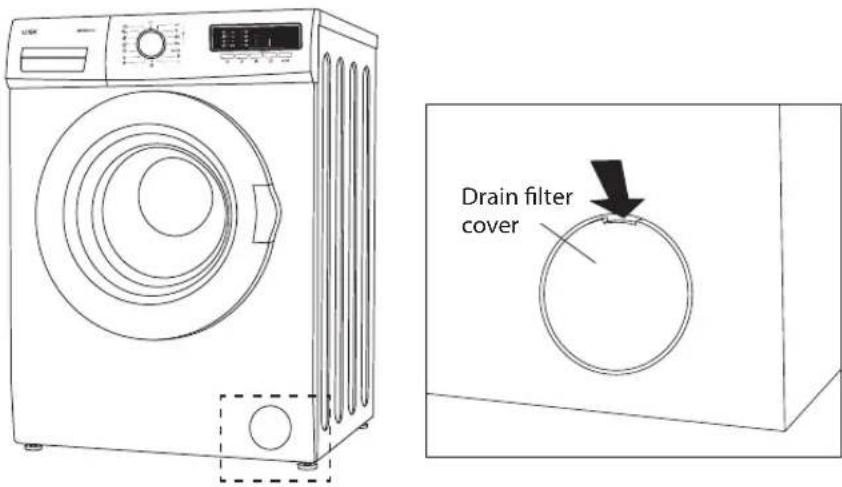

1. Remove the drain filter cover. Place a suitable container under the drain filter to catch the water.

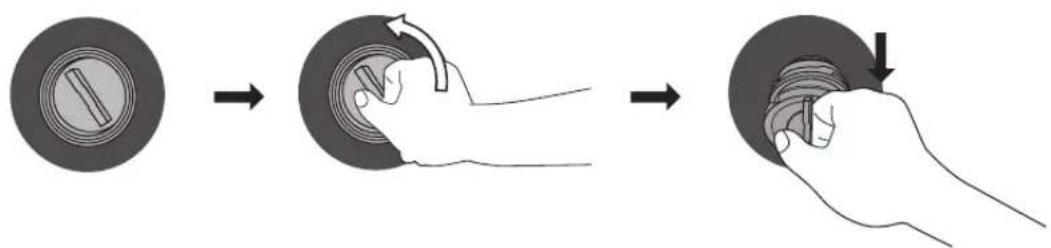

2. Carefully loosen the drain filter. Turn anti-clockwise until the water gently begins to run out, this is normal.

Illustration of a hand holding a circular object with internal components, showing a step-by-step transformation (no text or symbols)

1. Remove the filter once the water has stopped.

2. Remove any lint and debris before carefully replacing the filter.

3. Turn the filter clockwise and screw the filter back into place.

4. Replace the cover.

Cleaning the Filter Net of the Water Supply Hose

1. Turn the water supply off at the tap.
2. Close the washing machine door and select "Drain" programme and press the Start / Pause button.
3. When finished, turn the power off. Remove the water supply hose from the tap.
4. Manually remove the filter net located on the tap side of the water supply hose and clean using a small brush (e.g. a toothbrush).
5. Return the filter net to its original position.
6. Re-connect the water supply hose to the tap and turn the tap back on, checking for leaks.

GB

Issues Solutions
Buttons don't work • Child lock is activated. Deactivate the child lock function.The washing machine is operating a wash programme.TheProgramme Dialwas turned to a different programme.
Door doesn't open • Door lock may be active.The water temperature or level could be too high.
If you start a wrong programme accidentally.	First pressStart/Pausebutton or turn theProgramme Dialto 0(Off) position. Secondly turn theProgramme Dialto the correct programme, spin speed or optional function you want. Press theStart / Pausebutton to start the new programme. (Note: We suggest that you do not change the programme after the machine has been running for 3 minutes.)
Unusual odour.• Rubber parts and the motors may give off a smell when you first start using the washing machine, but this goes away over time.You should wash the drum once a month.
You can't see any water. This is normal: The water level is below the window.
There's no water going into the washing machine.	The water tap might be turned off.The water hose or water-supply hose may be frozen.Your water supply may be disrupted.The water-supply valve filter may be clogged.
There's only a small amount of water.	If you have paused the programme and you restart, the washing machine may drain some water.Don't pour water in through the door.
Water adds up during washing.	This is normal: water is supplied automatically as the level lowers, and with heavy loads the water may fill up repeatedly.
The washing machine does not spin.	If a small load is in the washing machine, it may be detected as an unbalanced load and may stop spinning after a number of attempts. Select the manual spin.
There's no water going into the washing machine during rinse operation.	Before rinsing, the washing machine spins to drain water remaining from the wash. The water will fill up after that.
During the spin-dry, the drum stops and rotates several times.	This is normal. The washing machine has detected an unbalanced load and is trying to correct it.
Foam and water remain in the door or door seal.	Although foam and water may remain, it does not have any influence on the performance of a rinse.
Spin starting is repeated. This is normal. Although spin starting may be repeated, it is a function made to spin quietly.
There's not much foam. •	This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.The amount of foam can vary, depending on the temperature, level and softness of your water.You may not be using enough detergent.You may be using a reduced-foam type of detergent.Heavily soiled laundry can reduce the amount of foam.Larger loads of laundry can also reduce the amount of foam.
There's a lot of foam • The amount of foam can vary depending on the temperature, level and softness of your water.You may have used too much detergent.The type of detergent you use could cause excess foam.
Fabric softener overflows •	You may have exceeded the MAX level in the softener drawer.You may have spilt the liquid by closing the softener drawer too sharply.
There's a residue of powder detergent at the end of the wash	This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.
There's an unusual noise or vibration	Check that there's nothing metal in the drum.Make sure the transit bolts used in transportation have been removed.Check that the washing machine feet have been levelled correctly.Check the washing machine is on a flat, stable surface.
There's a noise when the water drains away	This is normal, it's the pump starting and stopping.
The electricity supply cuts out while the washing machine's on	The washing machine will stop (do not open the door if the machine is full of water). When the power comes back on, the washing machine will continue the programme.
The water supply is disrupted	When the water comes back on, it may be impure at first.You'll need to disconnect the water-supply hose and drain any impure water through the tap before using your washing machine again. Remember to re-connect the water supply hose first.
Excessive foam in the detergent drawer	Press the Start/Pause button. Change the programme to the Rinse selection to manually rinse and drain the drum. Use the correct amount of detergent next time.

GB

Display LED	Reason Solutions
	The door of your machine has been left open.	Close the door. If the error code remains turn the machine off, unplug it from the mains and contact your service agent.
	The water pressure or the water level inside the machine is low.	The mains water could have been turned off. Turn the water on at the mains. If the error code remains, your machine will automatically stop. Switch it off at the mains socket and unplug the machine. Turn the water off at the mains and call a service agent.
	The pump is faulty, the pump filter is clogged or the electrical connection to the pump is faulty.	Clean the pump filter. If the error code remains unplug it from the mains and contact your service agent.
	Your machine has an excessive amount of water.	Your machine should discharge water by itself. If the error code remains, switch it off at the mains socket and unplug the machine. Turn the water off at the mains and call a service agent.

Specifications

Model L612SWM16E
Rated Voltage 220 - 240V~
Rated Frequency 50 Hz
Maximum Energy Rated Power Input 1850 W
Dimensions of the Product 845mm (H) x 597mm (W) x 430mm (D)
Product Weight 59 kg
Washing Capacity 6.0 kg
Rated Current 10A
Pressure of Tap Water 0.1 MPa - 1 MPa

Features and specifications are subject to change without prior notice.

Product Fiche

GB

Model: L612SWM16E

Rated capacity: 6 kg

Energy efficiency class: A++

Energy consumption 171 kWh per year, based on 220 standard washing cycles for cotton programmes set at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

Energy consumption of the Standard Cotton 60° C at full load: 1.00 kWh

Energy consumption of the Standard Cotton 60° C at partial load: 0.62 kWh

Energy consumption of the Standard Cotton 40°C at partial load: 0.55 kWh

Water consumption of the Standard cotton 60° C at full load: 47L

Water consumption of the Standard cotton 60°C at partial load: 43L

Water consumption of the Standard cotton 40°C at partial load: 43L

Remaining moisture content: 53%

Off mode power consumption: <0.5 W

Left-on mode power consumption: <1 W

Water consumption is 9900 litres per year, based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.

Spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient).

Maximum spin speed: 1200 rpm

The standard 60° C Cotton Programme and the Standard 40° C Cotton Programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.

Time of Cotton 60°C full load: 200 mins

Time of Cotton 60°C partial load: 165 mins

Time of Cotton 40°C: 160 mins

Airborne acoustical noise (washing): 61 dB

Airborne acoustical noise (spinning): 79 dB

GB

• Programme setting for testing is in accordance with applicable standard EN60456-2011.
• When using the test programmes, wash the specified load using the maximum spin speed.
• The actual parameters will depend on how the appliance is used, and may be different from the parameters listed above.

Takk for at du kjøpte ny Logik vaskemaskin.

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Hovedenheten

Transportbolt dekselhette × 4 U-formet slangeholder

Vannforsyningsslange

Bruksanvisning

NO

Installere vaskemaskinen

Slik tar du av transportboltene:

Technical line drawing of a mechanical component with threaded end and flanged shaft (no text or symbols)

NO

Pure mechanical assembly diagram showing a gear and nut component without any text or symbols

Pure mechanical diagram showing a gear and shaft assembly without any text, numbers, or symbols

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and nut (no text or symbols)

Stram til hver läsemutter ved å vri mot klokken (mot kroppen på vaskemaskinen).

Påse at alle de fire låseringene er strammet godt til.

Simple line drawing of a bird's head and neck (no text or symbols)

Forhindre en frossen vannforsyningsslange

Hvis vaskemaskinen leveres ved en temperatur under frysepunktet, må du la den stå ved romtemperatur i 24 timer etter at du har satt den opp før du bruker den. Dette sørger for at vannforsyningsslangen ikke tettes av is. Hvis vannforsyningsslangen fryser, kan du helle to-tre liter varmt vann i trommelen. Kjør deretter «Drain»-programmet (tømming) alene.

NO

Avløpsslange

Punkter å huske på:

Illustration of various clothing and accessories including jackets, pants, t-shirts, and accessories (no text or symbols)

NO

Line drawings of household items including a refrigerator, a box, a milk bottle, and a clear plastic bag (no text or symbols)

Line drawings of four different clothing items: sweater, jacket, dress, and skirt (no text or symbols)

Diagram showing a mechanical assembly with three views of a cylindrical component, one being rotated (no text or symbols present)

Line drawing of a hand holding a tool over a mechanical bracket (no text or symbols)

Line drawing of a car interior drawer with handle, drawer socket, and control panel (no text or symbols)

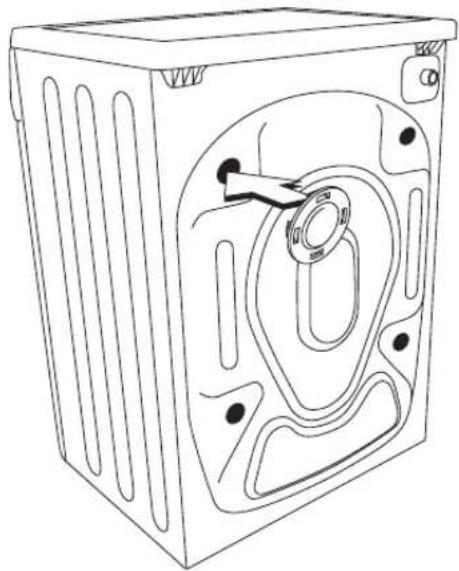

Vannlåsplugg

Illustration of a hand holding a circular object with a tool, showing a step-by-step process (no text or symbols)

Line drawing of a washing machine with control panel and front panel (no text or symbols)

Huvudenhet

Technical line drawings of mechanical flange components and a U-shaped bracket (no text or symbols)

Vattenslang x 1

Bruksanvisning

Line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with threaded end and flanged shaft (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical gear assembly with no visible text or symbols

Pure mechanical diagram showing a gear and nut assembly without any text, numbers, or symbols

Line drawing of a washing machine with control panel and door (no text or symbols)

Mechanical assembly diagram showing a bolt and nut assembly (no text or labels)

Simple line drawing of a bird's head and hand, no text or symbols present

Line drawing of a medical procedure with tubing and a plate (no text or symbols)

Technical line drawing of a pipe connection with a valve and fittings (no text or symbols)

Illustration of various clothing and accessories including jackets, pants, t-shirts, and accessories (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawings of four household items: a microwave oven, a rectangular box, a milk bottle, and a clear water bottle (no text or symbols)

Line drawings of four different clothing items: sweater, jacket, dress, and skirt (no text or symbols)

Diagram showing a mechanical assembly with three views of a cylindrical component, one being folded and the other inside (no text or symbols)

Illustration of a hand turning a circular component into a ring, showing step-by-step motion (no text or symbols)

Line drawing of a white front-loading washing machine with control panel and door (no text or symbols)

Laite

Technical line drawing of a mechanical component with threaded end and central hub (no text or symbols)

ASENNUS

Pure mechanical gear assembly diagram without any text, numbers, or symbols

Mechanical assembly diagram showing a gear and shaft assembly (no text or labels)

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Simple line drawing of a mechanical assembly with a bolt and nut (no text or symbols)

Simple line drawing of a bird's head and hand, no text or symbols present

Pure technical diagram of a pipe connection with no text, numbers, or symbols

Illustration of various clothing and accessories including a jacket, pants, t-shirt, and sweater (no text or symbols)

Line drawings of household items including a refrigerator, a box, a milk bottle, and a clear water bottle (no text or symbols)

Line drawings of four different clothing items: sweater, jacket, dress, and skirt (no text or symbols)

Diagram showing a cylindrical object with internal striped pattern being processed into a separate 3D block structure (no text or symbols)

Illustration of a hand holding a circular component with a tool, showing progressive assembly and rotation (no text or symbols)

Line drawing of a washing machine with control panel and door (no text or symbols)

Hovedenheden

Line drawing of a mechanical housing component with internal cavities and mounting holes (no text or symbols)

Sådan fjernes transportboltene:

Technical line drawing of a mechanical component with threaded end and flanged shaft (no text or symbols)

INSTALLATION

Mechanical gear assembly diagram with no visible text or symbols

Pure mechanical diagram showing a gear and rotating component without any text or symbols

Line drawing of a front-loading washing machine (no text or symbols)

Mechanical assembly diagram showing a bolt and nut assembly (no text or labels)

Simple line drawing of a bird's head and neck with eye, nose, and hand (no text or symbols)

Line drawing of a car interior showing dashboard and seat (no text or symbols)

Afløb til vask

Pure mechanical diagram showing pipe connection with no text or symbols

Illustration of various clothing and apparel items including jackets, pants, t-shirts, and accessories (no text or symbols)

DK

Line drawings of four different clothing items: sweater, jacket, dress, and skirt (no text or symbols)

DK

Diagram showing a cylindrical pipe with internal layered structure and an arrow indicating rotation (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

68 www.knowhow.com/knowledgebank

www.lefdal.com/support

se www.elgiganten.se/support

IB-L612WSM16E-160321V1
