LSG2503 - Compost Grinder Cotech - Free user manual and instructions

Product Type	Garden Shredder (Compost Shredder)
Model	LSG2503
Brand	Cotech
Power Supply	230 V, 50 Hz
Rated Power	2500 W
No Load Speed	40 RPM
Max Branch Diameter	40 mm (depending on hardness)
Sound Pressure Level (LpA)	71 dB(A)
Sound Power Level (LwA)	91 dB(A)
Weight	26 kg
Overload Protection	Automatic shut-off with reset button
Reverse Function	Rotational direction switch to release jams
Cutting Plate Adjustment	Allen key adjustment for optimal shredding (0-0.5 mm gap)
Safety Features	Zero voltage breaker, earthing, RCD recommended
Intended Use	Shredding biodegradable garden waste (branches, twigs)
Housing Material	Plastic
Wheeled Stand	Yes, with robust tubular stand and two wheels
Maintenance	Clean with mild detergent; lubricate for long-term storage
Storage	Dry place, out of children's reach
Accessories Included	Allen key for cutting plate adjustment

Frequently Asked Questions - LSG2503 Cotech

What should I do if the motor does not start?

Check for a power cut, wait for the overload protection to reset (press reset button after 1 minute), or ensure the direction switch is not in neutral.

Why is material not being pulled into the shredder?

The blades might be rotating backwards (check direction switch), the intake could be clogged, the catcher bag may be full blocking the output, or the blades are jammed. Clear any blockages and ensure proper feed.

How do I adjust the cutting plate for better shredding?

With the motor running, slowly turn the adjustment screw (using the included Allen key) clockwise until you hear a scraping noise and see minimal aluminium shavings. This sets the gap to 0 mm. Always adjust with the motor on and normal feed direction.

What is the maximum branch diameter I can shred?

Up to 40 mm, depending on the hardness of the branch. Softer branches may shred more easily.

How do I use the reverse function to clear a jam?

First turn off the shredder and let it stop completely. Then set the direction switch to the up position (reverse) and press the green start button. The blades will rotate backwards to release material. Release the button to stop.

What maintenance does the shredder require?

Clean the ventilation ports and housing with a mild detergent and damp cloth. Never spray water inside. Periodically check stand screws. For long storage, lubricate with eco-friendly anti-corrosion lubricant and store in a dry place.

Can I shred kitchen waste or wet garden waste?

No. Kitchen waste and soft, non-solid waste are not suitable. Wilted or damp garden waste should be alternated with dry branches to prevent clogging.

What safety precautions should I take?

Always wear hearing protection, eye protection, gloves, and sturdy clothing. Keep bystanders and pets away. Only use on a flat, stable surface. Ensure the machine is earthed and use an RCD for extra safety.

Why is the shredder not shredding adequately?

The cutting plate gap may be too wide. Adjust it as described in the manual. Also check that the blades are not dull or damaged, and that the material is suitable for shredding.

How do I store the shredder when not in use?

Clean it thoroughly, lubricate moving parts, and store in a dry place out of reach of children. Unplug the power cord and keep it away from moisture.

USER MANUAL LSG2503 Cotech

Line drawing of a portable electric water heater with wheels and control panel (no text or symbols)

ART.NO 18-3120 40-6000

MODEL LSG2503-UK LSG2503

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services (see address on reverse).

1. Safety Instructions

• Note: Before cleaning or performing service on the machine make sure that the power switch is set to 0. Make sure that the power lead has been removed from the machine. The motor will continue to rotate a short while after being turned off before coming to a complete stop.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• The user is responsible for proper use of the machine and is responsible for any possible injuries occurring to third parties through improper use.
• The garden shredder must be placed on a flat stable surface.
• Use gloves, hearing protection and eye protection/visor when using the machine.
• Before going away from the garden shredder make sure that you have turned off the motor and have removed the power lead from the machine.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The machine can only be adjusted and cleaned once the motor has completely stopped and the power lead has been removed from the machine.
  Note: When adjusting the cutting plate however, the motor must be in operation (see section 5.5).
• Make sure that the machine is completely and correctly assembled before turning on the motor.
• Do not hold your hands near the intake opening or the output chute.
• Make sure to wear proper fitting clothing; no hanging or oversized clothes, no jewellery or similar items which may get caught in the rotating blades.

1.1 General safety guidelines

- Make sure to inspect the machine visually before using it. Do not use the machine if the safety devices are damaged or worn. The safety devices must not be compromised or deactivated.

- The machine must never be used if the housing is broken or if any of the parts are missing.

• The machine may only be used for the purposes outlined in this instruction manual.
• Check the appropriateness of the material being shredded before using the machine. Remove any foreign objects. Be aware of any foreign objects during the time of use. If you still manage to accidentally insert a foreign object, make sure that you turn off the machine immediately. Then carefully remove the foreign object.
  • Work only when there is adequate daylight or lighting.
• Make sure that you are standing steady and well balanced when using the machine.
• Always keep an eye on the machine. If you need to stop working, turn off the machine, unplug it, and store it in a safe place. If you need to stop work and change locations you must turn off the machine before moving it.
• Never use the machine in rain or in a moist or damp environment. Protect the machine from rain or moisture.
• Turn off the motor and remove the power lead when: not using the machine, when the machine is not being attended, when the machine is being checked, if the lead or the blades are damaged, or if the machine needs to be moved to another location.
• Make sure that there is adequate distance between the machine and bystanders. Keep a close eye on children and pets within the machine's danger zone.
• Make sure that the ventilation openings are unobstructed from leaves and debris.
• Unplug the machine after each use and check for any possible damage before storing.
• When not using the machine for an extended period ensure that the machine is stored in a dry location out of the reach of children.
• Only use the machine as described in this instruction manual.
• Regularly check that all screws are adequately tightened.
  Voltage from the mains must correspond to the machine's rating plate.
• The power point used must be protected with at least a 10 A slow blow fuse.
• Any extension cables used must be suitable for outdoor use and have at least a H07RN-F rating and a minimal conductor cross sectional area of 3G1.5 mm². Plugs must be earthed and the sockets must be splash-proof. Check the power lead regularly for damage and wear. The machine can only be use if the power lead is suitable for use.
• If the extension lead has a reduced conductor cross sectional area the machines performance will be reduced considerably. For leads under 25 m in length a 3G1.5 mm ^2 minimum conductor cross sectional area is required, if over 25 m a 3G2.5 mm ^2 area is required.
• Never move the machine by pulling on the lead.
• If the shredder vibrates extremely abnormal, turn off the machine immediately, pull out the plug and find the cause of the problem. Strong vibrations are often an indication of a problem.
  • Repairs should only be carried out by a qualified service technician.
• Before operating the machine and every time it has been exposed to shocks or impact it should also be checked for damage or wear. Leave it in for repairs when necessary.
• Use only spare parts and accessories that are intended for the machine or have been recommended by the manufacturer.
  • Note: The rotary blades continue to rotate a few seconds after turning off the machine.
• The garden shredder should only be connected to an earthed wall socket. Connect it via a RCD for personal safety.

1.2 Safety symbol guide

Caution: Read through the entire instruction manual and follow all warnings and safety guidelines.

Caution: It is a necessity to use eye protection, hearing protection, protective gloves and sturdy work wear when using the machine. Use preferably a helmet with a visor.

Caution: Protect the machine against moisture an do not expose it to rain.

Caution: Rotating blades. Keep hands and feet away from the intake opening and output chute.

Note: The blades continue to rotate a short while after the machine has been turned off.

Caution: Immediately pull out the plug if the power outlet or lead has been damaged or cut.

Caution: Set the power switch to 0 and remove the cable from the machine. Ensure that the blades have stopped completely before servicing, transporting, etc.

Caution: Ensure that the safety area is of adequate size.

Caution: There is a risk of material being thrown forcefully from the machine during use. Make sure that bystanders and pets are removed from the work area.

Note: Cutting plate adjustment screw.

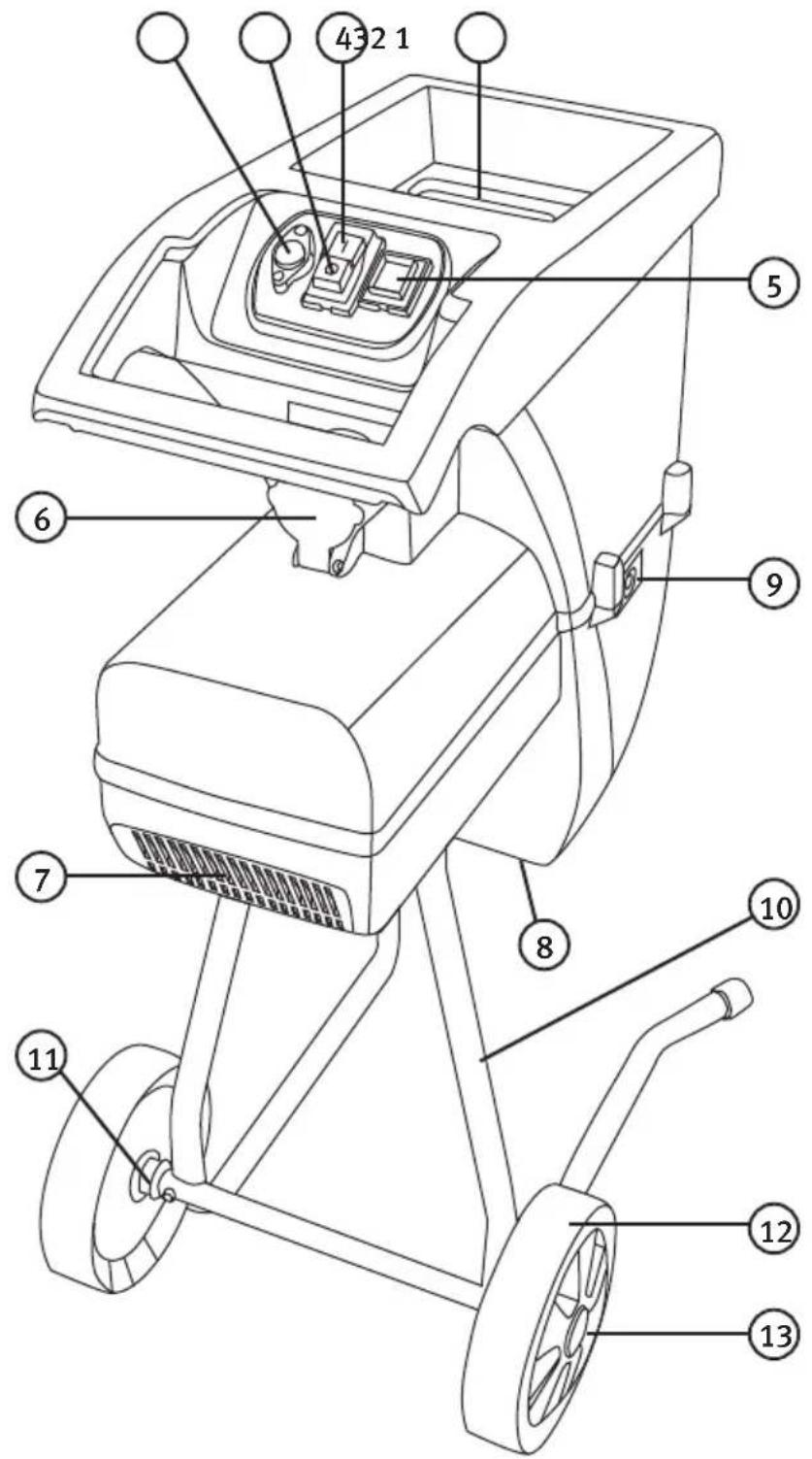

2. Product description

1. Intake opening
2. Reset button/overload protection
3. Power switch [0 - STOP]
4. Power switch [1 - START]
5. Rotational direction switch
6. Power socket
7. Ventilation ports
8. Output chute
9. Cutting plate adjustment screw
10. Robust tubular stand with wheel axle
11. Plastic spacer
12. Wheel
13. Wheel cover

3. Operating range

The garden shredder is only intended for shredding bio-degradable garden waste like branches and twigs from bushes, hedges and smaller trees, etc in smaller gardens. It is not intended for professional use.

The shredder cannot be used for shredding earth coated roots, stones, metal, glass, fabric, paper or plastic. Non-solid waste such as kitchen waste is also not suitable.

4. Assembly

1. Place the motor housing upside down on a flat surface and fasten the stand on the four screws found under the motor housing.

2. Mount the wheel axle onto the stand with the included screws, washers and locking nuts.

Line drawing of a tool with a curved pipe and a straight rod, no text or symbols present

Technical line drawing of a lawn mower with attached tire and wheels (no text or symbols)

1. Fasten the stand on the four screws found under the motor housing using the included washers and locking nuts.

Technical line drawing of a pipe fitting with bolts and a curved base (no text or symbols)

1. Place the plastic spacers on both sides of the wheel axle. Make sure that the flat surface is facing outwards. Mount the wheels onto the wheel axle.

2. Press in the wheel covers onto the wheels to lock the wheels.

Technical line drawing of a mechanical assembly with pipe, nut, and screw (no text or symbols)

5. Operation

5.1 Connecting to the mains

Connect the machine to a mains socket using an extension lead. Connect the extension lead to the power socket on the machine. Fold out the spring loaded fastener from the socket, insert the extension lead and release the fastener.

5.2 Power switch

• Push the green button (4) to start the shredder.
• Push the red button (3) to turn the shredder off.

Note: The machine is equipped with a zero voltage breaker. This is to prevent the machine from starting accidentally after a power cut.

5.3 Rotational direction switch

The direction switch (5) can be used to back out twigs or other debris which has been caught in the shredder.

Note: This function must only be used when the shredder is turned off and is standing still.

1. Set the switch (5) to the ↓ position for normal use.
2. Set the switch (5) to the ↑ position to change rotational direction. The knives will rotate backwards which mean that the material that has been caught can be released and pulled backwards. In this setting the power button (4) has a return spring which stops the motor once the green start button is released.

Note: Always wait until the shredder comes to a complete stop before restarting it.

5.4 Overload protection

1. If the shredder is overloaded i.e. if the blades are caught, the motor will stop within a few seconds. The overload protection will automatically cut off power. Wait at least 1 minute so that the motor has time to cool before pressing the reset button (2).

2. Push the green button (4) to start the motor.

5.5 Adjusting the cutting plate

1. Cutting plate adjustment screw

2. Cutting plate

3. Rotating blades

4. Allen key (accessory)

The cutting mechanism consists of rotating blades and the cutting plate. For optimal results the distance between the blades and cutting plate should be 0–0.5 mm.

A half turn of the adjustment screw moves the cutting plate approx. 0.5 mm.

The distance is pre-adjusted by the manufacturer and does not need to be adjusted before using it for the first time.

After some time the results may become compromised, the cutting blade may then be adjusted in this way.

- The motor should always be on when adjusting the cutting plate.

- The machine should be set for normal feed when adjusting the cutting plate.

Adjusting the cutting plate

1. Start the machine.
2. Use the included allen key and turn the adjustment screw (9) slowly clockwise.
3. Turn carefully until a scraping noise is heard and a minimal amount of aluminium shavings fall through the output chute.
4. The space between the blades and cutting plate is now at 0 and is set for optimal shredding.

5.6 General use guidelines

• Read and the follow safety instructions.
• Use protective eyewear, hearing protection, protective gloves and sturdy work wear. Use preferably a helmet with a visor.
• Material that you feed in will automatically be drawn in by the cutting blades. Warning! If overly long objects are placed into the machine there is a risk that the material will begin to whip. Keep a safe distance.
• Feed in material from the rights side of the intake opening feeding in just the right amount of material so as not to clog the intake opening.
• Wilted or damp garden waste which has lain for several days must be processed in alternating turns with branches. This will prevent clogging the intake opening.
• Kitchen waste and other soft waste cannot be processed in the shredder but should be placed directly on the compost heap.
• Branches with numerous twigs and leaves should be fed in entirely before attempting to feed in any more material.
• Make sure to empty the catcher bag before the shredded material plugs the output chute.
• The ventilation ports must be kept free of debris.
• Avoid continuous feeding of bulky materials. This can lead to clogging of the blades.
• If the blades become clogged: Use the direction switch to reverse the motor and consequently loosen the clogged material from the blades.

6. Storage and maintenance

• Clean the machine at regular intervals. This will ensure many years of good operation.
• Keep the ventilation ports clean while using the machine.
• The plastic housing and other plastic parts can be cleaned by using a mild washing-up liquid and a moist cloth. Do not use strong detergents or solvents to clean the machine.
• Never spray the shredder with water.
  • Water may under no circumstances get into the machine.
• Check every now and then that the stand's assembly screws are tight.
• If you plan not using the shredder for an extended period of time, lubricate the machine with a corrosion protective eco friendly lubricant.
• Store the machine in a dry place.
• Keep the machine out of children's reach.

7. Protecting the environment

Dispose of your waste responsibly, sort and recycle where possible. All machines, hoses and packing material should be sorted and handled according to local environmental regulations.

1. Troubleshooting

Problem Possible Cause Remedy
The motor does not start.	1. Power cut.2. The motor's overload protection has triggered.3. The direction button is in the neutral setting.
The material being inserted is no longer being pulled in.	1. The blades are rotating backwards.2. The intake opening is clogged.3. The blades are clogged.4. The catcher bag is too full and is blocking the output chute.
The material is not shredded adequately.	The cutting plate has been set incorrectly.

9. Technical data

Mains supply 230 V, 50 Hz

Output power 2500 W

No load speed 40 RPM

Branch diameter Max. 40 mm (depending on the branch's hardness)

Sound pressure level (LpA) 71 dB (A)

Sound power level (LwA) 91 dB (A)

Weight 26 kg

The S6 operation mode is for continuous use with intermittent load. 40 % stands for a load profile with 4 minutes of load and 6 minutes idle.

Kompostkvarn

ART.NR 18-3120 MODELL LSG2503-UK

40-6000

LSG2503

Technical line drawing of a lawn mower with attached gear and wheel (no text or symbols)

Line drawing of a tool with a curved pipe and a straight rod, no text or symbols present

Technical line drawing of a mechanical assembly with two bolts and a curved pipe (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and pipe connection (no text or symbols)

5. Användning

5.1 Nätanslutning

3. Bruksområde

Technical line drawing of a grass lawn mower with attached wheel rim and mounting bracket (no text or labels)

Line drawing of a tool with a curved handle and a straight rod, no text or symbols present

1. Fest stativer på de fire skruene som er under motoren. Bruk medfølgende skiver og låsemutre.

Technical line drawing of a pipe fitting with bolts and a curved pipe end (no text or symbols)

Technical line drawing of a mechanical assembly with pipe, wheel, and screw (no text or symbols)

5. Bruk

3. Käyttöalueet

Technical line drawing of a lawn mower with attached gear and wheel (no text or symbols)

Line drawing of a tool with a curved pipe and a straight rod, no text or symbols present

Technical line drawing of a mechanical assembly with bolts and a curved pipe (no text or symbols)

Technical line drawing of a mechanical assembly with pipe, gear, and wheel components (no text or symbols)

5. Käyttö

5.1 Verkkoliitäntä

Äänenpaine (LpA) 71 dB (A)

Melutaso (LwA) 91 dB (A)

Paino 26 kg

3. Einsatzbereich

Technical line drawing of a lawn mower with attached tire and wheel components (no text or labels)

Line drawing of a curved pipe with a handle and a separate rod inserted (no text or symbols)

Technical line drawing of a mechanical assembly with bolts and a curved pipe (no text or symbols)

Technical line drawing of a mechanical assembly with pipe and wheel components (no text or symbols)

5. Bedienung

5.1 Netzanschluss

Declaration of Conformity

Machinery directive 2006/42/EC

EMC directive 2004/108/EC

Low Voltage Directive 2006/95/EC

EN 13683:2003 +A2:2011

EN 55014-1:2006+A1 EN 55014-2:1997+A1+A2 EN 61000-3-2:2006+A1+A2 EN 61000-3-11:2000

EN60335-1:2002 +A1+A11+A12+A2 +A13+A14+A15 EN 62233:2008

Klas Balkow President

Insjön, Sweden, 2013-11-27

SVERIGE

KUNDTJÄNST Tel: [phone]

Fax: [phone]

E-post: [e-mail]

INTERNET www.clasohlson.se

BREV Clas Ohlson AB, 793 85 INSJÖN

NORGE

KUNDESENTER Tlf.: 23 21 40 00

Faks: 23 21 40 80

E-post: [e-mail]

INTERNETT www.clasohlson.no

POST Clas Ohlson AS, Postboks 485 Sentrum, 0105 OSLO

SUOMI

ASIAKASPALVELU Puh.: 020 111 2222

POSTAL 10 – 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

DEUTSCHLAND
