USER MANUAL ZHC 6121 ZANUSSI

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior user experience delivering ease of mind. Good luck!

Contents

Safety warnings 50

Description of the Appliance 52

Control Panel 52

Maintenance and Care 53

Special accessories 56

Technical Details 56

Electrical connection 57

Installation 58

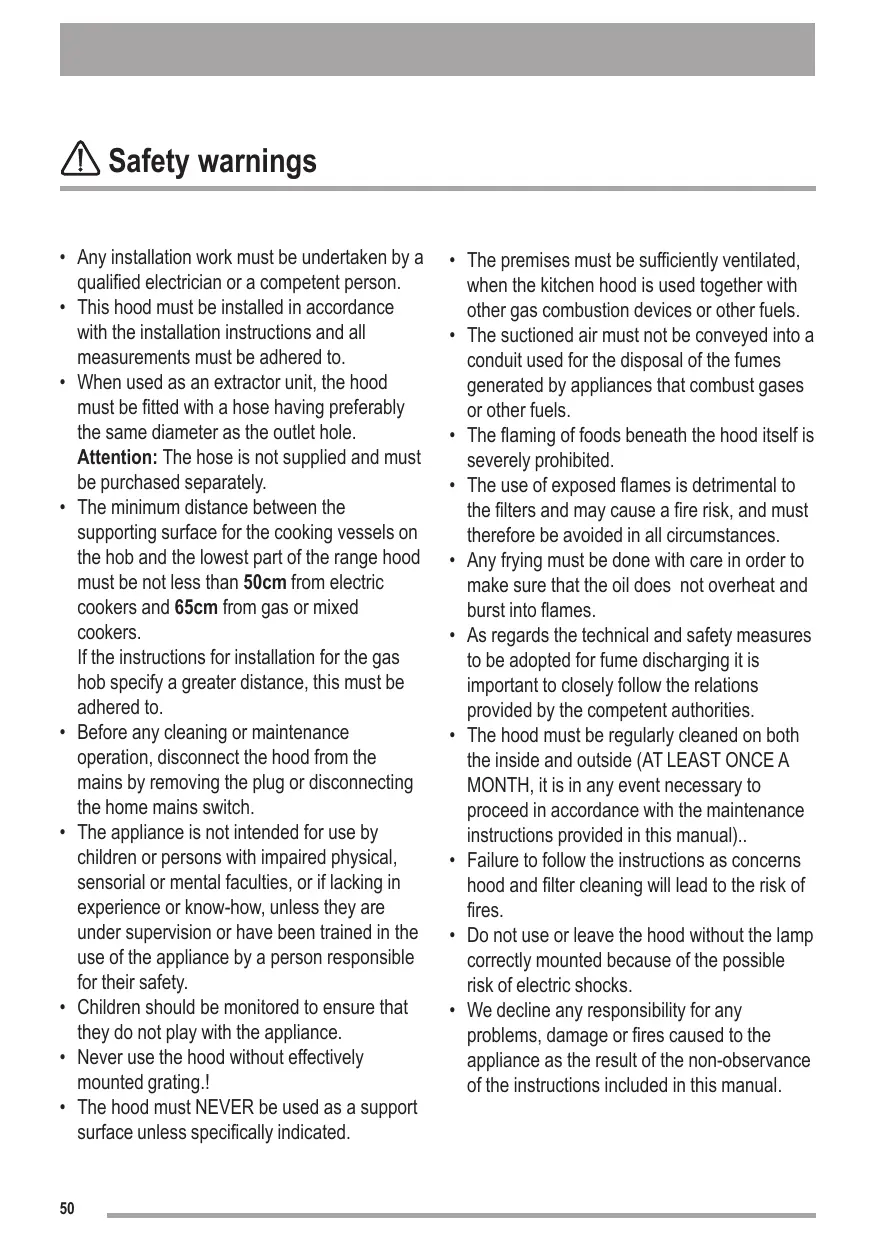

Safety warnings

• Any installation work must be undertaken by a qualified electrician or a competent person.
• This hood must be installed in accordance with the installation instructions and all measurements must be adhered to.
• When used as an extractor unit, the hood must be fitted with a hose having preferably the same diameter as the outlet hole.

Attention: The hose is not supplied and must be purchased separately.

• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.
  If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.
• Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the home mains switch.
• The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.
• Children should be monitored to ensure that they do not play with the appliance.
• Never use the hood without effectively mounted grating!.

• The hood must NEVER be used as a support surface unless specifically indicated.

• The premises must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

• The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels.
• The flaming of foods beneath the hood itself is severely prohibited.
• The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
• Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames.
• As regards the technical and safety measures to be adopted for fume discharging it is important to closely follow the relations provided by the competent authorities.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH, it is in any event necessary to proceed in accordance with the maintenance instructions provided in this manual)..
• Failure to follow the instructions as concerns hood and filter cleaning will lead to the risk of fires.
• Do not use or leave the hood without the lamp correctly mounted because of the possible risk of electric shocks.
• We decline any responsibility for any problems, damage or fires caused to the appliance as the result of the non-observation of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Description of the Appliance

• The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.
• The hood is supplied as an extractor unit and can also be used in recirculation mode by fitting a charcoal filter.
• You will need an original charcoal filter for this function (Available from your local Service Force Centre).

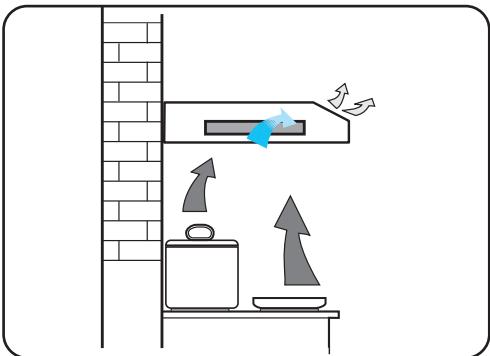

Extraction mode

• In this mode fumes are extracted to the outside via a hose connected to the coupling ring.
• In order to obtain the best performance the hose should have a diameter equal to the outlet hole.

Recirculation mode

• The air is filtered through a charcoal filter and returned to the kitchen.
• You will need an original charcoal filter for the recirculation mode. (See Special Accessories).

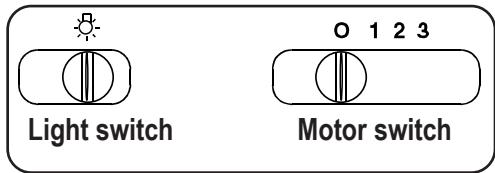

Control Panel

• Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated. Turn the hood on a few minutes before you start cooking. The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared. The control switches are located on the hood's front panel:

• the light switch switches the hood lamp on and off
• the motor switch switches the motor on and off, enabling you to select one of the three different speeds.

Maintenance and Care

Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Metal grease filter

• The purpose of the grease filters is to absorb grease particles which form during cooking and it must always be used, either in the external extraction or internal re-circulation function.

Attention: the metal grease filters must be removed and washed, either by hand or in the dishwasher, every four weeks.

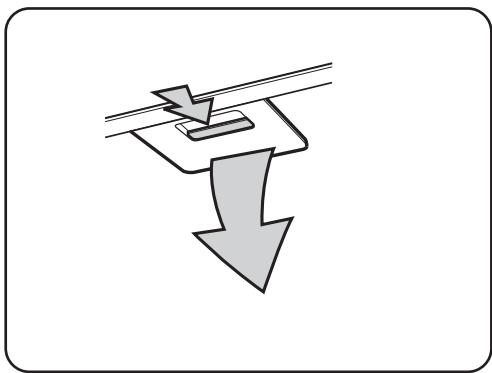

Removing the metal grease filter

• Use the spring handle and remove the filter downward.

Hand washing

Soak grease filters for about one hour in hot water with a grease-loosening cleaner, then rinse off thoroughly with hot water. Repeat the process if necessary. Refit the grease filters when they are dry.

Dishwasher

Place grease filters in the dishwasher. Select most powerful washing programme and highest temperature, at least 65^ . Repeat the process. Refit the grease filters when they are dry.

When washing the metal grease filter in the dishwasher a slight discolouration of the filter can occur, this does not have any impact on its performance.

• Clean the inner housing using a hand hot solution only (never use corrosive, abrasive or flammable cleaning products or products containing bleach).

Charcoal filter

• The charcoal filter should only be used if you want to use the hood in the recirculation function.
• To do this you will need an original charcoal filter (available from your local Service Force Centre).
• Replacing the charcoal filter
• The charcoal filter cannot be washed nor regenerated.
• The charcoal filter should be replaced every 4 months under normal use.
• Replacement filters are available from your local Service Force Centre.

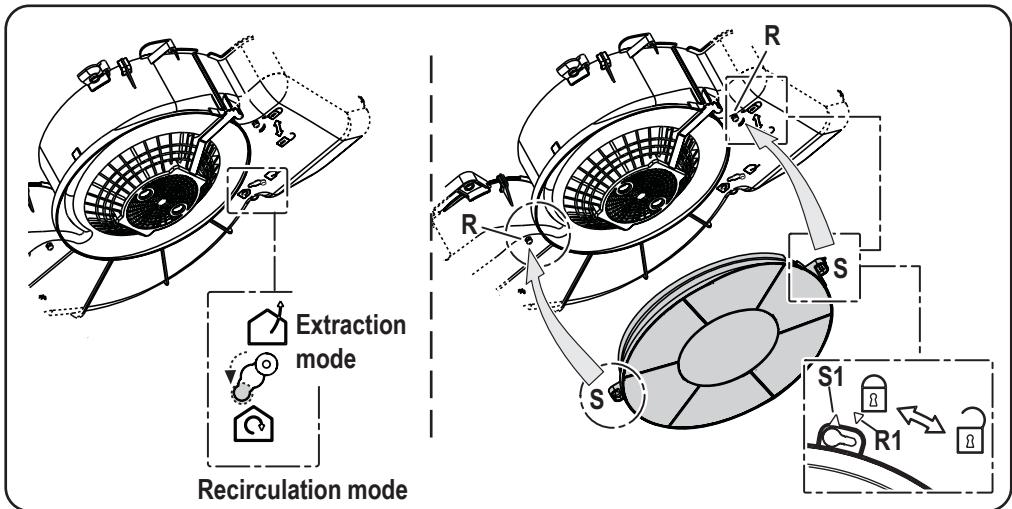

Fitting

Remove the grease filter(s). Position the charcoal filter covering the air suction motor protection grille so that the slots S (and S1) on the filter are aligned with the fixing pins R (and R1), located on each side. Press down on the filter and turn it in a clockwise direction until it is fixed in place (bayonet fastening).

Make sure the internal Extraction/ Recirculation mode switch is set to "Recirculation".

Replace the grease filter(s).

• To remove proceed in the reverse order.
• Always specify the hood model number, serial number and product number code when ordering replacement filters. This information is shown on the rating plate located on the inside of the unit.
• The charcoal filter can be ordered from your local Service Force Centre.

Warning

• Failure to observe the instructions on cleaning the unit and changing the filters will cause a fire hazard. You are therefore strongly recommended to follow these instructions.
• The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Changing the light bulb(s)

• Disconnect the cooker hood from the mains supply.
• Prior to touching the light bulbs ensure they are cooled down.
• Remove the grease filters.
• Replace the old bulb with a new one of the same type.
• Refit the grease filter.
• If the light does not come on, make sure the bulb has been inserted in correctly before contacting your local Service Force Centre.

Cleaning the hood

• Clean the outside of the hood using a damp cloth and a solution of water and mild washing up liquid.
• Never use corrosive, abrasive or flammable cleaning products or products containing bleach.
• Never insert pointed objects in the motor's protective grid.
• Only ever clean the switch panel and filter grill using a damp cloth and mild washing up liquid.
• Clean all the plastic parts with a soft cloth soaked in warm water and neutral soap.
• It is extremely important to clean the unit and change the filters at the recommended intervals. Failure to do so will cause grease deposits to build up that could constitute a fire hazard.

Special accessories

Charcoal filter Type 48

Technical Details

	ZHC 6121	ZHC 7131
Dimensions (in cm):
Height (with flue):	13,2 (61,5-100)	13,2 (61,5-100)
Width:	59,9	69,9
Depth:	51	51
Maximum absorbed power:	140 W	220 W
Motor absorption:	100 W	140 W
Lighting:	1 x 40 W (E14)	2 x 40 W (E14)
Length of the cable:	1 x 40 W (E14)	2 x 40 W (E14)
Electrical connection:	150 cm	150 cm
Fuse ratings:	5At	5At

Mounting accessories included

8 screws 5 x 45 mm

8 wall plugs (brick fixing) Ø 8 mm

4 screws 4,2 x 35 mm

1 flange Ø 125 mm

2 screwdriver bits (for TORX screws)

1 screw 2,9 x 9,5

2 screws 3 x 9

2 flue brackets

1 seal

Electrical connection

Safety warnings for the electrician

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

IMPORTANT! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

IMPORTANT! Power cable replacement must be undertaken by the authorized service assistance centre or similar qualified person.

Warning! Do not connect the appliance to the mains until the installation is fully complete. Before beginning the installation process

Extraction mode ONLY

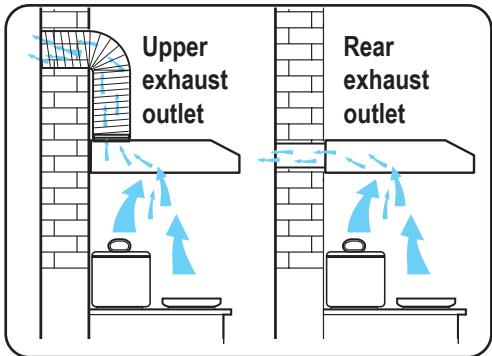

Exhaust outlet selection

The hood is equipped with two exhaust outlets, one facing upwards (Upper exhaust outlet) and the other facing backwards (Rear exhaust outlet).

Both outlets are closed off with pre-cut panels which, once removed, cannot be replaced. For this reason you should only choose which outlet to use once you are completely certain.

Upper exhaust outlet

Press firmly against the pre-cut part closing off the exhaust outlet and remove it completely.

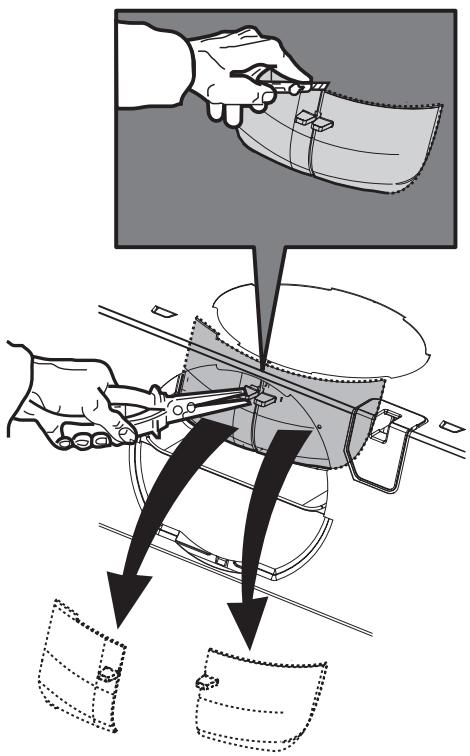

Rear exhaust outlet

Remove the plastic pre-cut part.

Use a cutter to score along the pre-cut part at the centre, beginning at the top and working downwards.

Use a pair of pliers to grip the plastic tabs on the parts which need to be removed, then push and pull firmly a few times until you have completely removed the pre-cut parts. Use a cutter to eliminate any rough ridges.

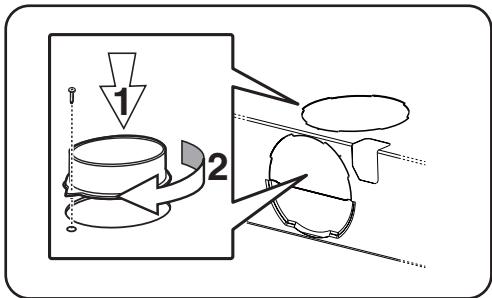

Flange installation

Install the flange supplied to the upper or rear exhaust outlet as desired (bayonet fastening).

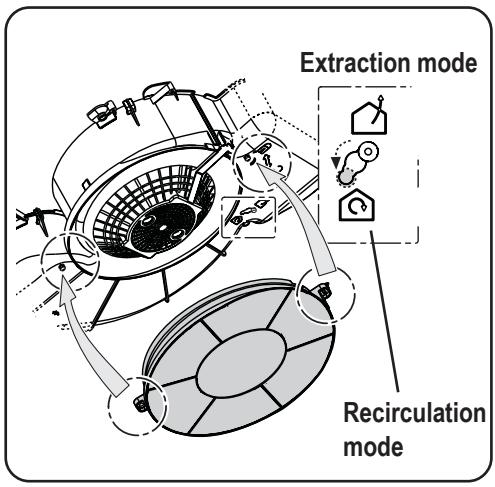

Recirculation mode Only

This version of the hood is ready for installation. Make sure the charcoal filter is installed and the internal Extraction/Recirculation mode switch is set to "Recirculation".

For further details relating to the charcoal filter, please refer to the corresponding paragraph.

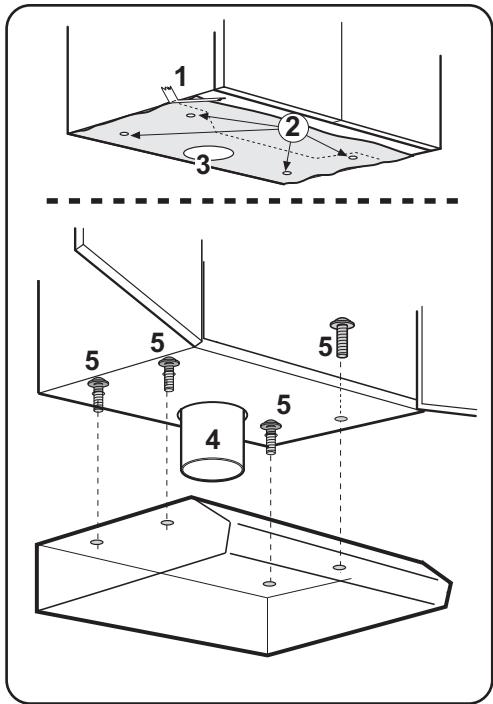

Wall unit mounting

• Make the holes on the bottom of the cupboard (2), using the drilling template (1).

Make a hole for the exhaust pipe (4) if the hood is to be used in the extraction mode (3).

• From inside the cupboard, insert the 4 supplied screws (5) and tighten them in the appropriate holes on the appliance.

Wall mounting

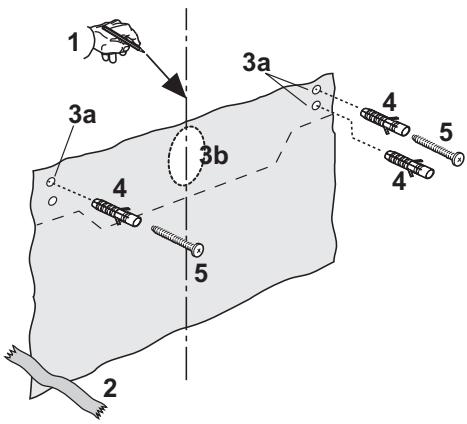

• Mark a centre line on the wall (1).
  Fix the drilling template to the wall (2).
• Make 4 holes in the wall as indicated on the template (3a).

Extraction mode only:

If you wish to use the rear exhaust outlet on the hood, make a hole in the wall so that the exhaust pipe can pass through it (3b).

• Insert 4 rawl plugs into the holes you have made (4).

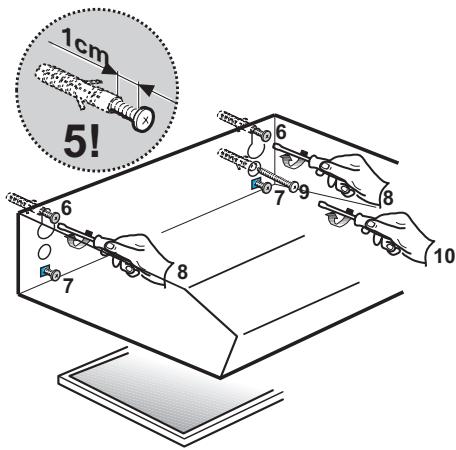

• Insert two 5 × 45 screws into the upper holes (5) but do not tighten them completely (6).
• Hook the hood onto the screws.
• Adjust the unit so that it is positioned at a right angle to the wall by turning the two screws on lower side (7).
• Tighten the 2 upper screws (8).
• Insert 2 screws into the lower holes (9) from inside the hood, then tighten all the screws fully (10).

Installing the flues

Caution! Before beginning this procedure, we recommend you cover the hood with a protective sheet; this will prevent it from being damaged by the dust created as you drill holes in the wall.

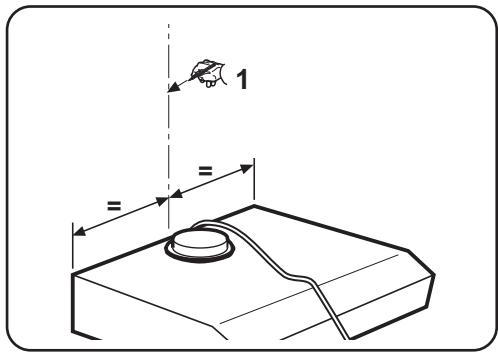

• Extend the vertical centre line so that it reaches the ceiling (1).

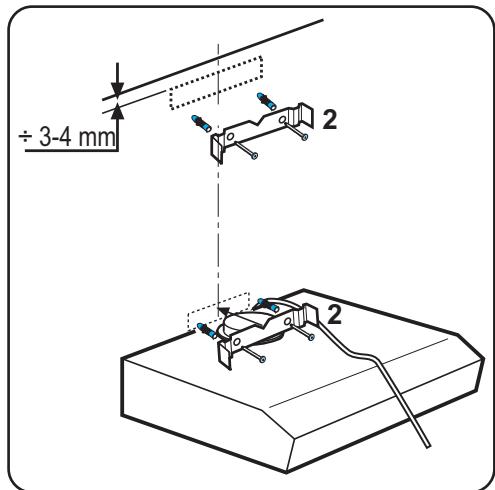

• Fit the 2 flue fixing brackets (2), 3/4 ~mm away from the ceiling at the top and in contact with the hood at the bottom. Use 2 screws and 2 rawl plugs per bracket. Use the brackets as drilling templates. The "v" indicator on each bracket should be aligned with the centre line marked on the wall previously.

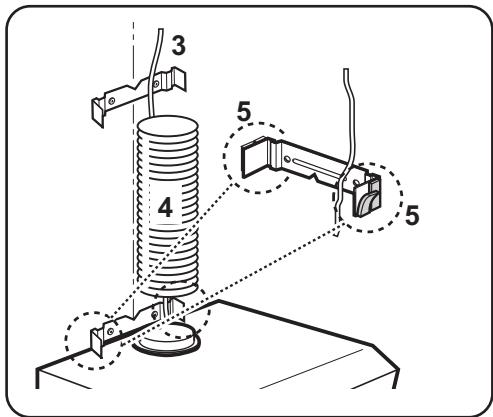

• Connect the electricity supply (3) and exhaust tube (4) if necessary.
• Cut the seals to size (4 pieces) and apply them to the sides of the lower flue bracket (5).

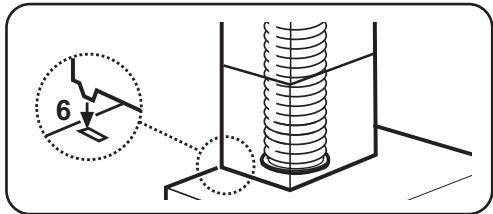

• Fit the flues onto the lower bracket; insert the flue tabs into the corresponding slots on top of the hood (6).

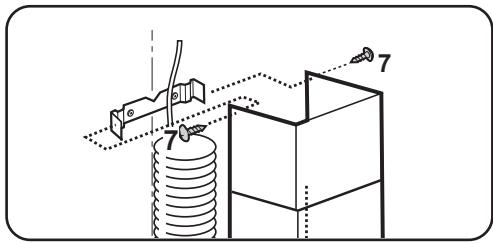

  Fix the upper part of the flue in place using 2 screws (7).

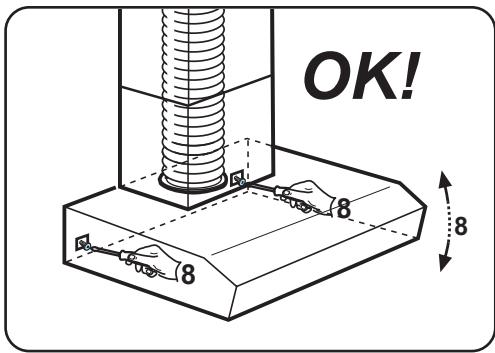

• Adjust the alignment of the hood to improve its coupling with the flue.
