ZHC 95146 - Range hood ZANUSSI - Free user manual and instructions

Brand	Zanussi
Model	ZHC 95146
Product type	Extractor hood
Usage	Extraction version (external venting) or recirculation (charcoal filter)
Power supply	220-240 V ~ 50 Hz (check voltage on rating plate)
Number of speeds	3 suction speeds
Lighting	Halogen candle bulb ∅35 mm E14 28 W
Grease filter	Dishwasher safe or hand washable, clean once a month
Activated charcoal filter	Not washable, replace every 4 months maximum
Minimum safety distance (electric cooking)	60 cm between hob and lowest part of hood
Minimum safety distance (gas or mixed cooking)	65 cm (or as per cooker manufacturer's instructions)
Cleaning	Clean exterior and interior at least once a month with a damp cloth and mild liquid detergent. Do not use alcohol or abrasives.
Important safety instructions	Disconnect before any maintenance. Do not use without filter grid. Do not flambé under the hood. Monitor frying.
Recycling	Do not dispose with household waste. Take to a local recycling centre.

Frequently Asked Questions - ZHC 95146 ZANUSSI

What is the power supply voltage of the Zanussi ZHC 95146 hood?

The voltage must match that indicated on the rating plate located inside the hood. Generally, it is 220-240 V ~ 50 Hz. Check before installation.

What minimum distance must I maintain between the hood and my cooker?

For an electric cooker, the minimum distance is 60 cm; for a gas or mixed cooker, it is 65 cm. Follow the cooker manufacturer's instructions if they specify a greater distance.

How to clean the grease filter of the hood?

The grease filter must be cleaned once a month. You can wash it by hand with a non-aggressive detergent or in the dishwasher on a low temperature and quick cycle. Note that washing in the dishwasher may cause discoloration, but this does not affect performance.

How often should I replace the activated charcoal filter?

The activated charcoal filter is not washable. It must be replaced at most every 4 months, or more often if the hood is used intensively.

How to replace the hood bulb?

First disconnect the hood. Ensure the bulb is cool, then replace it with a halogen candle bulb of ∅35 mm, E14 base, 28 W.

Can I use the hood without the grease filter?

No, never use the hood without the filter grid properly installed. This presents a fire risk and damages the appliance.

How to switch between extraction mode and recirculation mode?

The hood can be used as an extraction version (external venting) or as a recirculation filter version. The mode is determined during installation; to switch to recirculation, you need to install an activated charcoal filter (not supplied) and follow the installation instructions.

What to do if the hood stops working?

First check that the appliance is plugged in and the power supply is active. If the problem persists, consult the full manual for diagnostics or contact the after-sales service.

Can I clean the hood with abrasive products?

No, only use a damp cloth with a mild liquid detergent. Never use alcohol, abrasive products, or solvents, as they could damage the surfaces.

Is the hood suitable for use by children?

This appliance is not intended for use by children or persons with reduced capabilities without supervision. Children should be supervised to ensure they do not play with the appliance.

USER MANUAL ZHC 95146 ZANUSSI

Diagram of a building interior with stairs, roof, and directional arrows indicating airflow or movement (no text or symbols)

Isometric line drawing of a mechanical component with base, wires, and mounting base (no text or symbols)

Diagram of a plant growth setup with a conical grower, seedling tray, and control panel (no text or symbols)

Hand holding a mechanical tool with a triangular component inserted, no visible text or symbols

Technical line drawing of an electric motor with fan blades and mounting bracket (no text or symbols)

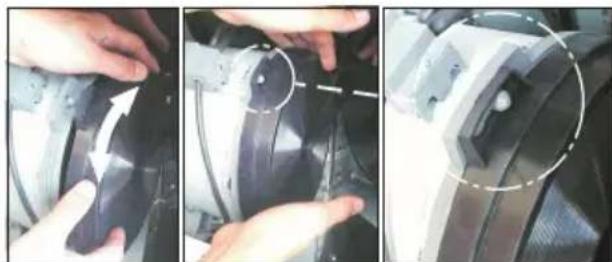

Close-up of hands adjusting a dark mechanical component with an arrow indicating rotation (no text or symbols visible)

Close-up of hands adjusting a mechanical component with a circular dial (no visible text or symbols)

Close-up of a mechanical component with a highlighted circular area (no visible text or symbols)

COMANDI

Line drawing of a screwdriver inserted into a window frame (no text or symbols)

SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Warning! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

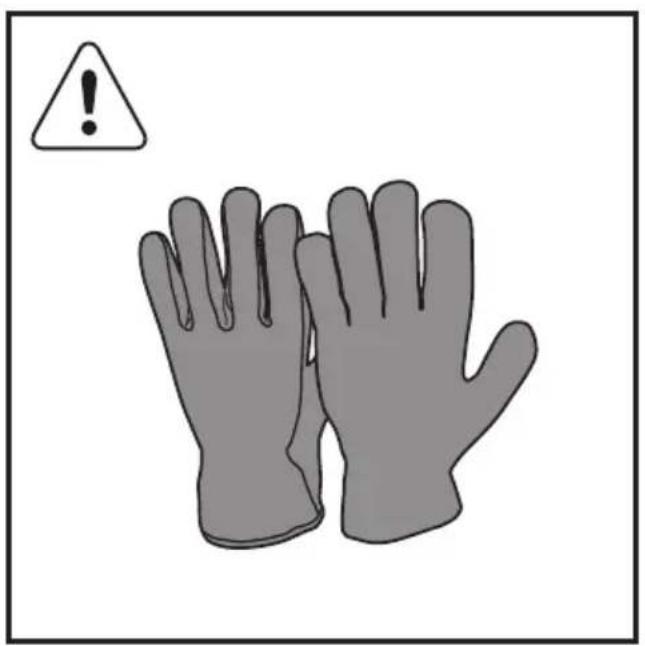

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside

and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal offi ce department for household waste or the shop where you purchased this product.

USE

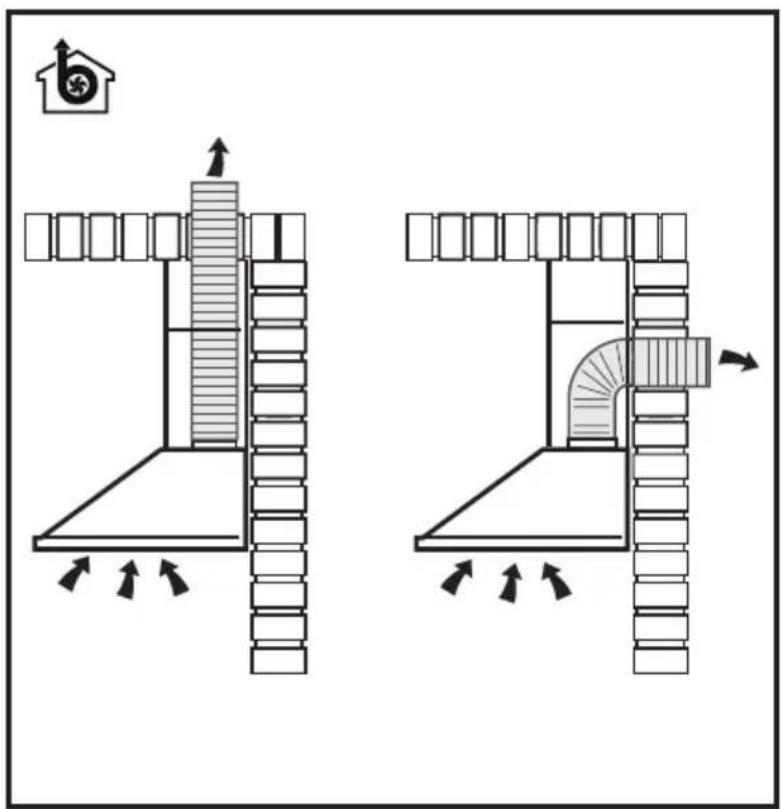

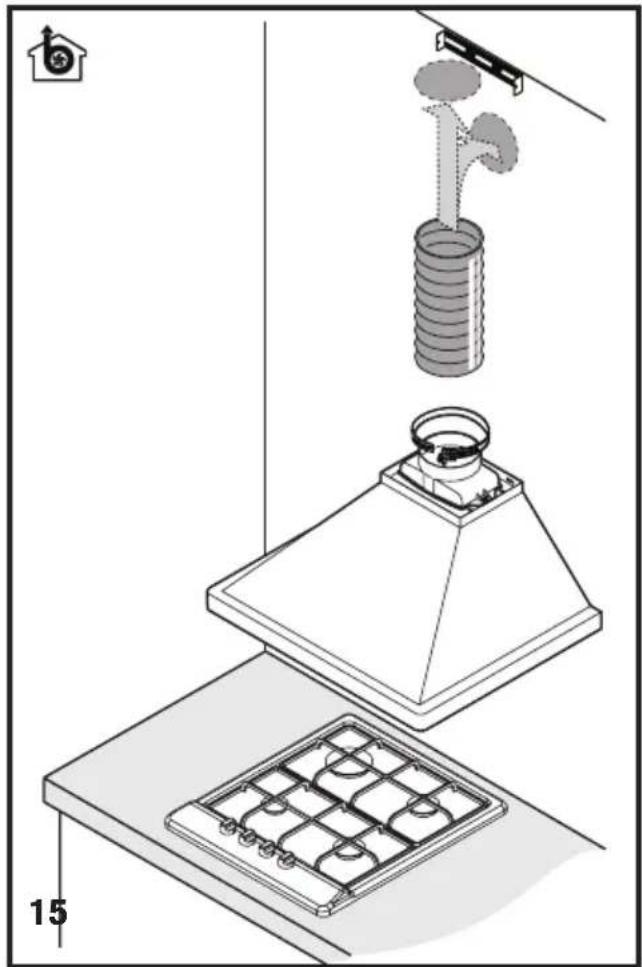

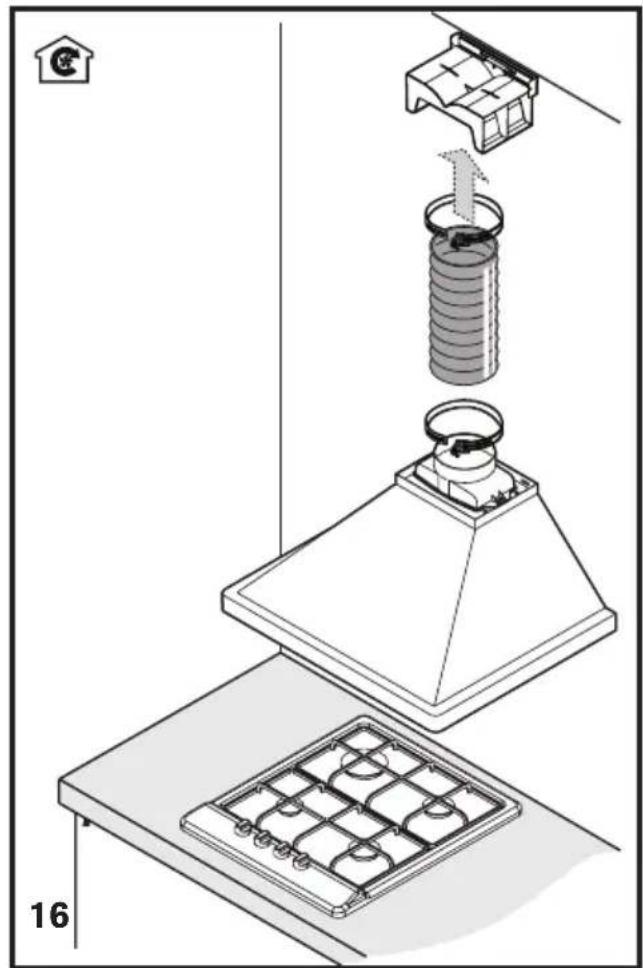

The hood is designed to be used either for

exhausting

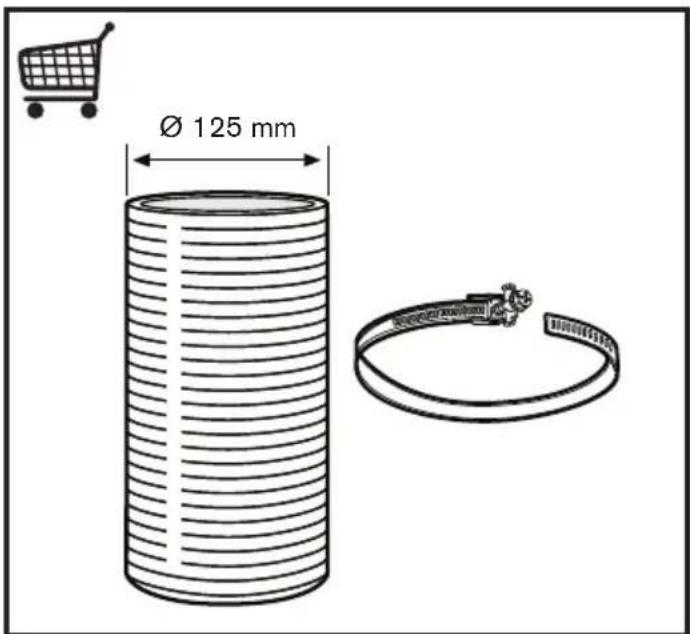

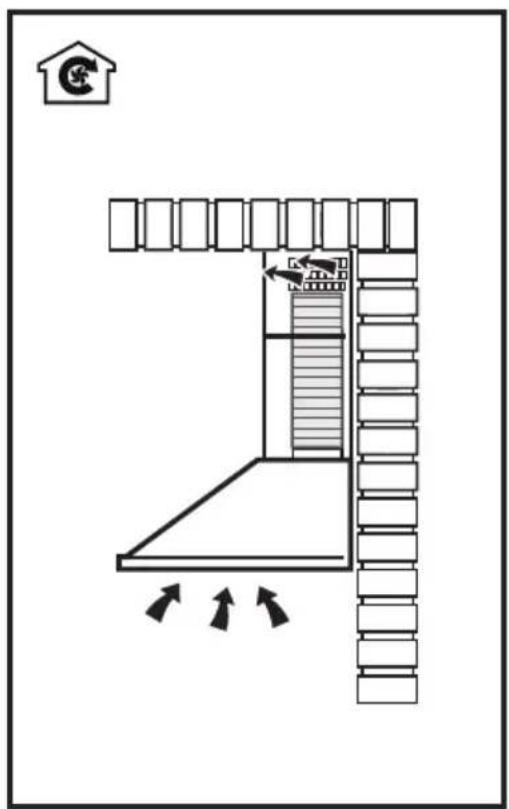

or fi lter version

INSTALLATION

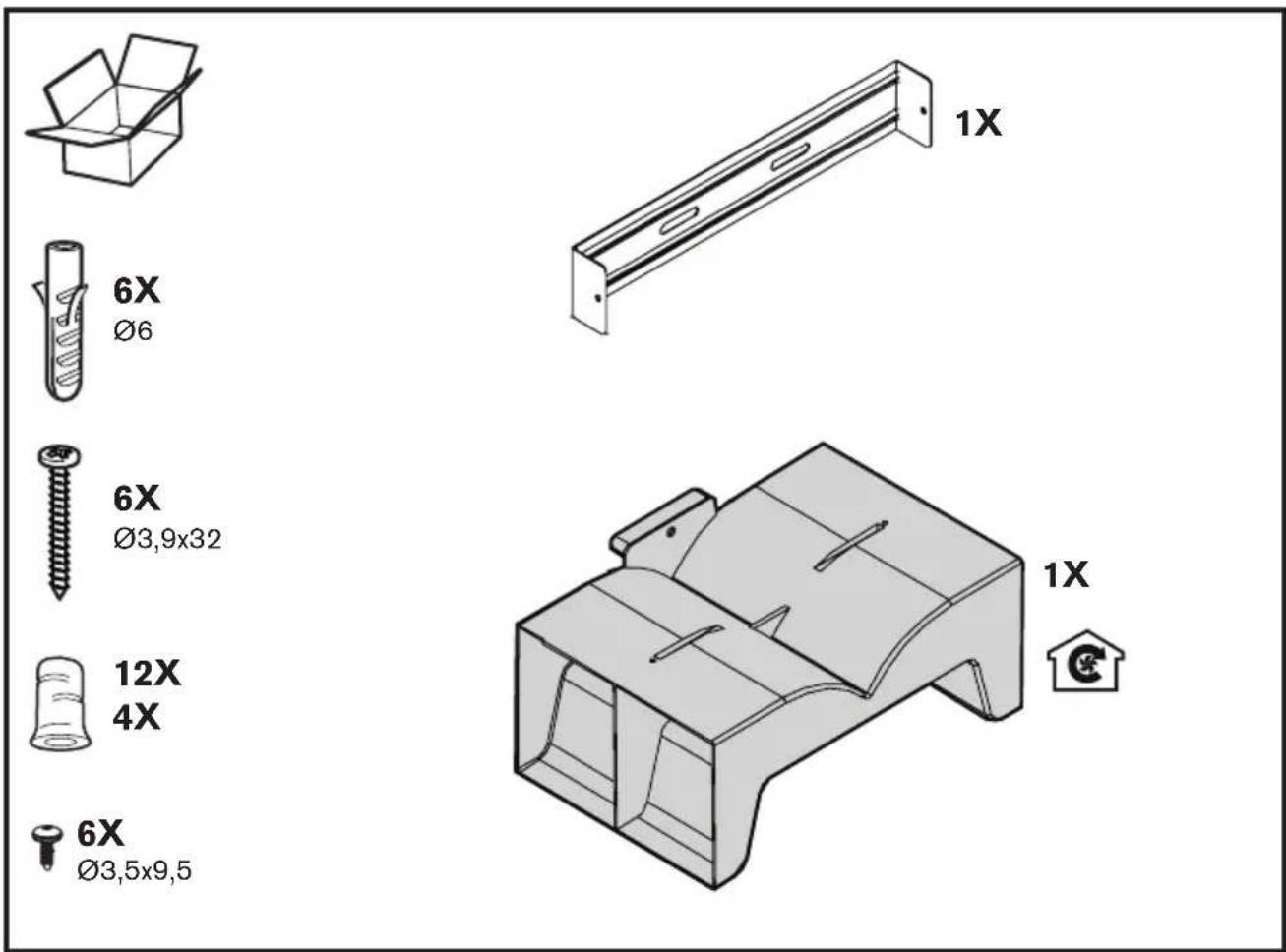

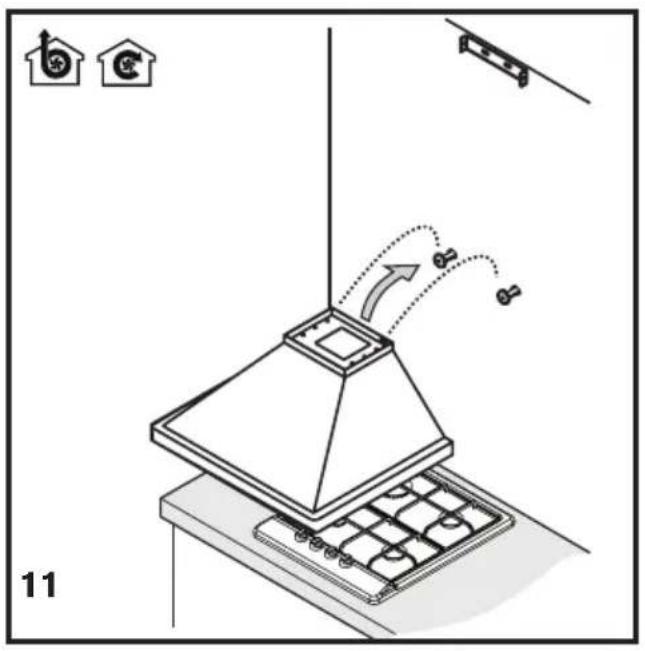

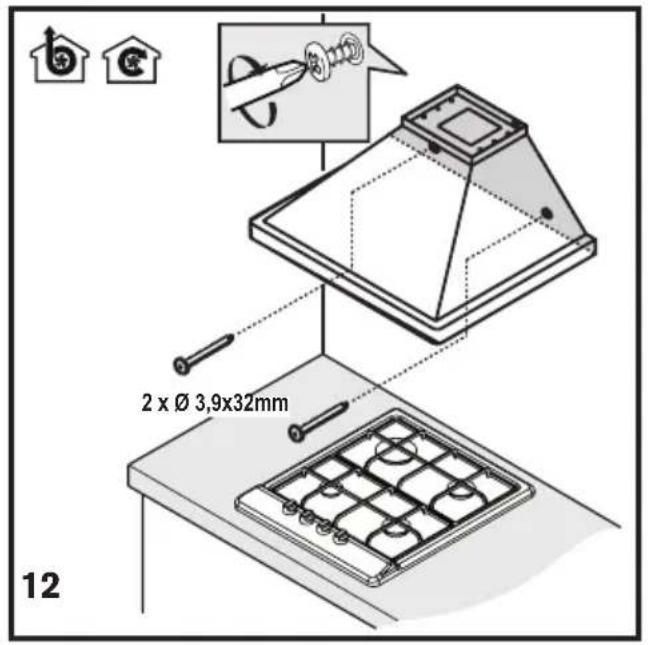

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

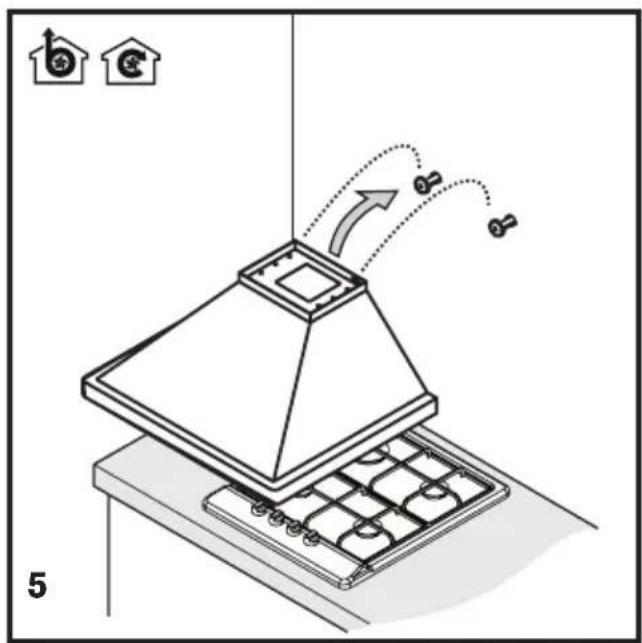

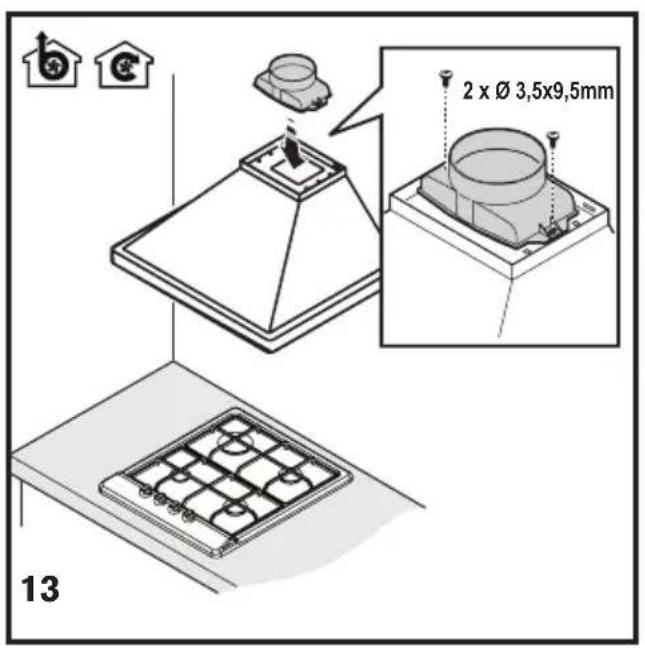

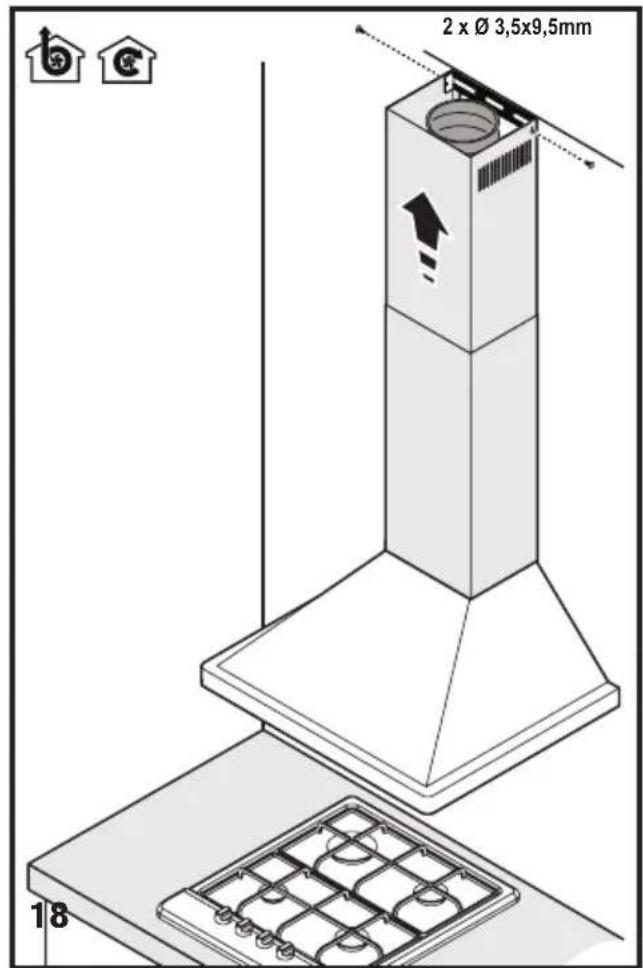

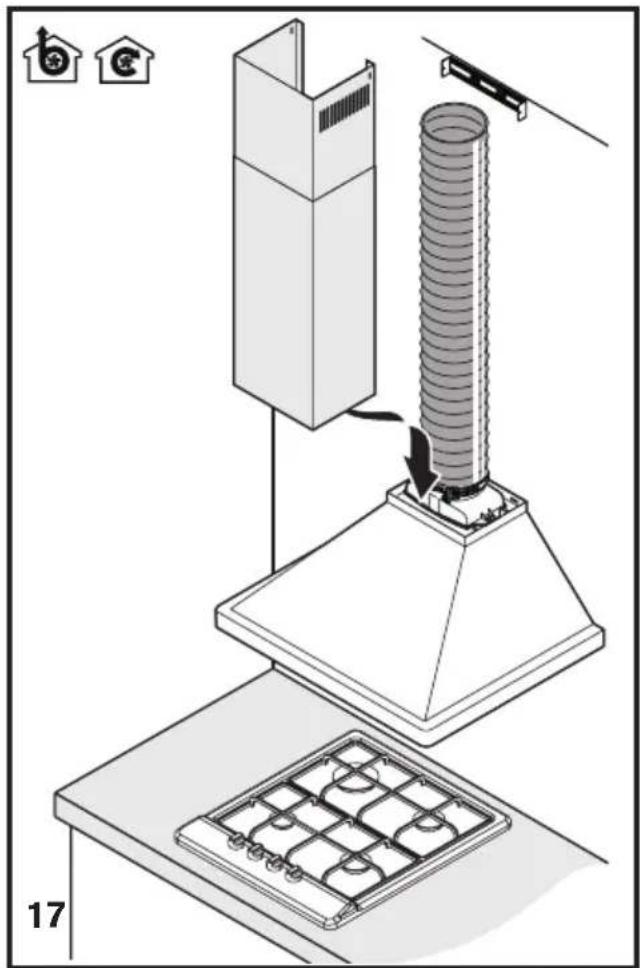

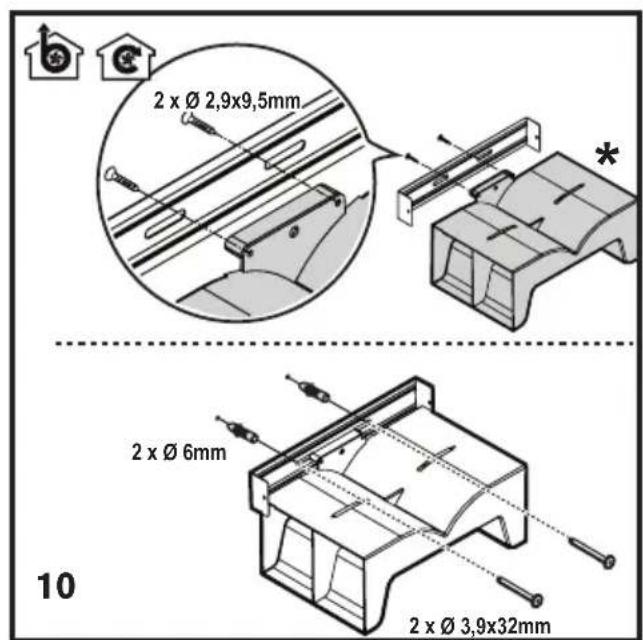

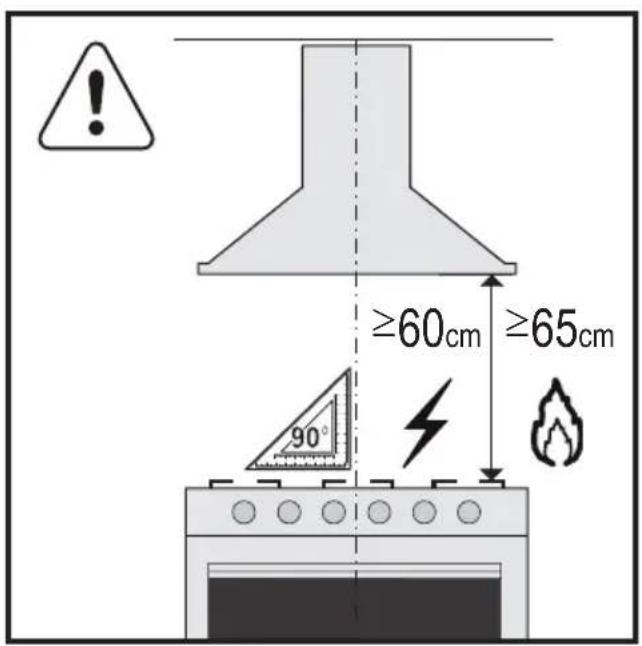

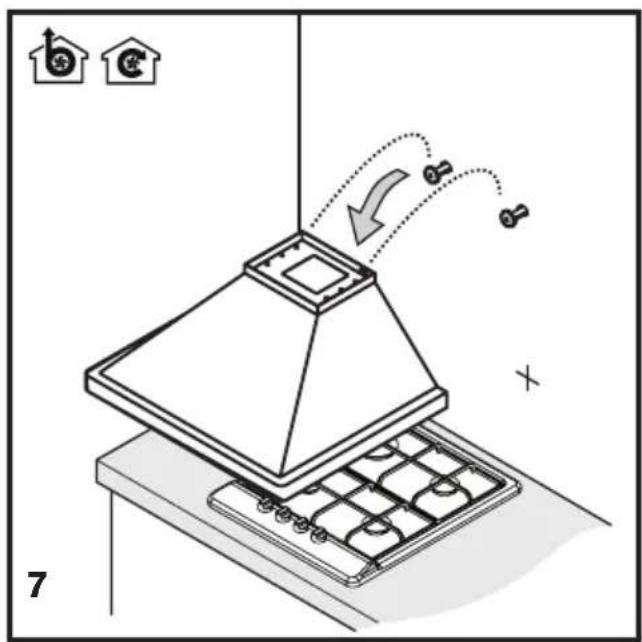

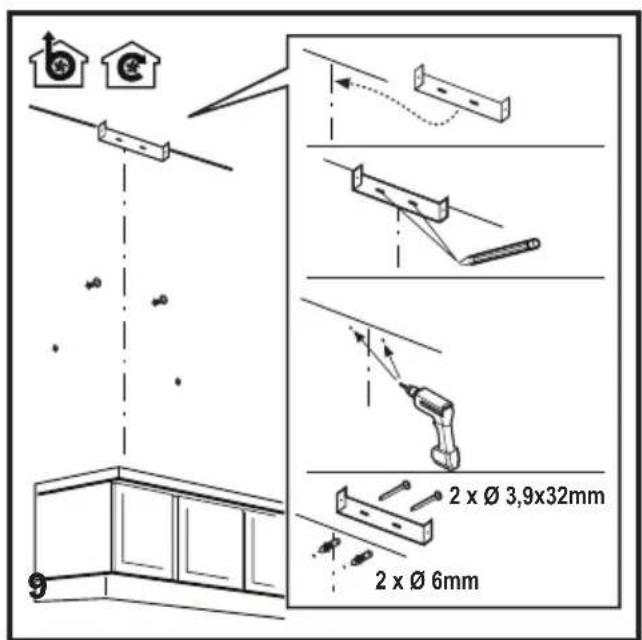

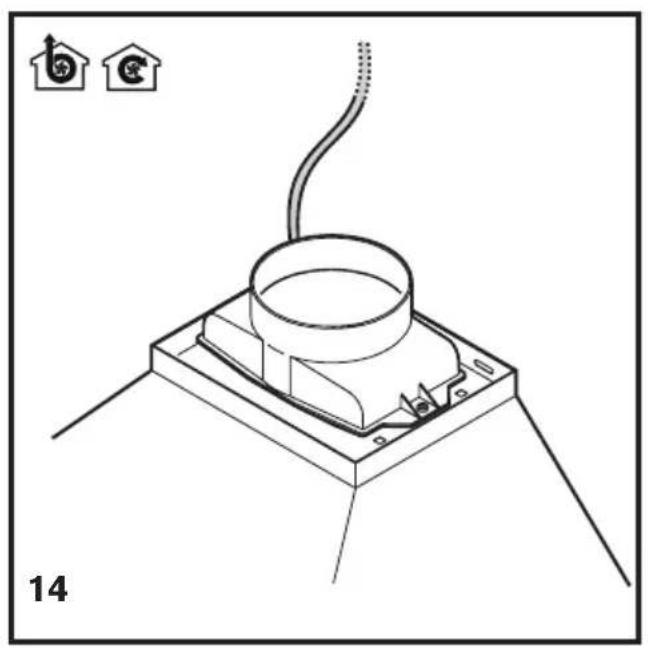

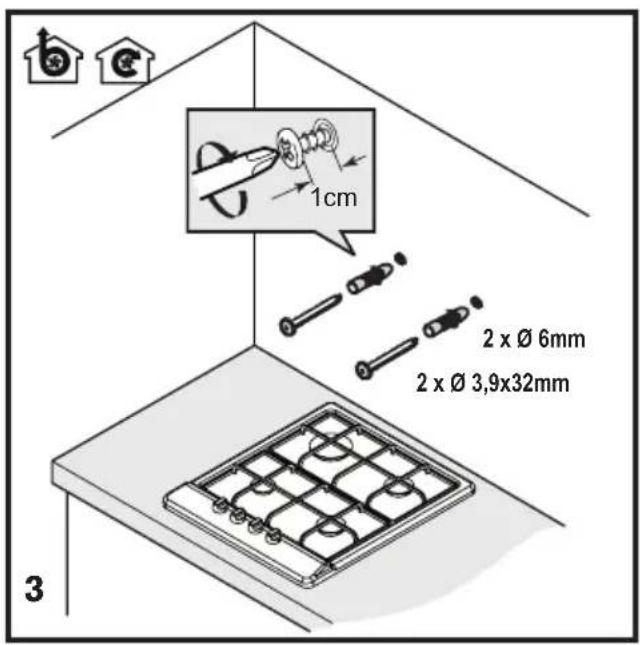

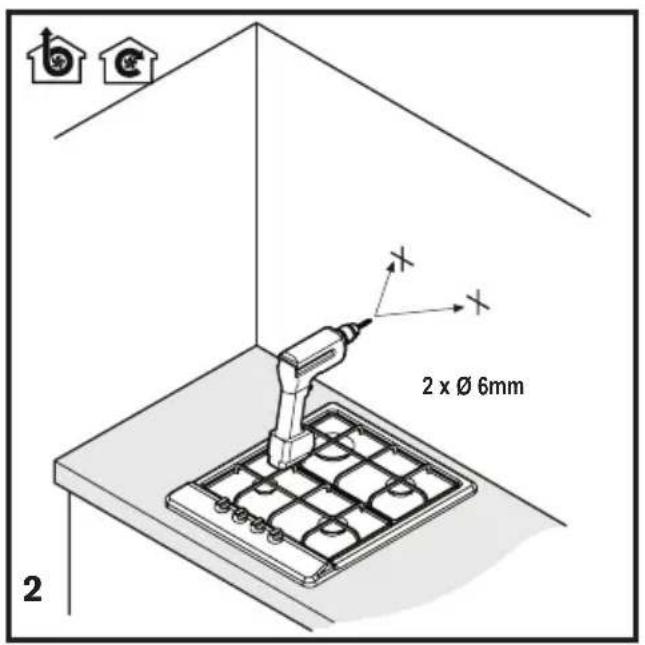

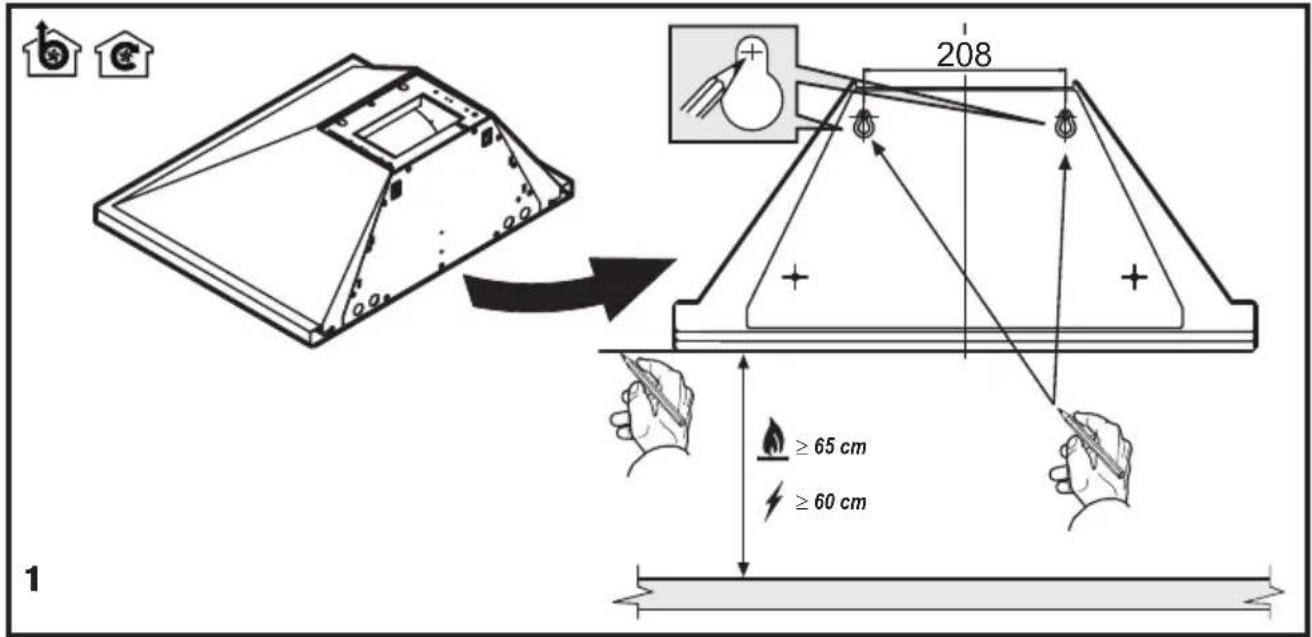

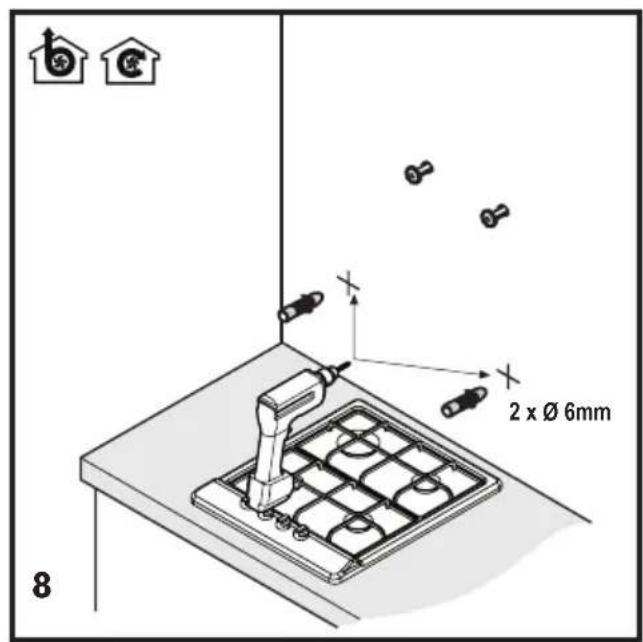

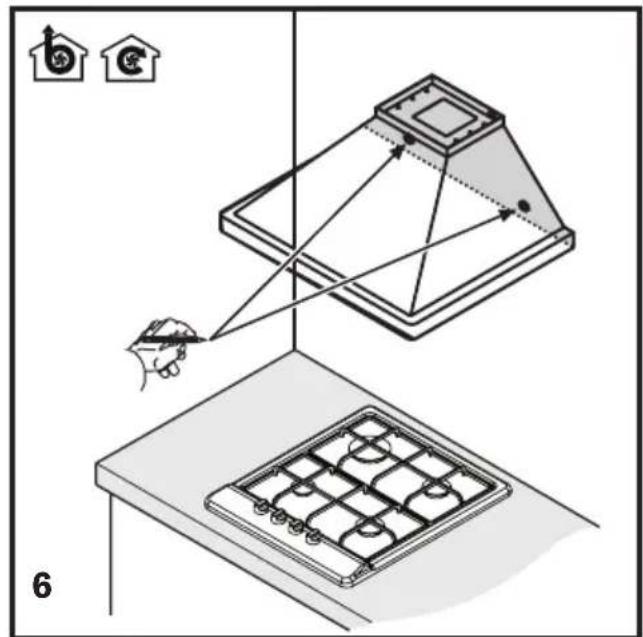

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat fi liters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

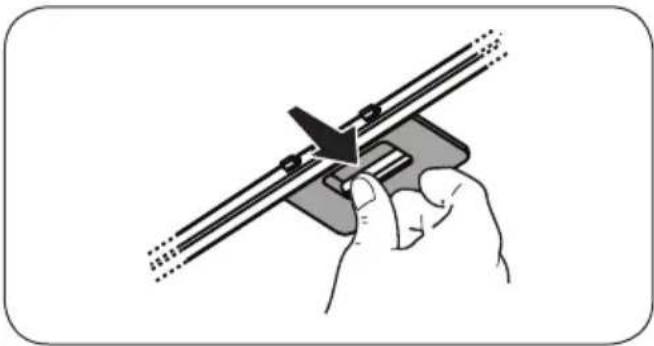

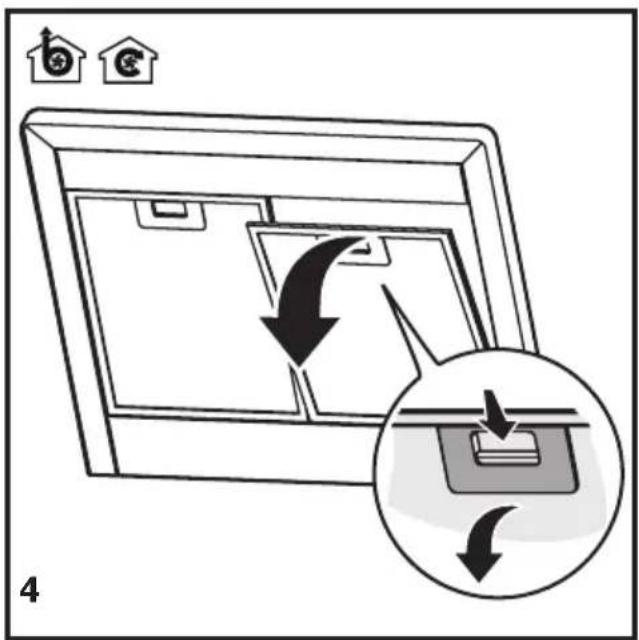

Grease fi Iter - The grease fi Iter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease fi Iter may discolour slightly, but this does not affect its fi Itering capacity.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

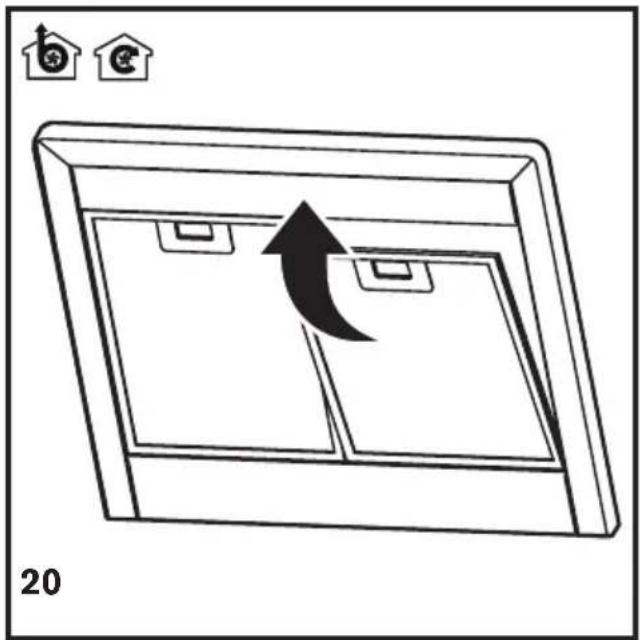

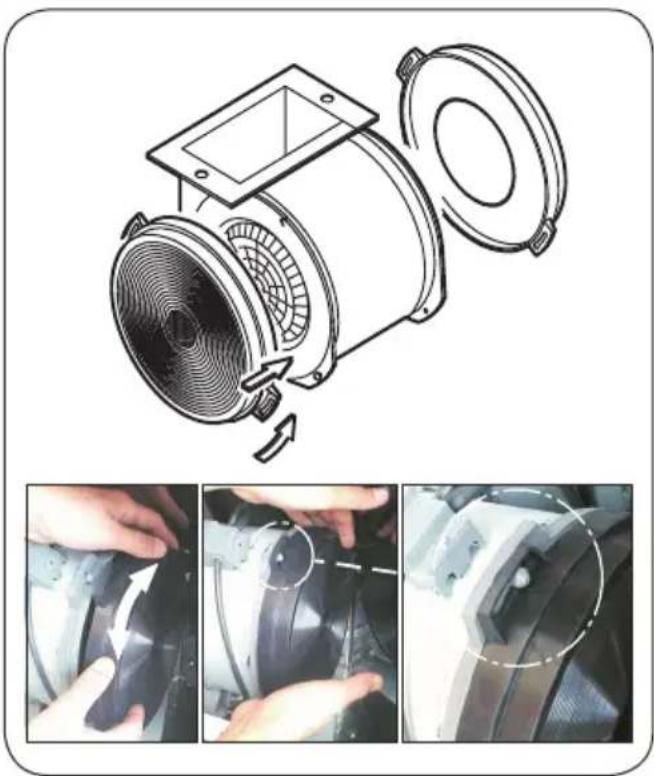

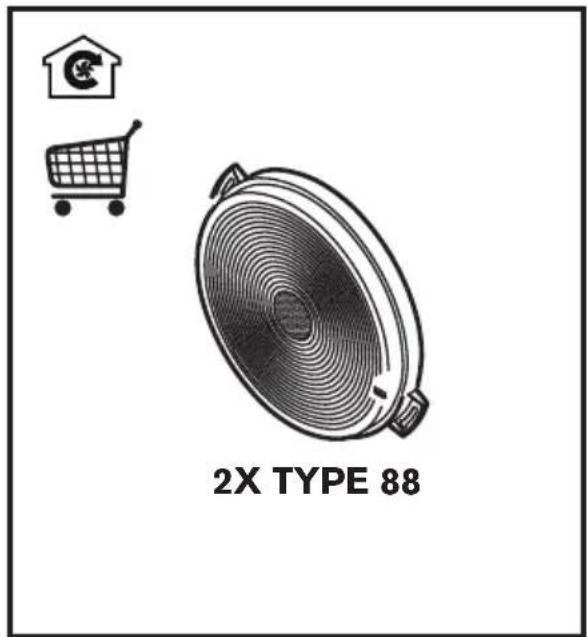

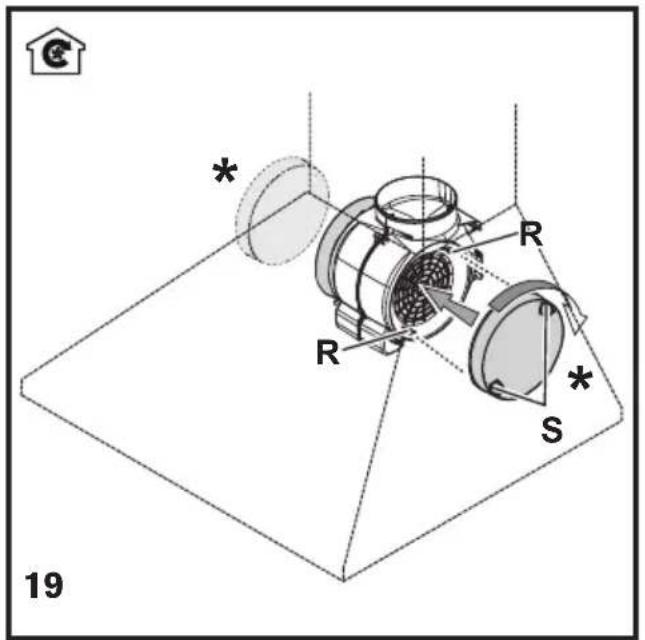

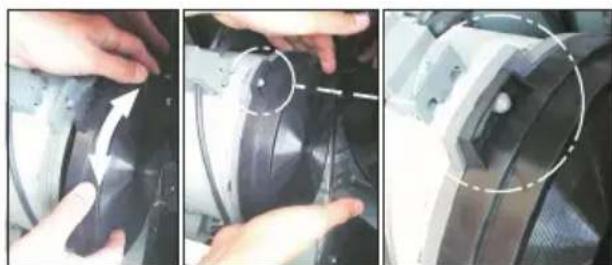

NON-washable activated charcoal fi Iter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths.

The charcoal fi lter may NOT be washed or regenerated.

Technical illustration of an electric fan assembly with three-step close-up views showing internal components (no text or symbols)

CONTROLS

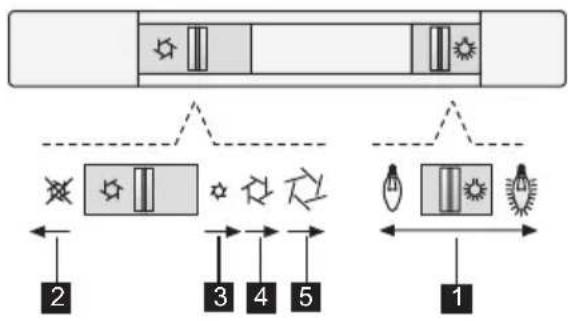

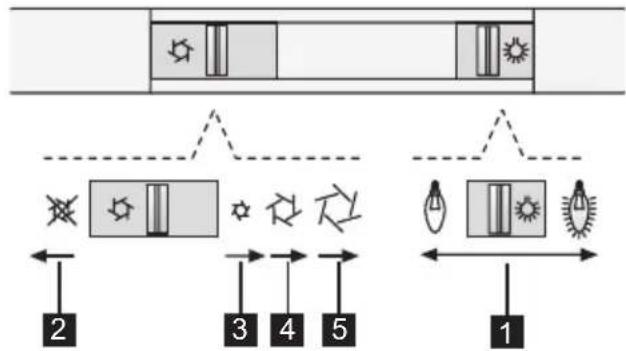

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

1 ON/OFF lights
2 OFF motors
3 Minimum suction power
4 Medium suction power
5 Maximum suction power

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

LIGHTING

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the damaged lamp.

Use ∅35mm E14 28W halogen candle lamps only.

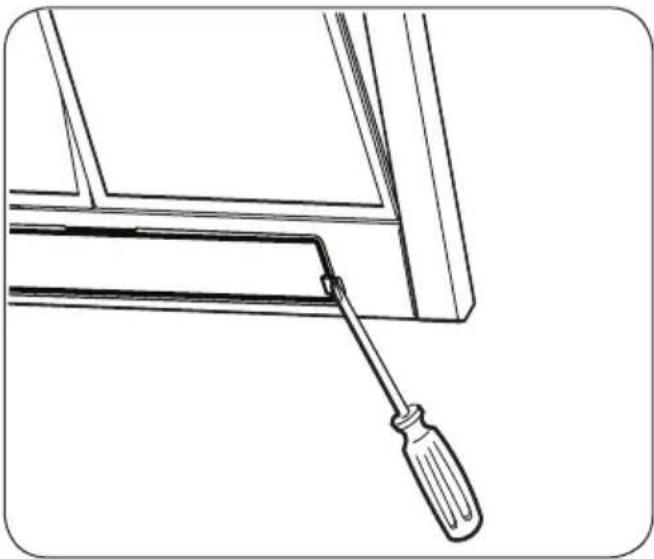

Line drawing of a screwdriver inserted into a window frame (no text or symbols)
