646181 - Food processor Melissa - Free user manual and instructions

Product Type	Food processor with blender and grinder
Brand	Melissa
Model	646181
Voltage	230 V
Frequency	50 Hz
Mixing Bowl Capacity	1000 ml (max)
Blender Jug Capacity	1.5 litres (max)
Speed Settings	2 speeds (1 low, 2 high) + Pulse (P)
Maximum Continuous Operation	3 minutes
Rest Time Required	1 minute before restart
Safety Lock	Yes, prevents operation unless correctly assembled
Included Accessories	Mixing bowl, blender jug, grinder, blade attachment, mixing attachment, grating/slicing attachment with 3 discs, filter element, tamper, plug/measuring bowl
Cleaning of Accessories	Dishwasher safe or hand wash
Cleaning of Motor Base	Wipe with a damp cloth; do not immerse in water
Plug Type	BS 1363 13-amp (UK)
Fuse Rating	13 A (ASTA or BSI approved)
Application	Domestic kitchen use only
Sharp Parts Warning	Yes, keep out of reach of children
Blade Material	Stainless steel (assumed)

Frequently Asked Questions - 646181 Melissa

Why won't the appliance start?

The appliance has a safety switch that prevents operation unless all parts are correctly assembled. Ensure the mixing bowl, blender jug, or grinder is locked into place with the lid securely fitted. Check that the locking pin on the lid is engaged.

How long can I run the food processor continuously?

Do not run the appliance for more than 3 minutes at a time. Allow it to rest for at least 1 minute before turning it on again to prevent overheating.

Can I blend hot liquids?

No, never pour boiling liquid or very hot food into the blender jug or mixing bowl. Hot contents can cause pressure buildup, making the lid pop off and splashing. Allow food to cool sufficiently first.

Can I wash the accessories in the dishwasher?

Yes, the blender jug, mixing bowl, grinder, and other accessories are dishwasher safe. Alternatively, wash them by hand with warm water and washing-up liquid. Always dry completely before use.

How do I clean the motor base?

Wipe the motor section with a damp cloth and a little detergent if needed. Never immerse the motor base, cord, or plug in water, and avoid letting any water enter the motor section.

What is the maximum capacity for blending?

The blender jug has a maximum capacity of 1.5 litres. Do not fill above the marked line. For the mixing bowl, the maximum is 1000 ml.

Can I crush ice in the blender?

Yes, but always add some liquid to the blender jug when crushing ice cubes. Do not operate the blender with only ice, as this may damage the blades.

How do I change the blade?

Always unplug the appliance before changing blades. Remove the blade attachment by lifting it off the attachment holder. Be careful as the blades are very sharp. Avoid touching them directly.

Is the grinder suitable for coffee beans?

Yes, the grinder is intended for grinding coffee beans and chopping nuts. Do not overfill the grinder, and ensure the silicone ring is fitted in the blade unit before use.

Where can I find spare parts or accessories?

Visit the official website at www.adexi.eu and go to the 'Consumer Services' menu. There you can find contact details for technical questions, repairs, and ordering spare parts or accessories.

USER MANUAL 646181 Melissa

Close-up of a kitchen blender with a plastic lid and black handle, no visible text or symbols on the device itself.

646181/ 16190009

UK Food processor with blender and grinder 28

OVERSIGT OVER APPARATETS DELE

To get the best out of your new appliance, please read this user guide carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

General

• Incorrect use of this appliance may cause personal injury and damage.
• Use for the intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).
• For domestic use only. Not for outdoor or commercial use.
• For connection to 230 V, 50 Hz only.
• Never submerge the appliance, cord or plug in water, and no water must be allowed to enter the motor section.
• Never touch the appliance, cord or plug with wet or damp hands.
• Do not expose the appliance to direct sunlight, high temperatures, humidity, dust or corrosive substances.
• Never leave the appliance unattended when it is switched on.

• Never leave unattended when in use, and keep an eye on children in the vicinity of the appliance when it is being used. The appliance is not a toy.

• The appliance is not to be used by persons with reduced sensitivity, physical or mental disabilities or persons who are unable to use the appliance without supervision or instructions from a person responsible for their safety.

• The appliance contains sharp parts - keep out of the reach of children.
• Use only accessories supplied with the appliance or those recommended by the manufacturer.

Use

• Always place the appliance on a dry, level and firm surface, and well away from the edges.
• The appliance should only be switched on when either the blender jug, grinder or mixing bowl with lid has been attached and contains liquid and/or food.
• Do not leave the appliance running for more than 3 minutes at a time. Wait for 1 minute before turning the appliance back on again.
• NEVER use your fingers, kitchen utensils or similar to push ingredients down the feed tube! Use the accompanying tamper.
• NEVER insert your fingers, kitchen utensils or similar into the mixing bowl or blender jug while the appliance is running or connected to the mains.
• Never remove the lid until the appliance is completely stopped.
• Never pour boiling liquid or very hot food into the blender jug or mixing bowl. Make sure that the food has a sufficiently low temperature to avoid burning/scalding in case of skin contact.

- Never add liquid or food to above the maximum mark on the mixing bowl or blender jug. Do not completely fill the grinder.

- Do not use the appliance if the blender jug, mixing bowl or grinder are cracked or damaged in any way.

• Always add some liquid to food when blending.

• Always add liquid to the blender jug when crushing ice cubes.

• Always remove the blade before emptying the mixing bowl.

- Please note that the blade may still rotate for a moment after you switch off the appliance.

- Be careful not to touch the sharp blades and grating/cutting discs during use and cleaning!

NOTE: The appliance is equipped with a safety switch to avoid accidental starts. The safety switch will allow the appliance to operate if the appliance is correctly assembled and the parts are securely fixed as described in the instructions. If otherwise, the appliance will not operate! If the appliance does not start, we recommend you check the appliance assembly thoroughly.

- WARNING: When mixing hot liquids/foods excess pressure may build up inside the blender, and this could make the lid come off and the contents splash out. We therefore recommend that you avoid mixing excessively hot foods and that you only put very small quantities of hot liquids or foods into the blender.

Cord and plug

- Do not let the cord hang out over the edge of the work surface.

- Check that it is not possible to pull or trip over the cord or any extension cord.

- Keep the cord and appliance away from heat sources, hot objects and naked flames.

- Unplug before changing accessories, cleaning and when not in use. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.

- Ensure that the cord is fully extended.

- The cord must not be twisted or wound around the appliance.

- Check regularly that neither cord nor plug is damaged and do not use if they are, or if the appliance has been dropped or damaged in any other way.

- If either the appliance, cord or plug has been damaged, have the appliance inspected and if necessary repaired by an authorised repairer. Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under the guarantee. Unauthorised repairs or modifications to the appliance will invalidate the guarantee.

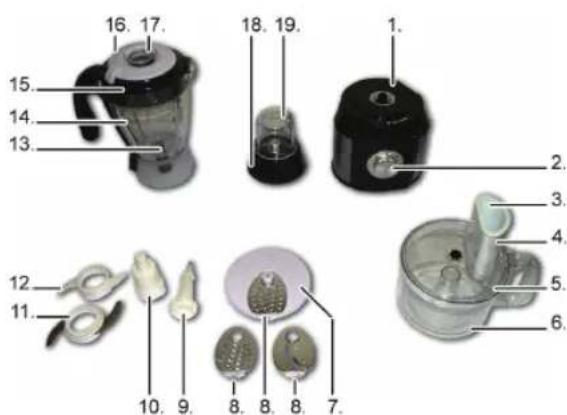

KEY TO THE MAIN COMPONENTS OF THE APPLIANCE

1. Motor section
2. On/Off button
3. Tamper
4. Feed tube
5. Mixing bowl lid
6. Mixing bowl
7. Grating/slicing attachment
8. Grating/slicing disc (3 pcs.)
9. Motor spindle
10. Attachment holder
11. Blade attachment
12. Mixing attachment
13. Knife unit (blender)
14. Blender jug
15. Blender lid
16. Filter element
17. Plug/measuring bowl
18. Knife unit (grinder)
19. Grinder

PRIOR TO FIRST USE

• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.
• Before using for the first time (or after prolonged storage without use), wash any parts that will come into contact with food. See "Cleaning".

USING THE APPLIANCE

Assembling and using the food processor

1. Place the motor section (1) on a level surface, e.g. a kitchen counter, and make sure it is standing firmly on the four suction cups underneath.

2. Fit the motor spindle (9) onto the motor section.

3. Fit the mixing bowl (6). Place the mixing bowl so that the handle faces backwards and to the right and turn the mixing bowl clockwise until it clicks into place. (See arrows and locking symbol on the motor part).

4. Fit the required accessory to the motor spindle as described in points 5-7 below.

5. If you have to use the blade attachment (11) you must always fit the attachment holder (10) to the motor spindle first. Then install the blade attachment on the attachment holder.

The blade attachment can be used for many different purposes, e.g. chopping meat and vegetables.

o Cut food such as meat, bread and vegetables into pieces of approximately 2cm before placing them in the mixing bowl.

NOTE: Never fill the mixing bowl to above the "1000 ml max" mark.

1. If you are going to use the grating/slicing discs (8) you must first install one of them on the grating/slicing attachment (7). Ensure that it is carefully pushed into place. Then install the attachment on the motor spindle.

o Use the rough grating/slicing disc for potatoes, vegetables, cheeses or similar that are to be coarsely grated.
o Use the fine grating/slicing disc for potatoes, vegetables, cheeses or similar that are to be finely grated.
o Use the slicing disc to slice hard vegetables or potatoes into thin slices.
o Feed ingredients in through the feed tube (4) in the mixing bowl lid (5) using a tamper (3) with the appliance running.

1. If you have to use the mixer attachment (12) you must always fit the attachment holder to the motor spindle first. Then install the mixer attachment on the attachment holder.

o The mixing attachment can be used for mixing minced meat, kneading dough or mixing dips, for example.
o Place the dry ingredients in the mixing bowl and add liquid through the feed tube while the appliance is running.

1. Install the lid on the mixing bowl and turn it clockwise until there is an audible click, the locking pin on the lid must be locked into place in the groove next to the handle.

o The appliance can only be started if the lid is locked.

1. Connect the appliance.

2. Switch on the appliance by turning the on/off button (2) and keep turning until you have the required speed.

o "1" is low speed and "2" is high speed.

1. Turn off the appliance by turning the On/Off button to "0" when you have finished using it.
2. Remove the mixing bowl by turning it anti-clockwise and lifting it out.

NOTE:

• Do not leave the appliance running for more than 3 minutes at a time. Wait for 1 minute before turning the appliance back on again.
  • Always remove the blade before emptying the mixing bowl.

Assembling and using the blender

1. Place the motor section on a level surface, e.g. a kitchen counter, and make sure it is standing firmly on the four suction cups underneath.
2. Place the blender jug (14) on the motor section with the handle facing backwards and to the right and turn clockwise until it clicks into place. (See arrows and locking symbol on the motor part).
3. Pour food into the blender jug.

NOTE: Never fill the blender jug above the "1.5 litre" mark.
o Chop fruits and vegetables into small pieces before placing them in the blender jug.

1. Put the blender lid (15) on the blender jug and turn clockwise until the locking pin in the lid locks into place in the groove next to the handle.
2. Install the filter element (16) in the blender lid and ensure that it is correctly positioned and secure.
3. Place the plug (17) in the hole in the blender lid and ensure that it is tightly closed.

4. Connect the appliance.

5. Place a hand on the lid and switch on the appliance by turning the on/off button to the desired speed.

o "1" is low speed and "2" is high speed.

1. The appliance also has a pulsing option with extra speed.

o Turn the On/Off button to "P" and hold it briefly in that position.

When you release the button, it reverts to "0" and the appliance stops.

1. You can add more food to the blender jug during operation by removing the lid cap and adding the food through the opening. Always switch off the appliance before removing the plug and adding more food.

2. Turn off the appliance by turning the On/Off button to "0" when you have finished blending. Wait until the blade has come to a complete stop before removing the lid.

3. Remove the blender jug by turning it anti-clockwise and lifting it out.

4. The filter element can be turned to three different positions when you are pouring from the blender jug: completely open, completely closed and filtered opening (see the symbols on the element).

NOTE:

- Do not leave the appliance running for more than 3 minutes at a time. Wait for 1 minute before turning the appliance back on again.

• Always add liquid to the blender jug when crushing ice cubes.

- The handle of the blender jug can be removed during cleaning. Press the handle down so it comes loose from the jug and remove it. The handle is installed again by pushing the white pin back into the hole in the bottom of the blender jug and pushing the handle upwards.

Assembling and using the grinder

The grinder is intended for grinding coffee beans and chopping nuts.

1. Place the motor section on a level surface, e.g. a kitchen counter, and make sure it is standing firmly on the four suction cups underneath.

2. Place food in the grinder (19). o NOTE: Do not completely fill the grinder.

3. Make sure that the silicone ring is fitted in the blade unit for the grinder (18).

4. Fit the blade unit on the grinder and tighten.

5. Place the assembled grinder onto the motor section and turn the grinder clockwise until it clicks into place. (See arrows and locking symbol on the motor part).

6. Connect the appliance.

7. Switch on the appliance by turning the on/off button and keep turning until you reach the required speed. o "1" is low speed and "2" is high speed.

8. Turn off the appliance by turning the On/Off button to "0" when you have finished using the grinder.

9. Remove the grinder by turning it anti-clockwise and lifting it out.

NOTE!

- Do not leave the appliance running for more than 3 minutes at a time. Wait for 1 minute before turning the appliance back on again.

CLEANING

When cleaning the appliance, you should pay attention to the following:

• Remove the plug from the mains socket, and allow the appliance to cool down completely before cleaning it.
• Do not immerse the motor section of the appliance in water and make sure no water enters the appliance.
• Clean the motor section by wiping it with a damp cloth. A little detergent can be added if the appliance is heavily soiled.

- Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning agents to clean the appliance, as they can damage the external surfaces of the appliance.

- The blender jug, mixing bowl, grinder and other accessories can be washed by hand in warm water with washing-up liquid or in a dishwasher.

- Be careful not to touch the sharp blades and grating/cutting discs during cleaning!

- IMPORTANT! Allow to dry completely after cleaning. Do not use the appliance if it is damp.

- Always clean the appliance before putting it away if it is not to be used for a prolonged period.

FOR UNITED KINGDOM ONLY

Plug wiring:

This product is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 13 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used. You must also check if the socket outlets in your home fit with the plug of the appliance. If the socket outlet in your home does not fit with the plug, the plug must be removed and disposed of safely as insertion of the plug into the socket is likely to cause electric hazard.

As this product is a class II appliance, the pin of BS plug for earth connection is false.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol: 🖼️

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In some member states you can in certain cases return used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

Go to the "Consumer Services" menu and click on "Frequently Asked Questions" to view the most frequently asked questions.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

IMPORTER

Adexi Group

We cannot be held responsible for any printing errors.
