Product Type	Range Hood
Brand	Husqvarna-Electrolux
Model	QFV80600K
Width	60 cm
Depth	50 cm
Height	10 cm (built-in)
Weight	12 kg
Power Supply	220-240 V, 50 Hz
Max. Airflow	280 m³/h
Number of Speeds	3
Noise Level (max)	65 dB
Lighting	LED, 1.5 W
Grease Filter	Aluminum, washable
Charcoal Filter	Optional, for recirculation
Control Type	Slider switch
Energy Class	A+
Installation	Built-in or wall-mounted
Venting	Ducted or recirculation
Duct Diameter	150 mm
Maintenance	Clean grease filter monthly; replace charcoal filter every 3-6 months
Safety Features	Automatic shut-off, safety switch
Included Accessories	Duct adapter, screws, template

Frequently Asked Questions - QFV80600K Husqvarna-Electrolux

How do I install the range hood QFV80600K?

Installation should be done by a qualified technician. Ensure the hood is mounted at least 65 cm above electric hobs and 75 cm above gas hobs. Follow the included template for drilling and use the provided screws. Connect the ductwork or set to recirculation mode with a charcoal filter.

How often should I clean the grease filter?

Clean the aluminum grease filter every month or more frequently with heavy cooking. Remove it and wash with warm soapy water or in the dishwasher. Allow to dry completely before reinstalling.

How do I replace the charcoal filter?

Charcoal filters are needed only if using recirculation. Replace every 3-6 months depending on usage. Remove the grease filter first, then slide out the old charcoal filter and insert a new one (model specific). Reattach the grease filter.

How do I adjust the fan speed?

Use the slider switch on the front panel. Slide to position 1 (low), 2 (medium), or 3 (high) for desired airflow.

Why is my range hood noisy?

Noise can increase if filters are clogged or ductwork is blocked. Clean the grease filters and check for obstructions. Also ensure the hood is securely mounted to reduce vibrations.

Can I use the hood without ducting?

Yes, the QFV80600K can be used in recirculation mode. You must install a charcoal filter (not included) to absorb odors. The air is then recirculated back into the kitchen.

What should I do if the hood doesn't turn on?

Check the power supply and ensure the plug is connected. Verify the circuit breaker hasn't tripped. If still off, contact Husqvarna-Electrolux support for assistance.

How do I change the LED light?

The LED light is integrated and not user-replaceable. If it fails, contact a service technician for replacement.

What is the warranty period for QFV80600K?

The standard warranty is 2 years for domestic use. Register your product online to extend. Warranty covers manufacturing defects but not consumables like filters.

How do I maintain the hood for long life?

Regularly clean the exterior with a damp cloth and mild detergent. Avoid abrasive cleaners. Clean the grease filter monthly and replace charcoal filters as needed. Ensure the ventilation duct is clear.

USER MANUAL QFV80600K Husqvarna-Electrolux

BÄSTA KUND FÖR PERFEKT RESULTAT

5. KOMMANDON

KJÆRE KUNDE

FOR PERFEKTE RESULTATER

www.husqvarna-electrolux.se/shop

MILJ∅VERN

4.2 KKE vaskbart aktivt kullfilter

5. KONTROLLER

ARVOISA ASIAKKAAMME TÄYDELLISTEN TULOSTEN SAAVUTTAMISEKSI

5. OHJAIMET

KÆRE KUNDE

FOR PERFEKTE RESULTATER

www.husqvarna-electrolux.se/shop

MILJ∅HENSYN

5. BETJENING

Thank you for choosing this Husqvarna-Electrolux product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.husqvarna-electrolux.se

Register your product for better service: www.husqvarna-electrolux.se

Buy Accessories, Consumables and Original spare parts for your appliance: www.husqvarna-electrolux.se/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2. USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation of filtering with

internal recirculation

filtering with

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45cm from electric cookers and 50cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

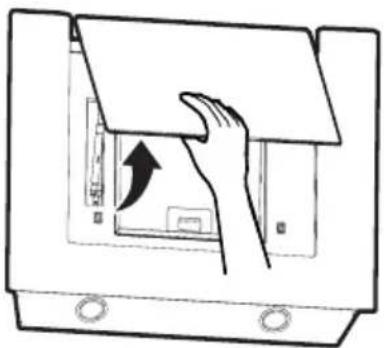

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

4.2 NON-washable activated charcoal filter - The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

5. CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

1 ON/OFF lights
2 OFF motors
3 Minimum suction power
4 Medium suction power
5 Maximum suction power

6. LIGHTING

Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
