USER MANUAL TC7040 UPO

Family moment with a man lifting a baby on a bed, both smiling (no text or symbols visible)

SVENSKA

3-11

OMI 15-26

RSK 27-38

DANSK 39-50

ENGLISH 51-63

Bäste Kund,

INNEHÅLLSFÖRTECKNING

ANMÄRKNINGAR OCH RÅD FÖR ANVÄNDAREN 4-5

Tekniska data

4

PESKRIVNING AV MASKINEN 6

- Extra tillbehör

6

INSTALLATION AV MASKINEN 6-7

Installation 6

INSTALLATION AV MASKINEN

INSTALLATION

Close-up of a mechanical ventilation unit with a circular vent and side panel (no text or symbols visible)

Illustration of a hand holding a small object with green arrows indicating rotation or movement (no text or symbols)

ANSLUTNING TILL ELSYSTEMET

Hand holding a plug inserted into an electrical socket, with a green symbol and number 4 visible (no text or symbols on the diagram itself)

Diagram of a washing machine with green arrows indicating airflow or circulation around the door (no text or symbols present)

BESKRIVNING AV MANÖVERPANEL

Illustration of a washing machine with green arrows indicating airflow or circulation (no text or symbols)

TÖMNING AV KONDENSVATTENBEHÅLLAREN

Mechanical component diagram showing a door handle and internal panel with a green arrow indicating direction (no text or symbols)

Illustration of a hand using a dropper to add liquid into a container with a drop, labeled '10' (no text or symbols on the diagram itself)

Diagram of a device with a green upward arrow indicating motion or force, no text or symbols present

3D rendering of a mechanical component with green arrows indicating direction, labeled '12' at bottom left (no text or symbols on the diagram itself)

Interior view of a car showing a door opening with green arrows indicating clockwise motion (no text or symbols)

Diagram of a car interior showing a mounted device with a green arrow indicating direction (no text or symbols present)

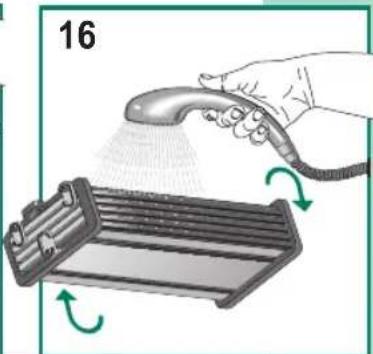

Illustration of a hand using a handheld tool to clean a cylindrical device with green arrows indicating rotation (no text or symbols)

Illustration of a hand using a spray gun to dispense liquid onto a device (no text or symbols present)

FELSÖKNING

Illustration of four different types of metal fasteners: two with looped clips, three with bent clips, and two with screws (no text or symbols present)

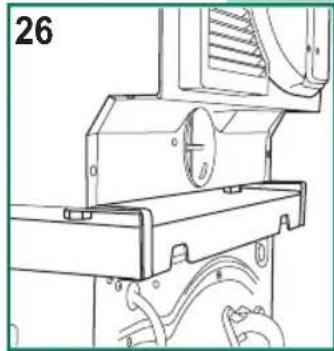

NIVELLERING AV TVÄTTMASKINEN

Line drawing of a rectangular mechanical component with mounting feet and a side panel, labeled '21' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

FULLBORDA INSTALLATIONEN

KONEEN ASENNUS

ASENNUS

Close-up of a mechanical component with a circular recess and flange, no visible text or symbols

Illustration of a hand holding a small mechanical component with green arrows indicating rotation (no text or symbols)

SÄHKÖVERKKOON LIITÄNTÄ

Hand holding a plug inserted into an electrical socket, with a green symbol and number 4 visible (no text or symbols on the diagram itself)

Diagram of a washing machine with green arrows indicating airflow or circulation around the door (no text or symbols present)

LAUHDEVESISÄILIÖN TYHJENNYS

Mechanical component diagram showing a door handle and internal structure with a green arrow indicating direction (no text or symbols)

Illustration of a hand using a pipette to clean or inspect the surface of a rectangular object (no text or symbols visible)

Diagram of a device rear panel with a green upward arrow indicating motion or direction (no text or symbols)

Technical diagram of a mechanical component with green arrows indicating internal features (no text or symbols)

Interior view of a car showing a door, vent, and tray with green arrows indicating direction (no text or symbols)

Diagram of a device interior showing a rack-mounted unit with a green directional arrow indicating movement (no text or symbols present)

Illustration of a hand holding a spray gun over a cylindrical device with green arrows indicating motion (no text or symbols)

Illustration of a hand spraying a hairdryer onto a metal rack with green arrows indicating motion (no text or symbols)

VIANETSINTÄ

Illustration of two sets of mechanical fasteners with different mounting features (no text or symbols)

PESUKONEEN TASAPAINOTTAMINEN

Line drawing of a rectangular mechanical component with mounting feet and a side panel, labeled '21' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALLASJON AV MASKINEN

Exterior view of a mechanical ventilation unit with a circular vent and side panel (no text or symbols visible)

Illustration of a hand holding a small object with green arrows indicating rotation or change (no text or symbols)

KOPLE TIL DET ELEKTRISKE SYSTEMET

Hand holding a plug inserted into an electrical socket, with a green symbol and number 4 visible (no text or symbols on the diagram itself)

▼ Døren kan omhengsles etter behov (fi g. 6).

Diagram of a washing machine with green arrows indicating airflow or circulation around the door (no text or symbols present)

BESKRIVELSE AV BETJENINGSPANET

TIDSINNSTILT PROGRAM

Slitesterkt tøy	Max 7.0 kg.	min. 120 - 60	min. 120 - 60	min. 60 - 40	min. 60 - 40
Sart tøy	Max 3.5 kg.
20 min.

ANBEFALINGER F∅R T∅RKINGEN

SORTERING AV T∅YET

FORHOLDSREGLER FOR T∅Y

Illustration of a washing machine with green arrows indicating airflow or circulation (no text or symbols)

T∅MME KONDENSVANNBEHOLDEREN

Mechanical component diagram showing a door handle and internal structure with a green arrow indicating direction (no text or symbols)

Illustration of a hand using a dropper to add liquid into a container (no text or symbols)

Diagram of a device with a green upward arrow indicating motion or force, no text or symbols present

Diagram of a mechanical component with internal channels and green arrows indicating motion or flow (no text or symbols)

Diagram of a car interior showing a door, vent, and tray with green arrows indicating motion (no text or symbols)

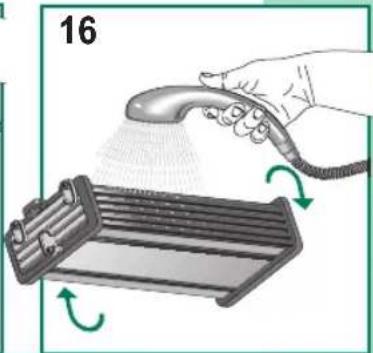

RENGJ∅RING OG VEDLIKEHOLD

Interior view of a vehicle air conditioner unit with a green directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with green arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with green arrows indicating motion (no text or symbols)

FEILS∅KING

Illustration of two sets of mechanical fasteners with different mounting features (no text or symbols)

NIVELLERE VASKEMASKINEN

Line drawing of a rectangular mechanical component with mounting feet and internal features (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

STALLATION AF APPARAT 41-42

- Installation 41

INSTALLATION AF APPARAT

INSTALLATION

Close-up of a white industrial ventilation duct with a circular vent and mesh pattern (no text or symbols visible)

Illustration of a hand holding a small object near a wall, with green arrows indicating rotation or movement (no text or symbols)

Illustration of a hand holding an electrical outlet plug with a cable, no text or symbols present

Diagram of a washing machine with green arrows indicating airflow or circulation around the door (no text or symbols present)

BESKRIVELSE AF BETJENINGSPANEL

Illustration of a washing machine with green arrows indicating internal components (no text or symbols)

TÖMNING AF BEHOLDER TIL KONDENSVAND

Mechanical component diagram showing a door handle and internal structure with a green arrow indicating direction (no text or symbols)

Illustration of a hand using a dropper to add liquid into a container (no text or symbols)

Diagram of a device with a green upward arrow indicating motion or force, no text or symbols present

Diagram of a mechanical component with internal channels and green arrows indicating features (no text or symbols)

Diagram of a refrigerator interior with green arrows indicating airflow or movement, labeled '13' (no text or symbols on diagram itself)

Diagram of a car interior showing a vehicle-mounted device with a green arrow indicating a motion or change (no text or symbols present)

Illustration of a hand holding a tool next to a cylindrical device with green arrows indicating rotation (no text or symbols)

Illustration of a hand spraying water onto a rack with green arrows indicating rotation (no text or symbols)

FEJLFINDING

Illustration of two sets of mechanical fasteners with different mounting features (no text or symbols)

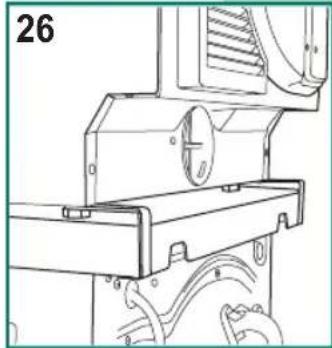

NIVELLERING AF VASKEMASKINEN

Line drawing of a rectangular mechanical component with mounting feet (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a labeled component 'A' (no text or symbols beyond label)

AFSLUTNING AF INSTALLATIONEN

Thank you for choosing our product. Please read these instructions carefully before connecting and using the appliance. Knowledge of the operating principles will help guarantee correct and safe use of the appliance. This instruction booklet contains the technical characteristics of the drier and is full of useful information regarding its operation, all designed to help you get the best out of your appliance. If the appliance is sold or handed over for use by others, remember to give the new user the instruction booklet.

CONTENTS

NOTES AND ADVICE FOR THE USER 51-52

Technical information 51

DESCRIPTION OF THE APPLIANCE 53

- Optional accessories 53

INSTALLING THE APPLIANCE 53-54

Installation 53

• Levelling the drier 54
- Connecting to the mains supply 54
- Changing the door opening direction

USING THE DRIER

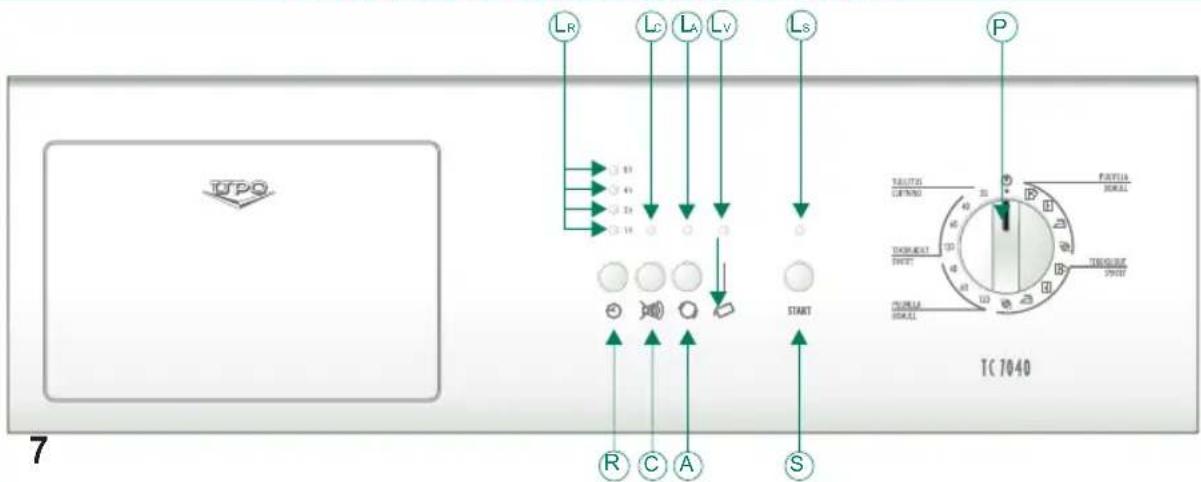

Description of the control panel
• How to dry 55
- Programme
- Recommendations prior to drying
• Precautions for fabrics
55
56
56
56

MAINTENANCE

Internal light

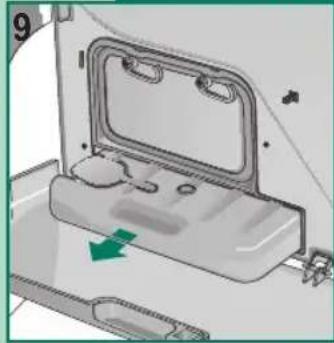

- Draining the condensation reservoir

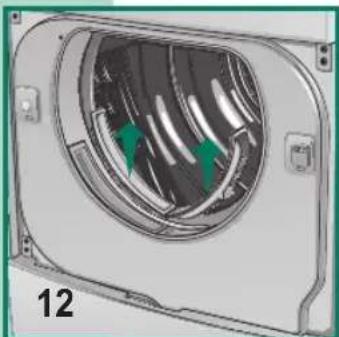

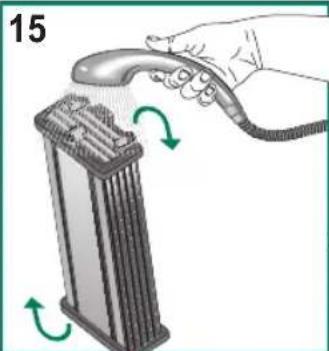

• Cleaning and maintenance 57-58
- Troubleshooting
- Resolving problems
56
57
58
58

54

55-56

56-58

NOTES AND ADVICE FOR THE USER

TECHNICAL DATA

Dimensions:	Width cm.:	59.5
	Height cm.:	85.0
	Depth cm.:	60.4
Max. capacity		7 kg dry
Power rating		see characteristics plate
Voltage		see characteristics plate

MODEL:

SERIAL NUMBER:

DATE OF PURCHASE:

This appliance has been designed for use as a domestic drier. Any other use is considered as improper and therefore dangerous.
▼ Keep this instruction book near to the appliance always, so that it can be easily consulted when necessary.
▼ Any modifications or attempts to interfere with the appliance can be dangerous for the user and may damage the product.
On delivery of the appliance, check that it has not been damaged during transport. If any damage is discovered, report the matter to the retailer immediately.
▼ Do not cover the drier with washing or any other items.
When positioning the appliance, ensure that the power supply cable is not kinked or squashed and is accessible.
▼ Always close the door after using the drier.
This will prevent children from leaning on the door and possibly overturning the drier.
▼ The appliance must not be used by children unless supervised.
▼ Do not use the drier for drying dirty clothes.
▼ Never dry items that have been soiled with substances such as cooking oil, petroleum, acetone, alcohol, petrol, kerosene, stain removers, turpentine, wax.
▼ Remove these substances in a hot wash using an additional quantity of detergent prior to loading the items in the drier.
Do not dry items such as foam rubber, latex, raincoats, waterproof fabrics, rubber mats, preformed items, clothes or cushions with foam rubber inserts, as these may melt and damage other items in the washing or even the appliance itself.
▼ Fabric softeners, or similar products, must be used respecting the manufacturer's instructions on the packaging.
If the appliance is sold or given away, remember to hand over this instruction book with it. This will help the new owner use the drier both correctly and safely.
Do not attempt to repair any appliance faults alone, in that repairs carried out by a non-professional may cause serious damage and will invalidate any rights to repairs under guarantee.
▼ Repairs to the appliance can only be carried out by personnel authorised by the customer service centres. All repairs must make use of original spare parts only.
▼ Spin dry or wring the washing well before

loading it into the drier. Spun dry washing will dry quicker.

Clean the fi Iter thoroughly each time the drier is used in order to guarantee perfect air circulation.
▼ Never insert or remove the plug from the mains socket with wet hands.
The drier must be connected to a mains socket fitted with an efficient earth complying with current safety standards.
Do not use extension leads or multiple plug adapters to connect the appliance to the mains supply.

▼ Do not expose the appliance to atmospheric agents.

When servicing or cleaning the appliance, remember to disconnect it from the mains supply.

Do not pull the power supply cable to unplug the appliance from the mains supply. Pull the plug only.

This appliance is marked as complying with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Make sure that the product is disposed of in a correct manner. The user is obliged to contribute towards preventing any negative consequences for health and the environment.

The symbol ### xied to the product or accompanying documents signifies that the product must not be treated as normal domestic refuse, but must be delivered to an authorised collection centre to enable the electric and electronic equipment to be recycled.

When disposing of the appliance, comply with local waste disposal regulations.

For further information on the treatment, recovery and recycling of this product, refer to the appropriate offi ces, local domestic waste collection service or the retailer from where the appliance was purchased.

Warning!!! Surfaces on which this symbol appears may heat up during normal operation.

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY INCIDENTS RESULTING FROM NON-COMPLIANCE WITH SAFETY STANDARDS OR THE REQUIREMENTS OF THIS INSTRUCTION BOOK.

DESCRIPTION OF THE APPLIANCE

1 Drum door.
2 Drum door fi Iter.
3 Control panel.
4 Drier drum.
5 Drum mouth fi Iter.

6 Rating plate.
7 Lower condensation water reservoir.
8 Adjustable feet
9 Lower door.
10 Condenser door.

INSTALLING THE APPLIANCE

INSTALLATION

Close-up of a white industrial air duct with a circular vent and mesh grille (no text or symbols visible)

▼ Installation must be carried out by qualified personnel in line with the instructions supplied by the manufacturer. Incorrect installation may result in damage and/or injury.
Do not install the drier in rooms subject to freezing temperatures. Freezing temperatures could damage the electronics.
▼ Position the drier in a well-ventilated room.
Do not cover the ventilation hole on the back (fi g. 2) and do not place the drier on thick carpet.
▼ Clean the inside of the drying drum using a damp cloth to remove any dust deposits.

WARNING!!! A stacking kit MUST be installed if products will be stacked. Note! If the drier is placed on top of a washing machine or other product, please read the information of stacking kit.

LEVELLING THE DRIER

Adjustable feet. Place the drier upright so that it rests firmly on all four feet. Level the drier by adjusting the feet as follows:

▼ Lift the drier slightly.
▼ Adjust the feet to the correct height (fi g. 3).
▼ Lower the drier.

NB. A badly levelled appliance may cause damage to the bearings and lead to their premature wea. This drier does not need to be anchored to the floor.

Illustration of a hand holding a small component with green arrows indicating rotation (no text or symbols)

CONNECTING TO THE MAINS SUPPLY

▼ Make sure that the voltage indicated on the identification plate attached to the back of the appliance corresponds to that of the mains supply.
All cut-outs, electric wiring and mains sockets must have a rating such that enables them to support the maximum load indicated on the identification plate.
▼ Once the appliance has been installed, it must be connected to the mains supply through a single-pole switch.
The mains supply to which the appliance is connected must be fitted with an earthing system. If this is not the case, the manufacturer will not be held liable for any incidents that may occur (fi g. 4).
If the power supply cable is damaged in any way, contact the appropriate specialised customer technical service centre.
The drier must not be connected to the mains supply using indirect methods such as extension leads or multiple adapters.
▼ Position the appliance so that the power supply cable is easily accessible for disconnection when the need arises.

Hand holding a plug inserted into an electrical socket, with a green symbol and number 4 visible (no text or symbols on the diagram itself)

Important: On completion of the drying cycle, disconnect the appliance from the mains supply to prevent young children from operating the drier.

OPENING THE DOOR AND CHANGING THE OPENING DIRECTION

▼ Press the right side of the door (fi g. 5) to open it. If the door has been reversed, press the left side.

The direction of the drum door opening can be modified according to needs (fi g. 6).

- N.B.: This operation must only be carried out by a qualified technician. Contact the customer service centre.

Diagram of a washing machine with green arrows indicating airflow or circulation around the door (no text or symbols present)

DESCRIPTION OF THE CONTROL PANEL.

P. Programmer knob. Used to select the required programmes according to the types of fabrics and their specific needs. If, for any reason, you want to change the programme or add more washing to the load during the drying cycle, simply place the programmer knob in the "STOP position. Then re-position the knob on the required program and press the "START" button.

NB. Warning!! Only use this function if strictly necessary and then only if the programme to reset has been running for less than 3 minutes.

S. Start Button. Press this button to start the programmed drying cycle.

Ls. Start Led. Off indicates the "STOP" position. On fixed indicates the cycle is running. Fast fl ashing indicates the set programme is ready to start. Slow fl ashing indicates the end of the drying programme.

Lv. Reservoir full alarm Led. A flashing light indicates that the reservoir is full and needs to be emptied (the drying cycle stops).

A. Anti-crease button. Activates a function that, at the end of the drying cycle, rotates the drum and the washing loaded in it in one direction then in their other for a further sixty minutes to reduce creasing. Each rotation is signalled by a short beep.

LA. Anti-crease Led. Off indicates that the function has been disabled. A fixed light indicates that

the anti-crease function is active. A fl ashing light indicates that the function is running. When the drying cycle is over, the start Led will also light up and fl ash slowly.

C. Beep silencer button. Disables the beep function, which would otherwise be permanently enabled.

Lc. Beeper Led. Off indicates that the beeper is enabled, on indicates that the beeper is disabled (the selection remains memorised even when the appliance is switched off).

R. Delayed start button. Used to delay drier start-up for up to a maximum of 8 hours. The delay in hours can be selected as follows: each time the button is pressed, the drying cycle is delayed 1, 2, 4 and 8 hours. When the START button is pressed, the selected led will fl ash signalling that the function has been activated. The machine will wait for the number of hours set to elapse and then start the drying cycle automatically.

If the power supply is interrupted while the delayed start function is active, the function itself will be annulled. Pressing the start button will start the drying cycle immediately.

Delayed start Leds. These light up one at a time. A fixed light indicates the set time delay. A flashing led indicates that the delayed time function has been activated. The led switches off when the set time delay has elapsed.

HOW TO DRY

1) Load the washing in the drum and close the door.

2) With dry hands, insert the plug in the mains socket.

3) Position the programmer knob on Stop to reset any previous programmes, then rotate it to the ideal programme for the type of fabric, the amount loaded in the drum and the required degree of drying (see Programme Table).

4) Select the required options by pressing the appropriate buttons.

5) Press the START button to start the drying cycle.

6) The end of the drying cycle is signalled by the fl ashing start led and beeper. At this point, return the selector to the STOP position.

7) Open the drum door and remove the washing.

8) Re-close the door.

9) With dry hands, remove the plug from the mains socket.

PROGRAMME TABLE

ELECTRONIC DAMPNESS CONTROL PROGRAMMES

Resistant	Max 7.0 kg.
Delicates	Max 3.5 kg.	Extra dry Wardrobe dry		Iron damp Very damp
TIMED PROGRAMMES
Resistant	Max 7.0 kg.	min. 120 - 60	min. 120 - 60	min. 60 - 40	min. 60 - 40
Delicates	Max 3.5 kg.
20 min.

RECOMMENDATIONS PRIOR TO DRYING

SORTING THE WASHING

Before drying the washing, spin it at the recommended rpm for the type of load. Spinning at maximum rpm will result in up to a 35% saving in energy. The higher the spin speed, the better the drying result. Using a softener in the wash cycle will improve drying and save time. Before drying the washing in the drier, check the items to make sure they can be machine dried. Refer to the clothing care symbols on the labels.

If the label has no drying symbol, proceed as follows:

▼ White/coloured washing and crease-proof washing can be dried at normal temperature using the appropriate drying programme.

▼ Delicate washing, acrylics for example, must always be dried at low temperature.

General advice:

Jersey often shrinks, not only in the wash but also during drying.

Pure linen.

▼ Only dry garments with specific drying instructions on label, otherwise, the fabric could roughen.
In order to avoid staining, never dry dark coloured washing together with light coloured washing.

PRECAUTIONS FOR FABRIC TYPES

In the case of doubt as to the type of fabric, read the label on the item itself.

Almost all items that can be machine dried have this information specified on the label.

To avoid static electricity being generated in the items, add a conditioner to the rinse cycle of the washing machine.

Remove synthetic materials from the drum immediately to prevent them from creasing.

MAINTENANCE

INTERNAL LIGHT

The drier is fitted with an internal light.

To replace the bulb, proceed as follows:

▼ Remove the plug from the mains socket or switch off the main power supply;
▼ Remove the lamp cover.
▼ Remove the bulb (fi g. 8).
▼ Warning: Do not use bulbs of rating higher than 15 W!
▼ Replace the lamp cover.

Illustration of a washing machine with green arrows indicating airflow or circulation (no text or symbols)

DRAINING THE CONDENSATION WATER RESERVOIR

Interior view of a vehicle door frame with a green arrow indicating a component (no text or symbols)

If the condensation drain hose is not connected directly to the drainage system, the condensation is collected in the reservoir (fi g. 9). The reservoir must be emptied after each drying cycle.

To empty the reservoir, proceed as follows:

▼ Remove the reservoir from the drier (Fig. 9).

Illustration of a hand using a dropper to apply liquid into a container (no text or symbols visible)

▼ Empty the reservoir. The drain hole is located on the top left (fi g. 10).
▼ After emptying, replace the container in its housing making sure it is properly seated.
If the reservoir is not emptied or it fills up excessively during a drying cycle, the condensation reservoir warning light will flash and the drier will stop. If this happens, proceed as described above.
To restart the programme, press the reservoir alarm reset button (START) (fi g. 7).

CLEANING AND MAINTENANCE

Diagram of a device with a green upward arrow pointing to a component, no text or symbols present

Disconnect the drier from the mains supply before cleaning. It is important to clean the drier after each drying cycle in order to save in drying time and consequently save energy.

1. Door fl uff fi lter (fi g. 11).
2. Fluff fi Iter in the loading aperture (fi g. 12).
3. Condenser (fi g. 13).
   ▼ Remove the fi Iter by pulling upwards and then clean it (fi g. 11).

3D rendering of a mechanical component with internal channels and green arrows indicating motion or flow (no text or symbols)

It is also possible to remove the two fl uff fi lters from the door opening and clean them (fi g. 12).

NB. The presence of fl uff in the fi lter is not the result of the drying procedure. The fl uff comes from the fi bres of fabrics damaged or unthreaded during the wash and, above all, as a result of wear.

The filters can be cleaned by simply placing them under hot running water.

Diagram of a car interior showing a door, vent, and tray with green arrows indicating motion (no text or symbols)

▼ The condenser should be cleaned two or three times a year (fi g. 13/16).
▼ Open the door, rotate the lever to the vertical position and remove the cover (fi g. 13).

CLEANING AND MAINTENANCE

▼ Rotate the 3 levers to the vertical position and remove the condenser (fi g. 14).

Interior view of a vehicle air conditioner unit with a green directional arrow indicating airflow or movement (no text or symbols)

▼ Wash the front, back and sides of the condenser, aiming the jet of water as shown (fi g.15/16).

To dry the condenser thoroughly, place it on its side on a towel.

When the condenser is dry, replace it following the same procedure in reverse order.

Illustration of a hand holding a handheld device next to a vertical cylindrical device with green arrows indicating rotation (no text or symbols)

Illustration of a hand using a spray gun to dispense or spread material onto a device (no text or symbols present)

TROUBLESHOOTING

All electric appliances may break-down at some time.

Remember to call a qualified technician in these cases. However, many problems can be resolved without the need for external intervention.

Important: If a fault occurs, disconnect the appliance from the mains supply immediately.

Before calling the customer service centre, check the points listed below.

RESOLVING PROBLEMS

If the drier doesn't start

- Check that:

1) The appliance is plugged into the mains supply.
2) The mains socket is working correctly: 2a) The fuse has not blown. (Check by plugging in another appliance such as a table lamp and see if that works)
2b) All the instructions in the manual have been followed.

If the drier doesn't start

- Check that:

1) The door is closed properly
2) The start button has been pressed.

The washing does not dry

- Check that:

1) The air exhaust aperture is not blocked.
2) Clean fl uff fi lter and condenser.
3) The filter is not blocked. (Remember that when the door is opened, the internal parts of the drier and the washing may be very hot).

If, after all these checks have been carried out, the appliance still does not work, inform the nearest customer service centre. When contacting the service centre, inform them of the appliance model, serial number and type of fault. This information will help the service centre operator in procuring the necessary spare parts, thus guaranteeing a speedy and efficient repair.

Inside the product, an accessory is available to complete the installation and enable the drier to be mounted on top of a front-loading washing machine, thus saving space. If the drier is stacked on top of a washing machine the drier, the stacking kit HAS to be used. The installer will check if your washing machine is suitable for this type of installation.

STACKING KIT SAFETY

Your safety and that of others is extremely important.

This manual contains numerous recommendations and warnings for the safe use of this stacking system. We recommend that you read and follow these instructions carefully and comply with the mentioned safety warnings.

SAFETY WARNING SYMBOL

This symbol warns of potential hazards that may be life threatening for you and/or other persons. All the safety warnings are preceded by the safety warning symbol and the word "DANGER" or "WARNING". These words have the following meaning:

DANGER: If this warning is NOT complied with immediately, the action may lead to serious injury or death.

DANGER: If this warning is NOT complied with, the action may lead to serious injury or death.

All the safety warnings supply precise information on the potential hazard, the methods to use for reducing the risk of accidents and the consequences of any non-compliance with the instructions given.

INSTALLATION INSTRUCTIONS

EQUIPMENT AND PARTS

17

A

Illustration of two sets of mechanical fasteners with different mounting features (no text or symbols)

Before starting the installation, procure the required tools and parts.

Tools and equipment required

▼ TORX®† T20 screwdriver
▼ 24 mm spanner
▼ 2 corner pieces of expanded polystyrene taken from the packing material
▼ 1 soft cloth and water with a mild detergent added

Parts supplied (fi g.17)

Open the kit and check that all the parts are present.

A. Foot anchors
B. Brackets
C. B. C. TORX®† screws

TORX®† IS THE REGISTERED TRADEMARK OF TEXTRON INNOVATIONS INC.

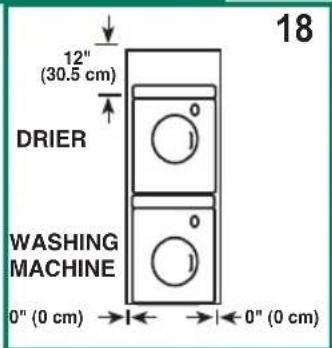

BUILT-IN OR CUPBOARD INSTALLATION

IMPORTANT: The washing machine/drier stack can also be installed in a niche or cupboard. To this end, check the location of the water feed valves and earthed mains outlet socket. If any modifi cations are to be made to the water supply valves, mains sockets or power supply cable, ask the assistance service to carry out the work. The dimensions shown below refer to the minimum amount of space required.

An additional space should be left to facilitate the installation work and for maintenance purposes.

BUILT-IN OR CUPBOARD INSTALLATION

▼ Additional space may be required to compensate for the shape of walls, doors and floors (fi g. 18).

It is advisable to leave an additional space of 2.5 cm at the sides of the drier to reduce the transmission of vibration and noise (fi g. 19).

If the stack is to be installed in a single door cupboard, the top and bottom parts of the door should be provided with at least the minimum amount of ventilation (fi g. 20).

A louvred door with an equivalent number of ventilation openings can also be used (fi g. 20).

LEVELLING THE WASHING MACHINE

1. With the help of 2 or more persons, move the washing machine as close as possible to its final installation location.

2. Level the washing machine as described in the washing machine's instruction manual.

WARNING: Heavy weight. Use two or more persons to transport and install the washing machine.

NON COMPLIANCE WITH THIS WARNING MAY LEAD TO BACK INJURY OR OTHER.

FITTING THE STACKING BRACKETS

1. Position the two expanded polystyrene corner pieces on the floor.

2. With the help of two or more persons, grasp the body of the washing machine tightly and lower it face down onto the expanded polystyrene.

WARNING: Heavy weight. Use two or more persons to transport and install the drier.

NON COMPLIANCE WITH THIS WARNING MAY LEAD TO BACK INJURY OR OTHER.

FITTING THE STACKING BRACKETS

Line drawing of a rectangular mechanical component with mounting feet (no text or symbols)

1. Remove the two screws from the bottom of the drier and keep them (for vented drier models only).

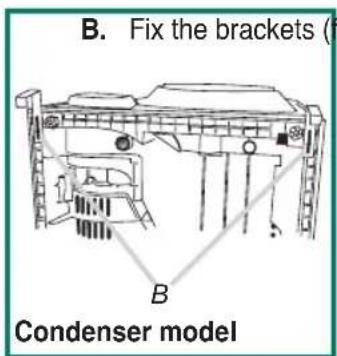

2. Fit the two brackets on the back edge of the washing machine, as shown (fi g. 22), using the two screws supplied with the kit.

A. Remove the two screws (for vented drier models only fig. 22).

1. Use a 24 mm spanner to screw in the four feet of the drier as far as they will go and make contact with the bottom of the drier. Do not use excess force.
2. Place the drier in the upright position.
3. Use the soft cloth and water with added mild detergent to clean the top of the washing machine. This is to ensure that the adhesive foot supports supplied adhere properly to the surface.

INSTALLING THE DRIER ON TOP OF THE WASHING MACHINE

1. With the help of 2 or more persons, lift the drier and place it on top of the washing machine.

Make sure that the stacking brackets are positioned away from the back edge of the washing machine.

WARNING: Heavy weight. Use two or more persons to transport and install the drier.

NON COMPLIANCE WITH THIS WARNING MAY LEAD TO BACK INJURY OR OTHER.

INSTALLING THE DRIER ON TOP OF THE WASHING MACHINE

1. Slide the drier forwards towards the front of the washing machine.

The stacking brackets will slide over the back edge of the washing machine and into position (fi g. 25/26).

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Anchoring the front feet of the drier

1. Lean the drier backwards to lift the two front feet off the washing machine. Hold the drier in this position and fi t one of the foot anchors on one of the front feet of the drier. Refer to the fi gure alongside for the correct position of the foot anchor (fi g.27).

A. When the installation is complete, this edge should be visible from the front.

1. Remove the film covering the adhesive on the bottom of the foot anchor.

IMPORTANT: The adhesive will stick immediately on contact. Consequently, make sure that the foot anchor is in the correct position before it makes contact with the washing machine. If the washing machine/drier stack is to be moved to another location in the future, the foot anchors should not be removed. Once removed, the foot anchors will no longer be able to adhere to the surface.

1. Hold the foot anchor in position and replace the drier on top of the washing machine. The foot anchor will remain in the correct position, stuck to the top of the washing machine.

2. Repeat the operation for the other front foot.

COMPLETING THE INSTALLATION

1. Check that the two brackets on the back of the washing machine are firmly anchored in position. If there is any play in the brackets, use the 24 mm spanner to tighten the two back feet of the drier to make sure that the brackets are firmly anchored to the back edge of the washing machine.

2. Lift the front of the drier and adjust the two front feet to the same height as the back feet.

3. Place a level on the top of the drier to make sure it is sitting correctly. Check the level from one side to the other first, then from front to back.

If the washing machine and drier are not level, adjust the feet of the drier as necessary and repeat the level check.
