Product Type	Hand cylinder mower (push reel mower)
Mowing Width	35 cm
Mowing Height Range	14–49 mm
Weight	6.5 kg
Power Source	Manual (no motor)
Handle Type	Three-piece ergonomic handle
Blade Reel	5-blade reel with fixed bed knife
Adjustable Cutting Height	Yes, via cutting height rollers with knobs
Fixed Blade Adjustment	Two setting knobs for reel-to-bed knife clearance
Safety Features	Warning: keep hands/feet away; use gloves; lock reel during assembly
Assembly Required	Yes, handle sections attach with nuts and bolts
Maintenance	Clean with brush/cloth; no water; remove grass debris; store dry
Recommended Footwear	Heavy-duty shoes and long trousers
Intended Use	Residential lawn mowing
Manufacturer	Meec Tools (distributed by Jula AB)

Frequently Asked Questions - 721-445 Meec Tools

How do I assemble the handle?

Align the lower handle holes over the pins on each side, then attach intermediate sections and upper handle using provided nuts and screws. Wear safety gloves and lock the blade reel to prevent rotation.

How do I adjust the fixed blade for proper cutting?

Slowly tighten the two setting knobs clockwise until reel blades just contact the fixed blade, then turn knobs slightly counterclockwise so the reel rotates freely without contact. Wear gloves and keep fingers clear.

How do I change the mowing height?

Loosen the knobs on each side of the cutting height rollers, move the rollers to the desired height (14–49 mm), then retighten knobs. Set both ends equally for an even cut.

What safety precautions should I take before mowing?

Wear heavy-duty shoes and long trousers. Inspect the area for objects that could be thrown. Check that blades, screws, and cutting unit are not worn or damaged. Keep children and pets away.

Can I use this mower on slopes?

Mow carefully on slopes. Maintain good footing, never run, and be cautious when changing direction. Do not mow steep slopes. Avoid pulling the mower towards you on slopes.

How do I clean the lawn mower after use?

Use a soft brush and cloth to clean the exterior. Remove grass and debris. Do not use water, detergent, or polish. Place the mower on its side to clean blades with a plastic utensil.

Where should I store the mower?

Store in a dry place out of reach of children. Do not place any objects on top of the mower.

How often should I sharpen or replace the blades?

Keep blades clean and sharp for effective cutting. Replace the complete blade set and screws if worn or damaged to avoid imbalance. Check before each use.

Is this mower suitable for large lawns?

This manual push mower is best for small to medium lawns. With a 35 cm cutting width, it requires physical effort and is not recommended for large areas.

What should I do if the blades jam?

Stop using the mower immediately. Check for debris or grass buildup. Clean blades carefully with a plastic utensil. Ensure the fixed blade is correctly adjusted. If problem persists, inspect for damage.

USER MANUAL 721-445 Meec Tools

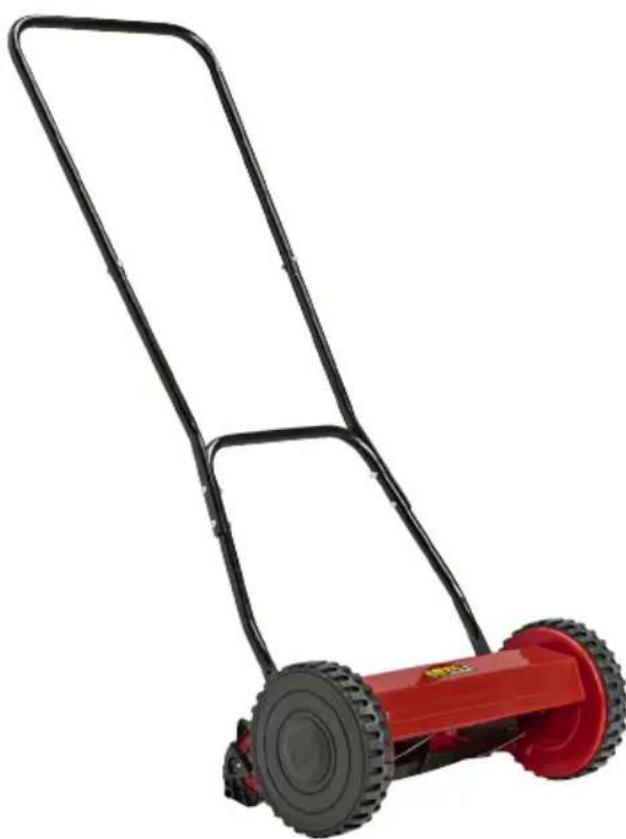

Red and black lawn mower with visible tire, no text or symbols present

EN Operating instructions for hand cylinder mower

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

SAFETY INSTRUCTIONS 20

TECHNICAL DATA....22

DESCRIPTION 22

ASSEMBLY....23

USE....23

MAINTENANCE 24

SÄKERHETSANVISNINGAR

Close-up of mechanical components with no visible text or symbols

Close-up of a hand holding a black tool, possibly a tool or device, with no visible text or symbols.

Close-up of a hand holding a black cylindrical object with a small hole, against a white background (no text or symbols visible)

HANDHAVANDE

Close-up of a heavy-duty off-road vehicle showing tracks, tires, and structural components (no text or symbols visible)

Close-up of hands adjusting a tire component with a tool (no visible text or symbols)

UNDERHÅLL

Close-up of industrial machinery components with no visible text or symbols

Close-up of a hand holding a tool, possibly a tool or device, with no visible text or symbols.

Close-up of a hand holding a black cylindrical object with a small hole, against a white background (no text or symbols visible)

BRUK

Close-up of a heavy-duty off-road vehicle showing tracks, suspension, and wheel (no text or symbols visible)

Close-up of hands adjusting a tire component with a small inset showing the blade (no text or symbols visible)

VEDLIKEHOLD

Close-up of mechanical components with no visible text or symbols

Close-up of a hand holding a tool, possibly a tool or device, with no visible text or symbols.

Close-up of a hand holding a black cylindrical object with a small hole, against a white background (no text or symbols visible)

OBSŁUGA

Close-up of a heavy-duty off-road vehicle showing tracks, suspension, and wheel (no text or symbols visible)

Close-up of hands adjusting a tire component with a tool (no visible text or symbols)

KONSERWACJA

Read the operating instructions carefully before use!

Save them for future reference.

BEFORE USING FOR THE FIRST TIME

• Never allow children, or anyone who is unfamiliar with the machine and these instructions, to use it. There may be local regulations for the minimum age of persons allowed to use the machine.
• Do not use the machine when other persons, especially children, or pets are in the vicinity.
• The user is responsible for any accidents or risks to other persons or property.

PREPARATIONS

• Always wear heavy-duty shoes and long trousers when using the machine. Do not use the machine if you are barefoot or wearing open shoes.
• Carefully inspect the area where the machine is to be used and remove any objects that can be thrown out.
• Always check the machine before use to make sure that the blades, blade screws and cutting unit are not worn or damaged. Always replace the complete blade set and screws if they are worn or damaged to avoid imbalance.
• Make sure there are no animals in the area to be mown.

USE

• Only use the machine in daylight, or in good artificial lighting.
• Make sure you always have a good footing on sloping ground.
• Mow carefully. Never run with the machine.
• Be very careful when changing direction on slopes.
• Do not mow steep slopes.
• Be very careful when going backwards or pulling the machine towards you.
• Stop the blades if the lawn mower has to be tilted when moving it over an ungrassed surface, or when moving to and from the area to be mowed.
• Never use the machine if the guards or covers are dismantled or damaged. Never run the machine without the safety devices fitted.

- Keep your hands and feet away from moving parts – risk of serious personal injury and/or death.

MAINTENANCE

• Make sure that all the screw connections are properly tightened to keep the tool in safe condition.
• Replace damaged or worn parts.
• WARNING: Exercise careful not to get your fingers caught between the blades and fixed parts of the machine - risk of serious injury.
• WARNING: Do not touch the blade reel until it has stopped completely.

WORK AREA

• Keep the work area clean and well lit. Dark and cluttered work areas increase the risk of accidents and injuries.
• Keep children and onlookers at a safe distance when using the machine. You can easily lose control of the machine if you are distracted.

PERSONAL SAFETY

• Stay alert. Observe care at all times and use your common sense when working with the machine. Never use the machine when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using the machine can result in serious personal injury.
• Use personal safety equipment. Always wear safety glasses and non-slip safety shoes.
• Do not overreach. Always maintain a firm footing and good balance. This will enable you to have better control over the machine in unexpected situations.
• Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery and long hair can get caught in moving parts.

USE AND CARE

• Do not force the machine. Use the correct machine for the planned work. The machine will work better and more safely at the load for which it is intended.
• Do not use the machine if any parts are missing or damaged. If the machine is damaged, it must be repaired before using it again.

• Store the machine out of the reach of children when not in use. Never allow children, or anyone who is unfamiliar with the machine and these instructions, to use it. This type of machine is dangerous if used by inexperienced people.

• Maintain the machine. Check that moving parts are properly adjusted and do not jam, and that no parts are incorrectly fitted or damaged. Check for other factors that could affect functionality. If the machine is damaged, it must be repaired before using it again. Many accidents are caused by poorly maintained machines.

• Keep blades clean and sharp. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

TECHNICAL DATA

Mowing width 35 cm

Mowing height 14–49 mm

Weight 6.5 kg

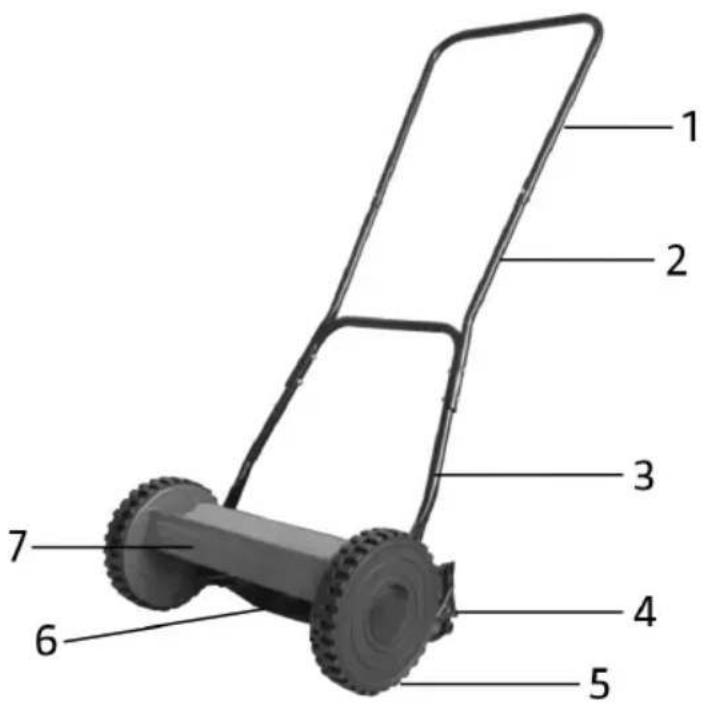

DESCRIPTION

1. Upper handle

2. Intermediate section

3. Bottom handle

4. Mowing height adjustment

5. Wheel

6. Blade reel

7. Cover

ASSEMBLY

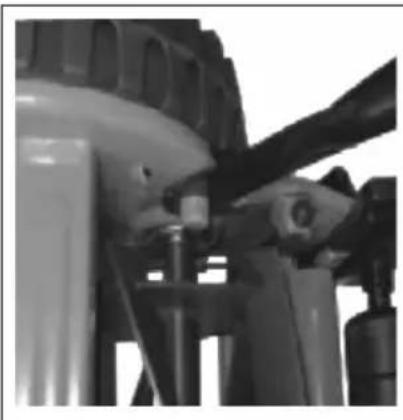

FITTING THE HANDLE

Your hands will come close to the blade reel during assembly. Wear safety gloves and lock the blade reel so that it cannot rotate.

1. Align the holes in the lower handle over the pins on each side of the mower. The sides of the handle may need to be pressed together hard.

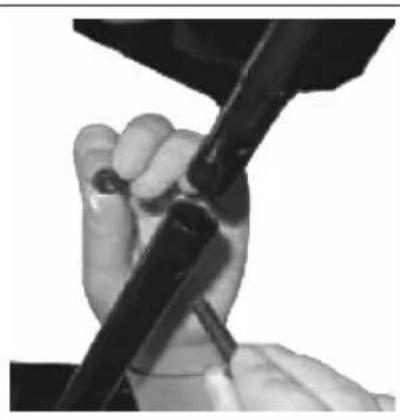

2. Align the two holes in one of the intermediate sections with the holes in the lower handle. Lock in position with the supplied nuts and screws. Repeat for the other intermediate section.
3. Position the upper handle on both intermediate sections until the holes align and lock in position with the supplied nuts and screws.

Close-up of mechanical components with no visible text or symbols

Close-up of a hand holding a black tool, possibly a tool or device, with no visible text or symbols.

Close-up of a hand holding a black cylindrical object with a small hole, against a white background (no text or symbols visible)

USE

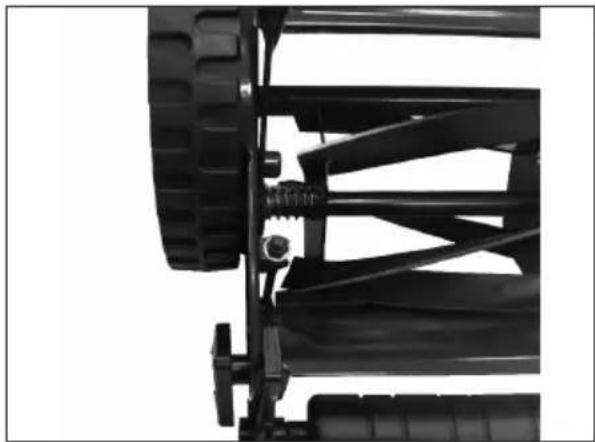

Adjusting the fixed blade

IMPORTANT: Turn the blade reel carefully during the adjustment. Wear safety gloves and keep your fingers and hands away from the area between the blade reel and the fixed blade – risk of serious personal injury. The fixed blade must be adjusted correctly for the machine to cut effectively.

1. Slowly tighten the two setting knobs clockwise.
2. When the reel blades just comes into contact with the fixed blade, turn the adjustment knob a little anti-clockwise, so that the blade reel can rotate without the blades touching the fixed blade.

Close-up of a heavy-duty off-road vehicle showing tracks, suspension, and wheel (no text or symbols visible)

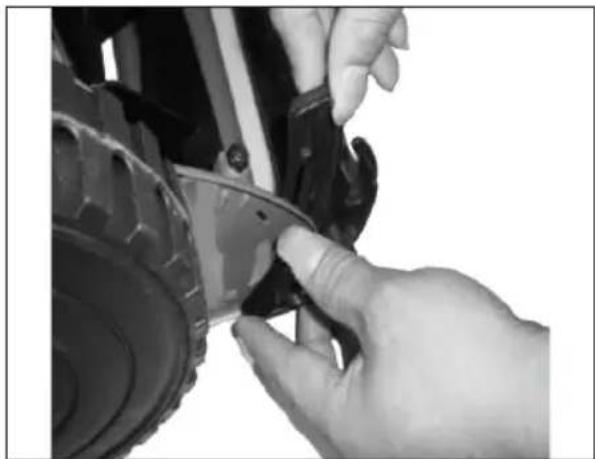

Adjusting the mowing height

The mowing height is adjusted by raising or lowering the cutting height rollers.

1. Loosen the knobs on the sides of the mowing height roller and move the roller to set the desired mowing height.

2. Set the same height at both ends of the mowing height roller for even mowing result.

Close-up of hands adjusting a tire component with a tool (no visible text or symbols)

MAINTENANCE

After finishing the work:

- Clean the outside of the machine with a soft brush and cloth. Do not use water, detergent or polish.

- Remove grass and debris.

- Put the machine on its side and clean the blades. Compacted grass can be removed carefully with a plastic utensil.

Storage

- Store the machine in a dry place, out of the reach of children.

- Never place any objects on the machine.
