Product Type	Microwave oven with grill and convection
Brand	PKM
Model	MW 800-20GH
Color	Silver
Capacity	20 liters
Microwave Power	800 W
Grill Power	1000 W
Convection Power	1000 W
Power Levels	6 (microwave: 100%, 80%, 60%, 40%, 20%)
Auto Programs	8 (including defrost and auto-cook)
Control Type	Digital with knob and buttons
Display	Digital LED
Timer	Up to 60 minutes
Child Lock	Yes
Turntable	Glass turntable with roller ring
Grill Rack	Included
Dimensions (H x W x D)	25.65 x 45.10 x 32.60 cm
Net Weight	11.00 kg
Gross Weight	12.50 kg
Power Supply	230 V / 50 Hz, 16 A dedicated circuit recommended
Interior Light	Yes (replaceable by service only)
Warranty	24 months manufacturer warranty

Frequently Asked Questions - MW 800-20GH PKM

How do I set the clock on my PKM MW 800-20GH microwave?

Press and hold the CLOCK/DEFROST/TEMP/AUTO COOKING button for 3 seconds in standby mode, then rotate the TIME/WEIGHT knob to set hours, press the button again to switch to minutes, set minutes with the knob, and press the button once more or wait 60 seconds to confirm.

What power levels are available for microwave cooking?

Press the MICRO POWER button repeatedly to cycle through power levels: 100P (high, 100%), 80P (medium-high), 60P (medium), 40P (medium-low), and 20P (low/keep warm).

Can I use metal containers or aluminum foil in the microwave?

No, do not use metal containers or aluminum foil in microwave mode as they can cause sparks and fire. Only use microwave-safe glass, ceramic, or plastic containers without metal trim.

How do I use the grill or convection functions?

Press the CONV.COMBI/GRILL.COMBI button to cycle through modes: C (convection), C.1/C.2 (convection+microwave combi), G (grill), G.1/G.2 (grill+microwave combi). Select desired temperature (for convection) using the CLOCK/DEFROST/TEMP/AUTO COOKING button, set time, and press START.

How do I defrost food automatically?

Press the CLOCK/DEFROST/TEMP/AUTO COOKING button repeatedly in standby mode until the display shows Ad-1 (meat), Ad-2 (poultry), or Ad-3 (seafood). Then rotate the TIME/WEIGHT knob to set the weight (0.1-2.0 kg for meat, etc.) and press START. Turn food when prompted.

What should I do if the microwave doesn't turn on?

First, check that the plug is securely connected to a working socket. Verify the fuse hasn't tripped. Ensure the door is fully closed and the safety interlock engages. If the problem persists, contact a qualified service technician.

How do I activate the child lock?

Press and hold the PAUSE/CANCEL button for 3 seconds to lock the control panel. Repeat the same action to unlock it.

How should I clean the microwave?

Unplug the appliance before cleaning. Wipe the interior with a damp cloth and mild detergent. Clean the glass turntable and roller ring with warm soapy water or in a dishwasher. Do not use abrasive cleaners or allow water to enter ventilation openings.

Can I program a delayed start?

Yes, first set the clock. Then program the cooking mode and time. After setting, press and hold the CLOCK/DEFROST/TEMP/AUTO COOKING button for 3 seconds to return to clock, then set the desired start time using the clock setting procedure again. Press the button to confirm delayed start.

What is the maximum cooking time I can set?

The maximum cooking time is 60 minutes. For longer cooking, you can set multi-sequence cooking (up to 4 stages).

USER MANUAL MW 800-20GH PKM

Front view of a silver microwave oven with control panel and display (no visible text or symbols)

English language on pg. 25ff.

Simple line drawing of a mechanical component with a circular top and two vertical supports (no text or symbols)

Grillrost

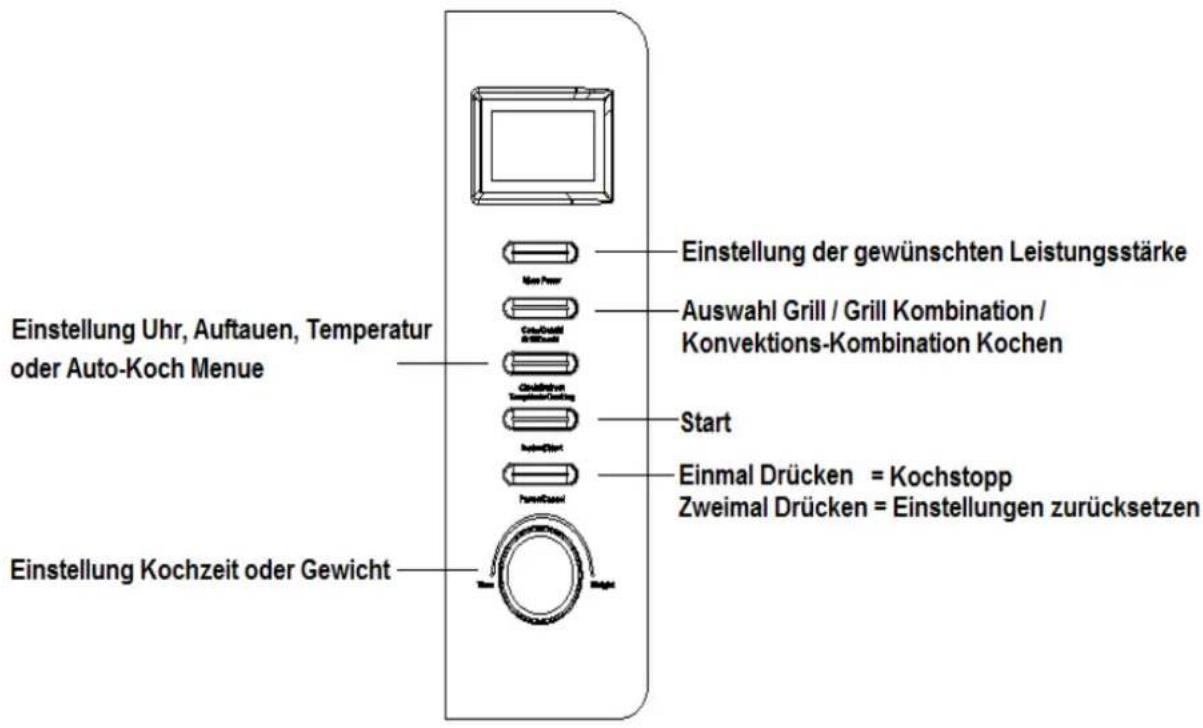

6. BEDIENTAFEL

PE<= Polyethylen
PS<= Styropor
PP<= Polypropylen

CHAPTER	SUBJECT	PAGE
1.	Preface	26
2.	Explanation of the warning notice	27
3.	Safety instructions and warnings	27
4.	Installation	29
5.	Description of the appliance	31
6.	Control panel	32
7.	Operating of the appliance	32
8.	Guide for microwave cooking	38
9.	Cleaning and maintenance	39
10.	Trouble shooting	41
11.	Waste management	42
12.	Technical data	43
13.	Guarantee conditions	44

Technical modifications as well as misprints shall remain reserved.

Please read this manual carefully before you use or install the appliance.

EU - Declaration of Conformity

★ The EU Conformity Declarations concerning the products, which are described in this instruction manual, are available.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance.
Nevertheless follow the instructions in such a case.

Dear customer

We would like to thank you for purchasing a

PKM - product from our wide range of domestic appliances.

When you are familiar with this instruction manual operating the appliance will not cause you any problems. Before your appliance was allowed to leave manufacturer's works, it was carefully checked according to our safety and operating standards. If your appliance is visibly damaged do not connect it to the power supply. Contact the shop you purchased the appliance at.

1. The appliance is intended for private use only.
2. The appliance is intended for cooking food only.
3. The appliance is intended for indoor-use only.
4. Only operate the appliance in accordance with its intended use.
5. Do not allow anybody, who is not familiar with this instruction manual, to use the appliance.
6. Retain this manual in a safe place for future reference.
7. If you transfer the appliance to a third party, also hand over this instruction manual.
   Please, read this instruction manual carefully so you will be able to use all functions and options of your appliance at their best performance.
   Strictly observe the safety instructions so you will enjoy your appliance for a long period of time.
   → Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
   Please dispose of the packing with respect to your current local and municipal regulations.

⚠️WARNUNG!

While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

Strictly observe the signal words this instruction manual contains.

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Pictograms

RISK OF ELECTRIC SHOCK

indicates a possible risk of electric shock when you do not observe the corresponding information and/or warning.

RISK OF FIRE indicates a possible risk of fire when you do not observe the corresponding information and/or warning.

3. SAFETY INSTRUCTIONS

The instructions and descriptions this manual contains are designed for various types of microwaves. So the manual may contain some descriptions of functions or accessories which are not part of your current appliance.

Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or may they be time-worn and do not match the efficiency of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional.

All connections and energy-leading components (also wires inside a wall) must be checked by an authorized professional.

Do not connect your appliance to the electric supply unless all packaging and transit protectors have been removed.

This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

Precautions to avoid possible exposure to excessive microwave energy

1	Do not attempt to operate this appliance with the door open as open-door operating can result in harmful exposure to microwave energy. Do not break or tamper with the safety interlocks.
2	Do not place any object between the front of the appliance and the door or allow soil or cleaner residuals to accumulate on the sealing surfaces.
3	Do not operate the appliance if it is damaged. It is particularly important that the door closes properly and that there is not any damage on the:
a	door (bent).
b	hinges and latches (must not be broken or loosened).
c	door seals and sealing surfaces.
4	The appliance should not be adjusted or repaired by anyone except properly qualified service personal.

WARNING!

Strictly observe the following instructions to reduce any risk of burns, electric shock, fire and injury to persons or exposure to excessive microwave energy.

1. Do not use the appliance when:

a. the cord or plug is damaged
b. it does not work properly.
c. it is damaged.
d. it has dropped down.

1. Do not use corrosive chemicals or vapours in this appliance.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid any hazard.
3. Accessible parts may become hot during use. Young children should be kept away. Do not touch the hot parts of the appliance. RISK OF BURNS!
4. Do not use the appliance to dry clothes or wet newspapers etc.
5. Do not use the appliance when it is empty.
6. In order to reduce any risk of fire in the appliance:

a. Check the appliance frequently when you use plastic or paper containers.
b. remove wire twist-ties from paper or plastic bags before you place such a bag in the appliance.
c. Switch off or unplug the appliance if you notice any smoke. Keep the door closed to stifle any flames.
d. Do not use the appliance to store anything inside.
e. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

1. Microwave heating of beverages can result in delayed eruptive boiling. Be extremely careful when handling the container.
2. Do not fry in the appliance. Hot oil can damage parts of the appliance and result in skin- burns.
3. Never heat any food or liquids in sealed containers, because they can explode.
4. Do not heat eggs in their shell or hard-boiled eggs as they may explode even after microwave heating has ended.
5. Pierce food with thick skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby food should be stirred or shaken and their temperature should be checked before serving to avoid burns.
7. Cooking utensils may become hot because of the heat transferred by the heated food. Pot-holders may be needed to handle such utensils.
8. Check your utensils if they are suitable for use in a microwave appliance.
9. This product is a Group 2 Class B ISM equipment.

i. The definition of Group 2: includes all ISM (Industrial, Scientific, Medical) equipment, in which radio-frequency is intentionally generated and/or used in the form of electromagnetic radiation for the treatment

of material, and spark erosion equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

WARNING!

Any repair or service work including the removal of any cover, which protects against exposure to microwave energy, must be performed by an authorized aftersales service only.

Child safety

1. Always supervise children so that they do not play with the appliance.
2. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.
3. When the appliance is operated in its combination mode, children should only use the appliance under an adult's supervision due to the high temperatures.

Final safety instructions

1. This appliance is designed for the use by adults only.
2. Children must neither play with nor around the appliance.
3. The appliance is not intended for commercial purposes.
4. Do not use the appliance in a laboratory.
5. Do not use the appliance for camping.
6. Do not use the appliance in public transport.
7. The appliance is designed for indoor use only.

4. INSTALLATION

WARNING!

Check the appliance for any damage, such as a misaligned or bent door, damaged door seals and sealing surfaces, broken or loose door hinges and latches, and dents inside the appliance or on the door. Do not use the appliance if it is damaged.

General instructions

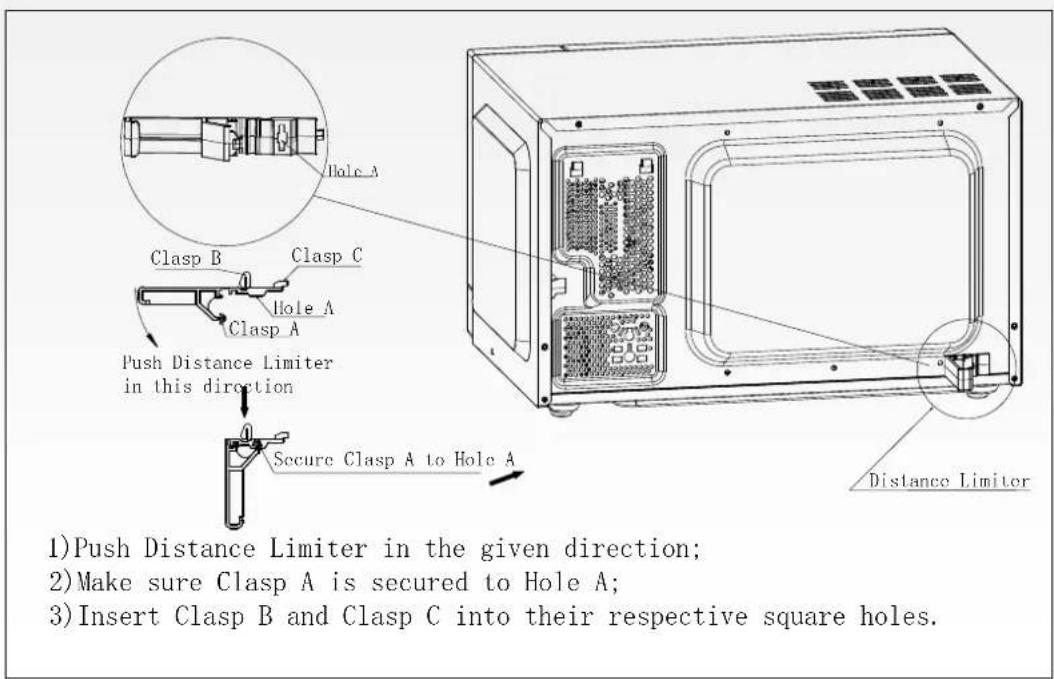

1. Remove all packing materials. Take out the spacer (preinstalled on some models) and install it (instructions below). The spacer provides the proper distance appliance wall.

1. The appliance must be placed on a flat and stable surface to hold its weight including the heaviest food to be cooked in the appliance.
2. Do not install the appliance in areas, where heat, moisture or high humidity is generated.
3. Do not install the appliance near flammable materials.
4. The appliance must be properly ventilated for correct operation. 5 cm distance are required at both sides of the appliance, 10 cm at the back and 20 cm above. The distance to TV-sets, radios and antennas should be at least 5 m.
5. The appliance is not intended to be built-in
6. The back of the appliance must be positioned toward the wall.
7. Do not operate the appliance without using the glass tray and the roller support.
8. The supply cord must not be damaged and must not run under the appliance or over any hot or sharp-edged surfaces. The safety plug must be accessible at any time.

Electrical connection

WARNING!

All electric work must be carried out by an authorized professional. Do not carry out any changes or modifications of the energy supply. The connection of the appliance must be performed in compliance with this instruction manual. An installation which is incorrectly performed may cause serious injuries to individuals or animals or your property.

1. The appliance needs a properly grounded 16A socket (behind the appliance).

2. All leads of the main current circuit must meet the current legal regulations.

3. A dedicated power circuit is recommended for your appliance but not required. Additional electric appliances on the same circuit may exceed the current (amperage) rating for this circuit. If after the installation of your appliance the circuit breaker trips or the fuse fails repeatedly, a dedicated circuit may be needed.

4. ⚠WARNING! The appliance must be grounded. Use a suitable power cord only. It must be plugged into a wall socket which is installed and grounded properly. In event of an electrical short circuit grounding reduces the risk of electric shock by providing an escape wire for the electric current. It is recommended that the appliance is connected to a dedicated circuit, which supplies your appliance only. To use high voltage is dangerous and may result in a fire or other accidents, which will damage your appliance.

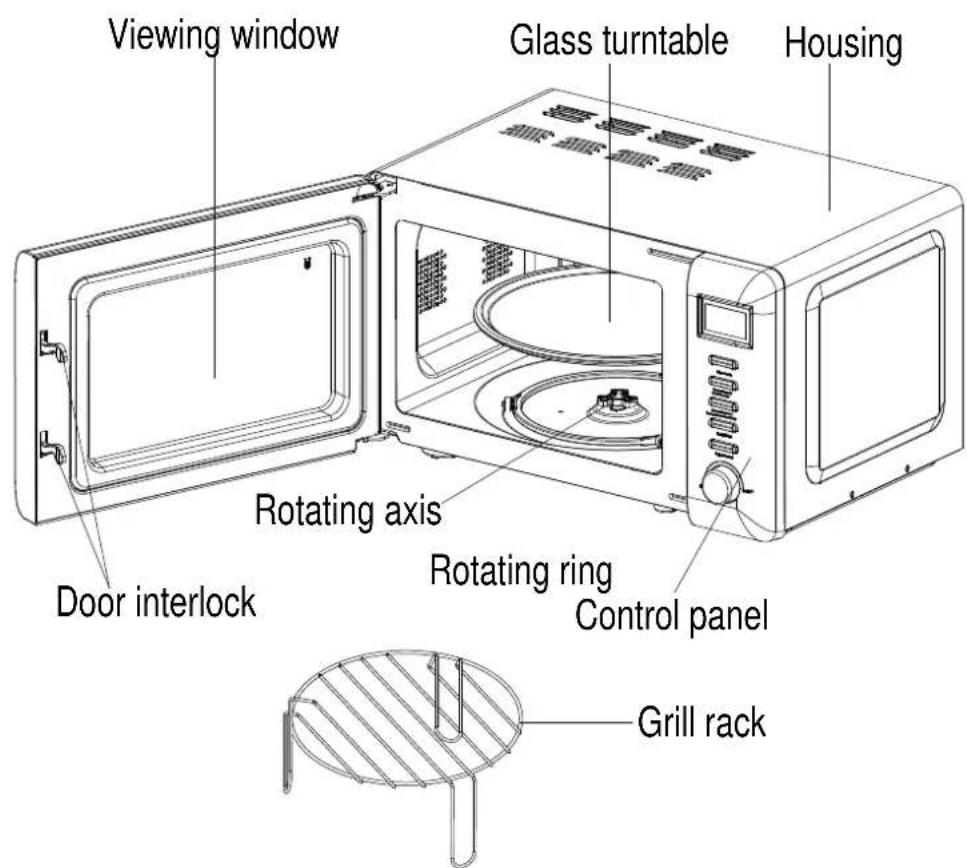

5. DESCRIPTION OF THE APPLIANCE

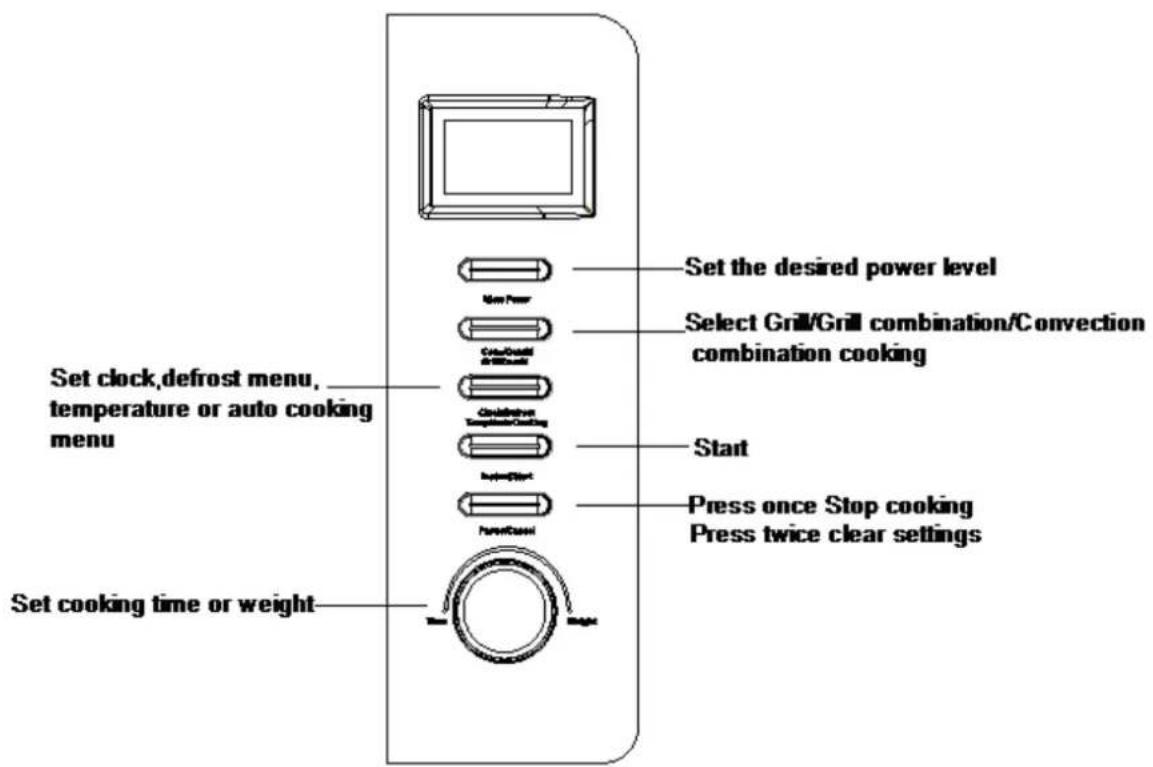

6. CONTROL PANEL

7. OPERATING OF THE APPLIANCE

When you plug in the appliance, the display flashes 3 times and indicates 1:00 so you can start to set your desired functions.

Auto reminder

When cooking has finished, the display indicates END and you hear 3 beeps. If you do not press PAUSE/CANCEL once or open the door, the beep will continue every 3 minutes.

Setting of the clock

Adjust the clock with the CLOCK-button while the appliance is in stand-by mode.

Example: Setting of 12:30
Step		Display
1	Switch on the appliance.	1:00
2	Press and hold for 3 seconds the CLOCK/DEFROST/TEMP/AUTO COOKING button.	1:00
3	Set the hours with the TIME/WEIGHT-knob.	12:00
4	PRESS CLOCK/DEFROST/TEMP/AUTO COOKING once.	12:00

5 Set the hours with the TIME/WEIGHT-knob. 12:30

6 Press CLOCK/DEFROST/TEMP/AUTO COOKING once or wait 60 seconds.

Instant cooking

In stand-by mode press the INSTANT/START-button. The appliance starts operating in high power level. The default cooking time is 1 minute. You can increase or decrease the cooking time with the WEIGHT/TIME-knob.

Microwave cooking

For cooking and heating food. Press the MICRO POWER-button; the display indicates 100P-80P-60P-40P-20P cyclically.

High power	100%. For quick and thorough cooking.
Medium-high power	80%. For medium express cooking..
Medium power	60%. For steaming food.
Medium-low power	40%. For defrosting food.
Low power	20%. Keep-warm function.

1. The maximum cooking time you can set is 60 minutes.
2. Never use the grill rack during microwave cooking.
3. Never operate the appliance empty.
4. When you turn the food while cooking, press the INSTANT/START-button once, so the setting will continue.
5. If you remove the food before the set time has elapsed, you must press the PAUSE/CANCEL-button once to cancel your setting; otherwise the setting will be activated at the next time you operate the appliance.

Example: Cooking at 80P for 10 minutes.

Step		Display
1	Switch on the appliance.	1:00
2	Select the desired microwave power by pressing the MICRO POWER button consecutively.	80P
3	Set the cooking time with TIME/WEIGHT.	10:00
4	Press INSTANT/START. The display indicates the count-down of the cooking time.

You may change the cooking time while cooking. It is recommended to turn the food halfway. After you turned the food, press INSTANT/START once to continue.

Convection/Combination-Grill/Combination

This function is for grilling food. Press the CONV.COMBI/GRILL.COMBI-button. The display indicates C-C.1-C.2-G-G.1-G.2 cyclically.

Convection/Combination

C	Convection; convection unit is energized during entire operation time. In this mode hot air is circulated throughout the oven cavity to brown and crisp food quickly and evenly.
C.1	Combination of Convection Grill and microwave cooking. 30% of tim microwave output and 70% of time Convection Grill.
C.2	Combination of Convection Grill and microwave cooking. 55% of tim microwave output and 45% of time Convection Grill.

⚠CAUTION! Temperature setting. Select operating temperature by different task, temperature includes 100^ C, 140^ C, 180^ C, 200^ C, 210^ C.

Defrost: 100^ . baking: 140^ . grilling of poultry: 180^210^ .

In combination mode, the cooking temperature to set cannot exceed 180^ C.

Example: Cooking with convection at 180^ C for 20 minutes.

Step		Display
1	Switch on the appliance.	1:00
2	Press CLOCK/DEFROST/TEMP/AUTO COOKING consecutively to select menu.	C
3	Set operating temperature with CLOCK/DEFROST/TEMP/AUTO COOKING	180C
4	Set the cooking time with TIME/WEIGHT.	20:00
5	Press INSTANT/START to start operation.
6	When the programme has ended, the integrated cooling fan will automatically start running for 30 seconds while the lamp is on.

Grill/Combination

G	Grill; the heat element will be energized during operation time. Applicable for cooking thin meat, sausages, chicken wing as good brown colour can be obtained.
G.1	Combination of grill and microwave cooking. 30% of time microwave output and 70% of time grill.
G.2	Combination of Grill and microwave cooking. 55% of time microwave output and 45% of time grill.

⚠CAUTION! When operating in the combination modes, all parts of the appliance as well as the cookware and the grill rack may become hot. Be very careful! Use caution when removing any item from the oven. Use heavy potholders or oven mitts to PREVENT BURNS.

Example: Grilling at G.2 for 10 minutes.

Step		Display
1	Switch on the appliance.	1:00
2	Press CLOCK/DEFROST/TEMP/AUTO COOKING consecutively to select menu.	G.2
3	Set the cooking time with TIME/WEIGHT.	10:00
4	Set the cooking time with TIME/WEIGHT.

Defrosting

You can defrost food or activate the auto-cooking function with CLOCK/DEFROST/TEMP/AUTO COOKING. Press the knob in standby-mode. The display indicates Ad-1, Ad-2, Ad-3, AC-1, AC-2, AC-3, AC-4, AC-5, AC-6, AC-7, AC-8 cyclically.

Auto-defrosting

Ad-1	Meat. Weight 0.1 to 2.0 kg.
Ad-2	Poultry. Weight 0.2 to 3.0 kg.
Ad-3	Seafood. Weight 0.1 to 0.9 kg.

1. ⚠️CAUTION Turn the food for proper defrosting.
2. To defrost food will need a longer period of time than to cook it.
3. The defrosting procedure is completed, when you can cut the food with a knife.
4. Microwaves penetrate most food by approx. 4 cm.
5. Consume defrosted food immediately. Do not put it in the fridge and do not refreeze it.

Example: defrosting of 0.4 kg poultry.

Step		Display
1	Switch on the appliance.	1:00
2	Press CLOCK/DEFROST/TEMP/AUTO COOKING consecutively to select the kind of food.	Ad-2
3	Set the weight with TIME/WEIGHT.	0.4
4	Press INSTANT/START to start operation.
5	You will hear an acoustic signal twice (3 beeps each), when half of the cooking time has elapsed. Open the door and turn th food. Close the door. Press INSTANT/START.

Auto-cooking

The appliance is equipped with default cooking procedures for easy cooking. Select the relevant setting concerning kind and weight of the food. Strictly observe the advice given in the schedule below; otherwise you may seriously influence the cooking procedures.

Display	Food	Method
AC-1	Rice	Wash the rice. Soak for 30 min.. Place the rice in a deep and big bowl. Add water as follows: Rice 100 g/200 g/300 g 180ml/300ml/480ml water. Leave the covered rice to rest for 5 minutes or until t water is absorbed after cooking.
AC-2	Fresh vegetable	Place 0.2 to 0.8 kg vegetable in a microwave-suitable bowl. Add the relevant amount of water. 0.2 to 0.4 kg 2 tablespoons; 0.5 to 0.8 kg 4 tablespoons. Cover. Stir after cooking and leave it to rest.
AC-3	Frozen vegetable	Look at AC-2 (except cooking time).
AC-4	Popcorn	For corn in bags, which are available in supermarkets with a weight of 3.0 OZ (85g) or 3.5 OZ (100g). When the popping-speed has decreased to 1 every 1-2 seconds, press the PAUSE/CANCEL -button to cancel the programme.
AC-5	Beverages	Cups containing 0.25 kg or 0.5 kg liquid at a temperature of 5^ to 10^ C . Use cups with a wide opening. Do not cover!
AC-6	Potatoes	Cook potatoes with skin. Select medium-sized potatoes (ca. 200 g). Wash and dry. Total weight 0.45 to 0.65 kg. Place on a big plate and cover with thin foil (never use aluminium foil). Turn after half of the cooking time.
AC-7	Pizza	For warming up a piece of cold pizza.
AC-8	Fish	For steaming fish (0.45 kg). Wash the fish. Remove the scales. Make shallow slices in the skin. Place the fish on a flat plate (22-27 cm diameter). Sprinkle lightly if desired Leave to rest for 5 minutes after coking.

1. The temperature of the food should be 20-25°C before cooking. Higher or lower temperatures will increase or decrease the cooking times.
2. Temperature, weight and shape of the food do influence the cooking procedure significantly. If you note differences from the above specified information, customize the cooking times for providing a better result.

Example: Steaming of 0.45 kg fish.

Step		Display
1	Switch on the appliance.	1:00
2	Press CLOCK/DEFROST/TEMP/AUTO COOKING to set the cooking menu.	AC-8
3	Press INSTANT/START to start operation.

Auto-start (delayed start)

If you do not want your setting to start immediately, you can set a cooking procedure and delayed starting time. This special function requires a 2-steps-setting: (1) the setting of the current time of the day and (2) the setting of the cooking procedure and cooking time.

Example: It is 12:30. You want to operate the appliance with 100P microwave power at 14:20 for 9 minutes and 30 seconds.

Step		Display
1	Switch on the appliance	1:00
1.1	Press and hold for 3 seconds CLOCK/DEFROST/TEMP/AUTO COOKING.	1:00
1.2	Set the hours with TIME/WEIGHT.	12:00
1.3	Press CLOCK/DEFROST/TEMP/AUTO COOKING once.	12:00
1.4	Set the minutes with TIME/WEIGHT.	12:30
1.5	Press CLOCK/DEFROST/TEMP/AUTO COOKING or wait 60 seconds.
2	Set cooking procedure and cooking time.
2.1	Set the power with MICRO POWER.	100P
2.2	Set the cooking time with TIME/WEIGHT.	9:30
2.3	Press and hold for 3 seconds CLOCK/DEFROST/TEMP/AUTO COOKING to return to the current time of the day.
3	Set the starting time relevant to steps 1.2, 1.3, und 1.4.
4	Press CLOCK/DEFROST/TEMP/AUTO COOKING to confirm the delayed starting time. The setting is activated now. The cooking procedure will start at 14:20.
5	You can check the delayed starting time by pressing CLOCK/DEFROST/TEMP/AUTO COOKING.

Multi-sequence-cooking

1. You can set a multi-sequence, if desired.
2. When the microwave-cooking period of time has elapsed, grilling starts automatically.
3. You can set a maximum of 4 sequences.

Example: 3 minutes cooking with 100P microwave power, then 9 minutes grilling (2-sequences-setting).

Step		Display
1	100P microwave power for 3 minutes.
1.1	Press MICRO POWER and select power.	100P
1.2	Set the cooking time with TIME/WEIGHT.	3:00
2	Grill for 9 minutes.
2.1	Press the CONV.COMBI/GRILL.COMBI-button.	G
2.2	Set the cooking time with TIME/WEIGHT.	9:30
3	Press INSTANT/START to start operation.

Child lock

Use this function to lock the control panel, (a) when you clean the appliance or (b) to protect it from being operated by children without supervision.

Press and hold for 3 seconds the PAUSE/CANCEL -button to activate the child lock. Repeat operation for deactivation.

8. GUIDE FOR MICROWAVE COOKING

Basics

1. Arrange your food carefully. Place thick pieces at the outer areas of your arrangement.
2. Consider the cooking times. Choose the shortest time available. If needed add some more cooking time later. Any food, which is cooked too long in a microwave, can begin to fume or catch fire.
3. Cover food while it is cooking. Covering avoids splashes and enhances an even cooking procedure.
4. Turn over your food once while cooking it. Food like chicken or hamburgers will then cook faster. Larger pieces like roasts must be turned over at least once.
5. Rearrange food like meat-balls in the middle of the cooking time from the outer areas to the inner ones (and inversely) and also turn them over.

Suitable cookware

1. Microwave-convenient cookware is transparent for microwave-radiation. It allows the radiation to penetrate the cookware so the radiation can heat the food.
2. Do not use metal-made cookware or other metal-made items. Metal can generate sparks. RISK OF FIRE.
3. Do not use metal-made cookware or other metal-made items. Microwave radiation cannot penetrate metal.
4. Do not use any products made of recycled paper. This paper may contain small metal-particles, which could cause sparks or a fire.
5. Use round or oval dishes instead of square or oblong ones. Food, which is arranged in the corners, can overcook.

Schedule: general guide for choosing the right utensils

Heat-resistant ceramic
Microwave	Grill	Convection	Combi
yes	yes	yes	yes
Never use the ceramics which are decorated with metal rim or glazed.
Heat-resistant plastic
Microwave	Grill	Convection	Combi
yes	no	no	no
Cannot be used for long time microwave cooking.
Heat-resistant glass
Microwave	Grill	Convection	Combi
yes	yes	yes	yes
Plastic film
Microwave	Grill	Convection	Combi
yes	no	no	no
Should not be used when cooking meat or chops as the high temperature m damage the film.
Grill rack
Microwave	Grill	Convection	Combi
no	yes	yes	yes
Metal containers
Microwave	Grill	Convection	Combi
no	no	no	no
Should not be used in a microwave oven. Microwaves cannot penetrate metal.
Lacquered items
Microwave	Grill	Convection	Combi
no	no	no	no
Poor heat-resistant. Cannot be used for high-temperature cooking.
Bamboo wood and paper
Microwave	Grill	Convection	Combi
no	no	no	no
Poor heat-resistant. Cannot be used for high-temperature cooking.

9. CLEANING AND MAINTENANCE

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.

1. Keep the inside of your appliance clean. When food splatters or spilled liquids are on the walls of your appliance, clean it with a damp cloth. Mild detergents may be used if the appliance has become very dirty. Avoid the use of sprays and other harsh cleaners as they may stain, streak or dull the door-surface.
2. Clean the outside with a damp cloth. Water should not run into the ventilation-

openings to prevent damage to the operating parts inside the appliance.

1. Wipe both sides of the door and the window, the door seals and adjacent parts frequently using a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.
2. The control panel should not become wet. Clean it with a soft and damp cloth. When cleaning the control panel, leave the door open so the appliance cannot be switched on randomly.
3. If steam accumulates inside or around the outside of the door, wipe it with a soft cloth. This may occur when the appliance runs under high humidity conditions; it is a normal occurrence.
4. It is sometimes necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.
5. Clean the roller ring and floor of the appliance inside regularly to avoid excessive noise. Simply wipe the bottom surface with a mild detergent. You may wash the roller ring in mild soapy water or in a dishwasher. When having removed the roller ring from the appliance, you must replace it in its proper position.
6. Remove odours from your appliance by combining a cup of water with the juice and the skin of one lemon in a deep microwave-suitable bowl. Microwave it for 5 minutes. Wipe thoroughly and dry with a soft cloth.
7. ⚠️ WARNING! If it is necessary to remove the internal light of the appliance, please contact the shop you purchased the appliance at.

DANGER!

The power cord must be replaced by a qualified and authorized professional only.

SERVICING SAFEGUARDS

⚠ WARNING! MICROWAVE RADIATION !

⚠ WARNING! It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy.

⚠ WARNING! The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

⚠ WARNING! During servicing below listed parts are liable to be removed and give access to potentials above250V to earth.

1. Magnetron
2. High voltage transformer
3. High voltage capacitor
4. High voltage diode
5. High voltage fuse

⚠ WARNING! The following conditions may cause undue microwave exposure during servicing.

Improper fitting of magnetron;
Improper matching of door interlock, door hinge and door;
Improper fitting of switch support;
Door, door seal or enclosure has been damaged.

1. ⚠️ CAUTION! If LCD displays Err0 during working, it indicates that sensor has been short circuit and you need replace it at the nearest repaired department.

2. ⚠️ CAUTION! If LCD displays Err1 during working, it indicates that sensor has been open circuit and you need replace it at the nearest repaired department.

10. TROUBLE SHOOTING

ERROR
POSSIBLE CAUSES	MEASURES
The appliance does not work at all.
The plug of the appliance is not connected to the socket.The plug has become loose.The socket is not supplied with energy.The fuse is switched off.The voltage is too low.	Check the corresponding socket by connecting it with another appliance.Check the fuse box.Compare the data on the model plate with the data of your energy supplier.
The appliance does not work at all.
Door safety lock.	1. Check if all settings are properly programmed and the time is set.2. Check if the door is well closed and the locking system has engaged. Otherwise the appliance will not run..
The appliance does not work at all.
Break in the power supply.	1. Check if the plug is properly positioned in the socket.2. If not, remove the plug from the socket.3. Wait 10 seconds and plug it into the socket again.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact your aftersales service.

DANGER!

If your appliance does not seem to run correctly,

please contact the shop you purchased the appliance at.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

11. WASTE MANAGEMENT

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic waste.
Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you make a significant contribution to the protection of our environment.

Packaging

The packaging is recyclable. The recommended modus operandi is:

→ Dispose of any paper and cardboard into the corresponding containers.
→ Dispose of any plastics into the corresponding containers.
If a suitable container is not available in your residential area, you can dispose of these materials with your domestic waste; but it would be better to take it to an appropriate facility for waste recycling.

WARNING!

While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

Materials marked with this symbol are recyclable.

PE<= Polyethylen
PS< = Styropor
PP< = Polypropylen

These materials can be recycled when you depose them of in a suitable collecting container of your local facilities.

Appliance

Do not dispose of the appliance with your domestic waste.
Waste separation is essential so that the single components of the appliance will be recycled according to their appropriate use.
Do not dispose of electric appliances as unsorted domestic waste. Use the local or municipal facilities for waste separation.

If electric appliances are disposed of at landfills, substances which are dangerous to one's health can get into the ground water. Such substances will become part of the food chain and cause damage to your health.

Please contact your local authorities to receive further information regarding waste separation.

Safe disposal

Please help our environment! Dispose of old appliances and their packaging in accordance to your national, local and municipal regulations concerning waste management.
Old appliances are not unusable waste. A lot of valuable resources can be gained by serious waste management.
Before you dispose of an old appliance, render it inoperative.

1. Always remove the plug from the socket. Afterwards cut off the power cord directly at the appliance. Dispose of the power cord with the plug immediately.

The above mentioned materials are environmental-friendly and recyclable.
Receive more detailed information from your retailer or your local and municipal facilities.

12. TECHNICAL DATA

Type	Microwave
Housing front	silver
Volume cooking chamber	20 l
Max. power microwave	800 W
Max. power grill	1000 W
Max. power convection	1000 W
Power levels microwave/grill/convection/Combi	6/1/1/2
Auto-programmes	8
Child lock	√
Timer	digital/60 minutes
Rotary disk / grill rack	√ √
Dimensions appliance H*W*D in cm	25.65*45.10*32.60
Dimensions packaging H*W*D in cm	29.40*48.20*38.60
Weight net/gross in kg	11.00/12.50

Guarantee conditions for large electric appliances PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance was made and checked according to the most modern production methods. This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication.

The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

The guarantee is valid without prejudice to stringent legal liability regulations, e.g. the product liability law, in the case of malice and of wanton negligence in view of harm of life, body or health by PKM or its agents.

The right on the guarantee is not granted, when the purchase is made in the course of a commercial activity.

The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. This has to be reported to us or in the Federal Republic of Germany to the shop you purchased the appliance at. This report has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee.

The guarantee for our appliances is valid under the following conditions:

Defects of the appliance which are verifiably caused by material or fabrication deficiency will be rectified free of charge by the shop you purchased the appliance at. When the defect appears within 6 months we suppose that there is a material or fabrication deficiency.

Within the guarantee we will repair deficient components free of charge using components of our own choice or they will be replaced by flawless components. Appliances, which can, due to their dimensions, be reasonably transported by an automobile, should be given over or submitted to the shop you purchased the appliance at.

If the repair work is refused by us or if the repair work finally fails, the old appliance, if requested, will be replaced by an appliance of the same kind, quality and type within the period of guarantee. If the old appliance is no longer produced at the time the defect occurred, PKM will be entitled to deliver a similar appliance. The exchange of the appliance principally takes place in the shop the first vendee bought the appliance in unless the appliance is too large to be transported by the vendee.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction.

Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The guarantee period for installed replacement parts ends with the guarantee.

Provided that a product-related malfunction is not covered by this guarantee the vendee has to bear the cost, when the appliance is checked, including any labour costs that may arise.

If the holder of the guarantee has requested repair work, then the holder of the guarantee must be informed about the non-intervention of the guarantee and possible costs, that may arise, and thereafter he must bear all costs for spare parts and wages.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2012

Please contact the shop you purchased the appliance at.

Subject to alterations / Updated April 2014
