Product Type	Solo Microwave
Brand	PKM
Model	MW700-17UB2
Capacity	17 liters
Microwave Power	700 Watts
Control Type	Knob + Push Button
Display Type	LED Digital Display
Timer Range	Up to 30 minutes
Defrost Function	Yes, by time or weight
Auto Cook Menus	Yes, 8 preset menus
Child Lock	Yes
Interior Light	Yes
Turntable	Yes, glass tray
Door Type	Side opening, stainless steel finish
Power Supply	230 V ~ 50 Hz
Power Consumption	1050 W
Dimensions (W x D x H)	440 x 360 x 260 mm
Weight	10.5 kg
Cavity Material	Enamel
Cleaning Instructions	Wipe with a damp cloth, mild detergent
Safety Features	Door interlock, auto shut-off
Spare Parts Availability	Contact PKM service center
Repair Information	User manual includes troubleshooting; service by qualified technician
Warranty	Check with retailer

Frequently Asked Questions - MW700-17UB2 PKM

How do I set the timer on my PKM MW700-17UB2 microwave?

Turn the timer knob clockwise to the desired cooking time (up to 30 minutes). The microwave will start automatically.

What is the maximum power level?

The maximum microwave power is 700 Watts. You can adjust power levels by selecting the appropriate button or knob.

How do I use the defrost function?

Press the 'Defrost' button, then enter the weight of the food. The microwave will automatically set the time. Alternatively, you can defrost by time using a lower power level.

Can I use metal containers in this microwave?

No, do not use metal containers or aluminum foil as they can cause sparks and damage the microwave. Use microwave-safe glass, ceramic, or plastic.

How do I clean the microwave?

Unplug the microwave. Wipe the interior and exterior with a damp cloth and mild detergent. Do not use abrasive cleaners. Clean the turntable and roller ring with warm soapy water.

How do I activate the child lock?

Press and hold the 'Stop' button for 3 seconds until a lock icon appears on the display. Repeat to deactivate.

Why is my microwave not heating?

Check that the door is fully closed. Ensure the timer is set. If it still doesn't heat, the fuse may have blown or the magnetron may be faulty. Contact a qualified technician.

What do the auto cook menus include?

There are 8 preset programs for common foods like popcorn, potato, pizza, beverage, etc. Press the 'Auto Cook' button repeatedly to select the desired menu.

How do I replace the interior light bulb?

The interior light bulb should be replaced by a qualified technician. Do not attempt to replace it yourself as it may cause electric shock.

Where can I find spare parts for my PKM microwave?

Spare parts can be ordered from PKM authorized service centers. Refer to the user manual for contact information or visit the PKM website.

USER MANUAL MW700-17UB2 PKM

Exterior view of a modern microwave oven with control knobs and open door (no visible text or symbols)

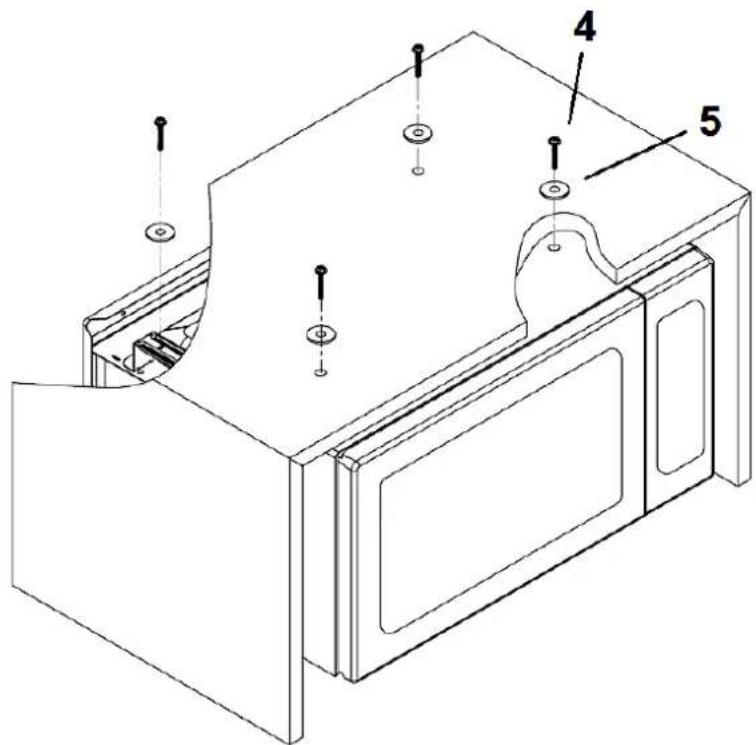

1	BOHRLÖCHER
2	SCHRANK / MONTAGEPLATTE
3	MIKROWELLE
4	SCHRAUBE
5	UNTERLEGSCHEIBE

INSTALLATION

Isometric line drawing of a rectangular box with two side panels and a labeled component '6' (no text or symbols beyond the number)

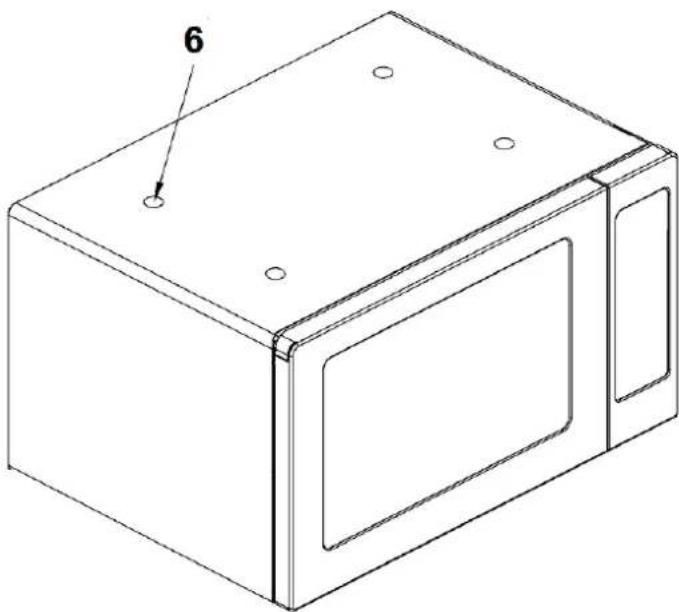

6

Line drawing of a microwave oven with front and back views, no text or symbols present

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....35

1.1 Signal words ....36
1.2 Safety instructions....36

1. Installation 40

2.1 Installation instructions....41
2.2 Electrical connection....46

1. Description of the appliance....47

3.1 Microwave....47

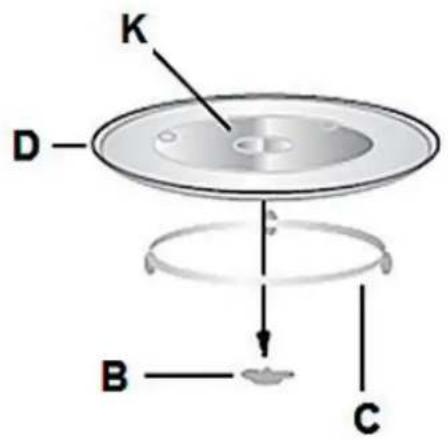

3.1.1 Installation of the turntable....48

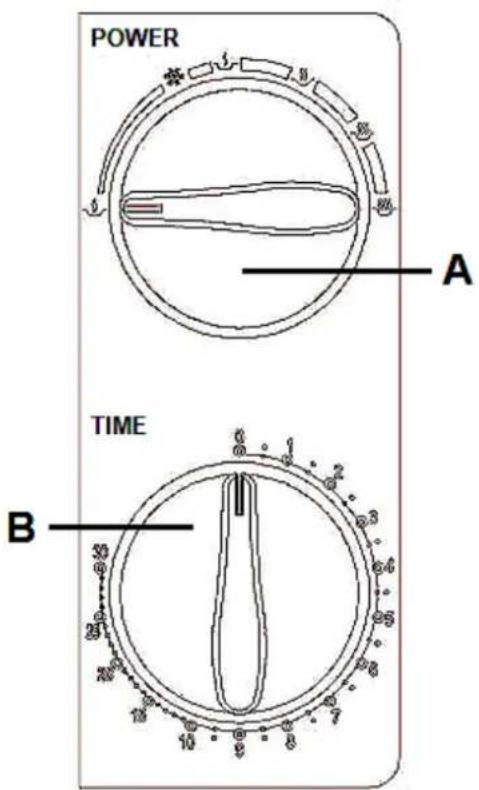

3.2 Control panel 49

1. Operation....49

4.1 Before initial operation....49
4.2 How to cook food....50

4.2.1 Settable power levels....50
4.2.2 How to start a cooking process....51
4.2.3 Defrosting....52

1. Microwave cooking....53

5.1 Basics of microwave cooking....53
5.2 Suitable materials for microwave cooking....54
5.3 Unsuitable materials for microwave cooking....55

1. Environmental protection ....56

6.1 Environmental protection: disposal....56

1. Cleaning and maintenance....56

Troubleshooting....57

1. Technical data....59

2. Waste management ....60

3. Guarantee conditions ....61

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonised regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

THIS PRODUCT IS A GROUP 2 CLASS B ISM EQUIPMENT

The definition of Group 2: includes all ISM (industrial, scientific, medical) equipment, in which radio-frequency is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorised professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments.
i The appliance is intended for cooking only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURETO EXCESSIVE MICROWAVE ENERGY
1	Do not attempt to operate this appliance with the door open as open-door operating can result in harmful exposure to microwave energy. Do no break or tamper with the safety interlocks.
2	Do not place any object between the front of the appliance and the door or allow soil or cleaner residuals to accumulate on the sealing surfaces.
3	Do not operate the appliance if it is damaged. It is particularly important that the door closes properly and that there is not any damage on the: door (bent).
a	hinges and latches (must not be broken or loosened).
b	door seals and sealing surfaces.
c
4	The appliance should not be adjusted or repaired by anyone except properly qualified service personal.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.

2. All electric work must be carried out by an authorised professional. Do not carry out any changes or modifications of the energy supply. The connection of the appliance must be performed in compliance with this instruction manual. An installation which is incorrectly performed may cause serious injuries to individuals or animals or your property.

3. Do not use the appliance if it does not work properly, is visibly damaged or has been dropped. In case of an event caused by a technical malfunction, disconnect the appliance from the mains (fuse box of your household power supply). Contact the aftersales service or the shop you purchased the appliance at. ^8 RISK OF ELECTRIC SHOCK!

4. The technical data of your energy supply must meet the data on the rating label. The main current circuit must be equipped with a safety shut-down device.
5. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
6. Never try to repair the appliance yourself. Repairs carried out by unauthorised persons can cause serious damage. If the appliance does not operate properly, please contact the aftersales service or the shop you purchased the appliance at. ^9 Original spare parts should be used only.
7. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
8. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
9. When the power cord is damaged, it must be replaced by the manufacturer or an authorised aftersales service or a qualified professional only.
10. Never remove the mica-plate which covers the wave guide inside the oven.
11. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
12. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons

1. Operate the appliance with 220 \~ 240 V AC / 50 Hz only.
2. Connect the appliance to a properly grounded socket only. Use a safety socket to minimise any risk of electric shock.

3. Do not use an extension cord, a socket board or a multi socket.

4. Any repair or service work including the removal of any cover, which protects from exposure to microwave energy, must be performed by a qualified professional only.

5. Only operate the appliance when the door is closed.
6. Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
7. Accessible parts may become hot during use. Young children should be kept away. Do not touch the hot parts of the appliance. RISK OF BURNS!
8. Do not use the appliance to dry clothes or wet newspapers etc.
9. Do not use the appliance when it is empty.
10. In order to reduce any risk of fire in the appliance:

a. Check the appliance frequently when you use plastic or paper containers.
b. Remove wire twist-ties from paper or plastic bags before you place such a bag in the appliance.
c. Switch off or unplug the appliance if you notice any smoke. Keep the door closed to stifle any flames.
d. Do not use the appliance to store anything inside.
e. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

1. The appliance must not leave unattended during cooking.
2. Do not fry in the appliance. Hot oil can damage parts of the appliance and result in skin-burns.
3. Never heat any food or liquids in sealed containers, because they can explode.
4. The contents of feeding bottles and baby food should be stirred or shaken and their temperature should be checked before serving to avoid burns.
5. Always keep the door and the door seals clean. Any contamination can turn the sealing of the oven ineffective so microwave radiation will escape.
6. Do not use a steam cleaner to clean the appliance. RISK OF ELECTRIC SHOCK!
7. Disconnect the appliance from the mains before cleaning or maintenance.
8. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!
9. User of the appliance with active implants should ask their consultant or the manufacturer of the implant if it will work properly while a microwave oven is operated.

10. Children must not play with the appliance.

11. Always supervise children if they are near the appliance. Touching the appliance during operation can cause serious burns.

12. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

CAUTION!

1. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.
2. Lead the power cord in such a way that you will not trip on it.
3. Microwave heating of beverages can result in delayed eruptive boiling. Be extremely careful when handling the container.
4. Do not heat eggs in their shell or hard-boiled eggs as they may explode even after microwave heating has ended.
5. Cooking utensils may become hot because of the heat transferred by the heated food. Pot-holders may be needed to handle such utensils.

NOTICE

1. Do not use the door to transport the appliance as you will damage the hinges.
2. Do not connect your appliance to the mains unless all packaging and transit protectors have been removed. Do not use any aggressive detergents to remove the transit protectors.
3. Regularly cleaning and maintenance grant proper operation and optimal performance of your appliance.
4. Check your utensils if they are suitable for use in a microwave appliance.
5. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
6. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

The microwave oven can be used as a free-standing appliance or installed under a cupboard; s. chapter 2.1 INSTALLATION INSTRUCTIONS.

1. Remove all packaging materials. If a safety film is on the appliance, pull it off carefully. Check that the appliance is not damaged. If you detect any damage, please contact the shop you purchased the appliance at.
2. Install the appliance in a dry and corrosion-safe place. Keep the appliance away from sources of heat and moisture such as gas burners, water containers etc.
3. Install the appliance on a flat and solid surface. The surface must be suitable for the weight of the appliance and the additional weight of the food to be cooked in the appliance.
4. Always observe the required minimum distances for proper ventilation; s. below:

Back ↔ wall	min. 100 mm
Left/right ↔ another object/wall	min. 50 mm

1. The distance to the ground should be at least 850 mm.
2. The back of the appliance must be aligned towards a wall.
3. Never cover the ventilation openings and air inlet points.
4. Never remove the feet at the bottom of the appliance.
5. Install the appliance as far away from radios or TV-sets as possible as its operation can cause interference.
6. The plug must always be accessible after installation. Only use a proper grounded safety socket for connection.
7. Operate the appliance with its door closed only.
8. Manufacturing residues or oil having remained in the oven cavity or on the heating element may cause some odours and smoke emission. These are normal operational parameters, which will disappear after a number of uses. Open the room door or a window to ensure proper ventilation. We strongly recommend to place a cup of water on the turntable; then operate the appliance with high power a few times.

⚠ WARNING! Never install the appliance near or above a hob / stove or any heat-producing appliance. If installed near a source of heat, the appliance can be seriously damaged.

⚠ WARNING! Connect the appliance to the power supply after installation only.

2.1 Installation instructions

IMPORTANT INFORMATION!

1. The installation should be carried out by a qualified professional.
2. Please keep all accessories supplied with the appliance in a safe place.
3. Remove all items from the cupboard and all fragile items from the adjacent cabinets completely.

4. The minimum installation height is 850 mm.

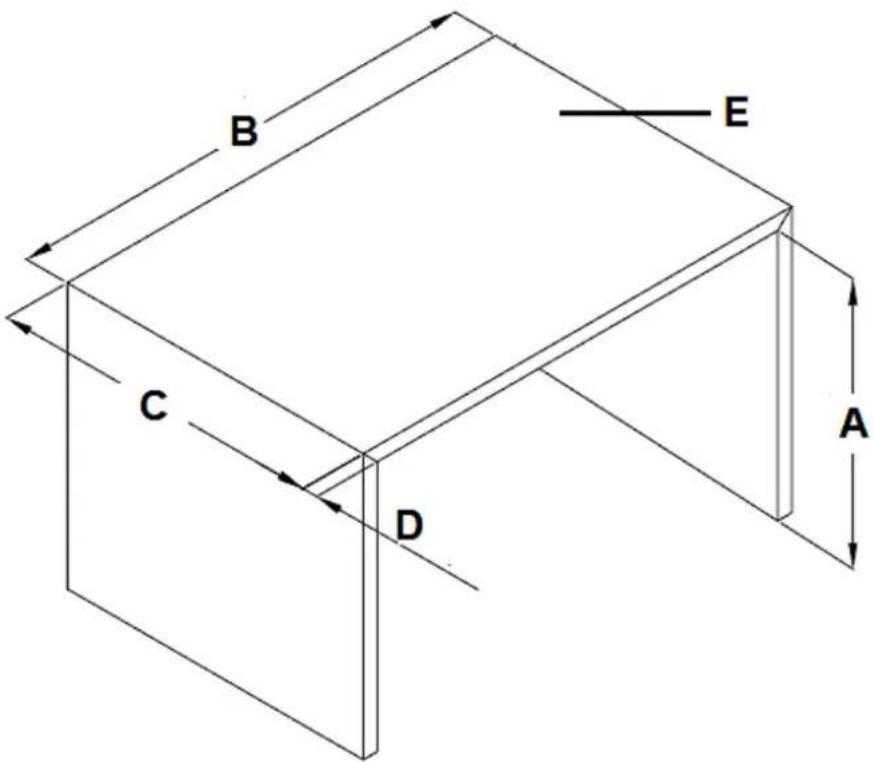

5. The cupboard the appliance is installed in must meet the following conditions:

the plate provided for the installation of the appliance (installation plate) must be 16 - 20 mm thick.
➢ the height of the cupboard must be at least 300 mm.
the width of the cupboard must be 600 mm.
the depth of the cupboard must be at least 333 mm.
the cupboard must not have any cracks, chipping or other damages. All connections of the cabinet must be stable.
the plate provided for the installation of the appliance (installation plate) must be designed to hold a load of at least 22 kg.

1. The cupboard the appliance is installed in must be anchored in the wall firmly with at least 2 screws; this wall mounting must be stable and secure.

2. Never cover the ventilation openings and air inlet points.

3. A safety socket must be near of the appliance.

⚠ WARNING! The appliance must not be installed under cabinets which are equipped with a light strip.

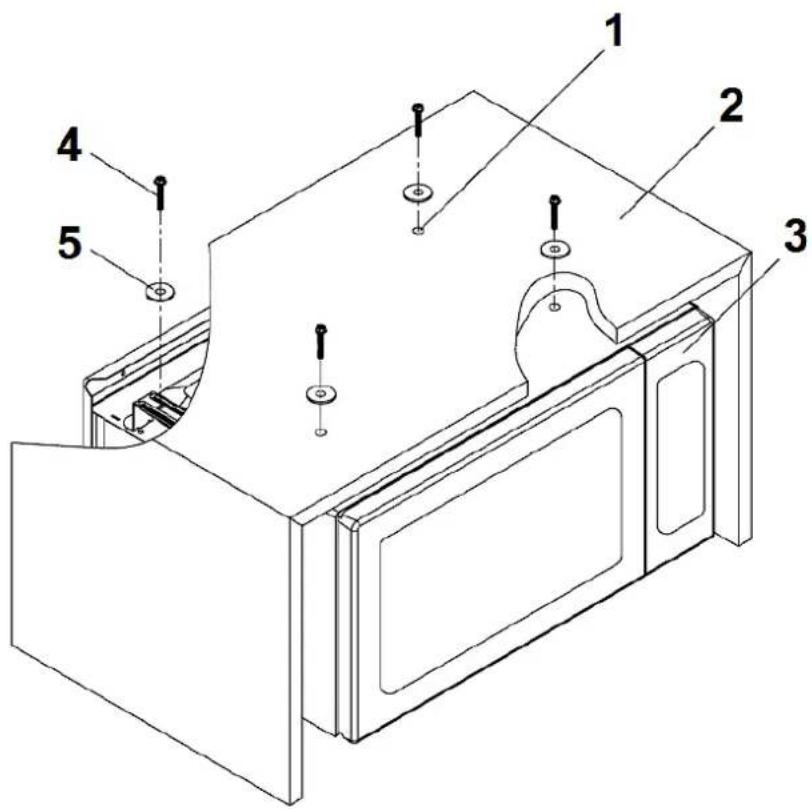

INSTALLATION DRAWING

1	DRILL HOLES
2	INSTALLATION PLATE
3	MICROWAVE
4	SCREW
5	WASHER

INSTALLATION

i Always observe the distances and minimum distances for proper ventilation shown in the following drawings.
i All dimensions are given in millimetres.

1. Provide a cupboard relevant to the dimensions on the following drawing.

A	HEIGHT of the cupboard= min. 300 mm
B	WIDTH of the cupboard = 600 mm
C	DEPTH of the cupboard = min. 333 mm
D	REQUIRED THICKNESS of the installation plate = 16 - 20 mm
E	REQUIRED LOAD CAPACITY of the installation plate => 22 kg

1. Drill 4 holes (4 - ∅ 9) in the installation plate according to the dimensions in the following drawing.

F	CENTRE LINE
G	DRILL HOLES (4 - ∅ 9)

1. Open the prepared screw holes of the appliance (s. fig. below) carefully using a screwdriver.

Isometric line drawing of a microwave oven with labeled component (no text or symbols beyond label)

6

PREPARED SCREW HOLES

1. Align the prepared screw holes of the appliance with the drill holes of the installation plate; s. fig. below.

2. Fix the appliance properly using the 4 screws and 4 washers provided; s. fig. below.

i The power cord must not be trapped or kinked.

4	SCREW
5	WASHER

1. Ensure that the appliance is installed properly; s. fig. below.

Line drawing of a microwave oven with front and back views, no text or symbols present

NOTICE! Never remove the feet at the bottom of the appliance.

NOTICE! Ensure that the door of the appliance can be opened and closed properly.

2.2 Electrical connection

i Operate the appliance with 220 \~ 240 V AC / 50 Hz only.

The technical data of your energy supply must meet the data on the rating label. The main current circuit must be equipped with a safety shut-down device.

A dedicated power circuit is recommended for your appliance but not required. Additional electric appliances on the same circuit may exceed the current (amperage) rating for this circuit

The plug must always be accessible after installation. Connect the appliance to a properly grounded socket only. Use a safety socket to minimise any risk of electric shock.

Do not use an extension cord, a socket board or a multi socket.

Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).

1. Connect the power cord of the appliance to the mains. Ensure that the rotary knob « TIME » is set to « 0 » before; see also fig. in chapter 3.2 CONTROL PANEL.

2. Always keep the ventilation openings free.

3. Description of the appliance

3.1 Microwave

Fig. similar: fig. serves as an example only.

A	CONTROL PANEL	B	DRIVE SHAFT of the turntable
C	ROTATING RING of the turntable	D	TURNTABLE
E	WINDOW	F	DOOR
G	SAFETY INTERLOCK	H	WAVE GUIDE*
J	PUSH - BUTTONto open the door of the appliance.

*	Never remove the mica-plate which covers the wave guide inside the oven!

3.1.1 Installation of the turntable

B	DRIVE SHAFT of the turntable	D	TURNTABLE
C	ROTATING RING of the turntable	K	HUB

Never place the turntable upside down. The rotation of the turntable must never be restricted.
i Never use the appliance without the turntable and rotating ring.
i All food or containers with food must be placed on the turntable.
Do not operate the appliance when the turntable and/or rotating ring are damaged.

3.2 Control panel

Fig. similar: modifications are possible.

A	ROTARY KNOB « POWER »➢ Rotary knob for the setting of the microwave power; s. chapter 4.2.1 SETTABLE POWER LEVELS.
B	ROTARY KNOB « TIME »➢ Rotary knob for the setting of the cooking time.➢ Settable cooking time: 12 minute [30 sec.] - 30 minutes.

4. Operation

4.1 Before initial operation

⚠ WARNING! Check that the waveguide cover is installed properly and not damaged during cooking.

NOTICE! Never use the appliance without the turntable and rotating ring.

NOTICE! Do not operate the appliance when the turntable and / or rotating ring are damaged.

i Read the complete instruction manual before you operate the appliance for the first time. Strictly observe the safety instructions!

1. Remove all packaging materials.
2. Clean the appliance; s. chapter CLEANING AND MAINTENANCE.
3. Install the turntable; s. chapter 3.1.1 INSTALLATION OF THE TURNTABLE.

4.2 How to cook food

4.2.1 Settable power levels

◆ The appliance is equipped with six power levels.
Set the desired power level (s. table below) using the rotary knob « POWER »; s. fig. in chapter 3.2 CONTROL PANEL.

POWER LEVEL	MICROWAVE POWER	DESCRIPTION	APPLICATIONS (EXAMPLES)
	100 %	High power	Fast cooking; e. g.:➢ vegetables➢ re-heating food quickly➢ heating up milk quickly➢ boiling of water
	85 %	Medium-high power	Normal cooking; e. g.:➢ rice➢ fish➢ chicken➢ mince
	66 %	Medium power	Slow cooking / steaming; e. g.:➢ stews➢ fish
	48 %	Medium-low power	Slow cooking / reheating; e. g.:➢ soups➢ stews➢ beverages
	40 %	Defrost	➤ Defrosting of frozen food
	17 %	Low power	➤ Slight warming up➤ Keep food warm

4.2.2 How to start a cooking process

The max. settable cooking time is 30 minutes.
When the set cooking time has elapsed, an acoustic signal sounds. ^10

HOW TO START A COOKING PROCESS

1. Open the door and put the food into the appliance. The food must be placed on a plate or in a container. Close the door.
2. Set the desired POWER LEVEL using the rotary knob « POWER »; s. chapter 4.2.1 SETTABLE POWER LEVELS.
3. Set the desired COOKING TIME using the rotary knob « TIME ». ➤ Settable time: 12 minute [30 sec.] - 30 minutes.
4. If the cooking time is less than 2 minutes, turn the rotary knob « TIME » beyond the 2-minute setting and then back to the desired cooking time: e.g. 1 minute.
5. After the setting of the cooking time the cooking process starts immediately.
   If you want to interrupt the cooking process, open the door at any point of time. When you close the door again, the cooking process will proceed.
6. When the cooking time has elapsed, an acoustic signal sounds and the internal light goes off. ^11
7. If you remove the food before the set cooking time has elapsed, you must always set the rotary knob « TIME » to « 0 »; otherwise the appliance will continue operation. Never operate the appliance when it is empty!

EXAMPLE:POWER LEVEL «» = 85 % MICROWAVE POWER; 20 MINUTES COOKING

a) Open the door and put the food into the appliance. The food must be placed on a plate or in a container. Close the door.

b) Set the desired POWER LEVEL using the rotary knob « POWER »: «», 85 % microwave power; see chapter 4.2.1 SETTABLE POWER LEVELS.

c) Set the desired COOKING TIME using the rotary knob « TIME ».: 20 minutes.

d) After the setting of the cooking time the cooking process starts immediately.

e) When the cooking time has elapsed, an acoustic signal sounds and the internal light goes off.12

i You can increase the cooking time at any time using the rotary knob « TIME ».

j You can change the power level at any time using the rotary knob « POWER ».

NOTICE! Always turn the rotary knob « TIME » back to « 0 » if you remove the food from the appliance before the cooking time has elapsed or when the appliance is not in operation! Never operate the appliance when it is empty!

4.2.3 Defrosting

❖ Remove any packaging material of the frozen food.
❖ Turn the food during defrosting for a uniform result.
If the weight of the frozen food is more than 0.5 kg, turn it at least twice.
◆ Defrosting requires a longer period of time than cooking.
When you can cut the food using a knife, the defrosting can be considered as to be completed.
◆ Microwaves penetrate most of frozen food by approx. 4 cm.

When you defrost meat, poultry or fish, liquids can occur during the defrosting process. Remove these liquids whenever you turn the foods. Never use these liquids for other purpose and never let them come in contact with other food.

i Consume defrosted food as soon as possible. Do not refreeze after defrosting!

HOW TO START A DEFROSTING PROCESS

1. Open the door and put the food to be defrosted into the appliance. The food must be placed on a plate or in a container. Close the door.

2. Set the POWER LEVEL « DEFROST » using the rotary knob « POWER »; s. chapter 4.2.1 SETTABLE POWER LEVELS.

3. Set the desired DEFROSTING TIME using the rotary knob « TIME »; e.g. 10 minutes.

4. After the setting of the defrosting time the defrosting process starts immediately.

If you want to interrupt the defrosting process (e.g. to turn the frozen food), open the door at any point of time. When you close the door again, the defrosting process will proceed.

1. When the defrosting time has elapsed, an acoustic signal sounds and the internal light goes off. ^13

2. If you remove the food to be defrosted before the set time has elapsed, you must always set the rotary knob « TIME » to « 0 »; otherwise the appliance will continue operation. Never operate the appliance when it is empty!

5. Microwave cooking

5.1 Basics of microwave cooking

1. Arrange your food carefully. Place thick pieces at the outer areas of your arrangement.
2. Consider the cooking times. Choose the shortest time available. If needed, add some more cooking time later. Any food, which is cooked too long in a microwave, can begin to fume or catch fire.
3. Cover food while it is cooking. Covering avoids splashes and enhances an even cooking procedure.
4. Turn over your food once while cooking it. Food like chicken or hamburgers will then cook faster. Larger pieces like roasts must be turned over at least once.
5. Rearrange food like meat-balls in the middle of the cooking time from the outer areas to the inner ones (and inversely) and also turn them over.
6. The features of an optimum cooking result are:

a. steam escapes from all parts of the food.
b. joints of poultry are easily moveable.
c. pork and poultry do not have any signs of blood.
d. fish is opaque and can easily be cut into pieces with a fork.

1. When you use a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.
2. If you use microwave-safe plastic wrap, it must not contact the food as the wrap may melt.
3. Some microwave-safe plastic cookware might not be suitable for cooking food with a high content of fat and sugar. Moreover, the preheating time specified in the dish instruction manual must not be exceeded.

5.2 Suitable materials for microwave cooking

1. Use microwave-safe cookware made of heat-resistant ceramic, glass or plastic only.
2. Do not use metal-made cookware or other metal-made items or plates with metal-made ornaments. Microwave radiation cannot penetrate metal.
3. ⚠️ WARNING! Metal can generate sparks. RISK OF FIRE.

MATERIAL	REMARKS
ALUMINIUM FOIL	Only suitable to protect small parts of the food. You can cover the thin parts of meat or poultry using small parts of aluminium foil as an overcooking-protection. When the parts of the aluminium foil are too close to the walls of the appliance, sparking can occur. The aluminium foil must be at least 2.5 cm away from the walls of the appliance.
BROWNING DISHIES	Observe the information given by the relevant manufacturer. The bottom of the browning dish must be at least 5 mm above the turntable. Improper use can break the turntable.
TABLEWARE	Use microwave-safe tableware only. Observe the information given by the relevant manufacturer. Do not use cracked or chipped tableware.
GLASS JARS	Always remove the lid. Heat-up the food until it is just warm. Most glass jars are not heat-resistant and can break.
GLASS TABLEWARE	Use heat-resistant glass tableware only. The glass tableware must not contain any metal components. Do not use cracked or chipped glass tableware.
OVEN COOKING BAGS	Observe the information given by the relevant manufacturer. Do not close using metal ties. make small openings to allow steam to escape.
PAPER PLATES / CUPS	Only suitable for short-time cooking or reheating. Do not leave the appliance unattended while it is operating.
PAPER TOWEL	Only suitable for short-time cooking or reheating. Do not leave the appliance unattended while it is operating.
PARCHMENT PAPER	Use as a cover to prevent splattering or as a cover for steaming.
PLASTIC	Only use microwave-safe plastic. Observe the information given by the relevant manufacturer. The plastic must be labelled "Microwave-safe". Some plastic containers can melt when the food they contain becomes hot. Boiling bags and tightly closed plastic bags must be equipped with small openings, pierced or vented as described on their packaging.
PLASTIC WRAP	Only use microwave-safe plastic wrap. You can use plastic wrap to cover the food so moisture is retained. The plastic wrap must not touch the food!
THERMOMETER	Only use microwave-safe thermometers.
WAX PAPER	You can use wax paper as a cover to protect the appliance from splatters or to retain moisture.

5.3 Unsuitable materials for microwave cooking

MATERIAL	REMARKS
ALUMINIUM TRAYS	Aluminium trays can cause sparking. Transfer the food into a microwave-safe container.
FOOD CARTON WITH METAL HANDLE ETC.	Food cartons with metal handle etc. can cause sparking. Transfer the food into a microwave-safe container.
METAL-MADE OR METAL-TRIMMED ITEMS	Metal shields the food from the microwave energy. Metal components can cause sparking!
PAPER BAGS	Paper bags can catch fire in the appliance. RISK OF FIRE!
PLASTIC FOAM	Plastic foam can melt when exposed to high temperatures and/or contaminate the food.
WOOD	Wood used in a microwave appliance can dry and/or can get cracks. Wood can catch fire in the appliance. RISK OF FIRE!

6.1 Environmental protection: disposal

Appliances bearing this symbol « — » must not be disposed of together with household waste throughout the EU. To prevent potential damage to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources, responsibly supply the appliance to a recycling centre.

7. Cleaning and maintenance

⚠ WARNING! Disconnect the appliance from the mains and let it cool down completely before you clean or maintain it. RISK OF ELECTRIC SHOCK!
⚠ WARNING! Do not remove the waveguide cover when cleaning the appliance.

1. Keep the inside of your appliance clean. When food splatters or spilled liquids are on the walls of your appliance, clean it with a damp cloth. Mild detergents may be used if the appliance has become very dirty. Avoid the use of sprays and other harsh cleaners as they may stain, streak or dull the door-surface.
2. Clean the outside with a damp cloth. Water should not run into the ventilation-openings to prevent damage to the operating parts inside the appliance.
3. Wipe both sides of the door and the window, the door seals and adjacent parts frequently using a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.
4. The control panel should not become wet. Clean it with a soft and damp cloth. When cleaning the control panel, leave the door open so the appliance cannot be switched on accidentally.
5. If steam accumulates inside or around the outside of the door, wipe it with a soft cloth. This may occur when the appliance runs under high-humidity-conditions. It is a normal occurrence.

6. It is sometimes necessary to remove the turntable and/or rotating ring for cleaning. Wash the turntable/ring in warm soapy water, then rinse and dry thoroughly. When having removed the rotating ring from the appliance, you must reinstall it in its proper position.

7. Remove odours from your appliance by combining a cup of water with the juice and the skin of one lemon in a deep microwave-suitable bowl. Microwave it for 5 minutes. Wipe thoroughly and dry with a soft cloth.

i Clean the appliance regularly and remove all residuals of food. Not keeping the appliance in a clean condition could lead to deterioration of the surface. This will affect the life-time of your appliance and may result in a hazardous situation.

⚠ WARNING! If it is necessary to remove the internal light ^14 of the appliance, please contact the shop you purchased the appliance at.

8. Troubleshooting

NORMAL OPERATING CONDITIONS
Interference to radio or television reception	Radio and TV reception can be interfered while the appliance is operating, similar to interferences of other electric appliances such as mixers, vacuum cleaners, electric fans etc.
Dim oven light	The oven light may become dim while the appliance is operating in lower power cooking.
Steam accumulation on door/hot air escapes from the air vents	During cooking, steam escapes from the food. Most of the steam is discharged via the ventilation openings. Nevertheless, some steam can accumulate at the cooler parts of the appliance, e.g. the door.
The appliance was accidentally-started without load (food).	WARNING! Never operate the appliance when it is empty!

MALFUNCTION
POSSIBLE CAUSE(S)	POSSIBLE MEASURE(S)
THE APPLIANCE CANNOT BE STARTED.
1. The power cord is not plugged in properly.2. Blown fuse in household fuse box.	1. Unplug. Plug in again after 10 seconds.2. Check household fuse box.

1. Socket malfunction.

2. Check the socket using another electric appliance.

THE APPLIANCE DOES NOT HEAT.

1. The door of the appliance is not closed properly.	1. Close the door of the appliance properly.
THE TURNTABLE GENERATES UNUSUAL NOISE.
1. The rotating ring or the bottom of the appliance inside is contaminated.	1. Clean the relevant parts (look also chapter CLEANING AND MAINTENANCE).
THE DOOR CANNOT BE OPENED OR CLOSED.
1. The door is blocked.2. The locking system of the door is defective.	1. Remove the blockage.2. Please contact the shop you purchased the appliance at.

HOW TO CHECK THE APPLIANCE

1. Place one cup of water (approx. 150 ml) in a glass measure in the oven and close the door properly. The oven lamp should go off when the door is closed properly.
2. Let the oven work for 1 min.

a) Does the oven lamp light?
b) Does the cooling fan work? (Put your hand over the ventilation openings at the back of the appliance.)
c) Does the turntable rotate? (The turntable can rotate clockwise or anticlockwise.)
d) Has the water become hot?

If «NO» is the answer to any of the above questions, please check your wall socket and the fuse in your fuse box.
If both the wall socket and the fuse are functioning properly, please contact the shop you purchased the appliance at.
If the appliance shows a malfunction not noted in the table and list above or if you have checked all items on the above table and list but the problem still exists, please contact the shop you purchased the appliance at.

9. Technical data

Type	Microwave oven (free-standing / underfit appliance)
Case front	varnished in silver
Material: cooking chamber	varnished steel
Volume: cooking chamber	17 l
Voltage / frequency	230 V AC / 50 Hz
Max. power: microwave	700 W
Power levels microwave	6
Defrosting function	✓
Acoustic end signal	✓
Opening of the door	push button
Timer	analogue / max. 30 minutes
Turntable	✓
Installation material	✓
Dimensions: microwave H*W*D in cm	26.00*45.00*31.50 cm
Required dimensions: cupboard H*W*D in cm	min. 30.00*60.00*min. 33.30 cm
Required thickness of the installation plate of the cupboard in cm	1.60 - 2.00
Required load capacity of the installation plate of the cupboard in kg	>22.00
Weight net / gross in kg	10.50 / 11.50

◆ Technical modifications reserved.

10. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorised condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2014

Please contact the shop you purchased the appliance at.
