Product Type	Microwave
Brand	PKM
Model	MW700-20 UB2
Capacity	20 liters
Power Output	700 W
Color	White
Door Type	Side hinge
Control Type	Rotary knobs + push buttons
Timer	Up to 30 minutes
Power Levels	5
Defrost Function	Yes, by weight or time
Turntable	Yes, glass plate
Interior Light	Yes
Dimensions (W x H x D)	440 x 260 x 350 mm
Net Weight	10.5 kg
Voltage	220-240 V
Frequency	50 Hz
Energy Consumption	1050 W (input)
Microwave Frequency	2450 MHz
Cord Length	1.3 m

Frequently Asked Questions - MW700-20 UB2 PKM

How do I set the cooking time on my PKM MW700-20 UB2 microwave?

Turn the timer knob clockwise to the desired time (up to 30 minutes). The microwave will start automatically.

Can I use metal containers in the microwave?

No, metal containers should not be used as they can cause sparks and damage the appliance. Use microwave-safe glass or plastic.

How do I defrost food using this microwave?

Place the frozen food inside and turn the function knob to the defrost setting. Set the weight if required using the timer knob (refer to manual for exact procedure).

What should I do if the turntable does not rotate?

Check that the turntable glass plate is correctly seated on the drive hub. If still not rotating, ensure nothing is obstructing it and the microwave is on a level surface.

Is there a child lock feature on the PKM MW700-20 UB2?

This model does not include a child lock. Always supervise children when using the microwave.

How do I clean the microwave interior?

Unplug the appliance and wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. The turntable can be washed with warm soapy water.

Why does my microwave make a buzzing noise?

A low buzzing sound is normal during operation due to the magnetron and transformer. If the noise is loud or irregular, contact customer support.

Can I use the microwave without the turntable?

It is not recommended because uneven cooking may occur. The turntable ensures even heat distribution.

What is the maximum power level for heating liquids?

For liquids, use medium-high power (around 80% power) to avoid superheating. Stir well after heating.

How do I replace the interior light bulb?

The interior light bulb should be replaced by a qualified technician. Contact PKM service for assistance.

USER MANUAL MW700-20 UB2 PKM

Front view of a silver microwave oven with control knobs and a blank screen (no visible text or symbols)

Deutsch

English

Seite

Page

2

23

www.pkm-online.de

Illustration of a plate with four bolts and three washers, no text or symbols present

INSTALLATION:

Diagram of a microwave oven with hanging sensors and control panel (no text or symbols)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....25

1.1 Signal words....26
1.2 Safety instructions.... 27

1. Installation....30

2.1 Installation instructions for under-cabinet installation .... 31
2.2 Description of the appliance / Accessories.... 34
2.3 Installation of the glass plate / turntable 34

1. Operation.... 35
2. Microwave cooking.... 36

4.1 Basics of microwave cooking.... 36
4.2 Suitable materials for microwave cooking.... 36
4.3 Unsuitable materials for microwave cooking.... 38

1. Cleaning and maintenance.... 38
2. Trouble shooting.... 39
3. Technical data....40
4. Waste management.... 41
5. Guarantee conditions....42

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
i The appliance is intended for cooking in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY:
1	Do not attempt to operate this appliance with the door open as open-door operating can result in harmful exposure to microwave energy. Do not break or tamper with the safety interlocks.
2	Do not place any object between the front of the appliance and the door or allow soil or cleaner residuals to accumulate on the sealing surfaces.
3	Do not operate the appliance if it is damaged. It is particularly important that the door closes properly and that there is not any damage on the:a. door (bent ).b. hinges and latches (must not be broken or loosened ).c. door seals and sealing surfaces.
4	The appliance should not be adjusted or repaired by anyone except properly qualified service personal.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution:

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and / or can result in damages to the appliance.
2. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged. If the appliance does not operate properly, please contact the shop you purchased the appliance at.
3. The technical data of your energy supplier must meet the data on the rating plate of the appliance.
4. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
5. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.
6. Never remove the mica-plate which covers the wave guide inside the oven.
7. Never try to repair the appliance yourself. If the appliance does not operate properly, disconnect it from the mains and contact the shop you purchased the appliance at. Original spare parts should be used only.
8. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
9. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons:

1. Operate the appliance with 220 \~ 240 V AC / 50 Hz only. Do not use an extension cord or a multiple socket.
2. Connect the appliance to a properly grounded socket only. Use a safety socket to minimize any risk of electric shock.

3. The technical data of your energy supply must meet the data on the rating label. The main current circuit must be equipped with a safety shut-down device.

4. Any repair or service work including the removal of any cover, which protects from exposure to microwave energy, must be performed by a qualified professional only.

5. Never install the appliance near or above a hob or any heat-producing appliance. If installed near a source of heat, the appliance can be seriously damaged.
6. Only operate the appliance when the door is closed.
7. Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
8. Accessible parts may become hot during use. Young children should be kept away. Do not touch the hot parts of the appliance. RISK OF BURNS!
9. Do not use the appliance to dry clothes or wet newspapers etc.
10. Do not use the appliance when it is empty.
11. In order to reduce any risk of fire in the appliance:

a. Check the appliance frequently when you use plastic or paper containers.
b. Remove wire twist-ties from paper or plastic bags before you place such a bag in the appliance.
c. Switch off or unplug the appliance if you notice any smoke. Keep the door closed to stifle any flames.
d. Do not use the appliance to store anything inside.
e. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

1. Do not fry in the appliance. Hot oil can damage parts of the appliance and result in skin-burns.
2. Never heat any food or liquids in sealed containers, because they can explode.
3. The contents of feeding bottles and baby food should be stirred or shaken and their temperature should be checked before serving to avoid burns.
4. Do not use a steam cleaner to clean the appliance. RISK OF ELECTRIC SHOCK!
5. Disconnect the appliance from the mains before cleaning or maintenance.
6. Always observe the required minimum distances for proper ventilation.
7. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!
8. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and

mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1. Children must never play with the appliance. Touching the appliance during operation can cause serious burns.

2. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

CAUTION!

1. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.
2. Lead the power cord in such a way that you will not trip on it.
3. Microwave heating of beverages can result in delayed eruptive boiling. Be extremely careful when handling the container.
4. Do not heat eggs in their shell or hard-boiled eggs as they may explode even after microwave heating has ended.
5. Cooking utensils may become hot because of the heat transferred by the heated food. Pot-holders may be needed to handle such utensils.

NOTICE

1. Do not use the door to transport the appliance as you will damage the hinges.
2. Do not connect your appliance to the mains unless all packaging and transit protectors have been removed. Do not use any aggressive detergents to remove the transit protectors.
3. Regularly cleaning and maintenance grants proper operation and optimal performance of your appliance.
4. Check your utensils if they are suitable for use in a microwave appliance.
5. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
6. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Installation

1. Remove all packaging materials. If a safety film is on the appliance, pull it off carefully. Check that the appliance is not damaged. If you detect any damage, please contact the shop you purchased the appliance at.
2. Install the appliance in a dry and corrosion-safe place. Keep the appliance away from sources of heat and moisture such as gas burners, water containers etc.
3. The back of the appliance must be aligned towards a wall.
4. Never cover the ventilation openings and air inlet points.
5. Never remove the feet at the bottom of the appliance.
6. Install the appliance as far away from radios or TV-sets as possible as its operation can cause interference.
7. Operate the appliance with its door closed only.
8. Only use a proper grounded safety socket for connection.
9. Manufacturing residues or oil having remained in the oven cavity or on the heating element may cause some odours and smoke emission. These are normal operational parameters, which will disappear after a number of uses. Open the room door or a window to ensure proper ventilation. We strongly recommend to place a cup of water on the turntable; then operate the appliance with high power a few times.

SCOPE OF DELIVERY:

▶ 1 microwave oven
➢ 1 glass plate / turntable
Assembly material for under-cabinet installation of the microwave (4 screws / 4 washers / 1 drilling template

2.1 Installation instructions for under-cabinet installation

IMPORTANT INFORMATION:

1. Remove all items from the wall cabinet and all fragile items from the adjacent cabinets completely.
2. The minimum installation height is 850 mm.
3. The wall cabinet must meet the following conditions:

the bottom of the wall cabinet must be 16 - 19 mm thick.
the wall cabinet must have a width of at least 500 mm.
the depth of the bottom of the wall cabinet must be at least 320 mm.
the wall cabinet must not have any cracks, chipping or other damages. All connections of the cabinet must be stable.
the wall cabinet must be designed to hold a load of at least 40 kg.

1. The wall cabinet must be anchored in the wall firmly with at least 2 screws; this wall mounting must be stable and secure.

2. A safety socket must be near of the appliance.

⚠ WARNING! Never install the appliance near or above a hob / stove or any heat-producing appliance. If installed near a source of heat, the appliance can be seriously damaged.
⚠ WARNING! Connect the appliance to the power supply after installation only.
⚠ WARNING! The appliance must not be installed under cabinets which are equipped with a light strip.

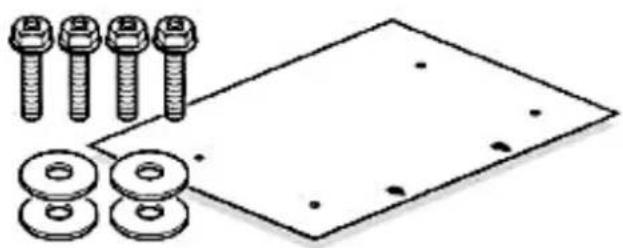

DESCRIPTION OF THE INDIVIDUAL PARTS:

Screws (30 mm) 4x

Washers 4x

Drilling template 1x

Illustration of a screw and washer assembly with four bolts (no text or symbols)

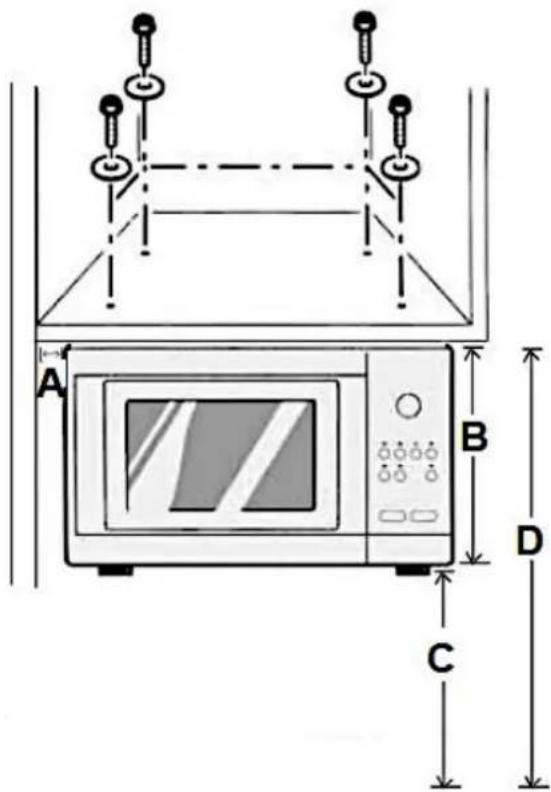

INSTALLATION:

i Always observe the distances and minimum distances for proper ventilation shown in the following figure:

A	15 mm
B	260 mm
C	min. 850 mm
D	min. 1110 mm

INSTALLATION STEPS:

1. Place the drilling template on the bottom of the wall cabinet. Please ensure that the front edge of the drilling template is placed on the front edge of the cabinet accurately. Note the two arrows of the drilling template (s. fig. below).

Put against front edge

1. Tape the drilling template so that it cannot shift.

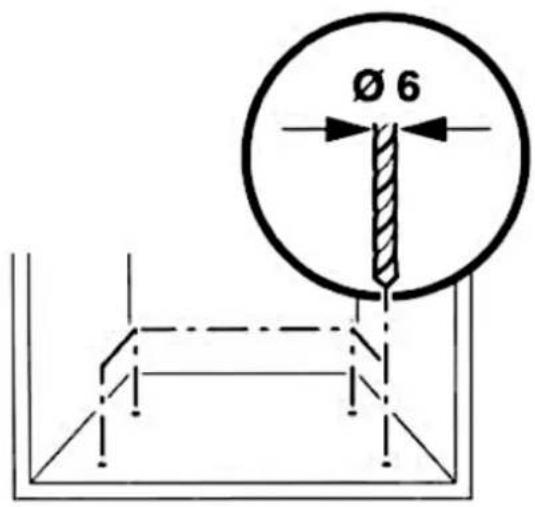

2. Drill four holes through the drill template and the bottom of the wall cabinet using a 6 mm drill (s. fig. below).

1. Remove the drilling template.

2. Remove the 4 dummy plugs from the top of the microwave.

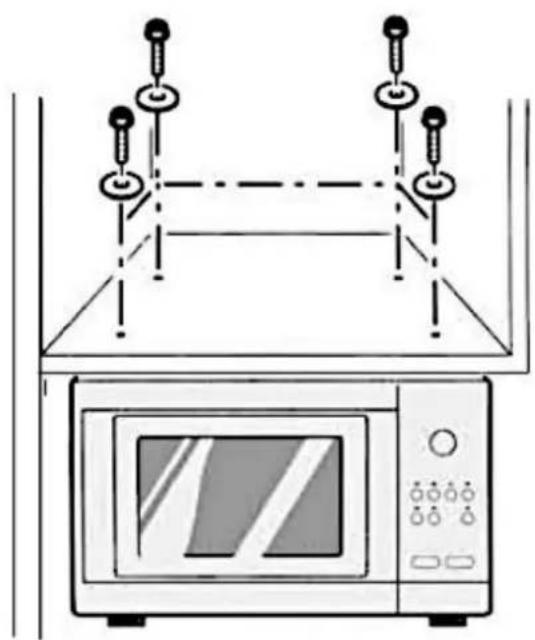

3. Install the microwave on the bottom of the cabinet using the 4 provided screws and washers (s. fig. below).

Diagram of a microwave oven with mounted sensors and a control panel (no text or symbols)

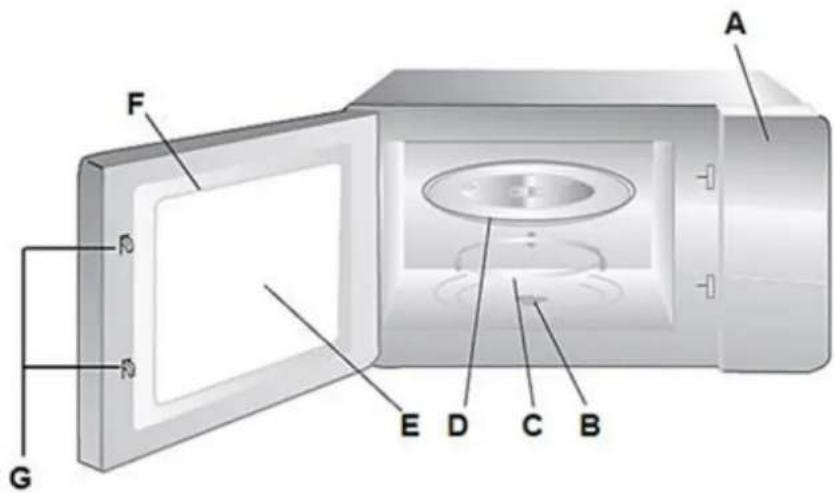

2.2 Description of the appliance / Accessories

Remove all packaging materials before installation.

A	Control panel
B	Shaft of the glass plate / turntable
C	Rotating ring of the glass plate / turntable)
D	Glass plate / turntable
E	Window
F	Door
G	Safety interlock

2.3 Installation of the glass plate / turntable

A	Hub
B	Glass plate / turntable
C	Shaft of the glass plate / turntable
D	Rotating ring of the glass plate / turntable

➢ Never place the glass plate / turntable upside down. The rotation of the glass plate / turntable must never be restricted.
➢ Never use the appliance without the glass plate / turntable and rotating ring.
➢ All food or containers with food must be placed on the glass plate / turntable.
➢ Do not operate the appliance when the glass plate / turntable and / or rotating ring are damaged.

3. Operation

A. Power. Set the microwave power using the rotary knob A.

B. Cooking time. Set the cooking time using the rotary knob B.

1. When you have set the power and cooking time, the appliance starts operation automatically.

2. An acoustic signal sounds when the cooking time has elapsed.

3. Always set the cooking time (rotary knob B) to 0 when you do not use the appliance.

Power level	Power	Application
LOW	17 %	Slight warming
M.Low (DEFROST)	33 %	Soup, stew, defrost
MED.	55 %	Stew, fish
M.HIGH	77 %	Rice, fish, chicken, ground meat
HIGH	100 %	Re-heat, milk, boiling of water, vegetable

Defrost (kg): The decimals (0.2/0.4/0.6/0.8/1.0 = 200g, 400 g etc.) right beside the minute scale of rotary knob B represent weight specifications in kg. Example: You would like to defrost 600 g of frozen food. Set rotary knob A to MED.Low (DEFROST) and rotary knob B to 0.6.

Do not defrost food the weight of which is more than 1.0 kg.

4. Microwave cooking

4.1 Basics of microwave cooking

1. Arrange your food carefully. Place thick pieces at the outer areas of your arrangement.

2. Consider the cooking times. Choose the shortest time available. If needed, add some more cooking time later. Any food, which is cooked too long in a microwave, can begin to fume or catch fire.

3. Cover food while it is cooking. Covering avoids splashes and enhances an even cooking procedure.

4. Turn over your food once while cooking it. Food like chicken or hamburgers will then cook faster. Larger pieces like roasts must be turned over at least once.

5. Rearrange food like meat-balls in the middle of the cooking time from the outer areas to the inner ones (and inversely) and also turn them over.

6. If you use microwave-safe plastic wrap, it must not contact the food as the wrap may melt.

7. Some microwave-safe plastic cookware might not be suitable for cooking food with a high content of fat and sugar. Moreover, the preheating time specified in the dish instruction manual must not be exceeded.

4.2 Suitable materials for microwave cooking

1. Use microwave-safe cookware made of heat-resistant ceramic, glass or plastic only.

2. Do not use metal-made cookware or other metal-made items or plates with metal-made ornaments. Microwave radiation cannot penetrate metal.

3. ⚠️ WARNING! Metal can generate sparks. RISK OF FIRE.

MATERIAL	REMARKS
BROWNING DISHES	Observe the information given by the relevant manufacturer. The bottom of the browning dish must be at least 5 mm above the turntable. Improper use can break the turntable.
TABLEWARE	Use microwave-safe tableware only. Observe the information given by the relevant manufacturer. Do not use cracked or chipped tableware.
GLASS JARS	Always remove the lid. Heat-up the food until it is just warm. Most glass jars are not heat-resistant and can break.
GLASS TABLEWARE	Use heat-resistant glass tableware only. The glass tableware must not contain any metal components. Do not use cracked or chipped glass tableware.
OVEN COOKING BAGS	Observe the information given by the relevant manufacturer. Do not close using metal tics. make small openings to allow steam to escape.
PAPER PLATES/CUPS	Only suitable for short-time cooking or reheating Do not leave the appliance unattended while it is operating.
PAPER TOWEL	Only suitable for short-time cooking or reheating Do not leave the appliance unattended while it is operating.
PARCHMENT PAPER	Use as a cover to prevent splattering or as a cover for steaming.
PLASTIC	Only use microwave-safe plastic. Observe the information given by the relevant manufacturer. The plastic must be labelled "Microwave-safe". Some plastic containers can melt when the food they contain becomes hot. Boiling bags and tightly closed plastic bags must be equipped with small openings, pierced or vented as described on their packaging.
PLASTIC WRAP	Only use microwave-safe plastic wrap. You can use plastic wrap to cover the food so moisture is retained. The plastic wrap must not touch the food!
THERMOMETER	Only use microwave-safe thermometers.
WAX PAPER	You can use wax paper as a cover to protect the appliance from splatters or to retain moisture.

4.3 Unsuitable materials for microwave cooking

MATERIAL	REMARKS
ALUMINIUM TRAYS	Aluminium trays can cause sparking. Transfer the food into a microwave-safe container.
FOOD CARTON WITH METAL HANDLE ETC.	Food cartons with metal handle etc. can cause sparking. Transfer the food into a microwave-safe container.
METAL-MADE OR METAL-TRIMMED ITEMS	Metal shields the food from the microwave energy. Metal components can cause sparking!
PAPER BAGS	Paper bags can catch fire in the appliance. RISK OF FIRE!
PLASTIC FOAM	Plastic foam can melt when exposed to high temperatures and/or contaminate the food.
WOOD	Wood used in a microwave appliance can dry and/or can get cracks. Wood can catch fire in the appliance. RISK OF FIRE!

5. Cleaning and maintenance

WARNING! Disconnect the appliance from the mains before you clean or maintain it.

1. Keep the inside of your appliance clean. When food splatters or spilled liquids are on the walls of your appliance, clean it with a damp cloth. Mild detergents may be used if the appliance has become very dirty. Avoid the use of sprays and other harsh cleaners as they may stain, streak or dull the door-surface.

2. Clean the outside with a damp cloth. Water should not run into the ventilation-openings to prevent damage to the operating parts inside the appliance.

3. Wipe both sides of the door and the window, the door seals and adjacent parts frequently using a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.

4. The control panel should not become wet. Clean it with a soft and damp cloth. When cleaning the control panel, leave the door open so the appliance cannot be switched on accidentally.
5. If steam accumulates inside or around the outside of the door, wipe it with a soft cloth. This may occur when the appliance runs under high-humidity-conditions. It is a normal occurrence.
6. It is sometimes necessary to remove the turntable and/or rotating ring for cleaning. Wash the turntable/ring in warm soapy water, then rinse and dry thoroughly. When having removed the rotating ring from the appliance, you must reinstall it in its proper position.
7. ⚠️ WARNING! If it is necessary to remove the internal light ^2 of the appliance, please contact the shop you purchased the appliance at.

6. Trouble shooting

NORMAL OPERATING CONDITIONS
INTERFERENCE TO RADIO OR TELEVISION RECEPTION	Radio and TV reception can be interfered while the appliance is operating, similar to interferences of other electric appliances such as mixers, vacuum cleaners, electric fans etc.
DIM OVEN LIGHT	The oven light may become dim while the appliance is operating in lower power cooking.
STEAM ACCUMULATION ON DOOR/HOT AIR ESCAPES FROM THE AIR VENTS	During cooking, steam escapes from the food. Most of the steam is discharged via the ventilation openings. Nevertheless, some steam can accumulate at the cooler parts of the appliance, e.g. the door.
THE APPLIANCE WAS ACCIDENTALLY-STARTED WITHOUT LOAD (FOOD).	WARNING! Never operate the appliance when it is empty.
MALFUNCTION
POSSIBLE CAUSE(S)	POSSIBLE MEASURE(S)
THE APPLIANCE CANNOT BE STARTED.
1. The power cord is not plugged in properly.2. Blown fuse in household fuse box.3. Socket malfunction.	1. Unplug. Plug in again after 10 seconds.2. Check household fuse box.3. Check the socket using another electric appliance.
THE APPLIANCE DOES NOT HEAT.
The door of the appliance is not closed properly.	Close the door of the appliance properly.

7. Technical data

Type	Microwave oven
Volume	20 l
Max. power / microwave	700 W
Voltage / frequency	230 V AC / 50 Hz
Power levels	5
Acoustic end signal	√
Timer	analogue / max. 35 minutes
Glass plate (turntable)	√
Dimensions H*W*D	35.80*44.00*25.90 cm
Weight net / gross in kg	10.34 / 11.50

◆ Technical modifications reserved.

8. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!
2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are Please contact your local authorities to recyclable. receive further information.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2014

Please contact the shop you purchased the appliance at.
