Product Type	LED TV
Brand	Shivaki
Model	STV-24LED14E
Screen Size	24 inches
Display Resolution	HD (1366 x 768)
Refresh Rate	60 Hz
Dimensions (with stand)	Approx. 555 x 370 x 150 mm
Weight (with stand)	Approx. 3.5 kg
Power Consumption (max)	30 W
Power Supply	AC 100-240V, 50/60Hz
Connectivity	HDMI, USB, VGA, AV, RF
Built-in Speakers	2 x 3W
Remote Control	Included
Wall Mountable	Yes (VESA 100x100)
Energy Efficiency Class	A+
Operating Temperature	0°C to 40°C
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquid cleaners.
Safety Features	Anti-tip strap, automatic standby after 4 hours
Spare Parts Availability	Remote control and power adapter available

Frequently Asked Questions - STV-24LED14E Shivaki

How do I connect external devices to my Shivaki STV-24LED14E TV?

Use the HDMI port for high-definition sources like gaming consoles or Blu-ray players. The USB port allows playback of media files. For older devices, use the VGA or AV inputs. Connect your antenna to the RF input for over-the-air channels.

What should I do if the TV does not turn on?

First, ensure the power cord is securely connected to both the TV and a working outlet. Press the power button on the remote or the TV. If still not working, try a different outlet or check the fuse. If the issue persists, unplug for 30 seconds and try again.

How can I mount this TV on the wall?

The Shivaki STV-24LED14E supports VESA 100x100 mm wall mounts. Use a compatible bracket and follow the mounting instructions. Ensure the wall can support the TV's weight of approximately 3.5 kg. Use appropriate anchors and screws.

What is the best picture setting for this TV?

For standard viewing, select the Standard picture mode. For movies, choose Cinema mode. Adjust brightness, contrast, and color to your preference. You can fine-tune settings in the Picture menu.

How do I clean the TV screen?

Turn off the TV and let it cool down. Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn stains, slightly dampen the cloth with water, but never spray liquid directly on the screen. Avoid alcohol or ammonia-based cleaners.

Why is there no sound from the TV?

Check if the volume is muted or set too low. Ensure external audio devices are properly connected. If using headphones, remove them. Try switching audio output in Settings. If problem continues, the speakers may need service.

Can I use a universal remote with this TV?

Yes, most universal remotes are compatible. You may need to enter a code for Shivaki or STV-24LED14E. Common codes are 123, 456, or search codes online. Follow the remote's programming instructions.

How to perform a factory reset?

Go to Menu > Settings > Factory Reset (or similar). Enter the PIN if requested (default is 0000). Confirm to reset all settings. Note that this erases custom channels and preferences.

What file formats are supported via USB?

The TV supports JPEG for photos, MP3 for audio, and AVI, MKV, MP4 for video. For best compatibility, use a USB drive formatted as FAT32. Maximum file size may be limited.

How do I update the TV firmware?

Check for updates via Menu > Settings > Software Update. If a USB option is available, download the firmware from Shivaki support to a USB drive, insert it, and follow on-screen instructions. Do not turn off the TV during update.

USER MANUAL STV-24LED14E Shivaki

We thank You for your choice of product of our company. «SHIVAKI» technique corresponds to all world standards and will reliably serve You during long time.

SHIVAKI company tries to ensure that all our Customers will be satisfied with the purchased goods and level of rendered service.

Each owner of «SHIVAKI» technique is guaranteed with extended service set.

By purchasing the products of our company, you can automatically:

• participate in the current promotional offer to "SHIVAKI" technique,
  — either to get an additional 6 months of warranty service
• or to participate in the regular prize drawing from "SHIVAKI" company,
• And even much more ...

To do this, simply visit the website: www. product-registration.eu and register purchased by You product. We value your personal time, so we tried to arrange in such way that registration process will take You less than 4 minutes.

«SHIVAKI» company keeps in mind and cares about its customers, constantly improving its products: TVs, refrigerators, vacuum cleaners, microwave ovens, air conditioners, telephones, and steadily increases level of service and support to customers.

Congratulations! You have chosen worthy of You, reliable and state of the art perfect work of «SHIVAKI» company.

Best regards,

President

"SHIVAKI (JAPAN) IND. LTD"

Mohnish Mada

Please read this manual carefully before installing and operating the TV. Keep this manual handy for further reference

This user manual for reference only

Table Of Contents

Preparations Guide

Safety Information

Important Safety Precautions

Installed And Connected TV

TV Bracket assemble

TV Buttons And Terminal Interface

External device connection diagram

Install And Connect TV

TV Stand installation Instructions

Function Description

Picture Menu

Sound Menu

TV Channel

Feature Menu

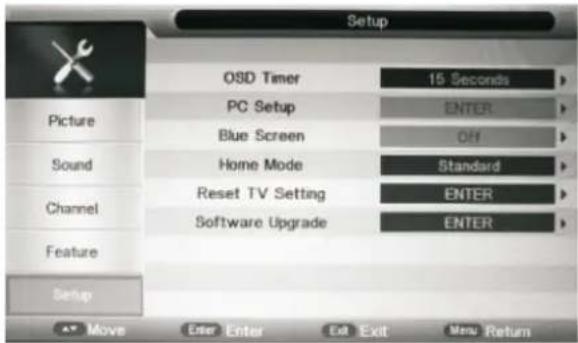

Setup Menu

Multimedia


Music

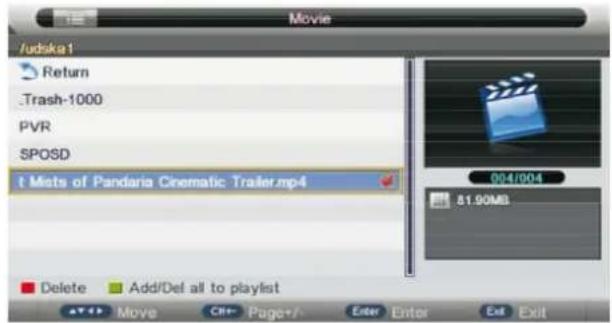

Movie

eBook

Other Features

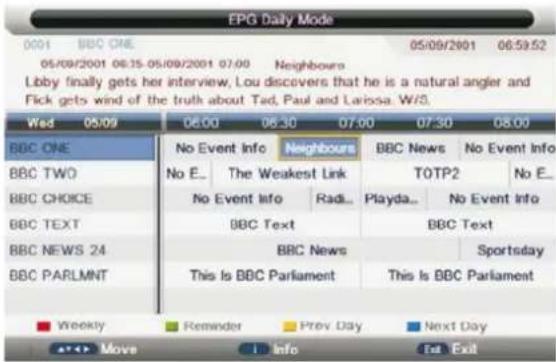

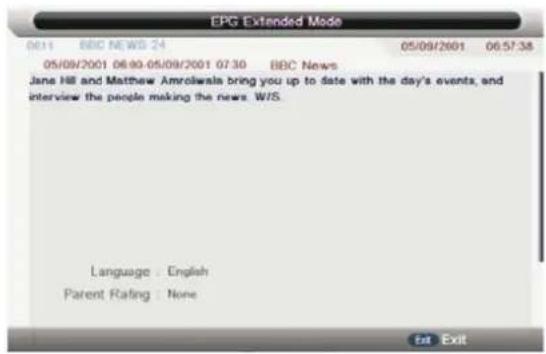

EPG

PVR

Other Information

Help

Specifications

CAUTION

RISK OF

ELECTRIC

SHOCK

DO NOT OPEN

High voltages are used in the operation of this product to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine maintenance, customer contact centres needed overhaul.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Important Safety Precautions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Warning to reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15. The apparatus shall be disconnected from the mains by placing the power/standby switch in the standby position and unplugging the power cord of the apparatus from the AC mains receptacle.

16. The socket-out shall be installed near the equipment and shall be easily accessible.
17. This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
18. Apparatus shall not be exposed to dripping or splashing.
19. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
20. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
21. Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.
22. The USB terminal should be loaded with 0.5 A under normal operation.

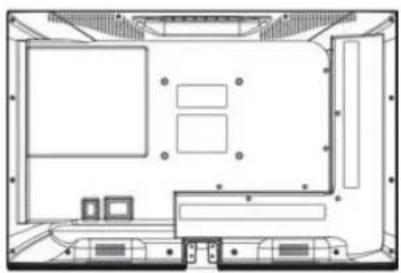

TV Bracket assemble

Fix the TV on the wall

1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen.
2. User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1). And take off the bottom stand (please take off the screws and bottom stand carefully).
3. Make one bracket which can fix on the wall according to the size of arrow direction of photo2 and photo3.
4. Drill four holes properly on the wall (the size only for reference) and put into four screws. (optional parts) Drill four holes properly on the wall (the size only for reference) and put into four screws. (optional parts)
5. according to the step 4, use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

Top-down architectural floor plan of a room with furniture layout (no text or labels)

Note:

1. The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

3

TV Buttons And Terminal Interface

TV Buttons

Note: The following is only functional schematic. And the actual position and arrangement of different models may be different.

VOL+

VOL-

CH+

CH-

MENU

SOURCE

Turn ON/OFF Power.

SOURCE: External Signal Input Selection.

MENU: Display Main MENU And Confirm MENU Item Selection.

CH+/-: Selecting Channel.

VOL+/-: Adjusting Volume.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

	AV inputExternal AV Signal Input And Relevant Right/Left Sound Channel		EARPHONE outputWhen earphones are plugged in, speakers are disabled
	CI SLOTThe card reader input CI (common interface) this requires CAM (conditional access module) used for pay TV.		USB inputConnect a USB device here to play its media files or to record programs via the PVR function.
	Y Pb Pr inputConnect to the composite terminal of your DVD/VCR (Some models without this interface)		SCART inputstandard, it supports composite and RGB signal input. It is a connection for European (Some models without this interface)
	HDMI inputDigital signal input from HDMI video connector.		COAXIALConnect the SPDIF receiver.
	ANT 75Connect the antennal/cable tv input (75/VHF/UHF)

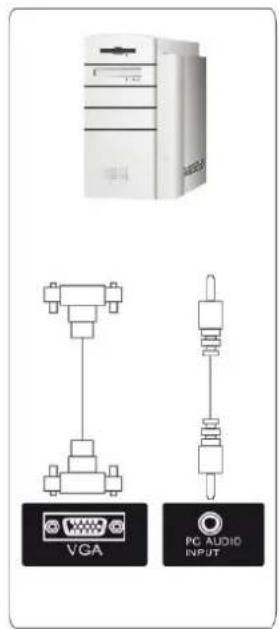

	VGA inputPC analog signal input
	PC AUDIO INPUTVGA input and audio input when VGA input

External device connection diagram

Install And Connect TV

3

2

Set your TV

To put your TV in a firm place which can bear the weight of the TV. To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV (AC 100-240V\~50/60Hz).

Note:

Picture for reference purposes only. Please prevail in kind

TV Stand Installation Instructions

1. Open the carton and remove the TV and scattered accessories and base (some models without base).
2. to avoid the injury of the TV, covered with a soft mattress, put it on the table, face down on a soft mattress, the base of the neck is fixed on the TV with screws.
3. screw the base and connected to the TV.
4. the installation is complete.

Note:

Picture for reference purposes only.

Please prevail in kind

Simple line drawing of a desk with books and a lamp (no text or symbols)

Picture Menu

Press MENU button to display the main menu.

Press ENTER/RIGHT button select Picture in the main menu, then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Picture menu.
2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

Picture Mode

Available Picture Mode: Dynamic, standard, mild, user

Note: You can press P.MODE butten to change the Picture Mode directly.

Brightness/Contrast/ Sharpness/Colour/Tint

Brightness	Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture
Contrast	Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.
Sharpness	Adjust the peaking in the detail of the picture.
Colour	Adjust the color of the color based on your own like.
Tint	It is not available unless Picture Mode is set to be user and the current TV system is NTSC.

Colour Temperature

Change the overall color cast of the picture.

Aspect Ratio

Change the overall color cast of the picture.

Note: You can press ASPECT butten to change the Picture Mode directly.

Noise Reduction

Noise reduction of the picture. To reduce noise and improve the appearance of the picture. No noise reduction operation if it's "off".

From Low->Middle->High, noise reduction effects better but it will cause a blur on picture.

Sound Menu

Press MENU button to display the main menu.

Press ENTER/RIGHT button select Sound Menu in the main menu, then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Sound menu.
2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

Sound Mode

Available Picture Mode: Standard, Movie, Music, Speech, User

Note: You can press S.MODE butten to change the Picture Mode directly.

Treble/Bass/Balance

Treble Adjust the treble effect. Increases or decreases high-pitched sounds.

Bass Adjust the bass effect. Increases or decreases lower-pitched sounds.

Balance Adjust the balance between left and right speakers to adapt to your listening position.

Surround

Press ENTER/RIGHT button to enter, then press UP/DOWN button to select On or Off.

AVL

press UP/DOWN button to select On or Off. Set the auto volume control.

SPDIF

Press ENTER/RIGHT button to enter, then press UP/DOWN button to select Off / Auto / PCM.

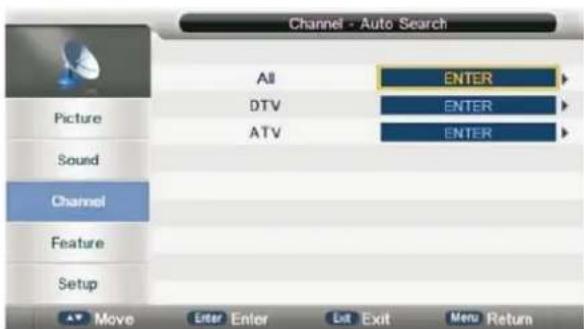

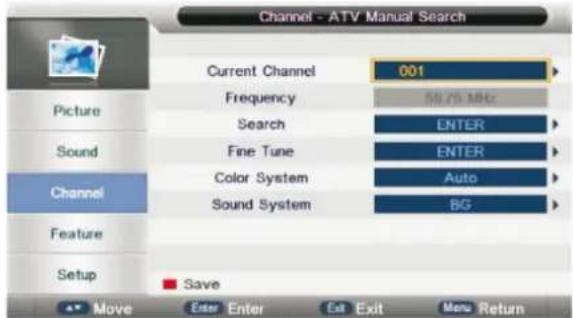

TV Channel

Press MENU button to display the main menu.

Press ENTER/RIGHT button select Channel Menu in the main menu, then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Channel menu.
2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.
   NOTE: TV Connection The functions of the parts not change please in kind prevail

Channel Manager

To manage (Delete/Rename/Swap/Lock/Skip) all channels

First press UP/DOWN to highlight the channel you want to delete or move or skip, then:

Press the RED button to delete the channel.

Press the GREEN button to skip the select channel.

(Your TV set will skip the channel automatically when using CH+/- to view the channels.)

Press the YELLOW button to to set the channel to moving state, then press UP/DOWN to move it to the position you want to put.

Press the BLUE button to be swapped channel. then press UP/DOWN to select another channel and press "BLUE" key to swap them.

Favorite Management

To manage (Add/Delete) Favorite channels

Press UP /DOWN button to select the programs to be added into favorite list and press "RED", "GREEN", "YELLOW" or "BLUE" button to mark them

Country

press UP/DOWN button to select Country.

Auto Search

All Mode:

Select "AH" item to scan all digital channels carried by current signal mode firstly and then switch to scan all analog channels in selected country automatically. User can skip digital search to analog search directly by entering EXIT/MENU button and can also stop auto scan directly by entering EXIT/MENU button during analog scanning.

Digital Mode:

Select "Digital" item to search all digital channels in selected country carried by current signal mode. User can stop search directly by entering EXIT/MENU button.

Analog Mode:

Select "Analogue" item to search all digital channels in selected country carried by current signal mode. User can stop search directly by entering EXIT/MENU button.

DTV manual search

Select channel number by ENTER/RIGHT button or entering number directly. The strength and the quality shows at the bottom. Press ENTER button on "Start" item to start current channel search. The manual searching UI and the auto searching UI are the same.

ATV Manual Search

Press UP/DOWN button to select option. Press ENTER/RIGHT button to enter, Press UP/DOWN button to select these parameters. Select "Search" item to enter analog channel tune, then press LEFT/RIGHT button to adjust

Feature Menu

Press MENU button to display the main menu.

Press ENTER/RIGHT button to select Feature Menu in the main menu. then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Feature menu.
2. Press ENTER/RIGHT button to enter. then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

Lock

Lock Channel: On: turn on Lock Channel. User need to enter password to watch the channels which are locked. Also need to enter password when user tries to change settings in items like "reset system"/"reset database" etc.

Off: turn off Lock Channel

Parental Lock: Off: turn off Parental Lock 4-18: turn on Parental Lock and set the age level that are permitted to watch the program.

Change Pin Code: Press ENTER/RIGHT button to set New Password, then enter a 4-digital number you want to set twice. Pass word: 0000

Language

Press UP/DOWN button to select Language.2.Press ENTER/RIGHT button to enter, then to select System language setting, includes OSD Language, Preferred Subtitle, Preferred Audio, Digital Teletext Language, Anglog Teletext Language

Clock

It is used to check out the current system time and set time zone/DST.(DST(daylight saving time): if it's "On", it'll be an hour earlier than the GMT. If Time Zone is set to "Auto" it's not available.)

Function Description

Sleep Timer

When your TV is Running, start sleep function by setting Sleep Timer in any case. This function allows you to power off the TV within a period of time. Currently the supported time period are: Off, 10 Mins, 20 Mins, 30 Mins, 60 Mins, 90 Mins, 120 Mins, 180 Mins, 240 Mins,

Auto Power Off

When your TV is Running, start Auto Power Off function by setting Auto Power Off Timer in any case. This function allows you to power off the TV within a period of time. Currently the supported time period are: Off, 1 Hours, 2 Hours, 4 Hours

Hearing impaired

This function offers a subtitle such as a "stroke on the door" or "the bell starts to ring" for the current scene in case that the user is weak in hearing.

CI Info

It is only available in DTV source when PVR is not playing. Please prefer to Chapter 6 section 2 CI Setup for further information about the function of CI.

NOTE:CI info The functions of the parts not change please in kind prevail

Setup Menu

Press MENU button to display the main menu.

Press ENTER/RIGHT button to select Setup Menu in the main menu. then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Setup menu.

2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.

3. After finishing your adjustments Press MENU/ENTER button to save and return back to the previous menu

OSD Timer

Set up OSD Timer which means how long the menus will exist. The optional periods are 5, 10, 15, 20, 25, 30 Seconds and Never

Auto SCART

Switch for Auto SCART function.

PC Setup

It is only available in PC source.

Auto Adjust: Auto Adjust the H Position, V Position, Phase, Clock

H Position: Manually adjust H Position

V Position: Manually adjust V Position

Phase: Manually adjust Phase

Clock: Manually adjust Clock

Blue Screen

It is not available in PC, DTV source or when it is not movie mode in multimedia source. In TV source, if there is no signal and Blue Screen is Off, it will show snow; if there is no signal and Blue Screen is On, it will show blue screen

Reset to Setting

If the Lock Channel is On in Feature Menu/Lock, it needs to enter the password to enter the Reset. It will Reset System Setting and Database.

When the reset is complete, it will enter the Auto Installation settings page.

First, it will show a page to user to confirm.

Software Upgrade

Software upgrade by bin code. Put The bin code into the root directory of the media and media plugged into the TV's USB interface, press ENTER key to upgrade. Don't power off during the upgrading process. The system will restarts when the upgrading process is done.


press LEFT/RIGHT button to select PHOTO in the main menu, then press ENTER button enter photo page.

Music

press LEFT/RIGHT button to select Music in the main menu, then press ENTER button enter music page.

Movie

press LEFT/RIGHT button to select Movie in the main menu, then press ENTER button enter Movie page.

eBook

Only txt format eBook is supported.

press LEFT/RIGHT button to select eBook in the main menu, then press ENTER button enter eBook page.

EPG

If you expect to know the schedule or the information of the current playing program or the program that starts in the near future, you can refer to the EPG menu by pressing the button "EPG" on the remote. It shows the date and time on the top right of the menu, the list of the current available channels on the left side of the menu, and the name of each program that starts in a scheduled period of time on the right of the menu. Change the focused list by pressing "right" or "left", or the focused program by pressing "up" or "down". The information of the currently focused program will be displayed on the top of the menu.

There are 3 modes of EPG menu :

Daily mode: shows the information of the programs to be broadcasted in daily mode;

Weekly mode: shows the information of the programs to be broadcasted in weekly mode

Extended mode: shows the detailed information of each program.

Daily Mode

Display the information of the programs that start in a scheduled period of time in the current channel. It includes name, start time, end time, short content description, current date/time, etc.

If the current focusing program is not parental locked, it will be played simultaneously in the background.

ERG Daily Mode

Weekly Mode

Display the information of the programs that start in a scheduled period of time in the current channel. It includes name, start time, end time, short content description, current date/time, etc.

Focusing on different channels on the left, it displays corresponding programs in schedule of time.

If the current focusing program is not parental locked, it will be played simultaneously in the background.

EPG Weekly Mode

Extended mode

PVR

This section is to introduce some contents about PVR, including PVR involved menus, Recording flow, Recorders playback, Recording restrictions.

PVR involved Menus: PVR/Timeshift menu> Partition List menu> Timer menu. Timer Edit menu. Record List menu; REC info menu. Timeshit info menu.

REC

Press REC button to start recording, when there is a program playing, it will pop up a message "Do you want to start Recording?".

After confirm, the system will read the speed of the storage device. If the speed is too low for recording, there is a message "Device speed not enough, RECORD anyway?" if user choose Yes, it will record constrainedly. In addition, the speed is high enough; it initializes in the first instance and starts to record later.

Timer REC

There are two methods to set a timer. As follows:

In the EPG menu user can preengage programs for watching or recording;

Pressing GREEN once is to preengage the program only for watching (when timeout, it jumps to the program and only play.

Pressing GREEN twice is to preengage the program for recording (when timeout, it jumps to the program and starts recording), if it is timeout in standby mode, it will power on 2 minutes in advance and starts to record under background without powering on the panel. To watch the program, user need to press POWER;

The preengaged programs can be checked in Timer menu.

Other Features

In Timer menu, user can increase, delete preengage programs; In Timer Edit menu, user could set modify preengaged programs' information;

In Timer menu: press YELLOW to get into Timer Edit menu to add a timer . Then set timer's information in Timer Edit menu. Flow of setting a timer's information:

Type: Set program type: DTV or RADIO;

Mode: Way of triggering a timer (once/daily/weekly/monthly);

Recorder: "ON": preengage for watching and recording(record). "OFF": preengage only for watching(reminder);

Set the date/time and Duration time (exact to minutes); Must be reasonable (behind current time);

Timer: when there are some conflicts a warning message will pop up;

Press MENU to return to Timer menu and store the timer's information.

When the tinner recorder is timeout, it jumps to the very channel and starts to record the program automatically (if a manual recording under process, it will stop the manual recording process and starts the timer recorder automatically); When there is left 10s before recorder, a prompted window will pops up;

If there are not any storage media, the settings fail and a warning message "no USB device" shows; If target partition (default partition) is not set, it selects the first partition that the system identified automatically.

Help

No Power	Check the AC cord of TV is plus in or not. If still no power, please pull out the plug and replug in after60 seconds. And open the TV again
Signal receive not properly	To cause double image or phantom if there has high building or high mountain round TV. You can adjust image effect by manually operation: consult instruction of vernier regulation or change the direction of external antenna.If you use the indoor antenna . under certain circumstance, receive will be more difficult .So you can change the direction of the antenna to adjust the image effect. If can't change image receiving effect either, you have to use external antenna.
No picture	Check the antenna at the back of TV is connected properly or not.Try to select other channels and check whether the TV problem itself or not
but, Video is ok without audio	Increase the volume.Check the TV is in mute mode or not and please press the mute button to make sound resume.
Audio is ok, but color error or no picture.	Increase contrast and brightness.
snow statics picture and noise	Check the antenna at the back of TV is connected or not.
Level broken line	vacuum, such as hairdrier, Maybe has electrical appliance interfere please turn off these kinds of electrical appliance, cleaner and so on.
Image or-Dual "simulacrum" The TV no response with the Remote.	Perhaps the location for the antenna is not good. Use the tall beamed antenna can be improved quality of the display image.Operate the remote direct to the remote sensor on the TV. If still no response for the TV, please check if the plastic bag on the remote take or not. And check if the location for the battery is correct. Change the new battery.The TV will shift to the STAND BY if no response from the remote in the few minutes.
NO Video In (PC Mode)	Please check if the display cable connect to the VGA correcte . Please check if there has the bend on the display cable.
Vertical twinkling (PC Mode)	Enter the main menu, Use the clock regulator for the Video display noise to eliminate the vertical line.
horizontal ripping (PC Mode)	Adjust the Audio sound horizontal in the main menu to clear the horizontal ripping line.
The screen is too bright or too dark (PC Mode)	Adjust the contrast ratio or brightness in the main menu.
PC Function no response	Check the computer setting in the state of compatible display resolution
Ripping line in RCA connecting	Please use good quality connecting cable.
Problem still exist	Unplug the power cable and wait for 30 seconds, then connect. If there is some problem with our TV, do not repair it by yourself, please contact with the customer service center.

There will be complete picture and the brightness will come down if the TV is in: Note So please do not keep the TV in a state of same, the static picture for too long time Menu or same picture that has much difference in brightness and contrast ratio for too long time.

Machine Technical Specifications

Screen Size	TV System	Speaker Output
16"	PAL/SECAM	5W+5W
19"	PAL/SECAM	5W+5W
22"	PAL/SECAM	5W+5W
24"	PAL/SECAM	5W+5W
32"	PAL/SECAM	10W+10W
39740"	PAL/SECAM	10W+10W
42"	PAL/SECAM	10W+10W
46"	PAL/SECAM	10W+10W
50"	PAL/SECAM	10W+10W

Screen Size	Power Consumption	Main accessories
16" 24W
19" 36W/48W
22" 36W/48W
24" 48W
26"		User's manual x1Remote controller x1AAA Batteries x2
32"	56W/65W/100W
39" 75W
40" 70W
42" 85W
46"	110W
50"	135W

SHIVAKI®

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Top-down architectural floor plan of a room with furniture layout (no text or labels)

2

Примечание:

Simple line drawing of a desk with a hanging object and a book, no text or symbols present

Меню Изображение

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Top-down schematic of a room layout with furniture and fixtures (no text or labels)

2

Piezime:

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Attēla izvēlne

Top-down line drawing of a computer monitor layout with no text or symbols

1

Top-down architectural floor plan showing room layouts and equipment (no text or labels)

2

Pastaba:

Maitinimo JUN/IŠJUN.

SOURCE: Šaltinio pasirinkimas.

Simple line drawing of a mechanical setup with a suspended object on a table (no text or symbols)

Meniu Vaizdas

Top-down schematic of a computer monitor layout showing front, top, and side panels (no text or labels)

1

Top-down schematic of a room layout with furniture and fixtures (no text or labels)

2

Märkus:

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Menüü Kujutis

Eetri salvestamine (PVR)
