WK 4640 - Kettle GRUNDIG - Free user manual and instructions

Product Type	Kettle
Brand	Grundig
Model	WK 4640
Voltage	220-240 V ~, 50/60 Hz
Power Rating	1850-2200 W
Automatic Shut-off	Yes
Boil-Dry Protection	Yes
Illuminated On/Off Switch	Yes
Lid Release Button	Yes
Cable Storage	Yes, under base
Material	Stainless steel and plastic
Water Level Indicators	Yes (min and max)
Base Included	Yes
Descaling Recommended	Yes, with vinegar or lemon acid
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Auto shut-off, boil-dry protection, lid lock
Usage	For boiling water only
Power Cord Length	Approx. 0.7 m
Accessories	Base unit

Frequently Asked Questions - WK 4640 GRUNDIG

How do I descale the Grundig WK 4640 kettle?

Fill the kettle with water up to three-quarters of the maximum level. Add white vinegar or lemon acid to the maximum level. Boil the solution, then let it sit for a few hours. Rinse thoroughly and boil clean water. Repeat if necessary. Use a descaler suitable for kettles if preferred.

What should I do if the kettle does not automatically switch off?

Ensure the lid is closed properly during boiling. If the problem persists, unplug the appliance and contact a service center. Do not attempt to repair it yourself. The kettle has automatic shut-off feature.

Can I use the kettle to boil liquids other than water?

No, the kettle is designed for boiling water only. Do not use it for other liquids or foods.

How should I clean the kettle?

Unplug and let cool. Wipe the exterior with a damp cloth and mild detergent. Do not immerse the kettle, base, or cord in water. For descaling, follow the descaling procedure.

How does the lid release button work?

Press the lid release button (C) to open the lid. The lid opens automatically. Always close the lid securely before boiling.

What is the maximum capacity of the kettle?

The manual does not specify the exact capacity, but always fill between the minimum and maximum level indicators. Do not overfill to avoid splashing.

Can I use an extension cord with this kettle?

No, do not use an extension cord. Plug the kettle directly into a wall socket.

How do I store the kettle when not in use?

Unplug and ensure it is dry. Store in a cool, dry place out of reach of children. Wind the power cord around the cable coil under the base.

What is the power rating of the Grundig WK 4640?

The kettle operates at 220-240 V ~, 50/60 Hz with a power consumption of 1850-2200 W.

Is the kettle safe to leave unattended?

No, do not leave the kettle unattended while in use. It has automatic shut-off, but always supervise. Keep out of reach of children under 8 years.

USER MANUAL WK 4640 GRUNDIG

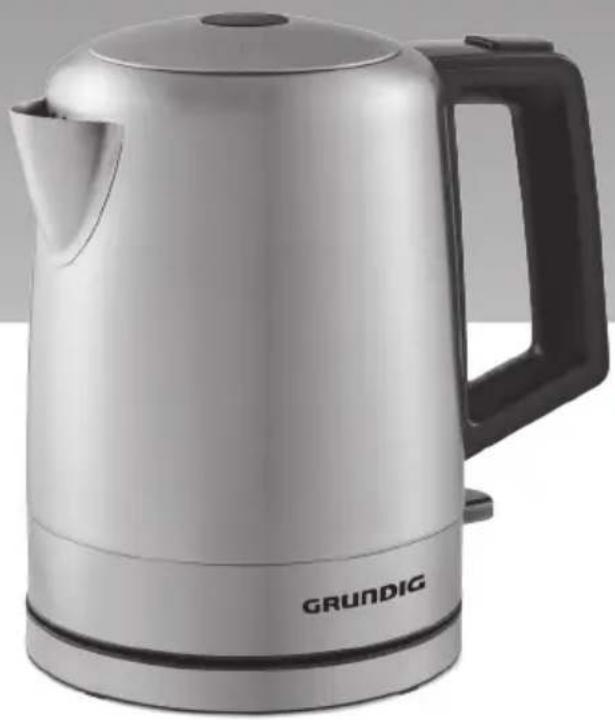

Exterior view of a modern stainless steel kettle with 'GRUNDIG' branding (no additional text or symbols visible)

DE

EN

TR

HR

DA

FI

NO

SV

NL

Abstract grayscale curved shape on white background, no text or symbols present

DEUTSCH 05-10

ENGLISH 11-16

TÜRKÇE 17-23

HRVATSKI 24-29

DANSK 30-36

SUOMI 37-42

NORSK 43-49

SVENSKA 50-56

NEDERLANDS 57-68

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ This appliance is intended to be used in household only. It is not designed for professional use in:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels, and other residential type environment.

- Do not use the appliance for anything other than its intended use. The kettle is designed for boiling water only. Do not use the kettle to boil and heat any other liquids or tinned, jarred, bottled food.

■ Never use the appliance in or near to combustible, inflammable places and materials.

■ Do not use the appliance outdoors or in the bathroom.
- Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.
■ For additional protection, this appliance should be connected to a household faulty current protection switch with no more than 30 mA. Consult an electrician for advice.
- Do not immerse the appliance, base, power cord or power plug in water or in other liquids and do not clean any parts in the dishwasher.
■ Disconnect the power plug after using the appliance, before cleaning the appliance, before leaving the room or if a fault occurs.
■ Do not disconnect the plug by pulling on the cord.
- Do not wrap the power cord around the appliance.

• Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage. Keep the power cord away from hot surfaces and open flames.
  ■ Do not use an extension cord with the appliance.
  ■ Never use the appliance if the power cord or the appliance is damaged.
• Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by a service center to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.
  ■ Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
  ■ Always keep the appliance and its cord out of reach of children aged less than 8 years.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
■ Do not leave the appliance unattended as long as it is in use. Extreme caution is advised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.
■ Before using the appliance for the first time, clean all parts which come into contact with water carefully. Please see full details in the "Cleaning and Care" section.
■ Dry the appliance before connecting it to the mains supply.

■ Never operate or place any part of this appliance near hot surfaces such as a gas burner, hotplate or heated oven.
■ Operate the appliance with the delivered parts only.
■ Operate the appliance with its original base. Do not use the base for any other purpose.
■ Do not use the appliance with damp or wet hands.
■ Always use the appliance on a stable, flat, clean and dry surface.
■ Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
■ Position the appliance in such a way that the plug is always accessible.
- Hold the appliance by the handle only. There is a danger of burns. Avoid contact with hot surfaces as well as with the emitting steam.
■ Position the lid so that the hot steam is directed away from you.

• Do not open the lid while the water is boiling. Be careful while you are opening the lid after the water has boiled. The steam which comes out of the kettle is very hot.
  ■ Make sure that the lid always remains closed properly when using the kettle.
  ■ Never fill the appliance above the maximum level indicator. If it is overfilled, then boiling water may splash out.
  ■ Do not fill the kettle below the minimum level indicator.
  ■ Never operate the appliance without any water inside it.
• Do not fill the kettle when it is fitted on its base.
  ■ Do not stick any foreign objects on the appliance.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG kettle WK 4640.

Read the following user notes carefully to ensure full enjoyment of your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

For a good reason. Grundig.

OPERATION

Preparation

1 Remove all packaging and sticker materials and dispose of them according to the applicable legal regulations.
2 Before using the appliance for the first time, clean all parts which come into contact with water carefully. (See the "Cleaning and care" section).
3 Completely roll out the power cord from the cable coil G on the bottom of the base F. Pass the power cord through the slot on the base.
4 Clean the kettle well before initial use and discard water of the first two boiling cycles.

Operation

1 Push the lid release button C on the kettle to open the lid B.
- The lid B opens automatically.

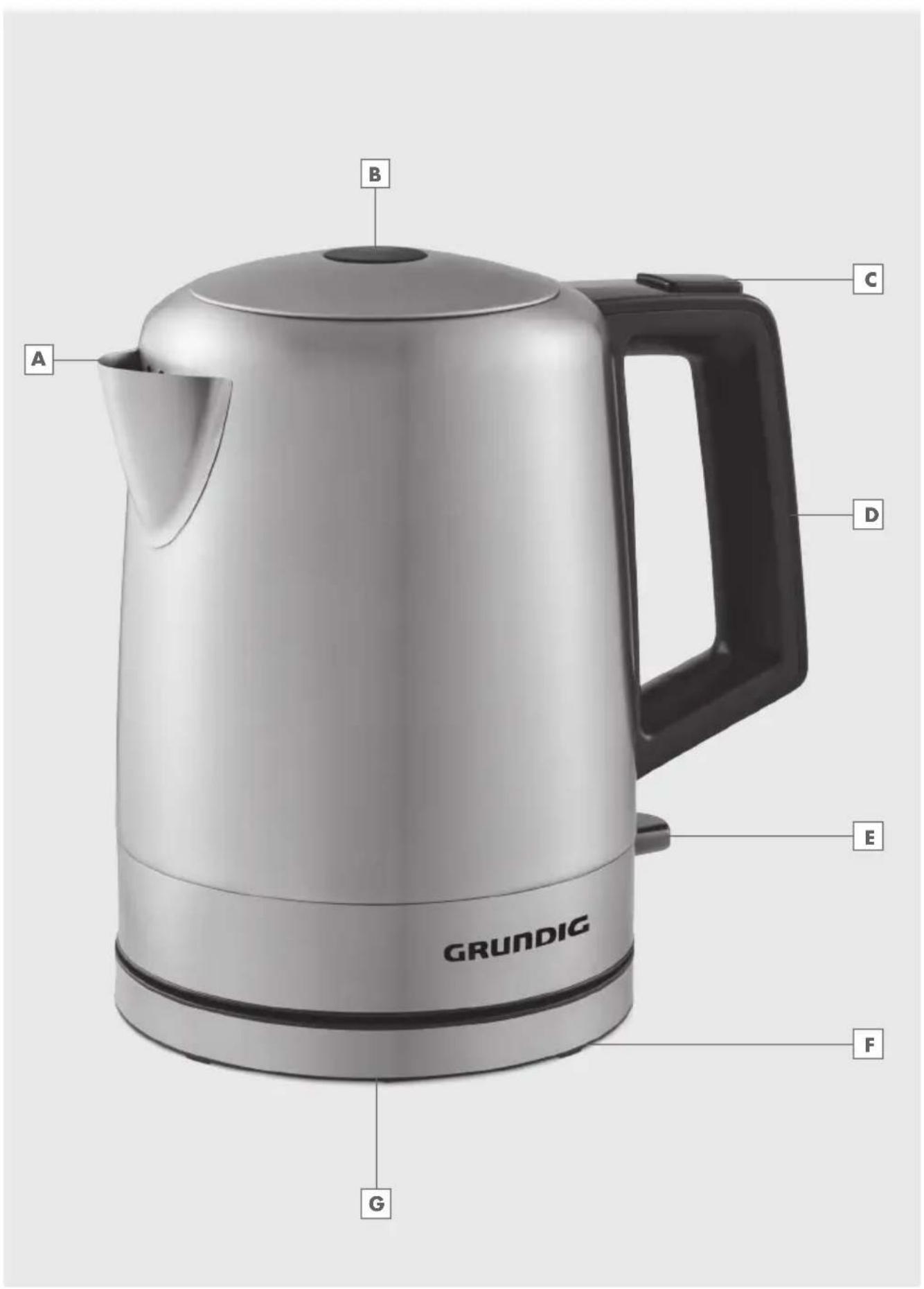

Controls and parts

See the figure on page 3.

A Spout
B Lid
c Lid release button
D Handle
E On/Off switch
F Base
G Cable coil

2 Fill the kettle with water.

Notes

• Do not place the kettle on the base F while filling it with water.
  ■ Never fill the kettle above the maximum level indicator or below the minimum level indicator.
  3 Close the lid B until it clicks into place.
  4 Place the kettle on the baseF. Make sure that it is sitting in an upright and stable position.
  5 Insert the plug into the wall socket.
  6 Press down On/Off switch E
• On/Off switch E illuminates and the boiling process begins.

Note

- Lid C should always be closed during the boiling process; otherwise the kettle will not switch off automatically.

OPERATION

7 After a few minutes, the water will start to boil. The kettle switches off automatically and the On/Off switch E moves upwards. - The function indicator disappears.

Note

If you want to stop the heating manually, push the On/Off switch E upwards.
8 Disconnect the plug from the wall socket.
9 Take the kettle from the base F. Only hold it by the handle D.

Caution

- Do not open the lid B as hot water could splash out. Make sure that no water splashes onto the base F.

10 Pour the water from the spoutA to the cup or glass you want to use.

Notes

If you want to continue the boiling process, repeat the procedure from 1 to 10.
- Let the kettle cool down between each heating process.

Hints and Tips

■ Use softened or filtered water to prevent lime build-up.

INFORMATION

Cleaning and care

Caution

■ Never use petrol, solvents or abrasive cleaners, metal objects or hard brushes to clean the appliance.
■ Never put the appliance, base F or power cord in water or any other liquid.
1 Turn the appliance off and disconnect it from the wall socket.
2 Let the appliance cool down completely.
3 Use a damp soft cloth and a little mild cleanser to clean the exterior of the appliance.

Note

■ Before using the appliance after cleaning, dry all parts carefully using a soft towel.

Descaling the kettle

Descaling extends the life of your kettle. Frequency of descaling depends on the water hardness in your area.

1 Fill the kettle with water, up to three quarters of the maximum level.

2 Add white vinegar or lemon acid in the kettle up to the maximum level.
3 Boil the solution (refer to Operation section).
4 After the kettle has switched off, unplug the appliance.
5 Leave the solution in the kettle for a few hours.
6 Pour out the solution and rinse the inside thoroughly.
7 Fill the kettle with clean water and boil the water.
8 Empty the kettle and rinse it with water again.

Notes

■ If there is still some limescale, repeat the procedure.
■ You can also use a descaler which is appropriate for kettles. If you use a descaler, please follow the instructions of that descaler.

Warning

If you do not descale the kettle after a long period of using, the bottom at the inside of the water tank gets fully covered with limescale and the appliance will get damaged. In that case, it requires to be repaired by a service center.
■ No warranty claims are accepted for damage caused by improper handling.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
■ Make sure the appliance is unplugged and completely dry.
■ Store the appliance in a cool, dry place.
■ Make sure the appliance is kept out of the reach of children.
Wind up the power cord around the cable coil G on the bottom of the base F.

Environmental note

This product has been made from high-quality parts and materials which can be reused and are suitable for recycling.

Therefore, do not dispose of the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment.

This is indicated by this symbol on the product, in the operating manual and on the packaging.

Please consult your local authorities to find out where the nearest collection point is.

Help protect the environment by recycling used products.

Technical data

Power supply: 220-240 V \~, 50/60 Hz

Power: 1850 - 2200 W

Technical and design modifications reserved.

Abstract grayscale curved shape on white background, no text or symbols present

AUS GUTEM GRUND

GRUNDIG

KETTLE

WK 4640

Exterior view of a modern stainless steel coffee kettle with 'GRUNDIG' branding (no additional text or symbols visible)
