Product Type	Hi-Fi System with DVD player
Brand	Denver
Model	DRS-1110MK2
Dimensions (Main Unit)	360 x 225 x 50 mm (W x D x H)
Net Weight	7 kg
Power Supply	AC 230 V ~ 50/60 Hz
Speaker Output	5 x 7 W (5 speakers)
Subwoofer Output	10 W
Power Consumption (DVD Playback)	15 W
Disc Compatibility	DVD, VCD, HDCD, CD, DVD±R/RW, AVI, WMA, MP3, Kodak Picture CD
Video Format	MPEG 4
Audio Format	MPEG 1, Layer 1/2/3
Frequency Response (CD)	4 Hz - 20 kHz
Frequency Response (DVD)	4 Hz - 22 kHz (48 kHz) / 4 Hz - 44 kHz (96 kHz)
Signal-to-Noise Ratio	> 92 dB
Total Harmonic Distortion	< 0.04%
Output Terminals	Speaker out, Composite video, SCART, Optical, S-Video, 2.0ch out, AM/FM, FL/FR input, Coaxial, Y/Pb/Pr component
Color System	PAL / NTSC / MULTI
Audio Digital Output	AC-3 (Dolby Digital), Coaxial/Optical
Remote Control	Included, IR sensor
Additional Inputs	USB (5V/200mA), SD/MMC/MS card
Tuner	FM/AM with preset memory (30 stations)
Playback Features	Slow motion, Repeat (Chapter/Title/All), A-B repeat, Zoom (2x-4x), Angle, Subtitle, Language selection, Program play, GOTO
Ventilation Clearance	Minimum 10 cm around apparatus

Frequently Asked Questions - DRS-1110MK2 DENVER

How do I connect the speakers to the DRS-1110MK2?

Connect the speakers to the corresponding terminals on the rear panel: FR (front right), FL (front left), CEN (center), SR (surround right), SW (subwoofer). Ensure proper polarity (red to red, black to black).

Can I play music from a USB drive or SD card?

Yes. Insert a USB drive or SD/MMC/MS card into the corresponding slot. First press STOP on the remote or unit, then press USB/CARD to switch to USB or card mode. Use the playback controls to select and play files.

How do I set up parental controls?

Press SETUP on the remote, navigate to Preference, select Parental, then enter the default password 8888. Choose the desired rating level (e.g., 8 for PG). To change the password, go to Password in the same menu and follow the prompts.

What types of discs are compatible with this system?

The DRS-1110MK2 plays DVD, VCD, HDCD, CD, DVD±R/RW, and discs with AVI, WMA, MP3, or Kodak Picture CD files.

How should I clean the unit?

Always unplug the power cord before cleaning. Use a soft, dry or slightly damp cloth with water. Do not use liquid cleaners, aerosol sprays, or abrasive materials. Avoid getting moisture into any openings.

How do I use the FM/AM tuner?

Press the AM/FM button to select band. Use SEARCH+ or SEARCH- to scan frequencies, or RADIO+/RADIO- to step through stations. To save a preset, press MEMORY twice. You can recall presets by pressing the number keys (e.g., press 0 then 2 for station 02).

Why is my remote control not working?

Check that the batteries are fresh and installed correctly (polarity). Aim the remote directly at the IR sensor on the front panel within a 45-degree angle. Remove any obstacles between the remote and the sensor. If the issue persists, replace the batteries.

How do I change the video output format?

During playback or in standby, press the N/P button on the remote repeatedly to cycle through PAL, NTSC, and AUTO. Select the appropriate format for your TV.

How do I use the A-B repeat function?

During playback, press A-B at the desired start point (A), then press A-B again at the end point (B). The player will loop the section between A and B. To cancel, press A-B a third time.

What is the USB power output and can I use an extension cable?

The USB port provides 5V, 200mA maximum. Do not use a USB extension cable, as it may cause malfunction. Only connect devices directly to the USB port.

USER MANUAL DRS-1110MK2 DENVER

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference.

Carefully observe all warnings, precautions and instructions on the appliance and in the operating instructions, and adhere to them.

INSTALLATION

Water and Moisture - Do not use powering operated appliances near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Heat - Do not place the appliance near or over a radiator or heat register, or where it is exposed to direct sunlight.

Simple line drawing of an electronic component with no text or symbols

Ventilation - The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the appliance, and to protect it from overheating, these slots and openings must never be blocked or covered.

- Never cover the slots and openings with a cloth or other materials.

- Never block the slots and openings by placing the appliance on a bed, sofa, rug or other similar surface.

- Never place the appliance in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

Accessories - Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or an adult, and serious damage to the appliance, Use only a cart, stand, tripod, bracket, or table recommended.

- An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

WALL or Ceiling Mounting - If your appliance can be mounted to a wall or ceiling, mount it only as recommended.

USE

Power Source - This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those appliances designed to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization - This appliance is equipped with a polarized AC power cord Plug(a plug having one blade wider than the other), or with two-wire grounding type plug) Plug having a second pin for grounding). A follow the instructions below:

- For the appliance with a polarized AC power Cord plug:

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing The plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet Installed. Do not defeat the safety purpose of the Polarized plug by forcing it in.

Overloading - Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

When not in use - Unplug the power cord of the appliance from the outlet when left unused for a long period of time.

To disconnect the cord, pull it out by grasping the plug. Never pull the plug out by the cord.

Illustration of a person using a power plug next to an open door, with no visible text or symbols.

Power-Cord Protection - Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

Lightning - For added protection for this appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and powerline surges.

Cleaning - Unplug the appliance from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the appliance. Clean the appliance only as recommended.

Object and Liquid Entry - Never push objects of any kind into the appliance through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

ANTENNAS

Outdoor Antenna Grounding - If an outdoor antenna or cable system is installed, follow the precautions below.

An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure. Grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National Electrical code

Antenna Lead-in Wire
Antenna Discharge Unit (NEC Section 810-20)
Grounding Conductors (NEC Section 810-21)
Ground Clamps
Power Service Grounding Electrode System (NEC Art 250 Part H)
NEC-NATIONAL ELECTRICAL CODE

SERVICE

Damage Requiring Service- Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled or objects have fallen into the appliance.

Simple line drawing of a person reacting to a device with a fan (no text or symbols)

- If the appliance has been exposed to rain or water.

Illustration of a person using a device with motion lines indicating movement (no text or symbols)

- The appliance does not appear to operate normally or exhibits a marked change in performance. - This indicates a need for service.

- If the appliance does not operate normally when following the operating instructions, adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

- If the appliance has been subject to excessive shock by being dropped, or the cabinet has been damaged.

Servicing - Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Cartoon illustration of a person using a power supply device with arrows indicating current flow (no text or symbols)

Replacement parts- When replacement parts are required, be sure the service technician has used replacement parts specified that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check - Upon completion of any service or repairs to the appliance, ask the service technician to perform routine safety checks) as specified) to determine that the appliance si in safe operating condition.

1. Do not install this equipment in a confined or building-in space such as a book case or similar unit, and remain a well ventilation conditions. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc. Minimum 10 cm distance around the apparatus for sufficient ventilation.
2. WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
3. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
4. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
5. Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.
6. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

FRONT PANEL AND REAR PANEL ILLUSTRATION

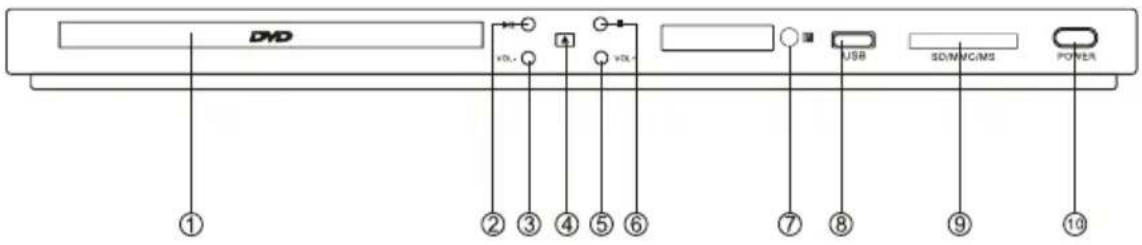

The front of the DVD player

Front Panel (DVD)

① CD DOOR

③ VOL-

⑤ VOL+

⑦ REMOTE SENSOR

⑨ SD/MMC/MS CARD FAUCET

② PLAY/PAUSE

④ OPEN/CLOSE

⑥ STOP

⑧ USB FAUCET

⑩ POWER

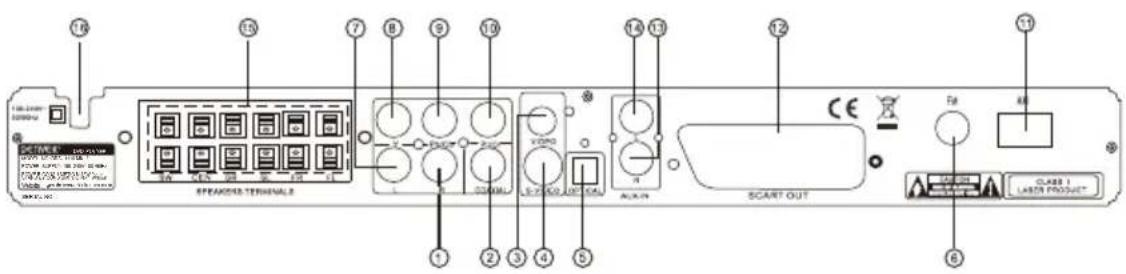

Rear Panel (DVD)

① RIGHT output jack

② Digital signal COAXIAL output jack

③ VIDEO output jack

④ S-Video output jack

⑤ Optical output jack

⑥ FM output jack

⑦ LEFT output jack

⑧ Y output jack

⑨ Pb/Cb output jack

⑩ Pr/Cr output jack

⑪ AM output jack

⑫ Scart output jack

⑬ FR input jack

⑭ FL input jack

⑮ Speaker Terminals

⑯ Power cord jack

CONNECTIONS

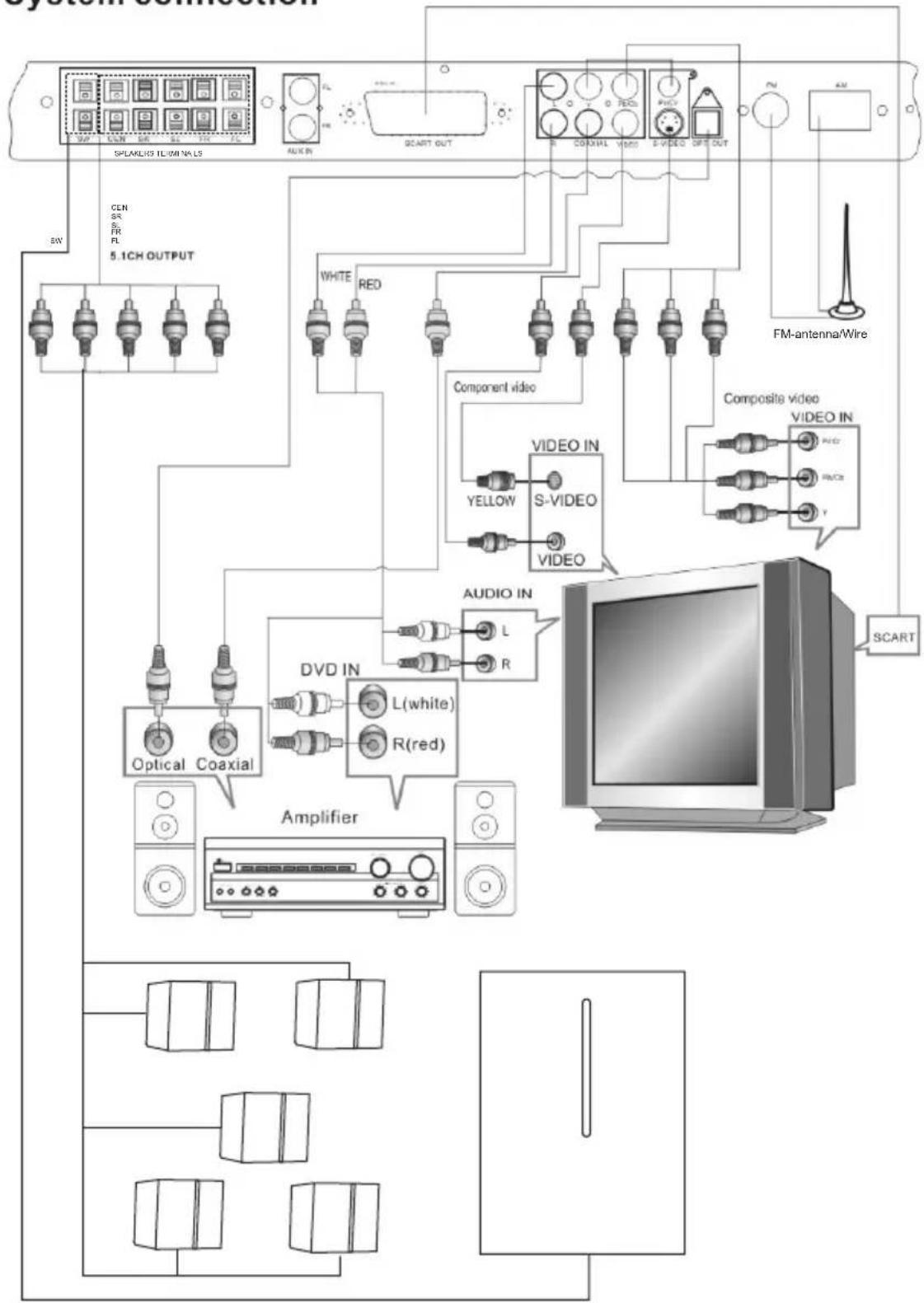

System connection


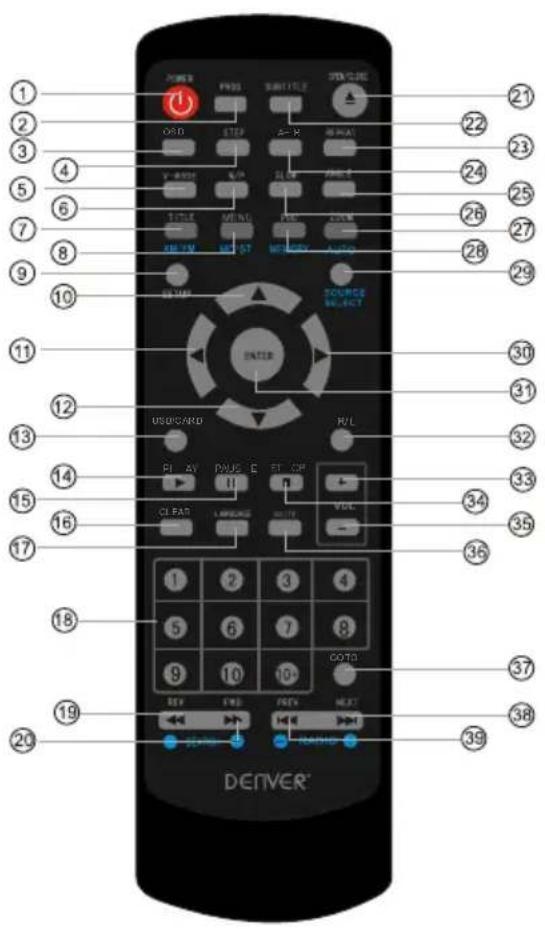

REMOTE CONTROL

• When use, direct the remote control to the infra-red sensor (within 45 Degrees)
• Do not put remote control near to the place with high temperature or moisture
• Do not put water or any other object on remote control
• Do not use new and old batteries or different type batteries together
• Please replace batteries when find remote control out of work or weak sensitivity.

① POWER ② OPEN/CLOSE
② PROG ②2 SUBTITLE
③ OSD ②3 REPEAT
④ STEP ②4 A-B
⑤ V-MODE ②5 ANGLE
⑥ N/P ②6 SLOW
⑦ TITLE(AM/FM) ⑳ ZOOM(AUTO)
⑧ MENU(MO/ST) ⑳ PBC (MEMORY)
⑨ SETUP ⑲ SOURCE SELECT
⑩ UP ③0 RIGHT
⑪ LEFT ③ ENTER
⑫ DOWN ③2 R/L
⑬ USB/CARD ⑳ VOLUME +
⑭ PLAY ③4 STOP
⑮ PAUSE ⑲ VOLUME -
⑯ CLEAR ⑳ MUTE
⑰ LANGUAGE ⑳ GOTO
⑱ 0-9 NUMBER ③8 NEXT (RADIO +)
⑲ REV(SEARCH -) ⑳ PREV (RADIO -)
⑳ FWD(SEARCH+)

OSD SETUP

This player allows you to customise the performance to your personal preferences.

Displaying the setup menu screen

The setup preferences

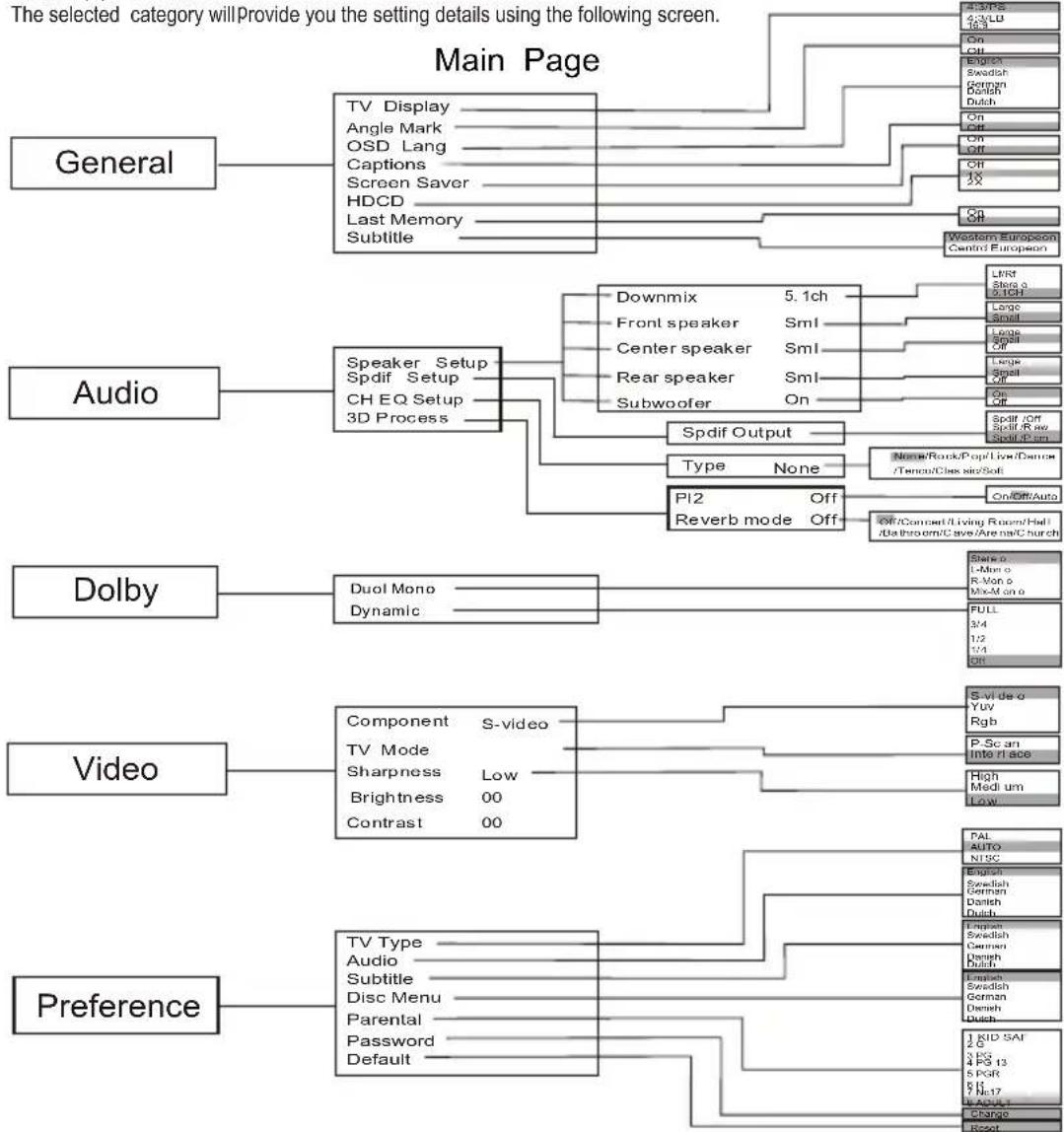

The selected category will provide you the setting details using the following screen.

Set on "PARENTAL" and press "PARENTAL" and choose the desired rating. Then input the code "8888" and enter it, the desired rating you chosen is effective.

The original factory code is "8888". If you want to change the code, Set on "password" and press "change", Input the old password "8888", then input the new code and confirm.

Notice: if end user put the 2.1 Disc in the unit, then, the end user has to do the following to make the correct setting manually.

Press "Setup" button in the remote --> General --> Audio --> Speaker Setup --> Press "Enter" button in remote --> then, select "2.1 stereo"

• Press POWER that the player start work. During playback, press POWER to stop the player and close the power.
• To open the disc tray, press OPEN/CLOSE. To close the disc tray, press OPEN/CLOSE again.
• During DVD playback, press MENU to display the disc menu of the current title. Note: This function is subject to the disc.
• During VCD/DVD playback, press OSD to display the current time counter position as follows. DVD:Tt 01/05 ch 01/29 VCD: Track 01/19 0:02:21 0:03:49
• During VCD/SVCD playback, Press PBC to select the mode of PBC On or PBC Off. PBC : playback control is used to navigate VCD/SVCD.

0-10 Keys

These keys are used to input the time, as well as title, chapter and track numbers.
- When a CD,DVD or VCD is playing (with PBC off), press the 0-10 keys to select a track Directly.
- When a numeric item is displayed on the Screen(with PBC on), press the 0-10 keys to select the desired entry.

SLOW

During AVI, DVD, VCD or SVCD playback, press SLOW for slow motion playback.

Once you press SLOW, the disc will play at 1/2, 1/4, 1/8 and 1/16 normal speed.

- Press PLAY to resume normal playback.

PREV

During AVI, DVD, CD or VCD playback, press PREV to play the previous chapter, title or track.

During AVI, DVD, CD or VCD playback, press NEXT to play the next chapter, title or track.

REPEAT

• Each press of the REPEAT button will change the repeat mode.

During AVI, VCD, playback, there are three modes: repeat track, All & off.

- During DVD, playback, there are three modes: Repeat Chapter, Repeat Title and All. During CD, AVI playback, there are three modes: single, folder & off. Note: During VCD playback, the PBC mode must be set to Off.

A-B

During playback, press A-B to select point A.

- Press it again to select point B. The player will repeat the section from A to B automatically.

ancel A-B repeat and clear points

APræs B.

Note: During CD/VCD/SVCD playback, points A and B must be within the same track. During AVI,DVD playback, points A and B can be selected from different chapters.

REV

• During AVI, DVD, CD or VCD playback, press REV to scan in reverse. The player will review the disc at 2, 4, 8, 16 and 32 times speed.
• Press PLAY to resume normal playback.

FWD

During AVI, DVD, CD or VCD playback, press FWD to scan forward. The player will cue the disc at 2, 4, 8, 16 and 32 times speed.
- Press PLAY to resume normal playback.

N/P

During playback, Press N/P to select the mode from AUTO/NTSC / PAL.

AM/FM switch.

AM/FM

• Mono/Stereo switch in FM mode.

- After having selected a station and tuned a new frequency, press MEMORY to start saving the frequency, and press MEMORY again to confirm the store action.

MEMO RY

• Automatic searching and pressetting in FM/AM tuner mode.

AUTO

Press the digit buttons to choose a preset station, you must input two digit keys to select a station. For example, if you select 02 station, you must press 0 and 2 (0 can not be omitted) If you select 15 stations, you must press 1 dan 5.

SEARCH+

Searching with frequency up.

SEARCH-

Searching with frequency down.

RADIO+

Skip forward a station.

RADIO-

Skip backward a station

Under Tuner mode, [VOLUME▲/▼], [MUTE], [TONE], [S.EFFECT] buttons are available,

Please refer to the PLAY chapter for details.

NOTE: Most buttons on the remote controller works only when playing DVD.

MUTE

Press MUTE to turn off the audio.

Press MUTE again to resume normal sound.

R/L

During VCD/SVCD playback, press R/L repeatedly to select the channel of audio-output: Mono Left / Mono Right / Mix-Mono / Stereo.

CLEAR

Press CLEAR to delete numbers you have entered.

Press once to delete one digit, press and hold to delete all digits.

PLAY/PAUSE

Press PAUSE during playback to pause playback.

Press PLAY to resume normal palyback.

STOP

Press STOP once during playback to stop and hold playback.

Press PLAY to resume playback from the point you have pressed STOP.

Press STOP twice to stop playback completely.

RETURN

When the PBC is on in the Menu displaying, select your item press return, you can select once again from the menu displaying. This function is only valuable to VCD.

ZOOM

During VCD/SVCD/DVD/AVI playback, press ZOOM to magnify the image

as follows: 1/2, 1/3, 1/4, 1/1, 2X, 3X, 4X

This function can zoom, also can lessen

Press the SETUP button on you remote control to access the setup menu. The setup menu is a multi-level menu.

Use the ▼ or ▲ buttons to select the menu option that you need.

Use the ◀ and ▶ to go back to previous level menu or to enter the next level menu.

Press ENTER button to confirm selection.

Press SETUP button to exit setup.

VOL

Press VOL + to enlarge the volume.

Press VOL - to reduce the volume.

ANGLE

During DVD playback, Press ANGLE to view scenes from different camera angles.

Press ANGLE to repeatedly to change from one camera angle to another.

Note: This function is disc specific.

SUBTITLE

During DVD playback,

Press SUBT repeatedly to select from up to 32 subtitle languages.

Note: This function is disc specific (language will vary).

LANGUAGE

Press LANGUAGE repeatedly to select from up to 5 audio

languages/formats during DVD playback.

Press repeatedly to select from up to 4 audio languages/formats during SVCD playback.

Note: This function is disc specific

LANGUAGE

GOTO

During DVD, VCD, AVI playback, press GOTO repeatedly, and the menu will display as follow:

DVD:	TT	--/-	CH:	--/-
	TT	--/-	TIME:	: :
	CH	--/-	TIME:	: :

Use the ▼ or ▲ to select the menu press "enter" then input the Desired title time chapter.

Use the number keys to input the desired time of disc or track, the desired track, then press ENTER to confirm.

Note: 1) Track searches for an exact tract in the disc.

2) Disc time searches for the exact time in the disc.
3) Track time searches for the exact time in the track.

PROG

Press PROG to get programme menu when reading DVD & VCD, then program your wanted songs.

This function is unavailable for AVI, CD

USB/CARD

Choose this button to change the DISC,USB and CARD output mode:

The default setting is DISC.Only press STOP buton can you switch to USB or

CARD mode when this unit on playback disc.

Note: For the electrostatic discharge (ESD) test of EN55020, it was found that manual operation (by switching power ON/OFF switch) is needed to resume normal operation as intended after the test.

No USB-Extension cable allowed. USB output: 5V, 200mA.

TROUBLE SHOOTING

REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK

Check the batteries of remote control and make sure that they are to be Direct the remote control to the IR sensor of the player.

powerful and good conductivity .

Check whether there are some obstacles between the remote control and

IR sensor.

ABNORMAL FUNCTION OPERATION

Turn off the power, and then turn on again.

The disc can not be taken out of the tray when the player is reading, so you have

to turn off the power and turn on again, and press OPEN/CLOSE key immediately to open the tray.

Type of Disc	DVD/VCD/HDCD/CD/DVD ± R/RW/AVI,WMA,MP3Kodak Picture CD	Frequency Response	CD: 4Hz 20KHz (EIAT)
			DVD: 4Hz 22KHz (48K)4Hz 44KHz (96K)
Video Format	MPEG 4	S/N radio	>92 dB
		THD	<0.04%
Audio Format	MPEG 1, LAYER 1,LAYER 2 , LAYER 3	Output Terminals	SPEAKER output X1Video (composite) output X 1SCART output X 1Optical output X 1S-Video output jack X12.0ch output X 1AM output X 1FM output X 1FL Input X 1FR Input X 1COAXIAL output X 1Y.Pb/Pr output x 1
Signal Output	Color System: PAL/NTSC/MULTIAudio System: AC-3 Digital outputAudio DAC 16bit/48KHzVideo Output: 1 Vpp (at 75 ohm)Audio Output: 2 Vpp
		Power input	AC230V~50/60Hz
		Dimensions	Body size : W360XD225XH50mmNet weight : 7KG
Speakers	5X7W
Subwoofer	10W
DVD	15W

Note:

when you play DTS disc (connect an amplifier with the optical output from the dvd player), please enter setup menu/Audio Setup Page/Spdit setup and change from 'Spdit/PCM' to 'Spdit/Raw'.

Imported by:

Inter Sales A/S

Stavneagervej 22

DK-8250 Egaa

Denmark

All rights reserved

Copyright Denver Electronics

www.denver-electronics.com

CE

Instructions on environment protection

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.
