USER MANUAL DVD 4537 TFT AEG
Overview of the Components ......Page 3
Instruction Manual Page 32
Technical Data ......Page 33
Guarantee......Page55

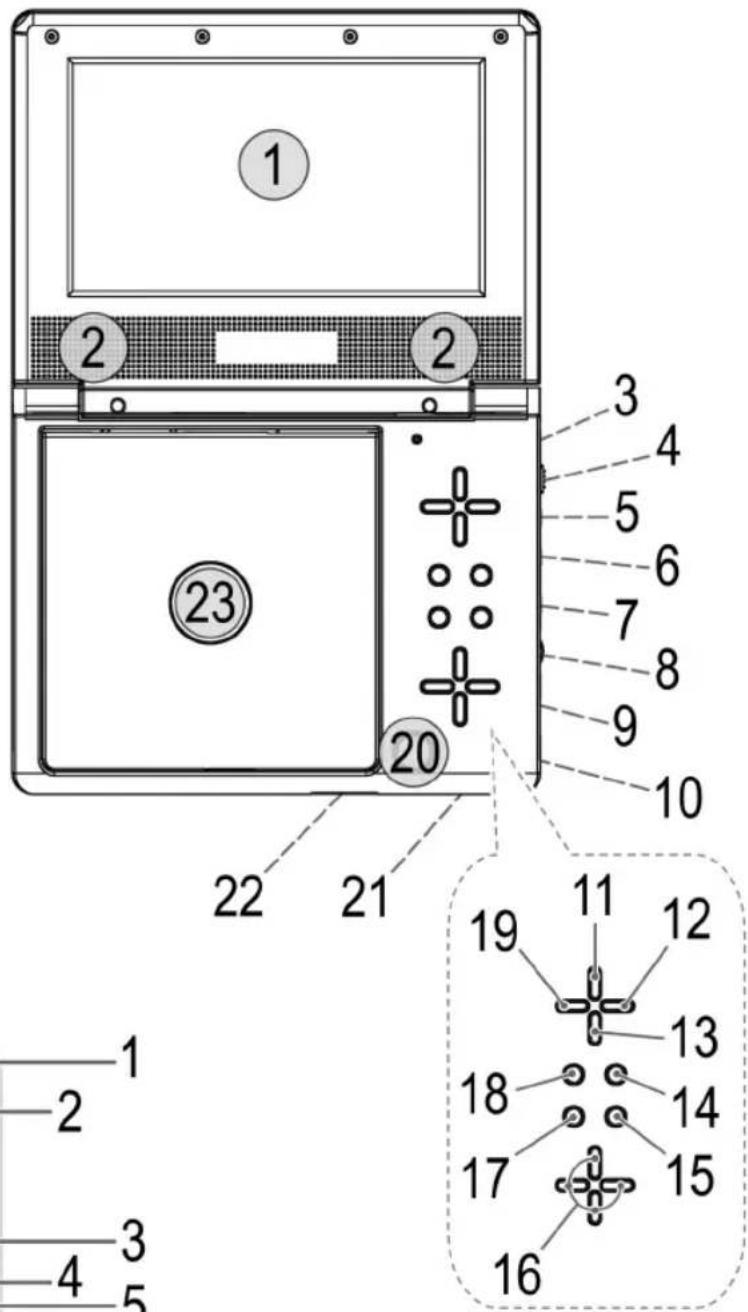

3 Ubersicht der Bedienelemente / Overview of the Components

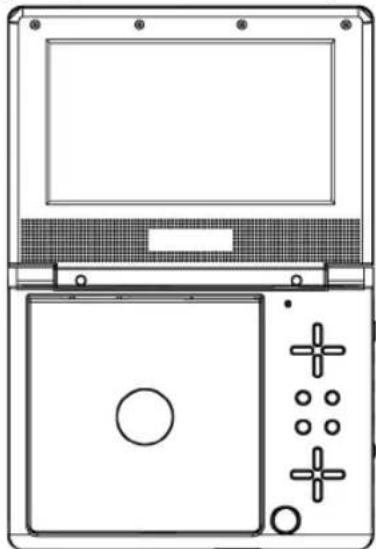

Abb./Fig. 1
Abb./Fig. 2
4 Deutsch
Multi Media Card
Memory-Stick
4 On/Off switch (ON/OFF)
5 AV OUT socket
6 COAXIAL socket
7 🎨 Headphones connection
8 VOLUME volume control
9 USB connection
10 POWER indicator
11 „SOURCE“ button
12 „Forward“ button (▶▶▶)
13 SETUPbutton
14 STOP button (STOP)
15 PLAY/PAUSE button (▶II)
20 Open button (OPEN)
21 REMOTE SENSOR for the remote control
22 SD/MMC/MS card reader connection
23 CD/DVDtray

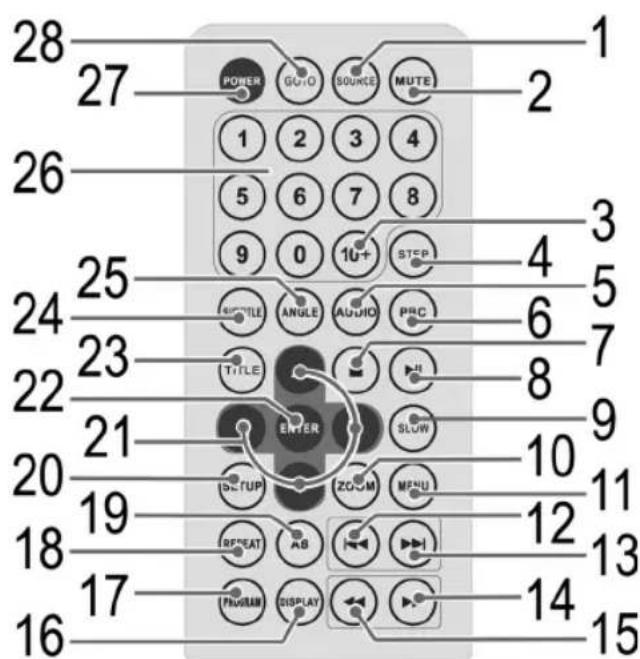

Remote (Fig. 2)
1 SOURCE: For selecting between DVD, USB and CARD.
2 MUTE: To switch off the sound.
3 10+: For selecting the chapters/tracks above 9. Pressing again increases by a further 10.
4 STEP: To freeze the picture. Press the „▶II“ button to continue the film.
5 AUDIO: To change the Audio settings.
6 PBC: To show the Playback-Control for VCD.
7 „■“: Stop play.
8 „#: Start playback. To freeze the picture. Press the „▶II“ button to continue the film.
9 SLOW: Slow motion. Press the „▶II“ button to continue the film.
10 ZOOM: To zoom in or out.
11 MENU: To display the main menu of the DVD/VCD.
12 I◀◀: To return to the previous chapter or song.
13 ▶▶▶I: To jump to the next chapter or song.
14 ▶▶: Fast forward.
15 ◀◀: Fast reverse.
16 DISPLAY: To display the play status on screen.
17 PROGRAM: Calling up the play list.
18 REPEAT: To repeat title, chapters, etc.
19 AB: To select the section to be repeated.
20 SETUP: To start the setup menu.
21 Cursor buttons: Navigation in screen menu.
22 ENTER: Confirm the input.
23 TITLE: Display the title menu of the DVD.
24 SUBTITLE: To show/hide subtitles.
25 ANGLE: To select the viewing angle.
26 Numerical buttons: For direct selection of chapter or song number.
27 POWER: To activate standby mode.
28 GOTO: For direct accessing of a section on the CD/DVD.
Technical Data
| Type of equipment Portable | DVD player including 7" TFT monitor |
| Model | DVD 4537 TFT |
| Voltage DC 9V, 1,5A | |
| Output | <10 W |
| Dimensions (W x H x D) 220 | 0.4 x 49 x 214 mm |
| Weight | 1 kg |
| Laser | Semiconductor laser |
| Signal format PAL/NTSC | |
| Signal noise distance >= 80 dB | |
| Video output | 1.0 V (P-P) 75 Ω |
| Analogue Audio output 1.4 V (rms) | |
| Operating environment 0°C bis 40°C, level base | |
| Compatible media | DVD-Video (DVD Disc, DVD ±R/RW)MPEG-4 Video (von CD/DVD Disc, DVD±R/RW, CD-R/RW)Audio CD (von CD Disc, CD-R/RW)Video CD (von CD Disc, CD-R/RW)MP3 fi les (von CD/DVD Disc, DVD±R/RW, CD-R/RW) |
| Regional 2 (= Europe, Greenland, South Africa, Egypt and Middle East, Japan) | |
Table of Contents
Device parts 32
Remote control 32
Technical data 33
Safety instructions....35
Setting up and connecting 37
Starting up 37
About the DVD-Player 40
Playing media 41
Working in file mode 45
Changing the default settings 47
Troubleshooting 54
Disposal 55
Guarantee 55
Declaration of conformity 55
OSD Menu overview 56
English
Many thanks!
Thank you for buying the DVD 4537 TFT DVD player! We would like to wish you much joy with your machine and thank you for your purchase!
Important instructions for your safety are especially marked. You must follow these instructions to avoid accidents and damage to the machine:
WARNING:
Warns against dangers to your health and indicates potential risks of injury.
CAUTION:
Indicates potential hazards for the player or other objects.
NOTE: This highlights tips and information.
Manufacturer address
ETV
We reserve the right to make technical and design-related changes in the course of ongoing product improvements.
Safety instructions
Operating manual
Read the complete operating manual before using the player.
Keep the manual in a safe place. If you pass the player on to a third party, pass on the operating manual as well.
Non-compliance with this manual can lead to severe injuries or damage to the machine.
We assume no liability for damage caused as a result of non-compliance with this operating manual.
The player may only be used in households for private use. It is not suitable for commercial use.
Children
Do not leave the machine unattended, and do not use it if children or persons who cannot assess the risk are nearby.
Children or persons who cannot assess the risks are not allowed to use the player. Keep the player out of reach.
Packaging material must not be used to play with. There is a risk of suffocation.
Power supply
The machine is operated with electrical current, which means there is in principle a risk of electric shock. For this reason, pay particular attention to the following:
- Never touch the plug with wet hands.
If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
Make sure that the power cable is not wound around the device while in operation. - Never place the machine on the power cable while it is being operated.
Only use extension cables that are designed for the power consumption level of the machine. - Keep the appliance away from rain and any moisture.
Only operate the machine if the electrical voltage stated on the type plate beneath the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.
Do not stand vases etc. on the appliance. Water could seep into the appliance.
Do not open the appliance.
Pull out the mains plug if the appliance is not to be used over a longer period of time.
Take care that nobody can trip over the power supply cable.
English
Laser
This appliance is classified as laser appliance of class 1 (CLASS 1 LASER). The associated label is attached to the outside of the appliance.
Laser beams can damage the eyes. Therefore observe the following:
Do not open the appliance. Do not attempt to dismantle the appliance.
In order to avoid any danger: Have service work only carried out by the manufacturer or an authorized service workshop.
Where to position the appliance
Safe operation of the appliance presupposes that it is positioned in an appropriate place. Therefore observe the following:
- Protect the appliance against the influence of weather. Never use it in the open-air.
- Protect the appliance against moisture.
Do not place liquid filled vessels, e.g. vases, on the device.
Never place the appliance on or in direct vicinity of heat sources, such as e.g. hobs, ovens, etc.
Do not expose the appliance to direct sunlight.
Place the appliance so that a suffi cient air supply is assured. This is to avoid a build up of heat inside the appliance. Make sure that the ventilation slots are not blocked. - Protect the appliance against the mechanical vibrations.
■ Always place the device on a firm, even base. - Protect the remote control against weather influences, moisture and high temperatures (e.g. by direct sunlight).
Do not use the device while travelling in a motor vehicle.
Operation
The player is able to show a still image on the TV-screen/monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver ➔ Page 49, „System settings”.
Do not increase the volume when the player is just playing very quiet sections. This could damage the speaker if very loud passages start all of a sudden after the quiet section.
Do not move the player with a DVD inserted. This could damage the DVD.
Do not put your hands into the DVD-slot. You could be injured.
Place only DVDs or CDs on the DVD-tray, as otherwise the player may be damaged.
Switch the player off by the On/Off-switch if it is not going to be used for a longer period of time.
Please disconnect the mains plug during thunderstorms.
Intended use
The device is intended exclusively for the following tasks:
Playing of Video DVD/Video CD.
Playing of Audio-CD,
Any other use is considered non-intended use and is prohibited.
English
Defect
If the machine should become defective at some point:
If the power supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer services, in order to avoid hazards.
Should fluid have seeped into the player or if the player has been dropped down or damaged in any other way, the player must be examined by an authorized dealer. Disconnect the player from the power supply and consult an authorized dealer.
Setting up and connecting
Unpacking
Unpack the appliance and all accessories and check that the contents are complete.
CAUTION:
Always transport/send the player in its original packaging to prevent it from being damaged. Keep the packaging for this purpose. Dispose of unnecessary packaging material in accordance with the regulations applicable in your country.
i NOTE:
Get in touch with your dealer immediately if you notice damage caused by transport.
Setting up
- Place the player on a stable, heat resistant, horizontal and level surface. Keep a distance of at least 10 cm from walls and objects.
- Connect the device to a properly installed power socket.
Starting up
Remote control battery installation
WARNING:
Leaking out battery acid can damage your health. Remove the battery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time. Wipe up leaked out battery acid with a cloth. In case of skin contact immediately wash the affected area. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.
CAUTION:
Mismatching battery types or new and used batteries must never be used together. Different battery types have different properties. Do not use old and new batteries together. The mutual use of old and new batteries can shorten the lifetime of the new batteries and possibly result in leakage of the old batteries. When disposing of old batteries you should strictly comply with the legal and environmental regulations applicable in your country. Do not throw batteries into fi re!
i NOTE:
The lifetime of the enclosed batteries may be shortened because of storage.
- Open and remove the battery compartment cover.
- Insert two batteries of type AAA/R03 (1.5 V), ensure correct polarity (+ and -). Start with the negative pole (-).
- Attach and close the battery compartment cover.
i NOTE:
The signals from the remote control are transmitted to the DVD-Player by infrared light. You should therefore take care that the DVD-Player is not exposed to the direct sunlight. This could make the transmission of signals from the remote control to the DVD-Player impossible.
Effective range of the remote control
If you want to use the remote control it has to be pointed at the remote control sensor on the front of the device. The distance between remote control and sensor should not exceed 5m. The angle of the remote control to the remote control sensor to right, left, top and bottom should not exceed 30°.
Power Supply
A. With the alternating current adapter
The alternating current adapter works with alternating current of between 100 V and 240 V, but
In Europe the mains lead (supplied) may only be connected to an alternating current power source of 230-240 V.
When connecting to an alternating current source outside Europe a plug adapter must be used that conforms to the socket.
CAUTION:
The supplied mains lead and alternating current adapter should only be used for this device. Do not use it with other equipment.
If the device is not going to be used for a prolonged period the mains lead must be removed from the power socket.
B. With the adapter for the cigarette lighter
The 9 V cigarette lighter adapter is used in vehicles that have a 12 V power supply with negative earth.
Precautionary Measures:
This device may only be used with the original vehicle adapter, as a different adapter can damage the device.
The original vehicle adapter may only be used for this device. Do not use it for other equipment.
Do not use the device during your journey. Please ensure that the device is firmly attached or stored away and that it cannot fall into the vehicle in the case of an accident.
While you are driving the vehicle it is forbidden to adjust the device or watch videos and CDs.
If the cigarette lighter is dirty, poor conductivity will make the connection hot. Please ensure that the adapter is only inserted into a clean cigarette lighter connection.
After use the 9 V adapter should be removed from the device and from the cigarette lighter socket.
Connection to Other Equipment
Connection to a television set (AV OUT Fig. 1/5)

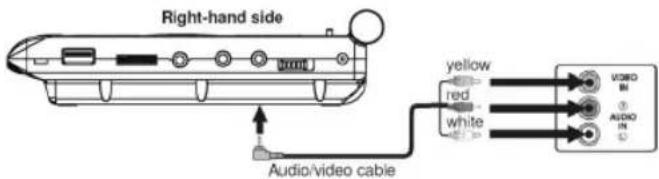

If the television set has audio/video inputs.

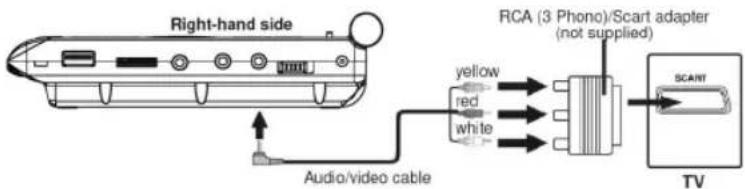

If the television set has a Scart connection.
Playback of a DVD on the Television Set
- Turn on the DVD player by the ON/OFF switch.
- Turn on the television set and follow the instructions supplied with the television set.
i NOTE:
Please ensure that the correct audio/video cable is used as the wrong cable will produce a weak signal.
DVDs are copy-protected and cannot be copied. If a DVD is copied onto a video cassette you will see a blurred picture with poor sound quality. This is NOT the fault of the device!
- If you use a set of headphones you should use one with a 3.5 mm stereo jack, which should be inserted into headphone socket (☐).
- With the VOLUME control (Fig. 1/8) you can set the desired volume.
WARNING:
Make sure that the volume of your headphones or earphones is not too high, as otherwise this may damage your ears and you may endanger yourself or others.
In order not to disturb those around you the volume should be set to a low level.
If you suffer from tinnitus you should turn the volume down low or refrain from using this device.
Ear doctors recommend that earphones should not be used continuously over a prolonged period.
Use of ear/headphones (Fig. 1/7)

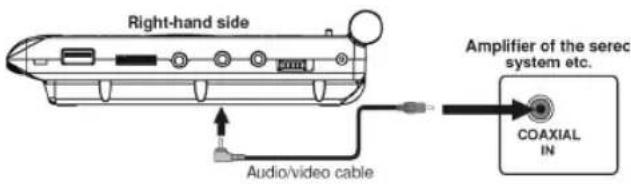

Digital
Connect the Coaxial cable for transmission of digital Audio signals to your playback device or your amplifier.
- Insert the audio plug into the socket on the right-hand side of the device (Fig. 1/6).
- Plug the Audio jack into the corresponding socket on your playback device or your amplifier.
Inputs on the side of the device
USB Input (on the right-hand side of the device) (Fig. 1/9)
Insert a USB storage medium into the corresponding socket on the right-hand side of the device.
Memory Card Slot (on the front of the device) (Fig. 1/22)
Insert an MMC/SD or MS storage card into the card slot on the front of the device.
Switching on the player (Abb. 1/4)
Turn on the main switch of the DVD player by moving the „ON/OFF“ switch on the right-hand side of the device to the „ON“ position.
About the DVD-Player
With this DVD-Player you can play a vast variety of DVD-formats Page 33, "Technical data".
However, you must be aware that in many cases DVDs are encrypted with a so-called "Regional Code". This specifies for which region in the world the DVD is intended. As an example, the DVDs marked with regional code "1" are intended for the USA and Canada. DVDs with regional code "2" are for use in Europe.
i NOTE:
With your DVD-Player you can only play DVDs with regional code "2". There are both lots of burning and compressing methods as well as high quality differences in (burned) CDs/DVDs. Moreover, the music industry has not yet agreed on a fixed standard for copy protection. This may, in very isolated cases, result in problems when relaying CDs, DVDs and MP3 CDs. This is no malfunction of the player.
Furthermore, there may be isolated problems when playing CDs or DVDs which were created on a PC (e.g. holiday photographs). In case of problems check the settings of the DVD writing program on your computer. You should in particular make sure that the DVD has been finalized. For further information on this matter please refer to the operating manual of your recorder.
Terminology
Input Not Possible
If a function or input selected by you is not possible, the adjacent symbol is shown on the screen.
Track:
"Track" is the designation for sections on an Audio-CD. This may be a song, the set of a symphony, etc.
Title/Chapter:
Video-DVDs are divided into "Title" and „Chapters“. A „Title“ may be e.g. a particular fi Im, the „Chapters“ may be subsections of this fi Im.
MPEG4:
Your DVD player is also suitable for playing back fi les that have been compressed using the MPEG-4 system (short for Moving Picture Experts Group-4). MPEG-4 is a compression method by means of which large quantities of data can be reduced without any noticeable loss of picture and sound quality.
Playing media
Using the remote control
Loading a CD/DVD
You transmit commands to the DVD-Player via remote control. It is thus important to point the end of the remote control towards the DVD-Player.
- Press the OPEN (Fig. 1/20) button on the device. The CD/DVD tray opens.
- Place the CD/DVD on the tray.
- Close the CD compartment (Fig. 1/23) again. After a short while the type of the loaded medium is displayed (e.g. „DVD“).
Understanding the onscreen CD-menu
When playing CDs the following status information is displayed on screen:
Current track/total number of tracks (1).
Time (2):
This provides information about the duration and the remaining play time. By standard the play time expired of the current track is displayed. The display is in hours and minutes. Press the DISPLAY-button (Fig. 2/16) once or several times to have further times displayed.
The following possibilities are available for selection
• time remaining to the end of the track,
- playback time of the CD so far,
• time remaining to the end of the CD.
42 English
Understanding the
onscreen DVD-menu
When playing DVDs you can view the on-screen menu by pressing the DISPLAY-button (Fig. 2/16).
DVD-menu
Current title/total number of titles (1).
Current chapter/total number of chapters (2).
Time (3):
This provides information about the duration and the remaining play time. By standard the play time expired of the current title is displayed. The display is in hours, minutes and seconds. Press the DISPLAY-button (Fig. 2/16) once or several times to have further times displayed. The following possibilities are available for selection
• time remaining to the end of the title,
• expired playing time of the chapter,
• time remaining to the end of the chapter.
Starting the replay
- Place the CD/DVD on the CD/DVD-tray Page 41, "Loading a CD/DVD".
- Press the „▶II“-button (Fig. 2/8) on the remote control.
i NOTE:
If the replay does not start or the replay is of poor quality, you should check the default settings of the DVD-Player.
Interrupting the replay
- Press the „▶II“-button (Fig. 2/8) on the remote control. The replay is interrupted, the currently visible image is „frozen“.
- Press the „▶II“-button (Fig. 2/8) on the remote control to restart the „normal“ replay.
Changing Audio-Language/Audio-Mode
Press the AUDIO-button (Fig. 2/5) several times to change the Audio language. The available audio languages depend on the DVD.
i NOTE:
If the medium does not support this function (e.g. a CD), you can use this button to change the Audio mode and set it e.g. to „Mono“ or „Stereo“.
Showing subtitles
Press the SUBTITLE-button (Fig. 2/24) to display the current subtitle status. Press the button several times if you would like to activate or deactivate the subtitle function or if you want to choose a different subtitle language. The available subtitle languages depend on the DVD.
Stopping the replay
Press the „■“-button (Fig. 2/7) during replay. The replay stops.
Press the „▶II“-button (Fig. 2/8) again, to continue the replay from the last position.
Press the „■“-button (Fig. 2/7) twice to stop the replay completely. Press the „▶II“-button (Fig. 2/8) again, to replay the CD/DVD from the beginning.
English
| Selecting previous chapter/track | Press the I◀◀ button (Fig 2/12) to jump to the start of the previous chapter or track. |
| Selecting next chapter/track | Press the ▶▶I button (Fig 2/13) to jump to the start of the next chapter or track. |
| Selecting track directly | Enter the number of the desired chapter/track with the Numerical Buttons on the remote control (Fig. 2/26).Replay of the chapter/track starts after a short while. |
| Accessing a section via menu | The on-screen menu enables comfortable access to any sections of a medium. To do this, proceed as follows:1. Select the desired category by repeatedly pressing the button GOTO button (Fig. 2/28).2. Now move to the point from which the replay should start. Depending on the type of medium this may be a track number, a chapter or even a point in time. The input must be made with the Numerical Buttons (Fig. 2/26). Playback begins after a short time. |
| Repeating DVD-title/chapter | 1. Choose the chapter or title to be repeated.2. Press the REPEAT-button (Fig. 2/18). The message “Chapter” appears on the screen.3. Press the REPEAT-button again, until the message “Title” or “All” is displayed. |
| Repeating track on CD | 1. Select the track to be repeated.2. Press the REPEAT-button (Fig. 2/18). The message „Track“ appears on the screen. |
| Repeating CD | Keep pressing the REPEAT-button (Fig. 2/18), until the message „All“ is displayed on screen. |
| Stopping repeat | Press the REPEAT (Fig. 2/18) repeatedly until the message disappears from the screen. |
| Using the DVD-menu | Normally each DVD has its own menu. Here you can choose chapters, make settings, etc. This menu is specific for the DVD and can thus not be explained in detail.Press the MENU-button (Fig. 2/11) to access the DVD-menu. Use the Cursor Buttons (Fig. 2/21) to navigate in the Menu. Press the ENTER-button (Fig. 2/22) to confirm.If you are in a menu area for direct chapter selection, you can enter the number of this chapter with the Numerical Buttons (Fig. 2/26) on the remote control. |
44 English
Using fast forward or reverse
The DVD-Player has a fast forward and a fast reverse feature.
- Press the ▶▶ (Fig. 2/14) or ◀◀ button (Fig. 2/15) to start fast forward or fast reverse. The current replay direction and the speed, e.g., "x 2" is now displayed on screen.
- Press the ▶▶ or ◀◀, button several times in order to change the speed. The speed can be accelerated by factor 2, 4, 8, 16 or 32.
- Press the „▶II“ button (Fig. 2/8) to restart the “normal” replay when the desired section is reached.
Enlarging a screen section
You can change the screen section when viewing DVDs, VCDs or images.
Press the ZOOM-button (Fig. 2/10) to change the screen section. Press the button several times to select the suitable zoom factor or to return to the original zoom factor.
i NOTE:
With the cursor buttons (Fig. 2/21) you can move through the zoomed image.
Changing the viewing angle
Some DVDs offer the possibility to select the viewing angle.
Press the ANGLE-button (Fig. 2/25) to change the viewing angle.
i NOTE:
If changing the Viewing Angle is not possible, the message „will be displayed.
Adjusting the volume
Repeat pressing the button to choose a different viewing angle, or to return to the original viewing angle.
Creating a playlist (CD/DVD)
The desired volume can be set with the volume control (Fig. 1/8) on the device.
CD:
Program
EXIT
START
DVD:
Program
TT: 01 CH: 05
CH: CH: CH:
EXIT
START
You may want to replay the titles, e.g. on a CD, in a different order to the order determined by the producer. The function „Create Playlist“ you can create your own playing order.
To do this, proceed as follows:
- Press the PROGRAM-button (Fig. 2/17). A table is displayed. Here you can enter the desired order of the tracks (in the case of CDs) or chapters/titles (for DVDs).
i NOTE:
However, your playlist will be lost when switching off the DVD-Players or when inserting a new CD/DVD.
-
Use the Cursor Buttons (Fig. 2/21) to navigate in the table.
-
Enter the desired track (in the case of CDs) or the desired title and chapter (for DVDs) at the appropriate position in the table. Use the Numerical Buttons (Fig. 2/26) for this purpose.
-
Use the Cursor Buttons (Fig. 2/21) to select the command "Start" at the bottom of the screen to save the input.
-
Press the ENTER-button (Fig. 2/22) on the remote control to confirm this command.
English
Deleting a playlist (CD/DVD)
- Press the PROGRAM-button. You will now see a table (Fig. CD or Fig. DVD).
- Use the Cursor Buttons (Fig. 2/21) to manoeuvre to the command "Stop" at the bottom of the table.
- Press the ENTER-button (Fig. 2/22) on the remote control to confirm this command.
- Press the PROGRAM button to terminate this procedure.
Working in fi le mode
As well as being able to play back „normal“ fi lms or music from CDs/DVDs, this DVD player is also able to play back video or audio fi les from CDs or DVDs which are stored in the fi le system. Such media are frequently available if you create CDs of digital photographs or MP3 music on your computer.
Using CD/DVD
- Place the CD or DVD on the tray Page 41, "Loading a CD/DVD".
- Select the desired file(s) and start the replay Page 46, „Selecting file/directory and starting replay”.
Using a memory card
The following memory cards can be used:
SD-Card
Multi Media Card
Memory-Stick
- Insert the memory card into the card reader (Fig. 1/22).
- Press the SOURCE (Fig. 2/1) button on the remote control to call up the fi le selection menu.
- Select the mode with the Cursor Buttons (Fig. 2/21). Confirm your selection with the ENTER button (Fig. 2/22).
- Select the desired file(s) und start playback Page 46, "Selecting a file/directory and starting playback".
- If you would like to return to DVD mode, press the SOURCE button (Fig. 2/1) again and select DVD mode with the Cursor Buttons and ENTER.
i NOTE:
In order to find out which files can be played back the DVD player now reads the contents of the storage medium. In the case of large storage media this procedure may take a long time.
Using a USB medium
By means of the USB connection it is possible to connect various USB storage media to the DVD player. Examples of such devices are USB memory sticks or digital cameras.
This device has been developed in accordance with the latest technical developments in the USB fi eld. Unfortunately the large number of different types of USB storage media on offer today makes it impossible to guarantee full compatibility with all USB storage media. For this reason there may be problems in rare cases with playing back from USB storage media. This is not a malfunction of the device.
Selecting fi le/directory and starting replay
- Insert a USB storage medium into the corresponding connection of the DVD player (Fig. 1/9).
- Press the SOURCE (Fig. 2/1) button on the remote control to call up the fi le selection menu.
- Select the mode with the Cursor Buttons (Fig. 2/21). Confirm your selection with the ENTER button (Fig. 2/22).
i NOTE:
In order to find out which files can be played back the DVD player now reads the contents of the storage medium. In the case of large storage media this procedure may take a long time.
- Select the desired file(s) and start playback → Page 46, „Selecting a fi le/ directory and starting playback“.
- If you would like to return to DVD mode, press the SOURCE button (Fig. 2/1) again and select DVD mode with the Cursor Buttons and ENTER.
Media may contain numerous data/fi les and directories. You must therefore fi rst determine the data to be played.
- If necessary, insert the CD or DVD into the drive or connect a USB storage medium.
- A two-column menu window appears in which the directories (if there are any directories present) or the fi les are listed on the left.
- Use the Cursor buttons (Fig. 2/21) to select the desired directory of file in the left-hand list.
- Select this by pressing the ENTER button (Fig. 2/22).
File:
Once you have selected a file, this is now displayed directly or played back.
Directory:
If you have called up a directory, a list of fi les now opens.
Here too you can select the desired fi le with the Cursor buttons and the ENTER button (Fig. 2/22). If you have selected a fi le, this is now displayed or played back.
Please note:
There are both lots of burning and compressing methods as well as high quality differences in CDs/DVDs and burned CDs/DVDs.
For this reason there may occasionally be problems when fi les are played back (for example fi les are displayed but cannot be played back). This is no malfunction of the player.
i NOTE:
With the „◀“ button (Fig. 2/21) you can return from the files to the directories.
Stopping the replay
Press the „■“-button (Fig. 2/7) on the remote control to stop the replay.
Viewing pictures
The DVD player is suitable for viewing digital photographs.
These photos may be stored only any medium (DVD, CD, etc.) supported by the DVD player.
i NOTE:
Please ensure a suitable size of the photos. Large size photos may take some time to be displayed or may not be displayed at all. It is of advantage if the size of the photo corresponds with the screen size of the playback device. For TVs this is normally 1024x576 pixel (TV-aspect 16:9) or 768x576 (TV-aspect 4:3).
Please note that any conversion generally involves a loss of data with respect to the original format.
Start the replay of photos by selecting the file from which the replay shall start Page 46, "Selecting file/directory and starting replay".
i NOTE:
After a few seconds a preview picture appears on the right-hand side in the two-column menu window.
Scrolling
Manual:
Press the ◀◀◀ (Fig. 2/12) or ▶▶▶ I -button (Fig. 2/13) on the remote control to scroll forward or back.
Automatic:
Press the ENTER button (Fig. 2/22). The pictures change automatically.
Rotating a photo
You can use the Cursor buttons to rotate a photo during replay:
Mirror vertically:
Cursor Button „▼“
Mirror horizontally:
Cursor Button „▲“
Rotate clockwise for 90°:
Cursor Button „▶“
Rotate counter-clockwise for 90°:
Cursor Button „◀“
Changing the default settings
A large number of default settings can be comfortably changed via the screen menu.
Press the SETUP-button (Fig. 2/20) on the remote control to start the menu for changing the default settings.
i NOTE:
Many of these default settings can be changed via both the remote control and the menu. The difference is: If you change the default settings via the remote control, these changes will only be valid until the DVD-Player is switched off or the DVD is changed.
However, any changes made in the menu are permanent.
Understanding the menu structure
The Setup menu has two menu levels:
Main menu:
The main level is represented by graphical symbols.
Sub-menu:
The corresponding sub-menu options can be found under each of the main menu options.
Using the menu
Navigation and selection
Use the Cursor Buttons (Fig. 2/21) (▶ / ◀) on the remote control to browse through the main menu.
In contrast to this, you must use the Cursor Buttons (▼/▲) to move in the sub-menu.
Select a menu option with the ENTER-button (Fig. 2/22).
Use the ENTER-button also to select an option (e.g. "PAL" in the illustration on the left). The selected option (in the example „PAL") is now highlighted.
Slide control
In many menus you will find slide controls to adjust e.g. the volume or the brightness of the screen. The slide control is used as follows:
- Select with the ENTER-button.
- Move the control with the Cursor Buttons (▼/▲).
- Confirm the entry with the ENTER-button.
Overview of the main menu

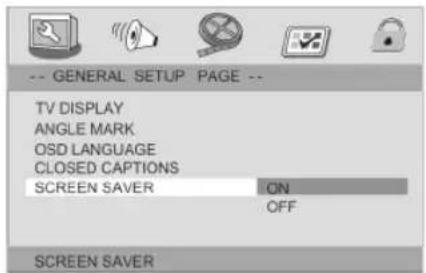

General Setup (1)

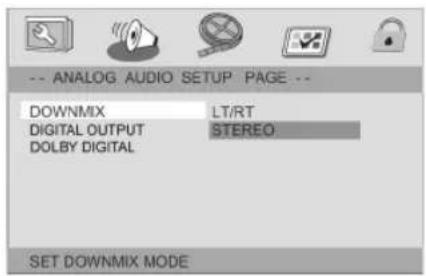

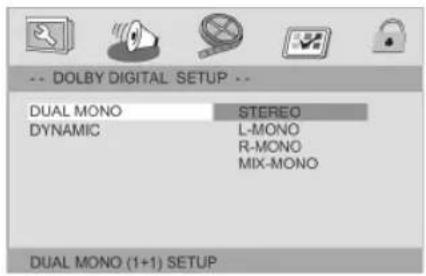

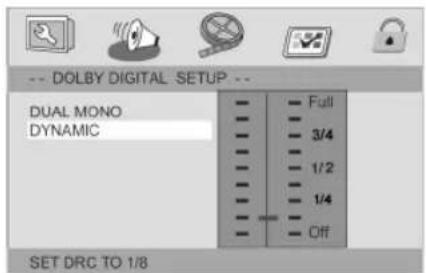

Audio Setup Page / Dolby Digital Settings (2)

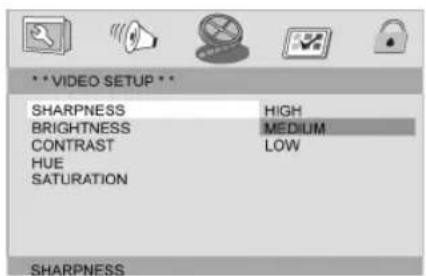

Video Setup Page (3)

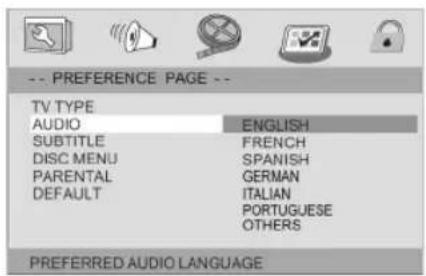

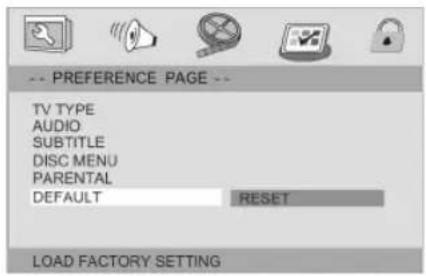

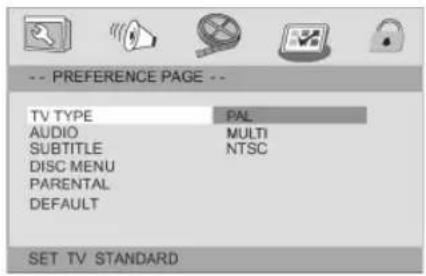

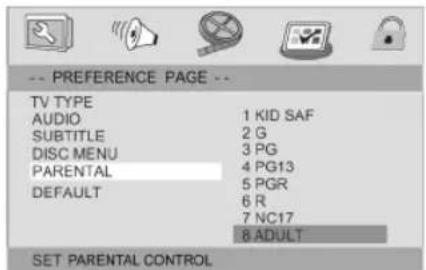

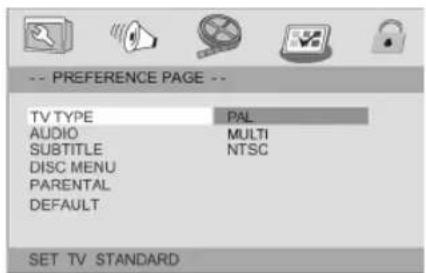

Preference Page (4)
Password Setup Page (5)
i NOTE:
Some of the menu settings are only available in stop mode (depending on the DVD).
System settings

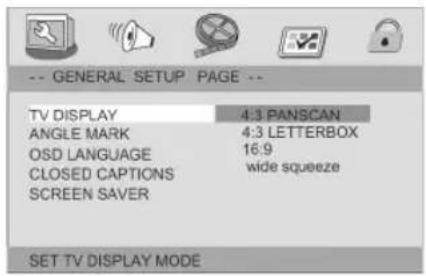

TV Display
Here you can adapt the output of the DVD-Player to the TV-aspect.
Concerning the background: If you do not have a wide screen TV the TV-aspect will be 4:3. However, most feature fi lms have an aspect of 16:9, the image is therefore too wide for the TV-screen.
Here you can specify how the replay of the film is to be adapted to the playback device:
4:3 Panscan:
You will only see the middle section of the film. The borders will be cut off.
4:3 Letterbox:
You will see the complete width of the fi Im. The fi Im is thus reduced in size, whereby black bars appear below and above the film.
16:9 Wide:
Select this option if you use a wide screen TV for replay. Please note that fi lms, that have been recorded with TV-aspect 4:3 can still be replayed using aspect 4:3. This means, that replaying this fi lm will not require the complete wide screen area of the television.
Wide Squeeze:
Select this option if you use a wide screen TV for replay. This setting is used to adapt fi lms in 4:3 format to the aspect ratio of the wide-screen television set. (Preferred setting for the built-in screen.)
NOTE: The setting „4:3 Panscan“ is not supported by all DVDs.

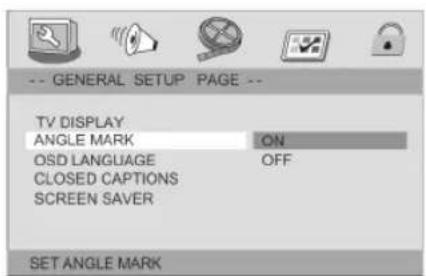

Angle Mark (Camera Angle)
If the DVD contains sequences recorded from different camera angles you can use the ANGLE button (Fig. 2/25) to select the various camera angles. This function is only available if the DVD contains scenes with various camera angles.
Before you can use this function it has to be activated.
On:
The angle symbol is shown on the screen.
Off:
No angle symbol is shown on the screen.

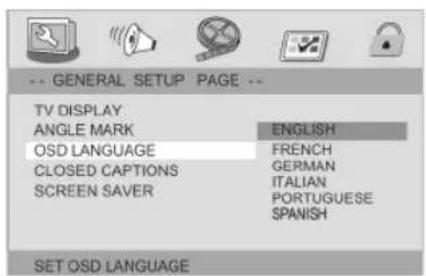

OSD Language
Here you can select the language of the on-screen displays.
English

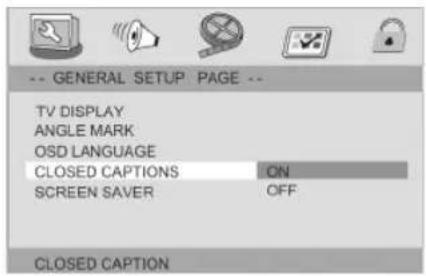

Closed Captions
Some DVDs contain commentaries that accompany the fi Im, e.g. subtitles for the hard of hearing.
On:
The commentary is displayed.
Off:
No commentaries are displayed.
Screen saver
The player is able to display a still image for any time on the screen. This can cause damage to the screen. It is therefore recommended to activate the screen saver.
The following options are available:
On:
The screen saver is activated (default setting).
Off:
The screen saver is deactivated.
Analogue Output Setup
Downmix
Change the characteristics of the speaker output:
LT/RT:
Choose this setting if you want to play the DVD with the Pro Logic Dolby stereo effect. This produces a almost real 2-channel replay effect.
Stereo:
Choose this setting if you want to play a DVD, that has been produced in the 5.1-Audio format, as 2-channel stereo sound.
Digital Output
Here you specify the settings for the digital Audio output.
SPDIF Off: Output of an analogue Audio signal, but no digital signal.
SPDIF/RAW: Output of a digital Audio signal. Use this setting if your amplifi er is no two-channel stereo amplifi er.
SPDIF/PCM: Output of a digital Audio signal that is converted to a 2-channel signal. Use this setting if your amplifi er is a two-channel stereo amplifi er.
i NOTE:
If there is no Audio output, even though you connected the DVD-Player to an amplifier, you will most likely have chosen an incorrect setting for the Audio output.
Dolby Digital Setup
Dual Mono
The Audio output is normally in stereo. Here you have the possibility to choose Mono-output instead of Stereo-output.
Stereo:
The Audio output is in Stereo (default).
L-Mono:
The Audio output is in Mono. In this case the signal of the „left“ stereo channel is transmitted to all speakers.
R-Mono:
The Audio output is in Mono. In this case the signal of the „right“ stereo channel is transmitted to all speakers.
Mix Mono:
The Audio output is in Mono. In this case the signal of the „both“ stereo channel is transmitted to all speakers.
Dynamic
The term „Dynamic“ (Dynamic Range) describes the ratio of quietest and loudest sound. If the dynamic range is very large, you will experience very quiet and very loud sounds.
This may cause replay problems. Let us assume that you are watching a DVD in a relatively loud environment. You can now increase the volume to be able to hear also the very quiet passages, however with the disadvantage that loud passages will be unacceptably loud. In this case it would make sense to compress the dynamic range (i.e. reduce) and increase the output volume at the same time.
FULL -1/8:
The dynamic range is compressed slightly (1/8) to full (FULL).
OFF:
The dynamic range is not compressed at all (default).
Video Setup
In this menu it is possible to perform various settings to adapt the video signal.
52 English
Preference Page
TV Type
Match the output of the DVD-Player to the colour transfer system of your playback device.
The following options are available:
PAL: A system commonly used in Europe.
MULTI:
Select this setting if your playback device is a multi-system unit.
NTSC: A system primarily used in North America.
Audio; Subtitle; Disc Menu
Audio:
Here you can select the preferred audio language.
Subtitle:
Here you can select the preferred language for the fi Im subtitles.
Disc Menu:
Here you can select the preferred language for the DVD menus.
Parental
Some DVD contain information concerning the target group. This method is comparable with the rating of cinema fi lms („Suitable only for persons of 12 years and over“ e.g.).
If you have the child lock option activated a probably existing corresponding information is read from the DVD and compared with the value pre-set by you. If a DVD is intended for an older age group than the one pre-set by you, the DVD cannot be played.
The following child lock options are available:
Kid Saf: Suitable for children.
G: Suitable for all age groups.
PG:
The presence of parents is recommended. Some scenes may be unsuitable for children.
PG 13:
The presence of parents is strictly recommended. Some scenes may be unsuitable for children under the age of 13.
PGR:
The presence of parents is strictly necessary.
R:
Young persons under the age of 17 may only view this fi Im in the presence of an adult.
NC17:
Children and juveniles under the age of 17 are not allowed to watch this fi Im.
Adult:
The fi Im must only be watched by adults.
Default
Select the command „Default/Reset“ if you want to reset the player to the factory implemented default settings.
Any settings you have made will be lost.
Password Setup
If you want to operate the DVD-Player with a child lock system, you must first enter a password. This password safeguards the settings for the child lock system, so that it can only be changed by yourself.
Password Mode
On:
A password has to be entered whenever an attempt is made to modify the child lock function.
Off:
The child lock system can be changed without a password being required.
Password
In this menu you can change the password for the child lock system.
In order to change the password, you must first enter the current password. The master password is „136900“.
i NOTE:
If you forgot your password, you can deactivate the child lock system with this password.
Proceed as follows to change the password:
- Enter the present password in the „Old Password“ line with the Numerical buttons (Fig. 2/26) of the remote control.
To prevent the password from being read by unauthorized persons only the characters “„XXXXXX” will appear on the screen. - Enter the new password in the „New Password“ line with the Numerical buttons of the remote control.
- Confirm the new password by entering it again in the „Confirm“ line. Confirm your entry with the ENTER button (Fig. 2/22).
54 English
Troubleshooting
Before sending the machine to the Customer Services, use the following table to check whether you can rectify the fault yourself.
| Fault | Possible cause | Solution |
| The power supply light does not light | No power supply | ⚠ WARNING:Before searching for the fault, please turn the device off.Put the mains plug in correctly, if necessary, check the socket is working with another appliance. |
| no power supply/ mains switch switched off | Switch the player on by the mains switch (Fig. 1/4). | |
| No image displayed on screen | During operation with a television set:Video cable not correctly connected | ⚠ WARNING:Before searching for the fault, please turn the device off.Check the correct fi t of the Video cable. Make sure that the jacks are tightly in the sockets. |
| no DVD/CD inserted Insert a CD/DVD. | ||
| DVD/CD not compatible Use only compatible media. | ||
| DVD/CD incorrectly placed in CD/DVD-tray | Turn the CD/DVD around. | |
| CD/DVD is dirty Clean the CD/DVD around. | ||
| CD/DVD is damaged Use a different CD/DVD. | ||
| Incorrect settings Check the settings of your DVD-Player. | ||
| The child protection system is activated | Deactivate the child protection. | |
| No response when pressing button | Power supply problem or static charging of appliance | Switch off the main switch and pull out the mains plug.Insert the mains plug into the socket and switch the player on again. |
| No sound During operation with a television set:Audio cable not connected | ⚠ WARNING:Before searching for the fault, please turn the device off.Check the correct fi t of the Audio cable. Make sure that the jacks are tightly in the sockets. | |
Disposal
At the end of the service life of the appliance, in particular if it is malfunctioning, make the appliance unusable by pulling the mains plug out of the socket and separating the power cable. Dispose of the appliance according to the environmental regulations applicable in your country. Electrical waste may not be disposed of together with household waste. For any advice regarding recycling, contact your local municipal authorities or your dealer.
Guarantee
The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).
During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
The guarantee lapses in case of unauthorized tampering.
After the expiry of the guarantee
After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
Declaration of conformity
ETV Elektro-Technische Vertriebsgesellschaft mbH hereby declares that the device DVD 4537 TFT is in conformity with the basic requirements of the European guideline for electromagnetic compatibility (2004/108/EG) and the low voltage guideline (2006/95/EG).
OSD Menu overview
| --GENERAL SETUP PAGE-- | |
| TV DISPLAY 4:3 PANSCAN | 4:3 LETTERBOX16:9Wide Squeeze |
| ANGLE MARK ON | OFF |
| OSD LANGUAGE | |
| CLOSED CAPTIONS ON | OFF |
| SCREEN SAVER ON | OFF |
| -- ANALOG AUDIO SETUP PAGE -- | ||
| DOWNMIX LT/RT | STEREO | |
| DIGITAL OUTPUT SPDIF/OFFSPDIF/RAWSPDIF/PCM | ||
| DOLBY DIGITAL | -- DOLBY DIGITAL SETUP -- | |
| DUAL MONO STEREO | L-MONOR-MONOMIX-MONO | |
| DYNAMIC | ||
| --PREFERENCE PAGE -- | |
| TV TYPE PAL | MULTI NTSC |
| AUDIO | |
| SUBTITLE | |
| DISC MENU | |
| PARENTAL 1 KID SAFE | 2 G3 PG4 PG 135 PGR6 R7 NC178 ADULT |
| DEFAULT. RESET | |
| -- PASSWORD SETUP PAGE -- | |
| PASSWORD MODE ON | OFF |
| PASSWORD CHANGE | |
| --VIDEO SETUP -- | |
| SHARPNESS HIGH | MEDIUMLOW |
| BRIGHTNESS -20 to +20 | |
| CONTRAST -16 to +16 | |
| HUE | -9 to +9 |
| SATURATION | -9 to +9 |
