USER MANUAL WIDL 146 INDESIT

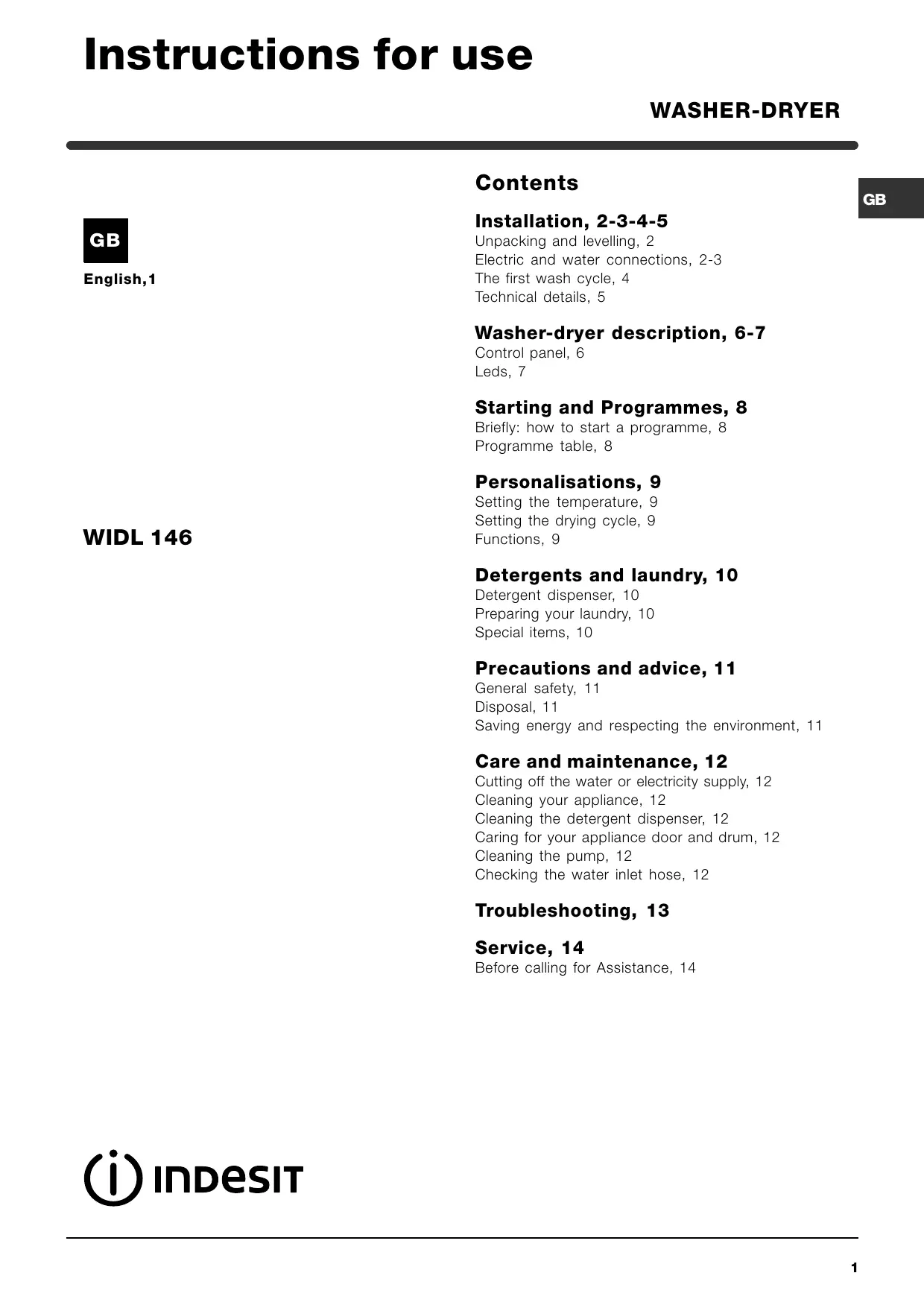

Instructions for use WASHER-DRYER Contents ee Installation, 2-3-4-5 [se | Unpacking and levelling, 2 Electric and water connections, 2-8 English,1 The first wash cycle, 4 Technical details, 5 Washer-dryer description, 6-7 Control panel, 6 Leds, 7 Starting and Programmes, 8 Briefly: how to start a programme, 8 Programme table, 8 Personalisations, 9 Setting the temperature, 9 Setting the drying cycle, 9 WIDL 146 Functions, 9 Detergents and laundry, 10 Detergent dispenser, 10 Preparing your laundry, 10 Special items, 10 Precautions and advice, 11 General safety, 11 Disposal, 11 Saving energy and respecting the environment, 11 Care and maintenance, 12 Cutting off the water or electricity supply, 12 Cleaning your appliance, 12 Cleaning the detergent dispenser, 12 Caring for your appliance door and drum, 12 Cleaning the pump, 12 Checking the water inlet hose, 12 Troubleshooting, 13 Service, 14 Before calling for Assistance, 14 (Dinpesir

Installation {Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washer-dryer to inform the new owner as to its operation and features. !Read these instructions carefully: they contain vital information on installation, use and safety. Unpacking and levelling Unpacking

1. Unpack the washer-dryer.

2. Check whether the washer-dryer has been

damaged during transport. If this is the case, do not install it and contact your retailer.

protective screws and the rubber bush with the respective spacer, situated on the rear of the appliance (see also the installation leaflet) NB:The plastic spacers may fall down inside the machine once the bolt has been removed, and will not interfere with the operation of the machine.

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the

washing machine needs to be moved to another location. {Packaging materials are not children's toys Levelling

1. Install the washer-dryer on a flat sturdy floor,

without resting it up against walls, furniture cabinets or other.

2. If the floor is not

perfectly level, compen- sate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2° Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washer- dryer. Electric and water connections Connecting the water inlet hose

1. Connect the supply

pipe to the water mains, fitting the rubber gasket and the filter supplied with the appliance and D > ensuring that they are fimly tightened to the C ÉS taps. ” The water supply marked C must be connected to the cold water tap; the pipe marked H must be connected to the hot water tap. Both pipes may be connected to the cold water tap using the special Y connection with multiple attachments, supplied with the appliance (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end

of the water inlet hose to the washer-dryer, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

8. Make sure there are no kinks or bends in the

hose The water pressure at the tap must be within the values indicated in the Technical details table (on the next page). If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman Ensure that the supply taps are allowing water through. Old taps may seize in the closed position and thus prevent water reaching the machine.

(Dinvesir Connecting the drain hose Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor; The drain hose may be connected to an under-sink trap. Before connecting the drain hose from the machine ensure that any blanks or removable ends have been taken off the spigot. pipe cut end off spigot or remove the blanking cap Ifit is place over the edge of a basin or sink be sure the free end of the hose should not be underwater. ! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length Ensure that if the drain hose is pushed into a standpipe, that the end does not go down more than 15cms (6 inches). If the hose is pushed down too far, this may cause the machine to self -syphon ie. continuously empty as it is filling. Electric connection Before plugging the appliance into the mains socket, make sure that: + the socket is earthed and in compliance with the applicable law; + the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (see page 5); + the supply voltage is included within the values indicated on the Technical details table (see page 5); + the socket is compatible with the washer-dryer's plug. If this is not the case, replace the socket or the plug. Your appliance is now supplied with a 18 amp fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instructions below. WARNING - THIS APPLIANCE MUST BE EARTHED.

THE FOLLOWING OPERATIONS SHOULD BE

CARRIED OUT BY A QUALIFIED ELECTRICIAN. Replacing the fuse: When replacing a faulty fuse, a 18 amp ASTA approved fuse to BS 1862 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained. Replacement fuse covers: If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot. Removing the plug: If your appliance has a non-rewireable moulded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either: the plug is replaced by a fused 13 ampere re- wearable plug bearing the BSI mark of approval. or: the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance Disposing of the plug: Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket. Instructions for connecting cable to an alternative plug: Important: the wires in the mains lead are coloured in accordance with the following code: Green & Yellow Earth Blue Neutral Brown Live

As the colours of the wires in the lead may not correspond with the coloured markings identifyng the terminals in your plug, proceed as follows: Connect Green & Yellow wire to terminal marked E or or coloured Green or Green & Yellow. Connect Brown wire to terminal marked L or coloured Red. Connect Blue wire to terminal marked N or coloured Black If a 18 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse, either in the plug or adaptor or at the distribution board. If you are in any doubt the electrical supply to your machine, consult a qualified electrician before use. How to connect an alternative plug The wires in this mains lead are coloured in accordance with the following code BLUE NEUTRAL (N) BROWN LIVE (L) GREEN & YELLOW EARTH (E) Disposing of the appliance: When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above. cReena YELLOW BRON | | ! The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms. ! When the washing machine is installed, the mains socket must be within easy reach ! Do not use extensions or multiple sockets. {The power supply cable must never be bent or dangerously compressed. ! The power supply cable must only be replaced by an authorised serviceman. Warning! The company denies all liability if and when these norms are not respected. The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

| from 1 to 5 Kg for the wash programme; Capacity from 1 to 4 kg for the drying programme Electric voltage 280/240 Volts 50 Hz connections maximum absorbed power 2050 W Water connections maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 46 litres Spin speed up to 1400 rpm Wash: programme 2; temperature 60°C: run with a load of 5 kg. Control Drying: first drying cycle performed with programmes a 1 kg load, by selecting a drying time according to 1EC456 directive of 40 min: Second drying cycle performed with a 4 Kg load and the DRYING knob on er setting. This appliance is compliant with the following European Community Directives: - 78/28/CEE of 19/02/73 (Low Voltage) and subsequent amendments - 89/336/CEE of 03/05/89 {Electromagnetic Compatibility) and subsequent amendments (D'invesiT

Washer-dryer description |) Control panel Detergent dispenser Detergent dispenser: to add detergent and fabric softener (see page 10). LEDS: to find out the wash cycle progress. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 7) DRYING knob: to set the desired drying cycle (see page 9). FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on. Leds

FUNCTION Buttons ON-OFF/ DOOR ON-OFF LOCK Button Led 900 04© PROGRAMME Knob START/RESET Button TEMPERATURE DRYING Knob Knob TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 9). START/RESET button: to start the programmes or cancel any incorrect settings. ON-OFF/DOOR LOCK Led: to find out whether the Washer-dryer is on and if the appliance door can be opened (see page 7). ON/OFF button: to turn the Washer-dryer on and off. PROGRAMME knob: to select the wash programmes. The knob stays still during the cycle.

Leds The LEDS provide important information This is what they can tell you Delay set: If the Delay Timer function has been enabled (see page. 9), once you have started the programme, the LED corresponding to the delay set will begin to flash: É © 2h EE 4h © = 6h As time passes, the remaining delay will be displayed, and the corresponding LED will flash: ÉeS 2 HZ 4 © = 6h

Once the set delay is complete, the flashing LED will turn off and the programme set will start. À oN-oFF/DO0R LOCK led: (Dinvesir Cycle progress: During the wash cycle, the LEDS gradually illumina- te on to indicate the cycle progress:

É < Rinse Spin cycle Drying Note - during draining, the LED corresponding to the Spin cycle phase will be turned on - when the drying cycle is complete, the indicator light relative to phase -O- will flash, to indicate that the DRYING knob needs to be set back to the 0 setting. Function buttons The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled. If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door. ! The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED indicates there is an abnormality. Call for Technical Assistance uonellezsu]

Starting and Programmes Briefly: starting a programme

1. Switch the Washer-dryer on by pressing button @O.

All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine and

shut the appliance door.

8. Set the PROGRAMME knob to the programme

required. ons Programme table . Set the wash temperature (see page 9). . Set the drying cycle if necessary (see page 9). . Add the detergent and any fabric softener (see page 10).

7. Start the programme by pressing the START/RESET

button for one second. Once the programme has been accepted all of the option and status LED's Will illuminate momentarily, the Door Lock LED ol will be lit and the relevant wash cycle progress LED will also be lit To cancel it, keep the START/RESET button pressed for at least 2 seconds

8. When the programme is finished, the ON-OFF/

• DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the Washer-dryer off by pressing button O Max. Hype of fabric and Tempe- | Detergent | fapric |CYCle [Spin ° Progr. length Description of wash cycle degree of soil rare softener |en9., |Speeds PE [as Gp.m) Standard Extremely soiled whites ï 90 | + p. 135
• Max, [Pre-wash, wash cycle, rinse cycles, (sheets, tablecloths, etc.) intermediate and final spin cycles Extremely soiled whites 20° Wash cycle, rinse cycles, (Sheets, tablecloths, etc.) 2 20°C 125 Max. |intermediate and final spin cycles Heaviy soiled whites and fast : p. 5
• Wash cycle, rinse cycles, colours 2 60°C 110 Max. lintermediate and final spin cycles Heaviy soiled whites and delicate > lac Max [Wash cycle, rinse cycles, colours intermediate and final spin cycles Sighty soled whites and delcate : Wash cycle, rinse cycles, colours (shirts, jumpers, etc.) $ 40°c 70 Max. |intermediate and final spin cycles Heavy solled fast colours à 50 x x 75 300 [Wash cycle, rinse cycles, ant-crease (baby linen, etc.) ? s or delicate spin cycle Heaviy soiled fast colours 3 p. 105
• Wash cycle, rinse cycles, anti-crease (baby linen, etc.) 4 40°C 60 800 lor delicate spin cycle : Wash cycle, rinse cycles anti-crease Woo! 5 | 40 50 600 or delcate spin cycle Very delicate fabrics u Wash cycle, rinse cycles, anti-crease {curtains, sik, viscose, etc.) $ 80°C 45 0 lor draining cycle Dwying cotton 7 Max Dwying delicates 8 no Time 4 you Heaviy soiled whites and fast x u . 5 Wash cycle, rinse cycles, colours d 60°c 66 Max. lintermediate and final spin cycles Delicais colours u Wash cycle, rinse cycles, delicate all types of slightiy soiled garments) | 1° 40° 45 800 Spin cycle Delicate colours : p. 5
• Wash cycle, rinse cycles and delicate all types of slightiy soiled garments) | 1! 80°C 80 800 Spin cycle Sport Sports shoes (MAX. 2 pairs) 12 laoc 00 [Col wash (without detergents). wash cycle, rinse cycles, and delcate spin cycle Fabrics for sportswear u Wash cycle, rinse cycles, (Tracksuits, Shorts, etc.) 18 80°C 60 600 lintermediate and final spin cycles PARTIAL PROGRAMMES Rinse Er . 800 [Rinse cycles and spin cycle Spin cycle Q] 800 |[Draining and spin cycle Drain EH no |Drain Notes -For programme 9, we advise against exceeding a wash load of 3.5 kg. -For programme 18 we advise against exceeding a wash load of 2 kg. -For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative. Special programme Daily (programme 11 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (11 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg. We recommend the use of liquid detergent. p. 50

Personalisations (Dinvesir T Setting the temperature Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 8) The temperature can be lowered, or even set to a cold wash (%). The dat anodin t 1e data contained in the 1 h Table of drying times table are purely indicative. KA Set the drying cycle PSE PPT — — Turn the DRYING knob to set the desired arying type. spe 7 ml ls Two options are available: kg) cup, Hanger | Iron A - Based on time: From 40 minutes to 150 B - Based on the damp level of the dry clothes gone Clothing of different sizes V4 iso 120 À 110 lron Se: slightly damp clothes, easy to iron Hanger re dry clothes to put away. Cotton | Terry towels 4 130 | 120 | 110 Cupboard very dry clothes, recommended for towelling Tera, Shects, Shits u and bathrobes Cotton 2,5 90 80 70 A cooling stage is foreseen at the end of the drying cycle. Aonles | Pyjamas, socte, ete A 5 50 50 If your laundry load to wash and dry is exceptionally in excess | Nyon Slips, tights, stockings, etc, 1 65 60 60 of the maximum load foreseen {see table opposite), perform the wash cycle, and when the programme is complete, divide up the garments and put part of them back in the drum. Now follow the instructions provided for a dry only cycle. Repeat this procedure for the remainder of the load Dry only Turn the PROGRAMME knob to one of the drying settings (7-8) depending on the type of fabric, then select the desired drying type using the DRYING knob. Important: - À spin cycle is carried out during the drying if you have set a cotton programme and a level of dryness (Cupboard CF. Hanger 5}, lron Sn). - For cotton loads of less than 1 Kg, use the drying programme designed for delicate fabrics. Functions To enable a function

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set. Enabled with Function |Effect Comments programmes: Press the button repeatedly until the LED corresponding to the Delays the start |desired delay is turned on ofthe wash by |The fifth time the button is pressed, the function will be disabled. | All up to 9 hours. [N.B.: Once you have pressed the Start/Reset button, the delay Delay Timer can only be decreased if you wish to modify it his option When this function is set, programmes 4, 5, 6 will end with the x si laundry left to soak (Anti-crease) and the Rinse cycle phase 3,4,5.6 LS ETS na en LED £y will flash. 8 1027 greasing on |- to conclude the cycle, press the START/RESET button: Bin cycle em easier te |- to run the draining cycle alone, set the knob to the relative y Easyiren [ion symbol Lj and press the START/RESET button. ES Res 6e [Recommended when the appliance has a full load or with large 12549 Extra Rinse |rinse. quantities of detergent Rinse cycle. AIl © Reduces the programmes spin speed except for 6 1400-600 and draining. The machine has an intelligent built in check for out of balance loads. To let protect your machine it may reduce the final spin speed if an unbalanced load is detected. suonne9314 sue619,39q souue16014 uondi1952q uonelle}su] [f] Bunoouyseiqnoil 0189 sommes

Detergents and laundry Detergent dispenser Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment. Open up the detergent dispenser and pour in the detergent and fabric softener, as follows. compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid) Liquid detergent should only be poured in immediately prior to the wash cycle start. compartment 3: Additives (fabric softeners, etc.) The fabric softener should not overflow from the grid. ! Do not use hand wash detergent because it may form too much foam Preparing your laundry + Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites + Empty all pockets and check for loose buttons + Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 5 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g Special items Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 6 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

Precautions and advice (Dinvesir ! The Washer-dryer was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully. General safety + This appliance has been designed for non- professional, household use and its functions must not be changed.

This washing machine should only be used by adults and in accordance with the instructions provided in this manual. + Never touch the washing machine when barefoot or with wet or damp hands or feet. + Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself. + Do not open the detergent dispenser while the appliance is in operation. + Do not touch the drain water as it could reach very high temperatures. + Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings. + In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs. + Always keep children well away from the appliance while in operation. + The appliance door tends to get quite hot during the wash cycle. + Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

Before loading your laundry into the washing machine, make sure the drum is empty. + During the drying phase, the door tends to get quite hot. + Do not use the appliance to dry clothes that have been washed with flammable solvents (e.g trichlorethylene). + Do not use the appliance to dry foam rubber or similar elastomers + Make sure that the water tap is turned on during the drying cycles. + This washer-dryer can only be used to dry clothes which have been pre-washed in water. Disposal + Disposing of the packaging material: observe local regulations, so the packaging can be re-used. + Disposing of an old Washer-dryer: before scrapping your appliance, cut the power supply cable and remove the appliance door. Saving energy and respecting the environment Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest Ariston technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment. Saving on detergent, water, energy and time + To avoid wasting resources, the Washer-dryer should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy. + The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy. + Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy. + Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. + _lf you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 9) helps to organise your wash cycles accordingly. +_lf your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process. suonness1d sius619}9q sowwuei6oid uondi1950q uonelle}su] [i BunoouysojqnoiL 2129 eoues

Care and maintenance Cutting off the water or electricity supply + Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks. + Unplug your appliance when cleaning it and during all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out (see figure) Wash it under running water; this operation should be repeated frequently. Caring for your appliance door and drum + Always leave the appliance door ajar to prevent unpleasant odours from forming. Cleaning the pump The Washer-dryer is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same ! Make sure the wash cycle has ended and unplug the appliance. To access the pre-chamber:

1. using a screwdriver,

remove the cover panel on the lower front of the Washer-dryer (see figure);

rotating it anti- clockwise (see figure): a little water may trickle out. This is perfectly normal;

8. clean the interior thoroughly;

4. screw the lid back on:

5. reposition the panel, making sure the hooks are

securely in place before you push it onto the appliance. Checking the water inlet hose Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. ! Never use hoses that have already been used

Troubleshooting (Dinvesir Your washer-dryer could fail to work. Before calling for Assistance {see page 14), make sure the problem can't easily be solved by consulting the following list. Problem The washer-dryer won't start. The washer-dryer does not fill with water. The machine continuously fills and empties with water. The washer-dryer does not drain or spin. The washer-dryer vibrates too much during the spin cycle. The washer-dryer leaks. The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED. There is too much foam. The washer-dryer does not dry. Possible causes/Solution: + The appliance is not plugged into the socket, or not enough to make contact. + There has been a power failure. + The appliance door is not shut properly. + The O button has not been pressed. + The START/RESET button has not been pressed. NB: It should be held minimum one second. + The water tap is not turned on + A delayed start has been set (using the Delay Timer, see page 9). + The water inlet hose is not connected to the tap. + The hose is bent. + The water tap is not turned on + There is a water shortage. + The water pressure is insufficient. + The START/RESET button has not been pressed. + _ The drain hose is not too low or too far in to the stand pipe (see page 5) for correct installation. + The wall drainage system doesn't have a standard pipe (min. 38 mm). + _ Some programs have a slower final spin to taked best care of the fabrics. See page 8 for details of the final spin speed for each program. + The programme does not foresee the draining: some programmes require enabling the draining manually (see page 8). + The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 9). + The drain hose is bent (see page 3). + Remove the drain hose from the standpipe or under-sink trap and check for blockages, ensuring that the water can drain freely away from the machine. + Check that the transit bolts were removed correctly during installation (carefully read pages 2 and 3) + The washer-dryer is not level {see page 2). + The washer-dryer is closed in between furniture cabinets and the wall (see page 2) + The water inlet hose is not screwed on correctly {see page 2). + The detergent dispenser is obstructed (to clean it, see page 12) + The drain hose is not secured properly (see page 8). + Call for Assistance because this means there is an abnormality. + _The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like). + You used too much detergent. + The appliance is not plugged into the socket, or not enough to make contact. + There has been a power failure. + The appliance door is not shut properly. + A delayed start has been set (using the Delay Timer, see page 9). + the DRYING knob is on the 0 setting suonne9314 sue619,39q souwue16o1d uondi1952q uonelle}su] [i

Service Before calling for Assistance: + Check whether you can solve the problem on your own (see page 13); + Restart the programme to check whether the problem has been solved: + _Ifthis is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate. Always request the assistance of authorised servicemen. Notify the operator of: + the type of problem; + the appliance model (Mod.); + the serial number (S/N). This information can be found on the data plate situated on the rear of the washer-dryer.
