Product type	Washing machine
Brand	Indesit
Model	WIDL 106 (EX)
Wash capacity	6 kg
Maximum spin speed	1000 rpm
Energy class	D
Power supply	220-240 V ~ 50 Hz
Dimensions (W x D x H)	59.5 x 53.5 x 85 cm
Net weight	65 kg
Loading type	Front loading
Wash programs	Cotton, Synthetics, Delicates, Wool, Rinse, Spin
Options	Delayed start, Half load, Rinse hold
Child safety	Locking device
Filter cleaning	Filter accessible at bottom right
Noise level (wash/spin)	58 dB / 78 dB
Annual water consumption	9,200 L
Repairability index	7.5 / 10
Spare parts available	Belt, heating element, pump, timer
Maintenance and cleaning	Clean the door seal and drum regularly

Frequently Asked Questions - WIDL 106 (EX) INDESIT

What to do if the washing machine does not start?

First check that the door is properly closed and the appliance is plugged in. Make sure the water tap is open. If the problem persists, refer to the Troubleshooting section of the manual.

How to clean the pump filter?

Unplug the appliance, open the flap at the bottom right, unscrew the filter counterclockwise and clean it under running water. Replace it before using the machine again.

Why is the drum not turning?

This could be due to overloading, a worn belt, or a motor problem. Check the load, then inspect the belt. If needed, contact a professional.

How to use the delayed start?

Select the desired program, then press the Delayed start button to set the desired end time. Confirm by pressing the Start/Pause button.

What to do in case of water leakage?

Check the connections of the inlet and drain hoses. Clean the pump filter. If the leak persists, inspect the door seal and internal hoses.

How to remove bad odors from the washing machine?

Run an empty cleaning program at 90°C with white vinegar or a descaling product. Regularly clean the door seal and leave the door ajar after each wash.

What is the maximum washing capacity?

The maximum capacity is 6 kg for cotton programs. Do not exceed this limit to avoid malfunctions.

How to unlock the door after a cycle?

Wait a few minutes after the cycle ends. If the door remains locked, use the emergency drain (pull the red cable or turn the knob) located near the filter.

What do the displayed error codes mean?

Error codes such as F01 (motor problem) or F05 (drain issue) are explained in the manual. Consult the code table to identify the problem.

How to maintain the drum?

Run a cleaning program with a specific product every 2 months. Regularly wipe the inside of the drum and leave the door open after use.

USER MANUAL WIDL 106 (EX) INDESIT

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door corner with a spiral-patterned opening and directional arrow (no text or symbols)

Diagram of a mechanical device with a valve and handle, showing rotational motion (no text or symbols)

Diagram of a pipe fitting with a connector to a bottle (no text or symbols)

Diagram of a car interior with a directional arrow indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver and directional arrows (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical or electrical component with concentric rings and directional arrows (no text or symbols)

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Simple line drawing of a pipe with a bulb above it, no text or symbols present

Simple line drawing of a mechanical component with a tool and directional arrows (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

ال Connectivity Job Embodied as a Steerar

Line drawing of a car interior drawer with a black arrow indicating direction (no text or symbols)

Installation, 30-31-32-33

Unpacking and levelling, 30

Electric and water connections, 30-31

The first wash cycle, 32

Technical details, 33

Washer-dryer description, 34-35

Control panel, 34

Leds, 35

Starting and Programmes, 36

Briefly: how to start a programme, 36

Programme table, 36

WIDL 106

Personalisations, 37

Setting the temperature, 37

Setting the drying cycle, 37

Functions, 37

Detergents and laundry, 38

Detergent dispenser, 38

Preparing your laundry, 38

Special items, 38

Precautions and advice, 39

General safety, 39

Disposal, 39

Saving energy and respecting the environment, 39

Care and maintenance, 40

Cutting off the water or electricity supply, 40

Cleaning your appliance, 40

Cleaning the detergent dispenser, 40

Caring for your appliance door and drum, 40

Cleaning the pump, 40

Checking the water inlet hose, 40

Troubleshooting, 41

Service, 42

Before calling for Assistance, 42

indesit

!Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the Washer-dryer to inform the new owner as to its operation and features.

!Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the Washer-dryer.
2. Check whether the Washer-dryer has been damaged during transport. If this is the case, do not install it and contact your retailer.

Pure mechanical diagram showing concentric circular components with directional arrows, no text or symbols present

1. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

2. Seal the gaps using the plastic plugs provided.

3. Keep all the parts: you will need them again if the Washer-dryer needs to be moved to another location.

!Packaging materials are not children's toys.

Levelling

1. Install the Washer-dryer on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the Washer-dryer.

Electric and water connections

Connecting the water inlet hose

Technical diagram of a mechanical component with labeled section A (no text or symbols beyond label)

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

Line drawing of a mechanical valve or pump assembly with a rotating knob (no text or symbols)

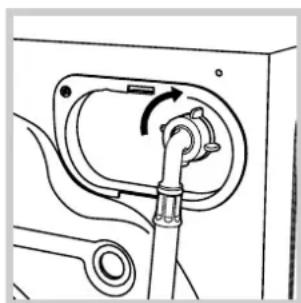

1. Connect the other end of the water inlet hose to the Washer-dryer, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

2. Make sure there are no kinks or bends in the hose.

!The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).

!If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

Connecting the drain hose

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

Diagram of a pipe connection with a bulb and connector (no text or symbols)

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

• the socket is earthed and in compliance with the applicable law;
• the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (see page 33);
• the supply voltage is included within the values indicated on the Technical details table (see page 33);
• the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

Your appliance is now supplied with a 13 amp fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instructions below.

WARNING - THIS APPLIANCE MUST BE EARTHED. THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained. Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either:

the plug is replaced by a fused 13 ampere re-wearable plug bearing the BSI mark of approval. or:

the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

Instructions for connecting cable to an alternative plug:

Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow Earth

Blue Neutral Brown Live

As the colours of the wires in the lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

Connect Green & Yellow wire to terminal marked E or ± or coloured Green or Green & Yellow.

Connect Brown wire to terminal marked L or coloured Red.

Connect Blue wire to terminal marked N or coloured Black.

If a 13 amp plug (BS 1363) is used it must be fitted with a

13 amp fuse, either in the plug or adaptor or at the distribution board.

If you are in any doubt the electrical supply to your machine, consult a qualified electrician before use.

How to connect an alternative plug:

The wires in this mains lead are coloured in accordance with the following code:

BLUE NEUTRAL (N)

BROWN LIVE (L)

GREEN & YELLOW EARTH (E)

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

! The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

! When the washing machine is installed, the mains socket must be within easy reach.

! Do not use extensions or multiple sockets.

! The power supply cable must never be bent or dangerously compressed.

! The power supply cable must only be replaced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90^ C programme without a pre-wash cycle.

Technical details
Model	WIDL 106
Dimensions	59.5 cm wide85 cm high53.5 cm deep
Capacity	from 1 to 5 kg for the wash programme; from 1 to 4 kg for the drying programme
Electric connections	voltage 220/230 Volts 60 Hzmaximum absorbed power 1750 W
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 46 litres
Spin speed	up to 1000 rpm
Control programmes according to IEC456 directive	Wash: programme 2; temperature 60°C; run with a load of 5 kg.Drying: first drying cycle performed with a 1 kg load, by selecting a drying time of 40 min;Second drying cycle performed with a 4 kg load and the DRYING knob on the setting.
	This appliance is compliant with the following European Community Directives:- 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) and subsequent amendments

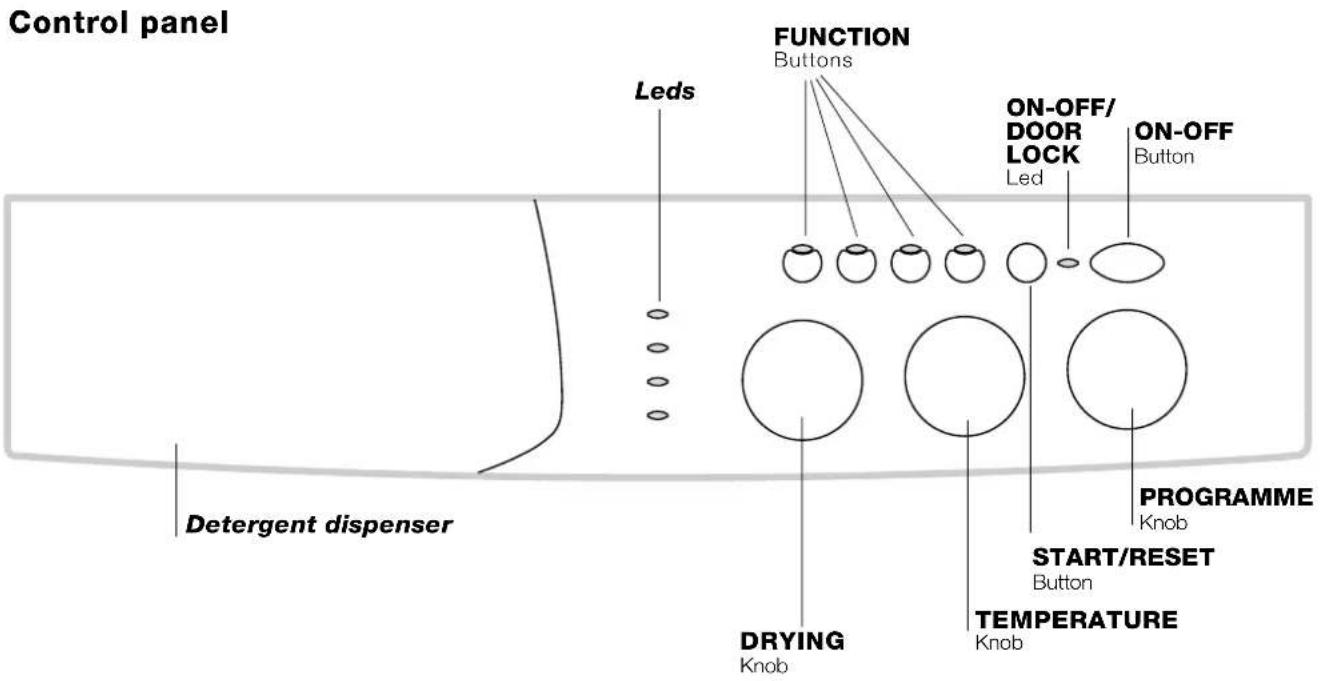

Washer-dryer description

GB

Detergent dispenser: to add detergent and fabric softener (see page 38).

LEDS: to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 35).

DRYING knob: to set the desired drying cycle (see page 37).

FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.

TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 37).

START/RESET button: to start the programmes or cancel any incorrect settings.

ON-OFF/DOOR LOCK Led: to find out whether the Washer-dryer is on and if the appliance door can be opened (see page 35).

ON/OFF button: to turn the Washer-dryer on and off.

PROGRAMME knob: to select the wash programmes. The knob stays still during the cycle.

Leds

The LEDS provide important information.

This is what they can tell you:

Delay set:

If the Delay Timer function has been enabled (see page. 37), once you have started the programme, the LED corresponding to the delay set will begin to flash:

As time passes, the remaining delay will be displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will turn off and the programme set will start.

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:

Note:

- during draining, the LED corresponding to the Spin cycle phase will be turned on.

- when the drying cycle is complete, the indicator light relative to phase - will flash, to indicate that the DRYING knob needs to be set back to the 0 setting.

Function buttons

The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated.

If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled.

If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

ON-OFF/DOOR LOCK led:

If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door.

! The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED indicates there is an abnormality. Call for Technical Assistance.

Starting and Programmes

Briefly: starting a programme

1. Switch the Washer-dryer on by pressing button (I).
   All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.
2. Load your laundry into the washing machine and shut the appliance door.
3. Set the PROGRAMME knob to the programme required.
4. Set the wash temperature (see page 37).

5. Set the drying cycle if necessary (see page 37).

6. Add the detergent and any fabric softener (see page 38).

7. Start he programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.
8. When the programme is finished, the ON-OFF/DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the Washer-dryer off by pressing button ⏻.

Programme table

Type of fabric and degree of soil	Program.	Tempe-rature	Drying Cycle	Detergent		Fabric softener	Cycle length (minutes)	Description of wash cycle
				pre-wash	wash
Standard
Extremely soiled whites (sheets, tablecloths, etc.)	1	90°C •	• • •				135	Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles
Extremely soiled whites (sheets, tablecloths, etc.)	2	90°C •	• •				125	Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	2	60°C •	• •				110	Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and delicate colours	2	40°C •	• •				105	Wash cycle, rinse cycles, intermediate and final spin cycles
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	3	40°C •	• •				70	Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily soiled fast colours (baby linen, etc.)	4	60°C	•		•	•	75	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Heavily soiled fast colours (baby linen, etc.)	4	40°C •	• •				60	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Wool	5	40°C •	•				50	Wash cycle, rinse cycles anti-crease or delicate spin cycle
Very delicate fabrics (curtains, silk, viscose, etc.)	6	30°C •	•				45	Wash cycle, rinse cycles, anti-crease or draining cycle
Drying cotton	7		•
Drying delicates	8		•
Time 4 you
Heavily soiled whites and fast colours	9	60°C •	•				60	Wash cycle, rinse cycles, intermediate and final spin cycles
Delicate colours (all types of slightly soiled garments)	10	40°C			•	•	40	Wash cycle, rinse cycles, delicate spin cycle
Delicate colours (all types of slightly soiled garments)	11	30°C •	• • 30					Wash cycle, rinse cycles and delicate spin cycle
Sport
Sports shoes (MAX. 2 pairs)	12	30°C			•	•		Cold wash (without detergents), wash cycle, rinse cycles, and delicate spin cycle
Fabrics for sportswear (Tracksuits, shorts, etc.)	13	30°C •	• 60					Wash cycle, rinse cycles, intermediate and final spin cycles
PARTIAL PROGRAMMES
Rinse			•			•		Rinse cycles and spin cycle
Spin cycle			•					Draining and spin cycle
Drain								Drain

Notes

-For programme 9, we advise against exceeding a wash load of 3.5 kg.
-For programme 13 we advise against exceeding a wash load of 2 kg.
-For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Special programme

Daily (programme 11 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (11 at 30^ C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 36).

The temperature can be lowered, or even set to a cold wash (

Set the drying cycle

Turn the DRYING knob to set the desired drying type.
Two options are available:
A - Based on time: From 40 minutes to 150.
B - Based on the damp level of the dry clothes:
Iron ⚡: slightly damp clothes, easy to iron.
Hanger 🎨: dry clothes to put away.
Cupboard 📋: very dry clothes, recommended for towelling and bathrobes.
A cooling stage is foreseen at the end of the drying cycle.
If your laundry load to wash and dry is exceptionally in excess of the maximum load foreseen (see table opposite), perform
the wash cycle, and when the programme is complete, divide up the garments and put part of them back in the drum. Now follow the instructions provided for a dry only cycle. Repeat this procedure for the remainder of the load.
Table of drying times
The data contained in the table are purely indicative.

Fabric type	Load type	Max. load (kg)
			Cup-board	Hanger	Iron
Cotton, Linen	Clothing of different sizes	4	130	120	110
Cotton	Terry towels	4	130	120	110
Terb, Cotton	Sheets, Shirts	2,5	90	80 70
Acrylics Pylamas, socks, etc.		1	65	60	60
Nylon	Slips, tights, stockings, etc.	1	65	60	60

Dry only

Turn the PROGRAMME knob to one of the drying settings (7-8) depending on the type of fabric, then select the desired drying type using the DRYING knob.

Important: - A spin cycle is carried out during the drying if you have set a cotton programme and a level of dryness (Cupboard 📋, Hanger 📌 iron ).

- For cotton loads of less than 1 Kg, use the drying programme designed for delicate fabrics.

Functions

To enable a function:
1. press the button corresponding to the desired function, according to the table below;
2. the function is enabled when the corresponding button is illuminated.
Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Function Effect	Comments	Enabled with programmes:
Delay Timer	Delays the start of the wash by up to 9 hours.	Press the button repeatedly until the LED corresponding to the desired delay is turned on.The fifth time the button is pressed, the function will be disabled.N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it.	All
Easy iron	This option reduces the amount of creasing on fabrics, making them easier to iron.	When this function is set, programmes 4, 5, 6 will end with the laundry left to soak (Anti-crease) and the Rinse cycle phase LED 📋 will flash.- to conclude the cycle, press the START/RESET button;- to run the draining cycle alone, set the knob to the relative symbol 🎨 and press the START/RESET button.	3, 4, 5, 6, 9, 10,Rinse cycle.
Extra Rinse	Increases the efficiency of the rinse.	Recommended when the appliance has a full load or with large quantities of detergent.	1, 2, 3, 4, 9, 10, 12, 13,Rinse cycle.
1000-500	Reduces the spin speed.		All programmes except for 6 and draining.

Detergents and laundry

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder)

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow from the grid.

! Do not use hand wash detergent because it may form too much foam.

Preparing your laundry

• Divide your laundry according to:
• the type of fabric/the symbol on the label.
• the colours: separate coloured garments from whites.
• Empty all pockets and check for loose buttons.
• Do not exceed the weight limits stated below, which refer to the weight when dry:
  Sturdy fabrics: max 5 kg
  Synthetic fabrics: max 2.5 kg
  Delicate fabrics: max 2 kg
  Wool: max 1 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1,200 g
1 towel 150-250 g

Special items

Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 6 which excludes the spin cycle automatically.

Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle.

Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

! The Washer-dryer was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This appliance has been designed for non-professional, household use and its functions must not be changed.
• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.
• Never touch the washing machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not open the detergent dispenser while the appliance is in operation.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
  • Always keep children well away from the appliance while in operation.
• The appliance door tends to get quite hot during the wash cycle.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the washing machine, make sure the drum is empty.
• During the drying phase, the door tends to get quite hot.
• Do not use the appliance to dry clothes that have been washed with flammable solvents (e.g. trichlorethylene).
• Do not use the appliance to dry foam rubber or similar elastomers.
• Make sure that the water tap is turned on during the drying cycles.
• This washer-dryer can only be used to dry clothes which have been pre-washed in water.

Disposal

• Disposing of the packaging material: observe local regulations, so the packaging can be re-used.
• Disposing of an old Washer-dryer: before scrapping your appliance, cut the power supply cable and remove the appliance door.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Indesit technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

• To avoid wasting resources, the Washer-dryer should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 37) helps to organise your wash cycles accordingly.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Diagram of a car interior with a directional arrow indicating flow or movement (no text or symbols present)

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for your appliance door and drum

• Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The Washer-dryer is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

! Make sure the wash cycle has ended and unplug the appliance.

To access the pre-chamber:

Simple line drawing of a screwdriver inserted into a rectangular frame (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front of the Washer-dryer (see figure);

Simple line drawing of a mechanical component with a circular feature and shaft (no text or symbols)

1. unscrew the lid rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the interior thoroughly;

3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

Your Washer-dryer could fail to work. Before calling for Assistance (see page 42), make sure the problem can't easily be solved by consulting the following list.

Problem

The washer-dryer won't start.

The wash cycle won't start.

The washer-dryer fails to load water.

The washer-dryer continuously loads and unloads water.

The washer-dryer does not drain or spin.

The washer-dryer vibrates too much during the spin cycle.

The washer-dryer leaks.

The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED.

There is too much foam.

The washer-dryer does not dry.

Possible causes/Solution:

• The appliance is not plugged into the socket, or not enough to make contact.
• There has been a power failure.
• The appliance door is not shut properly.
  • The Ⓙ button has not been pressed.
• The START/RESET button has not been pressed.
  • The water tap is not turned on.
• A delayed start has been set (using the Delay Timer, see page 37).

- The water inlet hose is not connected to the tap.

- The hose is bent.

• The water tap is not turned on.

• There is a water shortage.

- The water pressure is insufficient.

- The START/RESET button has not been pressed.

- The drain hose is not fitted between 65 and 100cm from the floor (see page 31).

- The free end of the hose is underwater (see page 31).

- The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the Washer-dryer to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

- The programme does not foresee the draining: some programmes require enabling the draining manually (see page 36).

- The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 37).

- The drain hose is bent (see page 31).

- The drain duct is clogged.

- The drum was not unblocked correctly during installation (see page 30).

- The Washer-dryer is not level (see page 30).

- The Washer-dryer is closed in between furniture cabinets and the wall (see page 30).

- The water inlet hose is not screwed on correctly (see page 30).

- The detergent dispenser is obstructed (to clean it, see page 40).

- The drain hose is not secured properly (see page 31).

- Call for Assistance because this means there is an abnormality.

- The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like).

- You used too much detergent.

- The appliance is not plugged into the socket, or not enough to make contact.

• There has been a power failure.

- The appliance door is not shut properly.

- A delayed start has been set (using the Delay Timer, see page 37).

- the DRYING knob is on the 0 setting.

Before calling for Assistance:

- Check whether you can solve the problem on your own (see page 41);

- Restart the programme to check whether the problem has been solved;

- If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

!Always request the assistance of authorised servicemen.

Notify the operator of:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate situated on the rear of the washer-dryer.

Français

Sommaire

Installation, 44-45-46-47

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Technical diagram of a mechanical component with labeled section A (no text or symbols present)

Technical line drawing of a mechanical component with a valve and handle (no text or symbols)

Diagram of a pipe connection with a connector, showing fluid flow and support structure (no text or labels)

Diagram of a car interior with a boat and directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver and directional arrows (no text or symbols)

Simple line drawing of a circular mechanical component mounted on a rectangular base (no text or symbols)

Causes / Solutions possibles:
