Notice Mach Power WL-ICDBG24-051 - page 3
3 / 20
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type In-ceiling Dual Band Access Point
Model WL-ICDBG24-051
Brand Mach Power
Wireless Standards IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz)
Frequency Bands 2.4 GHz and 5.8 GHz
Max Data Rate 750 Mbps (2.4 GHz 300 Mbps + 5 GHz 450 Mbps)
Interfaces 1 x Gigabit WAN/LAN (PoE), 1 x Gigabit LAN
Power Supply PoE (IEEE 802.3af, 48V), DC 12V (optional)
PoE Standard IEEE 802.3af
LED Indicators Power (green), WiFi (blue), WAN/LAN port status
Reset Button Yes (press >15s to factory reset)
Operation Modes Wireless AP, Wireless Repeater, Gateway, WISP
Management Web-based (HTTP/HTTPS), default IP 192.168.188.253
Security WEP, WPA/WPA2-PSK (TKIP/AES)
Virtual AP Up to 6 SSIDs (3 per band)
Dimensions (approx.) 200 mm (diameter) x 30 mm (height)
Weight (approx.) 300 g
Mounting In-ceiling (flush or surface mount)
Firmware Upgrade Via web interface
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 70°C

Frequently Asked Questions - WL-ICDBG24-051 Mach Power

How do I reset the Mach Power WL-ICDBG24-051 to factory defaults?
Press and hold the RST button (located on the unit) for more than 15 seconds while the device is powered on. The AP will reboot and restore factory default settings.
What is the default IP address and login credentials?
Default IP address is 192.168.188.253. Default username is Admin (case-sensitive) and password is admin (lowercase).
How can I configure the device as a wireless repeater?
Log in to the web interface, navigate to Operation Mode and select Repeater Mode. Click Scan AP to find the access point you want to extend, select it, enter the security key, and apply changes.
Does the access point support Power over Ethernet (PoE)?
Yes, it supports IEEE 802.3af PoE (48V). Use a PoE switch or a PoE injector that complies with this standard to power the device via the WAN port.
How do I update the firmware?
Go to Management > Upgrade Firmware in the web interface. Select the firmware file (downloaded from Mach Power support) and click Upgrade. Do not power off during the process.
What should I do if I cannot access the web interface?
Ensure your computer's IP address is in the same subnet as the AP (e.g., 192.168.188.x with subnet mask 255.255.255.0). Ping 192.168.188.253 to test connectivity. Clear browser cache and disable proxy settings.
How many virtual SSIDs can I create?
You can create up to 6 virtual SSIDs (3 on 2.4 GHz and 3 on 5.8 GHz) for separate networks with different security settings.
What are the LED indicators and their meanings?
Green LED: Power indicator. Blue LED: WiFi status. The WAN and LAN ports also have built-in LEDs for link/activity indication.
Can I use the device as a gateway with PPPoE?
Yes, select Gateway Mode in the operation mode settings. Choose PPPoE as the WAN access type and enter your ISP credentials (username and password).
What is the maximum number of clients supported?
While not explicitly specified, typical ceiling access points support 30-50 simultaneous connections per band depending on traffic. For performance, consider a wireless controller if managing many APs.

User questions about WL-ICDBG24-051 Mach Power

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Access Point in PDF format for free! Find your manual WL-ICDBG24-051 - Mach Power and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WL-ICDBG24-051 by Mach Power.

USER MANUAL WL-ICDBG24-051 Mach Power

for chosen our product

INDEX

Chapter 1 Hardware and Operation mode Instruction

1.1 LED indicator
1.2 AP Interface
1.3 Power Supply
1.3.1 PoE Adapter Power Supply
1.3.2 Powered by PoE Switch
1.4 Operation Mode
1.4.1 Wireless AP
1.4.2 Wireless Repeater
1.4.3 Gateway
1.5 Connect Wireless AP with PC

Chapter 2 Login

Chapter 3 Quickly Configure Wireless AP

3.1 Gateway Mode
3.2 WiFi Repeater and Station operation configuration
3.3 AP Operation mode
3.4 WISP Operation mode
3.5 Advanced Setting
3.5.1 Device Status
3.5.2 2.4Ghz/5.8Ghz Wireless Setting
3.5.3 Virtual AP
3.5.4 Network setting
3.5.5 Management
3.5.6 Share Internet and Obtain IP address automatically

Chapter 4 Trouble Shooting

Chapter 5 SMB Products

CHAPTER1

HARDWARE AND OPERATION MODE INSTRUCTION

1.1 LED indicator

Green: Power Indicator

Blue: WiFi Indicator

1.2 AP Interface

RST WAN LAN LED DC WAN ○ LAN ○

RST: Reset Button, it make AP revert to default data after press it 15 sec.

WAN: Gigabit WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under Wireless AP and WiFi Repeater operation mode

LAN: Gigabit LAN Port to end users

LED: LED Indicator of WAN port and LAN port

DC: DC power connector

1.3 Power Supply

1.3.1 PoE Adapter Power Supply

The connection diagram showed as P1, internet cable connect to PoE adapter's LAN Port, Ceiling AP's WAN port connect to PoE adapter's PoE Port, then PC will access into ceiling AP through cable or wireless

The PD wireless AP support 48V IEEE 802.3af standard PoE, so PoE adapter should be 48V PoE standard.

Mach Power WL-ICDBG24-051 - PoE Adapter Power Supply - 1

1.3.2 Powered by PoE Switch

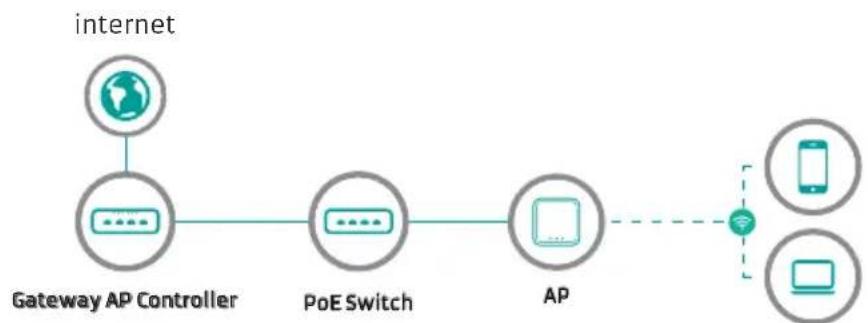

The connection diagram shows as P2, Internet cable from PoE Switch to Ceiling AP's WAN Port, then PC access into ceiling AP wired/wireless. PIs notevthe PD wireless AP support 48V IEEE 802.3af standard PoE, m the PoE switch should comply with 802.3af 48V PoE standard.

Mach Power WL-ICDBG24-051 - Powered by PoE Switch - 1

1.4 Operation Mode

There are three operation mode on this wireless AP:

1.4.1 Wireless AP

Plug&Play to transmit wireless signal for wireless and users from wired networking.

Mach Power WL-ICDBG24-051 - Wireless AP - 1

1.4.2 Wireless Repeater

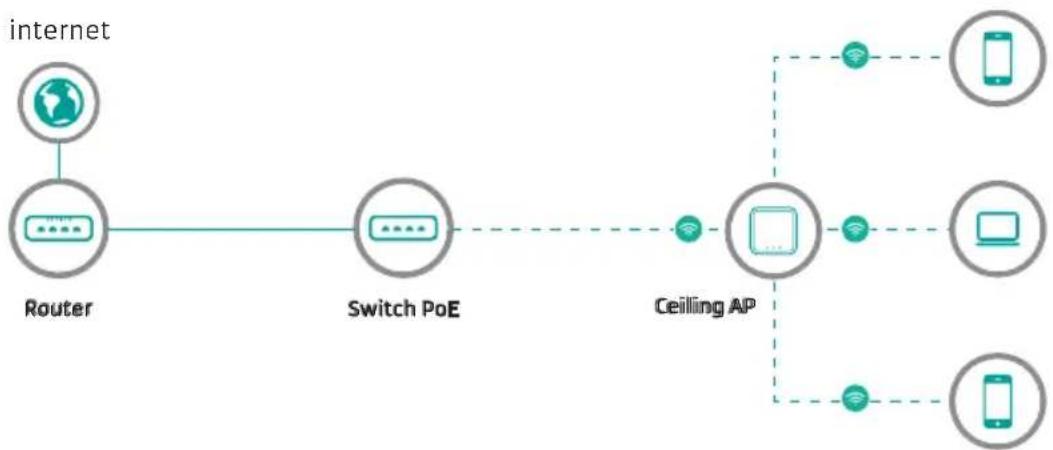

Wireless receiver and transmit, to extend the existing wireless networking for more range.

Mach Power WL-ICDBG24-051 - Wireless Repeater - 1

1.4.3 Gateway

Supply WAN connection from DSL, Cable MOdem or broadband mobile phone network through PPPoE, Static, IP, Dynamic IP.

Mach Power WL-ICDBG24-051 - Gateway - 1

1.5 Connect Wireless AP with PC

Use can connect the PC with wireless AP by Wireless SSID and LAN cable: The diagram of wireless connection showed as follow:

Pls note: the default SSID is WirelessAP, SSID's password is 66666666

Mach Power WL-ICDBG24-051 - Connect Wireless AP with PC - 1

The diagram of LAN cable connection showed as follow:

Mach Power WL-ICDBG24-051 - Connect Wireless AP with PC - 2

CHAPTER2

LOGIN

  1. Connect the Ceiling AP with computer
  2. Configure the PC

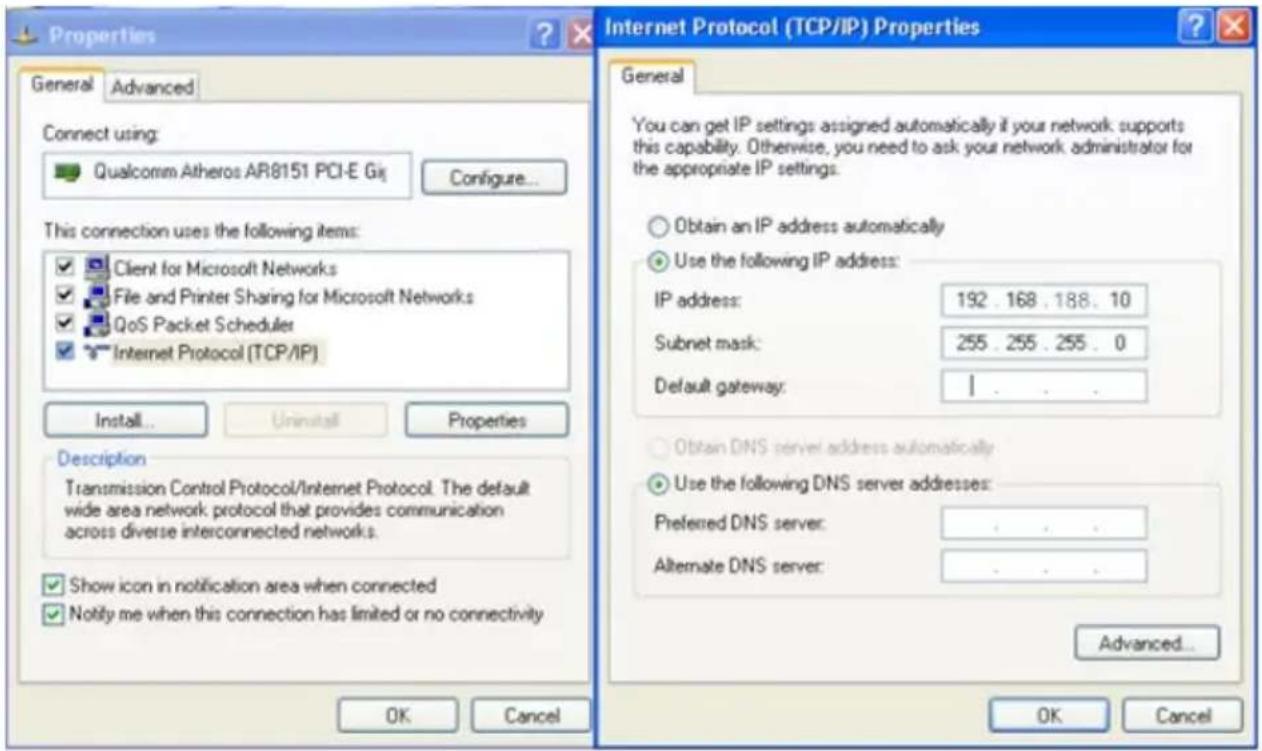

Configure the PC's local connection IP address as 192.168.188.X (X is number from 2 to 254), subnet mask is 255.255.255.0, follow the next

image.

Properties General Advanced Connect using: Qualcomm Atheros AR8151 PCI-E Gi Configure... This connection uses the following items: Client for Microsoft Networks File and Printer Sharing for Microsoft Networks QoS Packet Scheduler Internet Protocol (TCP/IP) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected Notify me when this connection has limited or no connectivity Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 188 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: | Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel OK Cancel

  1. Input 192.168.188.253 into IE browser, then pop up the login page, the default login user name: Admin, Passwords: admin, pls do following the next image

Windows admin OK Cancel

  1. After login, then Device Status will be showed; This page will show the AP's default operation mode, channel, con-

nection status, CPU usage, Wireless settings, LAN Setting, AP's Location, CPE's hardware/firmware version

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP Device Status Cathaway Mode Repeater Mode AP Mode WRSP Terminal AP Switch Operation Mode:AP Mode LAN Interface Setup IP Address 192.168.188.253 MAC Address 28 AC:67 XX XX XX Location Information

Advanced Advanced Ti/Power mode Super Mode CPU Frequency:520MHz System Memory:512M CPU Usage 2% Memory Usage 41% AP Location AP Name 2.4GHz Status WLAN Status Enabled Client Table Client Number[ 0 ] SSD iRail-Baton Encryption Open Channel Number 6 5.8GHz Status WLAN Status Enabled Client Table Client Number[ 0 ] SSD Mach-Power_5G Encryption Open Channel Number 44 Software Version: MAC 10.0-829160422182954 System uptake: 6Day 0H 15M 430

CHAPTER3

QUICKLY CONFIGURE WIRELESS AP

3.1 Gateway Mode

Click "Gateway Mode" under following picture and choose the right WAN access type, then input the right SSID, Channel, key as like.

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP Device Status Gateway Mode Repeater Mode AP Mode WISP Advanced ToPower Mode Super Mode CPU Frequency 520MHz System Memory 512M CPU Usage:2% Memory Usage:11% Gateway Mode(Basic structure of the network graph) WAN Access Type WAN Access Type Dynamic IP PPPOE(ADSL) User Name Password 2.4Ghz Basic SSID (max 32 characters) Channel 6+2437VHC 2G Wireless analyzer Authentication Open 5.8Ghz Basic SSID (max 32 characters) Channel 5G Wireless analyzer Authentication Open Apply Changes

3.2 WiFi Repeater and Station operation configuration

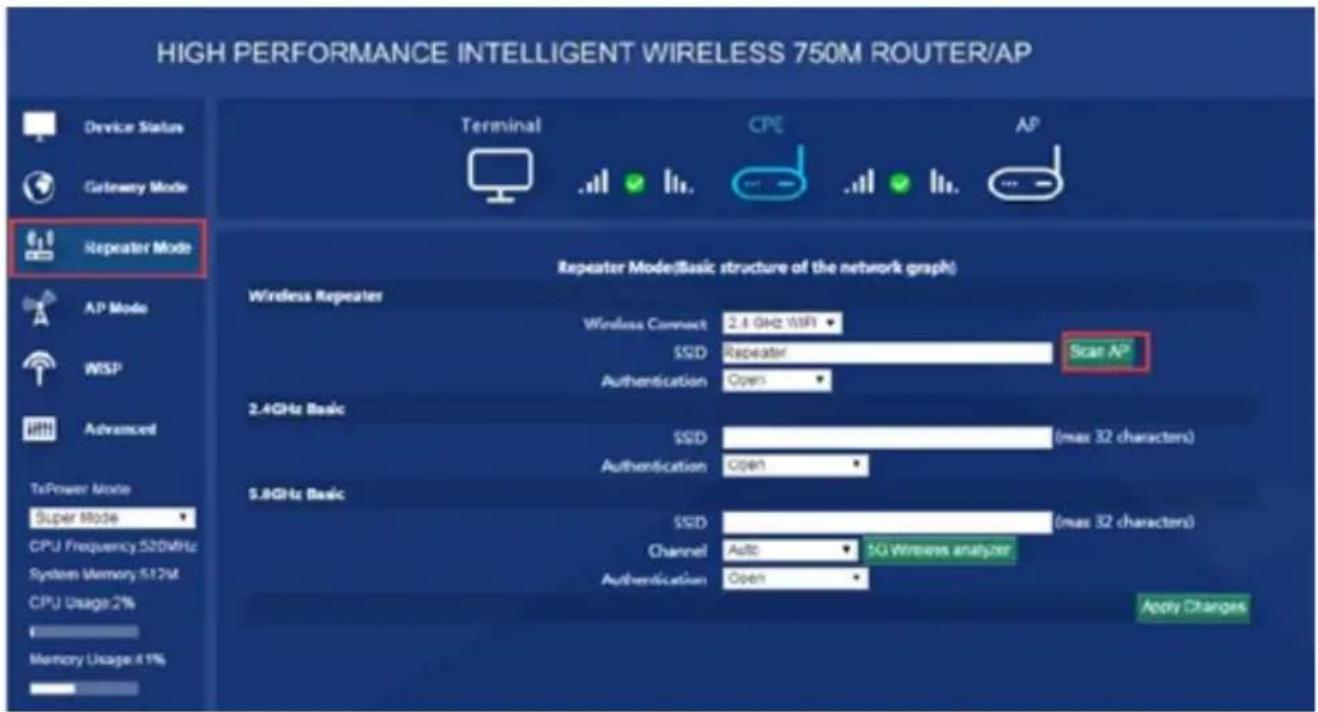

A. Login the Web management page, click “Repeater Mode”, then “Scran AP”

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP Device Status Gateway Mode Repeater Mode AP Mode WISP Advanced TePower Mode Super Mode CPU Frequency 520MHz System Memory 512M CPU Usage 2% Memory Usage 4.1% Terminal CPC AP Repeater Mode (Basic structure of the network graph) Wireless Repeater Wireless Connect 2.8 GHz WiFi SSD Repeater Scan A° Authentication Open 2.4GHz Basic SSD (max 32 characters) Authentication Open 5.8GHz Basic SSD (max 32 characters) Channel Auto 3G Wireless analyzer Authentication Open Apply Changes

B. Select the AP's SSID want to bridge, take WiFi-ZP for example.

Scan AP machpower - 2.4G BSSID:28:AC:67:XX:XX:XX Channel:1 Band:802.11B/G/N Signal(-64dBm) Security(Open) WiFi-ZP BSSID:28:AC:67:XX:XX:XX Channel:11 Band:802.11B/G/N Signal(-64dBm) Security(WPA2-PSK) Wireless 2.4G BSSID:28:AC:67:XX:XX:XX Channel:7 Band:802.11B/G/N Signal(-68dBm) Security(WPA2-PSK) Select AP Select AP Select AP

If your computer can't pop up this window, pls check your IE explorer and see whether it is blocked already. And if this Wireless AP can't scan any SSID, pls check if there are 5G wireless signal.

C. input the AP's key, and apply changes

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP Device Status Gateway Mode Repeater/ Mode A/P Mode RESP Advanced Terminal CPE AP Repeater Mode(Basic structure of the network graphs) Wireless Repeater Wireless Connect 2.4 GHz INF1 SMD Multi-Power Scan A* Authentication: WHA2 PSE Cipher Sails: TROP ACS Key: 300864666

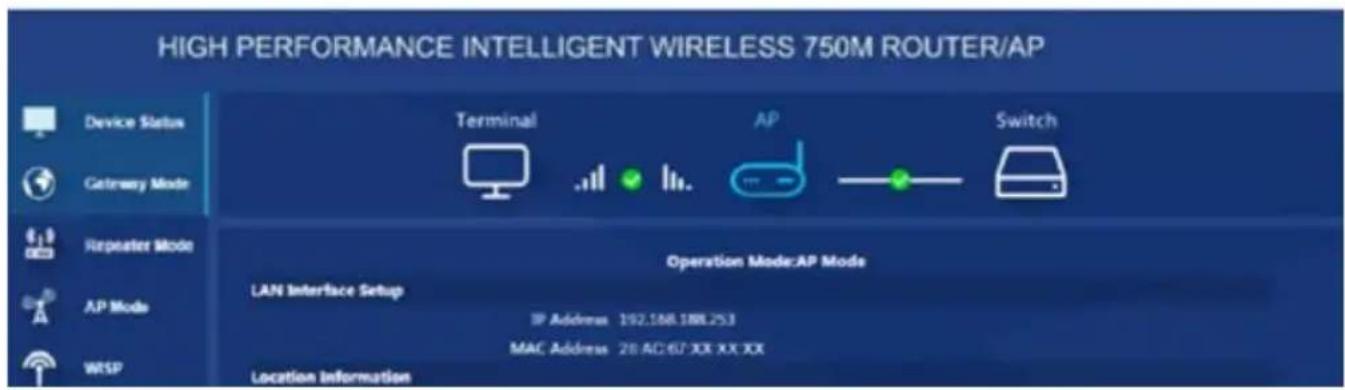

3.3 AP Operation mode

Choose the AP operation mode, AP Location as well as the wireless basic settings for the 2.4Ghz and 5.8Ghz,

Then apply;

Gateway Mode Repeater Mode A/P Mode WISP Advanced TriPower Mode Super Mode CPU Frequency 520MHz System Memory 512M CPU Usage 0% Memory Usage 30% Location Information 2.4GHz Basic AP Mode(Basic structure of the network graph) AP Location AP Name SSD Test-2.4G (max 32 characters) Channel B - 2437MHz ZG Wireless analyzer Authentication WPA/WPA2-PSK Cipher Suite TKIP AES TKIP/AES Key 80000660 5.8GHz Basic SSD Test-5.8GHz (max 32 characters) Channel Auto 5G Wireless analyzer Authentication WPA/WPA2-PSK Cipher Suite TKIP AES TKIP/AES Key 80000660 Apply Changes

3.4 WISP Operation mode

Click WISP operation mode in Wizard, then will pop up the configure page, pls set the WISP operation mode based on the stepes showed in picture:

Then the device were in WISP mode, users can check the details under status;

WISP WISP (Basic structure of the network graph) WAN Access Type WAN Access Type Dynamics IP PPPOE(ADSL) Dynamics IP PPPOE(ADSL) User Name Password Wireless Repeater Wireless Connect 2.4 GHz WiFi SSDD Scan AP Authentication WPA2-PSK Cipher Suite TCPP AES Key 3.4GHz Basic SSDD Test 2.4G (max 32 characters) Authentication WFAWPA2-PSK Cipher Suite TCPP AES TCPP/AES Key 96056666 3.8GHz Basic SSDD Test 5.8GHz (max 32 characters) Channel Auto SG Wireless analyzer Authentication WFAWPA2-PSK Cipher Suite TCPP AES TCPP/AES Key 96056666

3.5 Advanced Setting

In advanced setting, user can check the ceiling AP's firmware version, working status, 2.4G/5.8Ghz wireless, LAN Status, upgrade firmware, Reset.

3.5.1 Device Status

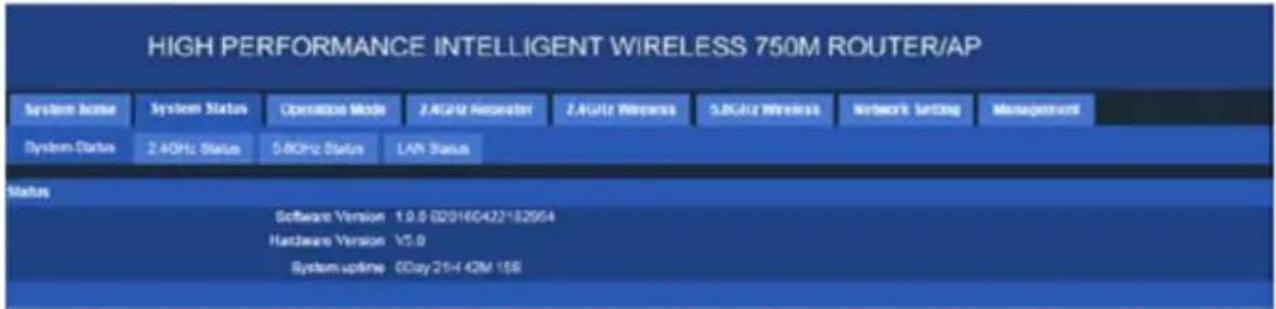

This page will show basic parameters for this unit, like firmware version, hardware version, etc;

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP System Status System Status Operating Mode Z-Autri Wireless Z-Autri Wireless S-UTri Wireless Network Setting Management System Status 2.4GHz Status 5.8GHz Status LAN Status Status Software Version 1.9.9 020160422182904 Hardware Version V5.9 System uptime 0Day-21H 42M 158

3.5.2 2.4Ghz/5.8Ghz Wireless Setting

On this page, users can configure the basic wireless settings freely

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP System home Systems Status Operation Mode 2.4GHz Doppler 3.4GHz Wireless 5.8GHz Wireless Network Setting Management 2.4GHz Band 2.4GHz Virtual AP 2.4GHz Access Control 2.4GHz Advanced Wireless Basic Settings Status Disabled Enabled Mode 6P SSID Test-2.4G (max 32 characters) Band 802.11/6/PGN Broadcast SSID Disabled Enabled WMM Disabled Enabled Channel Channel Width 20MHz Channel Number 6 - 2437MHz 20 Wireless analyzer Security Authentication VPA/VPA/A2/PSK Cipher Suite TKIP AES TKIP/AES Key 90000000 Apply Changes

3.5.3 Virtual AP

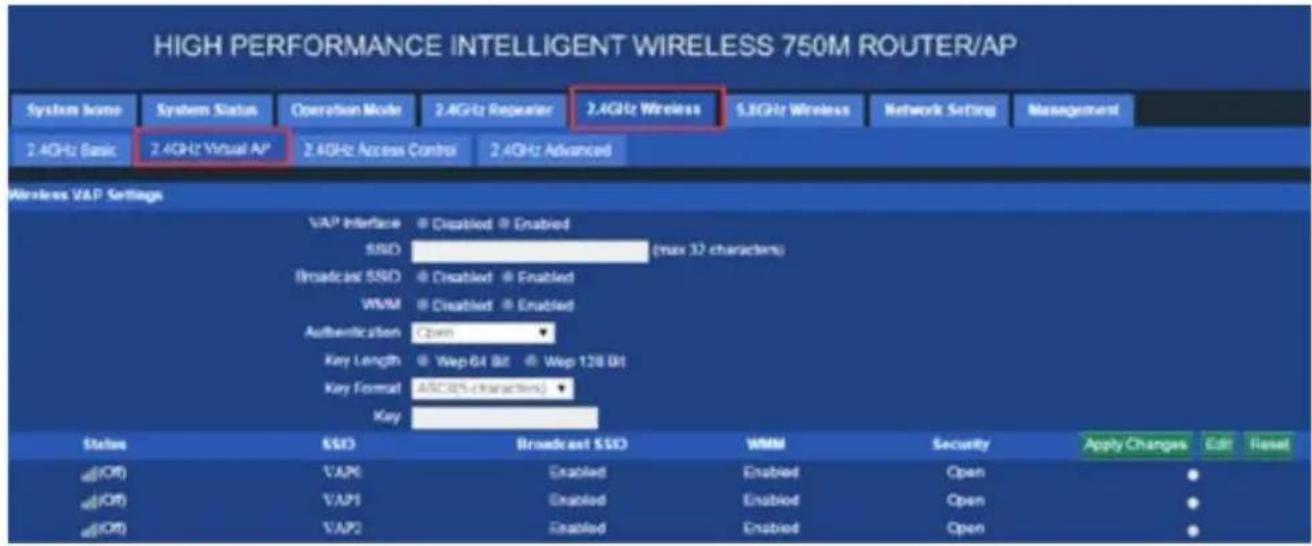

There are 3 virtual AP in 2.4Ghz and 5.8Ghz individually, (total 6 virtual AP), if need virtual SSID, then users can configure basic settings

showed in following picture:

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP System Home System Status OPERATION MODE 2.4GHz Repeater 2.4GHz Wireless 5.3GHz Wireless Network Setting Management 2.4GHz Basic 2.4GHz Virtual AP 2.4GHz Access Control 2.4GHz Advanced Wireless VAP Settings VAP Interface # Disabled # Enabled SSD (max 32 characters) Broadcast SSD # Disabled # Enabled WMM # Disabled # Enabled Authentication Open Key Length Wep-64 Bit Wep 128 Bit Key Format ABCRTS-characters Key Status SSD Broadcast SSD WMM Security Apply Changes Edit Reset #(Off) VAP6 Enabled Enabled Open #(Off) VAP1 Enabled Enabled Open #(Off) VAP2 Enabled Enabled Open

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP System home System Status Operation Mode 2.4GHz Repeater 2.4GHz Wireless 5.8GHz Wireless Network Setting Management 5.8GHz Basic 5.8GHz Virtual AP 5.8GHz Access Control 5.8GHz Advanced Wireless VAP Settings VAP Interface ● Disabled ● Enabled SSID (max 32 characters) Broadcast SSID ● Disabled ● Enabled WMM ● Disabled ● Enabled Authentication Open Key Length ● Wsp 64 Bit ● Wsp 128 Bit Key Format ASCBOS Characters ● Key Status SSID Broadcast SSID WMM Security Apply Changes Edit Reset Off VAP0 Enabled Enabled Open ● Off VAP1 Enabled Enabled Open ● Off VAP2 Enabled Enabled Open

3.5.4 Network setting

In this page, users can set up the basic LAN setting

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP System Name System Status Operation Mode 7.4GHz Wireless 5.8GHz Wireless Network Setting Management LAN Interface LAN Interface Setup Access Type Fixed IP IP Address 192 168 168 253 Submit Mask 256 256 255 0 Management Server IP 192 168 168 1 DHCP Server ● Disabled ● Enabled DHCP Client Range 192 168 168 1 -192 168 168 254 Lease Time(sec) 85420 (330-86400) Apply Changes

3.5.5 Management

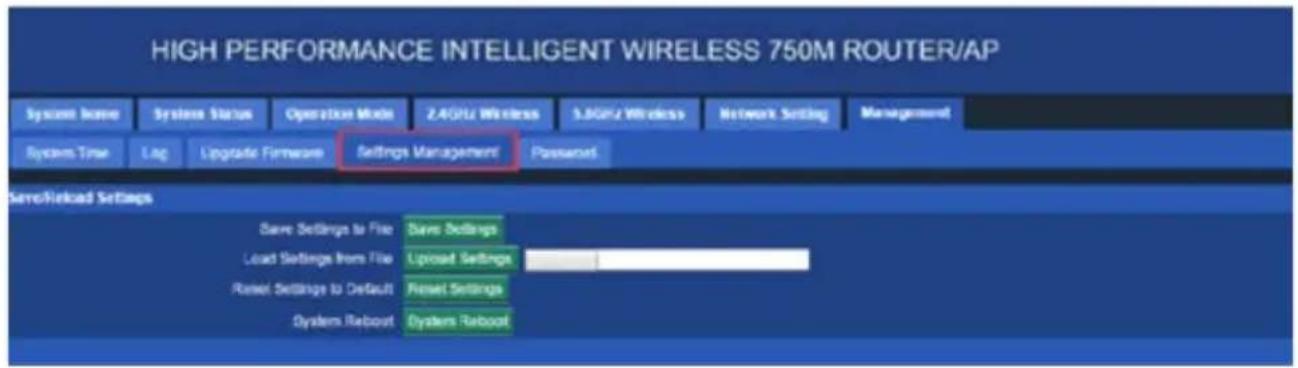

In this part, show the system time, Logs, upgrade firmware, system, user info.

And we show System time, how to upgrade firmware, as well as Log-in username/password modification;

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP System Name System Status Operation Mode 2.4GHz Wireless 5.8GHz Wireless Network Setting Management System Time Log Upgrade Features Settings Management Password Time Zone Setting Current Time 1930-01-01 00:11:18 Sync with host Time Zone Select (GMT=25.39)Bombau, Calcuta, Madras, New Delhi Enable NTP client update NTP Server Inita windows dots $0.3.6 (Manual IP Setting) When device running at $100 Automatic reboot Apply

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP System home System Status Operation Mode 2.4GHz Wireless S.8GHz Wireless Network Setting Management System Time Log Upgrade Firmware Settings Management Password System Log system.log Disabled Enabled Remote Log Server Apply Refresh Clear

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP Systems Image System Status Operation Mode 2.8GHz Wireless 3.8GHz Wireless Network Setting Management System Time Log Upgrade Firmware Settings Management Password Upgrade Firmware Firmware Version 1.0.0-620160422182954 Select File Upgrade Note: As not power off the service charging the updated because it may switch the website

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP System Name System Status Operation Mode 2.4GHz Wireless 3.8GHz Wireless Network Setting Management System Time Log Upgrade FirmwareSettings Management Passort Serv/Reload Settings Save Settings to File Save Settings Load Settings from File Upload Settings Reset Settings to Default Reset Settings System Reboot System Reboot

HIGH PERFORMANCE INTELLIGENT WIRELESS 750M ROUTER/AP System home System Status Operation Mode 2.4GHz Wireless 5.8GHz Wireless Network Setting Management System Time Log Upgrade Firmware Settings Management:Password Password Setup: User Name New Password Confirmed Password Apply

3.5.6 Share Internet and Obtain IP address automatically

Set computer's TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will obtain the IP address from router or base station to get Internet.

Status General Support Connection Status Duration Speed Activity Set Packets Properties Properties General Advanced Connect using Qualcomm Atheros A/80151 PCHC Gx Configure... This connection uses the following items: Client for Microsoft Networks File and Printer Sharing for Microsoft Networks Grid Packout Software Internet Protocol (TCP/IP) Install... Unavailable Properties Description Transmission Control Protocol/Internet Protocol. The default wide area-network protocol that provides communication status diverse interconnected networks. Show icon in notification area when connected Notify us when this connection has linked or no connectivity Internet Protocol (TCP/IP) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: Default mode: Default priming: Obtain DNS server address automatically Use the following DNS server addresses: Fixed DNS server: Alternate DNS server: Advanced... OK Cancel OK Cancel

CHAPTER4

TROUBLE SHOOTING

The Failure phenomenon and solution

Failure phenomenon Solution
SYS Indicator offPls make sure the PoE module connection is right. POE Port connect with AP, LAN port connect with computer
Can’t land to Wireless AP through Web pagePls check the IP address of computer and Wireless AP to see whether they are in same networking segment, The method is click “start”-“Run” “input”“cmd”,ping 192.168.188.253 to test the Wireless AP connectivity. Reset Wireless AP and load it again; Pls make sure the IP address 192.168.188.253 is not occupied by other device in Wireless AP’s networking; Check computer and cable problem, recommend to use 10/100M UTP unshielded cable; Clean up Arp binding from “Start”-“Run” input“cmd” arp -d Clean the IE Brower’s temporary files and Cache file;
Wireless AP can’t connect with AP (the status display unconnected)Try to scan the avaliable wireless networking again;Make sure the Wireless AP’s wireless standard is correct;(2.4Ghz signal should connect 2.4Ghz, 5.8Ghz signal should connect 5.8Ghz signal);The Security and passwords are matched between Wireless AP and AP;The signal strength of AP is too weak to connect, should be more than -75dBm;
Can’t scan the wireless APScan it several times more;If using 5Ghz to scan, please make sure there are 5G signal existed.Reset the Wireless AP, scan it again after Wireless AP restart;
The connection of Wireless AP and AP is success, but the computer can’t share internetPls Check the computer’s IP address and DNS setting. If it is dynamin, set the network card as automatically obtain. If it is static IP, pls contact with ISP for correct IP address and DNS address.
How to Reset Wireless APPress the “Reset” button more than 15 seconds after power on.The Wireless AP will restore factory default after the Wireless AP restart.

CHAPTER5

SMB PRODUCTS

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 1
WL-AC5250-047

NETWORK CONTROLLER PER WIRELESS AP

SUPPORTA E GESTISCE

FINO A 200 AP

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 2

natural_image Simple cloud icon with a green outline, no text or symbols present

WL-ICDBG24-051

IN CEILING DUAL BAND ACCESS POINT

5GHz / 2.4GHz

750Mbps

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 3

natural_image Circular white object with a small dark mark on its surface (no text or symbols visible)

WL-ICNAP48-052

IN CEILING

ACCESS POINT

2.4GHz

300Mbps

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 4

natural_image Circular object with a small green arrow symbol on its surface, no text or symbols present.

WL-ICNAP24-053

IN CEILING

ACCESS POINT

2.4GHz

300Mbps

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 5
WL-IWNAP24-054

ACCESS POINT

2.4GHz

300Mbps

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 6
WL-ICDBG48-050

IN CEILING DUAL BAND

ACCESS POINT/ROUTER

5GHz / 2.4GHz

1200Mbps

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 7
WL-CPEDB48-055

OUTDOOR WIRELESS POE48V ACCESS POINT DUAL BAND

5GHz / 2.4GHz

1200Mbps

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 8
WL-APODB48-056

OUTDOOR WIRELESS POE48V ACCESS POINT DUAL BAND

5GHz / 2.4GHz

1200Mbps

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 9
WL-CPE5G48-058

OUTDOOR WIRELESS CPE/ACCESS POINT

5GHz

300Mbps

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 10
WL-CPE5G24-059

OUTDOOR WIRELESS CPE/ACCESS POINT

5GHz

450Mbps

Mach Power WL-ICDBG24-051 - SMB PRODUCTS - 11

natural_image White circular object with a curved line and faint markings, resembling a stylized face or logo (no readable text or symbols)

WL-ICNAP48F-060

IN CEILING

ACCESS POINT

2.4GHz

300Mbps

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Mach Power

Model : WL-ICDBG24-051

Category : Access Point
