USER MANUAL WL-IWNAP48-062 Mach Power

for choosing a product Mach Power®

INDEX

Chapter 1 AP Interface

1.1 Top Side
1.2 Back Side
1.3 Led indicator
1.4 Set the in wall AP into cassette
1.5 Working diagram

Chapter 2 Login

Chapter 3 WEB GUI interface Setting

3.1 Status
3.2 Wizard Configuration
3.2.1 Gateway Mode
3.2.2 WiFi Repeater mode
3.2.3 WISP Operation mode
3.2.4 AP Operatipon mode

3.3 Advanced Setting
3.3.1 Device Status 3.3.2 2.4G Wireless Setting
3.3.3 2G Wireless Analyzer
3.3.4 Virtual AP
3.3.5 2.4G Access Control
3.3.6 Advanced Settings
3.3.7 Network setting
3.3.8 Management

Chapter 4 Share Internet and Obtain IP address automatically

Chapter 5 Trouble Shooting

This is the user manual of 300Mbps In Wall Wireless AP with Qualcomm QCA9531 chipset, which will approximate guide you how to set and apply the In Wall Wireless AP, it provide a convenient graphical interface for network construction and maintenance person, as well as a user through a simple and accurate operation, and configuration management of the in wall wireless access point.

CHAPTER 1

AP INTERFACE

1.1 Top Side
IN WALL AP PCB BOARD BODY Screw holes to fix AP into cassette Reset Button LAN Ports RJ11 Telephone Port LED INDICATORS TOP CASE Open the case from here

1.2 Back Side

RST: Reset Button, it make AP revert to default data after press it 15 seconds.

LAN: LAN Port to end users, like PC, TV

RJ11 port: Telephone port to connect with telephone

LED: LED Indicator to show the working status

WAN: WAN Port, connect with ADSL modem or Internet mainly. It support IEEE 802.3af PoE.

WAN Telephone Cable Terminal

1.3 Led indicator

LEDLED Name LED Status Instruction
Mach Power WL-IWNAP48-062 - Led indicator - 1WiFi LED Light Twinkle WiFi SSID on
[5222]Internet LED Light Twinkle WAN Port work
Mach Power WL-IWNAP48-062 - Led indicator - 2System Status LED Light Twinkle System Run

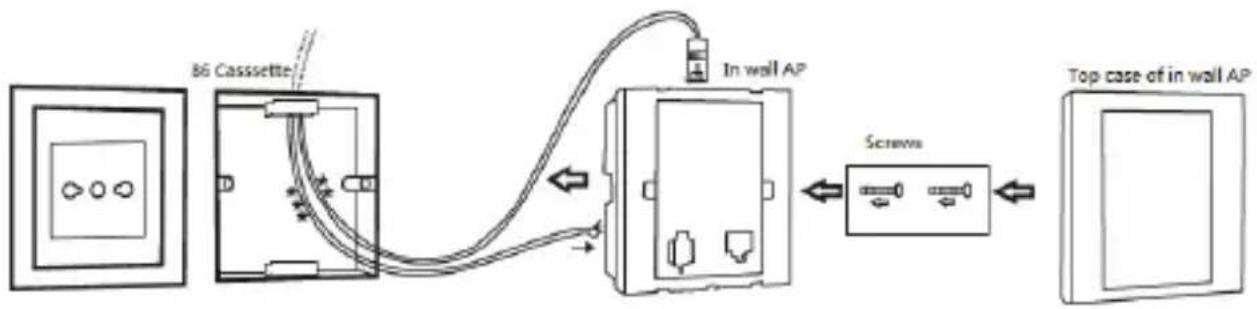

1.4 Set the in wall AP into cassette

Before set the in wall AP into cassette, make sure the cassette's size is 86mm x 86mm Then set the in wall AP as following steps

1.5 Working diagram

In this diagram, please pay attention in following points:

  1. PoE Switch: If AP support 24V Passive PoE, then PoE switch should comply with 24V Passive PoE, if AP support 48V IEEE802.3af/at standard PoE, then PoE switch should comply with IEEE802.3af/at standard PoE.

  2. Recommend to make WLAN Controller to central manage the wireless AP

  3. If end user will do captive portal authentication or accounting, better to make Gateway access into cloud server.

  4. If PC or smart phone connect with wireless AP in WiFi, the SSID is MachPower2.4, default password is 12345678

CHAPTER 2

LOGIN

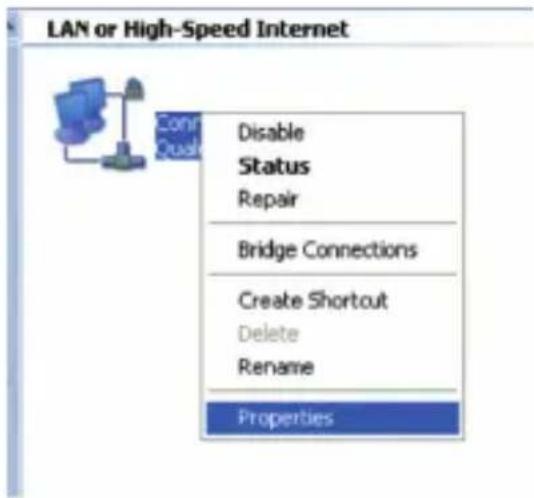

  1. Connect the In Wall Wireless AP with computer in LAN cable
  2. Configure the PC's local connection IP address as 192.168.0.X (X is number from 2 to 254), subnet mask is 255.255.255.0, follow the image1.
  3. Input 192.168.0.254 into IE browser, then pop up the login page, the default login password: admin, then login, please do following image2.
  4. After login, then image3 Device Status will be showed;

This page will show the AP's default operation mode, channel, connection status, CPU usage, Wireless settings, LAN Setting, AP's Location, CPE's hardware/firmware version.

LAN or High-Speed Internet Disable Status Repair Bridge Connections Create Shortcut Delete Rename Properties

Properties General Advanced Connect using QualcommAthens API8152 PC36 Go Configure... File connection uses the following items: Client for Microsoft Networks File and Printer Sharing for Microsoft Networks Get Pack Schedule Internet Protocol (TCP/IP) Install Remove Properties Description Transaktion…

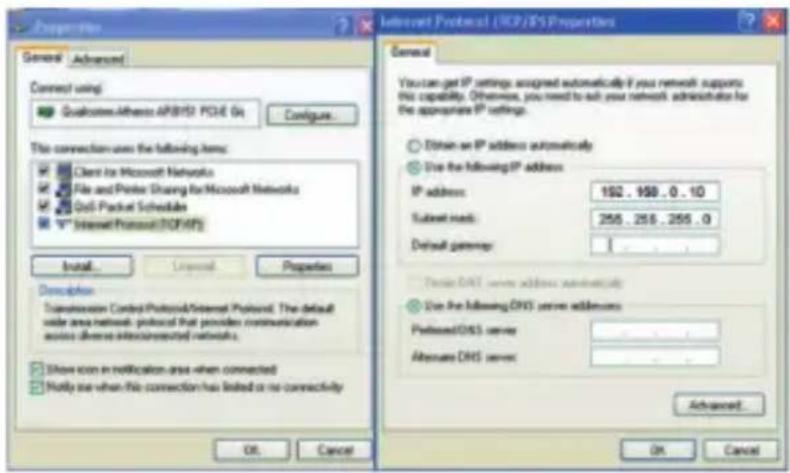

image1: Setting of computer's IP address

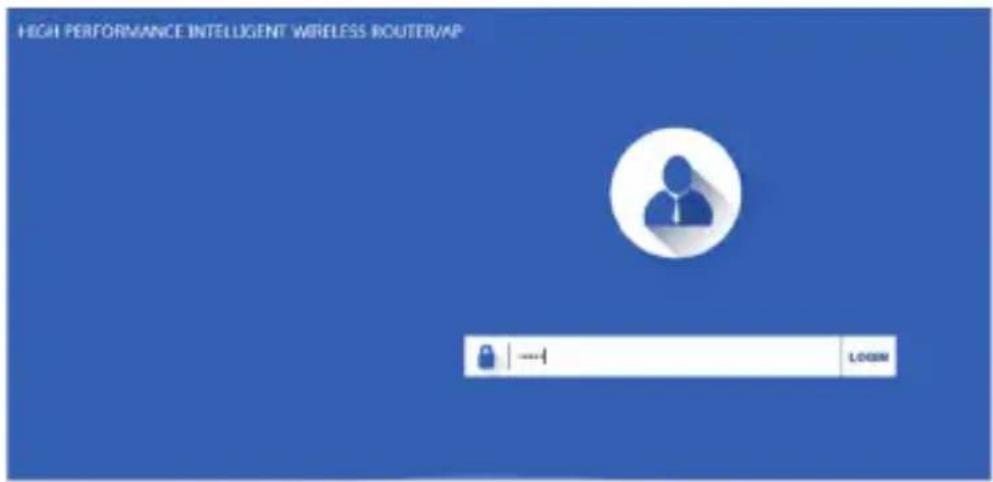

HIGH PERFORMANCE INTELLIGENT WIRELESS ROUTER/AP LOGIN

image2 : Login
Mode AP Mode Channel 11 User AP Switch Running time: 545 Software Version: WIL-MAHAR-062-V1.0-Ru003710271132901 CPU usage 22% CPU Frequency:558MHz Wireless setting 2.4G MultiPower:2.4 20AC:87.93.93.93 LAN setting 102.168.0.254 28AC:87.93.93.93 AP position setting

image3: Device Status

CHAPTER 3

WEB GUI INTERFACE SETTING

3.1 Status

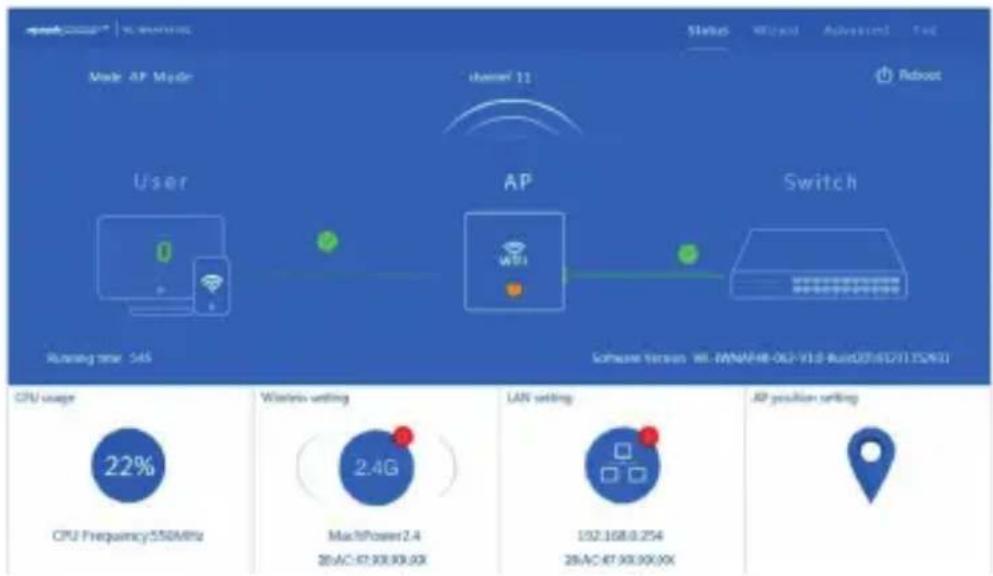

After login, then image5 Device Status will be showed

Mode AP Mode Channel 11 Status Status Advanced Refined User AP Switch Running time: 5%5 Software Device: W: (M764MB DL) V10-800000021C157301 CPU stage 22% CPU Frequency:550MHz Wireless setting 2.4G MachPower2.4 LAN setting 192.168.0.254 28.4C:67.0X.XX.XX UP position setting

image5: Device Status

In this page, show the AP's default operation mode is AP mode, channel is 11, end user QTY of this AP, connection status, CPU usage status...

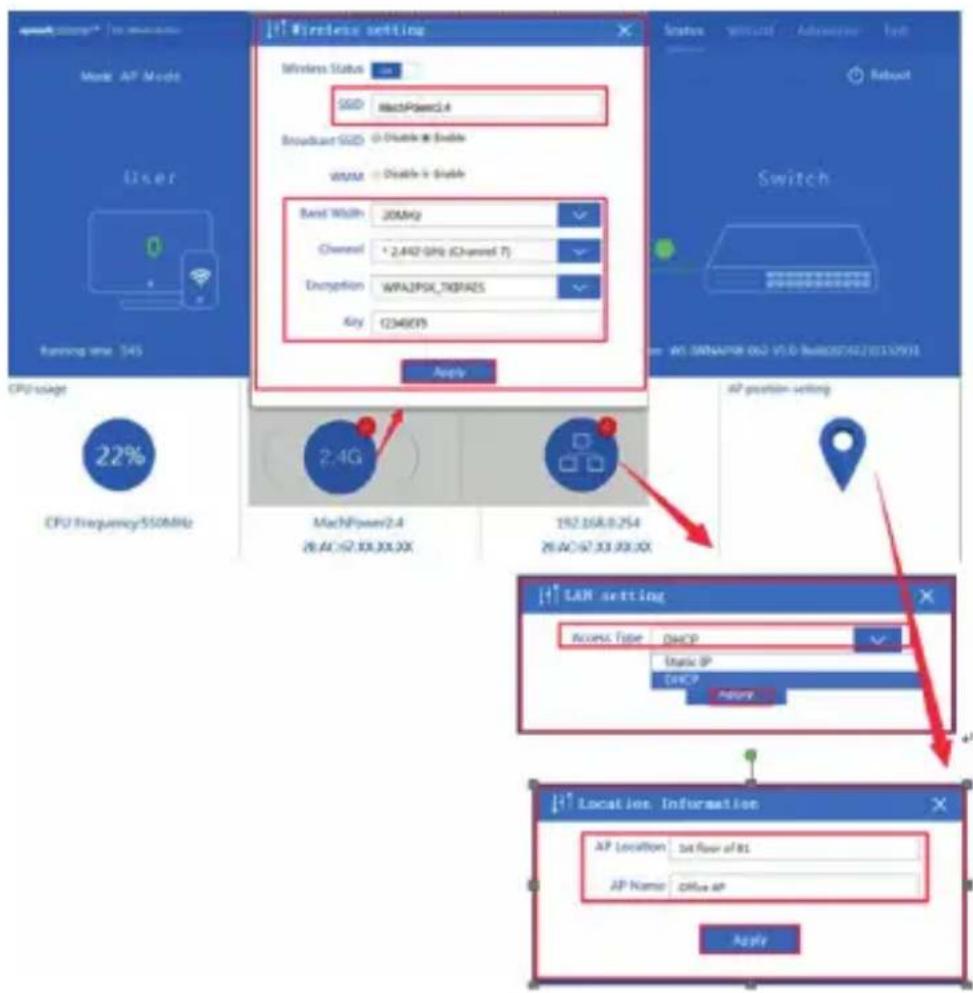

Then in Wireless Setting, GUI configuration page showed as below:

User can configure the SSID, password, band width, channel here, then Apply to finish.

LAN Setting to configure the DHCP or Fix IP

AP location setting: can mark where the AP set up, and AP name as image6:

Wireless setting Wireless Status S6D MacPower2.4 Broadcast S6D Disable it Enable WUM Disable it Enable Band Width: 20AeV Channel: +2.4HZSP (Channel 7) Encryption: WPA2PSL_TK8R2E5 Key: CD46CYS Apply Switch CPU usage 22% CPU Frequency:550MHz 2.4G MachPower2.4 26.4C-67.XX.XX.XX 192.16A-0.254 26.4C-67.X…

image6: Wireless setting, LAN Setting, AP Postion setting

3.2 Wizard Configuration

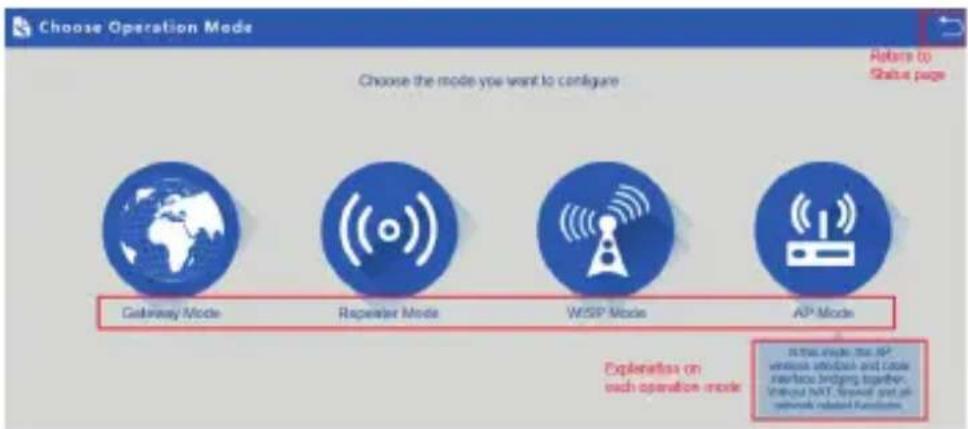

Click Wizard in Status page, will pop up following page to configure the operation mode: There are four operation modes of this in wall wireless AP, and there are explanation for each operation mode for better application.

Choose Operation Mode Choose the mode you want to configure Returns to Status page Gateway Mode Repeater Mode WiSP Mode AP Mode Explanation on each operation mode In this image, the NAT version window and cable network bridging together. Without NAT, wireless port all network related functions.

image7: Operation mode

3.2.1 Gateway Mode

Click Gateway mode, will pop up following pictures:

Please choose the right WAN setting mode, then click next to continue.

Gateway Mode First WAN Settings Second Wireless Third Complete 1st 8MHz IP PPPCE(ADSL) DHCP* 2nd This current access mode is DHCP (Please click next to configure. Next 3rd

image8: WAN setting in Gateway Mode

Gateway Mode First WAN Settings Second Wireless Third Complete Wireless Settings ALAN Status Wireless Settings STATE: MainPower2A Channel: +2.442 GHz (Channel 7) Encryption: WRAJPSK TORRES Key: 12340678 Back Next

image9: Wireless Setting in Gateway Mode

To make the AP in some clear channel, user can click wireless analyzer at first. Picture showed as below:

| Channel | Value | | ------- | ----- | | 1 | 350 | | 2 | 380 | | 3 | 360 | | 4 | 390 | | 5 | 370 | | 6 | 340 | | 7 | 365 | | 8 | 355 | | 9 | 375 | | 10 | 360 | | 11 | 385 | | 12 | 370 | | 13 | 395 | | 14 | 380 | | 15 | 365 | | 16 | 375 | | 17 | 385 | | 18 | 370 | | 19 | 390 | | 20 | 360 | | 21 | 38…

image10: Channel Analysis

When click Next, then will complete the Gateway mode setting and show following picture:

Complete Settings First: WAN Settings Second: Wireless This Complete Congratulate. Settings is completed

image11: Complete the setting in Gateway Mode

When return to Status, the page showed as follow

image12: Status in Gateway Mode

3.2.2 WiFi Repeater mode

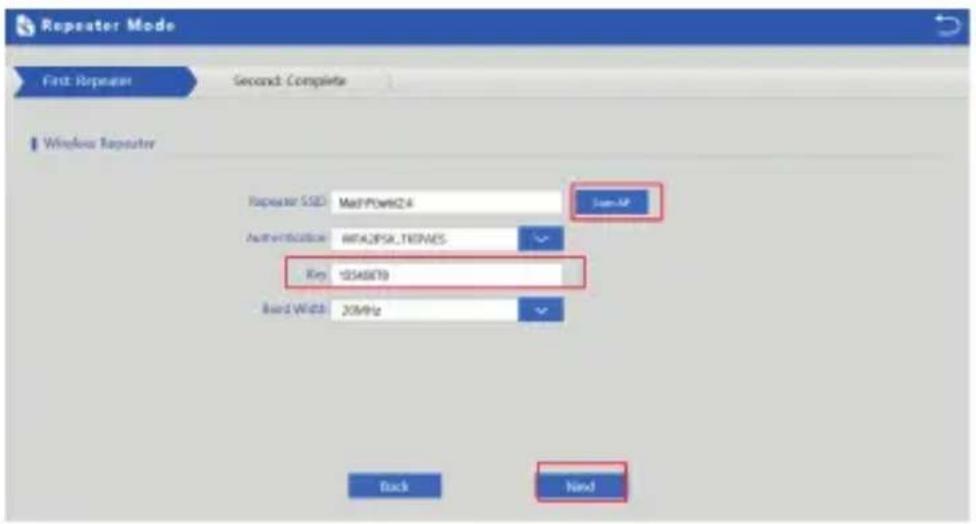

Click WiFi Repeater operation mode in Wizard, then following page will pop up, and choose the right SSID to bridge, then next to complete.

Repeater Mode First Repeater Second Complete Wireless Repeater Repeater SVD: WddPpwk2.4 Authentication: WDAJPSK_108745 File: 12345878 Save AsD: 2019-02 Use of Back Next

image13: Repeater Mode

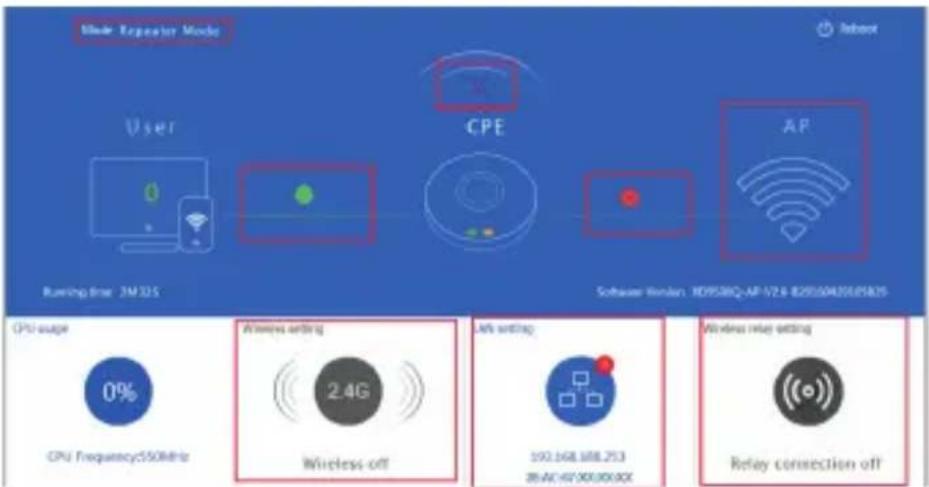

Click Return button, will back to Status, show Repeater mode data, show fail or success, and user can configure this data in this page if required

Mode Expuser Mode User CPE AP Running time: 2M 325 Software Linker: HD9538Q-AP 674-82850435181815 CPU usage 0% CPU Frequency:550MHz Wireless setting 2.4G Wireless off Air setting 192.168.188.253 36.4C/47.00.00.XX Wireless relay setting Relay connection off

image14: Status in Repeater Mode

In wifi repeater operation mode, the default is SSID disable. If want to enable SSID, then click Wireless Setting.

Please note: when click wireless relay setting, following page will pop up, you can make change from here easy:

Repeater Mode First Repeater Second Complete Windows Repeater Registrar SSD MacPode2.4 Login Authentication MPLQPSL,TENES Rep: 0548070 Board WDS 20MHz Back Next

image15: Wireless Relay Setting

3.2.3 WISP Operation mode

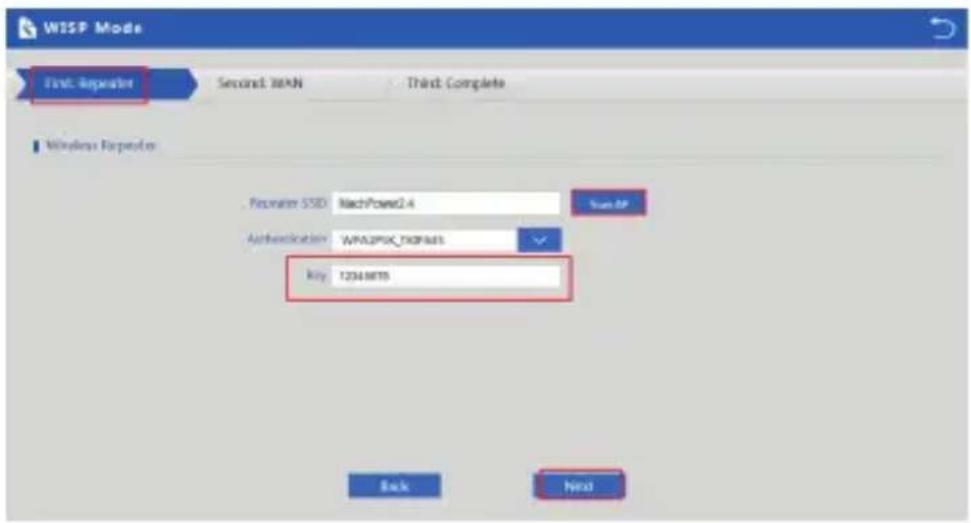

Click WISP operation mode in Wizard, then will pop up the configure page, please set the WISP operation mode based on the stepes showed in picture:

WISP Mode First Repeater Second WAN Third Complete Wireless Repeater Prewater SSD: NachPower2.4 Authentication: WPS2P0K_DSPADS Key: 1204875 Back Next

image16: WISP Mode

Configure the right WAN setting in WISP operation mode, then next to complete
WISP Mode First Repeater Second WAN Third Complete Stop IP RPFOE(ADSL) DHCP IP Address Subject Mean Default Address Primary DNS Back Next

image17: WAN setting in WISP mode

Click WISP operation mode in Wizard, then will pop up the configure page, please set the WISP operation

Mode wISP User Router Internet Running Use: 5M17% Linux Server: WU, SPNAPIB-062-VLD-RUBPSS4G23015783 CPU usage 15% CPU Frequency:550MHz Wireless relay setting Relay connection off LAN setting 192.168.0.254 59.AC:87.XX.XX.XX OECO setting

image18: Status in WISP mode

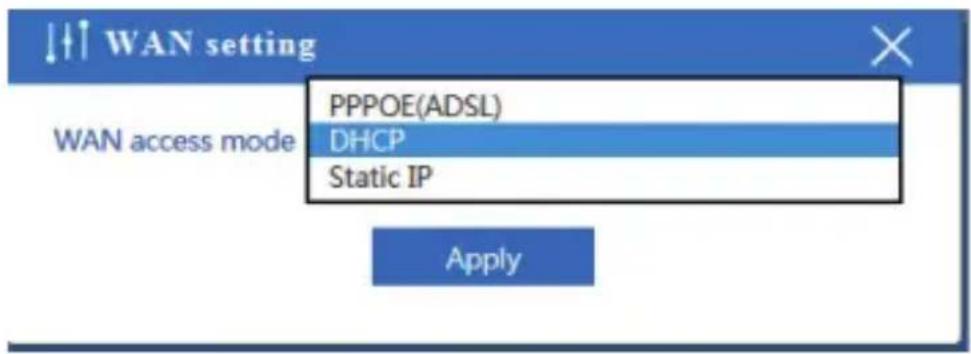

Remark: When click WAN Setting, will pop up following picture

WAN setting PPPOE(ADSL) DHCP Static IP WAN access mode Apply

image19: WAN setting in WISP mode

3.2.4 AP Operatipon mode

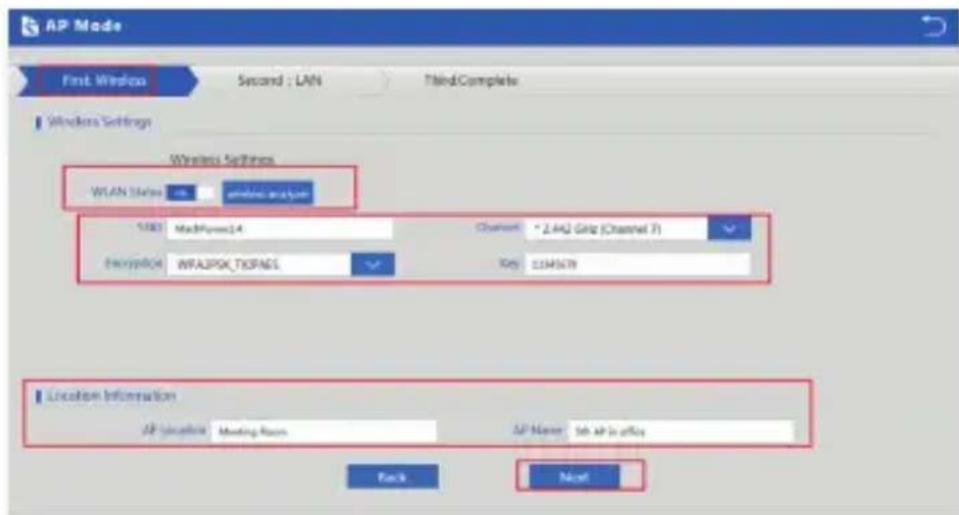

Set the wireless data, AP Location info as required, then click next to continue and enter into LAN setting. After LAN setting, complete the AP mode configuration and back to Status:

AP Mode First Window Second : LAN Third Complete Wireless Settings Wireless Settings Wi-Fi Status: www.azgma.com USB: MacPower14 Channel: 2.4HZ GHz (Channel F) Encryption: WFAIPCK_TKPNES Key: £345678 Location Information AP Location: Meeting Room AP Name: 5th AP in office Back Next

image20: Wireless setting in AP Mode
AP Mode First Wireless Second LAN Inside Complete LAN voting Action Task: Static IP BLOOD None None

image21: LAN Setting in AP Mode

Mode: AP Mode Channel 7 User AP Switch Running time: 1M2.75 Software Version: VL: 36W/48-062 VLD: 20201022T1112STE CPU usage 7% CPU Frequency:550MHz Wireless setting 2.4G MacPower2.4 38/AC:67/00/00.00 LAN setting 192.568.254 38/AC:67/00/00.00 AP position setting Meeting Room 5th AP in office

image22: Status in AP Mode

3.3 Advanced Setting

In advanced setting, user can check the In Wall Wireless AP's firmware version, working status, wireless, LAN Status, upgrade firmware, Reset...

Let's Click Advanced Setting in status page, will show return home, Setup Wizard which we showed before. Let's shown mode in Device Status, Wireless, Network and Management

Advanced Settings Return home Setup Wizard Device Status Wireless Network Management Status Wireless Status LAN Status Status Software Version Hardware Version: V5.0 Uptime: 3M10S

image23: Device Status

3.3.1 Device Status

In this page, mainly to check the In Wall Wireless AP's status in firmware version, Wireless status and LAN status:

Advanced Settings Return home Setup Wizard Device Status Wireless Status LAN Status Wireless Status Wireless Status: Enable SSID: MachPower2.4 MAC: 28:AC: 67:XX:XX.XX Channel: TT Encryption: WPA2PSK_TXPAES Connected Users: 0 Close For

image24: Wireless Status

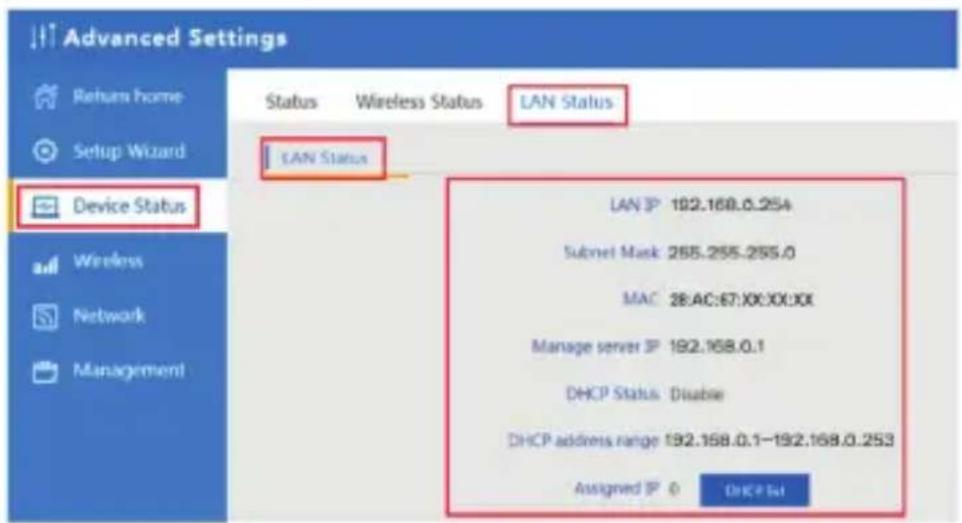

Advanced Settings Return home Setup Wizard Device Status LAN Status LAN IP 192.168.0.254 Subnet Mask 265.255.255.0 MAC 28:AC:67:XX:XX:XX Manage server IP 192.168.0.1 DHCP Status Disabee DHCP address range 192.168.0.1-192.168.0.253 Assigned IP 0 DHCP List

image25: LAN Status

3.3.2 2.4G Wireless Setting

In this part, will show the Basic Setting, Virtual AP, Access control and Advanced Setting:

Return home Setup Wizard Device Status Wireless Network Management Basic Settings Virtual AP Access Control Advanced Settings Wireless Basic Settings Wireless Status wireless analyzer SSD MachPower2.4 Broadcast SSD Disable Enable WMMA Disable Enable Channel Band Width 20MHz Channel * 2.442 GHz (Chan…

image26: Basic Setting in Wireless

3.3.3 2G Wireless Analyzer

Mainly to analyze the AP's singal strength in some channel, to make user more easy to choose the right channel and avoid the wifi interface.

| Channel | Value | | ------- | ----- | | 1 | 100 | | 2 | 80 | | 3 | 60 | | 4 | 40 | | 5 | 20 | | 6 | 10 | | 7 | 5 | | 8 | 2 | | 9 | 1 | | 10 | 0.5 | | 11 | 0.2 | | 12 | 0.1 | | 13 | 0.05 | | 14 | 0.02 | | 15 | 0.01 | | 16 | 0.005 | | 17 | 0.002 | | 18 | 0.001 | | 19 | 0.0005| | 20 | 0.0002| | 21 |…

image27: Wireless Analyzer

3.3.4 Virtual AP

There are 3 virtual AP in 2.4G wireless, if need virtual SSID, then users can configure it showed in following picture:

Advanced Settings Basic Settings Virtual AP Access Control Advanced Settings Setup Wizard Device Status Wireless Network Management Virtual AP* Virtual AP* Virtual AP* Virtual AP* Access Status 100% UAP ISCUCED INFO ○ CREATE ○ CREATE VISA ○ Desktop ○ Desktop Encryption none Apply

image28: Virtual AP

3.3.5 2.4G Access Control

Mainly show MAC allow or deny:

Advanced Settings Basic Settings Virtual AP Access Control Andranized Settings Access Control NBC Access, All MAC Access AP Active Listed Entry Listed New

image29: MAC Access Control

3.3.6 Advanced Settings

In this page, will show the regional, RF Power, Max user access...

Relayes Home Setup Miscard Device Status Wireless Networks Management2 Basic Settings Virtual AP Access Control Anxiavond Settings Advanced Settings Regional Europe Channel(7-13) MODE 802 H4G RF Output Power 100% Packet Threshold 2546 (0-2546) RTS Threshold 2546 (0-2546) Ask Timeout Control 64 (0-25…

image30: Advanced Setting

3.3.7 Network setting

In this page, mainly to show the LAN setting and VLAN as follow:

Advanced Settings LAN Settings VLAN LAN Settings Static IP SHEP Access Type Network Network Management Apply

image31: Network Setting

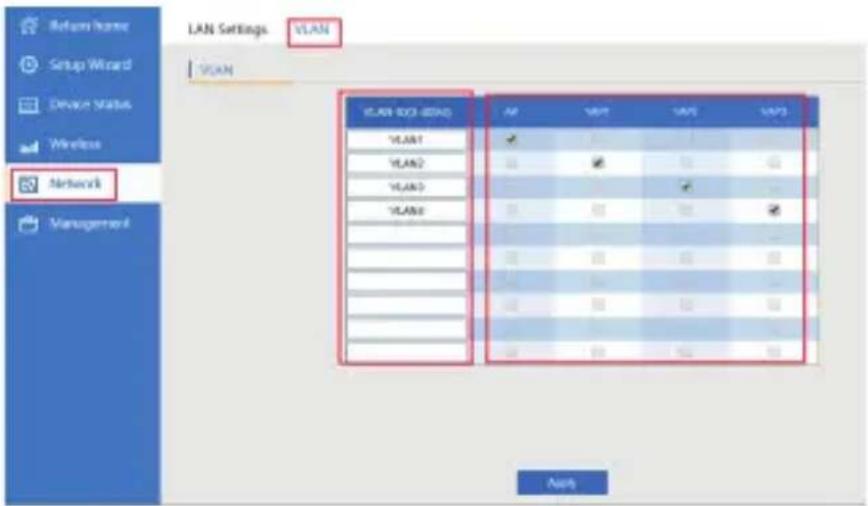

LAN Settings VLAN VLAN VLAN 1001-2001 VLAN1 VLAN2 VLAN3 VLAN4 AV VAP VAP VAP3 Network Management None

image32: Tag VLAN Setting

3.3.8 Management

In this part, show the system time, Logs, upgrade firmware, system, user info. And we show System time, how to upgrade firmware and system page to users:

Advanced Settings System Time 2nd Logs Upgrade Firmware System User System Time System Time: 2016-6-15 15:33:2 4th Begin with host Choose Time Zone Ctrl+ Dublin, Edinburgh London, London NTP Style Show windows.com 3rd Component testing Auto start 23 KB 5th Apply

image33: System Time

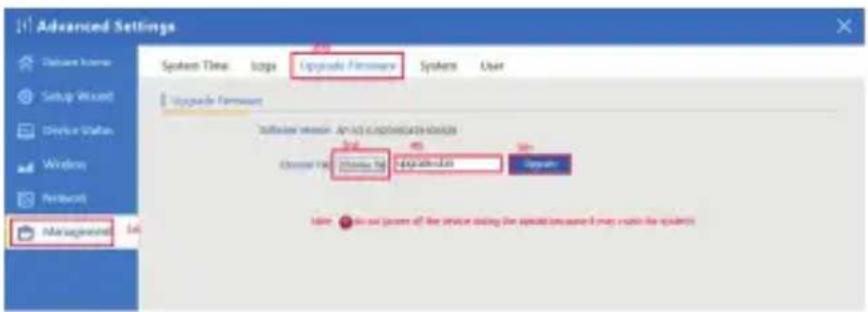

Advanced Settings Options Name Setup Wizard Onshore Station Windows Portfolio Management System Time Images Upgrade Formware Systems User Upgrade Formware Installar version - An iOS 3.02.04.05.06.08.09.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42…

image34: Firmware Upgrade

Advanced Settings System Time Logs Upgrade Firmware System User Save/Reload Settings Backup Backup Restore Canceling Finish Default Default User Setup Exhaust Name Return Home Setup Wizard Device Status Windows Network Management

image35: System info

CHAPTER 4

SHARE INTERNET AND OBTAIN IP ADDRESS AUTOMATICALLY

Set computer's TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed.

The computer will obtain the IP address from router or base station to get Internet

Status General Support Connection Status: Duration Speed Activity Save Packets: Properties Properties General Advanced Connect using Qualcomm athews DRIP in PCH6 File Configure... This connection was the following items: Class: Client or Microsoft Networks File and Printer Sharing for Microsoft Netw…

CHAPTER 5

TROUBLE SHOOTING

The Failure phenomenon and solution:

Failure phenomenon Solution
SYS Indicator off Please make sure the PoE module connection is right. POE Port connect with AP, LAN port connect with computer
Can’t land to Wireless AP through Web pagePlease check the IP address of computer and Wireless AP to see whether they are in same networking segment, The method is click “start”-“Run” input“cmd”, ping 192.168.0.254 to test the Wireless AP connectivity. Reset Wireless AP and load it again; Please make sure the IP address 192.168.0.254 is not occupied by other device in Wireless AP’s networking; Check computer and cable problem, recommend to use 10/100M UTP unshielded cable; Clean up Arp binding from “Start”-“Run” input“cmd” arp -d Clean the IE Brower’s temporary files and Cache file;
Wireless AP can’t connect with AP (the status display unconnected)Try to scan the avaliable wireless networking again;Make sure the Wireless AP’s wireless standard is correct, (2.4Ghz signal should connect 2.4Ghz, 5.8Ghz signal should connect 5.8Ghz signal)The Security and passwords are matched between Wireless AP and AP;The signal strength of AP is too weak to connect, should be more than -75dBm;
Can’t scan the wireless AP Scan it several times more;If using 5Ghz to scan, please make sure there are 5G signal existed.Reset the Wireless AP, scan it again after Wireless AP restart;
The connection of Wireless AP and AP is success, but the computer can’t share internetPlease Check the computer’s IP address and DNS setting. If it is dynamin, set the network card as automatically obtain. If it is static IP, please contact with ISP for correct IP address and DNS address.
How to Reset Wireless AP Press the “Reset”button more than 15 seconds after power on. The Wireless AP will restore factory default after the Wireless AP restart.

Mach Power ® is a registered trademark All Rights Reserved

→ visit our website www.machpower.it

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Mach Power

Model : WL-IWNAP48-062

Category : Access Point
