USER MANUAL WL-APO2G24-061 Mach Power

ACCESS POINT 300MPBS

WL-AP02G24-061

White electronic device with a digital display and mounting bracket (no visible text or symbols)

USER MANUAL

REV.2317

Thanks

for chosen our product

INDEX

CHAPTER 1 Mode instruction

1.1 Router Mode
1.2 HotSpot Mode
1.3 Universal Repeater Mode
1.4 Wireless ISP mode

CHAPTER 2 Launch and login

CHAPTER 3 Wireless connection

CHAPTER 4 Working mode setting

4.1 Quickly set up configure device

4.2 Gateway mode configuration

4.3 Wifi repeater configuration

4.4 AP Mode

4.5 WISP

CHAPTER 4 Advance setting

5.1 System Status
5.2 2.4GHz Wireless
5.3 Network Setting
5.4 Management
5.5 Upgrade firmware

CHAPTER 6 Specification

CHAPTER 7 The Failure phenomenon and solution

CHAPTER 1

MODE INSTRUCTION

1.1 Router Mode

Device can get through ISP/ADSL modem get wired access to fullfil wifi coverage. Connecting type can be PPPOE, PPTP, Dynamic IP and Static IP.

1.2 HotSpot Mode

Turn PoE switch wired access to wireless network emission, sharing network, it's the main mode of hotels, office and tenement layout.

1.3 Universal Repeater Mode

Repeat distal wifi signal, sharing local WLAN. Router/Switch.

1.4 Wireless ISP mode

Wireless ISP client get wireless connecting to wireless base station to fullfil WLAN sharing. The equipment is wireless WAN connection type can be PPPoE, Dynamic IP and Static IP.

CHAPTER 2

LAUNCH AND LOGIN

  1. Choosing power supply mode, choose matched mode based on your local network environment;

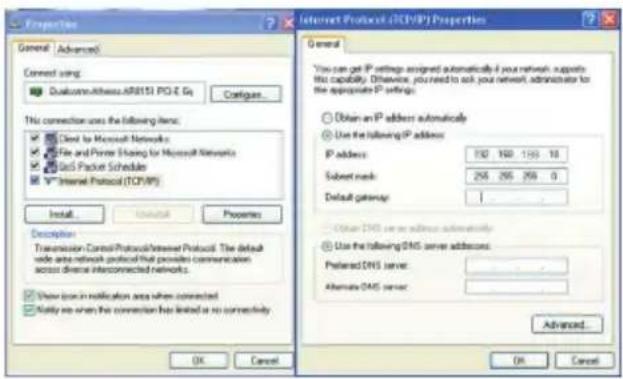

  2. Computer network IP set as manual setting IP add. or automatically getting IP add. Manual setting IP add. of wireless connecting as followings: Configuration PC local connecting IP add. is 192.168.188.X(X is 2-252), get outdoor omni AP as same network segment, subnet mask is 255.255.255.0 as newxt image shows:

Open Explore Map Network Drive... Distrannest Network Drive... Create Shortcut Delete Rename Properties

Internet Protocol (ICPVP) Properties General | Advanced Connect using: QualcommAddress:ARB151 PG-2 Eq Configure... This connection uses the following items: ● Client to Microsoft Networks ○ File and Printer Sharing for Microsoft Networks ○ Get Packet Schedule ○ Internet Protocol (TCP/IP) Install...…

CHAPTER 3

WIRELESS CONNECTION

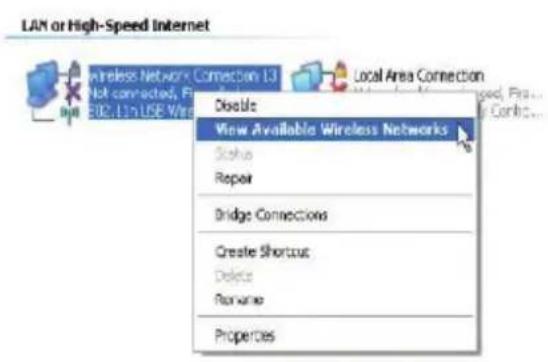

  1. If connecting device via wireless, it should do as step 2. As next image shows, click right-hand button to choose applicable wireless connection, default SSID is Wireless AP, code is 66666666, click top left "refresh network list", the wireless network that searched out will be shown at right side like next image shows, choose the network that you want to connect in, input password to fullfil wireless connecting.

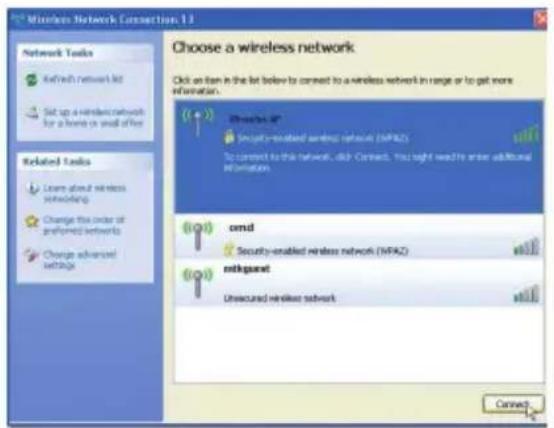

LAM or High-Speed Internet Wireless Network Connection 13 Local Area Connection Not connected, F: E02.1m USE Wire Dislike View Available Wireless Networks Status Repair Bridge Connections Create Shortcut Delete Repair Properties

Wireless Network Connection 1.3 Network Tools Kettech network kit Set up a wireless network for a home or small office Related Tools Learn about wireless networking Change the order at preferred networks Change advanced settings Choose a wireless network Click an item in the bit below to connect to…

  1. Use IE explorer visit http://192.168.0.254, it will popup the login in entering, default entering

user name: admin

password: admin

CHAPTER 4

WORKING MODE SETTING

4.1 Quickly set up configure device

Once login web will get as newxt image shows, you will see the basic info. of this device,

such as SSID, working mode, channel, software version, hardware version, systemrunning time, etc. then configuration can be done by your own. Default mode is AP mode, quickly setting to configure these devices is as followings.

4.2 Gateway mode configuration

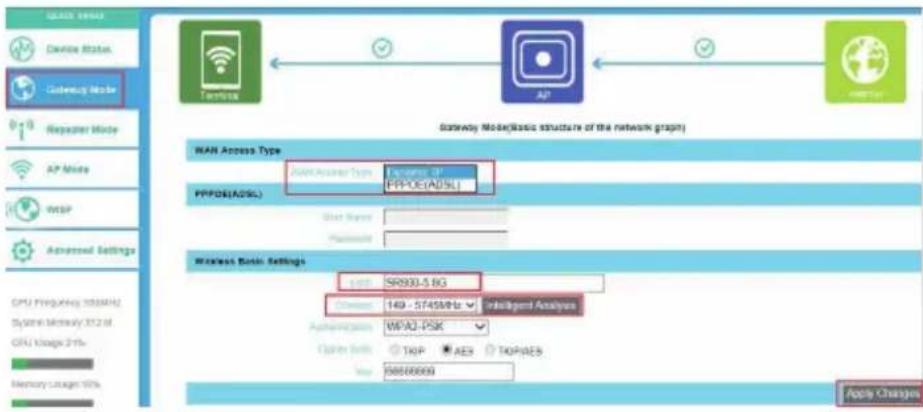

Entering quickly-setting page, then choose ADSL as following next image shows, choosing dynamic IP or PPPOE(ADSL), then you can change SSID, channel, key, etc.

Dynamic IP customer: In WAN settings choosing dynamic IP, after changing wireless settings and click application, choose to confirm in the popup interface.

PPPOE user: In WAN settings choose ADSL, then input correct user name and password and apply. After patient waiting for system restart, set up computer's IP add, to automatically get, then you can connect in internet.

Gateway Mode(Logic structure of the network graph) WAN Access Type Joint Accuracy Type IPPOE(ADSL) PPFOS(ADSL) User Name: Password: Wireless Disk Settings API: SR900-5 BG Device: 149 - 5745MHz Authentication: WFA2-PSK Open Bus: TCPF AES TCPRES Key: 58666666 Apply Changes

4.3 Wifi repeater configuration

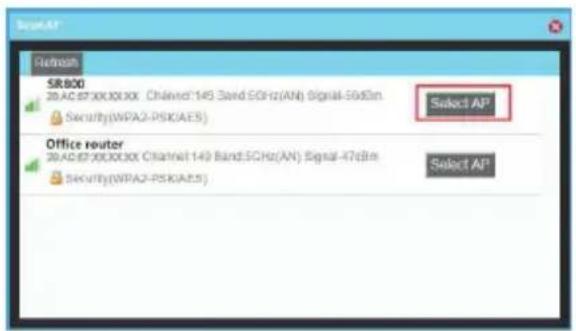

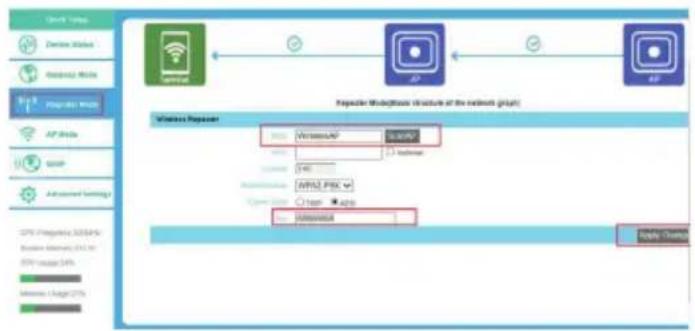

a. Login the Web management page, click "Repeater Mode", then "Scan AP"
b. Select the AP's SSID want to bridge, take SR800-2.4G for example.
c. input the AP's key, and apply changes

Smart TV Device Manager Bluetooth Music Program Files AP Drive SPOP Automated Settings Windows Reposer Microsoft/IP 32.0MPV USB 416 AIF52.PRC C++ 1 port App Microsoft

SRS800 26.AG:87.XXX.XX Chained:149 Band.SGHz(AN) Signal-56dBm Security(WPA2-PSKIAES) Office router 26.AG:87.XXX.XX Channel:149 Band.SGHz(AN) Signal-47dBm Security(WPA2-PSKIAES) Select AP Select AP

d. In Repeater Mode, the SSID is disable in default setting, it work as Station; if need SSID broadcast in this mode, just manual to change under Advanced Settings, click sure in this part to finish the repeater operation mode setting. After this step, can click the Device status to check the status of this Wireless AP. And it will show Wireless AP's LAN Interface, WLAN status and Sigbal Strength.

4.4 AP Mode

Click wifi coverage as newxt image shows, Plug and Play to transmit wireless signal for wireless end users form wired networking. In this part, user can mark the AP's location and name for easy problem checking. Then can change SSID, Key, Channel as request. Waiting for system reboot, once finished, do as chart 5 shows, set computer's IP address as automatically get, then you can use internet normally.

Table Time Service Status Gateway Status Security Status AP User AS IP Automatic Settings CPU Performance Monitoring System Security 372.04 ASP http://168.com/ ATI Network structure of the network group. Location Information AP Location: AP Name: Wireless Port Settings DNS: WirelessAP Protocol: 7 -…

4.5 WISP

In this operation mode, user should confirm the WAN access type at first, then set the SSID, key, Channel as request.

AP AP AP20000000 ASP Access Type ASP Access Type Dynamic IP ADO(ADSL) ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP ASP

CHAPTER 5

ADVANCE SETTING

5.1 System Status

Click "Advance Settings", will show system status, such as firmware version, System uptime.

Quick Setup System Status Operation Mode 2.4GHz Wireless Network Setting Management System Status 2.4GHz Wireless Status LAN Status Status: Firmware Version: V1.1-V5.3-B20150509023952 Build Time 20150509023952 System time: 0Day OH 4M 43S

5.2 2.4GHz Wireless

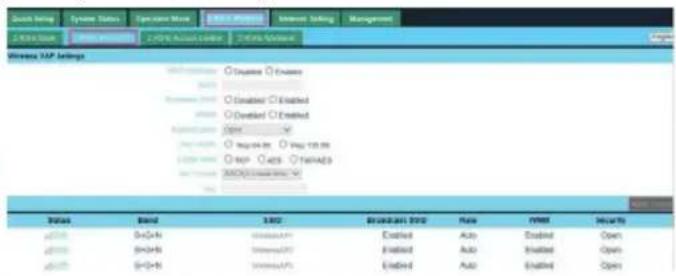

In this part, use can scan AP's SSID, disable or enable AP's SSID, modify Channel, Security.

Build Size System Name Categories Name Application Resource setting Management Parameters Basic Settings Create Output Parameters? Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output Output O…

Quick Setting System Status Operator Name TCP Settings Internet Setting Management 2.0% Data 3.0% Data 4.0% Actual Code 5.0% Address Windows TCP Settings TCP Connection ○ Connection ○ Address ○ Connection ○ Enabled ○ Connection ○ Enabled ○ Connection ○ Open ○ Request ID ○ Help ID ID ○ Help ○ Access…

5.3 Network Setting

LAN Interface Setup mainly showed as follow

Quick Setup System Status Operative Mode 2.6GHz Wireless Network Setting Management LAN Interface LAN Interface Setup Access Type: Fixed IP FloatS

5.4 Management

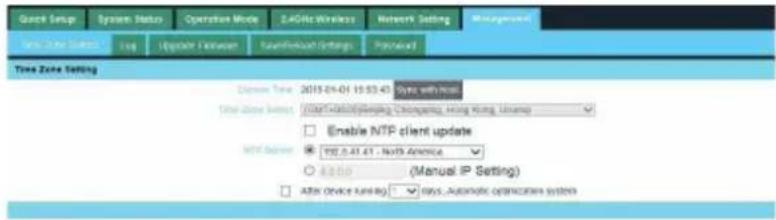

In this part, user can set Time zone, show Log info, upgrade firmware, change login user name and password;

Quick Setup System Status Operation Mode ZAGITc Wireless Network Setting Management Type: Time Zone Log Upgrade Between Raw/Rebuild Settings Protocol Time Zone Setting Duration Time 2015-04-01 15:53:43 System with URL Time Zone Settings Start/Start/Initiating Disksampling, Hsiang Wang, Unisup Enable…

5.5 Upgrade firmware

Quick Setup System Status Operative Mode Z-4CHz Wireless Network Setting Management Take Zure Settings Log Save/Default Settings PlayAuto Upgrade Provider VMware Season: V5.1-VS.3-620150209023932 Build Date: 2015039123152 Setup File: Browse Upgrade Notes: do not power off the device during the uploa…

After finish firmware upgrade, pls click Save/Reload Settings, then reset settings to default.

Quick Setup System Status Operation Mode 2.4GHz Wireless Network Setting Background Text Name Setting Log: Upgrade From Pass Continuous Path Password RawMethod Settings Save Settings to File Load Settings from File Spread Settings to Default Reset Settings System Method System Method

CHAPTER 6

SPECIFICATION

Item Parameters
Transmission rate 300Mbps
Built-in MIMO antenna Built-in 5dbi omni antenna
Function <10W
Power adapter <12V(POE 24V)/1A)
Size (mm) 260L x 87W x 54H
Weight (g) 645
LED light Power Button: Always light means function well
Wifi simbol: Twinkle means 2.4G signals functions well
LAN: Always light means LAN port connecting well
WAN: Always light means LAN port connecting well
Facility port 2 x 10/100Mbps Rj45 port (support 12-24V POE power supply)
1 x reset button, recover factory defalt using
1 x DC Jack, 12V local power supply

CHAPTER 7

THE FAILURE PHENOMENON AND SOLUTION

Failure phenomenon Solution
Failure phenomenonPls make sure the PoE module connection is right. POE Port connect with AP, LAN port connect with computer
Can't land to Wireless AP through Web pagePls check the IP address of computer and Wireless AP to see whether they are in same networking segment, The method is click "start" - "Run" input "cmd" ping 192.168.188.253 to test the Wireless AP connectivity. Reset Wireless AP and load it again; Pls make sure the IP address 192.168.188.253 is not occupied by other device in Wireless AP's networking; Check computer and cable problem, recommend to use 10/100M UTP unshielded cable; Clean up Arp binding from "Start" - "Run" input "cmd" arp -d Clean the IE Brower's temporary files and Cache file
Wireless AP can't connect with APTry to scan the avaliable wireless networking again, Make sure the Wireless AP's wireless standard 1b/g/n, 2.4G is correct The Security and passwords are matched between Wireless AP and AP The signal strength of AP is too weak to connect, should be more than -75dBm
Can't scan the wireless APScan it several times more. Make sure there are 5G signal existed. Reset the Wireless AP, scan it again after Wireless AP restart
The connection of Wireless AP and AP is success, but the computer can't share internetPls Check the computer's IP address and DNS setting. If it is dynamin, set the network card as automatically obtain. If it is static IP, pls contact with ISP for correct IP address and DNS address.
How to Reset Wireless APPress the "Reset" button more than 15 seconds after power on. The Wireless AP will restore factory default after the Wireless AP restart.
