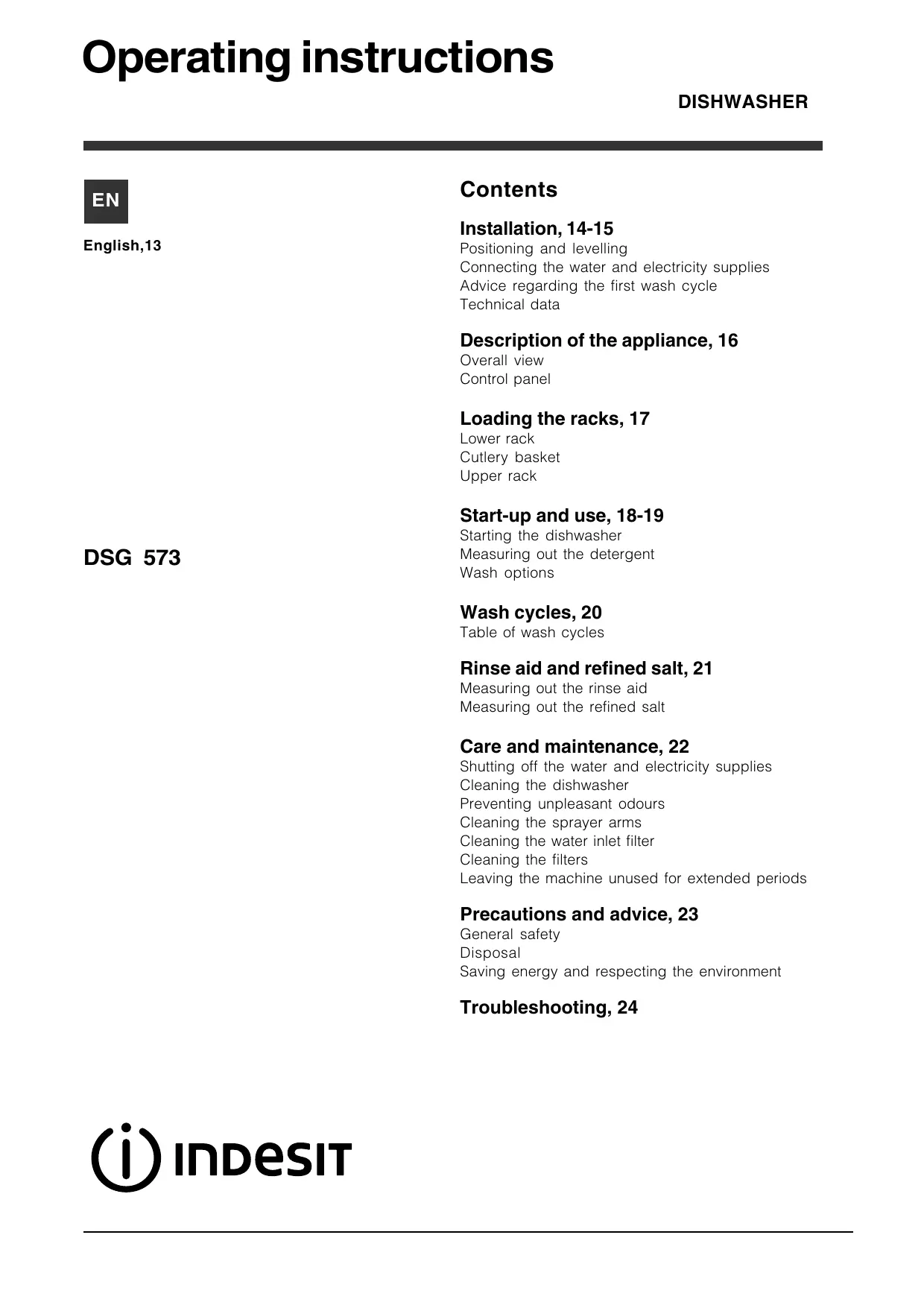

USER MANUAL DSG573, DSG573NX, DSG 573 INDESIT

Technical diagram showing pipe installation components with labeled parts A and a dimension annotation of 40 cm

Labeled diagram of a refrigerator interior with numbered parts for identification

Technical line drawing of a multi-layered structural framework with grid reinforcement (no text or symbols)

Illustration of two woven baskets with handles and a hand holding a tool, no text or symbols present

Technical line drawing of two bicycle rear seats with directional arrows indicating movement (no text or symbols)

Cesto superiore

Three technical line drawings of a multi-tiered mechanical or electronic component assembly (no text or symbols visible)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Technical line drawing of a mechanical assembly with hands and a highlighted component (no text or symbols)

Two identical line drawings of a storage tray with circular and rectangular compartments, no text or symbols present.

Technical line drawing of two household appliances with household items and fixtures (no text or symbols)

Diagram of a kitchen appliance with labeled parts and directional arrows indicating parts of the device.

Illustration of a birdhouse interior with a hand holding a tool, showing no text or symbols

Mechanical assembly diagram showing a hand pressing a cylindrical component onto a baseplate (no text or symbols visible)

Positioning and levelling

Connecting the water and electricity supplies

Advice regarding the first wash cycle

Technical data

Description of the appliance, 16

Overall view

Control panel

Loading the racks, 17

Lower rack

Cutlery basket

Upper rack

DSG 573

Start-up and use, 18-19

Starting the dishwasher

Measuring out the detergent

Wash options

Wash cycles, 20

Table of wash cycles

Rinse aid and refined salt, 21

Measuring out the rinse aid

Measuring out the refined salt

Care and maintenance, 22

Shutting off the water and electricity supplies

Cleaning the dishwasher

Preventing unpleasant odours

Cleaning the sprayer arms

Cleaning the water inlet filter

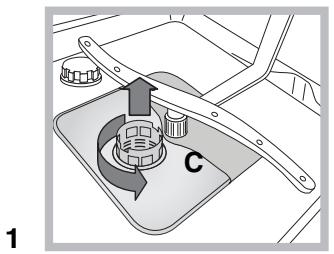

Cleaning the filters

Leaving the machine unused for extended periods

Precautions and advice, 23

General safety

Disposal

Saving energy and respecting the environment

Troubleshooting, 24

Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.
Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance.
If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

Positioning and levelling

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.
2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent cabinets or even with the wall. This appliance can also be recessed under a single worktop* (see the Assembly instruction sheet).
3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position. If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.
   4 ^ . Adjust the height of the rear foot from the front of the appliance ^ on the central lower part of the dishwasher, turning a hexagonal spanner (red color) with an opening of 8 mm in a clockwise direction to increase the height or in an anticlockwise direction to decrease the height.

Connecting the water and electricity supplies

Connection to the water and electricity supplies should only be performed by a qualified technician.
The dishwasher should not stand on top of the water hoses or the electricity supply cable.
The appliance must be connected to the water supply network using new hoses. Do not use old hoses.

The water inlet (A) and outlet (B) hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation (see figure).

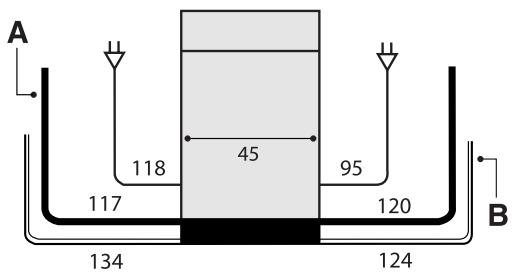

A 118 45 95 117 120 B 134 124

Connecting the water inlet hose

• To a suitable cold water connection point: before attaching the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a 34 gas threaded connection.
• To a suitable hot water connection point: your dishwasher may be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60^ C.

Screw the hose to the tap as described for connection to a cold water supply.

If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance).
The water pressure must be within the values indicated in the Technical data table (see adjacent information).
The hose should not be bent or compressed.

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.

Some models are also equipped with the supplementary safety device New Acqua Stop ^* , which guarantees anti-flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be cut as it contains live electrical parts.

Connecting the water outlet hose

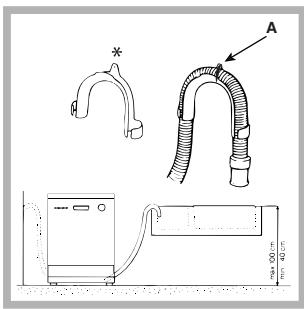

Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Alternatively, rest it over a sink or tub; the free end of the hose should not remain immersed in water.

Technical diagram showing pipe installation components with labeled parts A and B, including a 40 cm height dimension.

The special plastic elbow ^* makes it easier to find the best layout: fix the elbow to the wall securely in order to prevent the outlet hose from moving and spilling the dirty water. The part of the hose marked with the letter A should be between 40 and 100 cm above the ground (see figure).

We advise against the use of hose extensions.

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

• The socket is earthed and complies with current regulations.
• The socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door (see chapter entitled Description of the appliance).
• The power supply voltage falls within the values indicated on the data plate on the inside of the door.
• The socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug (see Assistance); do not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply is able and the electrical socket should be easily accessible.

The cable should not be bent or compressed.

If the power supply cable is damaged, it must be replaced the manufacturer or its Technical Assistance Service in order to prevent all potential hazards. (See Assistance)

The Company shall not be held responsible for any dents that occur if these regulations are not observed.

Anti-condensation strip\*

After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form.

Advice regarding the first wash cycle

After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with water and add only then approximately 1 kg of salt (see chapter entitled Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. Select the water hardness value (see chapter entitled Rinse aid and refined salt). - After the salt has been poured into the machine, the LOW SALT indicator light* switches off.

If the salt container is not filled, the water softener and the ting element may be damaged as a result.

Technical data
Dimensions	width 45 cmheight 85 cmdepth 60 cm
Capacity	10 standard place-settings
Water supply pressure	0,05 ÷ 1MPa (0.5 ÷ 10 bar)7,25 psi – 145 psi
Power supply voltage	See appliance data plate
Total absorbed power	See appliance data plate
Fuse	See appliance data plate
	This dishwasher conforms to the following European Community Directives:-2006/95/EEC dated 16/01/2007(Low Voltage) and subsequent modifications-89/336/EEC dated 03/05/89(Electromagnetic Compatibility)and subsequent modifications-97/17/EC (Labelling)-2002/96/ CE Waste Electricaland Electronic Equipment(WEEE)

Only available in selected models.

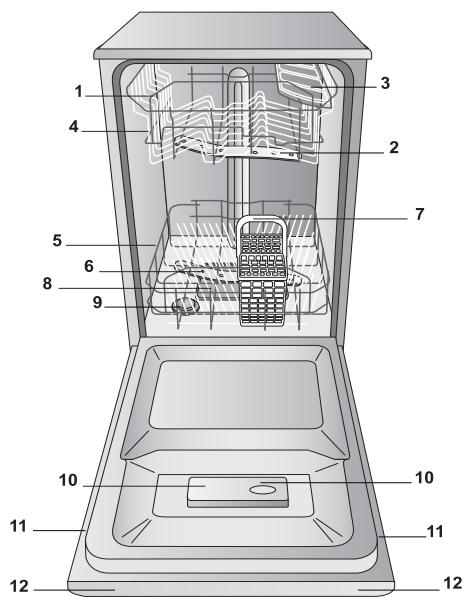

Overall view

Labeled diagram of a refrigerator interior with numbered parts for identification

1. Upper rack
2. Upper sprayer arm
3. Tip-up compartments
4. Rack height adjuster
5. Lower rack
6. Lower sprayer arm
7. Cutlery basket
8. Washing filter
9. Salt dispenser
10. Detergent and rinse aid dispensers
11. Data plate
12. Control Panel***

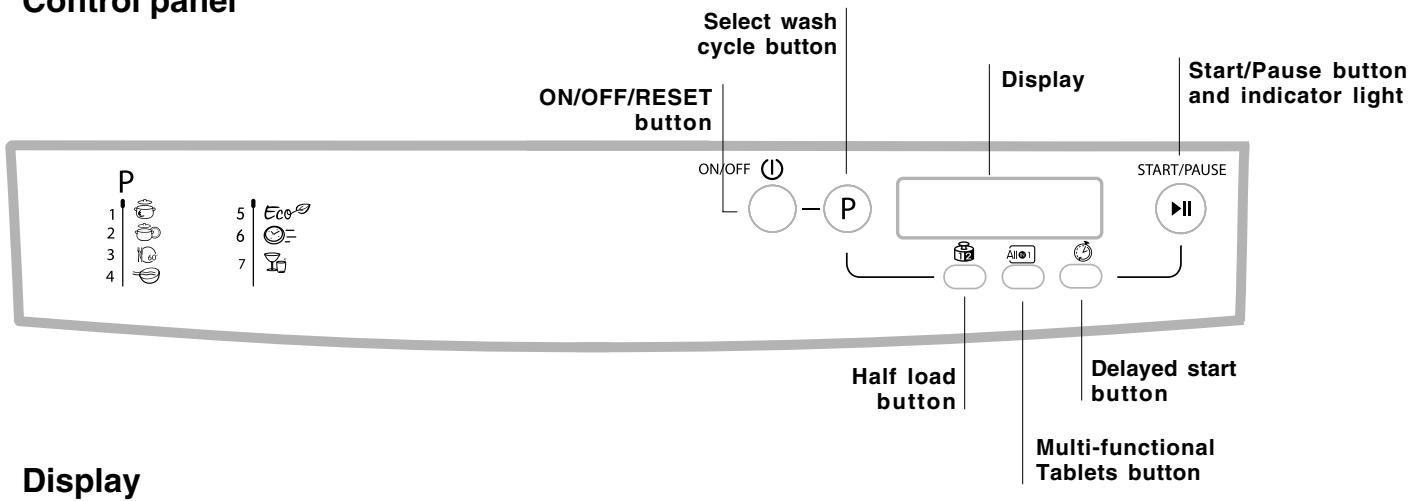

Control panel

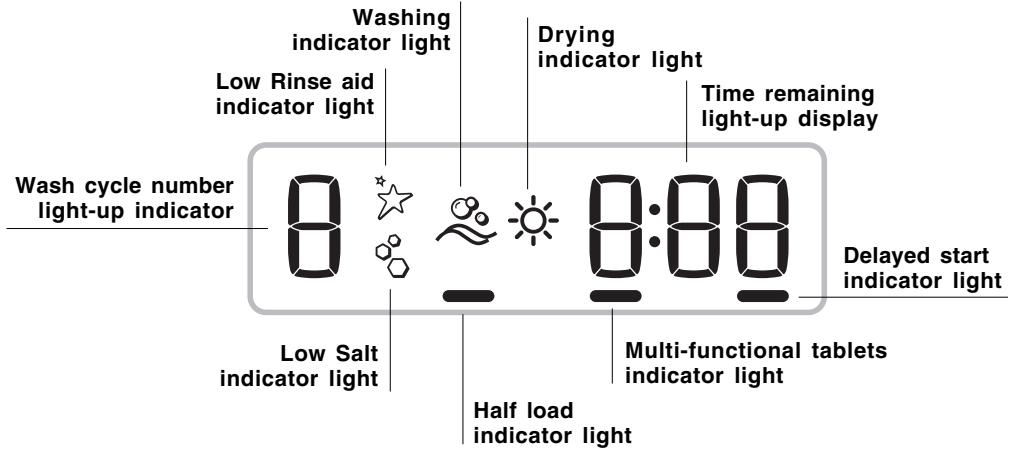

Control panel Select wash cycle button ON/OFF/RESET button Display Start/Pause button and indicator light P 1 5 Eco 2 6 3 7 4 ON/OFF (①) P START/PAUSE Half load button Delayed start button Multi-functional Tablets button Display

Washing indicator light Drying indicator light Low Rinse aid indicator light Time remaining light-up display Wash cycle number light-up indicator 0 0:00 Delayed start indicator light Low Salt indicator light Multi-functional tablets indicator light Half load indicator light

*** Only in completely built-in models.
* Only available in selected models.
The number and type of wash cycles and options may vary depending on the dishwasher model.

Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and cups. Arrange the crockery so that it is held in place firmly and does not tip over.

After loading the appliance, check that the sprayer arms can rotate freely.

Lower rack

The lower rack can hold pans, lids, plates, salad bowls, cutlery, etc. as seen in the Loading examples.

Plates and large covers should be placed at the sides of the rack, ensuring that they do not block the rotation of the upper sprayer arm.

Line drawing of a wireframe basket structure with no text or symbols

Some dishwasher models are fitted with tip-up sections ^* , which can be used in a vertical position when arranging plates or in a horizontal position when arranging pans and salad bowls.

Cutlery basket

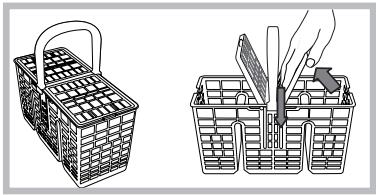

The type of cutlery basket may vary according to the dishwasher model: The cutlery basket should be positioned at the front of the lower rack, by sliding it between the fixed inserts, or on the upper rack when the half load option has been selected (in models featuring this option).

Illustration of two woven baskets with handles and a hand holding a tool, no text or symbols present

- It has a collapsible sliding system which means the cutlery can be arranged in the best possible way.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards, or they must be positioned horizontally in the tip-up compartments on the upper rack.

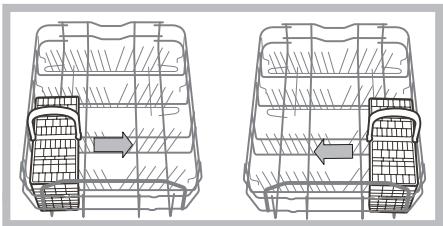

Cutlery basket positioning examples

Technical line drawing of two vehicle rear seats with grid patterns and directional arrows indicating movement (no text or symbols)

Upper rack

Load this rack with delicate and lightweight crockery: glasses, tea and coffee cups, saucers, small salad bowls, saucepans and small saucepans which are not too soiled, using the Loading examples as a guide.

- Mugs and cups, long sharp knives and serving utensils: place these on the tip-up compartments **.

Tip-up compartments with adjustable tilt

- The tilt feature can be used to increase the space in the upper rack, to position wine glasses with different stem lengths safely and to improve drying performance.

Tilt A

Tilt B

Tilt C

-Lift the tip-up compartment, slide it gently and position it in the desired tilt angle.

Adjusting the height of the upper rack

In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower level.

The height of the upper rack should ideally be adjusted WHEN THE RACK IS EMPTY.

Never lift or lower the rack on one side only.

Open the left and right guide rail stops and pull out the rack; position it higher or lower as required, slide it along the guide rails until the front wheels are in place and close the stops (see figure).

If the rack is fitted with “Dual Space” handles ^* (see figure), pull out the upper rack until it reaches its stop point, grip the handles at the sides of the rack and move it upwards or downwards, then slowly let it fall back into place.

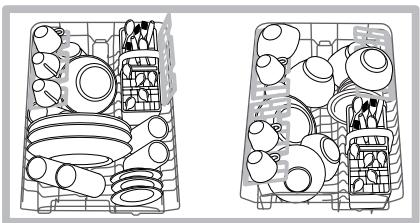

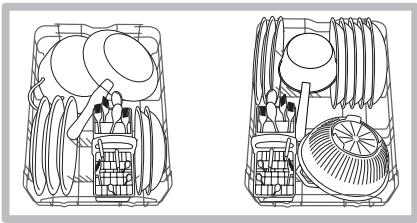

Loading examples for the upper rack

Two identical technical line drawings of a container with various internal compartments and fixtures, no text or symbols present.

Loading examples for the upper rack

Technical line drawing of two mechanical components with internal parts and no visible text or symbols

Items which should not be washed in the dishwasher

• Wooden items, objects with wooden or horn handles or glued-on parts.
• Items made from aluminium, copper, brass, pewter or tin.
• Items made from plastic material which is not heat-resistant.
  • Antique or hand-painted porcelain.
• Antique silver. Silver which is not antique may, however, be washed in the dishwasher using a delicate wash cycle, provided that it does not come into contact with other metals.

We recommend the use of crockery which is dishwasher safe.

Starting the dishwasher

1. Turn the water tap on.
2. Press the ON/OFF button: all the indicator lights on the control panel will light up for a few seconds.
3. Open the door and pour in a suitable amount of detergent (see below).
4. Load the racks (see Loading the racks) and shut the door.
5. Select the wash cycle in accordance with the type of crockery and its soil level (see Table of wash cycles) by pressing the P button.
6. Select the wash options* (see adjacent information).
7. Start the cycle by pressing the Start/Pause button (fixed light). A long beep signals the start of the wash cycle; the wash cycle indicator light is illuminated and the time remaining until the end of the cycle is displayed.
8. Two short beeps and one long one indicate the end of the wash cycle; the Start/Pause button switches off and the word END appears on the display. Switch off the appliance by pressing the ON/OFF button, shut off the water valve and unplug the appliance from the electricity socket.
9. Wait for a few minutes before removing the crockery, in order to avoid burns. Unload the racks, beginning with the lower level.

Modifying a wash cycle in progress

If a mistake was made during the wash cycle selection process it is possible to change the cycle, provided that it has only just begun: once the wash cycle has started, switch off the machine by pressing and holding the ON/OFF/Reset button. Switch it back on using the same button and select the desired wash cycle and options.

Adding extra crockery

Press the Start/Pause button (the corresponding indicator light will flash). Open the door, taking care to avoid the escaping steam, and place the crockery inside the appliance. Press the Start/Pause button (fixed light): the cycle starts from the point at which it was interrupted.

⚠️ If the Start/Pause button is pressed so as to pause the machine, the wash cycle or the Delayed Start ^* function (if selected) is interrupted.

At this stage it is not possible to change the wash cycle.

Accidental interruptions

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or once the electricity supply is restored.

Measuring out the detergent

A good wash result also depends on the correct amount of detergent being used; exceeding the stated amount does not result in a more effective wash and increases environmental pollution.

Only use detergent which has been specifically designed for dishwashers.
DO NOT USE washing up liquid.
Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended.
The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.
To achieve the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used.

Compartment A: Washing detergent

Compartment B: Pre-wash detergent

D A B C

1. Open cover C by pressing button D.

2. Pour in the detergent after consulting the Table of wash cycles:

3. For powder detergent use compartments A and B.

4. For detergent in tablet form:

when the cycle requires 1 tablet, place it in compartment A and close the cover; when it requires 2, place the second tablet at the bottom of the appliance.

1. Remove detergent residues from the edges of the compartment and close the cover until it clicks.

Wash options

The OPTIONS may only be set, modified or reset after the wash cycle has been selected and before the Start/Pause button has been pressed.

Only the options which are compatible with the type of wash cycle set may be selected. If an option is not compatible with the selected was cycle (see Table of wash cycles), the corresponding LED flashes rapidly 3 times.

If an option is selected which is incompatible with another option or wash cycle selected previously, the incompatible option light will flash 3 times and switches off, while the most recently selected setting remains lit.

To deselect an option which has been set by mistake, press the corresponding button again.

Delayed start

The start of the wash cycle may be delayed for a period of time between 1 and 24 hours.

1. After selecting the desired wash cycle and any other options, press the DELAYED START button: the corresponding indicator light will illuminate. Use the same button to select the time at which you wish the wash cycle to begin (after a period of 1 to 24 hours).
2. Confirm your selection using the Start/Pause button; the countdown will begin. The selected delay period indicator light is displayed and the Start/Pause button stops flashing (the light becomes fixed instead).
3. When the set time has elapsed, a long beep sounds, the DELAYED START indicator light switches off and the wash cycle begins.

To deselect the DLEAYED START option, press the DELAYED START button repeatedly until the text OFF appears.

The Delayed Start function cannot be set once the wash has been started.

Half load

If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the wash cycle and press the HALF LOAD button: the indicator light will illuminate.

Remember to halve the amount of detergent.
It is better to use powder detergent in this case.
This option is incompatible with the following wash cycle: Rapide wash.

Multi-functional tablets (Tabs)

This option optimises washing and drying results. When using multi-functional tablets, press the MULTI-FUNCTIONAL TABLETS button. The corresponding indicator light will illuminate. The “Multi-functional tablets” option results in the lengthening of the wash cycle.

The MULTI-FUNCTIONAL TABLETS option remains set for subsequent wash cycles if it is not deselected.
The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.
This option is not recommended for use with wash cycles which do not specify the use of multi-functional tablets (see Table of options).
This option is incompatible with the following wash cycle: Soak.

Table of options	A	B	C
	Delayed Start	Half Load	Tabs
1. Intensive	Yes	Yes	Yes
2. Normal	Yes	Yes	Yes
3. Daily 60'	Yes	Yes	Yes
4. Soak	Yes	Yes	No
5. Eco	Yes	Yes	Yes
6. Rapide	Yes	No	Yes
7. Delicate	Yes	Yes	Yes

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.
The number and type of wash cycles and options may vary depending on the dishwasher model.
For available OPTIONS please refer to the Table of options on the Start-up and use page.

Wash cycle selection instructions	Wash cycle	Detergent (A) = compartment A (B) = compartment B			Wash cycles which include drying	Options	Wash cycle duration (tolerance ±10%) Hrs. Min.
		Powder	Liquid	Tablets
Heavily soiled dishes and pans (not to be used for delicate items).	1.Intensive	25 g (A)	25 ml (A)	1 (A)	Yes	A-B-C	2:25'
Normally soiled pans and dishes. Standard daily wash cycle.	2. Normal	21 g (A)4 g (B)	21 ml (A)4 ml (B)	1 (A)	Yes	A-B-C	1:50'
Limited quantity of daily soiling. (4 place settings + 1 saucepan +1 frying pan).	3. Daily 60'	25 g (A)	25 ml (A)	1 (A)	No	A-B-C	1:00'
Pre-wash for dishes while awaiting completion of the load with the dishes from the next meal.	4. Soak	No	No	No	No	A-B	0:08'
Environmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes.	5. Eco*	21 g (A)4 g (B)	21 ml (A)4 ml (B)	1 (A)	Yes	A-B-C	2:35'
Economic and fast wash to be used for lightly soiled dishes. (Run cycle immediately after use) (2 plates + 2 glasses + 4 pieces of cutlery + 1 saucepan + 1 small frying pan).	6. Rapide	25 g (A)	25 ml (A)	1 (A)	No	A-C	0:25'
Economic and fast wash for delicate items which are sensitive to high temperatures. (Run cycle immediately after use) (12 glasses + delicate plates).	7. Delicate	25 g (A)	25 g (A)	1 (A)	Yes	A-B-C	1:35'

Notes:

Optimum performance levels when using the "Daily 60' - Rapide wash" cycles can be achieved by observing the maximum amounts of crockery specified.

To make it easier to measure out the detergent, it is worth remembering that:

1 tablespoon = 15 gr. of powder = approximately 15 ml of liquid - 1 teaspoon = 5 gr. of powder = approximately 5 ml of liquid

* The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less energy and is less harmful to the environment.

Note for Test Laboratories: for information relating to comparative EN testing conditions, please send an email to the following address: [e-mail]

Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid.

Follow the instructions given on the packaging.

If using a multi-functional product it is not necessary to add rinse aid; however, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. Follow the instructions given on the packaging.

⚠️ If you do not add salt or rinse aid, the LOW SALT ^ and LOW RINSE AID ^ indicator lights remain lit.

Measuring out the rinse aid

Rinse aid makes it easier for the crockery to dry, as water runs off surfaces more readily and therefore does not leave streaks or marks.

The rinse aid dispenser should be filled:

- When the LOW RINSE AID* indicator light on the control panel/display is illuminated;

Diagram of a refrigerator interior with labeled parts and directional arrows indicating parts of the refrigerator.

1. Open the dispenser by turning the lid (G) in an anticlockwise direction.
2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Screw the lid back on.

NEVER pour the rinse aid directly into the appliance tub.

Adjusting the amount of rinse aid

If you are not completely satisfied with the drying results, you may adjust the quantity of rinse aid used. Use a screwdriver to turn the dosage adjuster (F) to one of the 6 pre-set positions (the default position is set to 4):

• If there are streaks on the crockery, set the adjustment device to a lower number (1-3).
• If drops of water remain on the crockery or if there are limescale marks present after the cycle has finished, set the adjuster to a higher number (4-6).

Setting the water hardness

Every dishwasher is equipped with a water softener which, by using refined salt designed especially for this type of appliance, supplies water without limescale which is then used to wash the crockery.

This dishwasher offers a setting which helps to reduce pollution and optimises washing performance in accordance with the water hardness level in your area. This information can be obtained from your local water supplier.

• Switch on the appliance by pressing the ON/OFF button.
• Press the P button and hold for approximately 5 seconds; two short beeps will sound, the text H2O will appear on the display and the set hardness number will flash (the water softening system is set by default to number 3). Press the P

button repeatedly until the desired hardness level has been reached (1-2-3-4-5* see Water hardness table), up to a maximum of five levels.

- To exit the function, wait approximately 30 seconds or switch off the machine using the ON/OFF button.

Even if using multi-functional tablets, the salt dispenser should still be filled.

Water Hardness Table
°dH		°fH		mmol/l		level
0	6	0	10	0	1	1
6	11	11	20	1.1	2	2
12	17	21	30	2.1	3	3
17	34	31	60	3.1	6	4
34	50	61	90	6.1	9	5*
For values between 0°f and 10°f, we do not recommend the use of salt.* this setting may cause a slight increase in the duration of the cycle.

(°dH = hardness measured in German degrees - °f = hardness measured in French degrees - mmol/l = millimoles per litre)

Measuring out the refined salt

In order to achieve the best possible results using a wash cycle, make sure that the dispenser is never empty. Refined salt removes limescale from the water, thus avoiding the formation of deposits on crockery.

The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:

• When the green float ^* cannot be seen by simply looking at the cap of the salt dispenser.
• When the LOW SALT ^* indicator light on the control panel/display is illuminated;

1. Remove the lower rack and unscrew the container cap (anticlockwise).
2. The first time you do this: fill the water tank right up to its edge.
3. Position the funnel ^* (see figure) and fill the salt container right up to its edge

(this should hold approximately 1 kg); it is not unusual for a little water to leak out.

1. Remove the funnel* and wipe any salt residue away from the opening; rinse the cap under running water and then screw it on, the head facing downwards so as to let the water flow out of the four cracks which are arranged in a star shape on the lower part of the cap. (Salt cap with green float*)

It is advisable to perform this procedure every time you add salt to the container.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair).

When necessary, measure out the salt before a wash cycle so that any saline solution which has leaked out of the salt dispenser is removed.

* Only available in selected models.

Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle to avoid leaks.
• Always unplug the appliance when cleaning it and when performing maintenance work.

Cleaning the dishwasher

• The external surfaces of the machine and the control panel may be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.
• Any marks on the inside of the appliance may be removed using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

• Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine.
• Clean the seals around the door and detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours.

Cleaning the sprayer arms

Food residue may become encrusted onto the sprayer arms and block the holes used to spray the water. It is therefore recommended that the arms are checked from time to time and cleaned with a small non-metallic brush.

The two sprayer arms may both be removed.

Illustration of a hand using a tool to adjust or install a mechanical component on a vertical rod (no text or symbols present)

To remove the upper sprayer arm, rotate the locking ring in an anti-clockwise direction. The upper sprayer arm should be replaced with the holes facing upwards.

Mechanical assembly diagram showing a valve inserted into a base with a handle and nut (no text or symbols)

The lower sprayer arm can be removed by pulling it upwards.

Cleaning the water inlet filter\*

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

Clean the water inlet filter at the tap outlet regularly.

• Turn off the water tap.
• Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water.
• Replace the filter and screw the water hose back into position.

Cleaning the filters

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They should be cleaned if you wish to achieve the best results in every wash.

Clean the filters regularly.

The dishwasher should not be used without filters, or if the filter is loose.

• After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:
• Turn the cylindrical filter C in an anti-clockwise direction and pull it out (fig. 1).
• Remove the cup filter B by exerting a slight pressure on the side flaps (fig. 2).
• Slide out the stainless steel plate filter A (fig. 3).
• Inspect the trap and remove any food residue. NEVER REMOVE the wash cycle pump (black detail) (fig. 4).

C 1

B C 2

Interior view of a vehicle dashboard with hand operating controls and a directional arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

3

After cleaning the filters, replace the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

Leaving the machine unused for extended periods

• Disconnect the appliance from the electricity supply and shut off the water tap.
• Leave the door of the appliance ajar.
• When you return, run a wash cycle when the dishwasher is empty.

This appliance was designed and manufactured in compliance with current international safety standards. The following information has been provided for safety reasons and should therefore be read carefully.

General safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used by adults only, to wash domestic crockery in accordance with the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.
• Do not touch the appliance when barefoot.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• The water supply tap must be shut off and the plug should be removed from the electrical socket before cleaning the appliance or carrying out any maintenance work.
• If the appliance breaks down, do not under any circumstances touch the internal parts in an attempt to perform the repair work yourself.
• Never touch the heating element.
• Do not lean or sit on the open door of the appliance: this may cause the appliance to overturn.
• The door should not be left open as it may create a dangerous obstacle.
• Keep detergent and rinse aid out of reach of children.
• The packaging material should not be used as a toy.

Disposal

• Disposal of packaging materials: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.

For further information relating to the correct disposal of household appliances, owners may contact the relevant public authority or the local appliance dealer.

Saving energy and respecting the environment

Saving water and energy

• Only begin a wash cycle when the dishwasher is full. While waiting for the dishwasher to be filled, prevent unpleasant odours using the Soak cycle (see Wash cycles).
• Select a wash cycle which is suited to the type of crockery and to the soil level of the crockery using the Table of wash cycles:
• For dishes with a normal soil level, use the Eco wash cycle, which guarantees low energy and water consumption levels.
• If the load is smaller than usual activate the Half load option ^* (see Start-up and use).
• If your electricity supply contract gives details of electricity saving time bands, run wash cycles during the periods when a lower tariff is applied. The Delayed start* button (see Start-up and use) helps you organise the wash cycles accordingly.

Phosphate-free and chlorine-free detergents containing enzymes

• We strongly recommend that you use detergents that do not contain phosphates or chlorine, as these products are harmful to the environment.
• Enzymes provide a particularly effective action at temperatures around 50^ C, and as a result detergents containing enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the same results as a normal 65^ C wash cycle.
• To avoid wasting detergent, use the product in appropriate quantities based on the manufacturer's recommendations, the hardness of the water and the soil level and quantity of crockery to be washed. Even if they are biodegradable, detergents contain substances which may alter the balance of nature.

Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance.

Malfunction:	Possible causes / Solutions:
The dishwasher does not start.	The plug has not been inserted into the electrical socket properly, or there is no power in the house.The dishwasher door has not been shut properly.A delayed start has been programmed (see Start-up and use).
No water drains out from the dishwasher.	The dishwasher cycle has not yet finished.The water outlet hose is bent (see Installation).The drain duct is blocked.The filter is clogged up with food residues.
The dishwasher makes excessive noise.	The dishes are rattling against each other or against the sprayer arms.An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).
The dishes and glasses are covered in a white film or limescale deposits.	The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).The lid on the salt dispenser is not closed properly.The rinse aid has been used up or the dosage is too low.The crockery is made from non-stick material.
The dishes and glasses are streaked or have a bluish tinge.	The rinse aid dosage is too high.
The crockery has not been dried properly.	A wash cycle without a drying programme has been selected.The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).The rinse aid dispenser setting is not high enough.
The dishes are not clean.	The racks are overloaded (see Loading the racks).The crockery has not been arranged well.The sprayer arms cannot move freely.The wash cycle is too gentle (see Wash cycles).An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).The lid on the rinse aid compartment has not been shut correctly.The filter is dirty or blocked (see Care and maintenance).The refined salt level is low (see Rinse aid and salt).
The dishwasher does not take any water in/Tap shut-off alarm.(several short beeps are emitted)(The display shows A:6).	There is no water in the mains supply.The water inlet hose is bent (see Installation).Turn on the tap and the appliance will start after a few minutes.The appliance lock has been activated because no action was taken when the beeps sounded. Switch off the machine using the ON/OFF button, turn on the tap and switch the machine back on after 20 seconds by pressing the same button. Re-programme the machine and restart the wash cycle.
Water intake solenoid valve malfunction alarm(The display shows A:2).	Switch off the appliance by pressing the ON/OFF button and switch it back on after one minute. If the alarm continues, shut off the water tap to eliminate the risk of flooding, remove the plug from the electrical socket and contact Assistance.
Water inlet hose alarm/Water inlet filter blocked.(the display shows A:7).	Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to eliminate the risk of flooding and remove the plug from the electrical socket.Make sure the water inlet filter has not become blocked by various impurities. (see “Care and maintenance” chapter).

FR

Français, 25

Sommaire

Installation, 26-27

Technical diagram showing pipe installation components with labeled parts A and B, including a 400mm pipe connection.

Labeled diagram of a device interior with numbered components for identification

Technical line drawing of a multi-layered structural framework with grid reinforcement (no text or symbols)

Illustration of two woven baskets with handles and a hand holding a tool, no text or symbols present

Two identical wireframe diagrams of a vehicle front view showing internal components and directional arrows (no text or symbols)

Panier du haut

Three technical line drawings of a multi-wheeled container with internal mesh structures (no text or symbols)

Two identical line drawings of a container with various circular and rectangular objects inside, no text or symbols present.

Two technical line drawings of household appliances or household items, showing different interior layouts (no text or symbols)

Diagram of a refrigerator interior with labeled parts and directional arrows indicating parts of the refrigerator.

Illustration of a hand using a tool to adjust a bird's nest structure (no text or symbols present)

vers le haut.

Mechanical component diagram showing a lever and base with an upward arrow (no text or symbols)

Technical diagram showing pipe installation components with labeled parts A and a dimension annotation of 40.00 mm

Labeled diagram of a refrigerator interior with numbered parts for identification

Two wire basket illustrations, one open and one filled with a tool (no text or symbols)

Technical line drawing of two mechanical components with internal structure and directional arrows (no text or symbols)

Oberer Geschirrkorb

Two identical line drawings of a tray with various kitchen utensils, no text or symbols present.

Technical line drawing of two household appliances with spools and containers (no text or symbols)

Diagram of a car air conditioner unit with labeled parts and directional arrows indicating airflow or movement.

Illustration of a hand using a tool to adjust a component on a tray, with no visible text or symbols.

Mechanical assembly diagram showing a hand pressing a cylindrical component onto a base plate (no text or symbols visible)

Diagram of a car interior showing steering wheel, dashboard, and hand gesture (no text or symbols)

Mechanical assembly diagram showing a gear mechanism with no visible text or symbols

3

Technical diagram showing pipe fittings and a device with dimension annotations

Labeled diagram of a refrigerator interior with numbered components for identification

Technical line drawing of a multi-layered structural framework with grid lines (no text or symbols)

Illustration of two woven baskets with handles and a hand holding a tool, no text or symbols present

Technical line drawing of two vehicle rear seats with grid patterns and directional arrows indicating movement (no text or symbols)

Bovenrek

Two identical line drawings of a container with various circular and rectangular objects inside, no text or symbols present.

Technical line drawing of two household appliances with fans and baskets (no text or symbols)

Diagram of a cleaning or cleaning process with labeled components and directional arrows indicating steps

Illustration of a birdcage with a hand holding a pen and falling object (no text or symbols)

Mechanical assembly diagram showing a valve inserted into a base with a gear and nut (no text or symbols)

Technical diagram showing pipe installation components with labeled parts A and a dimension annotation of 40 cm

figura).

Labeled diagram of an open refrigerator interior with numbered components for identification

Illustration of two woven baskets with handles and a handle, one open and one filled with food items (no text or symbols)

Technical line drawing of two vehicle rear seats with grid patterns and directional arrows indicating movement (no text or symbols)

Cesto superior

Two identical line drawings of a storage tray with various kitchen utensils and compartments (no text or symbols)

Technical line drawing of a mechanical device with internal components and housing (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating operation or assembly

Illustration of a hand using a tool to adjust or install a bird-shaped object on a platform (no text or symbols present)

Diagram of a mechanical component with a hand pressing a button and an arrow indicating direction (no text or symbols)

Technical diagram showing pipe installation components with labeled parts A and B, including a component labeled 'A' and a device labeled 'TEN-100'.

Labeled diagram of a refrigerator interior with numbered parts for identification

Line drawing of a basket structure with no text or symbols

Line drawings of two woven baskets with handles and accessories, one open and one closed (no text or symbols)

Two technical line drawings of a bicycle rearview frame with grid lines and directional arrows indicating motion (no text or symbols)

Cesto superior

Two identical line drawings of a kitchen appliance with various kitchenware and fixtures, no text or symbols present.

Technical line drawing of two household appliances with spools and containers (no text or symbols)

Diagram of a washing machine with labeled parts and directional arrows indicating operation

Illustration of a hand using a tool to adjust or install a tray with a conical device (no text or symbols present)

Mechanical assembly diagram showing a hand pressing a button onto a base plate with a valve (no text or symbols visible)

Diagram showing a hand pressing down on a container labeled with points B and C, with directional arrows indicating movement.

3

Interior view of a vehicle dashboard with hand operating controls and a directional arrow (no text or symbols)

4

Mechanical assembly diagram showing gear and cam mechanism (no text or labels)
