Product Type	Countertop Microwave Oven
Brand	Nevir
Model	NVR-6031 MD
Colour	White
Oven Capacity	20 L
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1050 W
Rated Output Power (Microwave)	700 W
Turntable Diameter	255 mm
External Dimensions (W x D x H)	439.5 mm x 355 mm x 258.2 mm
Net Weight	Approx. 10.7 kg
Control Type	Electronic with rotary knob and push buttons
Display	Digital LED
Number of Auto Menus	8 (A-1 to A-8: Reheat, Vegetable, Fish, Meat, Pasta, Potato, Pizza, Soup)
Defrost Function	By weight (100-2000 g) and by time (up to 95 min)
Multi-Stage Cooking	Up to 2 stages (defrost must be first)
Pre-set / Timer Function	Yes, up to 24-hour delay start
Child Lock	Yes, 3-second press of STOP/CLEAR
Quick Start / +30s	Yes, press START/+30SEC for 30s at 100% power
Clock Setting	12/24 hour format
Accessories Included	Glass tray, turntable ring assembly, instruction manual
Mounting Type	Freestanding on countertop
Safety Features	Door safety interlock system, child lock, automatic shut-off on door opening
Cleaning Instructions	Wipe cavity with damp cloth; clean accessories in soapy water; use half lemon and water for easy cleaning
Materials You Can Use	Microwave-safe glass, ceramic, plastic, paper, parchment, wax paper; aluminum foil in small pieces
Materials to Avoid	Metal, aluminum trays, metal twist ties, paper bags, plastic foam, wood

Frequently Asked Questions - NVR-6031 MD NEVIR

How do I set the clock on the Nevir NVR-6031 MD?

Press CLOCK/PRE-SET, adjust hours using the rotary knob, press CLOCK/PRE-SET again, adjust minutes, then press CLOCK/PRE-SET to confirm.

What are the microwave power levels available?

The oven has five power levels: P100 (100%), P80 (80%), P50 (50%), P30 (30%), and P10 (10%).

Can I use metal utensils in this microwave?

No, metal or metal-trimmed utensils, aluminum trays, and twist ties can cause arcing and damage the oven. Use only microwave-safe materials.

How do I use the auto menu functions?

Turn the rotary knob right to select from A-1 to A-8, press START/+30SEC/CONFIRM, then adjust weight using the knob, and press START/+30SEC/CONFIRM again to start.

How do I activate the child lock?

In standby mode, press and hold STOP/CLEAR for 3 seconds. The display shows [::]. To unlock, press and hold STOP/CLEAR again for 3 seconds.

What is the correct way to defrost food?

You can defrost by weight: press W.T./TIME DEFROST once, set weight (100-2000g), and start. Or by time: press twice, set time (up to 95 min), and start.

How do I clean the microwave interior?

Wipe the cavity with a slightly damp cloth after use. For stubborn stains, heat half a lemon in 300ml water on high for 10 minutes, then wipe dry. Do not use abrasive cleaners.

Why does the microwave interfere with my TV or radio?

This is normal during operation. Place the oven as far away from radios and TVs as possible.

Can I use the pre-set function without setting the clock?

No, the clock must be set first. Otherwise, the pre-set function will not work.

What should I do if the microwave does not start?

Check that the power cord is plugged in tightly (unplug and re-plug after 10 seconds). If the problem persists, check the fuse or circuit breaker, and ensure the door is closed properly.

USER MANUAL NVR-6031 MD NEVIR

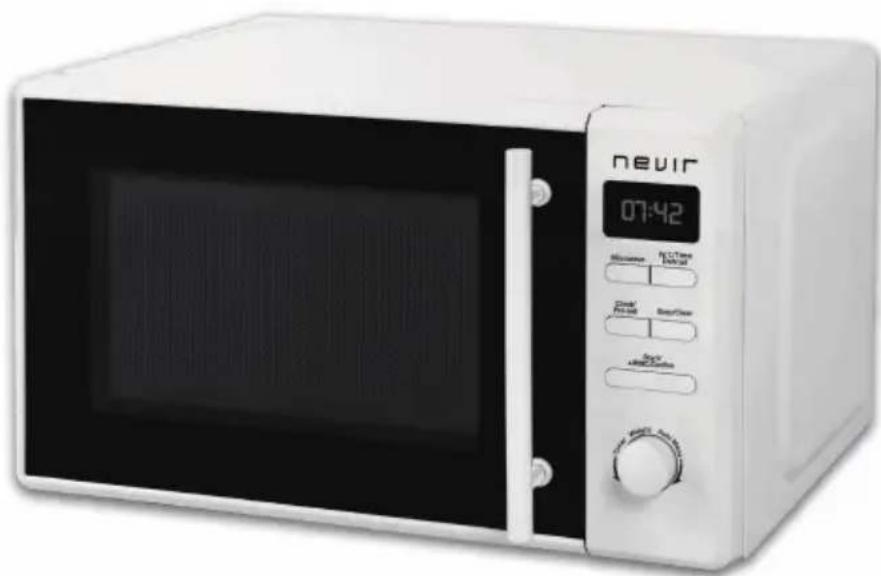

White nevir microwave oven with digital display and control buttons (no visible text or symbols on main body)

10 --- 30 min: 1 minuto

30 --- 95 min: 5 minutos

White nevir microwave oven with digital display and control buttons (no visible text or symbols on main body)

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	NVR-6031 MD
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1050W
Rated Output Power(Microwave):	700W
Oven Capacity:	20 L
Turntable Diameter:	∅ 255mm
External Dimensions(LxWxH):	439.5mm×3.55m×258.2mm
Net Weight:	Approx 10 .7kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to personor exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes.

Do not store items, such as bread, cookies, etc. inside the oven.

1. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
2. Install or locate this oven only in accordance with the installation instructions provided.
3. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
4. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

5. Do not let cord hang over edge of table or counter.
6. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
7. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
9. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
10. Children should be supervised to ensure that they do not play with the appliance.
11. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
12. Accessible parts may become hot during use. Young children should be kept away.

13. Steam cleaner is not to be used.

14. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

15. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
16. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
17. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
18. The rear surface of appliance shall be placed against a wall.
19. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only . Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

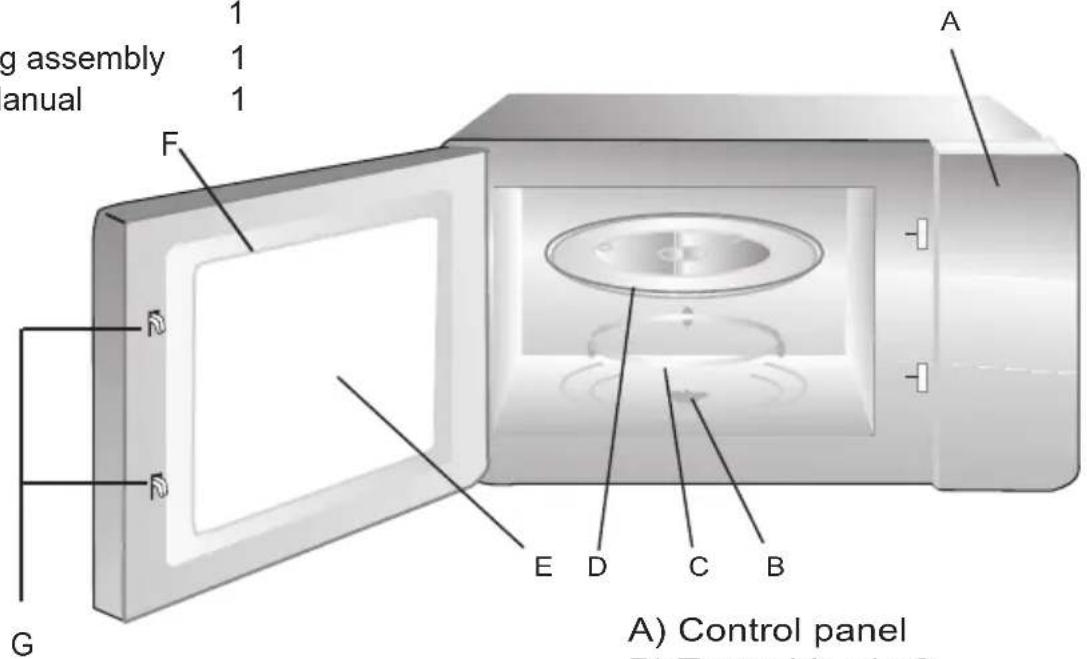

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Shut off oven power if the door is opened during operation.

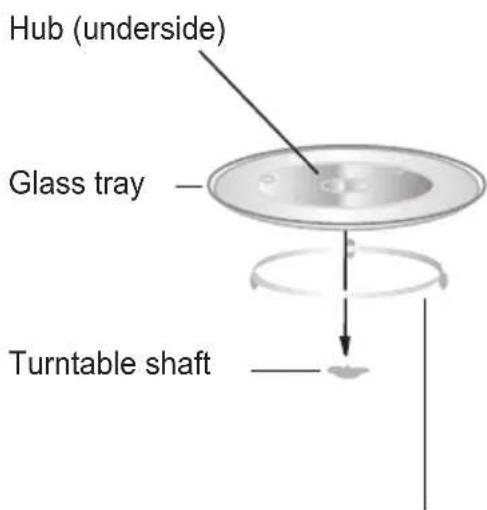

Turntable Installation

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

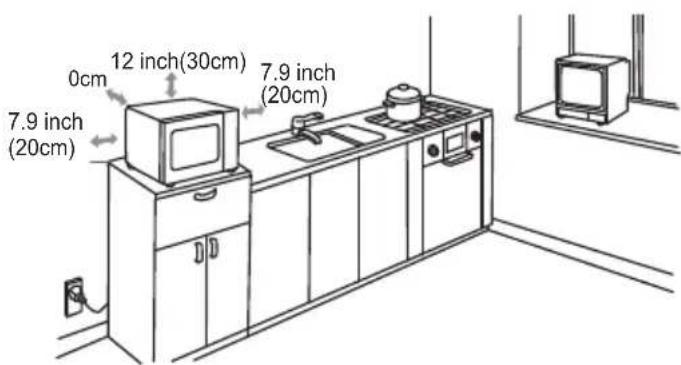

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 7.9 inches (20cm) is required between the oven and any adjacent walls.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible.
Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "CLOCK/PRE-SET", the hour figures will flash;
2) Turn “ ” to adjust the hour figures, the input time should be within 0--23.
3) Press "CLOCK/PRE-SET", the minute figures will flash.
4) Turn “” to adjust the minute figures, the input time should be within 0--59.
5) Press "CLOCK/PRE-SET" to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, the clock would not function when powered.

2) During the process of clock setting, if no oppression in 1 minute, the oven will go back to the previous status automatically.

2. Microwave Cooking

1) Press the "MICROWAVE" key once, and "P100" display.
2) Press “MICROWAVE” for times or turn “☐” to select the microwave power “P100”, “P80”, “P50”, “P30”, “P10” will display in order.
3) Press "START/+30SEC./CONFIRM" to confirm.
4) Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press "START/+30SEC./CONFIRM" to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

0---1 min: 5 seconds

1---5 min: 10 seconds

5---10 min: 30 seconds

10---30 min: 1 minute

30---95 min: 5 minutes

Microwave Power Chart

Microwave Power	100%	80%	50%	30%	10%
Display	P100	P80	P50	P30	P10

3. Speedy Cooking

1) In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

2) During the microwave, grill and combination cooking and time defrost process, press "START/+30SEC./CONFIRM" to increase the cooking time.

3) In waiting state, turn “ ” left to choose the cooking time directly. After choosing the time, press “START/+30SEC./CONFIRM” to start cooking. The microwave power is 100%.

Note: Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing “START/+30SEC./CONFIRM”

4. Defrost By Weight

1) Press "W.T./TIME DEFROST" once, the screen will display "dEF1".
2) Turn “ ” to select the food weight. The range of weight is 100-2000g.
3) Press "START/+30SEC./CONFIRM" key to start defrosting

5. Defrost By Time

1) Press "W.T./TIME DEFROST" twice, the screen will display "dEF2".
2) Turn “ ” to select the cooking time. The MAX.time is 95 minutes.
3) Press "START/+30SEC./CONFIRM" key to start defrosting

6. Multi-Stage Cooking

Two stages can be maximally set. If one stage is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "W.T./TIME DEFROST" twice, the screen will display "dEF2";
2) Turn “ ” to adjust the defrost time of 5 minutes;
3) Press "M TORROWAVE
4) Turn “ ” to choose 80% microwave power till “P80” displays;
5) Press "START/+30SEC./CONFIRM" to confirm;
6) Turn “ ” to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.

7. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function.

Example: if you want to cook with 80% microwave power for 7 minutes.

a. Press "M TIGROWAVE

b. Turn “ ” to choose 80% microwave power till “P80” displays;
c. Press "START/+30SEC./CONFIRM" to confirm;
d. Turn " " to adjust the cooking time of 7 minutes;

After the above steps, please do not press "START/+30SEC./CONFIRM". Then do as following:

3) Press "CLOCK/PRE-SET". The hour figures flash;
4) Turn “ ” to adjust the hour figures, the input time should be within 0--23.
5) Press "CLOCK/PRE-SET", the minute figures will flash.
6) Turn “ ” to adjust the minute figures, the input time should be within 0--59.
7) Press "START/+30SEC./CONFIRM" to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: clock must be set first. Otherwise, pre-set function will not work.

8. Auto Menu

1) In waiting state, turn “ ” right to choose the menu from A-1 to A-8.
2) Press "START/+30SEC./CONFIRM" to confirm the menu you choose;
3) Turn " " to choose the food weight;
4) Press "START/+30SEC./CONFIRM" to start cooking;
5) After cooking finishes, the buzzer sounds five times.

Menu	Weight(g)	Display	Power
A - 1 200 200Reheat600 600	400	400	100%
A - 2 200 200Vegetable400 400	300	300	100%
A - 3 250 250Fish450 450	350	350	80%
A - 4 250 250Meat450 450	350	350	100%
A - 5Pasta	50 (with water 450 ml) 100 (with water 800 ml)	50 80%100
A - 6 200 200Potato600 600	400	400	100%
A - 7 200 200Pizza	100%400	400
A -8Soup	200 200400	80%400

9. Lock-out Function for Children

Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting entering the children-lock state and screen will display " [::]".

Unlocking: In locked state, press “STOP/CLEAR” for 3 seconds, there will be a long “beep” denoting that the lock is released.

10. Inquiring Function

1) In cooking states of microwave, press "MICROWAVE", the current power will be displayed for 2-3 seconds.
2) In pre-set state, press "CLOCK/PRE-SET" to inquire the time for delay start cooking.
The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
3) During cooking state, press "CLOCK/PRE-SET" to check the current time. It will be displayed for 2-3 seconds.

11. Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) “START/+30SEC./CONFIRM” must be pressed to continue cooking if the door is opened during cooking;
(3) Once the cooking programme has been set, "START/+30SEC./CONFIRM" is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.
(5) The buzzer will sound five times to remind you when cooking is finished

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

In order to fulfill ruling UNE EN-60065, we indicate that if the flexible wire is damage, it can only be replaced by a technical service recognized by NEVIR S.A., due to some special tooling is required.

nevir®

Forno Microondas

MANUAL DE INSTRUÇÕES

Modelo: NVR-6031 MD

White neuvir microwave oven with digital display and control buttons (no visible text or symbols on main body)

-Ambientes bed and breakfast.
