NVR-6227MG - Microwave NEVIR - Free user manual and instructions

Product Type	Microwave Oven with Grill
Brand	Nevir
Model	NVR-6227MG
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1050 W
Rated Output Power (Microwave)	700 W
Rated Input Power (Grill)	1000 W
Oven Capacity	20 L
Turntable Diameter	255 mm
External Dimensions (W x D x H)	440 x 335 x 259 mm
Net Weight	Approx. 11.3 kg
Control Type	Mechanical knobs (Power and Timer)
Cooking Functions	Microwave, Grill, Combi 1/2/3, Defrost
Power Levels	5 (Low, Med Low/Defrost, Med, Med High, High)
Timer	Up to 30 minutes (mechanical)
Interior Light	Yes (may dim at low power)
Door Safety Interlocks	Yes
Child Safety	Supervision required for children under 8
Cleaning	Wipe with damp cloth; avoid abrasives
Accessories Included	Glass tray, Turntable ring assembly, Grill rack, Instruction manual
Waste Disposal	Do not dispose with household waste; follow WEEE directive
Installation	Countertop; minimum height 85 cm; rear against wall

Frequently Asked Questions - NVR-6227MG NEVIR

What type of utensils can I use in the Nevir NVR-6227MG microwave?

Use only microwave-safe utensils. Avoid metal, aluminum foil, and metal-trimmed dishes. Test unknown utensils by placing them in the microwave with a cup of water for 1 minute on high power. If the utensil becomes warm, do not use.

Can I heat baby food or milk in this microwave?

Yes, but stir or shake the contents and check the temperature before consumption to avoid burns. Do not heat sealed containers or baby bottles with lids.

How do I clean the microwave oven?

Unplug the oven. Clean the interior with a damp cloth. For stubborn food residues, heat half a lemon in 300 ml water for 10 minutes on full power, then wipe dry. Do not use abrasive cleaners or sharp scrapers on the door glass.

What should I do if the microwave does not start?

Check that the power cord is plugged in securely. Ensure the door is fully closed. If the fuse blows or circuit breaker trips, replace fuse or reset breaker. If the outlet is faulty, test with another device.

Is it safe to operate the microwave empty?

No, running the microwave with no food inside can damage the magnetron and is dangerous. Always ensure there is food or liquid in the cavity.

What are the different power levels and when should I use them?

Low (17%): soften ice cream. Med Low/Defrost (33%): defrost, soften butter. Med (55%): stew, fish. Med High (77%): rice, chicken, ground meat. High (100%): reheat, boil water, vegetables.

Can I use the grill and microwave together?

Yes, the oven has three combi settings: Combi 1 (80% grill, 20% micro), Combi 2 (70% grill, 30% micro), Combi 3 (60% grill, 40% micro). Use the included grill rack for best results.

Why is steam accumulating on the door and vents during cooking?

This is normal. Steam from food escapes through vents, and some may condense on cooler surfaces like the door. Wipe dry after use.

What is the proper way to dispose of this microwave?

Do not discard with household waste. Follow the WEEE directive (2002/96/EC) and take it to a designated collection point for recycling. Remove batteries if applicable.

Can children use this microwave?

Children aged 8 years and above can use the appliance if supervised and instructed on safe use. Children under 8 should be kept away. Cleaning and maintenance should not be performed by children.

USER MANUAL NVR-6227MG NEVIR

White microwave oven with control panel and door, no visible text or symbols on body

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Microwave Oven INSTRUCTION MANUAL

Modelo: NVR-6227MG

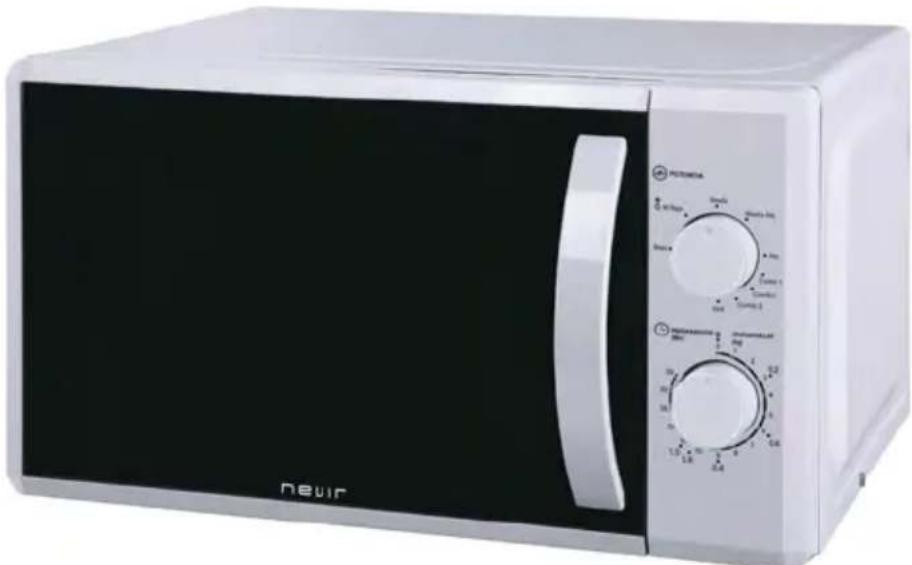

White microwave oven with black mesh grille and control panel (no visible text or symbols)

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model	NVR-6227MG
Rated Voltage	230V ~ 50Hz
Rated Input Power (Microwave)	1050 W
Rated Output Power (Microwave)	700 W
Rated Input Power (Grill)	1000 W
Oven Capacity	20 L
Turntable Diameter	255 mm
External Dimensions	440x3 35x 259 mm
Net Weight	Approx. 1 kg1.3

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to personor exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

1. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
2. Do not overcook food.
3. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
4. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
5. Install or locate this oven only in accordance with the installation instructions provided.
6. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
7. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

1. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
2. Do not let cord hang over edge of table or counter.
3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
4. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
5. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
6. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play with the appliance.
8. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
9. Accessible parts may become hot during use. Young children should be kept away.

10. Steam cleaner is not to be used.

11. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

12. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
13. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
14. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
15. The rear surface of appliance shall be placed against a wall.
16. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cordset or extension cord should be atleast as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on bychildren or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in abowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSIL S

CAUTION

Person al Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minut e cooking time.

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap moisture.	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Ut ensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

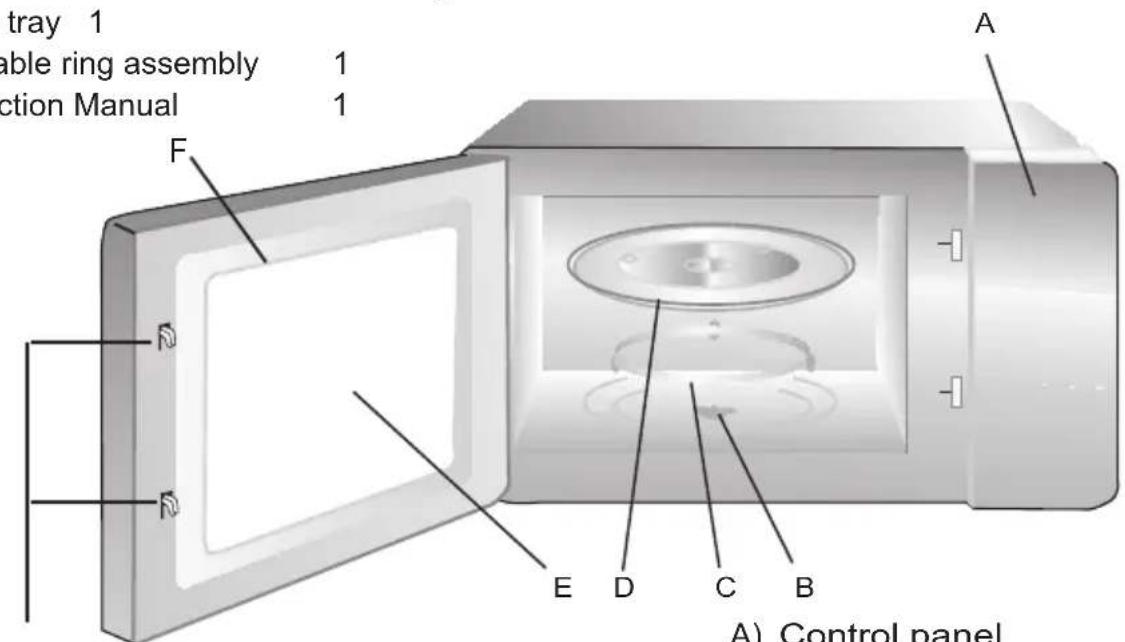

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

G

Grill Rack (Only for Grill series)

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracksor breaks, contact your nearest authorized service center.

Turntable ring assembly

Count ertop Inst allation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabin et: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mic a cover that is att ach ed to the ov en cavity to protect the magn etron.

Inst allation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible.

Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The acc essibl e surf ace may be hot during op eration .

Control Panel and Features

Operation Instructions

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to "0".

Function/Power	Output	Application
Low	17% micro.	Soften ice cream
Med. Low (Defrost)	33% micro.	Soup stew, soften butter or defrost
Med.	55% micro.	Stew, fish
Med. High	77% micro.	Rice, fish, chicken, ground meat
High	100% micro.	Reheat, milk, boil water, vegetables, beverage

Function/Power	Output	Application
Combi.1	80% grill 20% micro.	Sausage, Lamb, Kabobs, Seafood, Steak
Combi.2	70% grill 30% micro.	Chicken pieces, Chicken breasts, Pork chops
Combi.3	60% grill 40% micro.	Whole chicken
Grill	100% grill	Baken bread, Slice food

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the clock switch to 0 (zero).

Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

The European Directive 2002/96 /EC on Waste Electrical and Electronic Equipment (WEEE) required that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the material they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product remind you of your obligations that when you dispose of the appliance, it must be separately collected.

Besides that, waste batteries and/or accumulator must be removed prior to delivery of WEEE, thought the separated collection channels provided for this purpose (distributors and/or facilities from Local Authorities

nevir®

Forno Microondas

MANUAL DE INSTRUÇÕES

MODELO: NVR-6227MG

White microwave oven with control panel and door, no visible text or symbols on the device body

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
