Product Type Tablet
Brand Skytex
Model Skypad 972
Display Size 9.7 inches
Dimensions (W x D x H) Approximately 240 x 170 x 9 mm
Weight Approximately 520 g
Battery Type Rechargeable lithium-ion
Battery Capacity 6000 mAh
Charging Input 5V DC via micro USB
Operating System Android (version may vary)
Processor Quad-core 1.3 GHz
RAM 1 GB
Storage 8 GB internal, expandable via microSD
Camera Front 0.3 MP, Rear 2 MP
Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Ports Micro USB, 3.5mm headphone jack, microSD slot
Main Functions Web browsing, media playback, e-reading, light gaming
Cleaning Instructions Wipe with a soft, dry cloth; avoid liquids
Safety Warnings Do not expose to moisture, extreme temperatures, or drop
Spare Parts and Repairability Battery and screen replacement by authorized service only
General Information Designed for everyday use; manual available online

Frequently Asked Questions - Skypad 972 Skytex

How do I turn on the Skytex Skypad 972?
Press and hold the Power button located on the side of the tablet until the screen lights up.
How can I connect to Wi-Fi?
Go to Settings > Wi-Fi, toggle Wi-Fi on, select your network, and enter the password.
What should I do if the tablet freezes?
Press and hold the Power button for 10-15 seconds until the device restarts.
How do I insert a microSD card?
Locate the microSD slot on the edge, gently push the card in until it clicks, then close the flap.
How can I save battery life?
Reduce screen brightness, turn off Bluetooth and Wi-Fi when not in use, and close background apps.
What is the correct way to charge the tablet?
Use the included USB cable and power adapter. Plug into a wall outlet. Charging typically takes 3-4 hours.
Can I use the tablet while charging?
Yes, but it may charge slower. For optimal battery health, avoid heavy use while charging.
How do I factory reset the Skypad 972?
Go to Settings > Backup & reset > Factory data reset. Note: this erases all data.
The touchscreen is not responding. What can I do?
Clean the screen with a soft cloth. If still unresponsive, restart the device. If persisting, contact support.
Where can I download the user manual?
Visit notice-facile.com and search for 'Skytex Skypad 972' to download the PDF manual for free.

User questions about Skypad 972 Skytex

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Tablet in PDF format for free! Find your manual Skypad 972 - Skytex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Skypad 972 by Skytex.

USER MANUAL Skypad 972 Skytex

SP972

Quick Start Guide

IMPORTANT NOTICES

This package may contain plastic bags or other materials that pose a hazard to children. Be sure to dispose of all packing materials after opening.

To avoid damaging the screen, do not touch it with excessive force or with any object other than your finger. For best response, make sure your hands are clean before using the touch Screen controls.

The battery used in this tablet may present a fire or chemical burn if misused. Don't heat or incinerate the tablet. Don't leave it in a place subject to direct sunlight, or in a car with windows closed. Don't connect to a power source from another manufacturer. This may result in the risk of fire or electric shock.

SKYTEX is not responsible for any loss or damages incurred from your access to third party content, Apps, or services and expressly disclaims all warranties of any kind.

To avoid damage and data corruption, do not remove a memory card while data is being written to or read from the card. As an example, do not remove a card while playing a video or music file stored on the card. The available menu items are dependent on the unit. All illustrations are for reference only.

Customer Use Only:

Enter the model number of your tablet and save for future reference.

Model #: ____

Serial #: ____

Be especially cautious with applications that request access to many functions or to a significant amount of your data. You are responsible for the results of applications installed on your tablet.

The Tablet's "mass storage mode" is compatible with many operating systems including: Windows® 8, XP, Vista, 7 or higher and Mac OS or Linux.

For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

Company Trademarks

SKYTEX logo is trademarks of SKYTEX TECHNOLOGY INC.

Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions.

HDMI, the HDMI logo are trademarks or registered trademarks of HDMI Licensing, LLC.

All other trademarks and logos are property of their respective owners unless indicated otherwise.

FCC Compliance

This tablet complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This tablet may not cause harmful interference, and
(2) This tablet must accept any interference received, including interference that may cause undesired operation.

Note: This tablet has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This tablet generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this tablet does cause harmful interference to radio or television reception, which can be determined by turning the tablet off and on, the user is encouraged to attempt to correct the interference by one of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the tablet and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio / TV technician for help

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the tablet unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop using the tablet.

SAFETY NOTICES

  1. Read: and retain these instructions for future reference.
  2. Warnings: on the product and User Guide instructions should always be adhered to.
  3. Cleaning: Do not use liquid cleaners or aerosol cleaners. Use a damp soft cloth for cleaning.
  4. Adapters: Use UL certified adapters recommended by SKYTEX. Other adapters may be hazardous or void your warranty.
  5. Moisture & Water: Do not use near water such as near bath tub, kitchen sink, laundry tub, or swimming pool.
  6. Ventilation: Should there be slots and openings in the tablet, they are provided for ventilation to ensure reliable operation of and protection from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
  7. Power Sources: This tablet should be operated from the type of power source indicated on the rating label. Consult your product dealer or our website for more information. For products intended to operate from battery power or other sources, refer to the operating instructions.
  8. Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

  9. Object and Liquid Entry: Never put objects of any kind on to or into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

  10. Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards and will void your warranty. Refer all servicing to qualified service personnel.

  11. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel: a) when the power-supply is damaged; b) if liquid has been spilled; c) if the product has been exposed to rain or water; d) if the product does not operate normally; e) if the product has been dropped or damaged in any way (voids warranty); f) when the product exhibits a distinct change in performance.

  12. Heat: The product should be kept away from heat sources such as a radiator, heat register, stove, or other products that generate heat.

  13. Replacement Parts: Unauthorized substitutions when service this product may result in fire, electric shock, or other hazards. Make sure your service technician has used parts specified by the manufacturer.

TABLE OF CONTENTS

Important Notices....1

Safety Notices....2

FCC Compliance....3

Table of Contents....4

Introduction....5

Tablet Controls & Descriptions....6-7

Charging Your Tablet....8

Power ON/OFF/STANDBY....9

Connecting To a Wireless Network....10

Install Apps ....11

Browse the Web....12

Settings: Date, Time, Screen Time Out.... 13

Home Screen Applications.... 14

Discover Application Shortcuts.... 15

Notifications Bar / Connecting HDMI to HDTV / Using Micro-USB.... 16

Transfer Music/Video/Photos....17

Playing Music/Video....18

Video Streaming/ Insert Memory Card....19

Camera & Video Chat....20

Setting Up Your Email....21

Troubleshooting....22

Specifications....23

Warranty & Support....24

INTRODUCTION

Thank you for purchasing your new Skytex 9.7" tablet with dual core processor and a high resolution 1024x768 touch screen display. It is designed to keep you entertained and engaged for hours at a time. With its 8GB of internal storage and Micro-SD card slot (for up to an additional 32GB), you can house a large library of games, movies, music, eBooks, photos and document files. View in high definition 1080p through your HDTV when connected to HDMI®. The tablet also features a web cam and 2MP rear camera for life's special moments.

Discover and download many of your favorite Android Apps from the Skytex App Store*. The Apps are optimized specifically for your screen size bringing you the best experience possible in which to view them. The 1Mobile Market offers more than 300,000 Android Apps including gaming, productivity for business, children's education, and more. In addition, 5GB of free cloud storage is provided through the CloudLink® Toolbox which includes many popular business-friendly Apps.

It is recommended that you read this user guide completely before first use. Visit our website at www.skytex.com to register your tablet and review additional information and updated FAQ's.

PACKAGE CONTENTS: SKYPAD™ Tablet, USB Cable, AC Adapter, Stereo Earbuds.

TABLET CONTROLS & DESCRIPTIONS
SKYTEX 18.11 Apr 21 pulbo 10 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

  1. Back Key press to go back the previous page.
  2. Volume - Press and hold to decrease volume.
  3. Volume + Press and hold to increase volume.
  4. 3.5mm Jack Audio connection to listen to stereo earphones or powered speakers.
  5. Micro-USB OTG Connect to a computer to transfer files or for use with a keyboard / mouse.
  6. MicroSD Card Slot Load external storage memory card (up to an additional 32GB).
  7. Micro-USB Host Connect to a computer for use with a keyboard / mouse.
  8. Micro-HDMI Connect to an HDTV or HD projector to view images in high definition resolution.

TABLET CONTROLS & DESCRIPTIONS
SKYTEX 18.11 Apr 21 pulbo 10 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

9.DC IN Connect the AC power adapter to charge the battery (No more than 3 hours).

  1. Power On/Off Press and hold momentarily to turn on; when powering off you will be asked to confirm.

  2. Rear camera Take photos using the display as a viewfinder.

12.Speaker Listen through speaker unless earphone jack is connected. Sound will mute.

  1. Back Key Tap to go back to the previous page.

  2. Home Key Tap to go to the Home Launcher Screen.

15.Open Apps Key Tap to view open applications. Swipe to the left to close and save battery life.

16.Front camera Front facing camera for video chat.

CHARGING YOUR TABLET

The tablet comes with a built-in rechargeable battery that should be charged fully prior to first use. Connect the AC adapter to your Tablet via the DC input on the bottom of the Tablet (illustrated below). Disconnect the Tablet when its fully charged.

A full charge and discharge (15% or below) cycle is recommended to maximize the battery's life and performance.

If the battery is completely drained please allow the Tablet at least 10-15 minutes to recharge prior to turning it on.

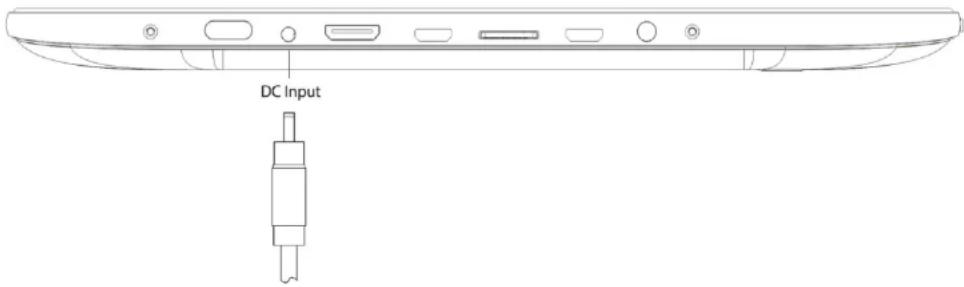

DC Input

Note: When charging the Tablet while powered OFF, the battery indicator appears momentarily. Although the battery indicator disappears, the Tablet will continue to charge.

POWER ON/OFF/STANDBY MODE

ON: Press and hold the Power button until the Tablet's loading screen appears. Once the lock screen appears, unlock the Tablet by swiping your finger from the left 'Unlock' icon to the right 'Unlock' icon (illustrated below). Should the display 'Timeout' (or go black) before you are able to unlock the Tablet, press the Power button for one second to turn the display back on.

18:57 Sun, April 21 Charging

NOTE: Leaving the Tablet in Standby Mode when not in use will result in battery drain. Switch the Tablet off completely to conserve power between charges.

Skytex Skypad 972 - POWER ON/OFF/STANDBY MODE - 2

SKYTEX

OFF: Press and hold the Power button until the Tablet options appear. The options will prompt you to tap 'OK' to power the Tablet off or 'Cancel' to return back to the Home screen.

STANDBY: To enter Standby Mode, simply tap and release the Power button. To wake from Standby, tap and release the Power button.

CONNECTING TO A WIRELESS NETWORK

NOTE: To connect your Tablet to the Internet you must have an Internet connection and a wireless network.

A. Open the App Tray > Select 'Settings' > Switch the 'Wi-Fi' option from 'OFF' to 'ON' by tapping the 'OFF' icon.

B. A list of networks will appear to the right of the screen > Select your network and enter the password/network key.

C. Tap 'Connect' to complete the connection

Skytex Skypad 972 - CONNECTING TO A WIRELESS NETWORK - 1

Tip: Check the "Show Password" box to verify password was entered correctly.

Settings WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL SKYTEX Connected @Home7CAB WFHWC Secured with WEP (-)HP4577BD (-)HPC96899 WJ9R5 Secured with WEP red Secured with WPA2 (protected network available)

REQUIREMENT: To connect you will require a wireless router or an access point through a broadband internet connection. You must know the name of your network password and if your network is secured. Settings of this nature may be found on your wireless router and/or its user guide.

NOTE: If you are connected to network previously used with this tablet, it will automatically connect.

If you don't see your network in the list, tap the SCAN icon located on the top right corner of the screen.

INSTALLING APPS

A. Tap the

Skytex Skypad 972 - Tap the - 1

or App and browse by Categorypopular apps to download on to yourthe desired App and download it.connected to a wireless network.)

B. NOTE: When your download has completed you, will be prompted to install the App. Tap 'Install' and when completed the App will appear in your App Tray.

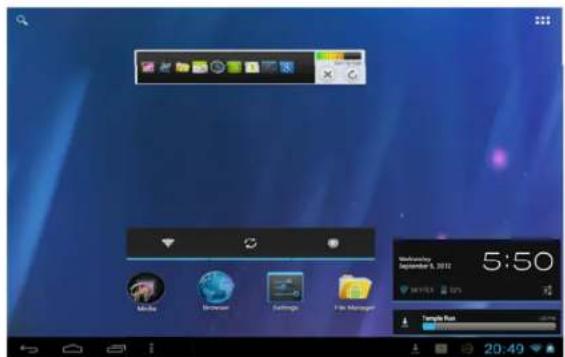

Wednesday September 5, 2012 5:50 20:49

Skytex Skypad 972 - Tap the - 3

Discover and manage pre-populated productivity within CloudLink's Toolbox that includes 5GB of free storage; Catch Notes; Office Suite to view docs and sheets, PowerPoint; premium Apps available also.

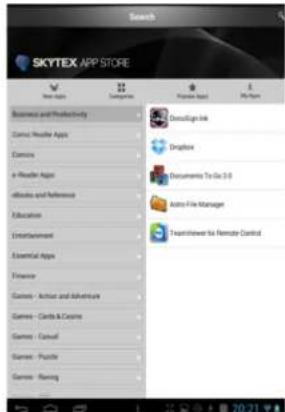

SKYTEX APP STORE New sites Search Explore load Programs Business and Productivity Comic Reader Apps Camera e Reader Apps Applications and Reference Education Entertainment Essential Apps Finance Games - Active and Adventure Games - Cards & Copies Games - Casual Games - Puzzle Games - Running Document Ink Dialog box Documents To Go 3.0 Auto File Manager Transporter for Remote Control

Welcome to your CloudLink Toolbox of recommended Apps Learn More > 20:21

Skytex Skypad 972 - Tap the - 6

The Skytex App Store is stocked with the most ar free Apps that have been "optimized" ically for the screen size on your Tablet.reds more are optimized for release weekly.

Skytex Skypad 972 - Tap the - 7

Find over 300,000 apps at 1Mobile including the shopping apps, streaming video apps, games, media, radio, news, recipes, and more.

Skytex Skypad 972 - Tap the - 8

Purchase Apps from the Amazon App Store heir Free App of the Day Promotion featured

BROWSE THE WEB

Yahoo! Search - Web See... http://us.search.yahoo.com/web?p=&si=utf-8&h=chr-appattach&type=194

YAHOO! Web Images Videos Local Shopping News More - Search Tab q w e r t y u i o p ?123 a s d f g h j k l Go z x c v b n m , . / - :)

Your Tablet is equipped with a full HTML Web Browser that enables you to view web pages.

A. To access the Web Browser select the icon from the App Tray.
B. To enter a URL, tap the URL field at the top of the browser and enter the desired link using the QWERTY keyboard.
C. Tap 'Go' to load the page.

Bookmark a Favorite Page

A. Scroll to the top of the desired web page.

B. Tap the star on the URL field > Tap 'OK.'

Yahoo! Search - Web Search Address http://vs.search.yahoo.com/web?p=&e=utf Account china@afhuagmail.com Add to Bookmarks YAHOO! www.yahoo! C. My Rassman Tab Q W E R T Y U I O P ?123 A S D F G H J K L Next Z X C V B N M , . 吗 ↓ / 21:50

SETTINGS: Date, Time, & Screen Timeout

Manual Time Setting

A. Open the App Tray > Select 'Settings' > Scroll down to and tap 'Date & Time' > Select 'Set Time' > Set the hour and minute by tapping the arrow keys; then tap 'Set.'

Manual Date Setting

A. Open the App Tray ▪▶> Select 'Settings' > Scroll down to and tap 'Date & Time' > Select 'Set Date' > Set the month, date, and year by tapping the arrow keys; then select 'Set.'

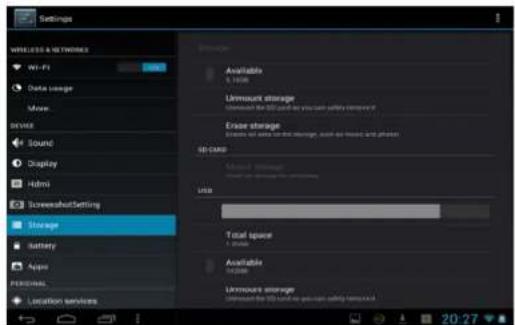

Settings Wireless & NETWORKS Wi-Fi Data usage More... Device Sound Display HDMI ScreenshotSetting Storage Battery Apps PERSONAL Location services Chrome Brightness Wallpaper Sleep File Features of content Font size Normal 20:31

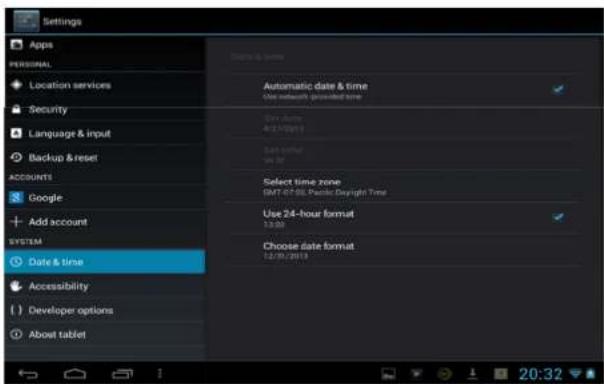

Settings Apps PERSONAL Location services Security Language & input Backup & reset ACCOUNTS Google Add account SYSTEM Date & time Accessibility Developer options About tablet Automatic date & time Use network grounded time Live date 4/2/2017 Send date you at Select time zone GMT-07-93: Pacific Copyright Time Use 24-hour format 13:30 Choose date format 12/10/2013 20:32

Auto Date & Time

A. Open the App Tray > Select 'Settings' > Scroll down to and tap 'Date & Time' > Select 'Automatic Date & Time' to check the box.

Note: The 'Automatic Date & Time' option sets the date and time using the network provided. Should an incorrect time zone appear, tap 'Select Time Zone' and find the appropriate time zone.

Screen Timeout

A. Open the App Tray > Select 'Settings' > 'Display' > 'Sleep.'

B. A dialogue box will appear with several options to choose from. Tap the length of time (in seconds or minutes) before the Tablet goes black (to conserve battery life).

HOME LAUNCHER SCREEN APPLICATIONS

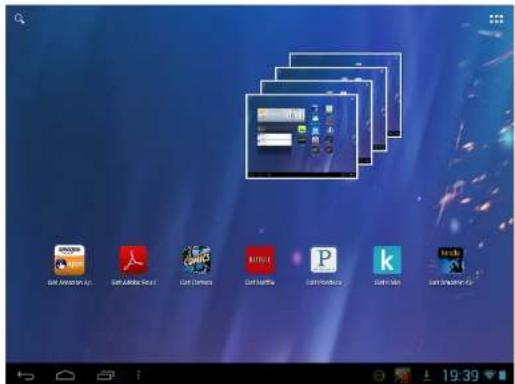

Home Launcher Screen

This is your starting point. The Home Launcher screen consists of 5 screens (slide finger left or right across the screen to view). You'll find many features including pre-installed AppLink shortcuts of the most popular Apps used today, that are ready for download once you connect to the internet.

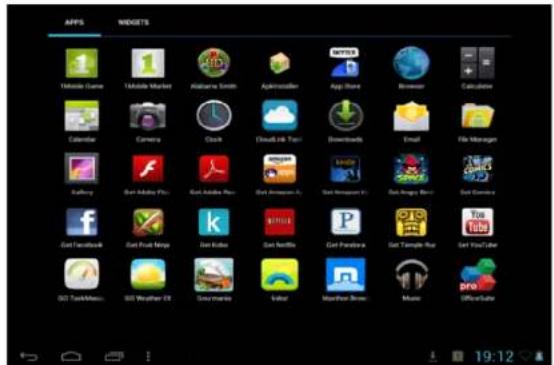

APPS NIGETS Mobile Game Mobile Market Hotzone Street App Store App Store Browser Calculator Calendar Camera Clock Cloud Kit Trip Download Email File Manager Gallery Get Mobile PC Get Google PC Get Amazon A Get Smartphone C Get Audio Block Get Camera Get Facebook Get Fruit Maps Get Video Get Netflix Get Pandora Get Template Box Get YouTube GO TrackMap... GO Weather VR Data Images Infor Mantai Web Music OfficeSuite

NOTE: Apps that are running in the background will take up valuable memory and drain battery resources. Tap the icon to view any open Apps, then swipe towards the left to close them.

01:15:04:21 Sun 18:11 N/A At present hours. Apr 21 No upcoming calendar events App Store YouTube Market CloudLine Tech SFO OtherBus MakeYour Store Get Facebook pulse Power Get YouTube Illumina Productivity Music

Add or Remove Favorite Apps from App Tray

A. To open the App Tray tap the icon located at the upper right hand corner of the Tablet to display all of the applications that have been pre-installed or downloaded to your Tablet.

B. To add to the Home Launcher screen, tap and hold the desired app. Release the icon onto the Home screen.

C. To remove an App from the Home Launcher screen, tap and hold the icon until it enlarges, then slide to remove to Trash.

DISCOVER APP SHORTCUTS

Your Home launcher screens feature pre-installed Apps shortcuts and up to 12 Applinks for your convenience.

They are ready for download once you connect to the internet. Several examples are described below.

Music – Access music files installed on your Tablet.

App Tray – Access all Apps that are installed on to your Tablet.

Settings – View and modify settings for Wireless network, display, battery, menu language, etc.

Internet Browser – Access the world wide web when connected to a wireless network.

File Manager – View all your files installed on your Tablet.

Gallery – Access photos and videos you have installed on your Tablet.

Skytex App Store – Thousands of the most popular Android Apps specifically optimized for your tablet!

1Mobile Market – Discover 300,000+ free Android Apps: games, social media, music, education, books, etc.

Get Amazon – One of (up to 12) pre-installed Applinks direct you to download the actual App once connected to a wireless network. When installed the App will be located in your App Tray. It is recommended to delete the "Get" Applink once the actual App is downloaded and installed, to reserve space on your Home screen.

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 1

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 2

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 3

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 4

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 5

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 6

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 7

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 8

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 9

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 10

Skytex Skypad 972 - DISCOVER APP SHORTCUTS - 11

Get Kindle –Download and again access to millions of eBooks, magazines, newspapers, audio books, games, blogs, and more.

Cloudlink – Discover and manage pre-populated productivity suite content from CloudLink's Toolbox including 5GB of free cloud storage.

NOTIFICATIONS BAR / CONNECT TO TV / USING micro-USB

NOTIFICATIONS BAR

The Notifications Bar, located at the bottom of the Home Launcher screen displays new messages, alerts and icons that show you the time, wireless network status, battery charge, progress of downloads, connectivity of Bluetooth or micro-USB, alarm setup, and more.

Skytex Skypad 972 - NOTIFICATIONS BAR - 1
Back

Skytex Skypad 972 - NOTIFICATIONS BAR - 2
Home

Skytex Skypad 972 - NOTIFICATIONS BAR - 3
Open Apps

Skytex Skypad 972 - NOTIFICATIONS BAR - 4
App Tray

Back – Tap to go back to the previous page.

Home – Tap to go to the Home Launcher Screen

Open Apps – Tap to view open applications. Swipe to the left to close and save battery life.

App Tray – Access all applications installed on to the tablet.

APPS WIGGETS 1 Hobbit Save 1 Mobile Market Alstasy Earth Apti Installer App Store Brunner Calculator Calendar Commerce Clock CloudLink Tech Downloads Email File Manager Gallery Get Adobe Film Get adobe Web... Get Amazon A... Get Amazon B... Get Amazon K... Get angry Skin... Get Camera Get Facebook Get Print Mega Get Kids Get Netflix Get Pandora Get Template Bar Get YouTube GO TaskMenu GO Weather EX Documenta kilot Microsoft Excel Music Office Suite

HDMI

Your Tablet features an HDMI output to display its content digitally to your HDTV. Enjoy the benefits of high definition video by connecting an optional micro HDMI HD cable (available at the SKYTEX store).

Micro-USB

Your tablet offers true versatility when using the micro-USB port.

Keyboard/Mouse – connect an optional keyboard or mouse using an optional micro-USB OTG cable.

Ethernet Adapter – connect your tablet to a wired internet network using an optional Ethernet to USB dongle.

3G Wireless – connect an optional 3G wireless modem dongle. Insert your SIM card into it and use your tablet when Wi-Fi isn't available.

Transfer Files & Additional Storage—connect a flash drive using the cable provided with your tablet.

A. Connect your Tablet to your PC via the USB cable.
B. A USB symbol will appear in the Notifications Bar/Bottom Bar
C. Select the symbol that appears > Tap USB Connected > Turn on USB Storage.
D. You are now able to drag-and-drop your music, video, and photo files between your Tablet and PC.

NOTE: Your Tablet will be recognized as an external drive. Once completed, tap 'Turn off USB Storage' and remove Tablet from your PC.

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

A. Go to the App Tray and select 'Gallery'

B. Select the movie file to view.

C.Once the video begins, you may select playback contr that appear on the display.

View Photos

A. Go to App Tray and select 'Gallery'

B. Tap on photo files you would like to view.

Skytex Skypad 972 - View Photos - 1

Skytex Skypad 972 - View Photos - 2

Play Music

A. Go to App Tray then tap the 'Music' App.
B. Select the desired song and adjust volume settings to your liking.
C. To exit out of the App, tap 'Home or 'Back.'
D. To stop music playback, go back to the Music App and tap 'Pause.'

Skytex Skypad 972 - Play Music - 1

natural_image Action scene with a character in red hair holding a device, displayed within a video player interface (no readable text or symbols on the character or background)

NOTE: Hearing experts advise against the constant use of headphones played at high volume. Constant exposure to higher volumes may lead to hearing loss. Should you experience ringing in the ears or hearing loss, discontinue use.

Your Tablet is capable of streaming videos directly from the Internet or via 3 ^rd party streaming applications. Popular streaming video applications are available through the Skytex App Store for download on to the Tablet. Prior to streaming movie files, download the application of your choice.

INSERTING A MICRO-SD CARD

Your Tablet will accept a micro-SD memory card to add up to an additional 32GB of storage for videos, music, photos, documents, and more.

Align an optional memory card with the card slot. Make certain the metal contacts are facing downward. Slide the card carefully into the spring-loaded slot until it clicks securely. To remove safely, enter SETTINGS and STORAGE to view options. Tap UNMOUNT SD card, then push the memory card with your thumbnail further into the slot until it springs outward of the slot. Do not remove card while any app is in use.

Get AmazonUp Get Google Excel Get Dash Get Netflix Get Disney+ Get Master

Settings Wireless & NETWORKS Wi-Fi Data usage Mouse Services Sound Display HDMI ScreenshiftSetting Storage Battery Apps PERSONAL Location services Available 1,000 Timeout storage without the 50% and no user can switch to access Erase storage without any other storage, such as video and phone. SD-CMSO Sound Without without the 50% and no user can switch to access USB Total space 1,000 Available 400000 Timeout storage without the 50% and no user can switch to access 20:27

NOTE:

Do not attempt to insert objects other than a micro-SD memory card into the card slot. A compatible memory card should fit easily into the card slot; If you encounter resistance, check the alignment of the card. Do not attempt to force the card in. Avoid touching the gold contacts of the memory card.

CAMERA & VIDEO CHAT

Skytex Skypad 972 - CAMERA & VIDEO CHAT - 1

natural_image Close-up of a smiling man and child with camera mode dial visible (no text or symbols on main subjects)

Web Camera Functions

A. Tap the Trash Can icon to delete.

B. Tap Menu > 'Set Picture As' to set the photo as the Table's background.

Video Chat

A. Download and install your favorite video chat app from the Skytex App Store or 1 Mobile Market.

B. The Webcam is set as the default camera for video chat.

Rear Camera Functions

A. Open the 'Camera' application by tapping the Camera icon

B. Switch between front and rear camera by tapping the icon

C. Capture images shown on the display by tapping

D. Tap the thumbnail of an image that appears to view or edit the photo.

E. You may also view your photos with the 'Gallery' app

Skytex Skypad 972 - Rear Camera Functions - 1

Skytex Skypad 972 - Rear Camera Functions - 2

natural_image Portrait of a woman wearing a black headset, with an inset photo of a person in a red turtleneck (no visible text or symbols)

SETTING UP YOUR EMAIL

A. From your App Tray, tap the 'Email' icon to enter the Email client.

B. Enter an Email address and a password.

C. After you have entered your information, press 'Next' to move to the next step.

D. The Email app will test the incoming and outgoing mail servers. Once completed, you will be prompted to enter an account name and your name.

E. The account name is used to identify the name of the account on the Tablet.

F. Your name will be displayed on all outgoing messages sent from the Email app on your Tablet.

Account setup Email account You can set up email for most accounts in just a few steps. Email address Password Manual setup Next Tab q w e r t y u i o p ?123 a s d f g h j k l Next z x c v b n m , . @ - .com 19:17

NOTE: Certain Email providers will require you to enter more details about the type of account you are using. You will have three choices: POP3, IMAP, and Exchange. If unsure of your account type, please contact your Email provider for more information.

TROUBLESHOOTING

For more updated FAQs and troubleshooting tips, visit us at www.skytex.com/support

Symptom Solution

My touchscreen is not responding.How do I reset the tablet?The battery drained completelyand now it won’t turn on...To reset, first make sure the power source is unplugged. Press and hold the Power button for 10 seconds and then plug the power source back in. Press the Power button for another 2-3 seconds.To erase all data on the Tablet go to Settings > Backup & reset >Factory Data Reset. ALL DATA WILL BE LOST.
I inserted a MicroSD card. Where are my files located?After inserting the card, find your files in the “File Manager” application.Go to the App tray; open ‘File Manager’. Select the SD card icon to access files.
1Mobile Market states a ‘Network Error’ message when I attempt a download.The App requires an update to the most recent version. Visithttp://www.1mobile.comon your tablet’s browser and download the updated version.
My Wi-Fi says it’s ‘Disconnected’ after I attempt to connect?The 'Disconnected' status means that the tablet is not connected to any network. Make sure the correct password is entered when connecting to your wireless network. This password could be on the bottom of the router or a password that was created by someone when the Wi-Fi device was originally set up.

SPECIFICATIONS

HD Display Type: 9.7" 1024 x 768 Capacitive Touchscreen Display

Processor Type: 1.6GHz Processor + Mali 400MP GPU

Operating System: Android 4.1 Jelly Bean

Storage Capacity: 8GB* Internal Storage

Internal Memory: 1GB RAM

Memory Card Supported: Micro-SD Expansion to 32GB

Wireless LAN: 802.11b/g/n

HDMI: Yes

Cameras: VGA Front / 2MP Rear

Micro USB: Yes

Stereo Headphone Output: 3.5mm

Tablet Dimensions: 9.6"(L) x 7.4"(W) x 0.3"(D)

Tablet Weight: 1.4 lbs.

Battery Capacity: Up to 10 hours*

Input Voltage, Power Adapter 100V/240VAC, 50/60Hz, 5V Output (UL Listed)

Limited Warranty: 1 Year Parts & Labor

NOTE:

1- *Available storage capacity will be less due to operating system and pre-installed software applications.
2- Battery life will vary depending on your settings, use and other factors.

WARRANTY & SUPPORT

SKYTEX Technology Inc. warrants against defects in material and workmanship for a period of one year from original purchase date when purchased from an authorized U.S. reseller/retailer by the original purchaser or is a consumer who received the tablet as a gift. You must retain and provide the original bill of sale (or photocopy) as proof of purchase in case the tablet requires service. Retain the original box and inner packaging to ship if necessary.

Your Responsibility

Warranty service shall be provided after a return authorization number (RMA#) is provided to you by our customer support representative. For one year, SKYTEX will provide at no charge, service repairs using new or replacement parts. In certain cases your tablet may be replaced with a refurbished model that meets or exceeds factory specifications. Service provided or refurbished replacement is warranted for the duration of the original warranty period or 45 days, whichever is greater. Warranty extends to defects in materials or workmanship and does not cover cosmetic imperfections, damage incurred during shipment to SKYTEX, misuse, accidental drops that crack the screen, connection to improper equipment, or repairs by an unauthorized party. Write the RMA number on the package; include a copy of the store receipt and description of the issue with the product and serial number.

How to Obtain Warranty Service

If after following the User Guide, should you find it necessary to contact Customer Support, email or call between 9am-5:30pm Mon-Fri (Pacific Time). Have your date of purchase, serial number, and a full understanding of the issue ready for your representative. You are responsible for the transportation costs and protective packaging associated with shipping the product to SKYTEX safely. Ship the tablet using a service that provides tracking information.

Customer Support

Mon-Friday 9:00am-5:30pm

Phone: (888) 759-8399

Email: support@skytex.com

Website: www.skytex.com

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Skytex

Model : Skypad 972

Category : Tablet
