BAS-1 - Scale WILFA - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	Wilfa
Model	BAS-1
Dimensions (Approx.)	20 x 15 x 2 cm
Weight (Approx.)	300 g
Power Supply	2 x AAA batteries (not included)
Maximum Capacity	5 kg
Precision	1 g
Units	g, oz, ml, lb:oz
Tare Function	Yes
Auto-Off	Yes (after 2 minutes of inactivity)
Low Battery Indicator	Yes
Display	LCD
Platform Material	Stainless Steel
Cleaning	Wipe with a damp cloth; do not immerse
Safety Precautions	Use on a flat, stable surface; avoid overloading
Spare Parts Availability	Not available; device is not repairable
Instructions Included	Yes (manual available online)

Frequently Asked Questions - BAS-1 WILFA

How do I change the unit of measurement?

Press the UNIT button to cycle through g, oz, ml, and lb:oz.

What batteries does the Wilfa BAS-1 scale use?

It uses two AAA batteries (not included). Open the battery compartment on the back to insert them.

How do I tare the scale?

Place an empty container on the scale and press the TARE button to reset the display to zero.

What is the maximum weight this scale can measure?

The maximum capacity is 5 kg (11 lbs).

Why does my scale turn off automatically?

The scale has an auto-off feature that activates after 2 minutes of inactivity to save battery.

How do I clean the scale?

Wipe the surface with a damp cloth. Do not immerse the scale in water or use abrasive cleaners.

Is the scale accurate?

Yes, the scale has a precision of 1 g. For best accuracy, use it on a flat, stable surface and avoid overloading.

Can I measure liquids with this scale?

Yes, you can switch to ml mode to measure water volume. For other liquids, density may vary.

What does the low battery symbol mean?

The low battery indicator appears when batteries need replacement. Replace them promptly to maintain accuracy.

Where can I download the manual?

The manual is available for free download on the Wilfa support website or via the notice-facile.com page.

USER MANUAL BAS-1 WILFA

Digital kitchen scale with black base and white measurement bands, showing a green indicator on the screen (no text or symbols visible)

BAS-1 body analysis scale

NO BRUKSANVISNING
SE BRUKSANVISNING
DK BRUGSANVISNING
FI KÄYTTÖOHJE
GB INSTRUCTION MANUAL

Bruksanvisning

Introduksjon

Simple line drawing of two blocks on a textured surface with intersecting lines (no text or symbols)

Illustration showing a faucet and a bottle with a crossed-out tube, both without any text or symbols

Diagram showing two blocks on a textured surface with intersecting black lines (no text or symbols)

Illustration showing a faucet and a bottle with a crossed-out pipe, both without any text or symbols.

Diagram showing two blocks on a textured surface with intersecting lines (no text or symbols)

Illustration showing a faucet and a bottle with a cross mark, alongside a surface with a flame (no text or symbols)

Simple line drawing of two blocks on a textured surface with intersecting lines (no text or symbols)

Illustration showing a faucet and a bottle with a cross mark, alongside a surface with a flame (no text or symbols)

Thank you for choosing our body monitor scale, you are making an important contribution to your health care. It has the following functions:

- The body monitor scale uses your personal data to determine your body fat & water & muscle & bone proportion and weight.

• The scale is equipped with 10-person memory.

Important Advice

We recommend that you consult a doctor if you are overweight and are trying to reduce your weight, or if you are underweight and trying to put on weight. Treatment and diet should be only take place in consultation with your doctor.

Recommendations on exercise programs or weight loss diet, on basis of the value determined, should be provided by your doctor or certified by the professional. Do not try to interpret the data by yourself.

We will not be liable for damage or loss caused by the Body Balance or for third party claim.

- This product is intended for personal home use only. It is not designed for professional use in hospital or medical facilities.

• Not suitable for people with electronic implants, such as pacemakers, etc.

Preparation For Use

1. Insert the battery into the battery compartment, making sure that the polarities are correct, and, if such protection is provided, pull the plastic transparent protection from under the battery to initialize the battery.

1. Always place the scales on a level, firm surface for measurements.

Simple line drawing of two carts on a surface with a cross mark, no text or symbols present

1. Caution: danger of slipping on wet surface.

1. Cleaning and care: clean only with a damp cloth. Never use solvent or abrasives. Do not immerse the scale in water.

Illustration showing a faucet and a bottle with a crossed-out tube, both on a surface (no text or symbols)

1. Country-specific setting: the scale can be switched from kg/cm to lb.

Weighing Operation

1. Place the scale on the floor.
2. Press the "ON" button to start the scale.
3. Wait a few seconds for 0.0 to appear in the display.
4. Step on to the scale and stand still until the weight symbol appears beside the display.
5. Body weight indication
6. The scale switch off automatically when the person step off.

Setting Program

1. Place scale a table for programming
2. Start programming, presses 'SET' button.

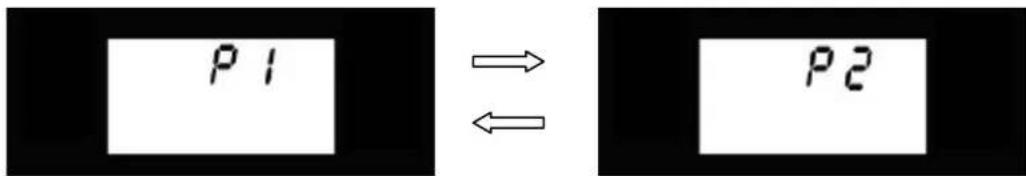

3. Memory location(P1-P0), select (▼=minus ▲=plus) and confirm 'SET'.

1. Input your gender, select (▼=male ▲=female) and confirm 'SET'.

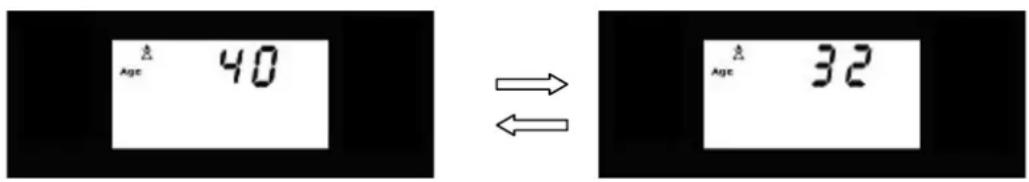

1. Enter your age, select (▼=minus ▲=plus) and confirm 'SET'.

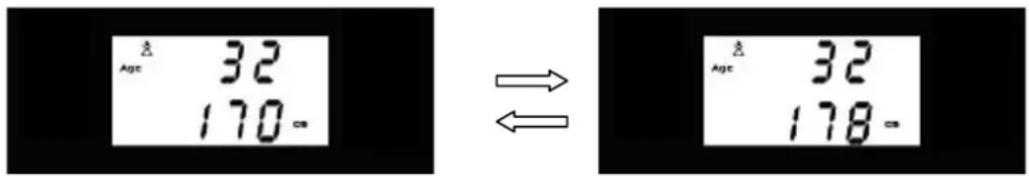

1. enter your height, select (▼=minus ▲=plus) and confirm 'SET'.

1. The values you've just set are displayed again consecutively. When the display shows '0.0', step on the scale barefoot to measure. (This scale has an energy-saving mode that switches it off automatically if no key is pressed for approximately 10 seconds.)

Note:

• If you do not input any information within 10 seconds, the device will automatically switch itself off to conserve the battery. If you do not input all relevant personal data and then save it by pressing Set, the data will be lost and must be input again.
• Should you have made mistakes when inputting the data, go through the data again and correct the respectively false settings by simply inputting it again. Such changes can be saved by pressing Set.

Body Monitoring

1. Switch on the scale by pressing the "ON" button.
2. An exact measurement can only be made if the person being weighed is standing on the platform barefooted, with clean and dry feet. It is indispensable to stand with the feet on the stainless steel straps. There should not be any other objects on the platform at this time.
3. Select the entry with your personal data by continuously pressing the SET button and wait a few seconds until the LCD indicator '0.0' kg is displayed. Now you can step on the scale and begin to analyze your body

1. Your body-weight reading is displayed first. Analysis of body fat/water/muscle/bone then begins. Note: Please stand still until the analysis is complete. Process is shown in the form of a segmented graphic display.

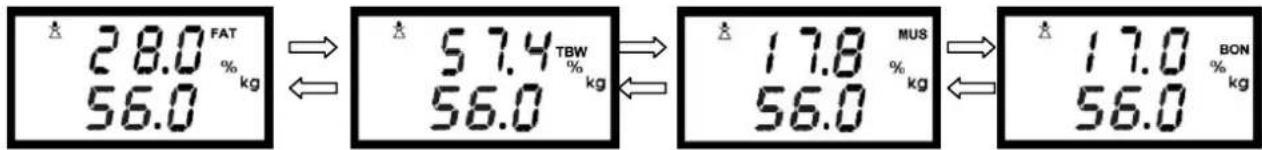

1. The screen then displays body fat (FAT) as a percentage, along with the proportion of body water (TBW),

muscle (MUS) and bone (BON).

1. According to the above displays, you can refer to the sheet of the last page. —'Health Expert Recommend the following percentage'

2. The scale shuts down automatically when you step off it.

Symbols of The Body Fat Scale

'LO'—Battery remove: When the battery is in low voltage, 'Lo' will be on display. In this case, please remove battery to avoid measuring inaccuracy of this scale due to leakage of the low battery.

“EEEE”—Faulty measurement: The scale cannot afford any weight exceeding 150.9kgs, if it dose so, please stop weighing and prevent any damage to the scale.

'Err'—Faulty measurement: If it displays, please stop weighing and prevent any damage to the scale. Please check information you input and make sure them correct. Meanwhile, keep your feet clean and prevent nothing left on the scale!

'Err' will be also display due to the operation as below:

10) Your weight exceeds the capacity max. 150.9kgs
11) Your body fat ratio exceeds the measuring max. 45%
12) Your body fat ratio is less than 4%

Factors Influencing Measurement Readings

Analysis is based on the measurement of the body's electrical resistance. Eating and drinking habits during the course of the day and individual lifestyle affect the water balance. This is noticeable by the fluctuation in the display.

In order to ensure that the results of analysis are accurate and consistent as possible, keep the measurement condition constant, as only in this way will you be able to observe changes over an extended period.

Other factors can affect water balance:

1. After a bath, the body fat reading may be too low and the body water is too high
2. After a meal, reading can be higher

3. Women may experience fluctuations due to the menstrual cycle

4. Due to loss of water caused by illness or after physical activity (sports). After taking exercise, waiting for 6 to 8 hours before carrying out the next measurement

Varying or implausible results can occur in the case of:

1. Person with a high temperature, symptoms of Oedema or osteoporosis
2. Persons undergoing dialysis treatment
3. Persons taking cardiovascular medicine
4. Pregnant women
5. Athletes who undertake more than 10 hours of intensive training per week and having a resting pulse rate of under 60/minute
6. Competitive athletes and body builder

Technical Data

1. Weighing Capacity & Graduation= Max.330lbs/150kgs & 0.2lbs/100g
2. Display Solution: Body-Fat proportion: 0.1%
3. Display Solution: Body-Water proportion: 0.1%
4. Display Solution: Body-Muscle proportion: 0.1%
5. Display Solution: Body-Bone proportion: 0.1%
6. Height: 100-240mm
7. Age: 10-80 years
8. 10 person individual memory locations
9. LCD displaying
10. Battery: 2pcs lithium batteries (CR2032)

Health Expert Recommend the following percentage

Men
Age	Body Fat Body Water
	Low	Normal	High	Very High	Low	Normal	High
10-29	3-13	14-23	24-33	34-50	28-36	37-47
30-49	3-14	15-24	25-34	35-51	28-35	36-46
50-80	3-15	16-25	26-35	36-52	28-34	35-45

Age	Body Muscle Body Bone
	Low	Normal	High	Low	Normal	Hig
10-29	8-13	14-16	>16	10-16	17-19	>19
30-49	8-12	13-15	>15	10-15	16-18	>18
50-80	8-11	12-14	>14	10-14	15-17	>17

48-55

47-55

46-55

Woman
Age	Body Fat Body Water
	Low	Normal	High	Very High	Low	Normal	High
10-29	3-18	19-28	29-38	39-50	28-34	35-45	46-55
30-49	3-19	20-29	30-39	40-50	28-33	34-44	45-55
50-80	3-20	21-30	31-40	41-50	28-32	33-43	44-55

Age	Body Muscle			Body Bone
	Low	Normal	High	Low	Normal	High
10-29	8-12	13-15	>15	8-15	16-18	>18
30-49	8-11	12-14	>14	8-14	15-17	>17
50-80	8-10	11-13	>13	8-13	14-16	>16

Marketed by: AS WILFA

Industriveien

25

Postboks

146

1483 Skytta, Norway

Tlf: [phone]

Fax: [phone]

[e-mail]

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
