Product Type	Stroller
Brand	Emmaljunga
Model	Nitro
Weight	12 kg
Dimensions (Open)	100 x 60 x 110 cm
Dimensions (Folded)	80 x 60 x 40 cm
Age Range	0 to 4 years
Max Child Weight	22 kg
Recline Positions	Multi-position, including flat
Harness Type	5-point adjustable harness
Wheels	Air-filled rubber tires, front swivel with lock
Brake Type	One-pedal parking brake, rear wheels
Canopy	Large extendable, UV protection, with peek-a-boo window

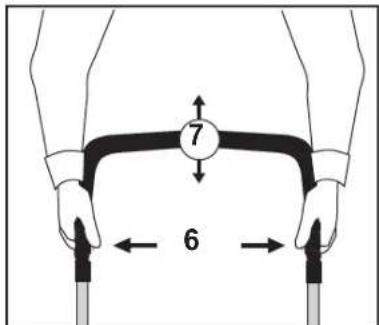

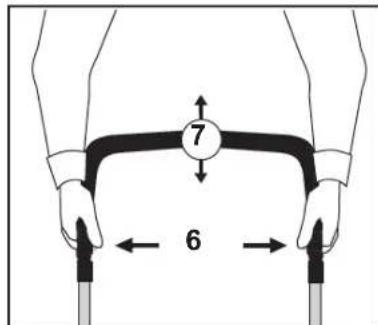

Handlebar Height	Adjustable, 90-110 cm
Foldable	Yes, one-hand fold
Car Seat Compatible	Yes, with adapters (sold separately)
Fabric Cleaning	Machine washable at 30°C
Safety Standard	EN 1888
Warranty	2 years

Frequently Asked Questions - Nitro Emmaljunga

How do I fold the Emmaljunga Nitro stroller?

To fold, first ensure the stroller is empty. Pull the folding handle located on the handlebar or seat area upward until the stroller collapses. Lock the fold by engaging the auto-lock mechanism. Always refer to the manual for detailed folding instructions.

Can I use the Nitro stroller from birth?

Yes, the Nitro stroller has a fully reclining seat that allows flat positioning, making it suitable for newborns. Alternatively, use a separate carrycot or car seat with adapters.

How do I adjust the harness for my child?

The 5-point harness has adjustable shoulder straps and a buckle. Loosen the straps by pressing the adjuster buttons, position the straps at your child's shoulder height, and tighten evenly. Ensure the harness is snug but comfortable.

What is the maximum weight capacity for the Nitro stroller?

The stroller has a maximum child weight of 22 kg (about 48 lbs). The storage basket can hold up to 5 kg. Do not exceed these limits for safety.

How do I clean the fabric parts?

Most fabric parts can be removed and machine washed at 30°C on a gentle cycle. Do not bleach, tumble dry, or iron. Allow to air dry. Frame can be wiped with a damp cloth.

Can I attach a car seat to the Nitro stroller?

Yes, using Emmaljunga adapters (sold separately) you can attach most infant car seats. Consult the manual for compatible car seat models.

How do I fix a flat tire on the Nitro?

The stroller uses air-filled tires. Use a tire pump to inflate. For punctures, remove the wheel, patch the inner tube or replace it. Refer to the manual for wheel removal instructions.

Is the stroller safe for jogging?

No, the Nitro is not designed for jogging or running. It is a city stroller for everyday use on paved surfaces. The front wheels are swivel, which can cause instability at high speeds.

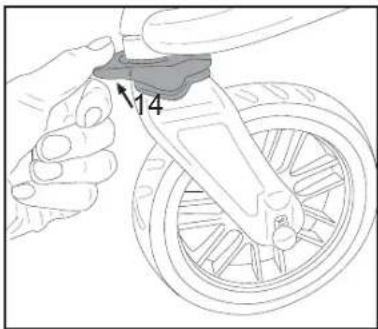

How do I lock the front swivel wheels?

On each front wheel, there is a locking lever. Push it down to lock the wheel in a fixed forward position for rough terrain. Lift to unlock for easier maneuvering.

What is the warranty period for the Nitro stroller?

Emmaljunga offers a 2-year warranty against manufacturing defects. Keep your proof of purchase. Some components like tires and fabric have separate coverage.

USER MANUAL Nitro Emmaljunga

READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

This product complies with DIN EN 1888:2003 + A 1:2005 + A 2:2005 + A 3:2005, EN 1466:2008

This product is suitable for one (1) child from 6 months - 3 years with a maximum weight of 15 kg.

WARNING! The seat-unit is not suitable for children under 6 months. Don't use the seat-unit until your child can sit unaided.

WARNING! The product is not suitable for running or skating.

WARNING! This carrycot is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg. WARNING! Never use this carrycot on a stand.

The outer length and width of the Carrycot is 860 mm/450 mm. The outer length and width of the City Carrycot is 795 mm/430 mm. The outer length and width of the Quadrolift is 800 mm / 400 mm. The outer length and width of the Babylift is 800 mm / 330 mm.

WARNING! Please visit www.emmaljunga.co.uk for the latest version of this manual before using the product.

Close-up of hands adjusting a small mechanical component with a circular mark and arrow (no visible text or symbols)

Illustration of a person performing a medical or therapeutic procedure on a patient's abdomen, with no visible text or symbols.

Close-up of a car seatbelt buckle with a downward arrow indicating compression (no text or symbols)

Montera suffletten

Illustration of a person adjusting a seatbelt using a chair (no text or symbols visible)

Montera fotsack (tillbehör)

Diagram of a mechanical linkage or lever mechanism with an arrow indicating motion direction (no text or symbols present)

2

Mechanical assembly diagram showing a motor stroller with two labeled parts (1 and 2), no text or symbols present.

3

Black stroller with red X symbol crossed by a person, no text or symbols visible

Manual Nitro City v. 1.8

WARNING

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

6

Illustration of a person adjusting a black and white object with a numbered label (no text or symbols present)

7

Black-and-white illustration of a person wearing a patterned shirt and holding a bag (no text or symbols visible)

8

9

Close-up of a mechanical device with lever and handle, showing motion direction (no text or symbols)

Använda bromsen

Illustration of a person using a medical or surgical tool on a device, with no visible text or symbols

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

WARNING

Illustration of a hand holding a bicycle tire with a knife inserted, showing a numbered component (no text or symbols present)

WARNING

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

4

Technical line drawing of a mechanical component with directional arrows indicating rotation (no text or symbols)

Justera suffletten

Mechanical assembly diagram showing a hand adjusting a seatbelt with a numbered component (no text or symbols present)

Close-up of a hand pressing down on a car seatbelt, with a numbered arrow indicating up to 10 (no text or symbols present)

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black wheels and a gas cylinder (no text or symbols visible)

Subject...... The section applies to the following products:

Contents of the box.... 23 Nitro City & City Carrycot

Important safety information 24-27 Nitro City & City Carrycot

Assembly of seat-unit 28-30 Nitro City

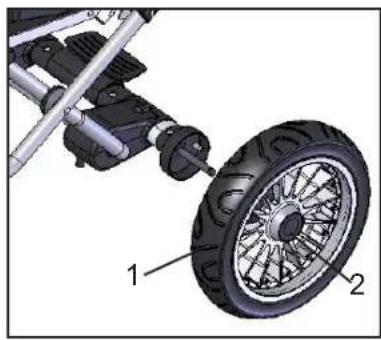

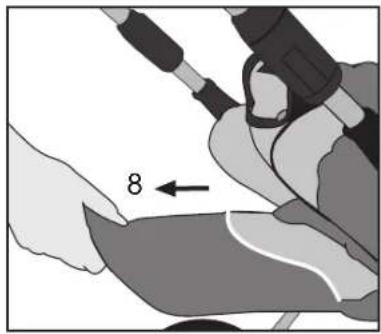

Assembly and usage of the chassis 31-33 Nitro City

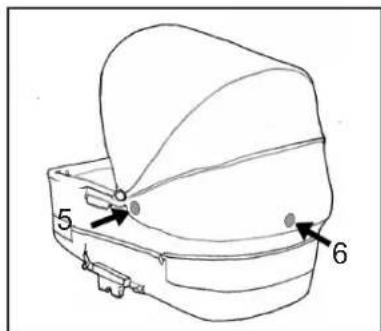

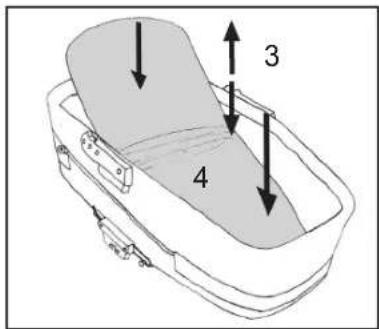

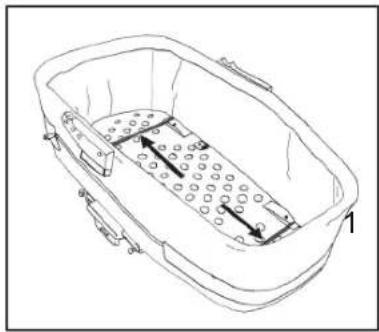

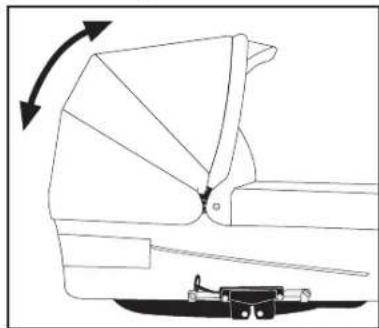

Assembly and usage of the City Carrycot .... 34-35 City Carrycot

Care and maintenance 36-37 Nitro City & City Carrycot

Service Documentation.... 42 Nitro City

Delivery Check.... 43 Nitro City

Service Protocol.... 44 Nitro City

Important!

In the manual the terminology City Carrycot is used for the City Carrycot/ Bassinet

Contents of the box:

Nitro City

1 pc seat-unit with 5-point harness
1 set of shoulder pads for harness
1 pc folded chassis with tray

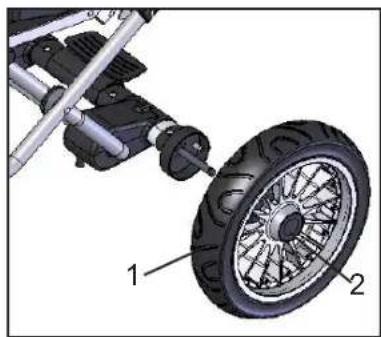

2 pcs wheels 300 mm
2 pcs Swivel wheels
1 pc raincover
1 pc instruction manual
1 pc hood
1 pc seat-fabrics
1 pc footrest cover
1 pc bumper bar cover

City Carrycot (Accessory)

1 pc City Carrycot
1 pc Hood
1 pc Mattress
1 pc Instruction manual
1 pc Apron

Emmaljunga's original accessories

Please use Emmaljunga's original accessories for maximum safety and comfort. Information about co-ordinating accessories can be found in our brochure or at any of our authorised retailers.

Important Safety Information

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you don't follow these instructions.

Important keep these instructions for future reference.

WARNING Never leave your child unattended.

WARNING Ensure that all the locking devices are engaged before use.

WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING Do not let your child play with this product.

WARNING Use a harness as soon as your child can sit unaided.

WARNING This seat unit is not suitable for children under 6 months.

WARNING Always use the restraint system.

WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

WARNING This product is not suitable for running or skating.

WARNING Accessories or spare parts that the manufacturer has not approved must not be used.

Warning sentences according to prEN1888:2010

WARNING It may be dangerous to leave your child unattended.

WARNING Do not add a mattress thicker than 45mm.

WARNING Any load attached to the handle affects the stability of the pram/pushchair.

WARNING Always use the crotch strap in combinations with the waist belt.

Warning sentences according to EN1888:2003+A1:2005+A2:2005+A3:2005

WARNING A child's safety is your responsibility. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.

Warning sentences according to BS 7409:1996

Important Safety Information

WARNING Follow the manufacturer's instructions.

WARNING Put on all the brakes whenever you park the stroller.

WARNING Do not leave children unattended.

WARNING Do not carry extra children or bags on this stroller.

WARNING Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

WARNING Not recommended for a child under 6 months old.

Mandatory warning sentences Australia

To avoid injury or death:

WARNING Always apply the brakes whenever the pram/stroller is stationary.

WARNING Do not leave children unattended.

WARNING Secure the child in the harness at all times.

WARNING Do not carry extra children or bags on this pram/stroller.

WARNING Make sure children are clear of any moving parts if you adjust the pram/stroller.

WARNING When not in use disconnect shoulder straps from the waist strap and/or buckle.

WARNING Do not use this bassinet once the child can sit up unaided.

WARNING Do not use or park the vehicle close to open fires or other sources of heat such as radiators for example.

WARNING Avoid steps, stairs and escalators whenever possible. Always stand below the stroller if used on an escalator.

Warning sentences according to AS/NZS 2088:2009

WARNING Do not let other children play unattended near the carrycot.

WARNING Do not use the carrycot if any part is broken, torn or missing.

WARNING Use only replacement parts supplied or approved by the manufacturer.

WARNING Be aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of carry cot.

Important Safety Information

WARNING The handles and the bottom of the carrycot should be inspected regularly for signs of damage and wear.

WARNING Never use the carrycot on a stand.

WARNING Do not leave your child unattended.

WARNING Use only the carrycot on a firm, horizontal level and dry surface.

Warning sentences according to EN 1466:2004+A1:2007

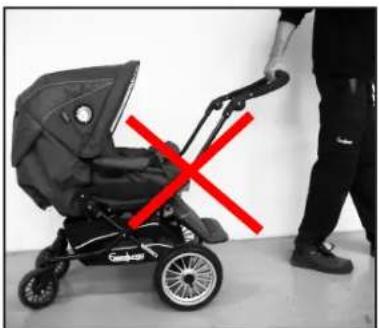

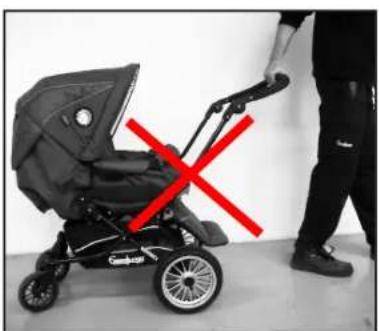

WARNING Never pull a pram with swivel front wheels behind you, if the front wheels are not locked.

The pram might self turn which can lead to a safety risk if you are not cautious and attentive.

• Your child's safety is your responsibility.
• This product is intended for one (1) child from the age of 6 months up to a maximum weight of 15kg . Only use the pram for the number of children it is intended for.
• With a lift (original accessory) the pram can be used from birth
• The carrycot can only be used for the transportation of one child from 0 to 6 months up to a maximum weight of 9kg . The product is not suitable for a child that can sit unaided, roll around or support themselves on hands and knees.
• Nitro ^City chassis should only be used together with an City carrycot or a Type A seat unit.
• Follow the care and maintenance instructions.
• The safety instructions and directions in this manual cannot cover all possible conditions and unforeseeable situations which may occur. It must be understood that common sense, caution and care are factors that cannot be built into a product. These factors are the responsibility of the person(s) caring for and operating the pram.
• It is important that these instructions are understood and followed by everyone that uses the pram and accessories. Always inform and instruct each person using the pram and accessories how they should be used, even if the person(s) in question will only use them for a short time.
• The maximum weight for one child using the Toddler Roller accessory on the pram is 20 kg.
• Use a maximum of one accessory on the pram at any one time e.g. Toddler Roller, Toddler Seat or car seat adaptor.
• Do not place objects on the hood. Never use the pram without the hood. The pocket in the hood is intended for the storage of light objects only and must not be loaded with a weight exceeding 250 g.
• If any part of this manual is unclear or requires further explanation, please contact an authorised Emmaljunga retailer who will be able to assist you.
• The pram is intended for transportation only. Never use the pram as a bed for your child.
• Never leave the pram with a child in it without engaging the brake.
• The brake should always be engaged when you lift your child in and out of the pram.

Important Safety Information

• Never park the pram on a hill or an uneven surface.
• Do not stand or sit on the footrest. The footrest must only be used as a support for one (1) child's legs and feet. Any other usage may lead to serious personal injury. The maximum load for the footrest is 3 kg.
• Never use the product if a part is faulty or damaged.
• Check that all zips and poppers are securely fastened before use.
  • Always remove the child before you fold the pram.
• Do not place any additional mattresses in the carrycot and only use the mattress that is included with the pram or another mattress recommended by Emmaljunga.
  • Overloading, incorrect folding and the use of non-approved accessories may cause injury to your child/children and/or damage the pram.
• When using a lift accessory, attach the product to the d-rings on the pram. Check that the carrycot's/lift's carrying straps are fastened securely. The Babylift's carrying straps should be placed inside the product's mini hood.
• Any load that is placed on the pram (e.g. on the handle, backrest or on the sides of the pram) will affect the stability of the pram. Do not use non-approved accessories.
• The shopping tray has a maximum weight limit of 5 kg. Always place heavier objects in the centre of the tray. The pram may become unstable if the weight in the tray is une venly distributed.
• Only use original replacement parts supplied by Emmaljunga.
• Never use the carrycot on a stand.
• Items in the shopping tray should not protrude over the sides as items could get caught in the wheel spokes.
• The seat unit or carrycot must not be used as a car seat.
• Never leave the carrycot carrying straps loose on the outside of the carrycot sides when the pram is in use.
• Never leave the carrycot carrying straps loose on the outside of the carrycot sides when the pram is in use.
• The outer length and width of the Carrycot is 860 mm/450 mm.
• The outer length and width of the City Carrycot is 795 mm/430 mm.
• The outer length and width of the Quadrolift is 800 mm / 400 mm.
• The outer length and width of the Babylift is 800 mm / 330 mm.

BS 7409:1996 WARNING! A CHILD'S SAFETY IS YOUR RESPONSIBILITY.

Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle.

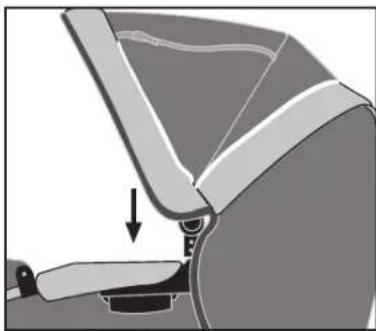

Assembly of seat-unit

1

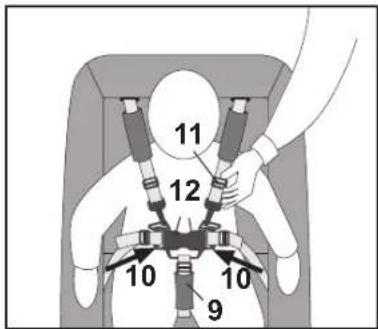

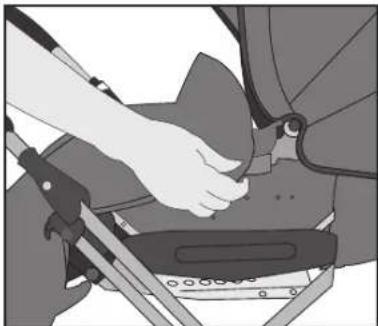

Attach the seat-unit and the 5-point harness

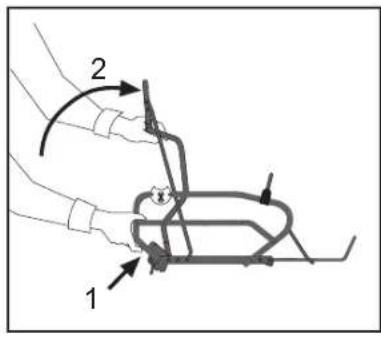

- Press the back rest release mechanism (1) and move the backrest to its up most upright position (2).

2

- Release the shoulder and waist straps from the harness lock before you assemble the seat unit. Place the seat unit fabric's back pocket (3) over the seat unit's backrest.

WARNING!

Make sure that the fabrics are in place before use

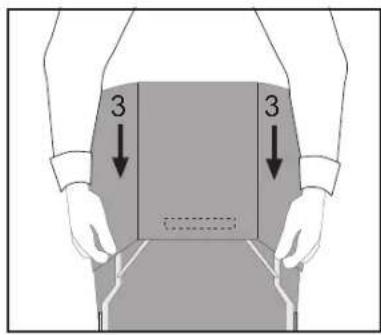

3

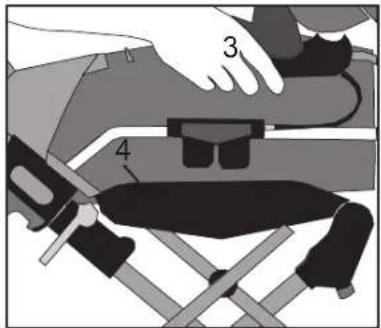

• Place the shoulder straps through the holes in the back of the seat unit fabrics (4).
• Place the waist straps through the holes in the seat fabrics (5).
• Place the crotch straps through the holes in the base and the seat unit (6).

4

- A harness with shoulder and crotch straps contains two shoulder pads and one larger crotch pad. Place the shoulder pads over the two shoulder straps (7). Attach the waist harness with the lock (8). Put the crotch pad over the crotch strap.

Assembly of seat-unit

5

- Make sure that the seat fabric's back pocket is attached correctly onto the backrest frame (9).

WARNING

• Always make sure that the backrest is in a safe position before it is used. This step is very IMPORTANT.

6

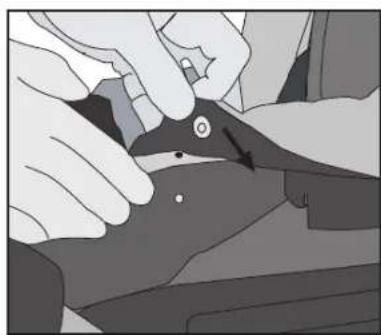

Close-up of hands adjusting a garment with a zipper and arrow indicating movement (no text or symbols)

- Fasten both fabric armrests over the sides of the seat unit.

7

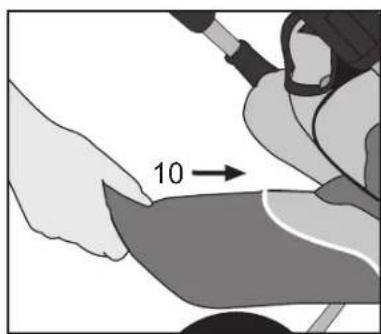

- Place the footrest cover (10) over the footrest and attach it with the press studs through the gaps in the seat-unit plate. Place the harness crotch strap through the footrest cover and then through the seat fabric. - The footrest pad is reversible

WARNING!

• Never let your child/children stand on the footrest!

8

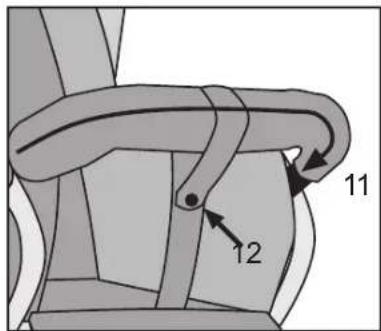

Assembly of the bumper bar cover

- Place the bumper bar protection (11) over the bumper bar and zip. - Fasten the crotch strap (12) around the bumper bar.

Assembly of seat-unit

9

Close-up of a car seatbelt buckle with a downward arrow indicating compression (no text or symbols)

Assembly of Hood

• Press the two plastic legs, one on each side of the hood, into the two plastic holders on the seat frame, one on each side. Make sure they snap into place.
• Press the press studs into place on both sides of the hood

10

- Fasten the two plastic hooks (13) on the hood apron (14), to the metal bar (15) of the seat adjustment lever.

IMPORTANT

- The hood should always be assembled when the pram is used and the hooks should be fastened.

11

Illustration of a person adjusting a seatbelt using a tool (no text or symbols visible)

Assembly of Apron (Accessory)

- Slip the apron over the footrest and pull toward the front of the hood. Snap the apron onto the four press-studs, two on each side of the hood.

IMPORTANT

- The hood cannot be pushed back with the apron attached.

Use of the raincover

• The raincover is attached by placing the raincover over the carrycot and seat-unit. Please note that there is an opening in the raincover near the hood opening. Use the raincover that is supplied with the pram.
• Always use the raincover when it's raining or snowing. If the pram is damp before the raincover is attached, wipe off fabrics first if possible.
• Make sure that the raincover is completely dry before it is placed back into it's bag.
• Make sure the raincover is removed from the pram/stroller after use in order to avoid condensation forming inbetween the rain cover and the pram/stroller.

Assembly and usage of the chassis

1

Diagram of a mechanical device with a curved arrow indicating motion (no text or symbols)

2

Mechanical assembly diagram showing a motor stroller with two labeled components (1 and 2), no text or symbols present.

3

4

Black and white photo of a stroller with a red X symbol crossed, standing beside a person (no text or symbols visible)

Manual Nitro City v. 1.8

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Unfolding the chassis

• Apply the brake on the pram.
• Raise the handle, while you are holding the side of the chassis, until the chassis locks click into the locked position on both sides of the pram.

WARNING

• The chassis locks need to click into the locked position.
• The safety catch (secondary locking mechanism) is activated to prevent unintentional folding if the chassis lock is not locked into position.
• Please make sure, before you use the pram that the chassis lock is in the locked position.

Attaching the wheels

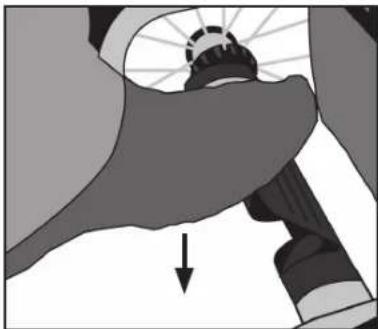

• Release the brake by pushing the brake bar up towards you using minimum force with your foot.
• Remove the plastic protection from the axles. Save them for future use.
• Attach the wheels with the wheel cogs (1). Press in the hub cap's release button (2), push the wheel onto the axle as far as it can go. Release the button and pull the wheel towards you, until you hear a definite click. Repeat the same procedure for all four wheels. Please make sure that the wheels are attached properly and cannot be pulled off the axle.

IMPORTANT

• The wheels are greased and can leave marks on textiles. Please use wheel protection indoors to protect your floors.
• Risk of suffocation. Don't let your child play with or in some other way handle the plastic protectors.

Attachment of the seat-unit.

• Engage the parking device: Lift the seat-unit by the handles and push the Easy Fix pieces into the attachments on both sides of the chassis (4) until it locks into position.
• To release the seat-unit: Start by engaging the parking device. Press the Easy-fix grip (3) and then lift the seat-unit straight up.
  • The seat-unit can be attached in both driving directions

WARNING

• Don't let any child be placed in the vehicle when it is being folded/unfolded
• Hold the handles steadily until the seat unit is in place.

IMPORTANT

• Make sure that the seat-unit is in place, before you start to use the vehicle.
• Never lift the top part when it is assembled onto the chassis

WARNING

- Never pull a pram with swivel front wheels behind you, if the front wheels are not locked. The pram might self turn which can lead to a safety risk if you are not cautious and attentive.

Assembly and usage of the chassis

5

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

6

Illustration of a hand adjusting a mechanical component with numbered parts (no text or symbols)

7

Black-and-white line drawing of a woven basket with geometric patterns, no text or symbols present

8

9

Mechanical device with lever and handle, showing motion direction arrows (no text or symbols)

Engaging the parking device

- Engage the parking device by pushing it down with your foot.

• Disengage the parking device by pulling up

WARNING!

• Never leave the vehicle without first engaging the parking device.
• The brake should always be engaged when you lift your child in and out of the stroller/pram.
• Avoid uphill or downhill parking.
• Make sure that the cogs are attached properly on both back wheels.
• Make sure that the brake pin engages into the cogs when the vehicle is parked.

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Folding the chassis

• Start by making sure that the brake is engaged.
• Ensure the front wheels ar in the swivel position by pulling the locking ring up (see next page picture 13)
• Fold the chassis by pulling the two main locking devices, one on each side, upwards.

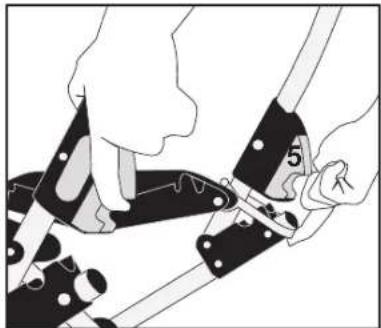

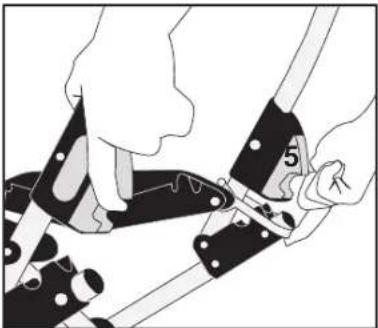

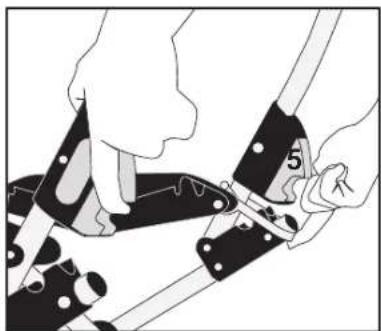

• Lift the secondary locking device (5) and fold the handle forward.
• If you need to make more space you can remove the wheels by pressing in the hub cap's release mechanism and pulling the wheel off the axle.
• Wipe off any dirt or grease from the axles before you replace the wheels.

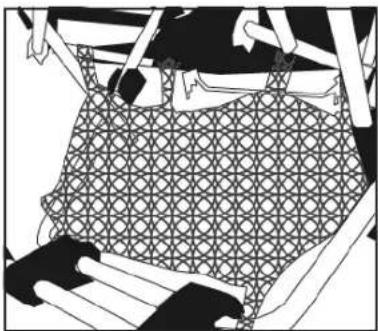

• The tray is already fitted on delivery but it can be removed for washing. Remove the wooden plate before washing.

How to adjust the height of the handle

- Adjust the height by pressing the grey buttons on the inside of the handle (6). Keep the buttons pressed in while you adjust to the required position (7)

Adjusting the hood

• Adjust the hood by gently pulling the front backwards and forwards until it reaches the desired position.
• Some stroller models are equipped with a mosquito net. The mosquito net can be pulled over the footrest and attached with the plastic hooks.

Important!

• Never lift the stroller by holding on to the hood
• Never lift the top part when it is assembled on the chassis

Assembly and usage of the chassis

10

Illustration of a medical procedure on a patient's arm, showing hand placement and tool path (no text or symbols)

11

12

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

13

Illustration of hands using a tool to adjust a bicycle wheel rim (no text or symbols present)

14

Manual Nitro City v. 1.8

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Adjusting the footrest

• The footrest can be adjusted into two positions. Adjust the footrest to the down position by releasing the lock on the side of the footrest and pulling the footrest horizontally (8) and downwards.
• Make sure that the footrest is locked into desired position before usage.
• The footrest is adjusted by pulling the footrest upwards and then pushing it horizontally back towards the pram.
  • The footrest pad is reversible.

WARNING!

Never let your child/children stand on the footrest

Adjust the 5-point harness

• Bring crutch strap (9) forward between the child's legs and up toward front of waist. Insert the waist straps (10) into the harness buckle until they "click" in place. Make sure waist straps are fastened.
• Adjust all straps, using the sliders (11).
• To release shoulder and waist straps, press the buttons (12) in the centre of the harness buckle.
• Attachment points are provided at the ends of each waist strap for a separate harness complying with BS 6684

WARNING!

- Always use the harness when the child is placed in the vehicle. Make sure that all buckles are fitted into position and that the harness is attached to the vehicle's D-rings.

Adjusting the backrest

- The seat backrest is adjustable by moving the seat adjustment lever (13) located at the bottom behind the seat, toward backrest.

WARNING!

- Once in desired position, push on backrest to ensure a locked position.

Picture 13: The front wheel can be fixed or swivel 360 degrees.

• The wheels are fixed by pressing the locking ring (14) down.
• The wheels can rotate freely 360 degrees by pulling the locking ring up.

Picture 14: Adjust the angle of the City carrycot

• Remove your child from the pram before adjusting the angle.
• Adjust the angle by pulling the grey tab outwards and twist the knob until the grey button locks into the desired position: 1, 2 or 3. Repeat on the other side of the chassis - make sure the knobs are in the same positions on both sides of the chassis.

IMPORTANT

- Adjust the angle when the chassis is folded to avoid unnecessary wearing of the mechanism.

WARNING

• The mechanism must be in the same position on both sides of the chassis to avoid uneven strain and possible damage to the chassis.
• Make sure the grey button has locked into position in order for the mechanism to function properly.

Assembly and usage of the City Carrycot (Accessory to Nitro City)

1

Line drawing of a rectangular basin with circular patterns and directional arrows, no text or symbols present

Assembly of pram body

- Remove plastic covers from mattress, fabrics and discard. Slide the two metal support brackets (1) onto the base of the pram body. - The base is made of wood.

WARNING

- Risk of suffocation. Do not let your children play with the plastic packaging. - Make sure that the metal support bars are attached so that the pram stability and safety will not be jeopardised.

2

- Insert the mattress (4). - The exclusive mattress consists of a combination of fibre filling and polyeter filling. Make sure that you place the mattress with the firmer polyeter filling facing downwards in the carrycot.

WARNING

- The depth from the top of the mattress together with other bed accessories to the carrycot upper part (3) must be at least 150mm. - Do not add a mattress thicker than 45 mm.

3

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

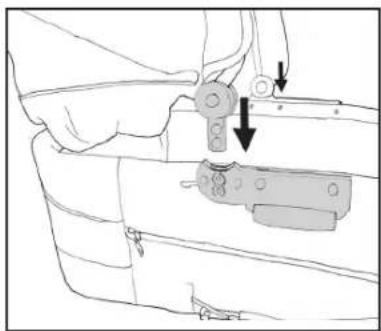

- Attach the hood to the pram body by pushing the plastic leg of the hood into the plastic holders on the pram body. Make sure they snap into place.

4

- Press the hood fabric onto the plastic holder (5), on each side. Press the velcro (6) onto the pram body.

5

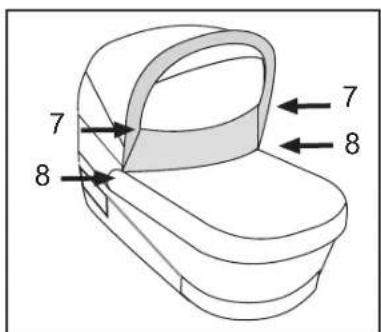

- Press the apron onto the hood (7) and onto the plastic holder (8) on each side.

IMPORTANT

- The hood cannot be pushed back when the apron is snapped onto the hood without releasing the press studs (8)

Assembly and usage of the City Carrycot (Accessory to Nitro City)

6

Technical line drawing of a mechanical component with directional arrows indicating rotation (no text or symbols)

Adjusting the hood

• Adjust the hood by gently pulling the hood forward into desired position.
• Do not adjust the hood while the apron is attached.

IMPORTANT

• Never carry the carrycot by the hood.
• Never lift the carrycot when it is assembled onto the chassis.

7

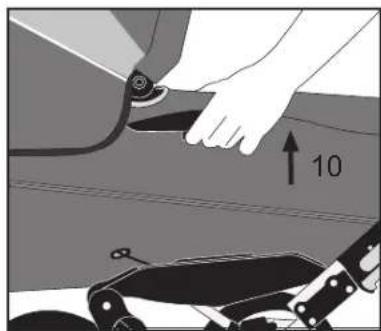

Attachment of the carrycot

- Engage the parking device: Lift the carrycot by handles and push the Easy Fix pieces into the attachments (9) on both sides of the chassis until it locks into its position.

WARNING

• Make sure that the top part is in locked position on both sides.

8

Mechanical assembly diagram showing a hand pressing down a car seat with a 10-unit arrow indicating direction (no text or symbols present)

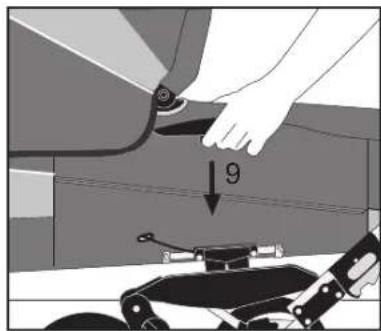

To release the carrycot

- Start by engaging the parking device. Press the Easy Fix grip and then lift the carrycot straight up (10). When the Easy-Fix can not be pressed any further, the top part can then be removed.

Use of the rain cover

• The rain cover is attached by placing the rain cover over the carrycot and seat-unit. Please note that there is an opening in the rain cover near the hood opening. Use the rain cover that is supplied with the pram.
• Always use the rain cover when it's raining or snowing. If the pram is damp before the rain cover is attached, wipe off the fabrics first if possible.
• Make sure the rain cover is completely dry before it is placed back into its bag.
• Make sure the rain cover is removed from the pram/stroller after use in order to avoid condensation forming in between the rain cover and the pram/stroller.

Care and maintenance

General care and maintenance instructions

• Never expose your vehicle to excessive sunlight for long periods of time.
  • Always use a raincover when it is snowing or raining.
• Never store your vehicle in cold and/or damp places.
• Should the chassis become wet, dry it off promptly. Make sure vehicle is completely dry before storing.
• If the vehicle is used near the ocean or salted roads, spray the chassis with a hose, and dry.
• Be careful during transportation and storage as the surface of the chassis is fragile. Scratches that arise after the sale are not a justifiable complaint.

Routine Inspection

- Regularly clean the chassis and metal parts of the vehicle, dry off and lubricate all joints of the chassis. Spokes, and fenders on all wheels, should frequently be wiped off with a dry cloth. When the pram is used during the winter time, cleaning of the pram should be done at least once a week. Lack of maintenance could cause corrosion on the spokes and fenders. Should corrosion on the surface occur, which is a possibility, you are required to remove this with a corrosion cleaning agent.

Important! Powdercoated chassis and powdercoated rims shall never be treated with a corrision cleaning agent as the colour will change.

- It is recommended to lubricate the wheel axles and suspension system every three months (clean axles with a cloth prior to lubrication). Axles may be lubricated with petroleum jelly or automobile oil.

Check that:

• all chassis locking devices are functioning properly.
• all rivets, nuts and bolts are firmly tightened and not broken.
• all plastic parts are not cracked or broken.
  • the wheel bushings are in a good condition.
• all velcros are securely fastened on backrest pocket and seat board flap.
• the press-stud is securely fastened on the footrest flap.
• all elastic straps are in a good condition.
• the secondary locking mechanism is intact and can move freely.
• the parking brake works and the brake rubber is intact.
  • the tyre air pressure is correct (see marking on tyre: 28 P.S.I. = 1,8 bar; 35 PSI = 2,5 bar)
• The handles and the bottom of the carrycot should be inspected regularly for signs of damage and wear.

PLEASE OBSERVE

- When in need of servicing with original parts and other technical issues that require a professional decision, always get in touch with your retailer where your Emmaljunga product was purchased. All Emmaljunga products come with a 6-month manufacturing guarantee. This guarantee does not apply when issues arise through normal wear and tear.

• This information is relevant for Great Britain only.

WARNING

- Tyres can when in contact with PVC-flooring or other plastic materials cause discoloration. Always use wheel protection if the pram/stroller is stored on delicate surfaces.

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

• The parking brake consists of moving parts and requires regular maintenance for correct function.
• To ensure effective functioning always make sure that the parking brake is well lubricated. Immediately remove sand, snow, ice and dirt from any moving part of the braking system.
• Use a silicon or oil based lubricant to lubricate the brake pedal, wheel axle and brake pins on both sides of the parking brake at least once a month. Also lubricate the release mechanism on the wheels on a similarly regular basis.
• If you use your Emmaljunga pram/stroller on sandy beaches or under other dirty and wet conditions make sure to take extra care of the parking brake and maintain the braking system and wheels as detailed above whenever needed.

Care and maintenance

Washing instructions

- Hood:

Take off and extend the hood. Shower the hood from the inside (interior fabric) with luke warm water. Use mild liquid soap as detergent. Cleanse it thoroughly. Drip dry the hood fully extended.

Duo Combi: Wash the detachable part of the hood according to the instructions above.

- Seat fabric and 5-point harness:

Remove the seat fabric from the chassis. Handwash seat fabric in lukewarm water. Use mild liquid soap as detergent. Cleanse thoroughly. Drip dry the seat fabric. When the seat fabric is removed the 5-point harness is accessible. Only wipe the nylon straps and plastic parts clean with a damp cloth. Do not hand wash. Make sure the harness is dry before reassembly.

- Front bar cover:

Remove the front bar cover. Hand wash in luke warm water. Use mild liquid soap as detergent on the surface of the exterior fabric. Handle non-woven interior material with care. Drip-dry.

- Mattress:

The exclusive mattress consists of a combination of fibre filling and polyeter filling.

We recommend that you hand wash this product. The mattress can be machine washed at 40 degrees, but the fibre filling must be flattened back into shape after washing. Please note that the polyeter mattress does not contain bleach and will therefore naturally become yellow.

- Carry cot:

Remove hood, bed-lining, Hi Pro, mattress and apron. Wipe the exterior fabric and the interior nonwoven material, clean with a damp cloth. Do not hand wash. Dry the pram body in its fully extended position. Make sure the wooden base is protected from any water.

General Information

• Ironing: If any fabric part needs to be ironed, always use a 100 % cotton cloth in-between the iron and the fabric to protect the fabric surface. Iron the exterior fabrics (100 % polyester) and the interior fabrics (65 % cotton/35 % polyester) on gentle heat (110°C on the iron).
• Make sure all parts are completely dry before reassembly. Check the trimmings and the seam on the seat-fabric underneath the backrest-pocket.
• You may apply a material protector (like Scotchgard™) on the exterior fabric after washing. Always apply before reassembly.

WARNING

- Do not place child/children in stroller for at least 24 hours after applying a material protector.

Reassembly

WARNING

- Make sure all parts are assembled correctly according to the instructions in this manual.

IMPORTANT

Cleaning instructions for Leatherette fabrics:

Leatherette Fabrics must not be cleaned according to the above instructions. Leatherette fabrics should only be cleaned with a drop of mild washing up liquid and then wiped off with a damp cloth.

Emmaljunga

Service Documentation

Your pushchair requires regular care and maintenance. We recommend that you have your product serviced regularly, following the suggested service intervals in order for you to take full advantage of and maintain the quality of the product and to minimize the effects of wear and tear.

Always take your product to an authorised Emmaljunga retailer to carry out the service. After every service you will receive a report covering what has been inspected and checked together with a note stating the date on which the service has been carried out.

Before the pram is sent from the factory it has undergone regular checks and testing. Another check is completed before the product is given to you to ensure that it fulfills all safety and quality requirements.

In addition to the regular service by your authorised retailer it is very important that you also check and maintain the product. You can find out more about this under the care and maintenance section in the product manual.

Chassis number

Delivery control

0

Date, stamp, customer name, signature

6 month service

6

Date, stamp, customer name, signature

12 month service

12

Date, stamp, customer name, signature

24 month service

24

Date, stamp, customer name, signature

36 month service

36

Date, stamp, customer name, signature

Emmaljunga

Delivery Check

1. Check that the following items are present in the correct numbers:

☐ 1 pc seat-unit with 5-point harness
□ 1 set of shoulder pads for harness
□ 1 pc folded chassis with tray
□ 2 pcs wheels 300 mm
□ 2 pcs Swivel wheels
□ 1 pc raincover
□ 1 pc instruction manual
□ 1 pc hood
□ 1 pc seat-fabrics
□ 1 pc footrest cover
□ 1 pc bumper bar cover

2. Check the functions of the chassis.

Unfold the chassis.

□ Check that the chassis locks function on both sides.
☐ Check that the safety catch/safety buttons function correctly by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.
☐ Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.
☐ Check the harness function on the seat unit by locking and unlocking the harness.
☐ Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.
□ Check the carrycot/seat unit's angle adjustment's 3 positions on both sides of the chassis.
☐ Check that the backrest can be adjusted and locks securely into each of its four positions.
☐ Check that the footrest can be adjusted and locks securely into each of its two positions.

3. Wheel and brakes

□ Lubricate the ends of the axles.
☐ Attach the wheels and make sure that the wheels lock into position.
☐ Check that the parking device locks both rear wheels when engaged.

4. Overall inspection of the product

☐ Check that all rivets, screws and nuts are securely fastened.
☐ Check that all poppers and zips on the seat fabrics and the tray are correctly and securely attached.
□ Make sure that there are no other visible differences on the chassis, seat fabrics, tray and wheels.

Emmaljunga

Service Protocol

Service

Chassis/seat unit/carry cot function

Check the chassis locks function on both sides.

Check the safety catch/safety buttons function by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.

Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.

Check the safety catch/safety buttons function by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.

Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.

Check the carrycot/seat unit's angle adjustment's 3 positions on both sides of the chassis.

Check that the backrest can be adjusted and locks securely into each of its four positions.

Check that the footrest can be adjusted and locks securely into each of its two positions.

Wheels and brakes

Check that the wheels are removable and that they lock onto the axles

Check that the brakes lock both rear wheels

Visual overview

Check that all rivets and screws are tightened correctly

Check that all buttons and zippers are intact and correctly fastened

Check for any other visible deviations on the chassis, fabrics, tray and wheels

Lubrication

Clean and lubricate the wheels, axles, chassis locks, footrest and the safety catch

Other notes (further adjustments or changed details)

English

Inhalt

Close-up of hands adjusting a garment with a zipper and arrow indicating movement (no text or symbols)

Close-up of a car seatbelt buckle with a downward arrow indicating compression (no text or symbols)

Illustration of a person adjusting a seatbelt using a tool (no text or symbols visible)

Diagram of a mechanical device with a curved arrow indicating motion or direction (no text or symbols)

2

Mechanical assembly diagram showing a motor stroller with two labeled components (1 and 2), no text or symbols present.

3

4

Black and white photo of a stroller with a red X symbol crossed by a person, no text or symbols present.

Manual Nitro City v. 1.8

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

6

Illustration of a person adjusting a belt buckle with a numbered label (no text or symbols present)

7

Black-and-white illustration of a person wearing a patterned shirt and pants, with no visible text or symbols.

8

9

Mechanical device with lever and handle, showing motion direction arrows (no text or symbols)

Illustration of a medical procedure with a hand holding a device and a numbered arrow pointing to a specific area (no text or symbols present)

11

12

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

13

Illustration of hands using a tool to adjust a bicycle wheel rim (no text or symbols present)

14

Manual Nitro City v. 1.8

Line drawing of a baby crib with perforated backrest and side arm (no text or symbols)

2

3

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

4

5

54

Diagram of a vehicle's seat assembly with directional arrows indicating rotation (no text or labels)

Mechanical assembly diagram showing a hand pressing down a car seatbelt with a 10-unit arrow indicator (no text or symbols present)

WARNUNG!

Close-up of a robotic arm handling a metal container with a spool, against a plain white background (no text or symbols visible)

Product photo of a black and silver bicycle wheel with a gas cylinder beside it (no text or symbols visible)

Close-up of hands adjusting a garment with a zipper and arrow indicating movement (no text or symbols)

Illustration of a person performing a medical or therapeutic procedure with a hand and arrow indicating direction (no text or symbols present)

Side view of a car seatbelt buckle with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of a person adjusting a seatbelt device (no text or symbols visible)

Diagram of a mechanical device with a curved arrow indicating motion (no text or symbols)

2

Mechanical assembly diagram showing a motor stroller and tire component (no text or symbols)

3

4

Person standing beside a stroller with a red X symbol, no visible text or symbols

Manual Nitro City v. 1.8

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

6

Illustration of a hand adjusting a mechanical component with numbered parts (no text or symbols)

7

Black-and-white illustration of a person wearing a patterned shirt and pants, with no visible text or symbols.

8

9

Mechanical device with lever and handle, showing motion direction (no text or symbols)

Jarrun käyttö

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

13

14

Manual Nitro City v. 1.8

Line drawing of a small boat with perforated side and side panels, no text or symbols present

Kopan kokoaminen

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

Diagram of a mechanical component with arrows indicating rotation or movement, no text or symbols present

Kuomun säätäminen

Mechanical assembly diagram showing a hand adjusting a seatbelt with a numbered component (no text or symbols present)

Mechanical assembly diagram showing a hand pressing down a car seatbelt with a 10-unit arrow indicating force (no text or symbols present)

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Product photo of a black and silver bicycle wheel with a gas cylinder beside it (no text or symbols visible)

Close-up of hands adjusting a mechanical component with a circular mark and arrow (no visible text or symbols)

Close-up of a car seatbelt buckle with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of a person adjusting a seatbelt using a tool (no text or symbols visible)

Diagram of a mechanical device with a curved arrow indicating motion (no text or symbols)

2

Mechanical assembly diagram showing a motor stroller and tire component (no text or symbols)

3

4

Black and white photo of a stroller with a red X symbol, standing beside a person (no text or symbols visible)

Manual Nitro City v. 1.8

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

6

Illustration of hands adjusting a mechanical component with numbered parts (no text or symbols)

7

Black-and-white illustration of a person wearing a patterned shirt and holding a bag (no text or symbols visible)

8

9

Mechanical device with lever and scroll, showing motion direction (no text or symbols)

Anvend bremsen

Illustration of a medical procedure with a hand holding a device and a numbered arrow pointing to a specific area (no text or symbols present)

11

12

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

13

Illustration of hands using a tool to adjust a bicycle wheel rim (no text or symbols present)

14

Line drawing of a small boat with perforated side and side panels, no text or symbols present

Montering af barnevogns overdel

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

ADVARSEL

Diagram of a mechanical component with arrows indicating rotation or movement (no text or symbols)

Justere kalechen

Mechanical assembly diagram showing a hand adjusting a component with a numbered arrow indicating '9' (no text or symbols present)

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black wheels and a gas cylinder (no text or symbols visible)

Monter sportsvogndelen og 5-punktsselene

Close-up of hands adjusting a garment with a zipper and arrow indicating fabric detail (no text or symbols)

Illustration of a person performing a medical or therapeutic procedure with a hand and arrow indicating direction (no text or symbols present)

Close-up of a car seatbelt buckle with a downward arrow indicating compression (no text or symbols)

Illustration of a person adjusting a seatbelt using a tool (no text or symbols visible)

Diagram of a mechanical linkage with an arrow indicating motion direction (no text or symbols)

2

Mechanical assembly diagram showing a motor stroller and tire component (no text or symbols)

3

Person standing beside a baby stroller with a red X symbol on the front (no text or symbols present)

Manual Nitro City v. 1.8

ADVARSEL

Close-up of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

6

Illustration of hands adjusting a mechanical component with a numbered label (no text or symbols present)

7

Black-and-white illustration of a person wearing a patterned shirt and holding a bag (no text or symbols visible)

8

9

Mechanical device with lever and handle, showing motion direction arrows (no text or symbols)

Bruk av bremsen

Illustration of a person receiving medical or surgical pressure from a device, with no visible text or symbols

11

12

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

13

14

Manual Nitro City v. 1.8

2

3

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

4

5

Montering av Bag.

Diagram of a mechanical component with directional arrows indicating rotation or movement (no text or symbols)

Close-up of a hand pressing down on a car seatbelt, with a numbered arrow indicating '10' (no text or symbols present)

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black wheels and a gas cylinder (no text or symbols visible)

Instruction manual for Nitro City © 2011 Emmaljunga Barnvagnsfabrik AB All rights reserved With reservation for changes
