USER MANUAL DS328 OPTOMA

Safety Instructions 2

Introduction ....5

Projector Features 5

Package Contents 6

Projector Overview 7

Using the Product 9

Control Panel 9

Connection Ports 10

Remote Control 12

Installing the Batteries 15

Remote Control Operation 16

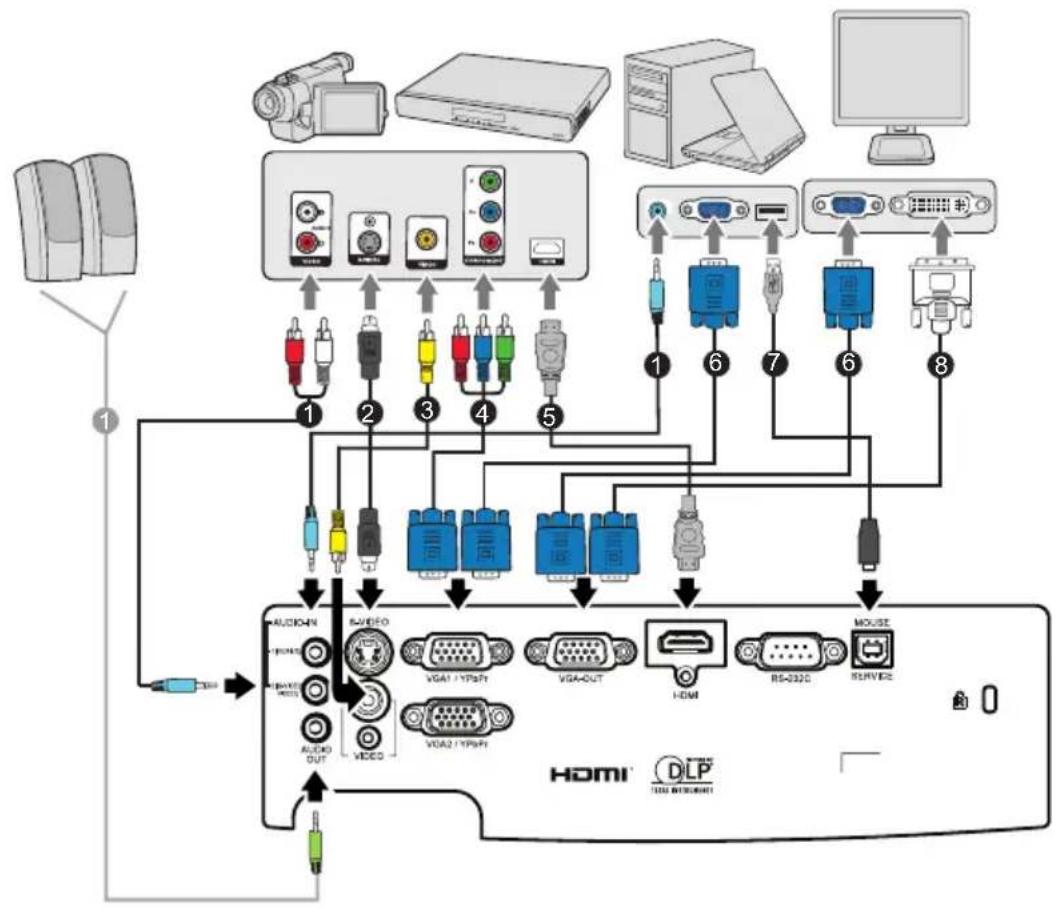

Connection 17

Connecting a computer or monitor 18

Connecting Video source devices 20

Operation 23

Powering On/Off the Projector 23

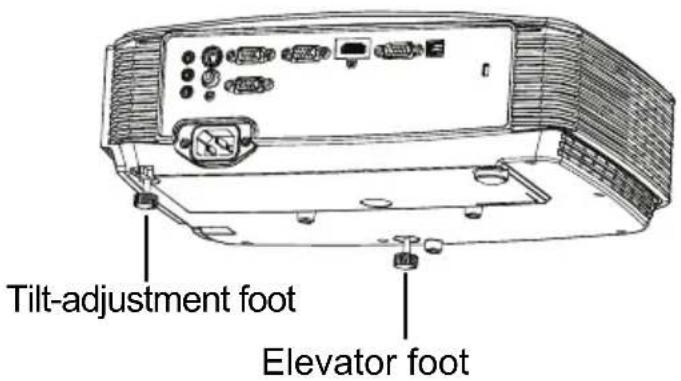

Adjusting the Projector Height 24

Adjusting the Projector Zoom and Focus 24

Adjusting Projection Image Size 25

Menu Operation 26

Appendix 42

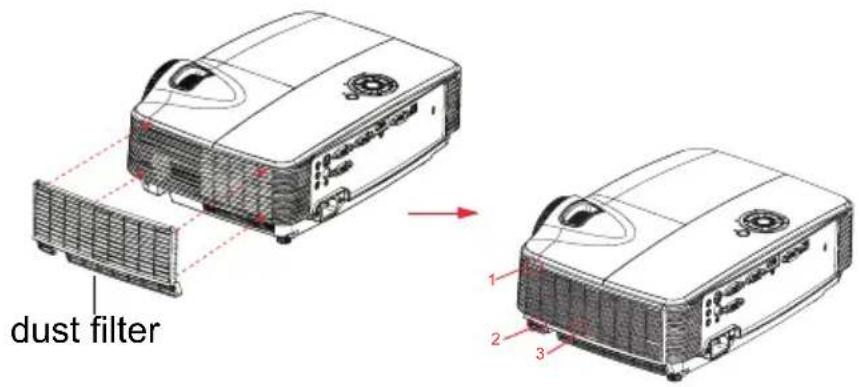

Installing the Dust Filter 42

Replacing the Lamp 43

Ceiling mount installation 45

Compatibility Modes 46

RS232 Commands and Protocol Function List 50

Troubleshooting 56

Optoma Global Offices 58

Regulation & Safety Notices 61

Usage Notice

Safety Instructions

Read all of these instructions before you operate your projector and save for future reference.

1. Read instructions

All the safety and operating instructions should be read before the appliance is operated.

2. Notes and warnings

All notes and warnings in the operating instructions should be adhered to.

3. Cleaning

Unplug the projector from the wall socket before cleaning. Use a damp cloth for cleaning the projector housing. Do not use liquid or aerosol cleaners.

4. Accessories

Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

Keep the plastic packing materials (from the projector, accessories and optional parts) out of the reach of children as these bags may result in death by suffocation. Be particularly careful around the small children.

5. Ventilation

The projector is equipped with ventilation holes (intake) and ventilation holes (exhaust). Do not block or place anything near these slots, or internal heat build-up may occur, causing picture degradation or damage to the projector.

6. Power sources

Check that the operating voltage of your unit is identical with the voltage of your local power supply.

7. Servicing

Do not attempt to service this projector yourself. Refer all servicing to qualified service personnel.

8. Replacement parts

When replacement parts are required, be sure that the replacement parts are specified by the manufacture. Unauthorized substitutions may result in fire, electric shock or other hazards.

9. Moisture Condensation

Never operate this projector immediately after moving it from a cold location to a warm one. When the projector is exposed to such a change in temperature, moisture may condense on the lens and the crucial internal parts. To prevent the unit from possible damage, do not use the projector for at least 2 hours when there is an extreme or sudden change in temperature.

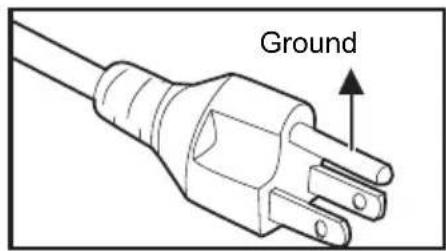

Notes on the AC Power Cord

AC Power Cord must meet the requirement of countries where you use this projector. Please confirm your AC plug type with the graphics below and ensure that the proper AC Power Cord is used. If the supplied AC Power Cord does not match your AC outlet, please contact your sales dealer. This projector is equipped with a grounding type AC line plug. Please ensure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug. We highly recommend using a video source device also equipped with a grounding type AC line plug to prevent signal interference due to voltage fluctuations.

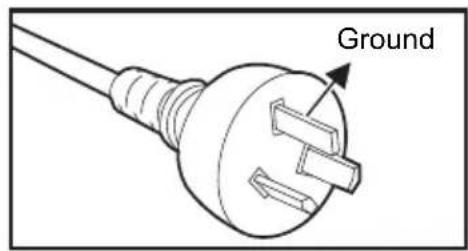

For Australia and Mainland China

For the U.S.A. and Canada

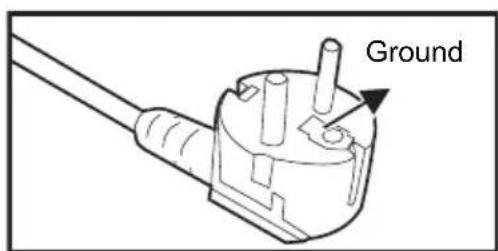

For Continental Europe

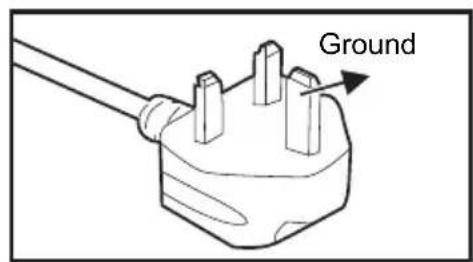

For the U.K.

Introduction

Projector Features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features:

■ Single chip 0.55" Texas Instruments DLP ^® technology (SVGA/XGA model)
■ Single chip 0.65" Texas Instruments DLP ^® technology (WXGA model)
■ SVGA (800 x 600 pixels)
■ XGA (1024 x 768 pixels)
■ WXGA (1280 x 800 pixels)
■ Compatibility with Macintosh ^® computers
■ Compatibility with NTSC, PAL, SECAM and HDTV
■ D-Sub 15-pin terminal for analog video connectivity
■ User-friendly, multi-language on-screen display
■ Advanced electronic keystone correction
■ RS-232 connector for serial control
■ Quick Resume feature
■ Eco ^+ mode for more economic usage
Full 3D

Note

■ The information in this manual is subject to change without notices.
■ The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Package Contents

When you unpack the projector, make sure you have all these components:

Line drawing of a projector with a circular lens and a separate ring (no text or symbols)

Line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

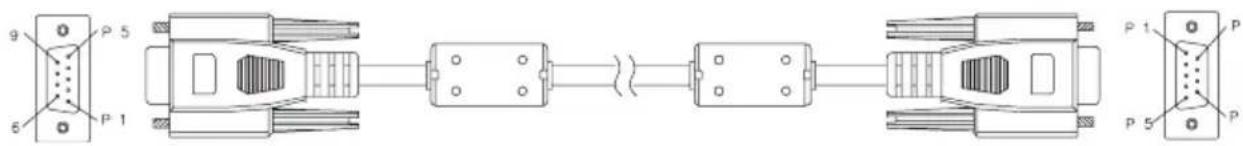

Line drawing of a U-shaped cable with multiple connectors (no text or symbols)

Projector (Lens Cap depending on region)

AC Power Cord VGA Cable (D-SUB to D-SUB)

Simple line drawing of a cooking pot with a lid (no text or symbols)

Remote Control (IR) or Remote Control with Laser Pointer (depending on region) & batteries (AAA *2 PCS)

Carry Bag (optional for certain models)

Illustration of three screws and three washers (no text or symbols)

Dust filter (depending on region)

Screw & Washer (depending on region)

Documentation:

User's Manual

Warranty Card

Quick Start Card

☑WEEE Card (for EMEA only)

Note

■ For European warranty information please visit www.optomaeurope.com
■ Due to the difference in applications for each country, some regions may have different accessories.
■ Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.
■ Save the original shipping carton and packaging material; they will come in handy if you ever need to ship your unit. For maximum protection, repack your unit as it was originally packed at the factory.

Projector Overview

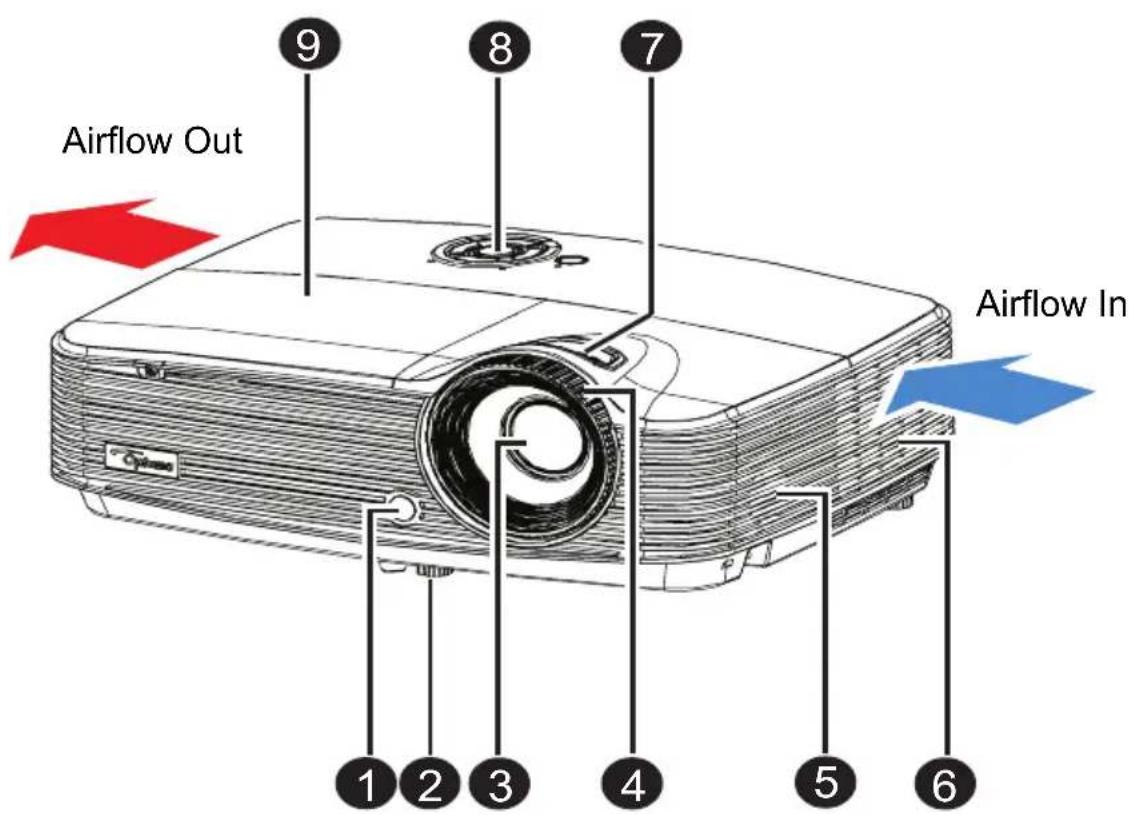

Front View

① Front IR remote control sensor
② Elevator foot Zoom ring
③ Projection lens Control panel
4 Focus ring Lamp cover
5 Speaker

⑥ Ventilation holes
7
8
9

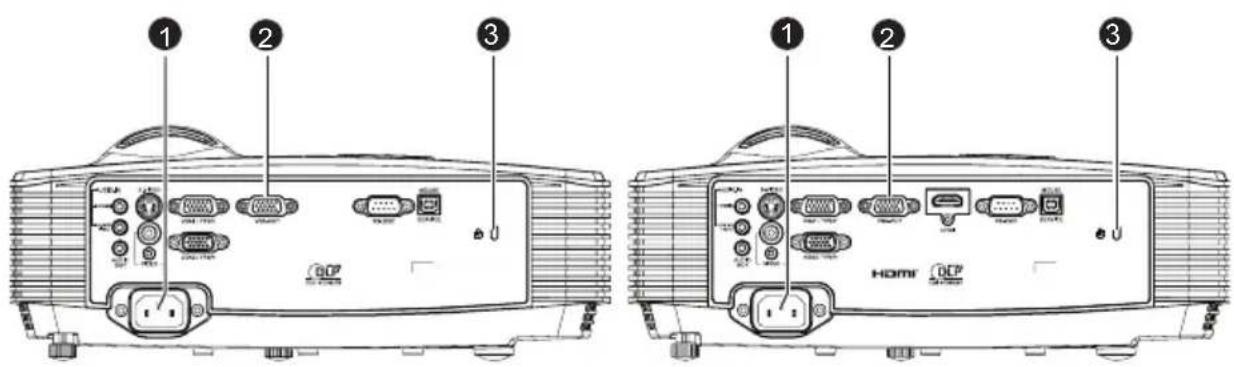

Rear View

Without HDMI models HDMI models

① AC power socket
② Connection ports
③ Kensington lock

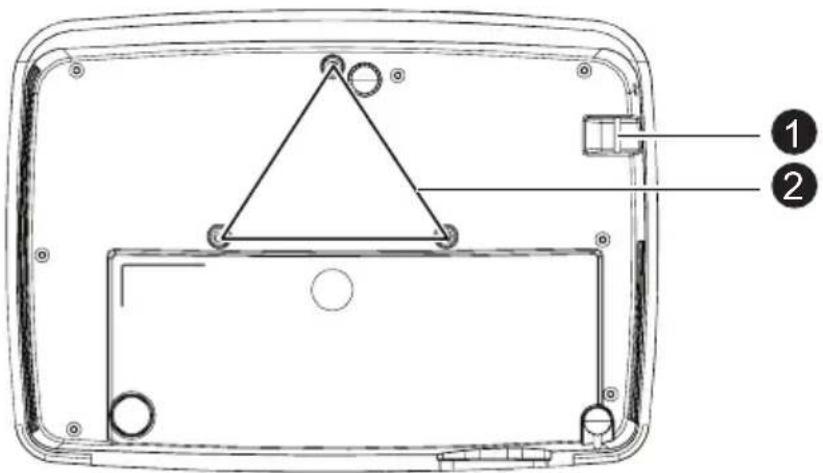

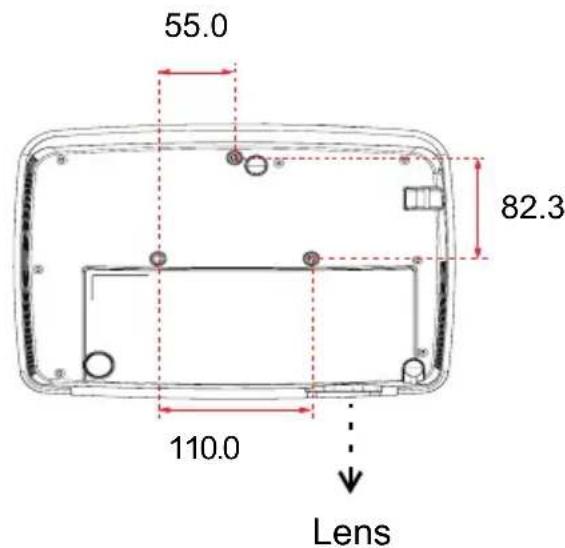

Bottom View

1 Security bar
② Ceiling mount holes

Note

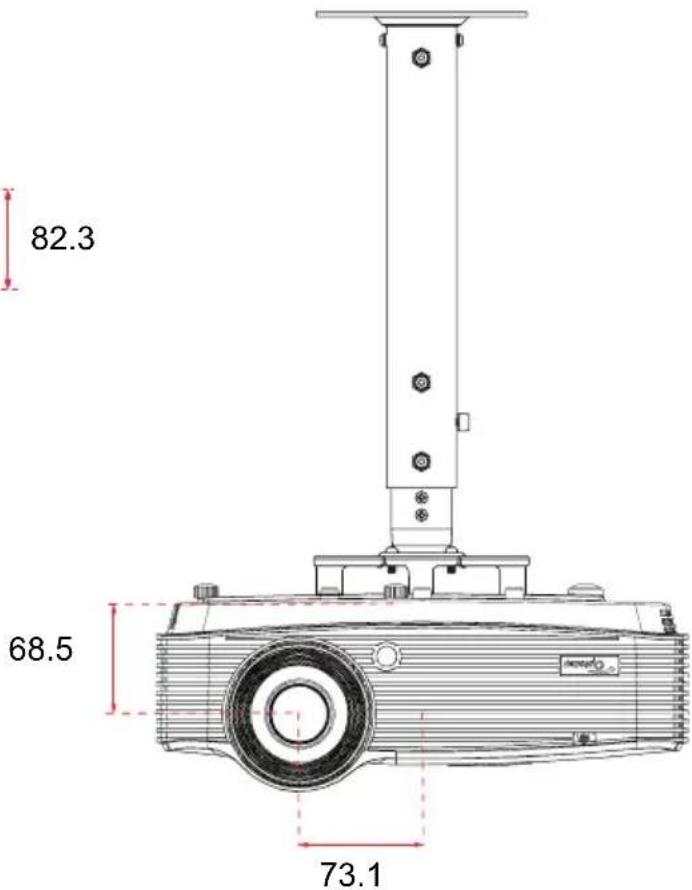

This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package.
■ Contact your dealer for information to mount the projector on a ceiling.

Using the Product

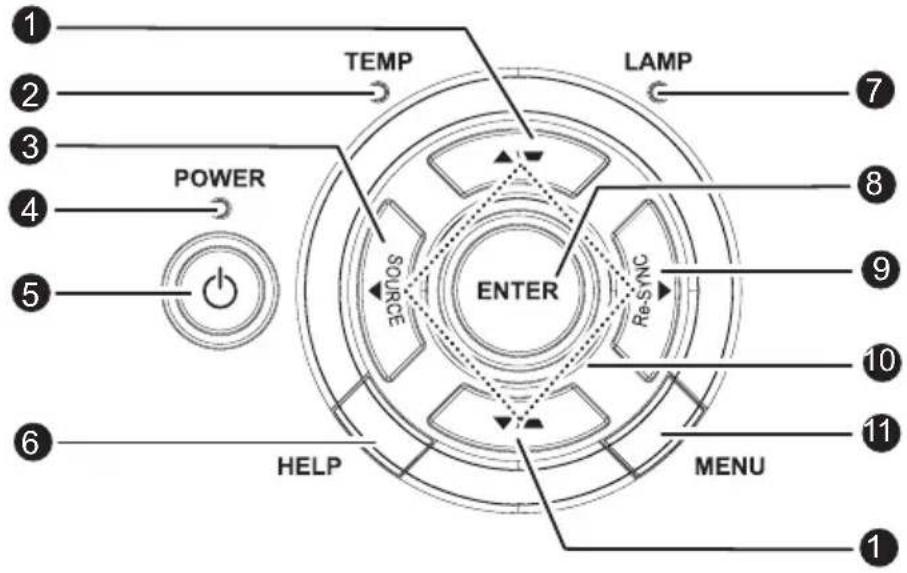

Control Panel

① Keystone (★) ▲ Manually correct distorted images resulting from an angled projection.

② TEMP (Temp LED indicator) Refer to “LED Indicator Messages” on page 57.

③ SOURCE Switch between input signals.

4 POWER (Power LED indicator) Refer to "LED Indicator Messages" on page 57.

⑤ Power Turn the projector on or off.

⑥ HELP Display Help menu.

⑦ LAMP (Lamp LED indicator) Refer to "LED Indicator Messages" on page 57.

⑧ ENTER Confirm your item selection.

⑨ Re-SYNC Automatically synchronize the projector to the input source.

10 Four directional buttons Use four directional buttons to select items or make adjustments to your selection.

11 MENU Display or exit the on-screen display menus.

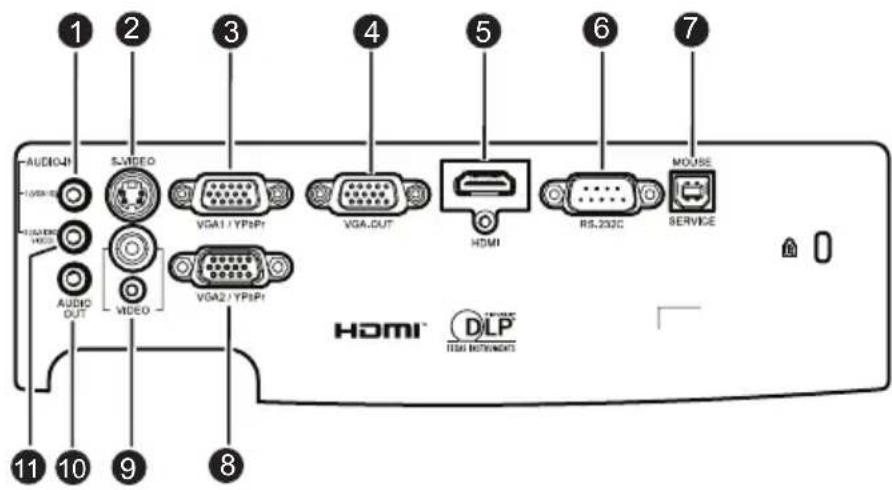

Connection Ports

1 AUDIO-IN 1

Connect an audio output from a computer to this jack connector.

② S-VIDEO

Connect S-Video output from video equipment to this jack.

③ VGA1/YPbPr

Connect image input signal (analog RGB or component) to this jack.

4 VGA-OUT

Connect to an external monitor.

In Eco mode (Standby), VGA-OUT is disabled.

In Active mode (Standby), VGA-OUT is enabled.

⑤ HDMI

Connect HDMI output from video equipment to this jack.

(This function is only available for products with HDMI input jack.)

6 RS-232C

When operating the projector via a computer, connect this to the controlling computer's RS-232C port.

⑦ Service/Mouse

This connector supports firmware update, remote mouse and page up/down.

8 VGA2-IN/YPbPr

Connect image input signal (analog RGB or component) to this jack.

9 VIDEO

Connect composite video output from video equipment to this jack.

10 AUDIO-OUT

Connect to an external speaker system.

Audio loop through is supported from Audio 1, 2 and HDMI.

In Eco mode (Standby), AUDIO-OUT is disabled.

In Active mode (Standby), AUDIO-OUT is enabled.

11 AUDIO-IN 2

Connect an audio output from a video device to this jack connector.

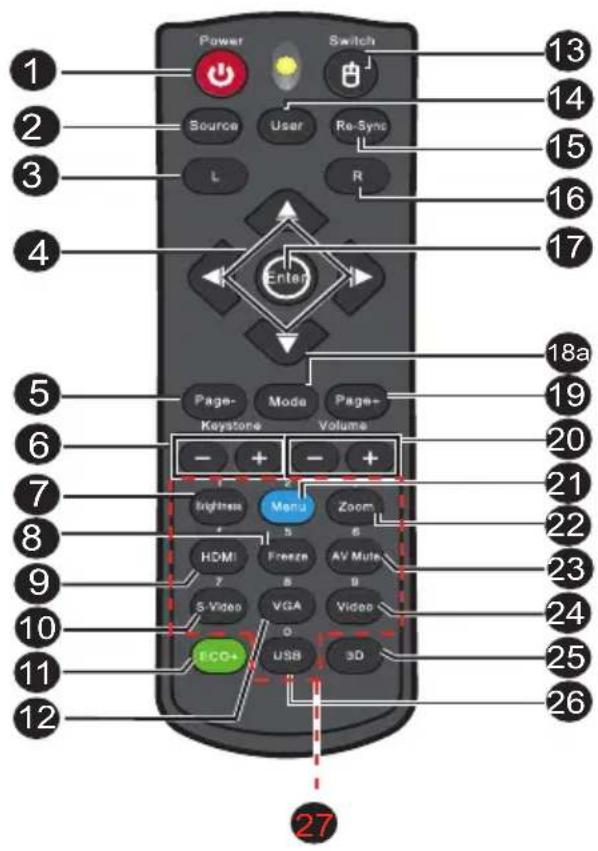

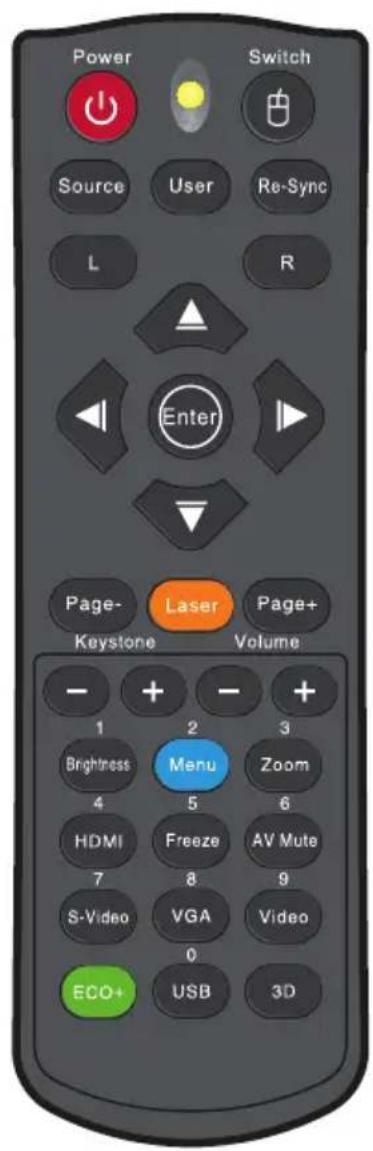

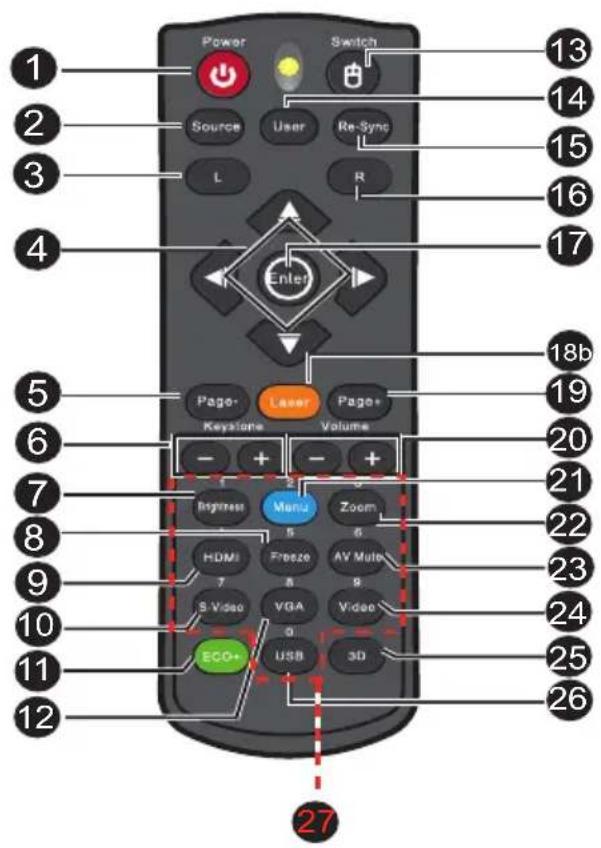

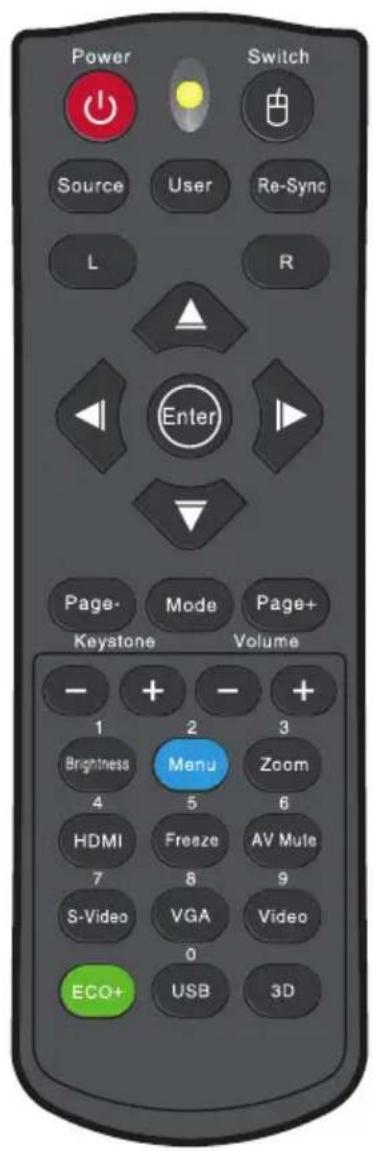

Remote Control

Remote control varies based on region.

1 Power

Turn the projector on or off.

② Source

Switch between input signals.

③ Left mouse

Perform the left button of the mouse when mouse mode is activated.

4 Four directional buttons

Use four directional buttons to select items or make adjustments to your selection.

"UP" key: When menu is off, up key for emulation of USB mouse.

"Left" key: When menu is off, left key for emulation of USB mouse.

"Right" key: When menu is off, right key for emulation of USB mouse.

"Down" key: When menu is off, down key for emulation of USB mouse.

5 Page-

Perform page down function when mouse mode is activated.

6 Keystone (+/-)

Manually correct distorted images resulting from an angled projection.

7 Brightness

Display the setting bar for adjustment of brightness.

8 Freeze

Freeze the projected image.

9 HDMI

Display HDMI signal.

(This function will not work if product does not have HDMI.)

10 S-Video

Display S-Video signal.

11 Eco+

Brightness mode menu on/off.

12 VGA

Switch input source to VGA1 or VGA2 by sequence.

13 Switch

Switch to mouse mode when the on-screen menus are close.

14 User

User definable key for customized function.

15 Re-SYNC

Automatically synchronize the projector to the input source.

16 Right mouse

Perform the right button of the mouse when mouse mode is activated.

17 Enter

Confirmed selections.

Enter key for emulation of USB mouse via USB.

18a Mode

Display mode menu on/off.

18b Laser

Aim the remote at the viewing screen, press and hold this button to activate the laser pointer.

19 Page+

Perform page up function when mouse mode is activated.

20 Volume (+/-)

Adjust the volume level.

21 Menu

Display on-screen display menus.

22 Zoom

Magnifies or reduces the projected picture size.

23 AV mute

Momentarily turns off/on the audio and video.

24 Video

Display video signal.

25 3D

Turn on or off 3D function.

26 USB

Switch to mouse mode when the on-screen menus are close.

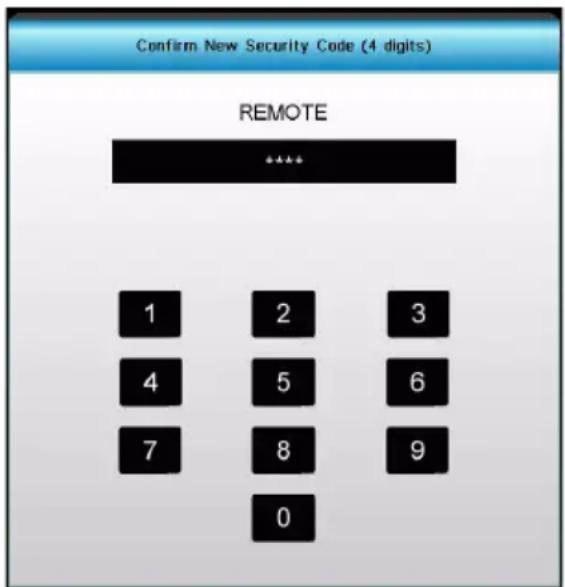

27 Numbered keypad

Press 0 to 9 to enter a password when required.

Note

■ Remote Control (IR) or Remote Control with Laser Pointer (depending on region). See Appendix for the Remote with Laser Pointer.

Using the remote mouse control

The capability of operating your computer with the remote control gives you more flexibility when delivering presentations.

1. Connect the projector to your PC or notebook with a USB cable prior to using the remote control in place of your computer's mouse. See "Connecting a computer" on page 18 for details.
2. Set the input signal to VGA1 or VGA2.
3. Press USB or Switch on the remote control to switch to mouse mode when the on-screen menus are close. An icon appears on the screen to indicate the activation of the mouse mode.
4. Perform the desired mouse controls on your remote control.

■ To move the cursor on the screen, press ▲/▼/◄/►.

■ To left-click, press L.

■ To right-click, press R.

■ To return to the normal mode, press Switch again.

Note

■ HDMI also supports mouse function.

Installing the Batteries

1. Open the battery cover in the direction shown.

2. Install batteries as indicated by the diagram inside the compartment.

3. Close the battery cover into position.

Diagram of a mechanical device with a red arrow indicating force or movement (no text or symbols present)

Illustration of a remote control device with two batteries and a handle (no text or symbols)

Diagram of a remote control device with a red arrow pointing to a clip (no text or symbols present)

Caution

■ Risk of explosion if battery is replaced by an incorrect type.

■ Dispose of used batteries according to the instructions.

■ Make sure the plus and minus terminals are correctly aligned when loading a battery.

Note

• Keep the batteries out of the reach of children. There is a danger of death by accidentally swallowing the batteries.
  ■ Remove batteries from remote control when not using for extended periods.
  ■ Do not dispose of the used batteries along with household waste. Dispose of used batteries according to local regulations.
  ■ Danger of explosion may happen if batteries are incorrectly replaced. Replace all the batteries with new ones.
  ■ Batteries should not be in or near to fire or water, keep batteries in a dark, cool and dry place.
  If suspect battery leakage, wipe out the leakage and then replace new batteries. If the leakage adheres to your body or clothes, rinse well with water immediately.

Remote Control Operation

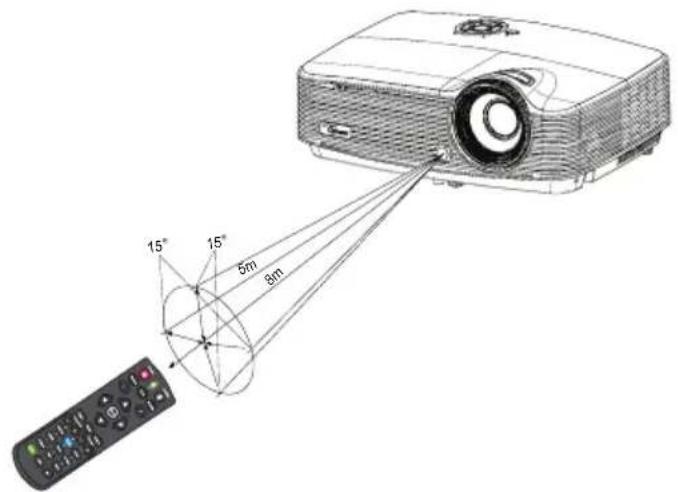

Point the remote control at the infrared remote sensor and press a button.

■ Operating the projector from the front

Note

■ The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor.
■ Operate the remote control from a position where the remote sensor is visible.
■ Do not drop the remote control or jolt it.
- Keep the remote control out of locations with excessively high temperature or humidity.
■ Do not get water on the remote control or place wet objects on it.
■ Do not disassemble the remote control.

Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.

1. ....*Audio cable
2. ....*S-Video cable
3. ...... *Composite Video cable
4. ....*VGA (D-Sub) to HDTV (RCA) cable
5. ...... *HDMI cable
6. VGA cable (D-Sub to D-Sub)
7. ....*USB cable
8. ......*VGA to DVI-A cable

Note

■ Due to the difference in applications for each country, some regions may have different accessories.
(*) Optional Accessory

Connecting a computer or monitor

Connecting a computer

The projector provides two VGA input sockets that allow you to connect them to both IBM® compatible and Maccomputers. A Mac adapter needed if you are connecting legacy version Macintosh computers.

To connect the projector to a notebook or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.
2. Connect the other end of the VGA cable to the VGA1/YPbPr or VGA2/YPbPr signal input socket on the projector.

Important

■ Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Connecting a monitor

If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the VGA-OUT signal output socket on the projector to an external monitor with a VGA cable following the instructions below:

To connect the projector to a monitor:

1. Connect the projector to a computer as described in "Connecting a computer" on page 18.
2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the D-Sub input socket of the video monitor.
   Or if your monitor is equipped with a DVI input socket, take a VGA to DVI-A cable and connect the DVI end of the cable to the DVI input socket of the video monitor.
3. Connect the other end of the cable to the VGA-OUT socket on the projector.

VGA-out loop through:

During working mode:

1. If VGA1 is projecting out, VGA-OUT source will be VGA1.
2. If VGA2 is projecting out, VGA-OUT source will be VGA2.
3. If VGA1 and VGA2 are all have sources, default VGA-OUT is VGA1.

4. If none of VGA1 and VGA2 is projecting out, VGA-OUT is disabled.
   During Standby

5. VGA-OUT will keep the latest display VGA source signal. Default VGA-OUT is VGA1.

6. If the projector is in Power Mode (Standby) < 0.5W, VGA-OUT is disabled.

Connecting Video source devices

You can connect your projector to various Video source devices that provide any one of the following output sockets:

■ HDMI
■ Component Video
■ S-Video
■ Video (composite)

You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Terminal name	Terminal appearance	Reference	Picture quality
HDMI HDMI	“Connecting an	HDMI source device” on page 21	Best
Component Video	VGA1/YPbPr or VGA2/YPbPr	“Connecting a Component Video source device” on page 21	Better
S-Video S-VI	DEO “Connecting an	S-Video source device” on page 22	Good
Video	VIDEO	“Connecting a composite Video source device” on page 22	Normal

Note

■ Not all models have HDMI Input, please check your projector before connecting

Connecting an HDMI source device

Examine your Video source device to determine if it has a set of unused HDMI output jacks available:

■ If so, you can continue with this procedure.
If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an HDMI source device:

1. Take an HDMI cable and connect one end to the HDMI output jack of the HDMI source device.
2. Connect the other end of the HDMI cable to the HDMI jack on the projector.

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component Video output sockets available:

■ If so, you can continue with this procedure.
If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a Component Video source device:

1. Take a VGA (D-Sub) to HDTV (RCA) cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue, and red to red.

2. Connect the other end of the cable (with a D-Sub type connector) to the VGA1/YPbPr or VGA2/YPbPr socket on the projector.

Important

If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Connecting an S-Video source device

Examine your Video source device to determine if it has an unused S-Video output socket available:

■ If so, you can continue with this procedure.
If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an S-Video source device:

1. Take an S-Video cable and connect one end to the S-Video output socket of the Video source device.
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.

Important

If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.
If you have already made a Component Video connection between the projector and this S-Video source device using Component Video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See “Connecting Video source devices” on page 20 for details.

Connecting a composite Video source device

Examine your Video source device to determine if it has a set of unused composite Video output sockets available:

■ If so, you can continue with this procedure.
■ If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a composite Video source device:

1. Take a Video cable and connect one end to the composite Video output socket of the Video source device.
2. Connect the other end of the Video cable to the VIDEO socket on the projector.

Important

If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.
■ You need only connect to this device using a composite Video connection if Component Video and S-Video inputs are unavailable for use. See “Connecting Video source devices” on page 20 for details.

Operation

Powering On/Off the Projector

Powering On the Projector:

1. Connect the AC power cord and relevant peripheral signal cable(s) to the projector.
2. Press to turn on the projector. The projector takes a minute or so to warm up.
3. Turn on your source (computer, notebook, DVD, etc.). The projector automatically detects your source.

■ If you are connecting multiple sources to the projector simultaneously, press SOURCE on the projector or Source on the remote control to select your desired signal or press your desired signal key on the remote control.

Warning

■Never look into the lens when the lamp is on. This can damage your eyes.
■This focal point concentrates high temperature. Do not place any object near it to avoid possible fire hazard.

Powering Off the Projector:

1. Press to turn off the projector lamp. You will see a message "Power off? Press Power again" appear on the screen.
2. Press again to confirm.

■ The cooling fans continue to operate for cooling cycle.
■ When the Power LED becomes steady red, the projector has entered stand-by mode.
If you want to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered stand-by mode. Once in stand-by mode, simply press 🔊to restart the projector.

1. Disconnect the AC power cord from the electrical outlet and the projector.

2. Do not turn on the projector right after power off.

Warning

■When Quick Resume is on, if turning off the projector accidentally and Quick Resume selected within a period of 100 seconds, the projector will instantly power on again.
■When Quick Resume is off, if turning off the projector, users need to wait until the cooling process is finished and then restart the projector. It will take a few minutes because the fan will keep running until the internal temperature is reduced to certain level.

Adjusting the Projector Height

The projector is equipped with an elevator foot to adjust the image height.

1. To raise or lower the image, turn the elevator foot.
2. To level the image on the screen, turn the tilt-adjustment foot to fine-tune the height.

Note

■ To avoid damaging the projector, make sure that the elevator foot and tilt-adjustment foot are fully retracted before placing the projector in its carrying case.

Adjusting the Projector Zoom and Focus

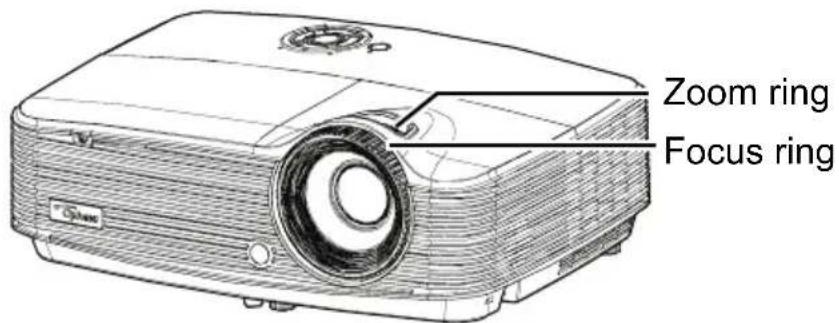

1. Focus the image by rotating the focus ring. A still image is recommended for focusing.

2. Adjust the image size by rotating the zoom ring.

Adjusting Projection Image Size

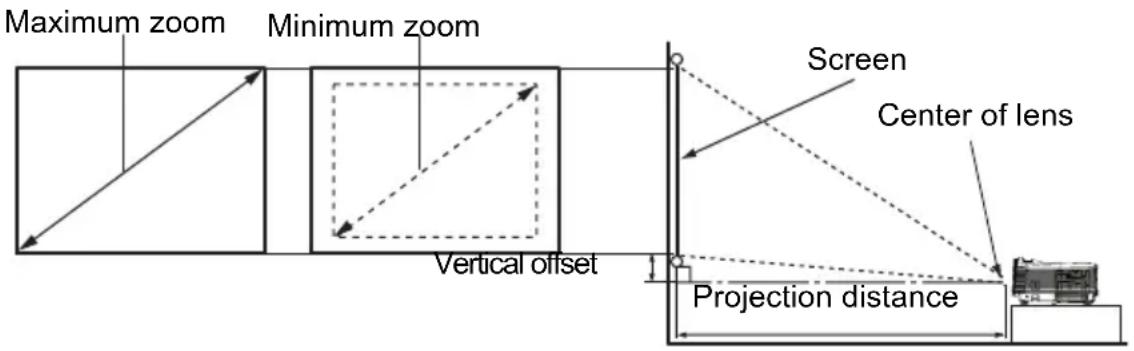

Refer to the graphic and table below to determine the screen size and projection distance.

SVGA/XGA model

Screen sizeDiagonal[inch (cm)]	4 : 3 Screen
	Projection distance [feet (m)]		Image height[inch (cm)]	Vertical offset[inch (cm)]
	(min. zoom) (max. zoom)
30 (76) 3.83 (1.17) 4.33 (1.32) 18 (46) 2.7 (7)
40 (102) 5.17 (1.57) 5.75 (1.75) 24 (61) 3.6 (9)
60 (152) 7.83 (2.39) 8.67 (2.64) 36 (91) 5.4 (14)
80 (203) 10.42 (3.18) 11.58 (3.53) 48 (122) 7.2 (18)
100 (254) 13.08 (3.99) 14.58 (4.45) 60 (152) 9.0 (23)
120 (305) 15.75 (4.80) 17.5 (5.33) 72 (183) 10.8 (27)
150 (381) 19.67 (5.99) 21.83 (6.65) 90 (229) 13.5 (34)
200 (508) 26.25 (8.00) 29.17 (8.89) 120 (305) 18.0 (46)
250 (635)	32.83 (10.00)	36.5 (11.13)	150 (381)	22.5 (57)
300 (762)	39.42 (12.01)	43.75 (13.34)	180 (457)	27.0 (69)

WXGA model

Screen sizeDiagonal[inch (cm)]	16:10 Screen
	Projection distance [feet (m)]	Image height[inch (cm)]	Vertical offset[inch (cm)]
	(min. zoom) (max. zoom)
30 (76) 3.08 (0.94)	3.92 (1.19) 16 (40)	2.4 (6)
40 (102) 4.12 (1.27)	5.17 (1.57) 21 (54)	3.2 (8)
60 (152) 6.33 (1.93)	7.83 (2.39) 32 (81)	4.8 (12)
80 (203) 8.42 (2.57)	10.5	(3.20 42 (108) 6.4 (16)
100 (254) 10.58	(3.23) 13.08 (3.99) 53	(135) 7.9 (20)
120 (305) 12.75	(3.89) 15.75 (4.80) 64	(162) 9.5 (24)
150 (381) 15.92	(4.85) 19.67 (5.99) 79	(202) 11.9 (30)
200 (508) 21.25	(6.48) 26.25 (8.00)	106 (269)	15.9 (40)
250 (635)	26.58 (8.10)	32.83 (10.01)	132 (336)
300 (762)	31.92 (9.73)	39.42 (12.01)	159 (404)

Note

■ Position the projector in a horizontal position; other positions can cause heat build-up and damage to the projector.
- Keep a space of 30 cm or more between the sides of the projector.
■ Do not use the projector in a smoky environment. Smoke residue may build-up on critical parts and damage the projector or its performance.
■ Consult with your dealer for special installation such as suspending from a ceiling.

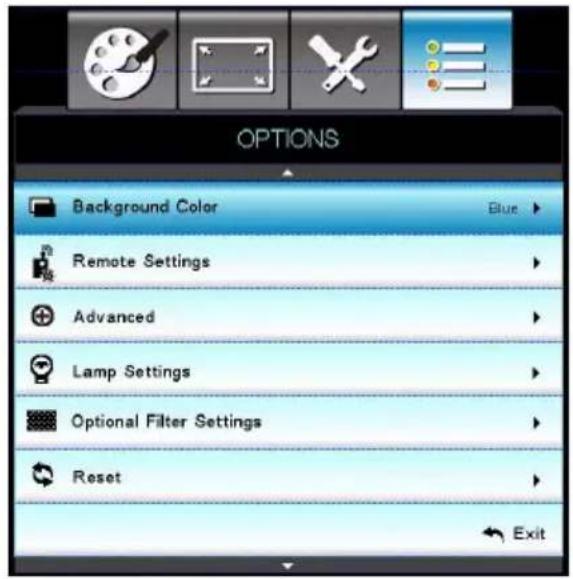

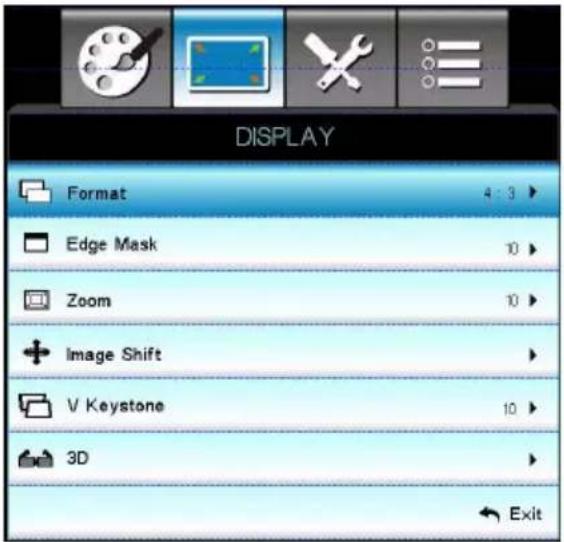

Menu Operation

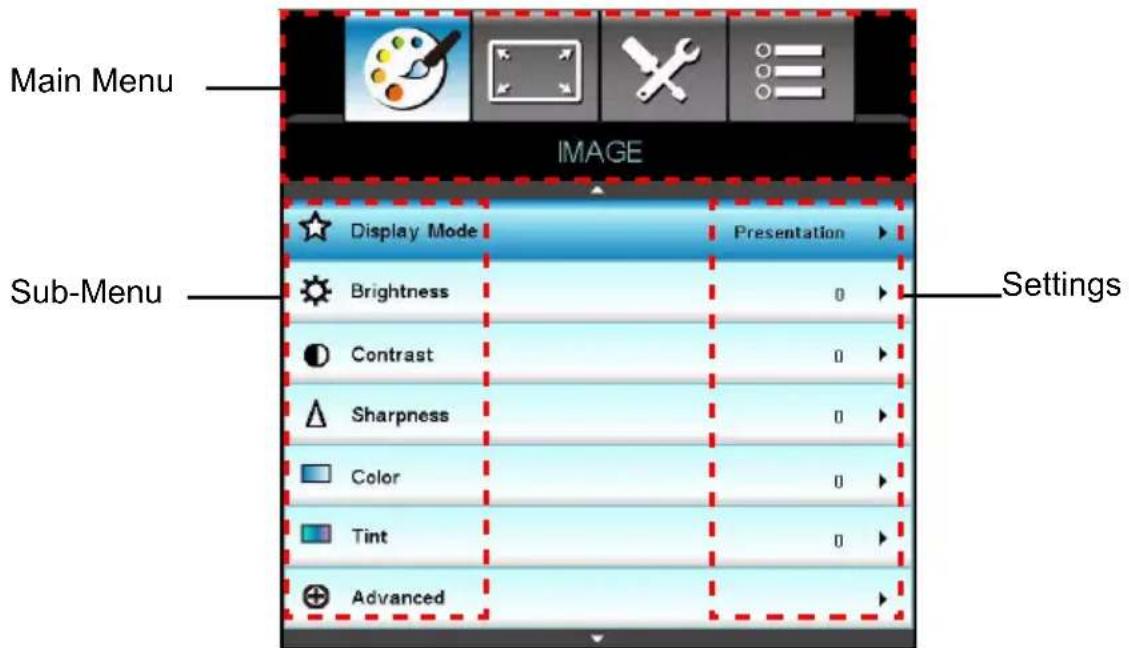

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings.

How to operate

1. To open the OSD menu, press "Menu" on the Remote Control or Projector Keypad.
2. When OSD is displayed, use ◀/▶ key to select to select any item in the main menu. While making a selection on a particular page, press ▼ or "Enter key to enter sub menu.
3. Use ▲/▼ key to select the desired item and press ◀/►/"Enter" key to enter the Single-Item-Menu.
4. Use the ◀/▶ key to adjust the value. Use "Enter" to confirm the selection.
5. Select the next item to be adjusted in the sub menu and adjust as described above.
6. Press "Menu" to go back to Sub-Menu.
7. To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the new settings.

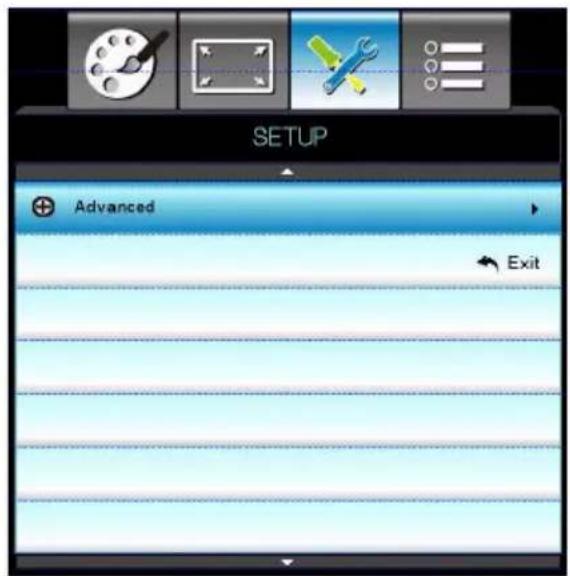

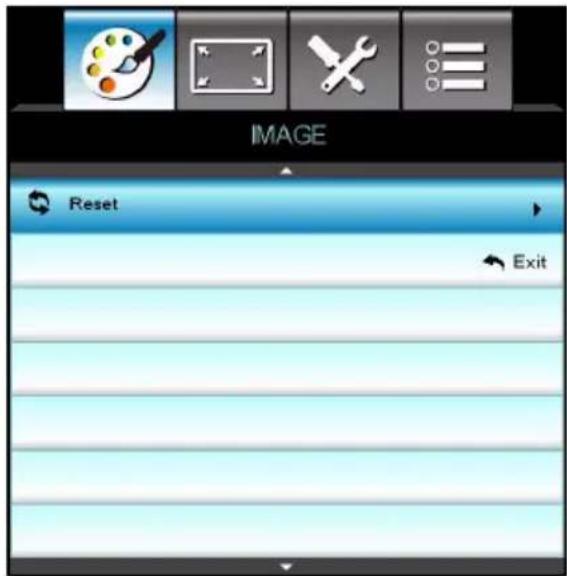

Single-Item- Menu

Menu tree

Main Menu Sub-Menu Single-Item Menu

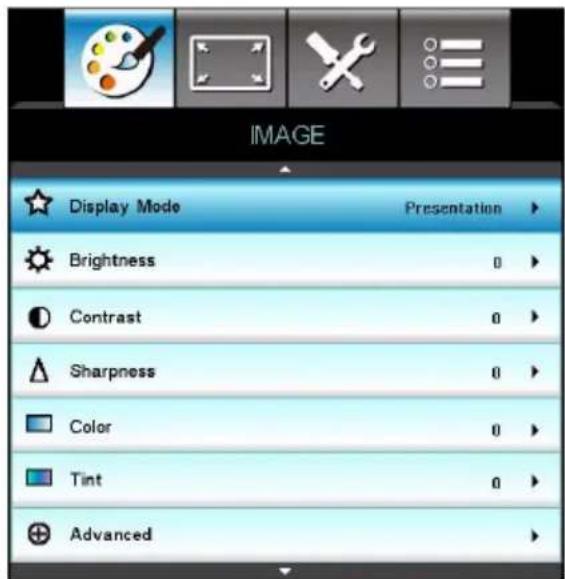

IMAGE	Display Mode			Presentation / Bright / Movie / sRGB / Blackboard / User / 3D
	Brightness
	Contrast
	Sharpness
	Color
	Tint

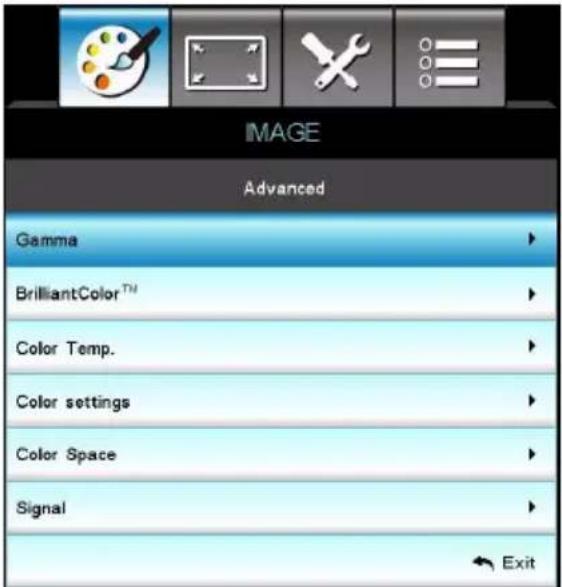

	Advanced	Gamma		Film / Video / Graphics / Standard
		BrilliantColorTM
		Color Temp.		Warm / Medium / Cold

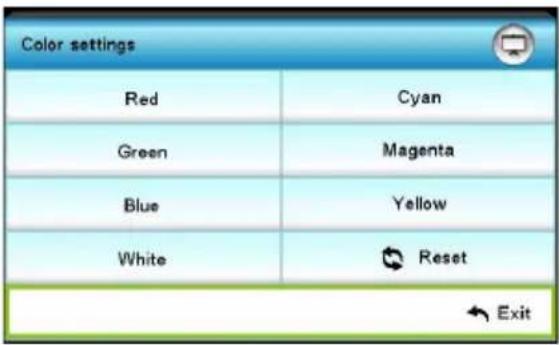

		Color Settings Red		Hue / Saturation / Gain
			Green	Hue / Saturation / Gain
			Blue	Hue / Saturation / Gain
			Cyan	Hue / Saturation / Gain
			Magenta	Hue / Saturation / Gain
			Yellow	Hue / Saturation / Gain
			White Red / Green / Blue
			Reset
			Exit
		Color Space		Not HDMI Input: Auto / RGB / YUV
				HDMI Input: Auto / RGB (0~255) / RGB (16~235) YUV
		Signal Automatic On / Off
			Phase (VGA)
			Frequency (VGA)
			H. Position (VGA)
			V. Position (VGA)
			Exit
		Exit
	Reset Yes / No
DISPLAY	Format			SVGA / XGA:4:3 / 16:9 / Native / Auto
				WXGA:4:3 / 16:9 or 16:10 / LBX / Native / Auto
	Edge Mask
	Zoom
	Image Shift	H
		V
	V Keystone
	3D	3D Mode DLP-Link / IR
		3D---->2D 3D / L / R
		3D Format		Auto / SBS / Top and Bottom / Frame Sequential
		3D Sync Invert On / Off
SETUP	Language			English / Deutsch / Français / Italiano / Español / Português / Svenska / Nederlands / Norsk/Dansk / Polski / Русский / Suomi / ελληνικά / Magyar / Čeština / 繁體中文 / 簡体中文 / 日本語 / 한국어 / lnu / Türkçe / Farsi / Vietnamese / Romanian / Indonesian
	Projection
	Menu Location
	Screen Type			16: 10/16:9 (WXGA)
	Security	Security On / Off
		Security Timer Month / Day / Hour
		Change Password
		Exit
	Projector ID
	Audio Settings	Mute On / Off
		Volume
		Audio Input		Default / Audio 1 / Audio 2
	Advanced	Logo Default / Neutral
		Closed Captioning Off / CC1 / CC2
		Exit
OPTIONS	Input Source			VGA1 / VGA2 / Video / S-Video / HDMI*
	Source Lock On / Off
	High Altitude On / Off
	Information Hide On / Off
	Keypad Lock On / Off
	Test Pattern			None / Grid / White
	IR Function On / Off
	Background Color			Black / Red / Blue / Green / White
	Remote Settings			Display Mode/ Format/ 3D Sync Invert/ Mute/ Test Pattern/ VGA2
	Advanced	Direct Power On On / Off
		Auto Power Off (min.)
		Sleep Timer (min.)
		Quick Resume On / Off
		Power Mode (Standby)	Active / Eco
	Lamp Settings	Lamp Hour
		Lamp Reminder On / Off
		Brightness Mode		Bright / Dynamic / Eco+
		Lamp Reset Yes / No
		Exit
	Optional Filter Settings	Optional Filter Installed	Yes / No
		Filter Usage Hours
		Filter Reminder On / Off
		Filter Reset Yes / No
		Exit
	Reset			Yes / No

* This function is only available for products with HDMI input jack.


Display Mode

There are many factory presets optimized for various types of images.

■ Presentation: Good color and brightness from PC input.
■ Bright: Maximum brightness from PC input.
■ Moive: For home theater.
■ sRGB: Standardised accurate color.
■ Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).
■ User: User's settings.
■ 3D: Recommended setting for 3D mode. Any further adjustments by the user in 3D will be saved in this mode for further use.

Brightness

Brighten or darken the image.

Contrast

Set the difference between light and dark areas.

Sharpness

Sharpen or soften the image.

Color

Adjust a video image from black and white to fully saturated color.

Tint

Shift colors toward red or green.

Note

■ "Color" and "Tint" functions are only supported under Video mode.

Advanced

Gamma

This allows you to choose a degamma table that has been fine-tuned to bring out the best image quality for the input.

■ Film: for home theater.
■ Video: for video or TV source.
■ Graphics: for image source.
■ Standard: for PC or computer source.

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from “1” to “10”. If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Color Temp.

If set to cold temperature, the image looks more blue. (cold image)

If set to medium temperature, the image maintains normal colorings for white.

If set to warm temperature, the image looks more red. (warm image)

Color Settings

Press ◀️/▶/“Enter” key to enter the next menu as below and then use ▲/▼/◀/▶ key to select color. Press “Enter” to finalize the selection.

■ Red/Green/Blue/Cyan/Magenta/Yellow/White: Use ▲/▼ to toggle Hue/Saturation/Gain and then use ◀/► to adjust the value.
■ Reset: Choose "Yes" to return the factory default settings for color adjustments.

Color Space

Select an appropriate color matrix type from AUTO, RGB or YUV.

Signal

■ Automatic: Automatically selects the singal. If you use this function, the Phase, frequency items are grayed out, and if Signal is not automatic, the phase, frequency items will appear for user to manually tune and saved in settings after that for next time projector turns off and on again.
■ Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.
Frequency: Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.
■ H. Position: Adjust the image left or right within the projection area.
■ V. Position: Adjust the image up or down within the projection area.

Reset

Return the display parameters on IMAGE menu to the factory default settings.

DISPLAY

Format

Use this function to choose your desired aspect ratio.

For SVGA/XGA models:

Source	480i/p	576i/p	1080i/p	720p	PC
4:3 1024x768 center
16:9 1024x576 center
Native	Displays the original image without any scaling.
Auto (Default)	If source is 4:3, auto resize to 1024 x 768If source is 16:9 auto resize to 1024 x 576If source is 15:9 auto resize to 1024 x 614If source is 16:10 auto resize to 1024 x 640

For WXGA models:

16:9 or 16:10 depend on "Screen Type" setting.

16:10 Screen

16 : 10 screen	480i/p	576i/p	1080i/p	720p	PC
4:3 1066 x800	center
16:10	1280x800 center
LBX	1280x960 center, then get the central 1280x800 image to display.
Native	1:1 mapping centered	1:1 mapping display 1280 x 800	1280x720 Centered	1:1 mapping centred
Auto (Default)	Input source will be fit into 1280x800 display area and be kept its original aspect ratio.If source is 4:3, auto resize to 1066 x 800If source is 16:9 auto resize to 1280 x 720If source is 15:9 auto resize to 1280 x 768If source is 16:10 auto resize to 1280 x 800

16:9 Screen

16 : 9 screen	480i/p	576i/p	1080i/p	720p	PC
4:3 960x720 center
16:9 1280x720 center
LBX	1280x960 center, then get the central 1280x720 image to display.
Native 1:1 mapping centered			1:1 mapping display 1280 x 720	1280x720 Centered	1:1 mapping centred
Auto (Default)	If this format is select, Screen type will auto become 16:9 (1280 x 720)If source is 4:3, auto resize to 960 x 720If source is 16:9 auto resize to 1280 x 720If source is 15:9 auto resize to 1200 x 720If source is 16:10 auto resize to 1152 x 720

Edge Mask

Edge Mask function removes the noise in a video image. Overscan the image to remove video encoding noise on the edge of video source.

Note

■ Each I/O has different setting of "Edge Mask".
■ "Edge Mask" and "Zoom" can't work at same time.

Zoom

Zoom in and out the images.

Image Shift

Shift the projected image position horizontally and vertically.

V Keystone

Adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.

Note

■ Keystone adjustment might affect the complete presentation of the OSD menu.

3D

3D Mode

■ DLP Link: Select "DLP Link" to use optimized settings for DLP Link 3D glasses.
■ IR: Select "IR" to use optimized settings for IR-based 3D glasses.

3D-->2D

■ 3D: Select 3D format.
■ L: Select left eye data.

EN-34

■ R: Select right eye data.

3D Format

■ SBS: Use this mode for "Side-by-side" format 3D content.
■ Top and Bottom: Use this mode for “Top and Bottom” format 3D content.
■ Frame Sequential: Use this mode for “Frame Sequential” format 3D content.

3D Sync. Invert

■ Press the "On" to invert left and right frame contents.
■ Press the "Off" for default frame contents.

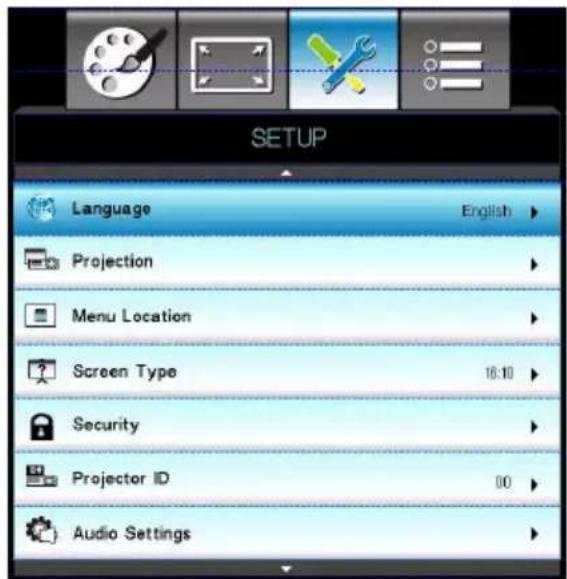

SETUP

Language

Select the language used by the on-screen menu. Press ◀/▶/“Enter” key to enter the sub menu and then use the ▲/▼/◀/▶ key to select your preferred language. Press “Enter” to finalize the selection.

Projection

Adjust the picture to match the orientation of the projector: upright or upside-down, in front of or behind the screen. Invert or reverse the image accordingly.

Menu Location

Choose the menu location on the display screen.

Screen Type (for WXGA model only)

Choose the screen type from 16:10 or 16:9.

Security

Security

■ On: Choose "On" to use security verification when the turning on the projector.
■ Off: Choose "Off" to be able to switch on the projector without password verification.

Security Timer

Use this function to set the how long (Month/Day/Hour) the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password

■ First time:

1. Press "Enter" to set the password.

2. The password has to be 4 digits.

3. Use number button on the remote to enter your new password and then press "Enter" key to confirm your password.

■ Change Password:

1. Press "Enter" to input old password.
2. Use number button to enter current password and then press "Enter" to confirm.

1. Enter new password (4 digits in length) using the number buttons on the remote, then press "Enter" to confirm.

2. Enter new password again and press "Enter" to confirm.

■ If the incorrect password is entered 3 times, the projector will automatically shut down.
■ If you have forgotten your password, please contact your local office for support.

Note

■ Password default value is "1234" (first time).

Projector ID

ID definition can be set up by menu (range 0\~99), and allow user control an individual projector by RS232.

Audio Settings

Mute

Cut off the sound temporarily.

Volume

Adjust the volume level.

Audio Input

Select audio input sources.

Advanced

Logo

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

■ Default: The default startup screen.
■ Neutral: Neutral startup screen.

Closed Captioning

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

■ Off: select "Off" to turn off the closed captioning feature.
■ CC1:CC1 language: American English.
■ CC2:CC2 language (depending on the TV channel of the user): Spanish, French, Portuguese, German, Danish.

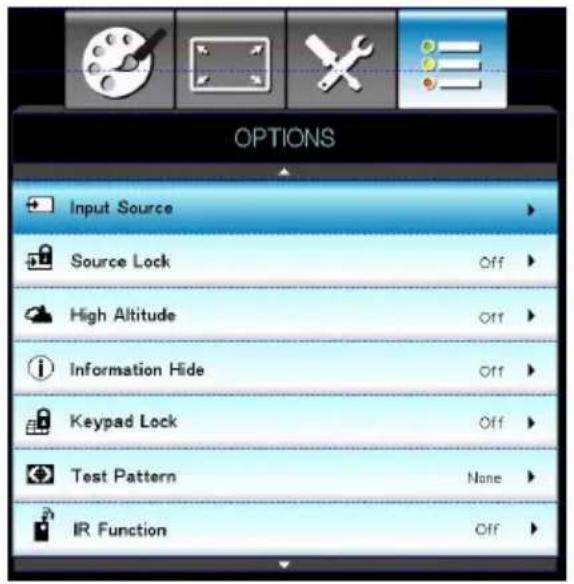

OPTIONS

Input Source

Use this option to enable / disable input sources. Press ◀/▶/“Enter” key to enter the sub menu and select which sources you require. Press “Enter” to finalize the selection. The projector will not search for inputs that are not selected.

Source Lock

■ On: The projector will only search current input connection.
■ Off: The projector will search for other signals if the current input signal is lost.

High Altitude

When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Note

■ With dust filter installed, High Altitude mode must be turned on manually. Dust filter is Optional and may not be required in some regions.

Information Hide

■ On: Choose "On" to hide the info message.
■ Off: Choose "Off" to show the "searching" message.

Keypad Lock

When the keypad lock function is “On”, the control panel will be locked how ever, the projector can be operated by the remote control. By selecting “Off”, you will be able to reuse the control panel.

Note

■ Totum off the keypad lock, press and hold "Enter" key on top of the projector for 5 seconds.

Test Pattern

Display a test pattern. There are Grid, White pattern and None.

IR Function

Choose “On” to turn on the IR receiver. Choose “Off” to turn off the IR receiver.

Background Color

Use this feature to display a “Black”, “Red”, “Blue”, “Green” or “White”, screen when no signal is available.

Remote Settings

Allow user to define a short cut key on the remote control, and the function item is selected in OSD menu.

Advanced

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “ ⏻ ” key on the projector control panel or on the remote control.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Sleep Timer (min)

Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Quick Resume

If the projector is accidentally turned off, this feature allows the projector to be instantly powered on again within 100 seconds of power down.

Power Mode (Standby)

Set whether the VGA-OUT function works when the projector is in standby (powered off but connected to AC power).

■ Eco: The VGA-OUT function will not work when the projector is in standby.
■ Active: The VGA-OUT and AUDIO-OUT functions will work when the projector is in standby.

Note

■ When Power mode (Standby) is set to Eco (<0.5W), the VGA output, Audio pass-through will be deactivated when the projector is in standby.

Lamp Settings

Lamp Hours

Display the projection time.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed.

Brightness Mode

■ Bright: Choose "Bright" to increase the brightness.
■ Dynamic: Choose "Dynamic" to dim the projector lamp which will lower power consumption and extend the lamp life by up to 133%.
■ Eco+: Choose “Eco+” to dim the projector lamp which will automatically detect the brightness level of the content and reduce lamp power consumption (up to 70 percent) during periods of inactivity.

Lamp Reset

Reset the lamp hour counter after replacing the lamp.

Optional Filter Settings

Optional Filter Installed

Choose "Yes" if an optional dust filter is installed.

Filter Usage Hours

Display the dust filter's elapsed operating time (in hours).

Filter Reminder

Sets a filter reminder if timer is up.

Filter Reset

Reset the dust filter hour counter after replacing the dust filter.

Reset

Choose "Yes" to return the display parameters on all menus to the factory default settings.

Appendix

Installing the Dust Filter

Be sure to follow the steps to install the dust filter.

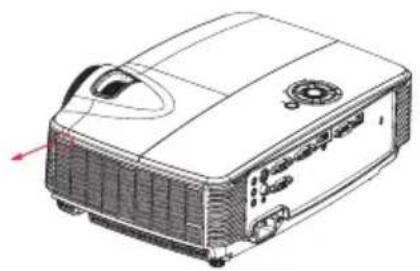

1. Align the filter with these two hook positions (#1 & #2), then press it close to the projector from the left side to the right one.

2. Press the last hook position (#3) until it clicks.

1. Turn on the projector, then press “Menu”, go to OPTIONS > Optional Filter > Optional Filter Installed and select “Yes”.

2. Clean the dust filter periodically.

The dust filter should be cleaned or replaced periodically (suggest after every 500 hours or 3 months of use). If it is not cleaned periodically, it can become clogged with dust and prevent the projector from being ventilated properly. This can cause over heating and damage the projector. If the projector is used in a dusty environment, be sure to cleaned or replaced the dust filter more frequently.

1. To remove the dust filter, take it apart from the upper-left side of the hook position.

2. Turn on the projector, then press "Menu", go to OPTIONS > Optional Filter > Optional Filter Installed and select "No" when you pull out the dust filter and would not install it again.

Line drawing of a projector device with ventilation slots and a red arrow indicating the left side (no text or symbols present)

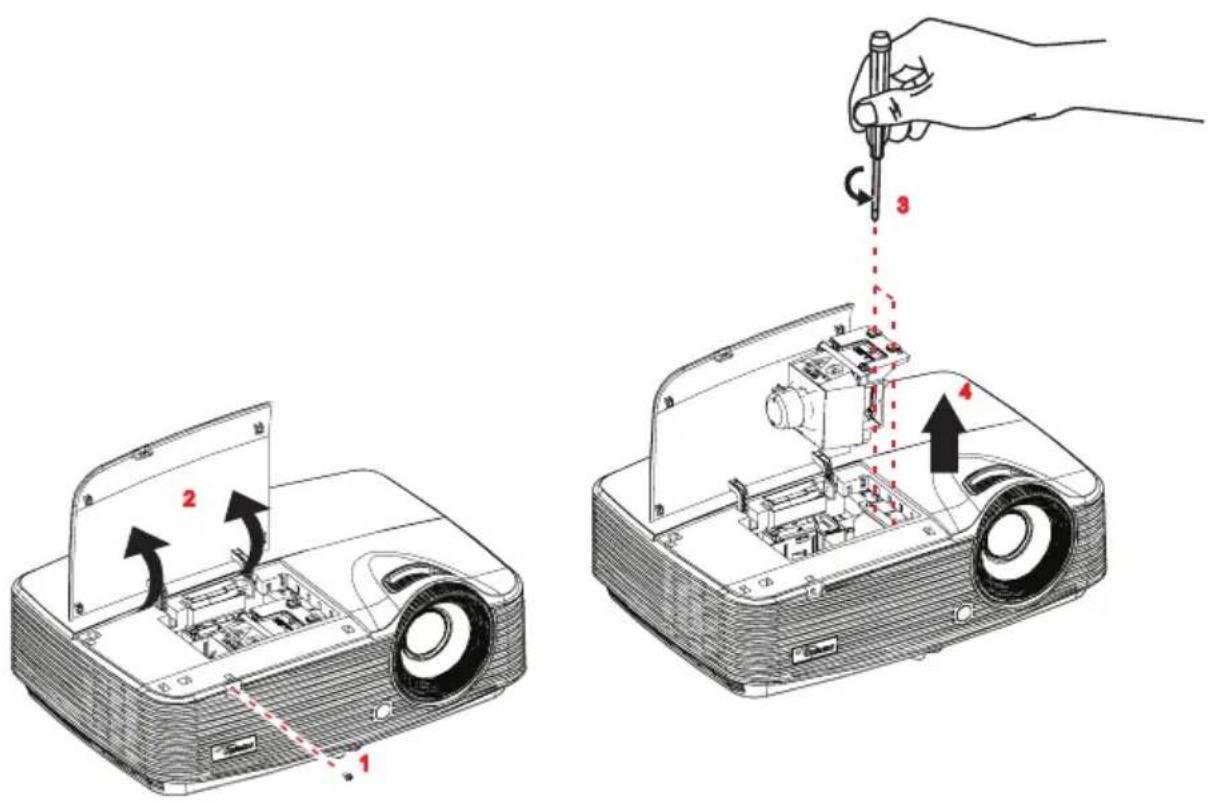

Replacing the Lamp

As the projector operates over time, the brightness of the projector lamp gradually decreases and the lamp becomes more susceptible to breakage.

We recommend replacing the lamp if a warning message is displayed. Do not attempt to replace the lamp yourself. Contact the qualified service personnel for replacement.

Note

The lamp is extremely hot right after turning off the projector. If you touch the lamp, you may scald your finger. When you replace the lamp, wait for at least 45 minutes for the lamp to cool down.
■ Do not touch the lamp glass at any time. The lamp may explode due to improper handling, including the touching of the lamp glass.
Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.
A lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.
■ Wear protective gloves and eyeglasses when fixing or detaching the lamp.
■ Faster on-off-cycles will damage the lamp and reduce lamp life. Wait at least for 5 minutes to turn off the projector after powering on.
■ Do not operate the lamp in proximity to paper, cloth, or other combustible material nor cover it with such materials.
■ Do not operate the lamp in an atmosphere containing an inflammable substance, such as thinner.
■ Thoroughly ventilate the area or the room when operating the lamp in an oxygen atmosphere (in the air). If ozone is inhaled, it could cause headaches, nausea, dizziness, and other symptoms.
The inorganic mercury is involved in the lamp. If the lamp bursts, the mercury inside the lamp will be exposed. Leave the area immediately if the lamp shatters while being operated and ventilate the area for at least 30 minutes in order to avoid the inhalation of mercury fumes. Otherwise it could be harmful to user's health.

1. Turn off the projector.
2. Unplug the power cord.
3. Remove the screw in the side of the lamp cover. 1
4. Lift the cover. 2
5. Loosen the screws from the lamp module. 3
6. Raise the handle and pull out the lamp module slowly and carefully. 4
7. Insert the new lamp module into the projector and tighten the screws.
8. Replace the lamp cover and tighten the screw.
9. Turn on the projector. If the lamp does not turn on after the warm-up period, try reinstalling the lamp.
10. Reset the lamp hour. Refer to the "OPTIONS > Lamp Settings" menu.

Note

■ Dispose the used lamp according to local regulations.
■ Ensure that screws are tightened properly. Screws not tightened fully may result in injury or accidents.
■ Since the lamp is made of glass, do not drop the unit and do not scratch the glass.
■ Do not reuse the old lamp. This could cause the lamp to explode.
■ Be sure to turn off the projector and unplug the AC power cord before replacing the lamp.
■ Do not use the projector with the lamp cover removed.

Ceiling mount installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

■ Screw type: M4*3
■ Maximum screw length: 8mm
■ Minimum screw length: 6mm

Unit: mm

Note

■ Please note that damage resulting from incorrect installation will void the warranty.

Warning

1. If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw length will vary depending on the thickness of the mounting plate.
2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
3. Avoid installing the projector near a heat source.

Compatibility Modes

Computer Compatibility

Signal Resolution Refresh Rate(Hz) Notes for Mac
VGA 640 X 480 60/67/72/85 Mac 60/72/85
SVGA 800 X 600 60(*2)/72/85/120(*2) Mac 60/72/85
XGA 1024 X768 60(*2)/70/75/85/120(*2)			Mac 60/70/75/85
HDTV(720P) 1280 X 720 50/60(*2)/120(*2) Mac 60
WXGA	1280 X768	60/75/85	Mac 60/75/85
	1280 X800	60	Mac 60
	1366 x 768	60	Mac 60
SXGA	1280 X1024	60 Mac 60/75
SXGA+ 1400 X1050 60
UXGA	1600 X 1200	60
HDTV(1080p)	1920 X1080	60	Mac 60
WUXGA 1920 X1200(*1)		60 Mac 60

(*1)1920 x 1200 @60hz only support reduced blanking
(*2) 3D timing for True 3D projector

Input Signal for HDMI

Signal	Resolution Refresh Rate(Hz)	Notes for Mac
VGA	640 X 480	60	Mac 60/72/85
SVGA	800 X 600	60(*2)/72/85/120(*2)	Mac 60/72/85
XGA	1024 X 768	60(*2)/70/75/85/120(*2)	Mac 60/70/75/85
SDTV(480I)	640 X 480	60
SDTV(480P)	640 X 480	60
SDTV(576I)	720 X 576	50
SDTV(576P)	720 X 576	50
WSVGA(1024X600)	1024 X 600	60
HDTV(720p) 1280 X 720	50(*2)/60/120(*2)	Mac 60
WXGA	1280 X768	60/75/85	Mac 75
	1280 X800	60	Mac 60
	1366 x 768	60	Mac 60
WXGA+	1440 x 900	60	Mac 60
SXGA	1280 X1024	60/75/85	Mac 60/75
SXGA+	1400 X1050	60
UXGA	1600 X 1200	60
HDTV(1080I)	1920 X1080	50/60
HDTV(1080p)	1920 X1080	24/30/50/60	Mac 60
WUXGA	1920 X1200(*1)	60	Mac 60

(*1)1920 x 1200 @60hz only support reduced blanking
(*2)3D timing for True 3D projector

True 3D Video Compatibility table

Input Resolutions	HDMI 1.4a3D Input	Input timing
		1280 X 720P @ 50Hz Top - and - Bottom
		1280 X 720P @ 60Hz Top - and - Bottom
		1280 X 720P @ 50Hz Frame packing
		1280 X 720P @ 60Hz Frame packing
		1920 X 1080i @50 Hz S de- by-Side (Half)
		1920 X 1080i @60 Hz S de- by-Side (Half)
		1920 X 1080P @24 Hz Top - and - Bottom
		1920 X 1080P @24 Hz Frame packing
	HDMI 1.3 1920 x 1080i @ 50Hz1920 x1080i @ 60Hz1280 x 720P @ 50Hz1280 x 720P @60Hz		Side-by-Side(Half)	SBS mode is on
			Top-and-Bottom	TAB mode is on
			480i HQFS 3D format is

If 3D input is 1080p@24hz, the DMD should replay with integral multiple with 3D mode
■ 1080i@25hz and 720p@50hz will run in 100hz; other 3D timing will run in 120hz

Video Compatibility

NTSC NTSC M/J, 3.58MHz, 4.43MHz
PAL PAL B/D/G/H/I/M/N, 4.43MHz
SECAM SECAM B/D/G/K/K1/L, 4.25/4.4 MHz
Component 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz)1080P(24/50/60Hz)
SDTV 480i/p, 576i/p
HDTV	720p(50/60Hz), 1080i(50/60Hz), 1080P(50/60Hz)

IR Code

Customer code: 32CD
Key code Printing-key definition
81 Power on/off
3E Switch
C3 Source
97 User
C4 Re-Sync
CB	L
CC	R
C6 Up arrow
C8 Left arrow
C9 Right arrow
C7 Down arrow
C5 Enter
CA Enter
N/A Laser
C1 Page+
95 Mode
C2 Page-
85 Keystone+
84 Keystone-
8C Volume +
8F Volume -
87 Brightness/1
88 Menu/2
89 Zoom/3
86 HDMI/4
8B Freeze/5
8A AV mute/6
83 S-Video/7
8E VGA/8
8D Video/9
94 Contrast
96 Eco	+
93 3D

The IR codes below are for user-defined remote only.

79 Power	off (single push)
82 Power	off
80 Power	on
9A VGA2

RS232 Commands and Protocol Function List

RS232 Pin Assignments

D-Sub 9 pin

(from the projector side)

1	1	C
2	RXD
3	TXD
4	DTR
5	GND
6	DSR
7	RTS
8	CTS
9	RI

D

Wire List

(from the cable side)

C1 COLOR C2
1	B	l
2	B	r
3	R	e
4	O	r
5	Y	e
6	G	r
7	B	l
8	P	u
9	W	h
SHELL DW	SHELL

a o d a l e u r i

RS232 Protocol Function List

Baud Rate : 9600

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control : None

UART16550 FIFO: Disable

Projector Return (Pass): P

Projector Return (Fail): F

XX=01-99, projector's ID,

XX=00 is for all projectors

Note

■ There is a after all ASCII commands.
■ 0D is the HEX code for in ASCII code.

SEND to projector

232 ASCII Code HEX Code	F	u	n	c	t
D	e	s	c	r	i

\~XX00 1 7E 30 30 30 30 20 31 0D Power ON

\~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible)

\~XX00 1 \~nnnn 7E 30 30 30 30 20 31 20 a 0DPower ON with Password \~nnnn = \~0000 (a=7E 30 30 30 30)

~XX01 1	7E 30 30 30 31 20 31 0D Resync
~XX02 1	7E 30 30 30 32 20 31 0D	AV Mute	On
~XX02 0	7E 30 30 30 32 20 30 0D		Off (0/2 for backward compatible)
~XX03 1	7E 30 30 30 33 20 31 0D	Mute	On
~XX03 0	7E 30 30 30 33 20 30 0D		Off (0/2 for backward compatible)
~XX04 1	7E 30 30 30 34 20 31 0D Freeze
~XX04 0	7E 30 30 30 34 20 30 0D	Unfreeze	(0/2 for backward compatible)
~XX05 1	7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1	7E 30 30 30 36 20 31 0D Zoom Minus
~XX12 1	7E 30 30 31 32 20 31 0D Direct Source Commands HDMI
~XX12 5	7E 30 30 31 32 20 35 0D	VGA1
~XX12 6	7E 30 30 31 32 20 36 0D	VGA 2
~XX12 8	7E 30 30 31 32 20 38 0D	VGA1 Component
~XX12 9	7E 30 30 31 32 20 39 0D	S-Video
~XX12 10	7E 30 30 31 32 20 31 30 0D		Video
~XX12 13	7E 30 30 31 32 20 31 33 0D		VGA 2 Component

~XX20 1 7E 30 30 32 30 20 31 0D Display Mode	Presentation
~XX20 2 7E 30 30 32 30 20 32 0D	Bright
~XX20 3 7E 30 30 32 30 20 33 0D	Movie
~XX20 4 7E 30 30 32 30 20 34 0D	sRGB
~XX20 5 7E 30 30 32 30 20 35 0D	User
~XX20 7 7E 30 30 32 30 20 37 0D	Blackboard
~XX20 9 7E 30 30 32 30 20 39 0D	3D

~XX21 n	7E 30 30 32 31 20 a 0D	Brightness	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX22 n	7E 30 30 32 32 20 a 0D	Contrast	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX23 n	7E 30 30 32 33 20 a 0D	Sharpness	n = 1 (a=31) ~ 15 (a=31 35)

~XX24 n	7E 30 30 32 34 20 a 0D	Color Settings/White	Red	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n	7E 30 30 32 35 20 a 0D		Green	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n	7E 30 30 32 36 20 a 0D		Blue	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX33 1	7E 30 30 33 33 20 31 0D		Reset

~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor ^TM			n = 1 (a=30) ~ 10 (a=31 30)
~XX35 1 7E 30 30 33 35 20 31 0D Gamma		Film
~XX35 2 7E 30 30 33 35 20 32 0D		Video
~XX35 3 7E 30 30 33 35 20 33 0D		Graphics
~XX35 4 7E 30 30 33 35 20 34 0D		Standard

~XX36 1 7E 30 30 33 36 20 31 0D Color Temp.	Warm
~XX36 2 7E 30 30 33 36 20 32 0D	Medium
~XX36 3 7E 30 30 33 36 20 33 0D	Cold
~XX37 1 7E 30 30 33 37 20 31 0D Color Space	Auto
~XX37 2 7E 30 30 33 37 20 32 0D	RGB\ RGB(0-255)
~XX37 3 7E 30 30 33 37 20 33 0D	YUV

~XX37 4	7E 30 30 33 37 20 34 0D		RGB(16 - 235)
~XX73 n	7E 30 30 37 33 20 a 0D	Signal	Frequency	n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX91 n	7E 30 30 39 31 20 a 0D		Automatic	n = 0 disable; n = 1 enable
~XX74 n	7E 30 30 37 34 20 a 0D		Phase	n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n	7E 30 30 37 35 20 a 0D		H. Position	n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n	7E 30 30 37 36 20 a 0D		V. Position	n = -5 (a=2D 35) ~ 5 (a=35) By timing

~XX45 n	7E 30 30 34 34 20 a 0D	Color (Saturation)	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX44 n	7E 30 30 34 35 20 a 0D	Tint	n = -50 (a=2D 35 30) ~ 50 (a=35 30))

\~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3

\~XX60 2 7E 30 30 36 30 20 32 0D 16:9

\~XX60 3 7E 30 30 36 30 20 33 0D 16:10(WXGA)

\~XX60 5 7E 30 30 36 30 20 35 0D LBX

\~XX60 6 7E 30 30 36 30 20 36 0D Native

\~XX60 7 7E 30 30 36 30 20 37 0D Auto

\~XX61 n 7E 30 30 36 31 20 a 0D Edge mask n = 0 (a=30) \~ 10 (a=31 30)

\~XX62 n 7E 30 30 36 32 20 a 0D Zoom n = -5 (a=2D 35) \~ 25 (a=32 35)

\~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n = -100 (a=2D 31 30 30) \~ 100 (a=31 30 30)

\~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -100 (a=2D 31 30 30) \~ 100 (a=31 30 30)

\~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) \~ 40 (a=34 30)

\~XX230 1 7E 30 30 32 33 30 20 31 0D 3D Mode DLP-Link

\~XX230 3 7E 30 30 32 33 30 20 31 0D 3D Mode IR

\~XX400 0 7E 30 30 34 30 30 20 30 0D 3D→2D

\~XX400 1 7E 30 30 34 30 30 20 31 0D

\~XX400 2 7E 30 30 34 30 30 20 32 0D

\~XX405 0 7E 30 30 34 30 35 20 30 0D 3D Format

\~XX405 1 7E 30 30 34 30 35 20 31 0D

\~XX405 2 7E 30 30 34 30 35 20 32 0D

\~XX405 3 7E 30 30 34 30 35 20 33 0D

\~XX231 0 7E 30 30 32 33 31 20 30 0D 3D Sync Invert

\~XX231 1 7E 30 30 32 33 31 20 31 0D 3D Sync Invert

3D

-

R

Auto

SBS

Top and Bottom

Frame sequential

On

Off

\~XX70 1 7E 30 30 37 30 20 31 0D Language English

\~XX70 2 7E 30 30 37 30 20 32 0D German

\~XX70 3 7E 30 30 37 30 20 33 0D French

\~XX70 4 7E 30 30 37 30 20 34 0D Italian

\~XX70 5 7E 30 30 37 30 20 35 0D Spanish

\~XX70 6 7E 30 30 37 30 20 36 0D Portuguese

\~XX70 7 7E 30 30 37 30 20 37 0D Polish

\~XX70 8 7E 30 30 37 30 20 38 0D Dutch

\~XX70 9 7E 30 30 37 30 20 39 0D Swedish

\~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish

\~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish

\~XX70 12 7E 30 30 37 30 20 31 32 0D Greek

\~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese

\~XX70 14 7E 30 30 37 30 20 31 34 0D Simplified Chinese

\~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese

\~XX70 16 7E 30 30 37 30 20 31 36 0D Korean

\~XX70 17 7E 30 30 37 30 20 31 37 0D Russian

\~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian

\~XX70 19 7E 30 30 37 30 20 31 39 0D Czech

\~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic

\~XX70 21 7E 30 30 37 30 20 32 31 0D Thai

\~XX70 22 7E 30 30 37 30 20 32 32 0D Turkish

\~XX70 23 7E 30 30 37 30 20 32 33 0D Farsi

\~XX70 25 7E 30 30 37 30 20 32 33 0D Vietnamese

\~XX70 26 7E 30 30 37 30 20 32 33 0D Indonesian

\~XX70 27 7E 30 30 37 30 20 32 33 0D Romanian

\~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop

\~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop

\~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling

\~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling

\~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left

\~XX72 2 7E 30 30 37 32 20 32 0D Top Right

\~XX72 3 7E 30 30 37 32 20 33 0D Centre

\~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left

\~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right

(WXGA only)

\~XX90 1 7E 30 30 39 31 20 31 0D Screen Type 16:10

\~XX90 0 7E 30 30 39 31 20 30 0D 16:9

\~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh

	mm=00 (aa=30 30) ~ 12 (aa=31 32)
d	d
	h h

\~XX78 1 7E 30 30 37 38 20 31 0D Security Settings Enable

\~XX78 0 \~nnnn 7E 30 30 37 38 20 32 20 a 0D Disable(0/2 for backward compatible)

~nnnn = ~0000 (a=7E 30 30 30 30)

~ 9

~XX79 n	7E 30 30 37 39 20 a 0D	Projector ID	n = 00 (a=30 30) ~ 99 (a=39 39)
~XX80 1	7E 30 30 38 30 20 31 0D	Mute	On
~XX80 0	7E 30 30 38 30 20 30 0D		Off (0/2 for backward compatible)
~XX81 n	7E 30 30 38 31 20 a 0D	Volume(Audio)	n = 0 (a=30) ~ 10 (a=31 30)
~XX82 1	7E 30 30 38 32 20 31 0D	Logo	Default
~XX82 3	7E 30 30 38 32 20 33 0D		Neutral
~XX88 0	7E 30 30 38 38 20 30 0D	Closed Captioning	Off
~XX88 1	7E 30 30 38 38 20 31 0D		cc1
~XX88 2	7E 30 30 38 38 20 32 0D		cc2
~XX89 0	7E 30 30 38 39 20 30 0D	Audio Input	Default
~XX89 1	7E 30 30 38 39 20 31 0D		Audio1
~XX89 3	7E 30 30 38 39 20 33 0D		Audio2
~XX100 1	7E 30 30 31 30 30 20 31 0D	Source Lock	On
~XX100 0	7E 30 30 31 30 30 20 30 0D		Off (0/2 for backward compatible)
~XX101 1	7E 30 30 31 30 31 20 31 0D	High Altitude	On
~XX101 0	7E 30 30 31 30 31 20 30 0D		Off (0/2 for backward compatible)
~XX102 1	7E 30 30 31 30 32 20 31 0D	Information Hide	On
~XX102 0	7E 30 30 31 30 32 20 30 0D		Off (0/2 for backward compatible)
~XX103 1	7E 30 30 31 30 33 20 31 0D	Keypad Lock	On
~XX103 0	7E 30 30 31 30 33 20 30 0D		Off (0/2 for backward compatible)
~XX195 0	7E 30 30 31 39 35 20 30 0D	Test Pattern	None
~XX195 1	7E 30 30 31 39 35 20 31 0D		Grid
~XX195 2	7E 30 30 31 39 35 20 32 0D		White Pattern
~XX11 0	7E 30 30 31 31 20 30 0D	IR Function	Off
~XX11 1	7E 30 30 31 31 20 31 0D		On
~XX104 1	7E 30 30 31 30 34 20 31 0D	Background Color	Blue
~XX104 2	7E 30 30 31 30 34 20 32 0D		Black
~XX104 3	7E 30 30 31 30 34 20 33 0D		Red
~XX104 4	7E 30 30 31 30 34 20 34 0D		Green
~XX104 5	7E 30 30 31 30 34 20 35 0D		White

==

9

~XX105 1	7E 30 30 31 30 35 20 31 0D	Advanced	Direct Power On On
~XX105 0	7E 30 30 31 30 35 20 30 0D	Off (0/2 for backward compatible)
~XX106 n		7E 30 30 31 30 36 20 a 0D	Auto Power Off (min)	n = 0 (a=30) ~ 180 (a=31 38 30)
~XX107 n		7E 30 30 31 30 37 20 a 0D	Sleep Timer (min)	n = 0 (a=30) ~ 990 (a=39 39 39)
~XX115 1		7E 30 30 31 31 35 20 31 0D	Quick Resume	On
~XX115 0		7E 30 30 31 31 35 20 30 0D		Off (0/2 for backward compatible)
~XX114 1	7E 30 30 31 31 34 20 31 0D	Power Mode(Standby) Eco.(<=0.5W)
~XX114 0	7E 30 30 31 31 34 20 30 0D	Active (0/2 for backward compatible)

~XX109 1	7E 30 30 31 30 39 20 31 0D	Lamp Reminder On
~XX109 0	7E 30 30 31 30 39 20 30 0D	Off (0/2 for backward compatible)
~XX110 1	7E 30 30 31 31 30 20 31 0D	Brightness Mode	Bright Eco^+
~XX110 3	7E 30 30 31 31 30 20 33 0D
~XX110 4	7E 30 30 31 31 30 20 34 0D		Dynamic

~XX111 1	7E 30 30 31 31 31 20 31 0D	Lamp Reset	Yes
~XX111 0	7E 30 30 31 31 31 20 30 0D		No (0/2 for backward compatible)

~XX322 0	7E 30 30 33 32 32 20 30 0D	Filter Reminder	Off
~XX322 1	7E 30 30 33 32 32 20 31 0D		300 hr
~XX322 2	7E 30 30 33 32 32 20 32 0D		500 hr
~XX322 3	7E 30 30 33 32 32 20 33 0D		800 hr
~XX322 4	7E 30 30 33 32 32 20 34 0D		1000 hr
~XX323 1	7E 30 30 33 32 33 20 31 0D	Filter Reset	Yes
~XX323 0	7E 30 30 33 32 33 20 30 0D		No

~XX112 1	7E 30 30 31 31 32 20 31 0D	Reset		Yes
~XX99 1	7E 30 30 39 39 20 31 0D	RS232 Alert Reset	Reset System Alert
~XX210 n	7E 30 30 32 30 30 20 n 0D	Display message on the OSD		n: 1-

SEND to emulate Remote

~XX140 10	7E 30 30 31 34 30 20 31 30 0D	Up
~XX140 11	7E 30 30 31 34 30 20 31 31 0D	Left
~XX140 12	7E 30 30 31 34 30 20 31 32 0D	Enter (for projection MENU)
~XX140 13	7E 30 30 31 34 30 20 31 33 0D	Right
~XX140 14	7E 30 30 31 34 30 20 31 34 0D	Down
~XX140 15	7E 30 30 31 34 30 20 31 35 0D	Keystone +
~XX140 16	7E 30 30 31 34 30 20 31 36 0D	Keystone –
~XX140 17	7E 30 30 31 34 30 20 31 37 0D	Volume –
~XX140 18	7E 30 30 31 34 30 20 31 38 0D	Volume +
~XX140 19	7E 30 30 31 34 30 20 31 39 0D	Brightness
~XX140 20	7E 30 30 31 34 30 20 32 30 0D	Menu
~XX140 21	7E 30 30 31 34 30 20 32 31 0D	Zoom
~XX140 28	7E 30 30 31 34 30 20 32 38 0D	Contrast

SEND from projector automatically

232 ASCII Code	HEX Code	Function	Projector Return	Description
when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open

INFOn

n: 0/1/2/3/4/6/7/8/ = Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open

READ from projector

232 ASCII Code	HEX Code	F	u	n	c	t
~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source Commands	OKn n: 0/1/2/3/4/5=
					None/VGA1/VGA2/Video/S-Video/HDMI
~XX122 1	7E 30 30 31 32 32 20 31 0D	Software Version	OKddd dddd: FW version
~XX123 1	7E 30 30 31 32 33 20 31 0D	Display Mode	OKn n: 0/1/2/3/4/5/6/7/
None/Presentation/Bright/Movie/sRGB/User/Blackboard./3D
~XX124 1	7E 30 30 31 32 34 20 31 0D	Power State	OKn n: 0/1 = Off/On
~XX125 1	7E 30 30 31 32 35 20 31 0D	Brightness		OKn
~XX126 1	7E 30 30 31 32 36 20 31 0D	Contrast		OKn
~XX127 1	7E 30 30 31 32 37 20 31 0D	Aspect Ratio		OKn(WXGA)	n: 0/1/2/3/4 = 4:3/16:9 or16:10/LBX/Native/AUTO
				(SVGA/XGA)	n: 0/1/2/3/4 =4:3/16:9/LBX/Native/AUTO
*16:9 or 16:10 depend on Screen Type setting
~XX128 1	7E 30 30 31 32 38 20 31 0D	Color Temperature		OKn	n: 0/1/2 = Warm/Medium/Cold
~XX129 1	7E 30 30 31 32 39 20 31 0D	Projection Mode		OKn	n: 0/1/2/3 = Front-Desktop/ Rear-
Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1	7E 30 30 31 35 30 20 31 0D	Information		OKabbbbccdddde
					a: 0/1 = Off/Onbbbb: LampHourcc: source
00/01/02/03/04/05/					= None/VGA1/VGA2/Video/S-Video/HDMIddd: FW versione: Display mode 0/1/2/3/4/5/6/7
None/Presentation/Bright/Movie/sRGB/User/Blackboard/3D
~XX151 1	7E 30 30 31 35 31 20 31 0D	Model name		OKn n:1/2/3/4/5=
S2010/S2015/X2010/X2015/W2015
~XX108 1	7E 30 30 31 30 38 20 31 0D	Lamp Hours	OKbbb	bbbb: LampHour
~XX108 2	7E 30 30 31 30 38 20 31 0D	Cumulative Lamp Hours		OKbbbb	bbbb: (5 digits) Total Lamp Hours
~XX321 1	7E 30 30 33 32 31 20 31 0D	Filter Usage Hours		OKbbb	bbbb: Filter Usage Hours

Troubleshooting

Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your local reseller or service center. Please refer to "LED Indicator Messages" as well.

Start-up

If no lights turn on:

■ Be sure that the power cord is securely connected to the projector and the other end is plugged into an outlet with power.
■ Press the power button again.
■ Unplug the power cord and wait for a short while, then plug it in and press the power button again.


If the searching source is displayed:

■ Press SOURCE on the projector or Source on the remote control to select an active input source.
■ Be sure the external source is turned on and connected.
For a computer connection, ensure your notebook computer's external video port is turned on. Refer to the computer manual.

If the image is out of focus:

■ While displaying the on-screen menu, adjust the focus ring. (The image size should not change; if it does, you are adjusting the zoom, not the focus.)

■ Check the projection lens to see if it needs cleaning.

If the image is flickering or unstable for a computer connection:

■ Press “Menu”, go to IMAGE > Advanced > Signal and adjust Phase or Frequency.

Remote control

If the remote control does not operate:

■ Be sure nothing is blocking the remote control receiver on the front of the projector. Use the remote control within the effective range.
■ Aim the remote control at the screen or at the front of the projector.
■ Move the remote control so it is more directly in front of the projector and not as far to the side.

LED Indicator Messages

Message Power LED (Red)		Power LED (Green)	Temp LED (Red)	Lamp LED (Red)
Standby State (Input power cord)	Steady light
Power on (Warming)		Flashing0.5 sec off0.5 sec light
Power on & Lamp lighting		Steady light
Power off (Cooling)		Flashing0.5 sec off0.5 sec lightBack to Red steady light when cooling fan turns off
Quick Resume (100 secs)		Flashing0.25 sec off0.25 sec light
Error (Lamp fail)	Flashing Steady light
Error (Fan fail)	Flashing Flashing
Error (Over Temp)	Flashing Steady light
Standby State (Burn in mode)		Flashing
Burnin (Warming)		Flashing
Burnin (Cooling)		Flashing

Optoma Global Offices

For service or support please contact your local office.

USA

3178 Laurelview Ct.

Fremont, CA 94538, USA 888-289-6786

www.optomausa.com [e-mail]

Canada

3178 Laurelview Ct.

Fremont, CA 94538, USA 888-289-6786

www.optomausa.com [e-mail]

Europe

42 Caxton Way, The Watford Business

Park

Watford, Hertfordshire,

WD18 8QZ, UK [phone]

www.optoma.eu [phone] 昱

Service Tel : [phone] [e-mail]

France

Batiment E [phone]

81-83 avenue Edouard Vaillant [phone]

92100 Boulogne Billancourt, France [e-mail]

Spain

C/ Jose Hierro,36 Of. 1C [phone]

28522 Rivas VaciaMadrid, [phone]

Spain

Deutschland

Wiesenstrasse 21 W [phone]

D40549 Dusseldorf,

昌 [phone]

Germany

[e-mail]

Scandinavia

Lerpeveien 25 [phone]

3040 Drammen [phone]

Norway [e-mail]

PO.BOX 9515

3038 Drammen

Norway

Latin America

3178 Laurelview Ct.

Fremont, CA 94538, USA 888-289-678

www.optoma.com.br www.optoma.com.mx

Korea

WOOMI TECH.CO.,LTD.

4F, Minu Bldg. 33-14, Kangnam-Ku, +8272+34430004

seoul,135-815, KOREA +82+2+34430005

Japan

東京都足立区綾瀬 3-25-18

株式会社オースエ

[e-mail]

www.os-worldwide.com

Taiwan

12F., No.215, Sec. 3, Beixin Rd., [phone]

Xindian Dist., New Taipei City 231, [phone]

Taiwan, R.O.C.

www.optoma.com.tw

[e-mail]

asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

[phone]

[phone]

www.optoma.com.hk

中国

上海市长宁区

凯旋路 1205号 5楼

琉璃奥图码

[phone]

昌 [phone]

www.optoma.com.cn

Regulation & Safety Notices

This appendix lists the general notices of your projector.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, detectable by turning the equipment in question off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna
■ Increase the distance between the equipment and the receiver
■ Connect the equipment to an outlet on a different circuit than that which the receiver is connected to
■ Or consult the dealer or an experienced radio/TV technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

■ EMC Directive 2004/108/EC (including amendments)
■ Low Voltage Directive 2006/95/EC
■ R & TTE Directive 1999/5/EC (if product has RF function)

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

Beschreibung

Line drawing of a projector with a circular lens and a separate ring (no text or symbols)

Line drawing of a multi-pin electrical plug with coiled cable (no text or symbols)

Line drawing of a U-shaped cable with connectors (no text or symbols)

Netzkabel VGA-Kabel (D-Sub-zu-D-Sub)

Simple line drawing of a cooking pot with a lid and handle (no text or symbols)

Illustration of three screws and three washers (no text or symbols)

1 AUDIO-IN 1

Diagram of a mechanical device with a red arrow indicating motion or force, no text or symbols present

Illustration of a remote control device with two batteries and a handle (no text or symbols)

Mechanical component diagram showing a red arrow pointing to a cylindrical part (no text or symbols present)

Vorsicht

Hinweis

Line drawing of a projector device with ventilation slots and a fan (no text or symbols)

DE-42

Lampe austauschen

Hinweis

SEND from projector automatically

232 ASCII Code	HEX Code	Function	Projector Return	Description
when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open

INFOn

n: 0/1/2/3/4/6/7/8/ = Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open

READ from projector

232 ASCII Code HEX Code		F	u	n	c	t
~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source Commands OKn n: 0/1/2/3/4/5=			None/VGA1/VGA2/Video/S-Video/HDMI
~XX122 1	7E 30 30 31 32 32 20 31 0D	Software Version OKddd dddd: FW version
~XX123 1	7E 30 30 31 32 33 20 31 0D	Display Mode OKn n: 0/1/2/3/4/5/6/7/
None/Presentation/Bright/Movie/sRGB/User/Blackboard./3D
~XX124 1	7E 30 30 31 32 34 20 31 0D	Power State OKn n: 0/1 = Off/On
~XX125 1	7E 30 30 31 32 35 20 31 0D	Brightness OKn
~XX126 1	7E 30 30 31 32 36 20 31 0D	Contrast OKn
~XX127 1	7E 30 30 31 32 37 20 31 0D	Aspect Ratio OKn(WXGA)			n: 0/1/2/3/4 = 4:3/16:9 or16:10/LBX/Native/AUTO
				(SVGA/XGA)	n: 0/1/2/3/4 =4:3/16:9/LBX/Native/AUTO
*16:9 or 16:10 depend on Screen Type setting
~XX128 1	7E 30 30 31 32 38 20 31 0D	Color Temperature OKn			n: 0/1/2 = Warm/Medium/Cold
~XX129 1	7E 30 30 31 32 39 20 31 0D	Projection Mode OKn			n: 0/1/2/3 = Front-Desktop/ Rear-
Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1	7E 30 30 31 35 30 20 31 0D	Information OKabbbbccdddde			a: 0/1 = Off/Onbbb: LampHourcc: source
00/01/02/03/04/05/					= None/VGA1/VGA2/Video/S-Video/HDMIddd: FW versione: Display mode 0/1/2/3/4/5/6/7
None/Presentation/Bright/Movie/sRGB/User/Blackboard/3D
~XX151 1	7E 30 30 31 35 31 20 31 0D	Model name OKn n:1/2/3/4/5=
S2010/S2015/X2010/X2015/W2015
~XX108 1	7E 30 30 31 30 38 20 31 0D	Lamp Hours OKbbb	bbbb: LampHour
~XX108 2	7E 30 30 31 30 38 20 31 0D	Cumulative Lamp Hours OKbbbb	bbbbb: (5 digits) Total Lamp Hours
~XX321 1	7E 30 30 33 32 31 20 31 0D	Filter Usage Hours OKbbb	bbb: Filter Usage Hours

Problemlösung

42 Caxton Way, The Watford Business

Park

Watford, Hertfordshire,

WD18 8QZ, UK [phone]

www.optoma.eu [phone]

Service-Tel.: [phone] [e-mail]

Frankreich

Batiment E [phone]

81-83 Avenue Edouard Vaillant +33 1 4,46 94 35

92100 Boulogne Billancourt, France [e-mail]

Spain

C/ Jose Hierro,36 Of. 1C [phone]

28522 Rivas VaciaMadrid, [phone]

Spain

Deutschland

[e-mail]

www.os-worldwide.com

Taiwan

12F., No.215, Sec. 3, Beixin Rd., [phone]

Xindian Dist., New Taipei City 231, [phone]

Taiwan, R.O.C.

www.optoma.com.tw

[e-mail]

asia.optoma.com

Hongkong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

[phone]

[phone]

www.optoma.com.hk

中国

上海市长宁区

凯旋路 1205号 5楼

琉璃奥图码

[phone]

昌 [phone]

www.optoma.com.cn
