HD28E - Vidéo-projecteur OPTOMA - Free user manual and instructions

Brand	Optoma
Model	HD28E
Category	Video projector
Display technology	DLP
Native resolution	1920 x 1080 (Full HD)
Brightness	3200 lumens ANSI
Contrast ratio	15000:1
Light source	Lamp
Lamp life (normal mode)	4000 hours
Lamp life (eco mode)	10000 hours
Vertical keystone correction	+/- 40 degrees
Zoom	1.1x manual
Aspect ratio	16:9 (compatible 4:3)
Video inputs	HDMI (x2), VGA, composite, S-Video
Audio inputs	3.5 mm jack input
Audio outputs	3.5 mm jack output, built-in speaker (10 W)
Additional ports	USB (power/service), RS-232
3D compatibility	Yes (DLP Link)
Noise level (normal mode)	27 dB
Noise level (eco mode)	25 dB
Power supply	100-240 V AC, 50-60 Hz
Power consumption (max)	255 W
Standby consumption	< 0.5 W
Dimensions (W x D x H)	316 x 244 x 108 mm
Weight	2.9 kg
Operating temperature	5 to 40 degrees Celsius
Filter cleaning	Every 500 hours (depending on environment)
Lamp replacement	By a professional or according to manual

Frequently Asked Questions - HD28E OPTOMA

How to install the Optoma HD28E projector?

Place the projector on a stable surface, plug in the power and connect your sources (HDMI, VGA, etc.). Turn on by pressing the Power button. Use the focus and zoom rings to adjust the image.

What is the recommended projection distance?

For a 100-inch (diagonal) image, place the projector between 2.8 and 3.2 meters from the screen depending on the zoom used. Refer to the distance table in the manual.

How to adjust keystone correction?

Go to the OSD menu, 'Image' section, then 'Keystone correction'. Use the arrow keys to correct the vertical distortion of the image.

What to do if the image is blurry?

Turn the focus ring on the lens. Make sure the projector is perpendicular to the screen and the distance is appropriate.

How to clean the air filter?

Turn off and unplug the projector. Open the filter cover on the side, remove the filter, clean it with a vacuum or lukewarm water (dry completely). Replace it every 500 hours of use.

When to replace the lamp?

A 'Replace lamp' message appears on the screen. The lifespan is about 4000 hours in normal mode, 10000 in eco mode. Replace with a compatible lamp (model Optoma BL-FP240A).

Can I use the projector without a screen?

Yes, project onto a white or light-colored wall, preferably matte. Avoid textured surfaces for a sharp image.

How to connect external speakers?

Use the 3.5 mm audio output of the projector to connect powered speakers. Adjust the volume via the OSD menu or remote control.

The projector does not turn on, what to do?

Check that the power cable is properly plugged in and the outlet works. Make sure the power indicator is blinking. If the problem persists, contact customer service.

How to reset to factory settings?

Go to the 'Settings' menu, select 'Reset' and confirm. All settings will return to default values.

USER MANUAL HD28E OPTOMA

Line drawing of a projector with a circular lens and control panel (no text or symbols)

INDHOLDSFORTEGNELSE

SIKKERHED 4

Exterior view of a projector (no text or symbols on the device itself)

Illustration of a bundle of cables with connectors, no text or symbols present

Bemærk:

- Fjernbetjeningen leveres med batteriet.

Line drawing of a two-wheeled device with cables and handles, labeled 'Bæretaske' below (no other text or symbols)

Coiled HDMI Kabel cable with two connectors (no text or symbols on the cable itself)

Simple line drawing of a circular object with internal lines, labeled 'Linsekappe' below (no other text or symbols)

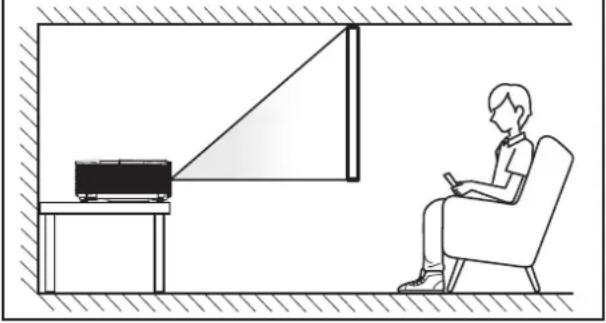

Line drawing of a person sitting in a chair watching a projector on a desk (no text or symbols)

nt

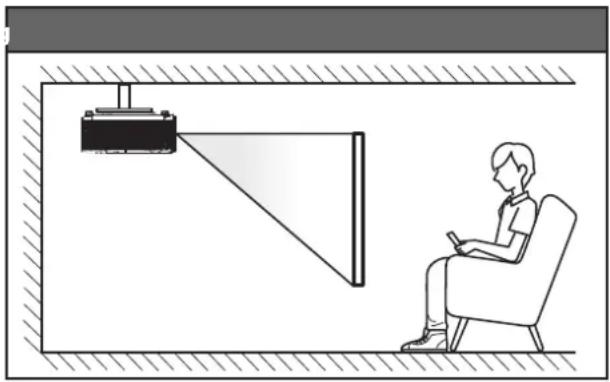

Line drawing of a person sitting in a chair facing a projector mounted on a wall, with no text or symbols present.

Bordmonteret bag Loftmonteret b

Line drawing of a person sitting in a chair watching a projector on a screen (no text or symbols)

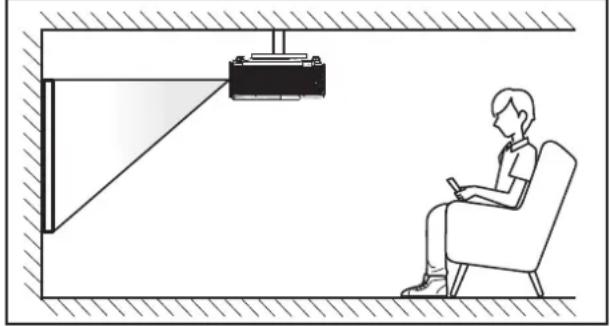

Illustration of a person sitting in a chair viewing a projector mounted on a wall, with no visible text or symbols.

Illustration of hands using a tool to adjust or install a component, with red arrows indicating direction (no text or symbols present)

Tændt

Bemærk:

Åbn billedskiftmenuen

Image Shift

Bruges til at justere billedets placering horisontalt (H) og vertikalt (V).

Åbn menuen for trapezkorrektion

Keystone

Optional Filter Installed

Angiv indstillinger for adversel.
