KMK9070BLG - Range hood Kluge - Free user manual and instructions

Product Type	Range Hood
Brand	Kluge
Model	KMK9070BLG
Color	Black

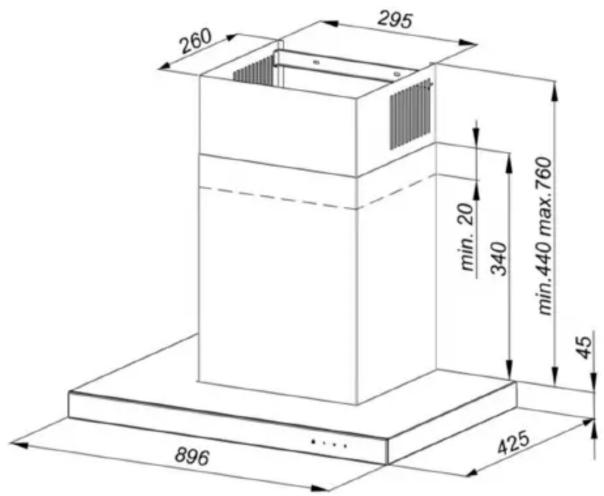

Width	896 mm
Depth	425 mm
Height (Adjustable)	440 - 760 mm
Weight	15 kg (approx.)
Power Supply	220-240 V ~ 50 Hz
Motor Power	200 W
Number of Speeds	3
Lighting	LED, 2 x 1.5 W
Grease Filter	Aluminum, washable
Charcoal Filter	Optional, replace every 3-6 months
Max Airflow	650 m³/h (approx.)
Noise Level	55 dB (max speed)
Control Type	Push buttons
Duct Diameter	150 mm
Energy Class	B (estimated)
Maintenance	Clean grease filter monthly; replace charcoal filter as needed
Safety Features	Overheat protection, safety switch
Spare Parts Available	Filters, LED bulbs, motor, switch

Frequently Asked Questions - KMK9070BLG Kluge

What is the recommended installation height?

For optimum performance, install the hood 65-75 cm above the cooking surface.

How do I clean the grease filter?

Remove the aluminum grease filter and wash it with warm soapy water or in the dishwasher. Dry thoroughly before reinstalling.

How often should I replace the charcoal filter?

If used in recirculation mode, replace the charcoal filter every 3-6 months depending on usage.

What is the noise level?

The noise level is approximately 55 dB at maximum speed, which is similar to a normal conversation.

Can it be used without ducting?

Yes, the hood can be used in recirculation mode with a charcoal filter (sold separately).

What type of lighting does it have?

The hood is equipped with LED lights (2 x 1.5 W) that provide bright and energy-efficient illumination.

How do I change the LED bulbs?

LED bulbs are integrated and should be replaced by a qualified technician. Refer to the user manual for instructions.

What is the warranty period?

Kluge offers a 2-year warranty on this range hood. Check the manual for terms and conditions.

Is the hood suitable for island installation?

No, this model is designed for wall-mounted installation only.

What should I do if the motor stops working?

First, check the power supply and circuit breaker. If the problem persists, contact Kluge customer support.

USER MANUAL KMK9070BLG Kluge

Exterior view of a black industrial kitchen ventilation unit (no text or symbols visible)

ODSAVAČ KMK9070BLG

Výrobce: Kluge

Kód EAN: 5901703840953

Popis
