Product Type	Chimney Range Hood
Width	60 cm
Height	75 cm
Depth	50 cm
Weight	10 kg
Power Supply	220-240 V ~ 50/60 Hz
Maximum Extraction Capacity	650 m³/h
Noise Level (max speed)	60 dB(A)
Number of Speeds	3
Lighting Type	LED
Filter Type	Aluminum Grease Filter
Control Type	Electronic Touch
Installation Type	Built-in / Under Cabinet
Operation Mode	Ducted or Recirculating (with optional carbon filter)
Energy Class	A
Warranty	2 years
Grease Filter Cleaning	Monthly in dishwasher or hand wash
Carbon Filter Replacement	Every 3-6 months
Safety Features	Motor thermal protection, automatic shut-off timer
Spare Parts Availability	Filters, LED lamps, control board available

Frequently Asked Questions - KOI4100BLG Kluge

What is the installation height recommended for the KOI4100BLG range hood?

For optimal performance, install the range hood 65-75 cm above the cooking surface for electric hobs and 75-85 cm for gas hobs.

How do I clean the grease filters?

Remove the aluminum grease filters and wash them monthly in warm soapy water or in a dishwasher at low temperature. Dry thoroughly before reinstalling.

Can I use the hood in recirculation mode?

Yes, the KOI4100BLG can be used in recirculation mode by installing an optional carbon filter (not included). The carbon filter must be replaced every 3-6 months.

How do I change the LED light?

The LED lighting is integrated. If replacement is needed, contact customer support or a qualified technician. Do not attempt to replace it yourself unless specified in the manual.

What should I do if the hood is noisy?

Check if the grease filters are clean and properly installed. Ensure the ducting is not blocked. If noise persists, the motor fan may need servicing.

Does the hood have a timer function?

Yes, the range hood features an automatic shut-off timer. You can set it to turn off after a preset time (e.g., 15 minutes) via the control panel.

What are the dimensions of the duct outlet?

The duct outlet diameter is 150 mm. For recirculation mode, use a carbon filter adapter (sold separately).

Is the hood suitable for island installation?

The KOI4100BLG is designed for under cabinet or wall-mounted installation. For island use, a separate island kit is required (not included).

How often should I replace the carbon filter?

Replace the carbon filter every 3 to 6 months, or more frequently if the hood is used heavily. A saturated filter reduces efficiency.

What should I do if the hood does not start?

Check the power supply and ensure the circuit breaker is not tripped. Verify that the safety switch (if present) is engaged. If problem persists, contact support.

USER MANUAL KOI4100BLG Kluge

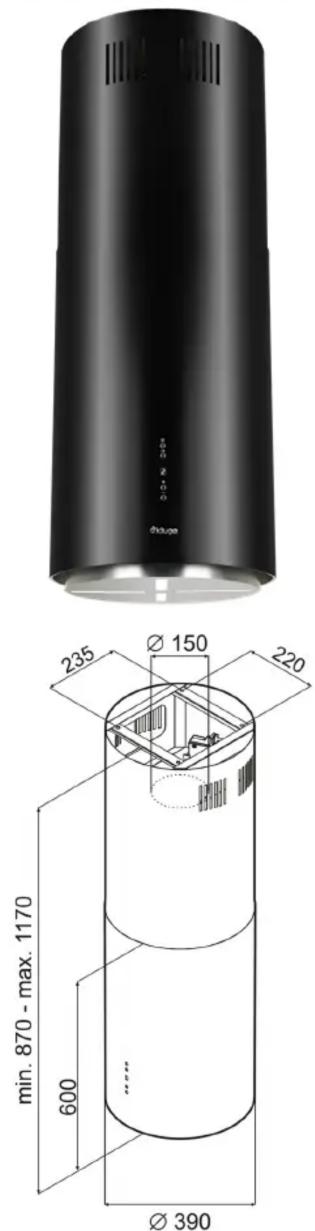

ODSAVAČ OSTRŮVKOVÝ KOI4100BL

Výrobce: Kluge

Kód EAN: 5902429925368

Popis

• Barevné provedení: černé
• Šířka: 39 cm
• Energetický štítek: B/B/E/D
  • Dotykové ovládání s LED indikátory
  • 4 stupně intenzity odsávání
• Typ osvětlení: 4 x LED pásky
• Výkon odtahu ve standardním režimu : 313 - 536 m3/h (742 m3/h v BOOST)
• Hlučnost ve standardním režimu: 46-60 dB(A)
  • Roční spotřeba energie: 73,3 kWh

Technologie

Dálkové ovládání Tlačítka Soft touch Odložené vypnutí

Funkce BOOST LED osvětlení
