Product Type	Built-in glass ceramic hob
Model	SDV4330
Brand	Concept
External Dimensions (W x D x H)	288 x 520 x 55 mm
Installation Cutout Dimensions (W x D)	268 x 490 mm
Weight	4.8 kg
Voltage	220-240 V ~ 50-60 Hz
Max Input Power	2600-3200 W
Number of Cooking Zones	2
Front Cooking Zone Diameter / Power	165 mm / 1200 W
Rear Cooking Zone Diameter / Power	120/200 mm (dual zone) / 700/1700 W
Control Type	Touch controls with slider
Functions	Child lock, pause, timer, delayed shut-off, dual zone
Residual Heat Indicator	Yes (H symbol)
Automatic Switch-Off	Yes (after 1 min no operation, or after 2-8 hours depending on power level)
Cleaning Instructions	Use special ceramic glass cleaner; avoid abrasive sponges; clean after each use
Safety Features	Child lock, residual heat warning, automatic shut-off, overheat protection
Installation Requirements	Built-in, min 50 mm clearance sides/rear, ventilation gap 20 mm below
Repair and Service	Contact authorized service centre; do not attempt DIY repairs
Energy Efficiency Class	Not specified; energy consumption 180.6 Wh/kg per hob

Frequently Asked Questions - SDV4330 Concept

How do I activate the child lock on the Concept SDV4330 hob?

To lock the control panel, press and hold the child lock button (symbol 7) until the 'Lo' symbol appears. To unlock, press and hold the same button for 3 seconds until the symbol disappears.

What does the 'H' symbol on the display mean?

The 'H' symbol indicates that the cooking zone is still hot (residual heat). Do not touch the zone until the symbol disappears to avoid burns.

Why does my hob switch off automatically during use?

The hob has an automatic safety shut-off. It turns off after 1 minute of no operation after switching on, or after 2-8 hours depending on the power level (higher levels shut off sooner). If it shuts off unexpectedly, check if the ON/OFF button was pressed accidentally.

How do I clean the glass ceramic hob?

Use a special ceramic glass cleaner and a paper towel. Avoid abrasive sponges or aggressive cleaners. For burnt residues, use a glass scraper at an acute angle. Always clean after each use to prevent stains.

Can I use any cookware on the SDV4330?

Use cookware with flat, smooth bottoms that match the size of the cooking zone. Avoid bulging or irregular bottoms, as they reduce efficiency and may scratch the hob. For induction-compatible cookware, note that this hob is radiant, not induction, so any suitable cookware for ceramic hobs can be used.

How do I set the timer for delayed shut-off?

Select the cooking zone, press the timer button, then use '+' and '-' to set the desired time (max 99 minutes). After 5 seconds, the timer starts counting down. When time expires, the zone turns off and 'H' appears.

What should I do if the hob shows an error code like E0 or E2?

Error codes indicate malfunctions. For E0, E1, E2, E7, C1, E3, E4, EL, EH, or EU, contact an authorized service centre. Some errors (like C1) may resolve after cooling down; turn the hob off and on again.

Is it normal to hear popping or clicking sounds during cooking?

Yes, popping or clicking sounds can occur due to vibration of different metal layers in the cookware. This is normal and not a defect.

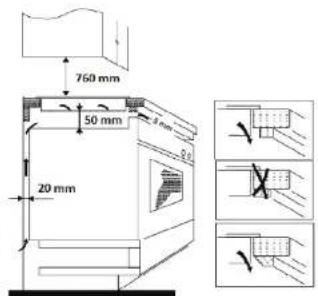

How do I install the hob into the worktop?

Cut a hole of 268 x 490 mm in a heat-resistant worktop (min 38 mm thick). Ensure 50 mm clearance around sides and rear, and a ventilation gap of 20 mm below. Secure with retaining clips and connect to a 230V single-phase supply with a 4 mm² cable.

Can I use both cooking zones at maximum power simultaneously?

For single-phase connection (230V), the hob may automatically reduce power to avoid overloading the circuit breaker. You can use both zones, but not always at full power simultaneously.

USER MANUAL SDV4330 Concept

Built-in glass ceramic hob

SDV4330

concept

CZ

PODĚKOVÁNÍ

ENERGETICKÁ ÚČINNOST

Four identical cooking pots with crossed-out kitchen pan symbols, no text or labels present

SK

concept

concept

SK

Three identical cooking pots with crossed X marks, no text or symbols present

Four identical cooking pots with crossed-out handles, shown in sequence (no text or symbols)

Rys. 2

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

TABLE OF CONTENTS

Acknowledgements Technical specifications Important safety information Product description Control panel layout Cooking tips Energy saving tips Operating instructions Advanced features Care and cleaning Installation Instructions Troubleshooting Error message Environmental concerns

TECHNICAL SPECIFICATIONS
Voltage 220-240 V – 50 - 60 Hz
Max. input power 2600-3200 W
Front cooking zone diameter and input o 165 mm, 1 200 W
Rear cooking zone diameter and input o 120/200 mm, 700/1700 W
External dimensions (W x D x H) 288 x 520 x 55 mm
Dimensions for installation (W x D) 268 x 490 mm
Weight 4,8 kg

The manufacturer reserves the right to make any technical changes, printing errors and differences in the illustration without prior notice.

68

69

EN

concept

concept

EN

IMPORTANT SAFETY INFORMATION

Delivery

• Check the package and unit immediately after the delivery for any damage that may have occurred during shipping.
• CAUTION! Some corners and edges of this appliance that will be hidden after installation can be sharp! Take care to avoid injury!
• If the unit is damaged, do not operate it. Contact the supplier as soon as possible.
• Remove all the covering and marketing materials from the appliance before the first use.
• Keep all packaging away from children and dispose of it appropriately.
• This appliance must be installed in accordance with the regulations in force and should only be used in a well-ventilated area. Read the manuals before installing and using the appliance.

Installation

• The appliance is intended for assembly into correct built-in units and workspaces that align to the standards.
• The sealant on the edges of the appliance protects the cut surfaces of the worktop against moisture.
• Use the unit only as described in this instruction manual.
• The appliance has to be disconnected from the power supply during installation.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the main power supply. Use only correct electricity mains cable that is earthed.
• This appliance is suitable for domestic use only, it is not for commercial use.
• Make sure the mains cables of other electrical appliances do not touch the hot cooking zones. Otherwise both the insulation of the cables and the hob may be damaged.
• Never touch hot cooking zones. Risk of burns!
• The indicator of residual heat "H" shows that the cooking zones are still hot. Keep children away from the appliance. Risk of serious burns!
• Do not touch the hot surfaces when using the appliance or shortly after.
• Do not operate the appliance with wet or damp hands.
• Do not operate the appliance when it has contact with water.

• If there is a drawer under the appliance, do not keep flammable or inflammable objects, aluminium foil or sprays in it. Risk of fire or explosion!

• Use the appliance out of reach of children and do not allow the children and unauthorised individuals to operate the appliance.

• Do not let children play with the appliance.
• Care should be taken when using the appliance near children.
• Do not use the appliance as a toy.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• In case of any failure turn off the appliance and disconnect it from the mains outlet or switch off the circuit breaker from the power supply.
• Do not immerse the mains cable in water or any other liquid.
• Check the appliance and the mains cable for damage regularly.
• Never switch on a damaged appliance.
• Make sure that all controls are in the OFF position when the appliance is not in use.
• Do not use cookware with bulging or irregular bottoms or with a smaller diameter than recommended. Otherwise the cooking effectiveness could be reduced.
• If there is water between the cookware bottom and the cooking zone, vapour pressure may arise. The vapour pressure could make the cookware jump up. CAUTION! Risk of injury!
  • Make sure that the cooking zones and cookware bottom are dry.
• Do not use cookware with cracked enamel. High temperature occurs in the point of enamel damage, which heats the corresponding spot on the hob. Risk of damage to the hob!
• Do not put cookware on the control panel or the frame or edge of the hob. Risk of damage to the hob!
• Never use plastic or aluminium foil cookware on the appliance.
• Do not lay flammable things on the hob. Risk of fire!
• Do not lay any metal objects on the induction hob. If the appliance has been switched on accidentally, these objects could heat up very quickly and cause burns!
• Do not use the appliance as a work surface or as a storage surface!
• Keep the appliance clean at all times. Food remnants could ignite during operation and cause fire!
• Food such as soups, sauces or beverages may heat up and overflow very quickly during cooking. Proceed carefully, use the appropriate settings and stir the food as often as necessary.

EN

concept

concept

EN

• While deep frying or frying food observe this it at all times. In the case of oil overheating, there is a risk of fire!
• Never heat up grease or oil unattended. Overheated oil or grease may ignite rapidly. Risk of fire!
• Never try to extinguish a fire with water. Immediately cover the flame in the cookware with a lid or a plate. Switch off the appliance and let the cookware cool down.
• Use manufacturer-recommended accessories only.
• Do not use accessories which have a damaged surface, are worn or have other defects.
• Do not use any corrosive cleaning agent for cleaning. With regular maintenance and cleaning you extend the lifetime of the appliance.
• Children aged under 8 years shall not carry out cleaning and user maintenance of the appliance without supervision.

WARNING!

• This appliance complies with the directive of safety and electromagnetic compatibility; nevertheless, individuals with an implanted pacemaker should keep away from the appliance. In some other devices, such as hearing aids, etc., malfunction may occur.
• If the unit is switched on, do not bring magnet sensitive things (e.g. credit cards, USB, hard discs, etc.) near it.

Possible malfunctions

• Only an authorised service technician can install, connect or repair this appliance.
• Disconnect the appliance from the mains supply before maintenance or repair. Turn off the relevant circuit breaker.
• If the mains cable is damaged, contact an authorized service centre.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

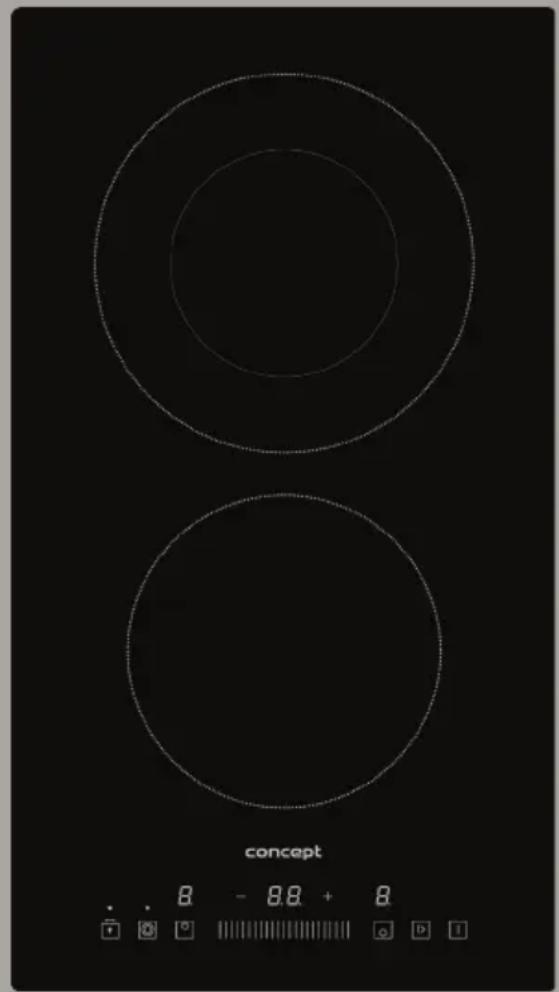

PRODUCT DESCRIPTION

1. Rear cooking zone (ø 120/200 mm)
2. Front cooking zone (ø 165 mm)
3. Control panel
4. Glass plate

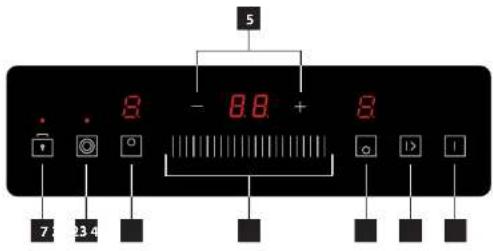

CONTROL PANEL LAYOUT

1. On/Off button
2. Pause button
3. Cooking zone selection button
4. Power level setting (slider)
5. Timer setting button
6. Dual zone control button
7. Child lock activation/deactivation button

EN

concept

concept

EN

COOKING TIPS

The power level settings described below are just examples. The correct setting of power levels depends on several factors, including the cookware used and the amount of food you cook. Experiment with the hob, and gradually determine which power level settings are most suitable for you.

Some examples of power level settings:

a) Level 1-2 can be used for:

• Keeping liquids simmering,
• Moderate and slow heating without the risk of burning,
• Melting butter or chocolate, etc.
  • Defrosting,
  • Boiling a small quantity of liquid.

b) Level 3-4 can be used for:

• Intensive boiling.
• Keeping a larger quantity of liquid boiling,
• Cooking rice,
• Stewing.

c) Level 5-6 can be used for:

- Pancakes.

d) Level 7-8 can be used for:

- Cooking pasta.

e) Level 9 can be used for:

• Cooking food requiring fast heating and high temperature (beef steaks, schnitzels, fried potatoes, etc.),
• Boiling water or soup,
  • Heating food before switching over to a lower level.

ENERGY SAVING TIPS

- Do not use cookware with bulging or irregular bottoms (Fig. 1) or otherwise the cooking effectiveness could be reduced and may result in extension of the cooking time.

Fig. 1

- For each cooking zone, use the correct cookware size. The diameter of the cookware bottom should correspond to the size of the cooking zone (Fig. 2).

Fig. 2

• Use small cookware for small amount of food. A big and only partially filled up cookware requires a lot of energy.
  • Always cover the cookware with a suitable lid. When cooking without a lid, you consume much more energy.
  • Always cook food with a small amount of water or fat. You save energy. This way vitamins and minerals will be preserved when cooking vegetables.
• At the beginning of the cooking, set the cooking zone to the highest power level and reduce the cooking zone power level after it is heated up.

Examples of possible damage

- Coarse bottoms of cookware could scratch the ceramic glass plate. Check the cookware bottom regularly. Cookware with coarse bottom can cause scratches of the hob. Always lift these objects up when you have to move them on the cooking surface (Fig. 3), To protect the hob from being scratched.

Fig. 3

• Salt, sugar and sand grains (e.g. from cleaning vegetables) can scratch the hob. Do not use the appliance as a work surface or as a storage surface!
• Sugar, as well as food with high sugar content, damages the hob when in contact with it. Immediately remove the overcooked food of this kind using a glass scraper.
  CAUTION! The ceramic glass scraper is sharp and can cause injuries!
• The following damages do not negatively affect the function or performance of the hob.

Stains

Burnt remains of sugar or food with high sugar content.

Colouring

Metallic-gloss colouring caused by the use of unsuitable cleaning agents or abrasions from the cookware bottom.

Scratches

Scratches caused by grains of salt, sugar or sand or by the coarse cookware bottom.

Wear of the decoration

Wear caused by the use of unsuitable cleaning agents.

- This damage has been caused by inappropriate maintenance of the hob and hence is not subject to warranty. These are not technical problems with the appliance.

EN

concept

concept

EN

OPERATING INSTRUCTIONS

• Areas designed for cooking only – electric cooking zones – are indicated on the hob. The diameters of the cooking zones are derived from the usual dimensions of cookware.
• Only the surface inside the indicated diameter is heated; other surfaces remain relatively cold and can be used as put aside areas.
  • The temperature sensor prevents the cooking zone under the ceramic glass plate from overheating.
• The light up "H" symbol on the indicator position of the input power levels signals increased temperature of the cooking zone after being switched off (residual heat). The symbol will go off as soon as the cooking zone has cooled down to such a temperature that there is no risk of burning.
• The inputs of the cooking zones can be regulated within the range of 9 levels, which can be set by pressing the button with respective indicators on the control panel. An acoustic signal sounds each time the button is pressed. The response time for pressing a symbol is 1 second. For this period, it is necessary to hold your finger on the symbol.

Note:

• The touch control is activated by placing a finger on the required symbol on the ceramic glass hob.
• Use the entire fingertip, not just the tip, to operate the touch buttons (Fig. 4).
• Keep the control panel clean and dry. Even a small amount of water on the control panel can make it more difficult to operate the buttons. Do not place anything on the control panel of the hob.
• The sensors do not respond to matte and dark colours (do not use black gloves).
• Make sure not to switch on the appliance accidentally. Risk of serious burns!

Before first use

Prior to first operation of the appliance, you should wipe it with a wet cloth.

Switching on the hob

Touch the ON/OFF symbol (1) for 1 second to activate the hob.

Switching on a cooking zone

1. Touch the ON/OFF symbol (1) for 1 second to activate the hob. When turned on, one beep will sound and the display will show "-", indicating that the board is in standby mode.

2. Press to select the cooking zone you want to use. A 5" will flash next to the button. Then use the slider (4) to adjust the desired cooking level from 1 to 9 by pulling from left to right.

Note:

• You can change the desired cooking zone power at any time during cooking from 0 to 9.
• If you do not set any required power level within 1 minute of switching on the hob, it will automatically switch off.

Switching OFF the cooking zone

1. Press the selected cooking zone that you wish to switch off. Then swipe your finger across the slider (4) from right to left, reduce the power of the selected cooking zone to "0" and the cooking zone will switch off.
2. By pressing the ON/OFF button (1) you can turn off the hob.

Note:

• After switching off the hob the "H" symbol can be displayed, which indicates that the used cooking zone is still hot and there is a risk of serious burns.
• Symbol "H" disappears, when the used cooking zone cools down to a safe temperature (that is not too hot to touch).
• If the "H" symbol is light up on the control panel, it is possible to use the residual heat e.g. for heating up another cookware.

76

Switching OFF the hob

• By pressing the ON/OFF button (1) you can turn off the hob. All the settings will be reset.
• After switching off the hob the "H", symbol can be displayed, which indicates that some of the used cooking zones are still hot and there is a risk of serious burns. Never touch these cooking zones!

Note:

• if all the cooking zones will be switched off and within 1 minute the control panel will not be touched the hob will switch off automatically.
• For safety reasons, the automatic switch off (cooking time) on individual cooking zones is limited to 8 hours (power level 1–3), 4 hours (power level 4–6) or 2 hours (power level 7–9).

ADVANCED FEATURES

Child lock function

This function prevents unwanted operation of the hob.

1. For locking the control panel press the symbol for activation/deactivation of the child lock (7).
2. The "Lo" (Lock) symbol will flash on the display to indicate that the control panel is locked. All controls except the on/off button (1) are deactivated.
3. For unlocking the control panel press and hold the symbol for activation/deactivation of the child lock (7) for 3 seconds.
4. The "Lo" symbol disappears and the control panel is active again.

Note:

• If the hob is switched off while the child lock function is activated, the control panel lock is active even after the hob has been switched off. In this case the child lock is activated when the hob is switched on and the "Lo" symbol is displayed on the control panel.
• For unlocking the control panel press and hold the symbol for activation/deactivation of the child lock (7) until the acoustic sound goes off. The "Lo" symbol disappears and the control panel is active again.

Dual zone

This function can only be used on the rear cooking zone (1).
Note: This function can only be activated if cooking zone (1) has been selected. The inner part (A) of the cooking zone can be used alone or together with the outer part (B).

1. Adjust the power level 1-9 using the slider (4).
2. The inner part (A) of the dual zone will switch on.
3. Press the dual zone control button (6) to activate the outer part (B).
4. The cooking zone indicator displays alternately "and power setting 1-9".

Deactivating the dual zone

1. Press the dual zone control button (6) repeatedly to deactivate the dual zone function.
2. The cooking zone indicator shows "set power level 1-9".

Pause function

1. If you press the Pause button (2) briefly during operation, the display will show "II" and the heating will stop.
2. After pressing the Pause button (2) repeatedly, the display shows the original settings and the cooking zones continue heating.

EN

concept

concept

EN

Setting the cooking time (timer function)

This function can be set when the cooking zone has not been selected. Note: Make sure the hob is switched on.

1. Press the *-* or *+* button, the timer will show *10" and *0" will flash.
2. To cancel the set cooking time, set the value on the timer "00" with the "-" button. "-" appears on the display. To set the time in 10-minute increments, press and hold "-" or "-" to set the desired tens of minutes.
3. After setting the time, the timer will flash for 5 seconds. The display will show the remaining time and immediately start counting down.
4. After the set cooking time has elapsed, the “--” symbol appears on the display and acoustic sounds will be heard for 30 seconds.

Note:

The minute minder function only works if the hob is in use - i.e. it is not necessary to select a specific cooking zone for the setting, but it is necessary to cook on some of the cooking zones.

Otherwise, the board will turn off automatically after 1 minute, so the beep will not sound at the minute. This function is set on the boards for better energy efficiency.

If the set time exceeds 99 minutes, the timer automatically returns to 0 minutes.

Delayed shut down function of one cooking zone

The delayed shut down function can be used for all the cooking zones of the hob. For each cooking zone, different delay times can be set.

1. Press the cooking zone selection button (3) for which you want to use the delayed shut down function.
2. Press the "-" or "+" button, the timer will show "10" and "0" will flash.
3. Use the "-" and "+" buttons to set the desired time on the timer display after 1 minute. To set the time in 10-minute increments, press and hold "-" or "+" to set the desired tens of minutes.
4. After setting the time, the timer will flash for 5 seconds. The display will show the remaining time and immediately start counting down.
5. To cancel the set cooking time, press the "-" and +" buttons simultaneously. The "--" symbol will appear on the display.
6. When the set delayed shutdown time for the selected cooking zone has elapsed, the zone will automatically shut down and the "H" symbol will appear on the display to indicate a hot cooking zone.

Note:

• If the red dot in the bottom right corner next to the power level is lit, this means that this cooking zone is selected.
• If you want to change the time after setting the timer, you must start from step 1.
• The procedure for setting the delayed shutdown of two zones is the same as described above. If this function is set for both cooking zones, the timer will display the lower of the set times (e.g. zone 1 set time is 5 minutes, zone 2 set time is 15 minutes, timer shows 5 minutes) and a red dot will flash next to the power level of that cooking zone in the lower right corner.
• When the zone 1 timer expires, the cooking zone will automatically switch off and the "H" symbol will appear on the display, the timer will show the remaining time of zone 2 and the red dot will flash in the bottom right corner next to the power level of zone 2.

Note:

• If the delayed shut down is only set for one cooking zone, only the cooking zone for which the delayed shut down has been set is switched off after the set delay time has elapsed. The second cooking zone will remain on unless a delayed shut-off has also been set for it.
• Delayed shut down can be set for a maximum of 99 minutes.

CARE AND CLEANING

The hob itself does not warm up, so no food remains should get burnt on it. Therefore, you do not have to wait until it cools down to clean the hob.
Do not use a steam cleaner or high-pressure cleaner to clean the appliance. Risk of damage to the hob!

• Clean the hob with a protective and preservation agent specially designed for ceramic glass surfaces.
• For removal of food remains and other dirt, apply dirt repellent to the hob, which will facilitate cleaning of the hob surface.
• Use only agents and repellents specially designed for ceramic glass surfaces.
• Never use coarse sponges, abrasive agents or aggressive cleaners (e.g. spray for cleaning ovens) or stain removers.
• Keep the control panel clean! Make sure the panel is always clean and dry.
• Food and water residues negatively affect the operation of the control panel; therefore it may not be fully functional.
• Clean the hob after each cooking session. It will prevent the remains of food from burning during the next cooking session.
• For cleaning the lukewarm hob use a cleaning agent and a paper towel. Then wipe the hob with a damp cloth and wipe it dry using a soft cloth.
• If the hob is cleaned while hot, stains could appear on it.
• Never leave residues of the cleaning agent on the hob; it could stain the glass surface.
  • Metallic-gloss colouring appears after the use of unsuitable cleaners or abrasion of the cookware bottom.
• Its removal is very difficult. Use cleaning agents specially designed for ceramic glass surfaces.
• For the removal of food remains and a layer of grease use a special scraper for the glass.
• Clean the hob by placing the scraper at an acute angle and move the blade on the surface. Never use the handle for cleaning the glass surface. Risk of scratches!
• WARNING! The glass scraper is very sharp! Risk of injury! If the edge is damaged, replace it immediately.
  • After cleaning, secure the scraper again and keep it out of the reach of children.

EN

concept

concept

EN

INSTALLATION INSTRUCTIONS

• The warranty does not cover damages caused by incorrect installation.
  • The responsibility for installing the appliance lies with the buyer, not the manufacturer.
• The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation.
  • To ensure the correct function of the appliance, place it in a suitable furniture.
• The appliance should be assembled into correct built-in units and work surfaces that align to the standards and have dimensions shown in Fig. 5.
• The kitchen furniture must be made of sufficiently heat-resistant material, at least 120 °C. The materials and adhesives used must be resistant to heat from the appliance as according to the CSN EN 60335-2-6 standard. Materials and adhesives that do not meet the stated standard may deform or peel-off.

Fig. 5

Follow the following instruction during installation: 1. Remove all the covering and marketing materials from the appliance before the first use.

1. The required dimensions of the built-in space in the worktop made of heat-resistant material of a minimum thickness of 38–40 mm are on Fig. 5.
2. Leave min. 50 mm space for the adjacent cabinets on the sides. Leave at least 50 mm free space behind the hob.
3. We recommend installing a cook hood above the hob. The cooking hood should be at least 600 mm above the hob.
4. A separate cabinet without a cooking hood should be at least 760 mm above the hob (Fig. 6).
5. For sufficient air circulation the appliance needs to be installed as shown in Fig. 6 and the cabinet must be designed so that the air can flow at the bottom. Make sure that the ventilation space of 20mm , between the drawer and the rear wall and 50mm between the drawer and the hob, is free (Fig. 6).
6. Make sure that the ventilation space of 50 mm, between the hob and the top of the below unit, is free.
7. If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is 50 mm.

Fig. 6

1. Position the appliance onto the edge of the worktop and pass the mains cable through the opening so that the plug or terminals remain accessible after installation.

2. Push the appliance carefully into place. Make sure not to cause damage to the mains plug or to the mains cable.

3. The bottom of the hob base is fitted with a sealant to prevent it from moisture and leakage of liquids. After installation the space between the edge of the hob and the worktops should be min. 3 mm (Fig. 7).
4. Secure the hob in the required position from the bottom to the worktop with the supplied retaining clips (Fig. 8).
5. Connect the supply cable to the terminal box and then turn on the appropriate circuit breaker on.

Removal

To uninstall the unit, it is important to proceed correctly:
1. First, switch off the circuit breaker and unplug the mains cable from the socket.
2. Remove the retaining clips.
3. Take out the hob and at the same time pull out the mains cable carefully.

Connecting to the mains power

• Only a qualified person can install this appliance!
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the main power supply.
• Make sure that the parameters on the rating plate are compatible with the mains voltage and the current protection. Otherwise the installed electric circuit could be overloaded, especially in the case of single-phase connection (230 V).
• If the hob is connected to the mains power in a single phase (see Connection of the terminal box of the appliance), all cooking zones cannot be used for maximum performance. The hob automatically reduces the power consumption of individual cooking zones to avoid overloading of the circuit breaker.
  • We recommend using a self-contained electrical circuit to connect to the mains.
• Use solely electric power distribution with PE protective conductor.
• Do not use multi-plug adapters, connectors and extension cables. Risk of fire due to overheating!
  • Make sure that there is access to the mains plug or the circuit breaker after the installation.
• The electrical safety of the appliance can only be guaranteed if the protective terminal of the unit is connected to the protective conductor of the mains.
• The manufacturer is not responsible for any injuries or damages that are the result of incorrect or missing protective installation.
• Make sure the mains cable or plug does not touch the hot appliance or hot cookware, to prevent it from becoming deformed and excessively bent.
• In the event of disconnecting the hob from the mains power, all set parameters will be reset and the hob control panel will be locked.

EN

concept

concept

EN

Connection of the terminal box of the appliance

• The hob is already supplied with a mains cable. In case it is necessary to replace the mains cable due to damage, Fig. 9 or Fig. 10, shows the wiring of the terminal box.
  • The mains cable must be replaced with the same type of cable with the corresponding wire cross section.
• After connecting the new mains cable to the terminal box, secure the cable from being pulled out from the terminal box.
• Follow the same procedure as described above when installing the appliance into the worktop cut-out and connecting it to the mains power.

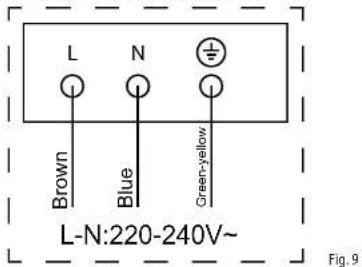

Connecting the hob by a 3-core mains cable (230 V)

Use a cable with wires of a diameter of at least 4 mm ^2 .

TROUBLESHOOTING

Problem Possible cause Remedy
When the hob is switched on the household wiring protection reacts.	The current load is too high for household wiring.	Check that the input of all switched-on units does not exceed the maximum load of the household wiring. Make sure that the parameters on the rating plate are compatible with the mains voltage and the current protection.
After pressing the ON/OFF button of the hob, the hob turns on, but the display for each cooking zone does not work	Power electronics malfunction	Replacement of power electronics required. Contact an authorized service centre.
	Control panel electronics malfunction	Replacement of control panel electronics required. Contact an authorized service centre.
After setting the power level of the cooking zone, the cooking zone does not work	Overheating of the cooking zone	The temperature of the cooking zone is too high. Check that the cooling fan located at the bottom of the hob functions well. If the fan is working, contact an authorised service centre.
	Cooling fan malfunction	Cooling fan replacement required. Contact an authorized service centre.
	Power electronics malfunction	Replacement of power electronics required. Contact an authorized service centre.

Problem Possible cause Remedy
The cooking zone is hot but the control panel does not work	Control panel or power electronics malfunction	Press the ON/OFF button on the hob again and re-set the cooking zones.
The hob switches off during cooking	The ON/OFF button has been pressed accidentally	Press the ON/OFF button on the hob again and re-set the cooking zones.
Cracks or tears in the ceramic glass hob	Cookware has been dropped on the hob, which damaged the ceramic glass hob.	Disconnect the appliance immediately from the power supply by pressing the ON/OFF button or the appropriate circuit breaker. Contact an authorized service centre.
The touch controls are unresponsive.	The control panel is locked.	Unlock the control panel, see paragraph "Advanced appliance functions".
Touch controls are unresponsive.	There is a small layer of water on the control panel.	Make sure the control panel is dry.
	You use your fingertip to touch it.	When touching the buttons, use the whole belly of your finger, not just the tip.
There is a popping, clicking sound when using some containers.	It can be caused by the construction of the vessel - the layers of different metals vibrate differently.	It's not a glitch.

ERROR MESSAGE

Code Problem description Possible cause
E0 Error 0.		Replacement of power supply electronics required.Contact an authorized service center.
E1/E2/E7	Malfunction of the cooking zone temperature sensor.	Temperature sensor replacement required.Contact an authorized service centre.
C1	The cooking zone temperature is too high.	Wait for the cooking zone temperature to drop. Press the on/off button to restart the hob.
E3/E4	Temperature sensor malfunction.	Contact an authorised service centre.
EL/EH	Power supply voltage does not match.	Check the voltage or contact a specialist.
EU	Communication error between electronics.	Contact an authorised service centre.

ENERGY EFFICIENCY

Product information according to EU Directive 66/2014 for the domestic market within the EU

Model identification SDV4330
Type of hob Build-in hob
Number of cooking zones and/ or areas		2
Heating technology Radiant cooking zones
Diameter of circular cooking zones (∅)	Front Rear	16,5 cm20 cm
Dimension of non-circular cooking zones (exi/bridge)	/	/
„Energy consumption per cooking zone or area calculated per kg (EC electric cooking)“	Front Rear	180,4 Wh/kg180,8 Wh/kg
Energy consumption for the hob calculated per kg (EC electric hob)		180,6 Wh/kg

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose of the plastic bags made of polyethylene (PE) as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance conforms the European Union Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE Directive). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material must be performed in accordance to the regulations of waste disposal. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.
